Assembly and
operating instructions
Twilight Switch
GB
D
E P NL
GB
I
F
PL
*
LUNA 109
LUNA 110
*Current connection required for smooth zerocrossing switch operation

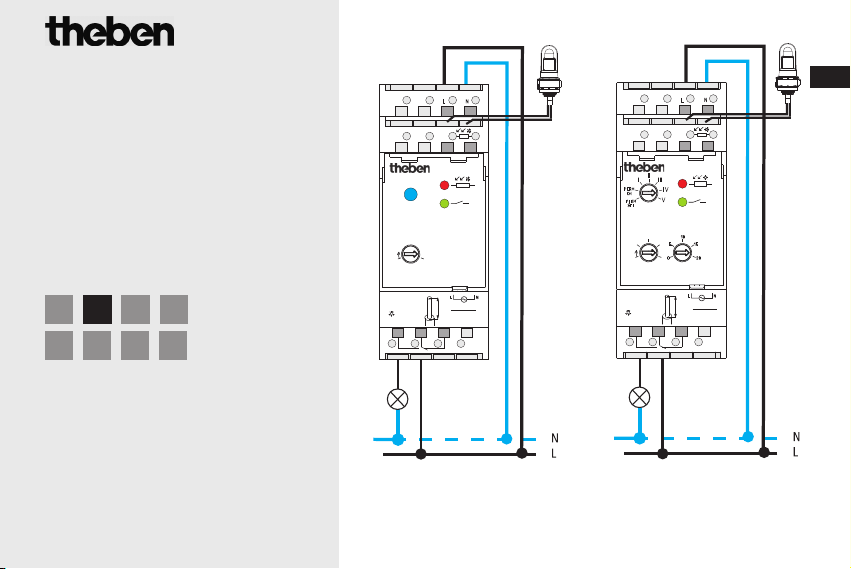

(see connection diagram) only LUNA 110).
Contents
Service address/Hotline 2
Basic advice 3
Connection/assembly 4
Connection/assembly of a light sensor 5
Display and control elements 6
Initial start-up 7
Technical data 8
Serviceadresse
Theben AG
Hohenbergstr. 32
72401 Haigerloch
DEUTSCHLAND
Fon +49 (0) 74 74/6 92-0
Fax +49 (0) 74 74/6 92-150
Hotline
Fon +49 (0) 74 74/6 92-369
Fax +49 (0) 74 74/6 92-207
hotline@theben.de
Adresses, telefon numbers etc.
www.theben.de
2
Basic advice
WARNUNG
Danger of death through electric shock or fire!
Assembly may only be carried out by qualified electricians!
• The device corresponds to EN 60669-2-1; it is designed for installation on DIN top hat rails
(in accordance with EN 50022)
Designated use
• The twilight switch is used for controlling the light facilities of streets, external stairways
shop windows, entrances etc.
• For use only in closed, dry rooms (device); the sensor is intended for ourdoor installation
Disposal
Dispose of equipment in an environmentally-friendly manner
GB
3
Connection/assembly
WARNUNG
Danger of death through electric shock!
Assembly may only be carried out by qualified electricians!
Disconnect power supply!
Ensure it is not turned on again!
Check power is off!
Earth and short-out!
Cover or shield any adjacent live parts.
Connect cable
Strip cable back to 8 mm (max. 9).
Insert cable in open terminal at 45° angle
(2 cables per terminal position possible).
To open spring screwless terminal, press upwards
with screwdriver.
4
Cable 45°
Spring screwless
terminal
Spring
screwless
terminal
opener
Test tap
Connection/Assembly of a light sensor
Note the length of the connecting cable:
max. 100 m (2 x 1,5 mm
Avoid running the sensor line parallel to conductors.
Surface-mounted light sensor: 0,5–2,5 mm
to 10 mm (max. 11 mm).
2
), max. 50 m (2 x 0,75 mm2)
2
, strip the wire
max. 8 mm
O 15,2mm
ca. 38 mm
2
< 50 m
0,75 mm
2
1,5 mm < 100 m
GB
907 0 011 907 0 416 Surface-mounted light sensor
Built-in light sensor
5
Display and control elements
I:2-35Lux
II : 35 - 200 Lux
III : 200 - 1000 Lux
IV:1-5klx
V: 5-50klx
min
min
max
LUNA 110
Lux
Lux
2000
2
Test
LUNA 109
LUNA 109
LUNA 110
6
Potentiometer for setting the brightness: 2-2000 lx
Key Test for checking the installation (independent of
brightness)
Immediate display of the switched condition by means
of a red LED
Display of channel condition by means of a green LED
(relay)
Potentiometer for setting the brightness treshold
Potentiometer for setting the brightness range:
and PERM ON/PERM OFF (test)
– I: 2–35 lx
– II: 35–200 lx
– III: 200–1.000 lx
– IV: 1.000–5.000 lx
– V: 5.000–50.000 lx
+ as described above
Potentiometer for switch ON/switch Off delay
(0 to 20 min.)
I:2-35Lux
II : 35 - 200 Lux
III : 200 - 1000 Lux
IV:1-5klx
V: 5-50klx
min
min
max
LUNA 110
Lux
Initial start-up
The twilight switch with external light sensor is used
for controlling the light facilities of streets, stairways, entrances etc.
Set the desired range I-V on the potentiometer
using a screw driver.
Set the desired treshold .
The red LED will light up, if the set Lux value underruns
the ambient brightness.
LUNA 110
GB
Recommendation: set a delay of at least 1 min,
to avoid
switching errors owing to lightening flashes,
car headlights etc.
Typical brightness values
daylight (bright) 80.000 lx
office rooms 500 lx
corridors and stairs 100-150 lx
street lighting 15 lx
full moon ca. 0,3 lx
7
Technical Data
Nominal voltage: 220–240 V, ~, +10 %/–15 % 220–240 V, ~, +10 %/–15 %
Frequency: 50–60 Hz 50–60 Hz
On/off switch delay: 1 min. 0–20 min.
Power consumption: ca. 3 VA ca. 3 VA
Contact material: AgSnO
Contact: floating
Gap: <3 mm (μ) <3 mm (μ)
Switching capacity max.: 16 A, 250 V~, cos ϕ = 1 16 A, 250 V~, cos ϕ = 1
Switching capacity min.: 10 mA/230 V AC 10 mA/230 V AC
Switching capacity fluorescent lamps: 10 AX 16 AX
Incandescent lamp load: 2300 W 3600 W
Halogen lamp load: 2300 W 3600 W
Fluorescent lamp loads – capacitive ballast
uncorrected: 2300 VA 3600 VA
series corrected: 2300 VA 3600 VA
parallel corrected: 400 VA (42μF) 1200 VA (130μF)
dual circuit: 2300 VA 3600 VA
Fluorescent lamps – electronic ballast: 300 VA 1200 VA
Mercury and sodium vapour
lamps: series corrected: 400 VA (42μF) 1200 VA (130μF)
Compact fluorescent
lamps – electronic ballast: 9x 7W, 7x11 W, 34x7 W,27x11 W, 24x15 W,
Permissible ambient temperature: –30 °C ... +55 °C (device) –30 °C ... +55 °C (device)
Protection class: II (light sensors III) for designated installation
Protection rating: IP 20, IP 55 (surface-mounted light sensor), IP 65 (built-in light sensor) in accordance
8
LUNA 109 LUNA 110
2
100 mA/12 V AC/DC 100 mA/12 V AC/DC
7x15 W, 7x20 W, 7x23 W 22x23 W
–40 °C ... +70 °C (sensor) –40 °C ... +70 °C (sensor)
with EN 60529
AgSnO
2
phase-independent
(zero-crossover switching)
