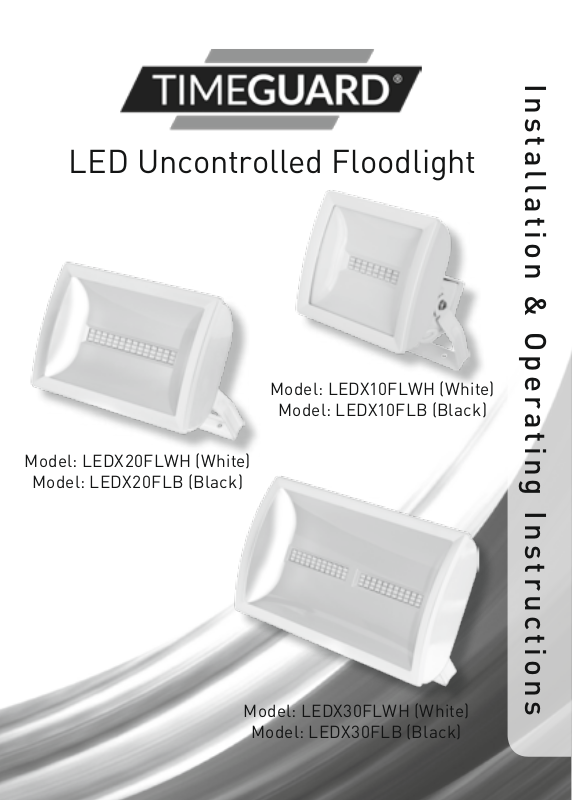

LED Uncontrolled Floodlight
Model: LEDX10FLWH (White)
Model: LEDX10FLB (Black)
Model: LEDX20FLWH (White)
Model: LEDX20FLB (Black)
Installation & Operating Instructions
Model: LEDX30FLWH (White)
Model: LEDX30FLB (Black)
1
1. General Information
These instructions should be read carefully and retained for further reference
and maintenance.
2. Safety
• Before installation or maintenance, ensure the mains supply to the luminaire
is switched off and the circuit supply fuses are removed or the circuit breaker
turned off.
• It is recommended that a qualified electrician is consulted or used for
the installation of this luminaire and install in accordance with the
current IEE wiring and Building Regulations.
• Check that the total load on the circuit including when this luminaire is fitted
does not exceed the rating of the circuit cable, fuse or circuit breaker.
3. Technical Specifications
• 230V AC, 50Hz
• These luminaires are of class I construction and must be earthed
• Colour Temperature: 5000K – 5600K
• Energy Efficiency: class A
• IP55 Rated suitable for restricted external applications
• CE Approved
LEDX10FLB-WH
• 10W LED Non replaceable lamp
• Energy Usage: 10Kwh/1000h
• Lumen Output: Black: 685 lm, White: 750lm
LEDX20FLB-WH
• 20W LED Non replaceable lamp
• Energy Usage: 20Kwh/1000h
• Lumen Output: Black: 1260lm, White: 1325lm
LEDX30FLB-WH
• 30W LED Non replaceable lamp
• Energy Usage: 30Kwh/1000h
• Lumen Output: Black: 2115lm, White: 2310lm
2
4. Installation
• Mark the position of the mounting holes
on the wall using the U bracket supplied
as a template.
• Drill the holes for the wall plugs ensuring
not to infringe with any gas/water pipes
or electrical cables that may be hidden
below the surface.
• Fix the U bracket to the wall using
the correct screws for the wall
plugs installed.
• Secure the supply cable into the junction box through the hole(s) provided
ensuring that a cable gland, grommet or sealing compound is used
to maintain the IP rating of the luminaire.
• Attach the strain relief to the luminaire
and screw in ensuring not to over-tighten.
• Terminate the supply cable into the terminal
block (please refer to section 5 connection
diagram) ensuring correct polarity is observed
and that all bare conductors are sleeved.
• Attach the supplied wall plate to the luminaire,
apply pressure to catches located on top and
bottom until all click into place to ensure the
weatherproof seal.
3 4
• Attach the luminaire to the U bracket
fitted to the wall, then screw in on both
sides ensuring not to over-tighten.
LN
MAINS
SUPPL
E
5. Connection Diagram
ISOLATION
SWITCH
L
4
Y
Connect the 3 core mains supply cable to the block on the unit as follows:-
LIVE (Brown or Red) L
NEUTRAL (Blue or Black) N
EARTH (Green/Yellow)
N
6. Operation
• Turn the power on to the isolating switch and test for correct operation.
7. Lamp Adjustment
• The lamp can be tilted upwards 45° and tilted downwards 60°.
5 6
6
3 Year Guarantee
In the unlikely event of this product becoming faulty due to defective material or
manufacture within 3 years of the date of purchase, please return it to your supplier
in the first year with proof of purchase and it will be replaced free of charge.
For years 2 and 3 or any difficulty in the first year, telephone the helpline
on 020 8450 0515.
Note: A proof of purchase is required in all cases. For all eligible replacements (where
agreed by Timeguard) the customer is responsible for all shipping/postage charges
outside of the UK. All shipping costs are to be paid in advance before a replacement
is sent.
If you experience problems, do not immediately return the unit
to the store. Telephone the Timeguard Customer Helpline;
HELPLINE
020 8450 0515
or email helpline@timeguard.com
Qualified Customer Support Co-ordinators will be on-line
to assist in resolving your query.
For a product brochure please contact:
Timeguard Limited.
Victory Park, 400 Edgware Road,
London NW2 6ND
Sales Office: 020 8452 1112
or email csc@timeguard.com
Zerofour – August 2015
www.timeguard.com
67-058-501 (Issue 3)
