12W LED Slimline IP54
Round Wall/Ceiling Light
Model: LEDSR12WH – White
Model: LEDSR12B – Black
Installation & Operating Instructions
1
1. General Information
These instructions should be read carefully and retained for further reference
and maintenance.
2. Safety
• Before installation or maintenance, ensure the mains supply to the luminaire
is switched off and the circuit supply fuses are removed or the circuit breaker
turned off.
• It is recommended that a qualified electrician is consulted or used for
the installation of this luminaire and install in accordance with the
current IEE wiring and Building Regulations.
• Check that the total load on the circuit including when this luminaire is fitted
does not exceed the rating of the circuit cable, fuse or circuit breaker.
3. Technical Specifications
• 230V AC 50 Hz
• This luminaire is of class II construction and must not be earthed
• 12W LED Non-replaceable lamp
• Energy efficiency: Class A
• Energy Usage: 12KwH/1000H
• Lumen Output: 850lm
• Colour Temperature: 4000K
• IP54 Rated suitable for restricted external applications
• CE Approved
• Dimensions: 211mm Diameter x 55mm
• Mounting Hole Centres: 160mm
2
4. Installation
• Remove the bezel by releasing the two lugs top and bottom on the rear
of the luminaire.
• Carefully lift away the diffuser/cover and disconnect the 2 way plug by
holding down the locking bar on one half, at the same time grip the two
release clips on opposite side and pull apart. This will disconnect the
diffuser/cover completely (see diagram A below).
• Select a suitable cable entry point either provided or by drilling into the base
ensuring not to damage or infringe on any of the internal components, the
mounting holes on the back plate can also be drilled out at this stage.
• Mark the position of the mounting holes on the wall or ceiling.
• Drill the holes for the wall plugs ensuring not to infringe with any gas/water
pipes or electrical cables that may be hidden below the surface.
• Secure the supply cable into the luminaire through the hole(s) provided
ensuring that a cable gland, grommet or sealing compound is used to
maintain the IP rating of the luminaire.
• Fix the luminaire using the correct screws for the wall plugs installed.
• Terminate the cable into the terminal block (see connection diagram right)
ensuring correct polarity is observed and that all bare conductors are sleeved.
• Re-connect the 2 way plug by pushing the plug and socket together until
they lock. DO NOT FORCE. THE PLUG AND SOCKET WILL ONLY FIT TOGETHER
ONE WAY AROUND (see diagram A below).
• Reposition the lens over the unit, taking care to ensure the gasket is in place.
• Secure the lens using the 4 Philips screws and snap the bezel over the lens.

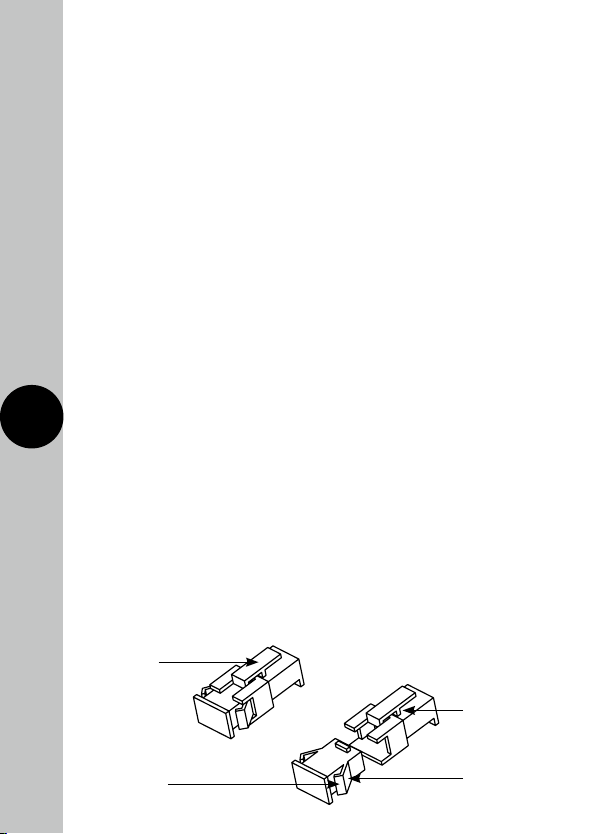

Locking bar
Release clips
Diagram A
Press locking
bar with one
hand, grip the
release clips
with the other
and pull (push
to reconnect).
3

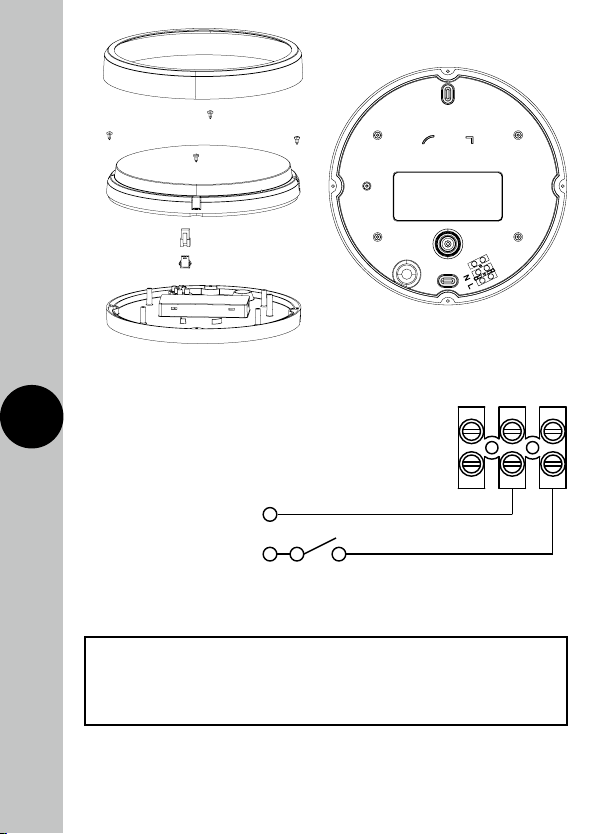

5. Connection Diagram
LOOP
TERMINAL
LN
MAINS
SUPPLY
LIVE (Brown or Red) L
NEUTRAL (Blue or Black) N
A ‘Loop Terminal’ is provided should a 3 core cable be used.
N
L
ISOLATION
SWITCH
6. Operation
Turn the power on to the isolating switch and test for correct operation.
4
3 Year Guarantee
In the unlikely event of this product becoming faulty due to defective material or
manufacture within 3 years of the date of purchase, please return it to your supplier
in the first year with proof of purchase and it will be replaced free of charge.
For years 2 and 3 or any difficulty in the first year, telephone the helpline
on 020 8450 0515.
Note: A proof of purchase is required in all cases. For all eligible replacements (where
agreed by Timeguard) the customer is responsible for all shipping/postage charges
outside of the UK. All shipping costs are to be paid in advance before a replacement
is sent.
If you experience problems, do not immediately return the unit
to the store. Telephone the Timeguard Customer Helpline;
HELPLINE
020 8450 0515
or email helpline@timeguard.com
Qualified Customer Support Co-ordinators will be on-line
to assist in resolving your query.
For a product brochure please contact:
Timeguard Limited.
Victory Park, 400 Edgware Road,
London NW2 6ND
Sales Office: 020 8452 1112
or email csc@timeguard.com
Zerofour – July 2015
www.timeguard.com
67-058-527 (Issue 1)
