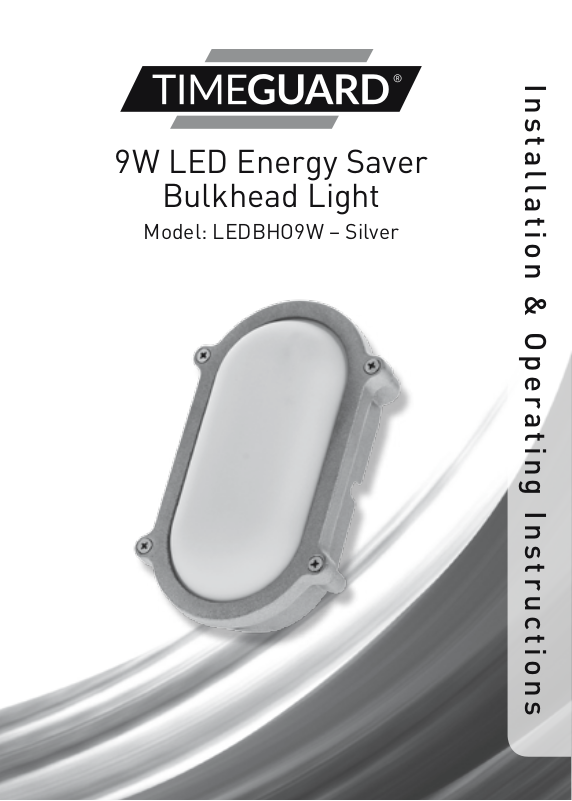

9W LED Energy Saver
Bulkhead Light
Model: LEDBHO9W – Silver
Installation & Operating Instructions
1
1. General Information
These instructions should be read carefully and retained for further reference
and maintenance.
2. Safety
• Before installation or maintenance, ensure the mains supply to the luminaire
is switched off and the circuit supply fuses are removed or the circuit breaker
turned off.
• It is recommended that a qualified electrician is consulted or used for
the installation of this luminaire and install in accordance with the
current IEE wiring and Building Regulations.
• Check that the total load on the circuit including when this luminaire is fitted
does not exceed the rating of the circuit cable, fuse or circuit breaker.
3. Technical Specifications
• 230V AC 50 Hz
• This luminaire is of class I construction and must be earthed
• 9W LED non replaceable lamp
• Energy Efficiency: Class A
• Energy Usage: 9.3KwH/1000H
• Lumen Output: 530lm
• Colour Temperature: 5000K
• IP65 Rated suitable for restricted external applications
• CE Approved
• Dimensions: 155mm x 100mm x 52mm
• Mounting Hole Centres: 124mm
2
4. Installation
• Remove the front of the unit by undoing the 4 Allen bolts (a 2.5mm Allen key
is required), remove the bezel and lens with gasket.
• Mark the position of the mounting holes on the wall using the unit
as a template.
• Drill the holes for the wall plugs ensuring not to infringe with any
gas/water pipes or electrical cables that may be hidden below the surface.
• Undo the cable gland sufficiently to allow the cable to be pushed through
the back.
• Secure the supply cable into the luminaire through the hole(s) provided
ensuring that a cable gland, grommet or sealing compound is used
to maintain the IP rating of the luminaire.
• Leave enough slack to allow for wiring, re-tighten the cable gland.
• Fix the luminaire using the correct screws for the wall plugs installed.
• Terminate the cable into the terminal block (see section 5 connection diagram)
ensuring correct polarity is observed and that all bare conductors are sleeved.
• Secure the supply cable using the cable clamp.
• Reposition the lens over the unit, taking care to ensure the gasket is in place.
• Secure the lens and bezel back into place using the 4 Allen bolts previously
removed at the beginning of the installation. Note: 4x Pozi screws are supplied,
which can be used instead of the 4x Allen bolts.
5. Connection
LN
MAINS
SUPPL
E
N
3
Y
Live (brown or red) L
Neutral (blue or black N
Earth (green/yellow)
L
ISOLATION
SWITCH
6. Operation
Turn the power and the unit will illuminate.
4
3 Year Guarantee
In the unlikely event of this product becoming faulty due to defective material or
manufacture within 3 years of the date of purchase, please return it to your supplier
in the first year with proof of purchase and it will be replaced free of charge.
For years 2 and 3 or any difficulty in the first year, telephone the helpline
on 020 8450 0515.
Note: A proof of purchase is required in all cases. For all eligible replacements (where
agreed by Timeguard) the customer is responsible for all shipping/postage charges
outside of the UK. All shipping costs are to be paid in advance before a replacement
is sent.
If you experience problems, do not immediately return the unit
to the store. Telephone the Timeguard Customer Helpline;
HELPLINE
020 8450 0515
or email helpline@timeguard.com
Qualified Customer Support Co-ordinators will be on-line
to assist in resolving your query.
For a product brochure please contact:
Timeguard Limited.
Victory Park, 400 Edgware Road,
London NW2 6ND
Sales Office: 020 8452 1112
or email csc@timeguard.com
Zerofour – October 2015
www.timeguard.com
67-058-511 (Issue 2)
