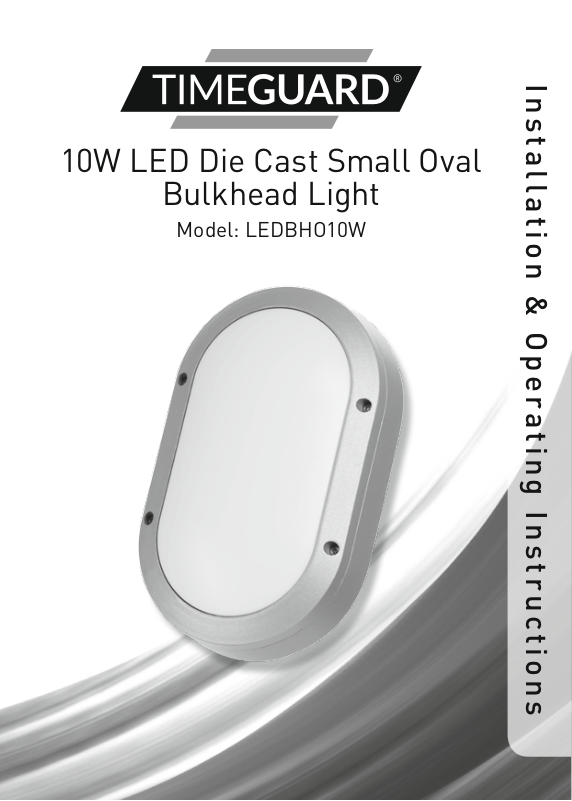

10W LED Die Cast Small Oval
Bulkhead Light
Model: LEDBHO10W
Installation & Operating Instructions
Page 2
1. General Information
These instructions should be read carefully and retained for further reference and maintenance.
• Before installation or maintenance, ensure the mains supply to the luminaire is switched off and the circuit supply fuses are removed or the circuit breaker turned off.
• It is recommended that a qualified electrician is consulted or used for the installation of this luminaire and install in accordance with the current IEE wiring and Building Regulations.
• Check that the total load on the circuit including when this luminaire is fitted does not exceed the rating of the circuit cable, fuse or circuit breaker.
1
3. Technical Specifications
• 230V AC 50 Hz
• This luminaire is of class I construction and must be earthed
• 10W LED non replaceable lamp
• Energy efficiency Class A
• Energy Usage: 10kWh/1000H
• Power Factor: Greater or equal to 0.5
• Lumen Output: 650lm
• Colour Temperature: 5000K
• Operating Temperature: 0°C to +40°C
• IP65 Rated suitable for restricted external applications
• CE Certified
• EC Directives: Conforms to latest directives
• Dimensions (H x W x D): 218 x 133 x 57mm
• Mounting Hole Centres: 85mm x 74mm
Page 3
2
Alternative bezels available in range (sold separately):-
LEDBHO10ELB Small Oval Eyelid Bezel
LEDBHO10GRB Small Oval Grill Bezel
4. Installation
• Ensure that the mains supply to the circuit breaker is switched off and the circuit supply fuses are removed or the circuit breaker turned OFF.
• Remove the front of the unit by undoing the 4 Pozi screws and then remove the bezel and lens with gasket.
• Turn the 2 central fasteners 90 degrees so they match with the slots, this will release the gear tray.

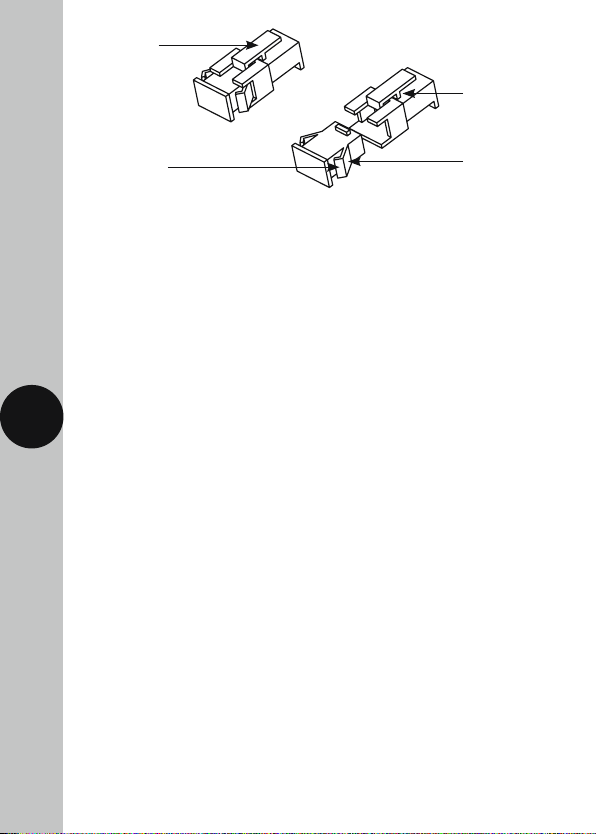

• Carefully lift the gear tray and disconnect the 2 way plug. You can do this by holding down the locking bar on one half, at the same time grip the 2 release clips on opposite side and pull. This will disconnect the gear tray completely.
Page 4
Locking bar
Release clips
• Mark the position of the mounting holes on the wall using the unit as a template (there are provision for 4 mounting holes) and drill the holes ensuring not to infringe with any gas/water pipes or electrical cables that may be hidden below the surface. Insert the rawl plugs into the holes.
• Pass the 230V 50Hz mains supply cable through the cable entry points on the wall plate, ensuring the grommet is used to maintain the IP rating of the luminaire.
3 4
• Fix the luminaire to the wall using the correct screws for the rawl plugs installed.
• Terminate the supply cable into the terminal block (See section 5. Connection Diagram) ensuring correct polarity is observed and that all bare conductors are sleeved.
• Reconnect the 2 way plug the opposite way that was used to disconnect. This can be achieved by holding down the locking bar on one half, at the same time grip the 2 release clips on opposite side and push together. This will re-connect the gear tray.
• Position the gear tray over the 2 central fasteners. Turn them both 90 degrees so they are opposite to the slots locking the gear tray to the unit.
Press locking bar with one hand, grip the release clips with the other and pull (push to reconnect).
Page 5

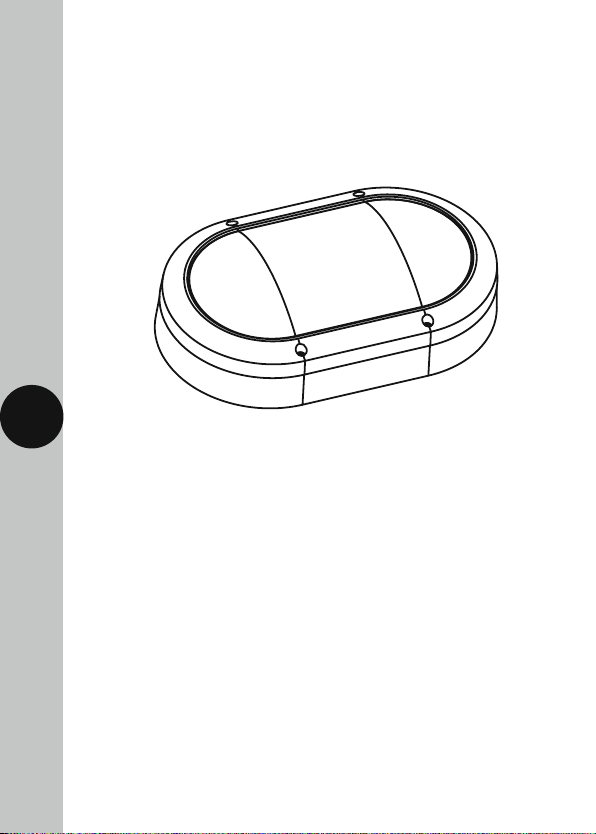

• Reposition the lens over the unit, taking care to ensure the gasket is in place.
• Secure the lens and bezel back into place using the 4 Pozi screws previously removed at the beginning of the installation. Make sure not to overtighten.
4
Note: 4 Allen bolts are also supplied which can be used instead
of the four Pozi screws if required. If used a 3mm Allen key is required. You are also able to change the bezel at this stage using one of the alternatives listed at the beginning of these instructions – Sold separately.
Page 6
LN
230V~50Hz MAINS SUPPL
L
E N

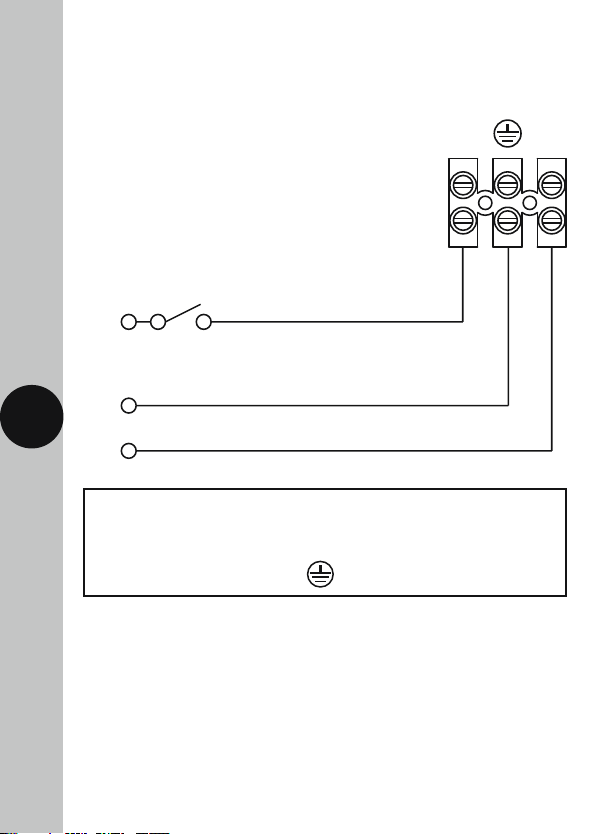

5. Connection Diagram
• Connect the 230V 50Hz mains supply cable to the terminal block as marked below;
Y
ISOLATION SWITCH
5 6
Live (Brown or Red) to L
Neutral (Blue or Black) to N
Earth (Green/Yellow) to
6. Operation
• Turn the power to the bulkhead ON and the unit will illuminate.
Page 7
6
3 Year Guarantee
In the unlikely event of this product becoming faulty due to defective material or manufacture within 3 years of the date of purchase, please return it to your supplier in the first year with proof of purchase and it will be replaced free of charge. For years 2 and 3 or any difficulty in the first year, telephone the helpline on 020 8450 0515.
Note: A proof of purchase is required in all cases. For all eligible replacements (where agreed by Timeguard) the customer is responsible for all shipping/postage charges outside of the UK. All shipping costs are to be paid in advance before a replacement is sent.
Page 8
If you experience problems, do not immediately return the unit
to the store. Telephone the Timeguard Customer Helpline;
HELPLINE
020 8450 0515
or email helpline@timeguard.com
Qualified Customer Support Co-ordinators will be on-line
to assist in resolving your query.
For a product brochure please contact:
Timeguard Limited.
Victory Park, 400 Edgware Road,
London NW2 6ND
Sales Office: 020 8452 1112
or email csc@timeguard.com
Zerofour – June 2016
www.timeguard.com
67.058.549 (Issue 1)
