6.5W LED Energy Saver
Bulkhead Light
Model: LED88N – Black
Installation & Operating Instructions
Page 2
1
1. General Information
These instructions should be read carefully in full before installation, and retained
for further reference and maintenance.
2. Safety
• Before installation or maintenance, ensure the mains supply to the luminaire
is switched off and the circuit supply fuses are removed or the circuit breaker
turned off.
• It is recommended that a qualified electrician is consulted or used for the
installation of this luminaire and install in accordance with the current IEE
wiring and Building Regulations.
• Check that the total load on the circuit including when this luminaire is fitted
does not exceed the rating of the circuit cable, fuse or circuit breaker.
3. Technical Specifications
• 230V AC 50 Hz
• This luminaire is of class II construction and must not be earthed
• 6.5W LED Non replaceable lamp
• Energy efficiency: Class A+
• Energy Usage: 6.5kWh/1000H
• Lumen Output: 500lm
• Beam Angle: 90º x 90º
• Colour Temperature: 3700K – 4200K
• Operating Temperature: -20°C to +40°C
• IP55 Rated suitable for restricted external applications
• CE Compliant
• Dimensions: H= 205mm W= 108mm D= 63.5mm
Page 3
4. Installation
Installation
TIMEGUARD LED BULKHEAD UC MANUAL DRAWING

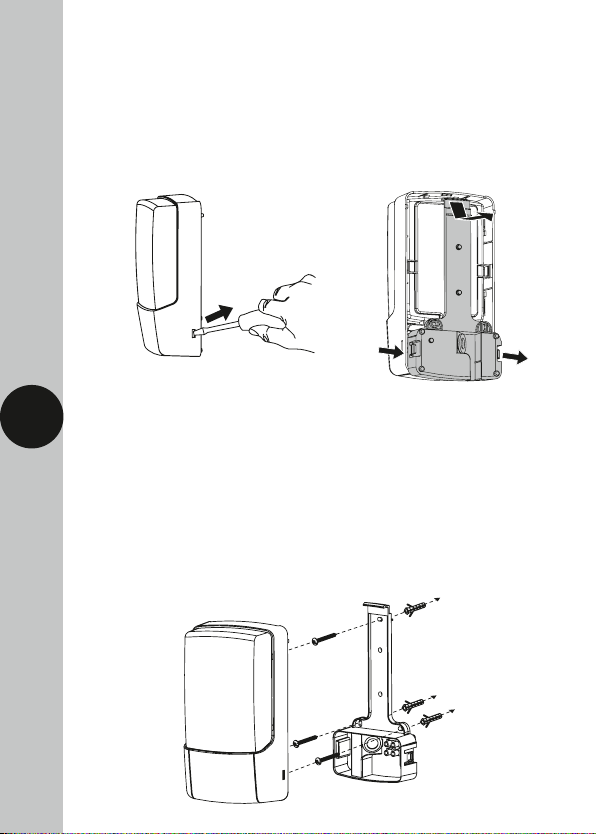

4.1 Ensure the mains supply is switched off and the circuit supply fuses
are removed or the circuit breaker turned OFF.
4.2 Remove the wall plate by releasing the 2 lugs, left & right, located
on the rear bottom section of the luminaire and gently ease the wall
plate down/outwards from the top.
2
4.3 Mark the position of the mounting holes on the wall using the wall plate as
a template, and drill the holes ensuring not to infringe with any gas/water
pipes or electrical cables that may be hidden below the surface. Insert the
wall plugs.
4.4 Secure the supply cable into the wall plate through the hole(s) provided
ensuring that a cable gland, grommet or sealing compound is used to
maintain the IP rating of the luminaire.
4.5 Fix the wall plate using the correct screws for the wall plugs installed.
Page 4
4.6 Terminate the cable into the terminal block (See section 5. Connection
Installation
TIMEGUARD LED BULKHEAD UC MANUAL DRAWING
1/
/
1
,62/$7,21
6:,7&+
MAINS
SUPPLY
Connection Diagram
Diagram) ensuring correct polarity is observed and that all bare conductors
are sleeved.

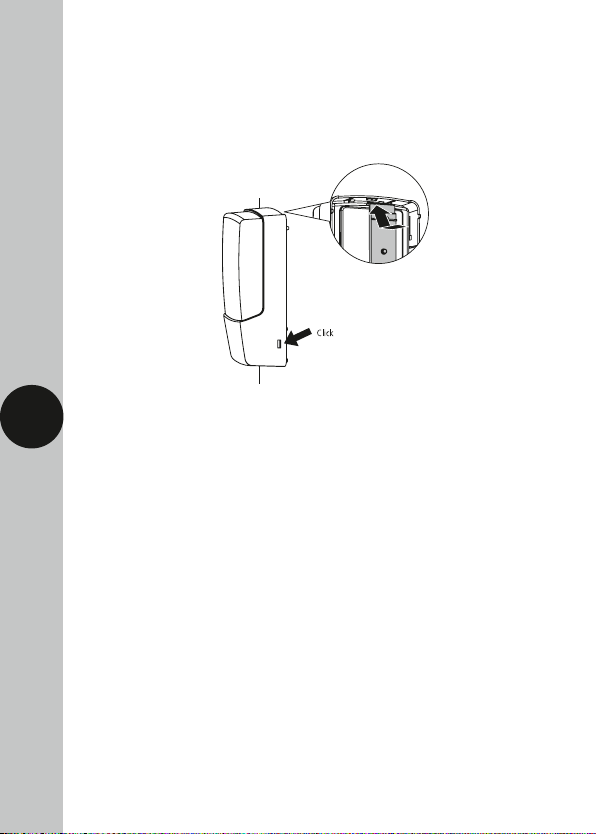

4.7 Re-connect the luminaire to the wall plate by positioning it on the top first,
and then push on the bottom of the unit ensuring both lugs click into place.
3 4
Page 5

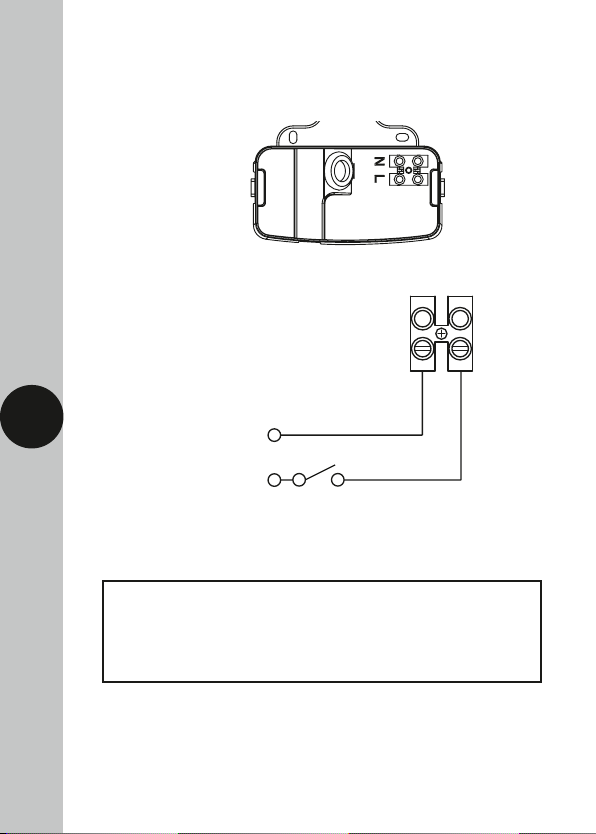

5. Connection Diagram
1/
/
1
,62/$7,21
6:,7&+
MAINS
SUPPLY
Connection Diagram
• Connect the 230V 50Hz mains supply cable to the terminal block as shown.
4
230V 50Hz
Supply Live (Brown or Red) to L
Supply Neutral (Blue or Black) to N
Page 6
6. Operation
• Turn the power to the unit ON and the unit will illuminate.
7. Support
Note: If you have any concerns that the intended application of this
product does not meet your requirements, please contact Timeguard
directly prior to installation.
8. Guarantee & Company Details
3 Year Guarantee
In the unlikely event of this product becoming faulty due to defective material
or manufacture, within 3 years of the date of purchase, please return it to your
supplier in the first year with proof of purchase and it will be replaced free of
charge. For years 2 to 3 or any difficulty in the first year, telephone our helpline.
5 6
Note: a proof of purchase is required in all cases. For all eligible replacements
(where agreed by Timeguard) the customer is responsible for all shipping/
postage charges outside of the UK. All shipping costs are to be paid in advance
before a replacement is sent.
Page 7
6
Page 8
If you experience problems, do not immediately return the unit
to the store. Telephone the Timeguard Customer Helpline;
HELPLINE
020 8450 0515
or email helpline@timeguard.com
Qualified Customer Support Co-ordinators will be on-line
to assist in resolving your query.
For a product brochure please contact:
Timeguard Limited.
Victory Park, 400 Edgware Road,
London NW2 6ND
Sales Office: 020 8452 1112
or email csc@timeguard.com
TG41174 – March 2019
www.timeguard.com
67-058-657 (Issue 1)
