TWIN SPOT 8W
x2 LED LIGHT
Model: LED200FLWH - White
Model: LED200FLB - Black
Installation & Operating Instructions
1. Designated Use
• LED200FL is an outdoor LED light.
• Suitable for installation on walls.
• Simple plug in wall plate for easy & safe connection.
• Suitable for a wide range of locations: corridors, gardens, staircases, entrances,
garages, outdoor parking areas etc.
2. Basic Safety Instruction
Danger of death through electric shock or fi re!
• Must only be installed by qualifi ed electricians.
• Avoid the metal parts of the device due to potentially high temperature.
• The device conforms to EN60598 for designated installation; IP44 in accordance
1
with EN 60598 and IEC62471 Photo biological safety of lamps and lamp system.
• Designed for use in normal environments.
• Intended for outdoor installation.
• Energy saving.
• Long LED bulb life.
Index :
Page 2 Contents & Tools required.
Page 3 Product dimensions.
Page 4 Installation procedure.
Page 5 Lamp adjustment, High temperature in lamp.
3. Contents:
Whats in the box?
x 2
2
4. Tools Required:
Tools/equipment needed for installation.
x 1
x 1
x 1 x 1 x 1
x 2
5. Product Dimensions:
22.00
161.00
81.00
75.00
3
165.00
47.50
81.00
6. Installation Procedure:
Switch off the power. Twist-open the wall plate.
240V
OFF
Fix the wall plate to the wall.
Ø5mm
60mm
4
Feed the wires through rubber gasket
of the wall plate and attach to
corresponding terminal.
L N
Mounting Screws x2
LNLIVE BROWN
BLUE
NEUTRAL
GREEN/
EARTH
YELLOW
Switch On the power.
240V
ON
L N
Attach the device to the wall plate.

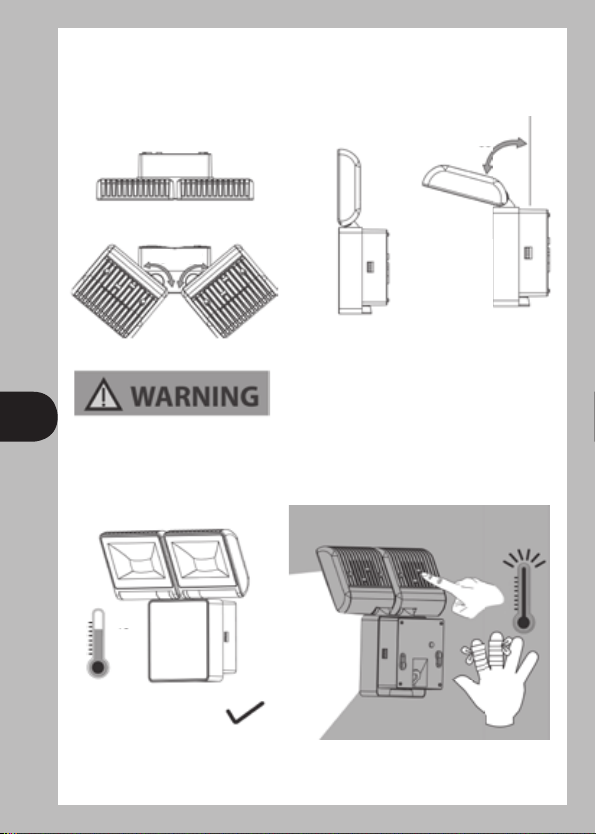

Lamp Adjustment
The lamp can be tilted down 85 deg. and pan outwardly 40 deg.
40º
40º
5
High Temperature
The temperature of the lamp is very high during operating. You will get hurt,
if you touch the heat sink.
+40ºC
40
30
-20ºC
20
10
85º
40
30
20
10
3 Year Guarantee
In the unlikely event of this product becoming faulty due
to defective material or manufacture within 3 years of the
date of purchase, please return it to your supplier in the
first year with proof of purchase and it will be replaced free
of charge. For years 2 and 3 or any difficulty in the first year telephone
the helpline on 020 8450 0515.
6
HELPLINE
020 8450 0515
or email helpline@timeguard.com
For a product brochure please contact:
Timeguard Limited.
Victory Park, 400 Edgware Road,
London NW2 6ND
Sales Offi ce: 020 8452 1112
or email csc@timeguard.com
Zerofour – August 2011
Designed in the U.K. 67-058-420
