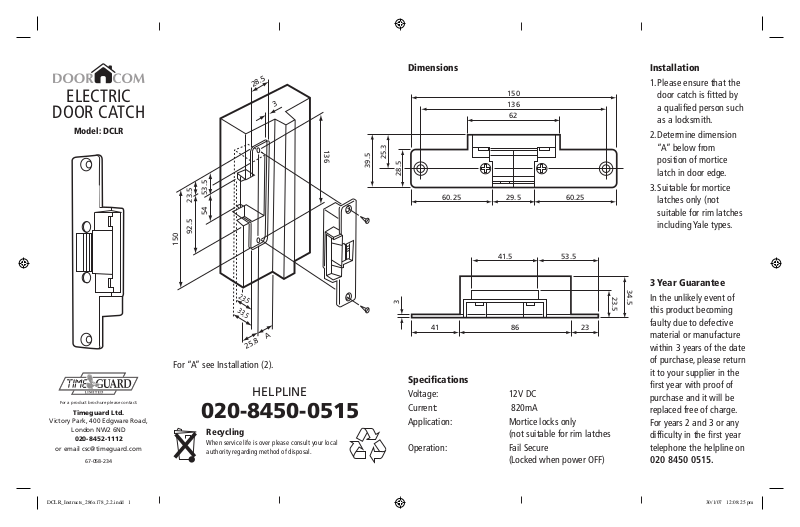

Timeguard DCLR User Manual

ELECTRIC

DOOR CATCH

Model: DCLR

For a product brochure please contact:

Timeguard Ltd.

Victory Park, 400 Edgware Road,

London NW2 6ND

020-8452-1112

or email [e-mail]

67-058-234

28.5

23.5

54 53.5

92.5

150

23.5

33.5

A

25.8

For “A” see Installation (2).

HELPLINE

020-8450-0515

Recycling

When service life is over please consult your local
authority regarding method of disposal.

Dimensions

Installation

1. Please ensure that the

150

3

136

62

door catch is fi tted by
a qualifi ed person such
as a locksmith.

2. Determine dimension

136

25.3

39.5

28.5

“A” below from
position of mortice
latch in door edge.

3. Suitable for mortice

29.5 60.2560.25

latches only (not
suitable for rim latches
including Yale types.

41.5 53.5

3 Year Guarantee

34.5

3

23.5

In the unlikely event of
this product becoming

86 2341

faulty due to defective
material or manufacture
within 3 years of the date
of purchase, please return
it to your supplier in the

Specifi cations

Voltage: 12V DC
Current: 820mA
Application: Mortice locks only

(not suitable for rim latches
Operation: Fail Secure

(Locked when power OFF)

fi rst year with proof of
purchase and it will be
replaced free of charge.
For years 2 and 3 or any
diffi culty in the fi rst year
telephone the helpline on

020 8450 0515.
