Timber Tuff Tools CS-96V User Manual

9.6V CORDLESS CHAINSAW SHARPENER

___

IMPORTANT: READ THESE INSTRUCTIONS CAREFULLY TO ENSURE SAFE OPERATION

OF THIS PRODUCT.

MODEL #CS-96V

GENERAL INFORMATION

Read all instructions before operating this product. Save these instructions for
future reference. This manual contains the intention for which the product has been
designed and necessary information to ensure correct and safe use. It is recommended
to read ALL instructions before any operation, any kind of adjustment, or any
assembly/maintenance to this product. Following all general safety instructions
contained in this manual will provide product and operator safety, and a longer usage
life for this product.

CONTENTS

Contents ………………………………………………………………………2
Specification ………………………………………………………………………2
General Safety Instructions ………………………………………………………………………3
Additional Safety Instructions ………………………………………………………………………5

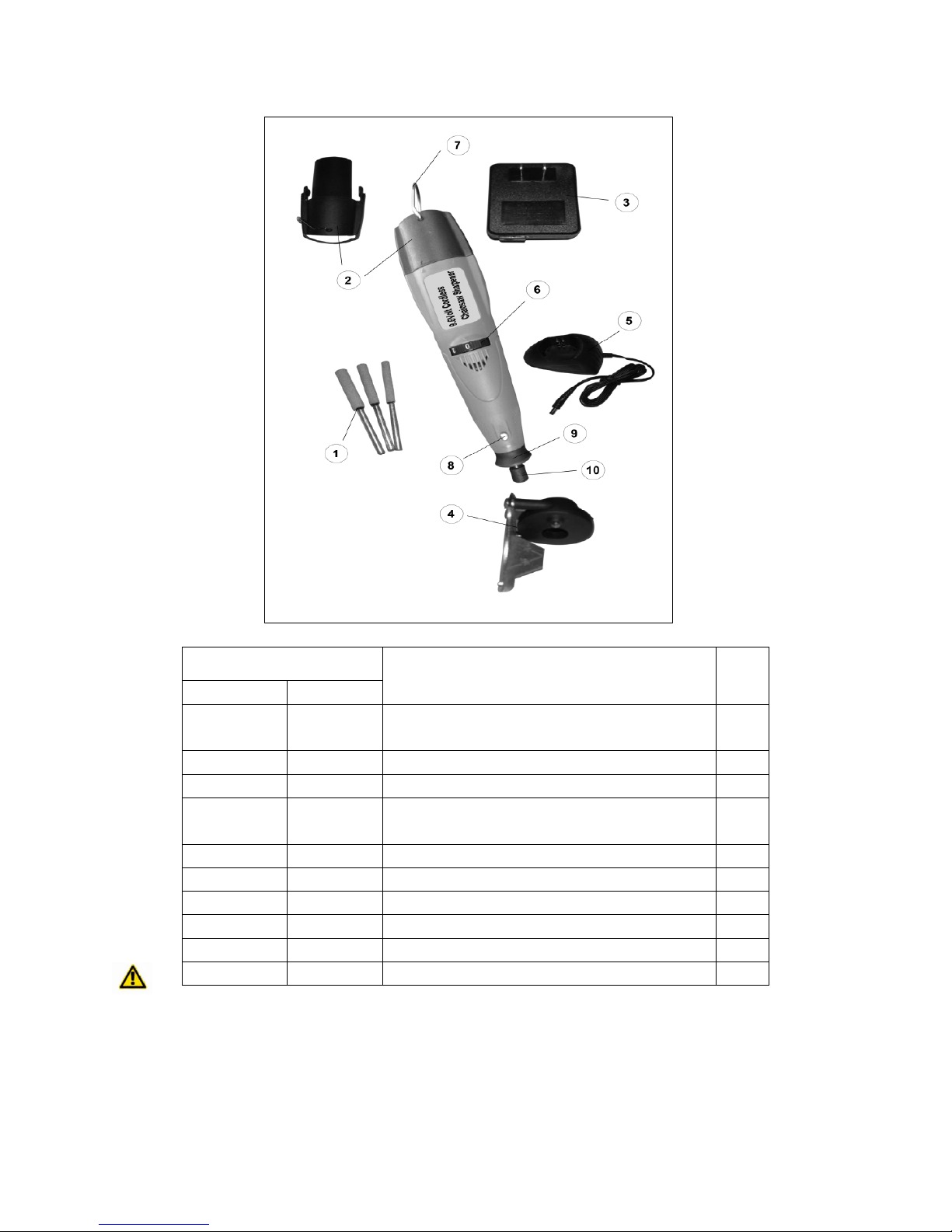

Parts Listing & Information ………………………………………………………………………6

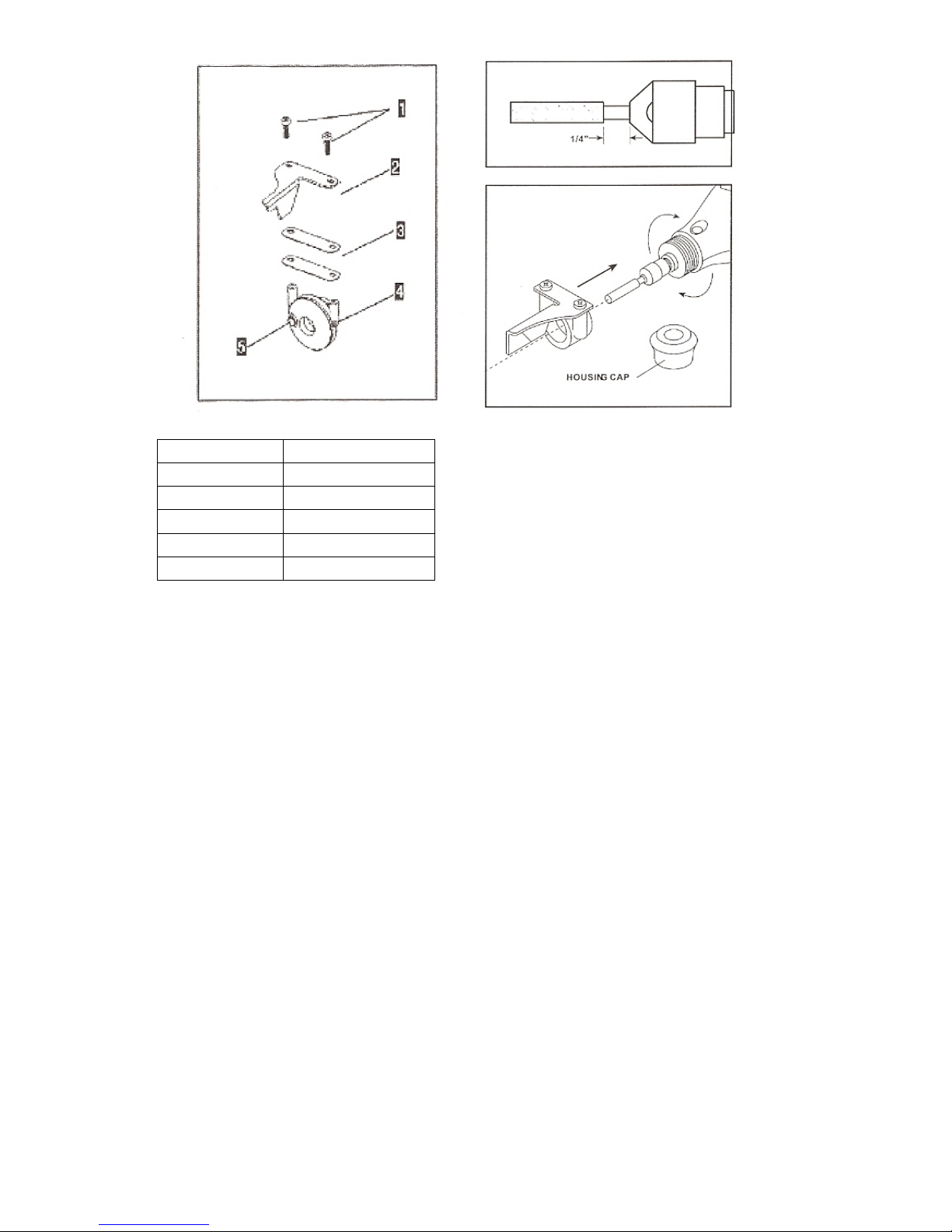

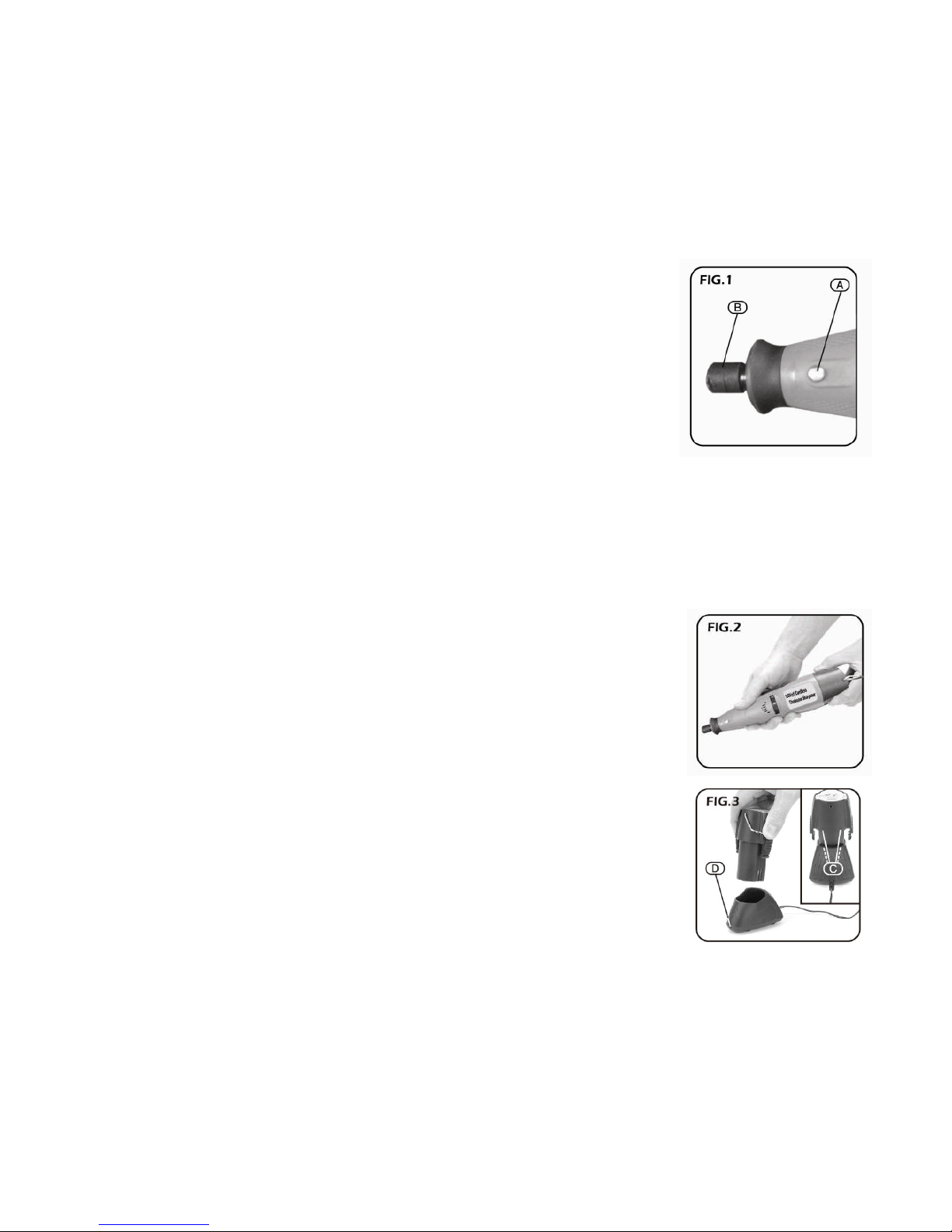

Assembly ………………………………………………………………………7

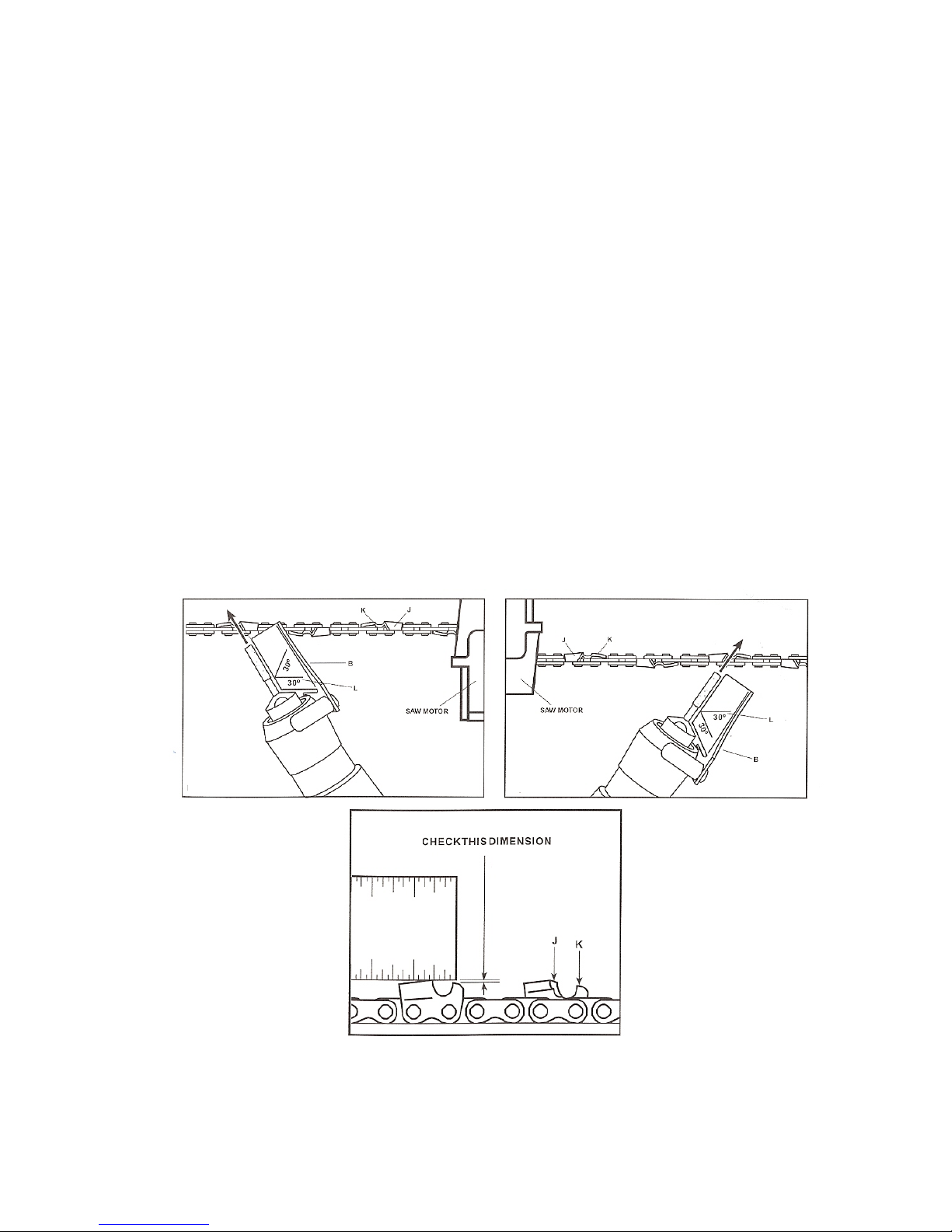

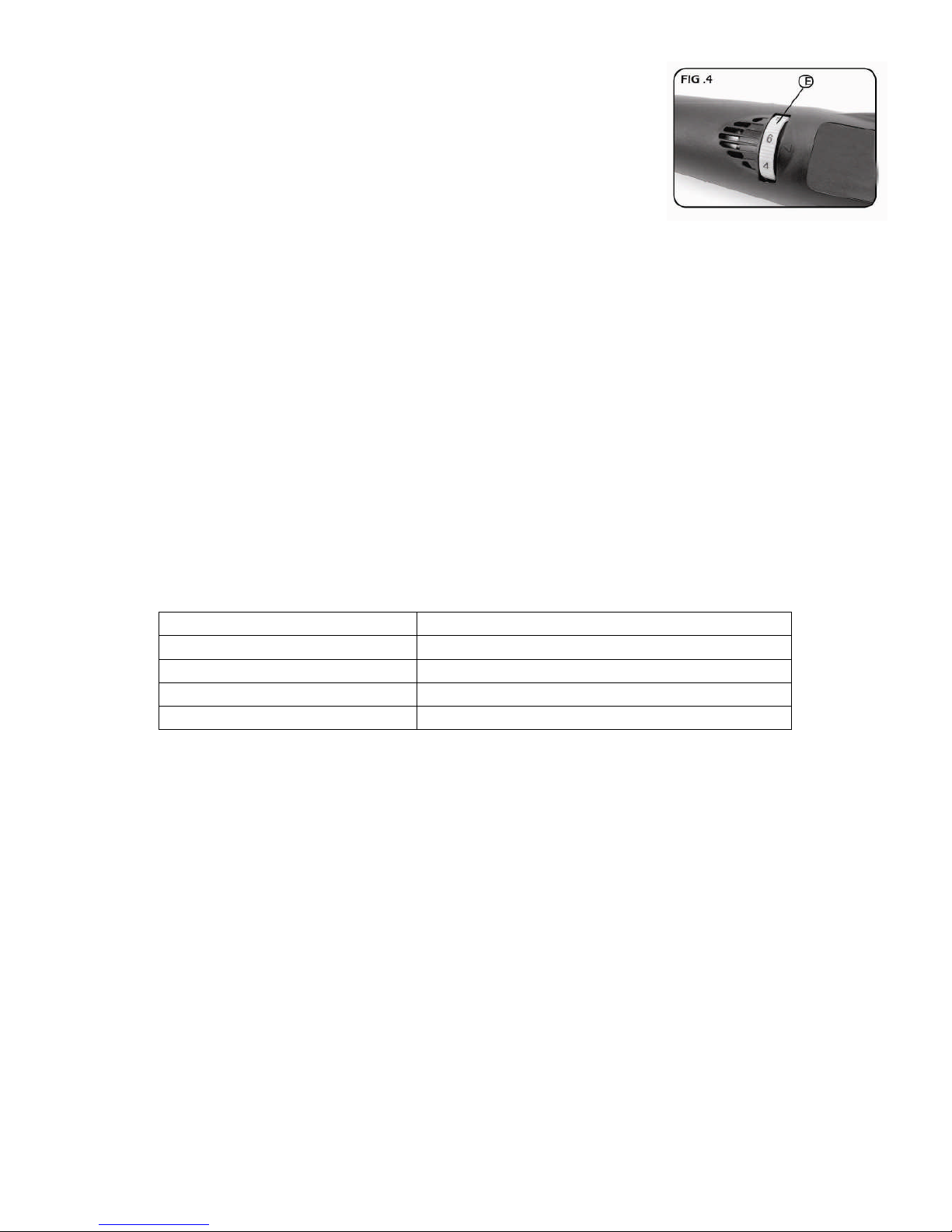

Operation and Use(CHAIN SHARPENING) ………………………………………………………………………7-10
Maintenance ………………………………………………………………………11

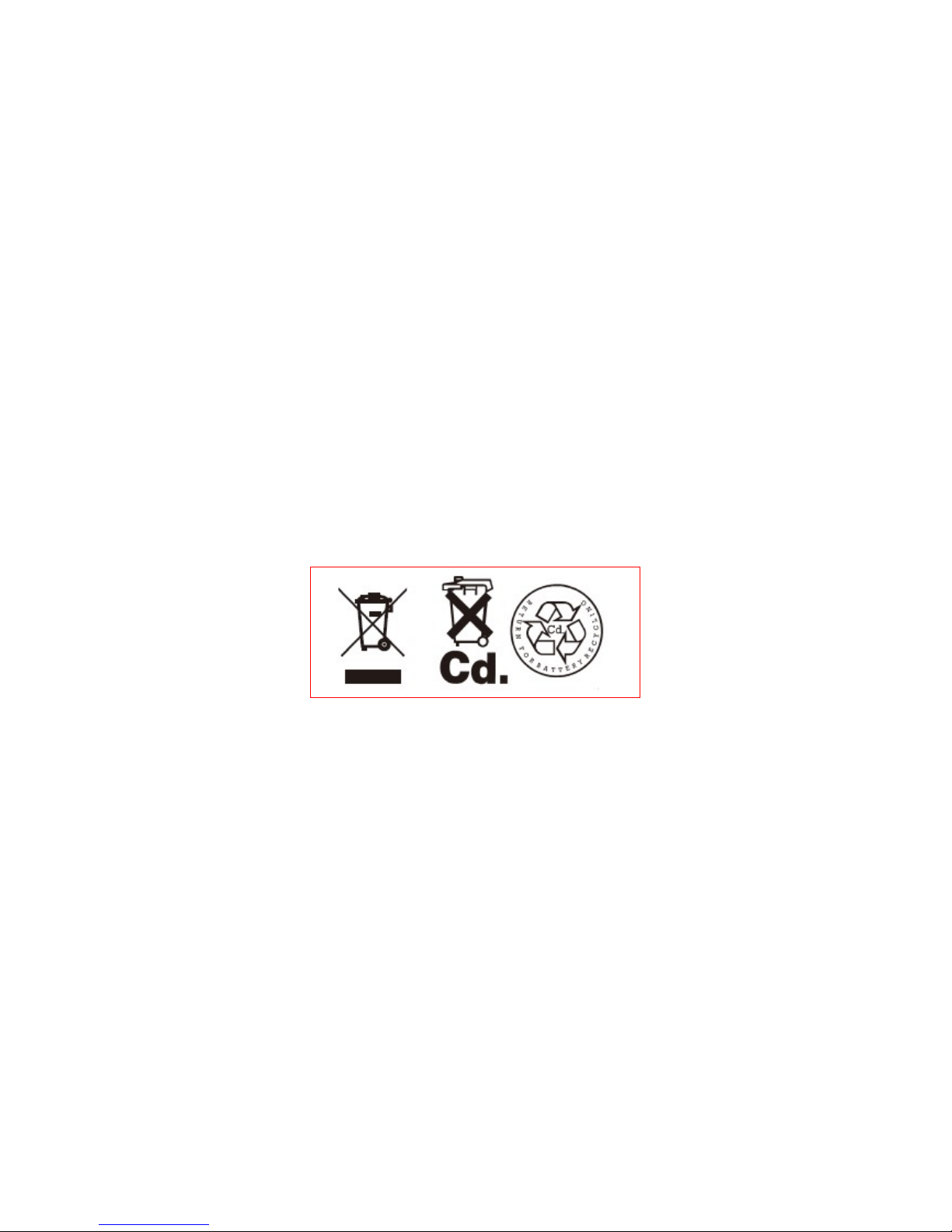

Disposal ………………………………………………………………………11

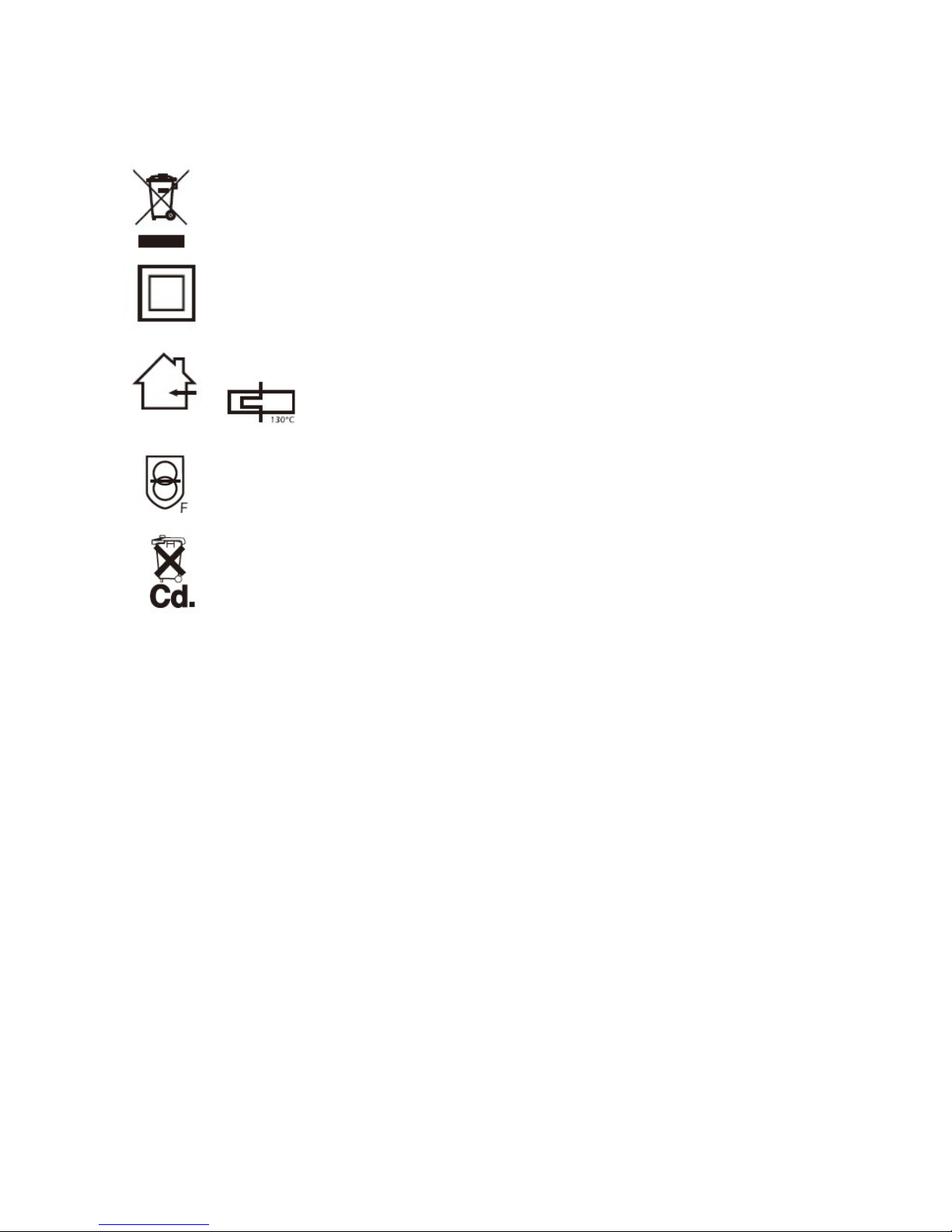

Explanation of Symbols/Pictograms ………………………………………………………………………12

SPECIFICATION

Stock No: CS-96V
Battery:

Type: Ni-Cad
Rated Voltage: 9.6V
Rating: 750mAh

Transformer:

Type: Fail-Safe Safety Isolating
Rated Supply Voltage: 110V
Rated Supply Frequency: 60Hz
Rated Output Voltage: 9.6V
Rated Output: 6.0VA
Rated Output Current: 500mA

Revolutions Per Minute (no load): 8,000-20,000min-1

Sound Pressure Level: 88.5dB(A)
Sound Power Level: 99.5dB(A)

Vibration Level: <2.5m/s²
Weight (machine only): 0.75 lbs

2

GENERAL SAFETY INSTRUCIONS

WARNING:

Read all instructions. Failure to follow instructions listed below may result in electric
shock, fire and/or serious injury. The term ”Power Tool” in all of the warnings listed below
refers to hand operated power tool(corded) or battery operated(cordless) power tool.

SAVE THESE INSTRUCTIONS

1.Work Area

a. Keep work area clean and well lit. Cluttered and dark areas invite accidents.
b. Do not operate power tools in explosive atmospheres, such as in the presence of flammable

liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.

c. Keep children and bystanders away from work area while operating a power tool.

Distractions can cause you to lose control.

2.Electrical Safety

a. Power tool (corded) plugs must match the outlet. Never modify the plug in any way. Do

not use any adapter plugs with grounded power tools. Unmodified plugs and matching
outlets will reduce risk of electric shock.

b. Avoid body contact with grounded surfaces such as pipes, radiators, ranges and

refrigerators. There is an increased risk of electric shock if your body is earthed
or grounded.

c. Do not expose power tools to rain or wet conditions. Water entering a power tool will

increase the risk of electric shock.

d. Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power

tool. Keep cords away from heat, oil, sharp edges or moving parts. Damaged or entangled
cords increase the risk of electric shock.

e. When operating a power tool outdoors, use an extension cord suitable for outdoor use.

Use of a cord suitable for outdoor use reduces the risk of electric shock.

3.Personal Safety

a. Stay alert, watch what you are doing and use common sense when operating a power tool.

Do not use a power tool while you are tired or under the influence of drugs, alcohol
or medication. Any in-attention while operating power tools may result in serious
personal injury.

b. Use safety equipment. ALWAYS wear ANSI approved eye protection. Safety equipment such

as gloves, dust mask, non-skid safety shoes, hard hat, and hearing protection used for
appropriate conditions will reduce risk of personal injuries.

c. Avoid accidental starting. Ensure the switch is in the off position before plugging

in. Carrying power tools with your finger on the switch or plugging in power tools
that have the switch on invites accidents.

d. Remove any adjusting key or wrench before turning the power tool on. A wrench or a

key left attached to a rotating part of the power tool may result in personal injury.

e. Keep proper footing and balance at all times. This enables better control of the power

tool in unexpected situations.

3

f. Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing

and gloves away from moving parts. Loose clothes, jewelry or long hair can be caught
in moving parts.

g. If devices are provided for the connection of dust extraction and collection facilities,

ensure these are connected and properly used. Use of these devices can reduce dust
related hazards.

4.Power Tool Use and Care

a. Do not force any power tool. Use the correct power tool for your application. The correct

power tool will do the job better and safer for which it was designed.

b. Do not use the power tool if the switch does not turn it on and off. Any power tool

that cannot be controlled with the switch is dangerous and must be repaired.

c. Disconnect the plug from the power source before making any adjustments, changing

accessories, or storing power tools. Such preventive safety measures reduce the risk
of starting the power tool accidentally.

d. ALWAYS Store idle power tools out of the reach of children and do not allow persons

unfamiliar with the power tool or these instructions to operate the power tool. Power
tools are dangerous in the hands of untrained users.

e. Maintain power tools. Check for misalignment or binding of moving parts, breakage of

parts and any other condition that may affect the power tools operation. If damaged,
have the power tool repaired before use. Many accidents are caused by poorly maintained
power tools.

f. Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp

cutting edges are less likely to bind and are easier to control.

g. Use the power tool, accessories and tool bits etc., in accordance with these instructions

and in the manner intended for the particular type of power tool, taking into account
the working conditions and the work to be performed. Use of the power tool for operations
different from intended may result in serious or hazardous situations.

5.Battery Tool Use and Care

a. Ensure the switch is in the OFF position before inserting battery pack. Insert the battery

pack into power tools that have the switch on invites accidents.

b. Recharge only with the charger specified by the manufacturer. A charger for one type

of battery pack can create risk of fire when used with a different battery pack.

c. Use power tools only with specifically designated battery packs. Use of any other battery

packs may create a risk of injury and fire.

d. When battery pack is not in use, keep it away from other metal objects like paper clips,

coins, keys, nails, screws, or other small metal objects that can make a connection
from one terminal to another. Shorting the battery terminals together may cause burns
or a fire.

e. Under abusive conditions, liquid may be ejected from the battery; avoid contact. If

contact accidently occurs, flush with water. If liquid contacts eyes, seek medical
help immediately. Liquid ejected from the battery may cause irritation or burns.

6.Service

Have your power tool serviced by a qualified repair person using only identical replacement

4
