Page 1

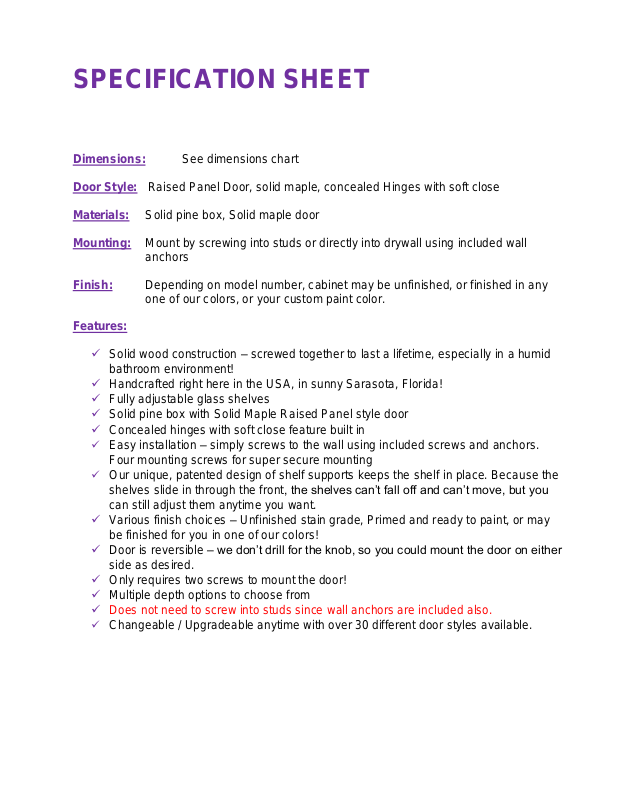

SPECIFICATION SHEET
Dimensions: See dimensions chart
Door Style: Raised Panel Door, solid maple, concealed Hinges with soft close
Materials: Solid pine box, Solid maple door
Mounting: Mount by screwing into studs or directly into drywall using included wall
anchors
Finish: Depending on model number, cabinet may be unfinished, or finished in any
one of our colors, or your custom paint color.
Features:
✓ Solid wood construction – screwed together to last a lifetime, especially in a humid
bathroom environment!
✓ Handcrafted right here in the USA, in sunny Sarasota, Florida!
✓ Fully adjustable glass shelves
✓ Solid pine box with Solid Maple Raised Panel style door
✓ Concealed hinges with soft close feature built in
✓ Easy installation – simply screws to the wall using included screws and anchors.
Four mounting screws for super secure mounting
✓ Our unique, patented design of shelf supports keeps the shelf in place. Because the
shelves slide in through the front, the shelves can’t fall off and can’t move, but you
can still adjust them anytime you want.
✓ Various finish choices – Unfinished stain grade, Primed and ready to paint, or may
be finished for you in one of our colors!
✓ Door is reversible – we don’t drill for the knob, so you could mount the door on either
side as desired.
✓ Only requires two screws to mount the door!
✓ Multiple depth options to choose from
✓ Does not need to screw into studs since wall anchors are included also.
✓ Changeable / Upgradeable anytime with over 30 different door styles available.
Page 2
Surface Mounted (on the wall) Cabinets
Solid Maple Raised Panel style
door can open either direction
Cabinet box with adjustable
shelves inside regardless of
model chosen – you only need to
choose your finish option!
Concealed hinges with soft close built-in
Includes elegant handle and
back plate which can be
mounted wherever you like.
Door is reversible.
Page 3
Surface Mounted (on the wall) Cabinets
Glass shelves slide into
our own design of shelf
supports assuring the
shelves won’t fall off or
rock.
Stunning design includes
two tier crown top. (shown in
Charcoal color)
Multiple heights and depths available so you can find
just the right one for your needs (Shown in Charcoal
color).
Page 4
Side View of Cabinet
D
O
O
R
OVERALL DEPTH measurements include the top trim
Back
panel is
inset ¼”
to hide it
from view
Interior
or
Usable
Depth
Top Trim
Bottom trim
Page 5
Dimensions Chart
Model #
Door
Height
Door
Width
Overall Dimensions
(includes top trim)
Interior Dimensions
(usable space)
Glass Shelf
Dimensions
Number
of
Shelves
Included
Number
of Doors
Included
118 17.5 13.5 20.25h x 17w x 4d 16.5h x 12.5w x 2.25d 12.25w x 2.5d 3 1
124 23.5 13.5 26.25h x 17w x 4d 22.5h x 12.5w x 2.25d 12.25w x 2.5d 3 1
130 29.5 13.5 32.25h x 17w x 4d 28.5h x 12.5w x 2.25d 12.25w x 2.5d 4 1
136 35.5 13.5 38.25h x 17w x 4d 34.5h x 12.5w x 2.25d 12.25w x 2.5d 4 1
142 41.5 13.5 44.25h x 17w x 4d 40.5h x 12.5w x 2.25d 12.25w x 2.5d 5 1
148 47.5 13.5 50.25h x 17w x 4d 46.5h x 12.5w x 2.25d 12.25w x 2.5d 5 1
218 17.5 13.5 20.25h x 17w x 5d 16.5h x 12.5w x 3.25d 12.25w x 3.5d 3 1
224 23.5 13.5 26.25h x 17w x 5d 22.5h x 12.5w x 3.25d 12.25w x 3.5d 3 1
230 29.5 13.5 32.25h x 17w x 5d 28.5h x 12.5w x 3.25d 12.25w x 3.5d 4 1
236 35.5 13.5 38.25h x 17w x 5d 34.5h x 12.5w x 3.25d 12.25w x 3.5d 4 1
242 41.5 13.5 44.25h x 17w x 5d 40.5h x 12.5w x 3.25d 12.25w x 3.5d 5 1
248 47.5 13.5 50.25h x 17w x 5d 46.5h x 12.5w x 3.25d 12.25w x 3.5d 5 1
918 17.5 13.5 20.25h x 17w x 6d 16.5h x 12.5w x 4.25d 12.25w x 4.5d 3 1
924 23.5 13.5 26.25h x 17w x 6d 22.5h x 12.5w x 4.25d 12.25w x 4.5d 3 1
930 29.5 13.5 32.25h x 17w x 6d 28.5h x 12.5w x 4.25d 12.25w x 4.5d 4 1
936 35.5 13.5 38.25h x 17w x 6d 34.5h x 12.5w x 4.25d 12.25w x 4.5d 4 1
942 41.5 13.5 44.25h x 17w x 6d 40.5h x 12.5w x 4.25d 12.25w x 4.5d 5 1
948 47.5 13.5 50.25h x 17w x 6d 46.5h x 12.5w x 4.25d 12.25w x 4.5d 5 1
318 17.5 13.5 20.25h x 17w x 7d 16.5h x 12.5w x 5.25d 12.25w x 5.5d 3 1
324 23.5 13.5 26.25h x 17w x 7d 22.5h x 12.5w x 5.25d 12.25w x 5.5d 3 1
330 29.5 13.5 32.25h x 17w x 7d 28.5h x 12.5w x 5.25d 12.25w x 5.5d 4 1
336 35.5 13.5 38.25h x 17w x 7d 34.5h x 12.5w x 5.25d 12.25w x 5.5d 4 1
342 41.5 13.5 44.25h x 17w x 7d 40.5h x 12.5w x 5.25d 12.25w x 5.5d 5 1
348 47.5 13.5 50.25h x 17w x 7d 46.5h x 12.5w x 5.25d 12.25w x 5.5d 5 1
418 17.5 13.5 20.25h x 17w x 8.75d 16.5h x 12.5w x 7d 12.25w x 7d 3 1
424 23.5 13.5 26.25h x 17w x 8.75d 22.5h x 12.5w x 7d 12.25w x 7d 3 1
430 29.5 13.5 32.25h x 17w x 8.75d 28.5h x 12.5w x 7d 12.25w x 7d 4 1
436 35.5 13.5 38.25h x 17w x 8.75d 34.5h x 12.5w x 7d 12.25w x 7d 4 1
442 41.5 13.5 44.25h x 17w x 8.75d 40.5h x 12.5w x 7d 12.25w x 7d 5 1
448 47.5 13.5 50.25h x 17w x 8.75d 46.5h x 12.5w x 7d 12.25w x 7d 5 1
100 Series models - What we refer to as a 2.5" depth model:
200 Series models - What we refer to as a 3.5" depth model:
900 Series models - What we refer to as a 4.5" depth model:
300 Series models - What we refer to as a 5.5" depth model:
400 Series models - What we refer to as a 7.25" depth model:
