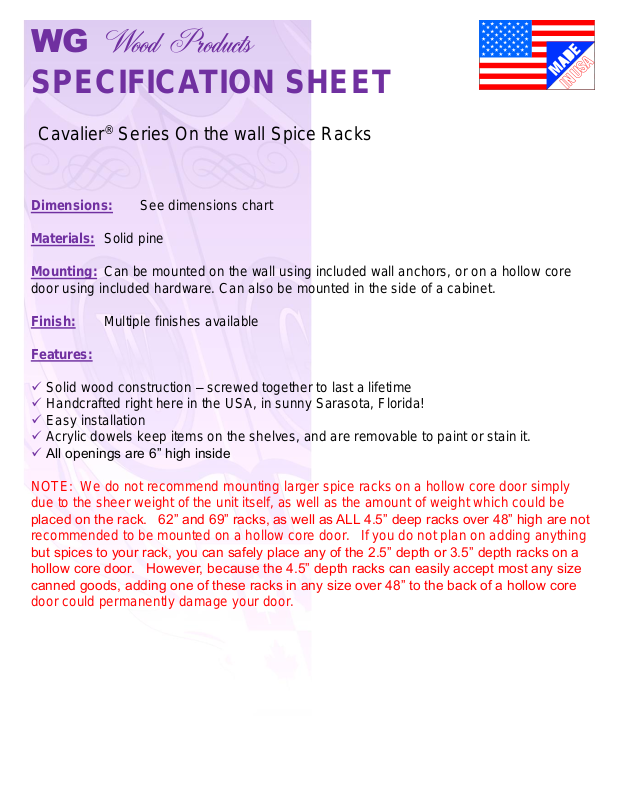

Page 1
WG Wood Products
SPECIFICATION SHEET
Dimensions: See dimensions chart
Materials: Solid pine
Mounting: Can be mounted on the wall using included wall anchors, or on a hollow core
door using included hardware. Can also be mounted in the side of a cabinet.
Finish: Multiple finishes available
Features:
✓ Solid wood construction – screwed together to last a lifetime
✓ Handcrafted right here in the USA, in sunny Sarasota, Florida!
✓ Easy installation
✓ Acrylic dowels keep items on the shelves, and are removable to paint or stain it.
✓ All openings are 6” high inside
NOTE: We do not recommend mounting larger spice racks on a hollow core door simply
due to the sheer weight of the unit itself, as well as the amount of weight which could be
placed on the rack. 62” and 69” racks, as well as ALL 4.5” deep racks over 48” high are not
recommended to be mounted on a hollow core door. If you do not plan on adding anything
but spices to your rack, you can safely place any of the 2.5” depth or 3.5” depth racks on a
hollow core door. However, because the 4.5” depth racks can easily accept most any size
canned goods, adding one of these racks in any size over 48” to the back of a hollow core
door could permanently damage your door.
Cavalier®Series On the wall Spice Racks
Page 2
WG Wood Products
SPECIFICATION SHEET
Cavalier 21” Spice
Rack
Cavalier 28” Spice Rack
Cavalier 62” Spice
Rack
Cavalier 42” Spice
Rack
Cavalier®Series On the Wall Spice Racks
Page 3
WG Wood Products
SPECIFICATION SHEET
Additional acrylic shelves, optional glass shelves, as well as other parts and accessories are always available.
Changeable / upgradeable with over 30 different door styles available.
WG Wood Products
213 Field End Street
Sarasota FL 34240
www.wgwoodproducts.com
(913)-829-6000
Cavalier®Series On the Wall Spice Racks
Model
Overall
Height
Overall
Width
Individual
Shelf heights
Number of
Openings
Interior
Width
Depth
CAVA-121 21" 11" 6" 3 9.5" 2.5"
CAVA-128 28" 11" 6" 4 9.5" 2.5"
CAVA-135 35" 11" 6" 5 9.5" 2.5"
CAVA-142 42" 11" 6" 6 9.5" 2.5"
CAVA-148 48" 11" 6" 7 9.5" 2.5"
CAVA-155 55" 11" 6" 8 9.5" 2.5"
CAVA-162 62" 11" 6" 9 9.5" 2.5"
CAVA-169 69" 11" 6" 10 9.5" 2.5"
CAVA-221 21" 11" 6" 3 9.5" 3.5"
CAVA-228 28" 11" 6" 4 9.5" 3.5"
CAVA-235 35" 11" 6" 5 9.5" 3.5"
CAVA-242 42" 11" 6" 6 9.5" 3.5"
CAVA-248 48" 11" 6" 7 9.5" 3.5"
CAVA-255 55" 11" 6" 8 9.5" 3.5"
CAVA-262 62" 11" 6" 9 9.5" 3.5"
CAVA-269 69" 11" 6" 10 9.5" 3.5"
CAVA-921 21" 11" 6" 3 9.5" 4.5"
CAVA-928 28" 11" 6" 4 9.5" 4.5"
CAVA-935 35" 11" 6" 5 9.5" 4.5"
CAVA-942 42" 11" 6" 6 9.5" 4.5"
CAVA-948 48" 11" 6" 7 9.5" 4.5"
CAVA-955 55" 11" 6" 8 9.5" 4.5"
CAVA-962 62" 11" 6" 9 9.5" 4.5"
CAVA-969 69" 11" 6" 10 9.5" 4.5"
3.5" Deep Spice Racks
2.5" Deep Spice Racks
4.5" Deep Spice Racks
Page 4
MINI Bottles Standard Bottles Large Bottles
Approx. 3/4 oz. Approx. 2 oz. Approx. 4 to 8 oz.
This circle represents the Actual size
of a MINI bottle’s diameter: 1.75”
This circle represents the Actual size
of a Standard bottle’s diameter:
1.75”
This circle represents the Actual size
of a Large bottle’s diameter: 2”
WG Wood Products’ Spice Racks Feature:
Made in the USA Inset back panel so you won’t see it from the side view
Screwed together to last a lifetime Wood or acrylic dowels (depending on model)
Hidden mounting holes underneath 2 or
more shelves
UNFINISHED SOLID BARE PINE can be stained or painted
as desired
8 different heights, 2 widths, and 5 depths All racks have 6” high openings between shelves
What Fits in my Spice Rack?
Spice bottles come in various sizes and we’ve pictured some of the most common ones below.
If you have specific custom size bottles that you want to put on the rack, measure the diameter
of your bottles to ensure that you order the correct rack for your needs.
(See Page 2 for usable depth)
MINI Bottles Standard Bottles Large Bottles
Approx. 3/4 oz. Approx. 2 oz. Approx. 4 to 8 oz.
This circle
represents the
Actual size of a
MINI bottle’s
diameter: 1.75”
This circle
represents the
Actual size of a
Standard bottle’s
diameter: 1.75”
This circle
represents the
Actual size of a
Large bottle’s
diameter: 2”
WG Wood Products’ Spice Racks Feature:
Made in the USA Inset back panel so you won’t see it from the side view
Screwed together to last a lifetime Clear acrylic dowels
Hidden mounting holes underneath 2 or
more shelves
UNFINISHED SOLID BARE PINE can be stained or painted
as desired
8 different heights, 2 widths, and 5 depths All racks have 6” high openings between shelves
Page 5
11” Width
(9.5” wide INSIDE)
14” Width
(12.5” wide INSIDE)
5 MINI or standard bottles
per shelf
Or
4 Large bottles per shelf
7 MINI or standard bottles
per shelf
Or
6 Large bottles per shelf
Usable
space on
each
shelf is
behind
the
dowel
and in
front of
the back
panel
Dowel
Inset
Back
Panel
What Fits in my Spice Rack?
Overall Depth vs. Usable Depth
Depths available are 2.5”, 3.5”, 4.5”, 5.5” and 7.25” deep.
(These are OVERALL depths).
See below for INTERIOR, usable depth). Usable depth is the
amount of space behind the dowel
(between the dowel and the inset back panel). It’s the actual space
you’ll have to put spice bottles.
•2.5” deep racks will handle even the larger 2” spice bottles because you’ll
have 2” of usable depth inside.
•3.5” deep racks will handle the larger spice bottles as you’ll have 3” of
useable depth inside.
•4.5” deep racks will handle the larger spice bottles as you’ll have 4” of
useable depth inside.
•5.5” deep racks will handle even large canned goods such as pie fillings
because you’ll have 5” of usable depth inside.
•7.25” deep racks will handle even most large coffee cans because you’ll
have 6.75” of usable depth inside.
