Page 1

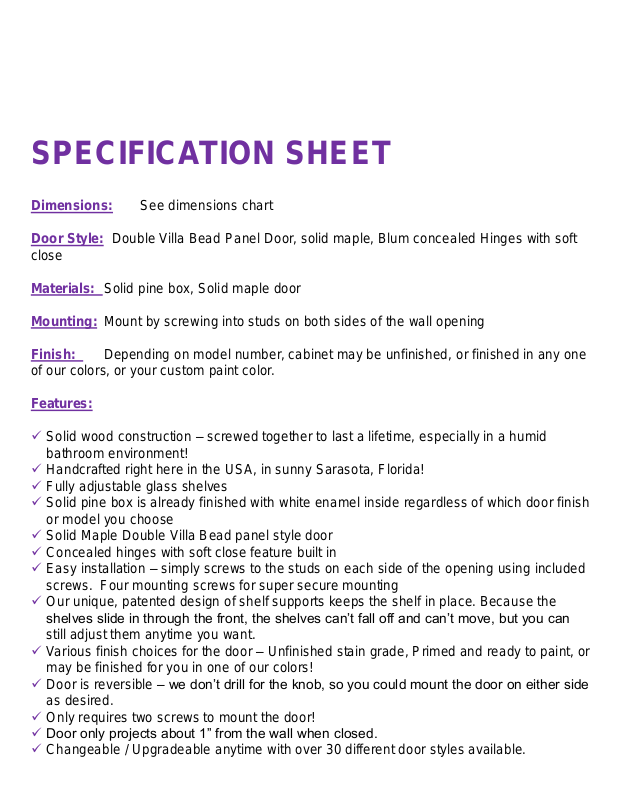

SPECIFICATION SHEET
Dimensions: See dimensions chart
Door Style: Double Villa Bead Panel Door, solid maple, Blum concealed Hinges with soft
close
Materials: Solid pine box, Solid maple door
Mounting: Mount by screwing into studs on both sides of the wall opening
Finish: Depending on model number, cabinet may be unfinished, or finished in any one
of our colors, or your custom paint color.
Features:
✓ Solid wood construction – screwed together to last a lifetime, especially in a humid
bathroom environment!
✓ Handcrafted right here in the USA, in sunny Sarasota, Florida!
✓ Fully adjustable glass shelves
✓ Solid pine box is already finished with white enamel inside regardless of which door finish
or model you choose
✓ Solid Maple Double Villa Bead panel style door
✓ Concealed hinges with soft close feature built in
✓ Easy installation – simply screws to the studs on each side of the opening using included
screws. Four mounting screws for super secure mounting
✓ Our unique, patented design of shelf supports keeps the shelf in place. Because the
shelves slide in through the front, the shelves can’t fall off and can’t move, but you can
still adjust them anytime you want.
✓ Various finish choices for the door – Unfinished stain grade, Primed and ready to paint, or
may be finished for you in one of our colors!
✓ Door is reversible – we don’t drill for the knob, so you could mount the door on either side
as desired.
✓ Only requires two screws to mount the door!
✓ Door only projects about 1” from the wall when closed.
✓ Changeable / Upgradeable anytime with over 30 different door styles available.
Page 2
SPECIFICATION SHEET
Cabinet box with adjustable glass shelves inside
is already finished in white enamel regardless of
Solid Maple
Double Villa Bead Style
door can open either
direction
model chosen.
Concealed hinges with soft close built-in
Glass shelves slide into
our own design of shelf
supports assuring the
shelves won’t fall off or
rock.
Page 3
SPECIFICATION SHEET
Thin plastic trim surround
covers the edges of your rough
opening once it’s installed in
the wall. (1/2” of coverage all
the way around) The door
covers the entire trim surround
when closed.
Full 3.5” of depth inside the cabinet
Additional glass shelves, optional glass shelves, as well as other parts and accessories are always available.
Changeable / upgradeable with over 30 different door styles available.
Page 4
SPECIFICATION SHEET
Side View of Recessed Cabinet
3.5” deep Lakewood Series Frameless models (4.25” overall depth)
These models have
a door which is ¾”
larger all the way
OVERALL DEPTH 4.25”
around than the
cabinet box itself
so the entire
cabinet box and
trim surround is
covered when the
door is closed.
These models
must be screwed
to the studs on
both sides of the
Frameless recessed
cabinets have a thin
plastic trim surround
D
which covers the
O
rough edge of the
O
drywall when inserted
R
into the opening.
Interior
or
Usable
Depth is
3.5”
wall opening.
Drywall surface
OVERALL
BOX DEPTH
IS 3.5”
DEEP
Back of wall opening
Page 5
SPECIFICATION SHEET
Door
Height
Door
Width
Box Insert
Dimensions
Interior Dimensions
Rough Opening
Needed in wall
Number
of
Shelves
Included
Number
of Doors
Included
19.5 15.5 18h x 14w x 3.75d 16.5h x 12.5w x 3.5d 18.25h x 14.25w 3 1
23.5 15.5 22h x 14w x 3.75d 20.5h x 12.5w x 3.5d 22.25h x 14.25w 3 1
25.5 15.5 24h x 14w x 3.75d 22.5h x 12.5w x 3.5d 24.25h x 14.25w 3 1
29.5 15.5 28h x 14w x 3.75d 26.5h x 12.5w x 3.5d 28.25h x 14.25w 3 1
31.5 15.5 30h x 14w x 3.75d 28.5h x 12.5w x 3.5d 30.25h x 14.25w 4 1
35.5 15.5 34h x 14w x 3.75d 32.5h x 12.5w x 3.5d 34.25h x 14.25w 4 1
37.5 15.5 36h x 14w x 3.75d 34.5h x 12.5w x 3.5d 36.25h x 14.25w 4 1
41.5 15.5 40h x 14w x 3.75d 38.5h x 12.5w x 3.5d 40.25h x 14.25w 5 1
43.5 15.5 42h x 14w x 3.75d 40.5h x 12.5w x 3.5d 42.25h x 14.25w 5 1
47 15.5 44h x 14w x 3.75d 42.5h x 12.5w x 3.5d 44.25h x 14.25w 5 2
47.5 15.5 46h x 14w x 3.75d 44.5h x 12.5w x 3.5d 46.25h x 14.25w 5 1
49.5 15.5 48h x 14w x 3.75d 46.5h x 12.5w x 3.5d 48.25h x 14.25w 5 1
53 15.5 50h x 14w x 3.75d 48.5h x 12.5w x 3.5d 50.25h x 14.25w 6 2
59 15.5 56h x 14w x 3.75d 54.5h x 12.5w x 3.5d 56.25h x 14.25w 6 2
65 15.5 62h x 14w x 3.75d 60.5h x 12.5w x 3.5d 62.25h x 14.25w 7 2
71 15.5 68h x 14w x 3.75d 66.5h x 12.5w x 3.5d 68.25h x 14.25w 7 2
80.5 15.5 78h x 14w x 3.75d 76.5h x 12.5w x 3.5d 78.25h x 14.25w 8 3
86.5 15.5 84h x 14w x 3.75d 82.5h x 12.5w x 3.5d 84.25h x 14.25w 9 3
Additional glass shelves, optional glass shelves, as well as other parts and accessories are always available.
Changeable / upgradeable with over 30 different door styles available.
