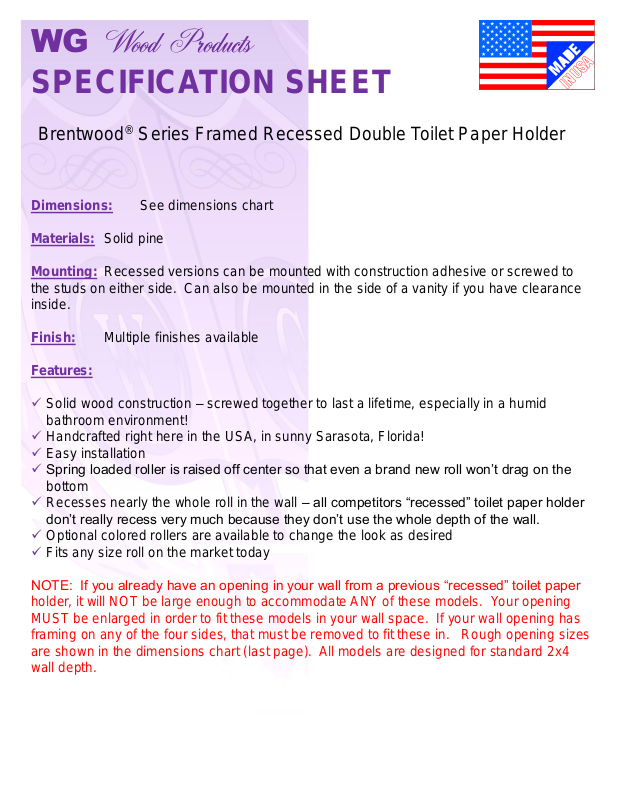

Page 1
WG Wood Products
SPECIFICATION SHEET
Dimensions: See dimensions chart
Materials: Solid pine
Mounting: Recessed versions can be mounted with construction adhesive or screwed to
the studs on either side. Can also be mounted in the side of a vanity if you have clearance
inside.
Finish: Multiple finishes available
Features:
✓ Solid wood construction – screwed together to last a lifetime, especially in a humid
bathroom environment!
✓ Handcrafted right here in the USA, in sunny Sarasota, Florida!
✓ Easy installation
✓ Spring loaded roller is raised off center so that even a brand new roll won’t drag on the
bottom
✓ Recesses nearly the whole roll in the wall – all competitors “recessed” toilet paper holder
don’t really recess very much because they don’t use the whole depth of the wall.
✓ Optional colored rollers are available to change the look as desired
✓ Fits any size roll on the market today
NOTE: If you already have an opening in your wall from a previous “recessed” toilet paper
holder, it will NOT be large enough to accommodate ANY of these models. Your opening
MUST be enlarged in order to fit these models in your wall space. If your wall opening has
framing on any of the four sides, that must be removed to fit these in. Rough opening sizes
are shown in the dimensions chart (last page). All models are designed for standard 2x4
wall depth.
Brentwood®Series Framed Recessed Double Toilet Paper Holder
Page 2
WG Wood Products
SPECIFICATION SHEET
Brentwood-5 in White
Enamel
Brentwood-12 in White
Enamel
Brentwood-18 in White
Enamel
Brentwood-22 in White
Enamel
Brentwood®Series Framed Recessed Double Toilet Paper Holder
Page 3
WG Wood Products
SPECIFICATION SHEET
Brentwood-23 in White
Enamel
Brentwood-25 in White
Enamel
Brentwood-27 in White
Enamel
Brentwood®Series Framed Recessed Double Toilet Paper Holder
Brentwood-28 in White
Enamel
Page 4
WG Wood Products
SPECIFICATION SHEET
Brentwood-12
Brentwood®Series Framed Recessed Double Toilet Paper Holder
All Brentwood models can use single, double, and ALL OTHER SIZE rolls on the
market today, handling them all with ease because they were designed for it!
Brentwood-18
Page 5
WG Wood Products
SPECIFICATION SHEET
Brentwood®Series Framed Recessed Double Toilet Paper Holder
Brentwood-22 uses a frame which is only 3/8”
thick, the thinnest frame we offer.
Page 6
WG Wood Products
SPECIFICATION SHEET
Side View of Toilet Paper Holder
OVERALL DEPTH 4.25”
Interior
or
Usable
Depth
is 4.25”
All models have a
frame which is at
least ¾” larger all
the way around
than the cabinet
box itself which is
there to cover
the edges of your
rough opening in
the drywall.
OVERALL
BOX
DEPTH IS
3.75”
DEEP
Drywall surface
Back of wall opening
Total projection
from the wall
surface is ¾” on
most frame styles
except Brentwood22 which have a
3/8” projection
because the frame
is thinner on those
models.
FRAMED 3.5” deep models (4.25” overall depth)
These models
can be secured
either using
construction
adhesive on the
back side of the
frame overhang,
or by screwing to
the studs on both
sides. Either way
works equally
well and will
support much
more weight
than you could
ever put in the
holder.
Brentwood®Series Framed Recessed Double Toilet Paper Holder
Page 7
WG Wood Products
SPECIFICATION SHEET
Additional acrylic shelves, optional glass shelves, as well as other parts and accessories are always available.
Changeable / upgradeable with over 30 different door styles available.
WG Wood Products
213 Field End Street
Sarasota FL 34240
www.wgwoodproducts.com
(913)-829-6000
Brentwood®Series Framed Recessed Double Toilet Paper Holder
Model
Overall
Height
Overall
Width
Box Insert
Dimensions
Rough Opening
needed in Wall
Overall front
Frame
dimensions
Interior
Width
Interior
Height
Depth
BRENT-5 16" 8.5" 14.5"h x 7"w 14 5/8"h x 7 1/8"w 16"h x 8.5"w 5.5" 7" 3.75"
BRENT-12 16" 8.5" 14.5"h x 7"w 14 5/8"h x 7 1/8"w 16"h x 8.5"w 5.5" 7" 3.75"
BRENT-18 16.75" 9.75" 14.5"h x 7"w 14 5/8"h x 7 1/8"w 16.75"h x 9.75"w 5.5" 7" 3.75"
BRENT-22 16" 8.5" 14.5"h x 7"w 14 5/8"h x 7 1/8"w 16"h x 8.5"w 5.5" 7" 3.75"
BRENT-23 10" 14.75" 8.5"h x 13.25"w 8 5/8"h x 13 3/8"w 10"h x 14.75"w 5.5" 7" 3.75"
BRENT-25 16" 8.5" 14.5"h x 7"w 14 5/8"h x 7 1/8"w 16"h x 8.5"w 5.5" 7" 3.75"
BRENT-27 10" 14.75" 8.5"h x 13.25"w 8 5/8"h x 13 3/8"w 10"h x 14.75"w 5.5" 7" 3.75"
BRENT-28 16" 8.5" 14.5"h x 7"w 14 5/8"h x 7 1/8"w 16"h x 8.5"w 5.5" 7" 3.75"
