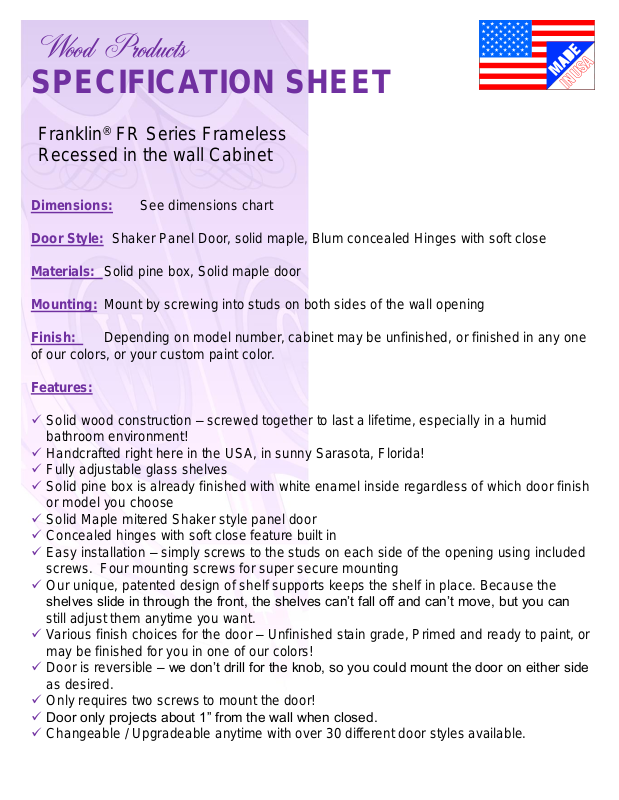

Page 1
Wood Products
SPECIFICATION SHEET
Franklin®FR Series Frameless
Recessed in the wall Cabinet
Dimensions: See dimensions chart
Door Style: Shaker Panel Door, solid maple, Blum concealed Hinges with soft close
Materials: Solid pine box, Solid maple door
Mounting: Mount by screwing into studs on both sides of the wall opening
Finish: Depending on model number, cabinet may be unfinished, or finished in any one
of our colors, or your custom paint color.
Features:
✓ Solid wood construction – screwed together to last a lifetime, especially in a humid
bathroom environment!
✓ Handcrafted right here in the USA, in sunny Sarasota, Florida!
✓ Fully adjustable glass shelves
✓ Solid pine box is already finished with white enamel inside regardless of which door finish
or model you choose
✓ Solid Maple mitered Shaker style panel door
✓ Concealed hinges with soft close feature built in
✓ Easy installation – simply screws to the studs on each side of the opening using included
screws. Four mounting screws for super secure mounting
✓ Our unique, patented design of shelf supports keeps the shelf in place. Because the
shelves slide in through the front, the shelves can’t fall off and can’t move, but you can
still adjust them anytime you want.
✓ Various finish choices for the door – Unfinished stain grade, Primed and ready to paint, or
may be finished for you in one of our colors!
✓ Door is reversible – we don’t drill for the knob, so you could mount the door on either side
as desired.
✓ Only requires two screws to mount the door!
✓ Door only projects about 1” from the wall when closed.
✓ Changeable / Upgradeable anytime with over 30 different door styles available.
Page 2
Wood Products
SPECIFICATION SHEET
Series Frameless
Recessed in the wall Cabinet
Solid Maple
Shaker Style door can
open either direction
Cabinet box with adjustable glass shelves inside
is already finished in white enamel regardless of
model chosen.
Glass shelves slide into
our own design of shelf
supports assuring the
shelves won’t fall off or
rock.
Concealed hinges with soft close built-in
Page 3
Wood Products
SPECIFICATION SHEET
Series Frameless
Recessed in the wall Cabinet
Thin plastic trim surround
covers the edges of your rough
opening once it’s installed in
the wall. (1/2” of coverage all
the way around) The door
covers the entire trim surround
when closed.
Full 3.5” of depth inside the cabinet
Additional glass shelves, optional glass shelves, as well as other parts and accessories are always available.
Changeable / upgradeable with over 30 different door styles available.
Page 4
Wood Products
SPECIFICATION SHEET
Series Frameless
Recessed in the wall Cabinet
Additional glass shelves, optional glass shelves, as well as other parts and accessories are always available.
Changeable / upgradeable with over 30 different door styles available.
Page 5
Wood Products
SPECIFICATION SHEET
Series Frameless
Recessed in the wall Cabinet
Side View of Recessed Cabinet
3.5” deep Franklin Series Frameless models (4.25” overall depth)
These models have
a door which is ¾”
larger all the way
OVERALL DEPTH 4.25”
around than the
cabinet box itself
so the entire
cabinet box and
trim surround is
covered when the
door is closed.
These models
must be screwed
to the studs on
both sides of the
Frameless recessed
cabinets have a thin
plastic trim surround
D
which covers the
O
rough edge of the
O
drywall when inserted
R
into the opening.
Interior
or
Usable
Depth is
3.5”
wall opening.
Drywall surface
OVERALL
BOX DEPTH
IS 3.5”
DEEP
Back of wall opening
Page 6
Wood Products
Model #
Door
Height
Door
Width
Box Insert
Dimensions
Interior Dimensions
Rough Opening
Needed in wall
Number
of
Shelves
Included
Number
of Doors
Included
218 19.5 15.5 18h x 14w x 3.75d 16.5h x 12.5w x 3.5d 18.25h x 14.25w 3 1
222 23.5 15.5 22h x 14w x 3.75d 20.5h x 12.5w x 3.5d 22.25h x 14.25w 3 1
224 25.5 15.5 24h x 14w x 3.75d 22.5h x 12.5w x 3.5d 24.25h x 14.25w 3 1
228 29.5 15.5 28h x 14w x 3.75d 26.5h x 12.5w x 3.5d 28.25h x 14.25w 3 1
230 31.5 15.5 30h x 14w x 3.75d 28.5h x 12.5w x 3.5d 30.25h x 14.25w 4 1
234 35.5 15.5 34h x 14w x 3.75d 32.5h x 12.5w x 3.5d 34.25h x 14.25w 4 1
236 37.5 15.5 36h x 14w x 3.75d 34.5h x 12.5w x 3.5d 36.25h x 14.25w 4 1
240 41.5 15.5 40h x 14w x 3.75d 38.5h x 12.5w x 3.5d 40.25h x 14.25w 5 1
242 43.5 15.5 42h x 14w x 3.75d 40.5h x 12.5w x 3.5d 42.25h x 14.25w 5 1
244 47 15.5 44h x 14w x 3.75d 42.5h x 12.5w x 3.5d 44.25h x 14.25w 5 2
246 47.5 15.5 46h x 14w x 3.75d 44.5h x 12.5w x 3.5d 46.25h x 14.25w 5 1
248 49.5 15.5 48h x 14w x 3.75d 46.5h x 12.5w x 3.5d 48.25h x 14.25w 5 1
250 53 15.5 50h x 14w x 3.75d 48.5h x 12.5w x 3.5d 50.25h x 14.25w 6 2
256 59 15.5 56h x 14w x 3.75d 54.5h x 12.5w x 3.5d 56.25h x 14.25w 6 2
262 65 15.5 62h x 14w x 3.75d 60.5h x 12.5w x 3.5d 62.25h x 14.25w 7 2
268 71 15.5 68h x 14w x 3.75d 66.5h x 12.5w x 3.5d 68.25h x 14.25w 7 2
278 80.5 15.5 78h x 14w x 3.75d 76.5h x 12.5w x 3.5d 78.25h x 14.25w 8 3
284 86.5 15.5 84h x 14w x 3.75d 82.5h x 12.5w x 3.5d 84.25h x 14.25w 9 3
SPECIFICATION SHEET
Series Frameless
Recessed in the wall Cabinet
Additional glass shelves, optional glass shelves, as well as other parts and accessories are always available.
Changeable / upgradeable with over 30 different door styles available.
