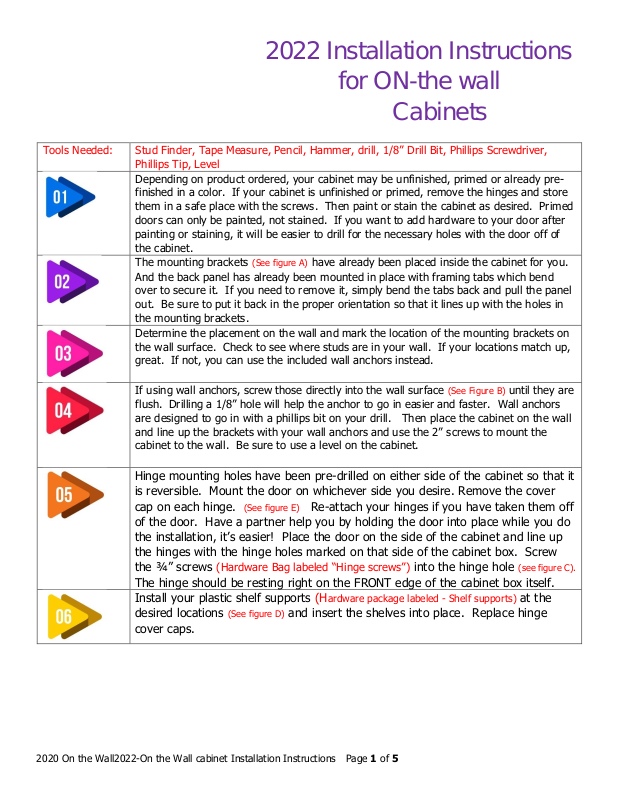

2022 Installation Instructions
Tools Needed:
Stud Finder, Tape Measure, Pencil, Hammer, drill, 1/8” Drill Bit, Phillips Screwdriver,
Phillips Tip, Level
Depending on product ordered, your cabinet may be unfinished, primed or already prefinished in a color. If your cabinet is unfinished or primed, remove the hinges and store
them in a safe place with the screws. Then paint or stain the cabinet as desired. Primed
doors can only be painted, not stained. If you want to add hardware to your door after
painting or staining, it will be easier to drill for the necessary holes with the door off of
the cabinet.
The mounting brackets (See figure A) have already been placed inside the cabinet for you.
And the back panel has already been mounted in place with framing tabs which bend
over to secure it. If you need to remove it, simply bend the tabs back and pull the panel
out. Be sure to put it back in the proper orientation so that it lines up with the holes in
the mounting brackets.
Determine the placement on the wall and mark the location of the mounting brackets on
the wall surface. Check to see where studs are in your wall. If your locations match up,
great. If not, you can use the included wall anchors instead.
If using wall anchors, screw those directly into the wall surface (See Figure B) until they are
flush. Drilling a 1/8” hole will help the anchor to go in easier and faster. Wall anchors
are designed to go in with a phillips bit on your drill. Then place the cabinet on the wall
and line up the brackets with your wall anchors and use the 2” screws to mount the
cabinet to the wall. Be sure to use a level on the cabinet.
Hinge mounting holes have been pre-drilled on either side of the cabinet so that it
is reversible. Mount the door on whichever side you desire. Remove the cover
cap on each hinge. (See figure E) Re-attach your hinges if you have taken them off
of the door. Have a partner help you by holding the door into place while you do
the installation, it’s easier! Place the door on the side of the cabinet and line up
the hinges with the hinge holes marked on that side of the cabinet box. Screw
the ¾” screws (Hardware Bag labeled “Hinge screws”) into the hinge hole (see figure C).
The hinge should be resting right on the FRONT edge of the cabinet box itself.
Install your plastic shelf supports (Hardware package labeled - Shelf supports) at the
desired locations (See figure D) and insert the shelves into place. Replace hinge
cover caps.
for ON-the wall
Cabinets
2020 On the Wall2022-On the Wall cabinet Installation Instructions Page 1 of 5
Page 2

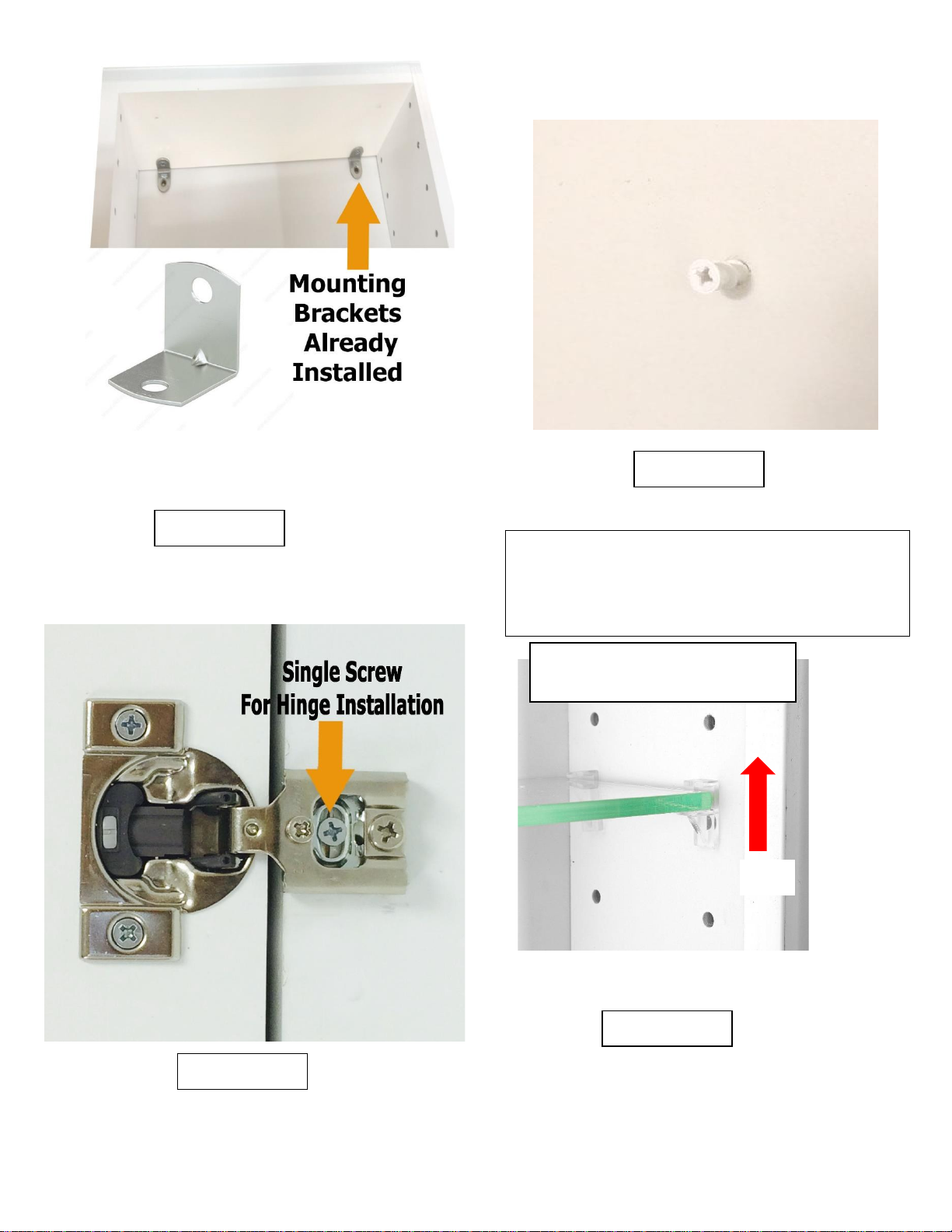

Figure C.
Orient your shelf supports
UP as shown here
UP
Figure D.
Our custom designed shelf supports keep the
shelves in place and do not allow the shelves
to rock or come off the supports. Simply
slide your shelves in and out of them.
Image 4 Dry wall anchor in pilot hole
Figure A.
Figure B.
2020 On the Wall2022-On the Wall cabinet Installation Instructions Page 2 of 5
Page 3
Hints and Tips for a Great Installation

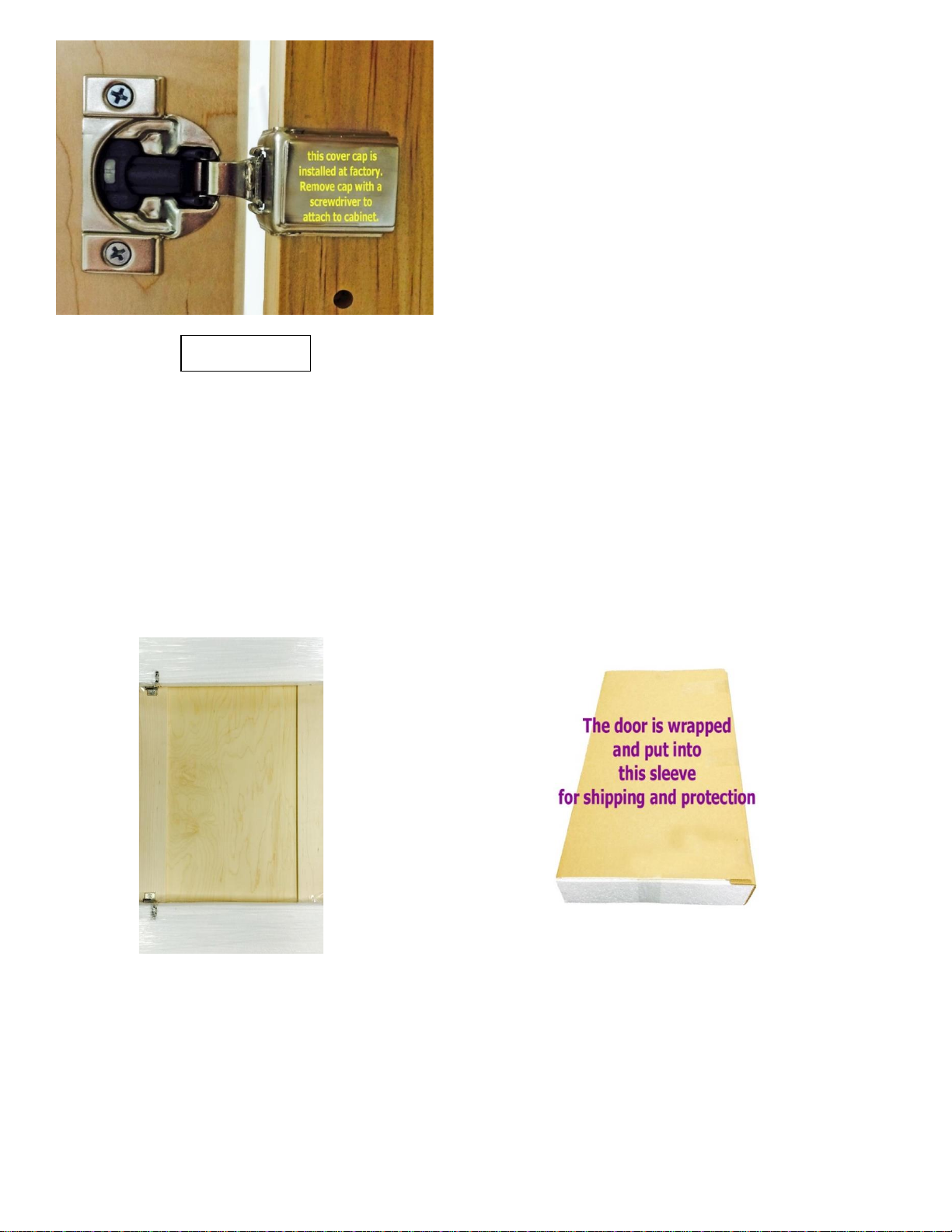

Figure E.
We use a one piece Blum concealed hinge with a built in Blumotion soft close option.
The hinges are installed in all the doors. Due to various sizes of cabinets and doors we
may ship the door separately from the cabinet to insure the door and hinges will arrive
intact and undamaged.
(Exception: Cabinets with slab MDF Doors which must be painted) If this is the cabinet
style you purchased the hinges are located in the hardware bag labeled “MDF Door”.
They only mount one way in the door. Then follow the mounting procedures above.
2020 On the Wall2022-On the Wall cabinet Installation Instructions Page 3 of 5
Page 4
Hinge Adjustments
Soft close hinges are incorrectly setup: There is a gray selector switch in the cup
of the hinge as illustrated in the picture above. This switch needs to be in the
same direction on both hinges. The switch is a mechanism for 75% closure speed
or 25% closure speed meaning it slows the door down when closing at 75% open
or 25% open. That is the point where the internal mechanism catches the doors
and slows down its closing process.
Walls are not perfectly flat: In most remodeling projects the beginning surface is not
perfectly flat or square despite how it may look. Thus, once the screws are tightened
into the side studs it can cause the cabinet box to be bowed or tweaked that can also
cause the door to not close properly. Check for plum(level) or square of the installed
cabinet. If either of these seem out of line Re-adjust the tension of the mounting
screws on the cabinet and or shim around the box to eliminate the binding of the
cabinet door.

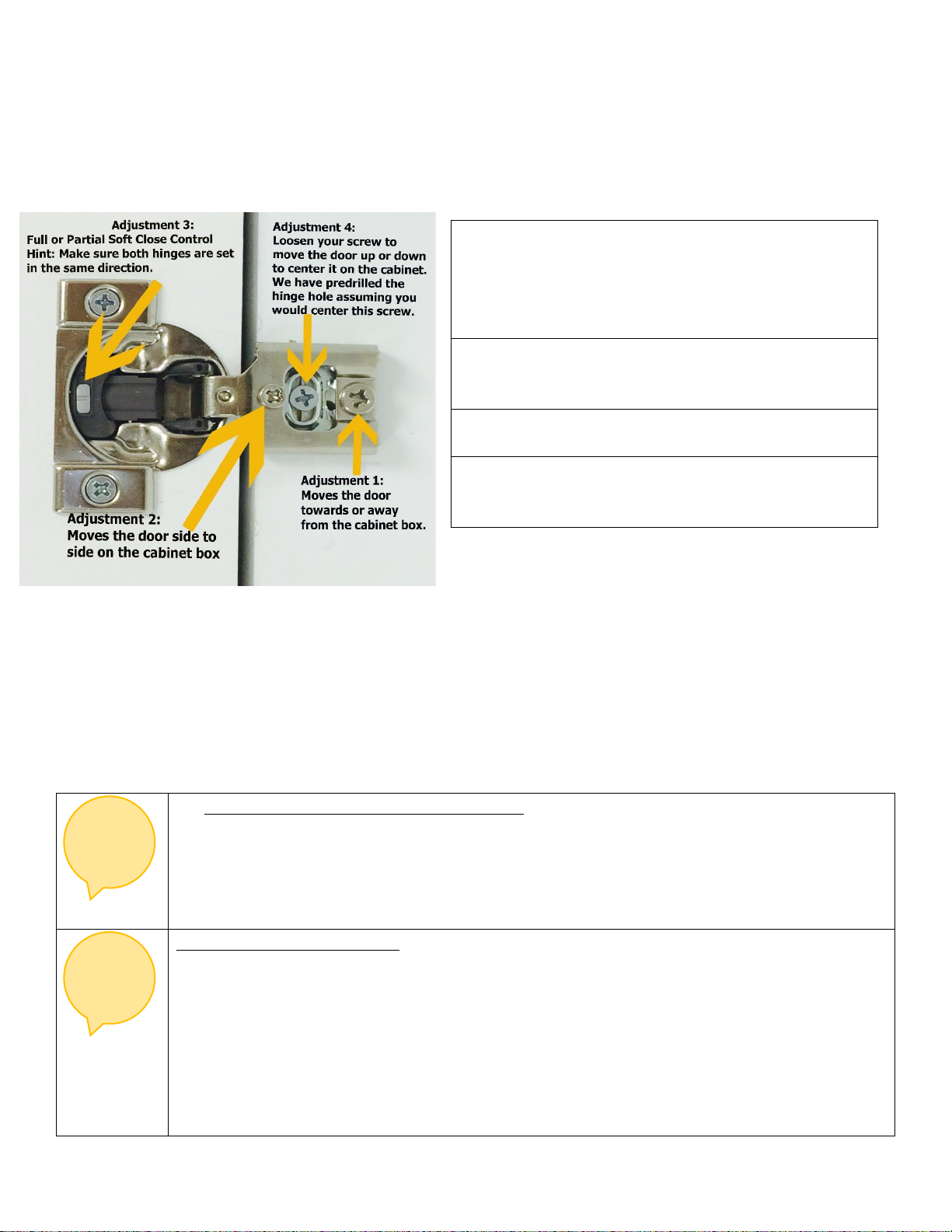

Adjustment #1 - Use this screw to move the
door towards or away from the front of the
cabinet box (to close the gap between the door
and the box). It will only turn about ¼ turn
either way.
Adjustment #2 – Use this screw to move the
door side to side. It will only turn about ¼ turn
either way.
Adjustment #3 – This switch is for full soft close
or partial soft close. See tips on last page.
Adjustment #4 – You can loosen your hinge
mounting screw and adjust the door slightly up
or down, then re-tighten the screw.
1
2
There are 4 adjustments on this hinge. See image below
Troubleshooting Tips
Occasionally, we have received customer concerns over doors that do not close properly or do not
close all the way. There are usually only about five reasons for a door to not close properly and we
have covered each one below.
2020 On the Wall2022-On the Wall cabinet Installation Instructions Page 4 of 5
Page 5
The door is warped: Solid wood doors do occasionally warp due to final drying of
the wood. There is a simple test you can perform to ensure that your door is not
warped. Remove the hinges by taking out the four screws holding them in. The
hinges will then just pull out (though they do fit in the holes tightly). Now lay the
door down face up on a flat surface such as a table or counter. If the door can
rock from corner to corner, it may be warped. 98% of doors will lay perfectly
flat. Push down on each corner. If the door rocks, check to see how much it is
coming up off the counter. Anything more than 1/8” is a warped door. Anything
less than 1/8” is within tolerances and is NOT warped.
Hinge manufacturing defects: All Blum hinges are manufactured to the highest
quality standard, and are the leader in the industry. However, occasionally we
have run across a hinge that something just wasn’t quite right on it. In these
instances, replacing the hinge took care of the problem. It is extremely rare to
have a defective hinge, but it can happen. If nothing else solves the problem, the
hinges could be at fault. Please call us for a replacement hinge.
3
4
