Timberk TOR 21.2512 BC User Manual

Instruction manual

Руководство по эксплуатации

TOR 21...BCL

TOR 21...BC

TOR 21...ACX TOR 21...BTA

TOR 31...QT

TOR 11...SM

TOR 21...SLX

Электрический маслонаполненный радиатор

Electric oil filled radiator

Модели/Models:

TOR 21.1206 BC TOR 21.1507 BC TOR 21.2009 BC TOR 21.2512 BC

TOR 21.1206 BCL TOR 21.1507 BCL TOR 21.2009 BCL TOR 21.2512 BCL

TOR 31.1606 QT TOR 31.1907 QT TOR 31.2409 QT TOR 31.2912 QT

TOR 11.0606 SM TOR 11.1009 SM TOR 11.1211 SM

Руководство по эксплуатации включает в себя гаратийный талон

Outlook of devices, aslo colour scores can be revised without any special advance notices.

Производитель вправе менять внешний вид прибора и цветовую гамму прибора без специального уведомления.

TOR 21.1206 BTA TOR 21.1507 BTA TOR 21.2009 BTA TOR 21.2512 BTA

TOR 21.1005 ACX TOR 21.1507 ACX TOR 21.1809 ACX TOR 21.2211 ACX

TOR 21.1005 SLX TOR 21.1507 SLX TOR 21.1809 SLX TOR 21.2211 SLX

Dear customer!

Thank you for your good choice! You purchased a Timberk oil filled radiator. We did everything for the unit to operate reliably for a long time.

Timberk electric oil filled radiator is designed to heat the air and create a comfortable environment indoors during cold season (early spring, fall, winter). The radiator is very easy-touse, easy to install, and also has an increased heat transfer and an efficient air flow distribution. Besides, Timberk Professional oil filled radiators are additionally equipped with an air ionizing function. The built-in air ionizer can operate independently of the air heating mode.

You must install the oil filled radiator only vertically and only on a rigid surface (for example, on the floor) in a place, where it is possible to connect to 220~V, 50Hz single-phase power supply wiring with an earth circuit.

IMPORTANT!

Important safeguards and instructions contained in this manual do not include all possible modes and situations. It is necessary to understand that common sense, caution and accuracy are factors, which cannot be ‘built-in’ any product.

These factors should be considered by a person, who is interested in the proper operation of the appliance. The manufacturer is nor responsible for damage of the appliance or its parts during transportation, as a result of incorrect installation or voltage fluctuations, as well as when any part of the appliance has been changed or modified.

2. SAFEGUARDS

1. IMPORTANT INFORMATION

Please, read this manual carefully before use of the electric oil-filled radiator. This manual contains important information regarding your safety, as well

as recommendations concerning the correct use and maintenance of this appliance.

Keep this manual together with a guarantee slip, cash register receipt and, if possible, carton and packaging material.

The radiator you have bought may slightly differ from that described in the manual, but it does not affect its use and operation procedures.

Please, read this manual carefully before use of the electric oil-filled radiator. This manual contains important information regarding your safety, as well

as recommendations concerning the correct use and maintenance of this appliance.

Keep this manual together with a guarantee slip, cash register receipt and, if possible, carton and packaging material.

The radiator you have bought may slightly differ from that described in the manual, but it does not affect its use and operation procedures.

www.timberk.com • electric oil filled radiator

When using the oil-filled radiator several safety precautions should be followed in order to reduce the risk of fire, electric shock and injury to persons. Incorrect operation due to disregard to precautions may cause harm to health of the user and other persons, as well as damage to their property.

1. Read this manual carefully before using the radiator.

2. The radiator is very hot when in use. To avoid burns, do not let bare skin touch hot surfaces. Keep the radiator at least 0.9 m from furniture, pillows, bedding, paper, clothes, curtains and other combustible materials. Let the radiator cool down before moving. When moving radiator, use a built-in handle.

3. Extreme caution is necessary when the radiator is used near children and whenever the radiator is left operating and unattended.

4. Always unplug the radiator when not in use.

5. Do not operate radiator with a damaged cord or plug. To avoid the damage of electric shock, damaged cord should be replaced only in authorized service centers of the manufacturer by qualified specialists.

6. Do not use radiator outdoors.

7. This radiator is not intended for use in bathrooms, laundry areas or other similar wet indoor locations. Never locate radiator where it may fall into a

bathtub or other water container.

8. Do not run cord of the radiator under carpeting and do not press it with furniture. Arrange cord where it will not be tripped over.

9. To shut-off the radiator, use a power switch. Do not switch on and switch off the appliance by connection and disconnection of electric supply.

10. Do not insert your fingers and do not allow foreign objects to enter any ventilation or exhaust opening as it may cause an electric shock or damage the radiator.

11. To prevent a possible fire, do not block air intakes or exhaust in any manner. Do not dry your clothes on the radiator! Do not use it on soft surfaces, like bed, where openings may become blocked. Use the radiator only on flat dry surface.

12. The radiator has hot sparking parts inside. Do not use it in areas where gasoline, paint or other flammable liquids are used or stored.

13. Use this radiator only as described in this manual. Any other use not recommended by the manufacturer may cause fire, electric shock or injury to persons.

14. Always unplug the radiator before cleaning. Do not submerge the radiator. Never pull the cord.

15. Avoid the change of a cord and the use of an extension cord because it may cause overheat and a risk of fire, as well as damage of internal electrical network. However, if you have to use an extension cord, the cord shall be polarized, with conductor cross-section of at least 1.0 mm2 and rated not less than 1875 W.

16. Connect the radiator only to the 220~V/50Hz electric network. If needed, find out the characteristics of your network from power supplier.

17. Install and operate the appliance only when upright. Do not operate the appliance in the horizontal or on the slant.

18. The appliance is not intended for use by handicapped persons (including children) with insufficient experience and knowledge, if they are not under observation or have not been instructed in the use of appliance from a person responsible for their safety. Make sure that children do not play with the radiator.

3. SPECIFICATIONS

Specifications of the oil-filled radiator are shown in Table 1. Table 1

Power

Model

TOR 21.1206 BC 1200 220~/50 5,4 6 6,3 310x235x625

TOR 21.1507 BC 1500 220~/50 6,8 7 7,2 350x235x625

TOR 21.2009 BC 2000 220~/50 9,1 9 9 430x235x625

TOR 21.2512 BC 2500 220~/50 11,4 12 11,7 550x235x625

TOR 21.1206 BCL 1200 220~/50 5,4 6 6,3 310x235x625

TOR 21.1507 BCL 1500 220~/50 6,8 7 7,2 350x235x625

TOR 21.2009 BCL 2000 220~/50 9,1 9 9 430x235x625

TOR 21.2512 BCL 2500 220~/50 11,4 12 11,7 550x235x625

TOR 31.1606 QT 1600 220~/50 7,3 6 7,3 310X235X625

TOR 31.1907 QT 1900 220~/50 8,6 7 8,2 340X235X625

TOR 31.2409 QT 2400 220~/50 10,1 9 9,9 415X235X625

TOR 31.2912 QT 2900 220~/50 13,1 12 12,4 530X235X625

TOR 21.1206 BTA 1200 220~/50 5,4 6 6.6 280x235x600

TOR 21.1507 BTA 1500 220~/50 6,8 7 7.4 310x235x635

TOR 21.2009 BTA 2000 220~/50 9,1 9 9.0 370x235x635

TOR 21.2512 BTA 2500 220~/50 11,4 12 11.30 490x235x600

TOR 21.1005 ACX 1000 220~/50 4,5 5 4.8 250х235х600

TOR 21.1507 ACX 1500 220~/50 6,8 7 5.8 310х235х600

TOR 21.1809 ACX 1800 220~/50 8,2 9 6.8 385х235х600

TOR 21.2211 ACX 2200 220~/50 10 11 8.4 460х235х600

consumption,

Power supply,

V/Hz

Rated

current A

Number

of fins

Net weight, kgDevice

dimensions, mm

www.timberk.com • electric oil filled radiator

Power

Model

TOR 21.1005 SLX 1000 220~/50 4,5 5 4.8 250x235x620

TOR 21.1507 SLX 1500 220~/50 6,8 7 5.8 310x235x620

TOR 21.1809 SLX 1800 220~/50 8,1 9 6.8 385x235x620

TOR 21.2211 SLX 2200 220~/50 10 11 8.4 460x235x620

TOR 11.0606 SM 600 220~/50 2,6 6 4.0 290x140x345

TOR 11.1009 SM 1000 220~/50 4,3 9 5.5 390x140x345

TOR 11.1211 SM 1200 220~/50 5,2 11 6.5 460x140x345

consumption,

Power supply,

V/Hz

Rated

current A

Number

of fins

Net weight, kgDevice

dimensions, mm

Noise level, dB (TOP 31 ... QT): 58

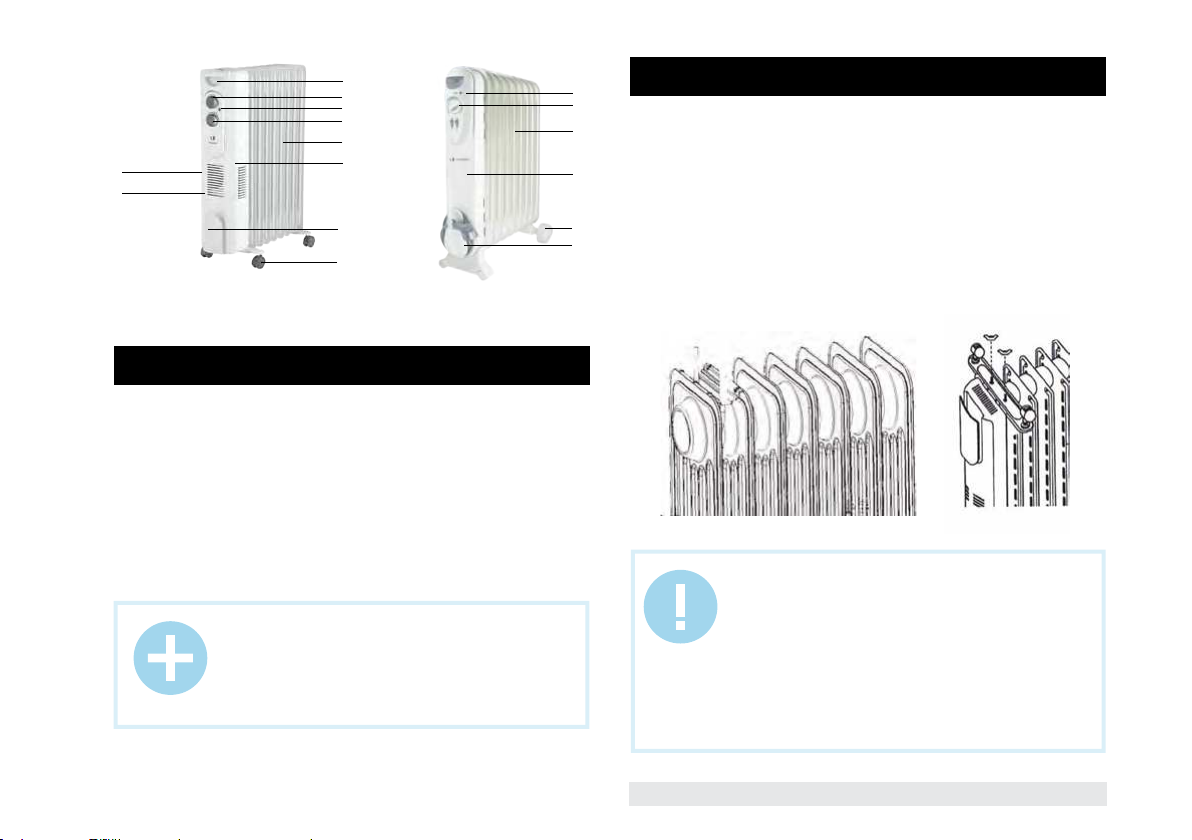

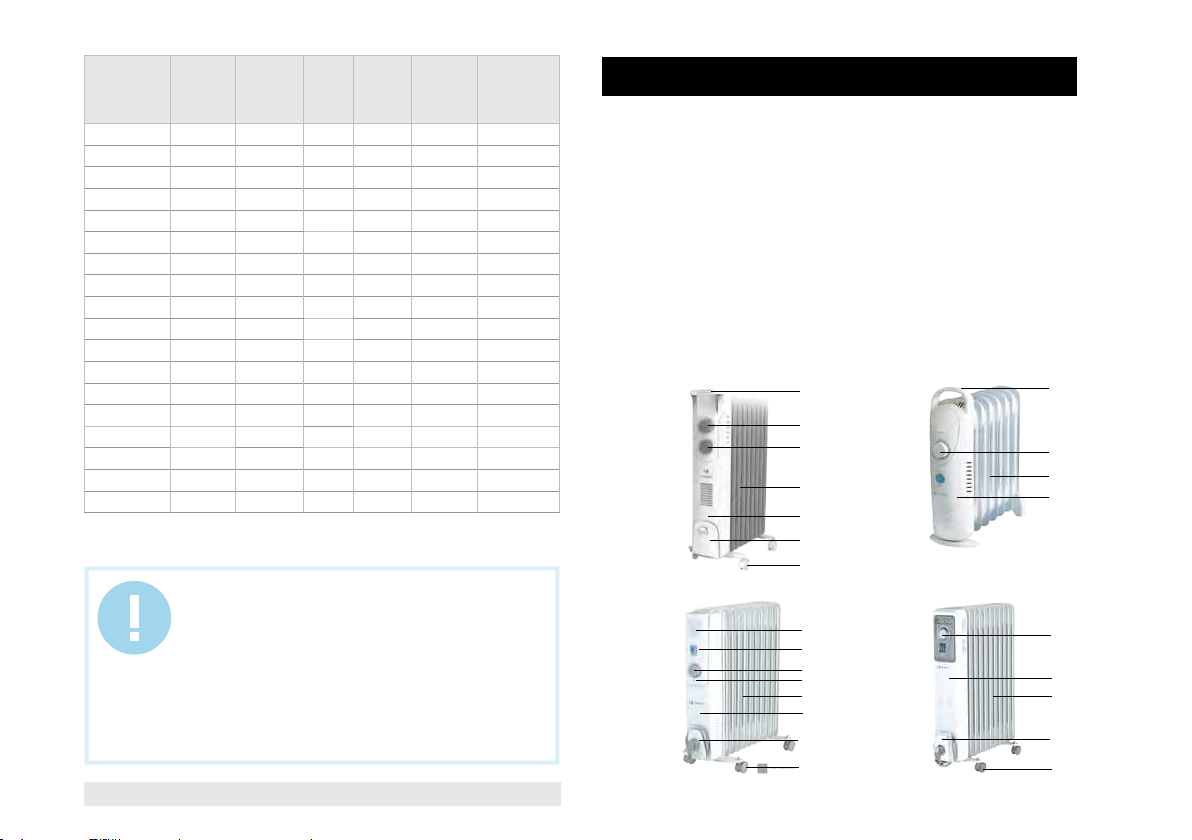

4. RADIATOR DESCRIPTION

1. Handle for moving

2. Heading indicator

3. Thermostat hardle

4. Power mode switcher

5. Wheel

6. Front cover

7. Radiator sections

8. Fan heater

9. Fan heater button

10. Cord holder

IMPORTANT!

The manufacturer reserves the right to change the set-list of the device (including liquid and powder components) for different supplies without prior notice. The changes either in no way influence the basic technical parameters of the device or may improve them, and also not violate the legislation or quality standards of the countries of manufacture, transit and selling.

The changes in the set-list may result in changing of the weight and dimensions of the device, but not more than by +\- 5-20%

TOR 21...BCL

TOR 21...BC

TOR 11...SM

(depending on the product category)

TOR 21...ACX

TOR 21...BTA

3 2

7 7 6

Fig. 1

www.timberk.com • electric oil filled radiator

TOR 31...QT

5. DELIVERY SET

1. Oil-filled radiator - 1 pc

2. Roller wheels, assembled - 2 pcs

4. Finger nut - 1 set

5. User manual - 1 pcs

6. Guarantee slip - 1 pcs

7. Packing - 1 pcs

NOTE:

Design and technical characteristics of the convector heater, as well as its complete set may be changed by the manufacturer without prior notification, when it is needed to improve its quality.

TOR 21...SLX

3 2 4

2 4

1. Unpack the radiator and roller wheels and remove all the packaging

6. ASSEMBLY AND INSTALLATION

material.

2. Overturn the radiator on a mat or no soft surface, to avoid damage to

lacquer coating.

3. Install wheel plates on the lower part of radiator sections, into two fixed supports.

5 10

4. Draw up two finger nuts on one side and two finger nuts on the other - in clamp extensions passed through the wheel plate supports, after making sure that 2 openings in the wheel plate match together with the clamp extensions (see Figure 3).

5. Turn the radiator back and tip it up.

Fig. 2 Fig. 3

IMPORTANT!

1. Switch on and operate the radiator only when upright (with wheels below and control elements above). Any other position may cause a dangerous situation and result in failure of the oilfilled radiator or damage of property and the manufacturer will consider this as a non-warranty case.

2. Do not switch the radiator on, if roller wheels are not installed.

www.timberk.com • electric oil filled radiator

7. UNIT OPERATION RULES AND PROCEDURE

1. Read section «Important precautions» carefully unless you already did it.

2. Connect the unit’s power cord to an electric outlet, observing all of the abovementioned precautions. Remember that you can connect the unit to electric mains only if the rotating power regulator is in OFF position (switched off), i.e. the knob is rotated against the stop counterclockwise.

3. It is also preferable to turn the temperature regulating knob against the stop counterclockwise. Then you can connect the unit to electric mains.

4. Set the unit’s power regulator (knob) to position I, II or III (corresponds to low, normal and maximum power of unit’s operation). Remember that the higher the power you choose, the faster the unit heats the air. But at a low power you save electric power and reduce the load on your electric mains.

5. After you chose the desired operating power in accordance with your individual preferences, you have to choose the desired heating temperature. Turning the thermostat knob clockwise (from MIN position towards MAX position), you thus adjust the temperature mode you need. Since the moment you choose the temperature mode (provided one or another power mode is activated see item 4) the oil filled radiator will start to operate.

6. During the first minutes of radiator’s operation you may fell a slight smell of burning. It may be caused by dust on the unit; it will soon disappear. If necessary, you can perform a preliminary preventive cleaning of the unit, following rules, set forth in this manual and observing «Important precautions».

7. When the room temperature will reach the desired level, you should slowly turn the temperature regulator’s knob counterclockwise (towards MIN). You will hear a click of the thermostat turning off, and the light on the control panel will go out. Now the room temperature will be maintained at the chosen level.

8. If you need to reduce the room temperature, turn the thermostat knob counterclockwise. Also you can lower the unit’s operating power (I or II).

9. If you need to raise the room temperature, turn the thermostat knob clockwise (maximum possible position MAX indicator). Also you can raise the unit’s operating power (II or III).

10. The lines of Timberk oil filled radiators TOR 31...QT are additionally equipped with a built-in fan heater, located on the front panel of the unit. To speed up the room heating, activate the fan heater by pressing the special button switch (the button can be located both on the front panel of the

unit and on the side (to the left) of the front panel of the unit depending on the unit line).

Pressing the fan heater button, you must select the ON position (switched on), upon that power supply will be automatically fed both to the fan motor and to the built-in heating element. If you need to turn on the fan heater, please, press the button again, selecting the OFF position (switched off).

IMPORTANT!

For the unit to operate normally, the level of voltage in electric mains must be sufficient in strict compliance with the technical parameters indicated on the unit. Carefully study the technical label, as well as all labels with special warnings, attached to the unit’s surface.

8. CLEANING AND MAINTENANCE OF THE UNIT

1. Remember that you must clean the unit regularly to remove dust from the surface of heating sections. Dust and dirt on the unit’s surface have a negative effect on the unit’s operational efficiency, in some cases a smell of burning dust can cause a headache and nausea, as well as other negative health effects. Also a dirty unit cannot operate 100% effectively, temperature parameters of the room heating can be disrupted.

2. Prior to preventive cleaning of the unit, you must switch off the unit, unplug it from electric mains (see «Important precautions») and let the unit cool down.

3. Clean the unit’s sections and other surfaces with a soft, slightly damp duster/cloth. The cloth must not leave fluff on the unit’s surface.

4. It is not recommended to use detergents, including materials containing abrasive elements.

5. During cleaning, please, do not damage the unit’s surface by sharp objects (hard sponge, polishing paper, etc). Scratches on the painted surface can result in rusting.

Switch on and use the unit again only having carried out all «Important precautions»; also make sure that the unit’s surface is absolutely dry.

www.timberk.com • electric oil filled radiator

9. TROUBLESHOOTING

11. UTILIZATION

Possible malfunctions and remedies for them:

Malfunction Cause Remedy

1. The heater heats poorly

2. The heater does not work

1. The heating element is faulty

2. Low voltage in the electric mains 2. Check voltage in the electric mains

1. No voltage in the electric mains

2. Breakdown of the electric cable

3. The automatic circuit breaker of the electric mains is faulty

4. Breakdown in the heating element circuit

1. Contact the authorized service center of Timberk

1. Check presence of voltage in the electric mains

2. Check integrity of the electric cable and replace it if necessary

3. Check operability of the automatic circuit breaker of the electric mains and replace the faulty circuit breaker if necessary

4. Contact the authorized service center of Timberk

If you are not able to remedy a malfunction according to the recommendations or other malfunctions occur, contact the authorized service center of Timberk.

10. TRANSPORTATIOM AND STORAGE

Temperature requirements*

Humidity requirements*

Transportation and storage

We are exploring new technologies and we constantly improving the quality of our products. That’s why specifications, design and accessories are subject to change without any specific notice.

* This product must have storage in dry, well-ventilated space of warehouse at the temperature not lower than -30°

From -30° to +50°

From 15% to 85%

(without a condensate)

After end of life the fan heater should be utilized in accordance with the norms, regulations and procedures effective in the place of utilization. For more detailed information please contact representatives of local authorities.

www.timberk.com • electric oil filled radiator

Уважаемый покупатель!

Благодарим вас за удачный выбор! Вы приобрели маслонаполненный радиатор Timberk. Со своей стороны мы сделали все, чтобы прибор работал надежно и прослужил вам долго.

Электрический маслонаполненный радиатор Timberk предназначен для обогрева воздуха и создания комфортной атмосферы в помещении в холодное время года (ранняя весна, осень, зима). Радиатор очень удобен в использовании, прост в установке, а также обладает повышенной теплоотдачей и эффективным распределением воздушного потока. Кроме того, маслонаполненные радиаторы Timberk Professional дополнительно оснащены функцией ионизации воздуха. Встроенный ионизатор воздуха может работать автономно от режима обогрева воздуха.

Вы должны установить маслонаполненный радиатор только в вертикальном положении и только на жесткой основе (например, на полу) там, где есть возможность подключения к электропроводке с однофазным электропитанием 220~B, 50Гц и с заземляющим контуром.

1. ВАЖНАЯ ИНФОРМАЦИЯ

Просим внимательно ознакомиться с руководством по эксплуатации перед использованием маслонаполненного радиатора.

В данном руководстве по эксплуатации содержится важная информация, касающаяся Вашей безопасности, а также рекомендации по правильному использованию прибора и уходу за ним.

Сохраните руководство по эксплуатации, вместе с гарантийным талоном, кассовым чеком, по возможности, картонной коробкой и упаковочным материалом.

Приобретенный Вами радиатор может несколько отличаться от описанного в руководстве, что не влияет на способы использования и эксплуатации.

ВНИМАНИЕ!

Важные меры предосторожности и инструкции, содержащиеся в данном руководстве, не включают всех возможных режимов и ситуаций, которые мо гут встречаться. Необходимо понимать, что здравый смысл, осторожность и тщательность являются факторами, которые невозможно «встроить» ни в один продукт.

Эти факторы должен учитывать человек, который заинтересован в надлежащей эксплуатации устрой ства. Изготовитель не несет ответственности в случае повреждения прибора или его отдельных частей во время транспортировки, в результате неправиль ной установки, в результате колебаний напряжения, а также в случае, если какая-либо часть прибора была изменена или модифицирована.

2. МЕРЫ ПРЕДОСТОРОЖНОСТИ

При использовании маслонаполненного радиатора, необходимо соблюдать ряд мер предосторожности, для снижения риска пожара, поражения электрическим током и травмирования людей. Неправильная эксплуатация в силу игнорирования мер предосторожности может привести к причинению вреда здоровью пользователя и других людей, а также нанесения ущерба их имуществу.

1. Прочитайте все инструкции перед использованием радиатора.

2. Радиатор при работе нагревается до очень высокой температуры. Чтобы избежать ожогов, не прикасайтесь руками и другими частями тела к горячим поверхностям. Располагайте радиатор на расстоянии не менее 0,9 м от мебели, подушек, постельных принадлежностей, бумаги, одежды, штор и других горючих предметов и материалов. Дайте радиатору остыть, прежде чем перемещать его. Для перемещения радиатора используйте встроенную ручку.

3. Необходимо соблюдать крайнюю осторожность, когда рядом с работающим радиатором играют дети, и всегда, когда радиатор работает без присмотра.

4. Всегда выключайте радиатор из розетки, когда он не используется.

www.timberk.com • электрический маслонаполненный радиатор
