Timberk DH TIM 10 E5 User manual

Instruction manual

Руководство по эксплуатации

Электрический осушитель для изме-

нения влажности воздуха

Модели/Models:

Руководство по эксплуатации включает в себя гарантийный талон

Outlook of devices, aslo colour scores can be revised without any special advance notices.

Производитель вправе менять внешний вид прибора и цветовую гамму прибора без специального уведомления.

Electric dehumidifier

DH TIM 10 E5

CONTENTS

1. Important information .......................................................................2

2. Safeguards .......................................................................................3

3. Specifications ................................................................................... 3

4. Appliance description .......................................................................4

5. Delivery set ....................................................................................... 4

6. Appliance control ..............................................................................4

7. Maintenance ..................................................................................... 6

8. Troubleshooting ................................................................................ 6

9. Transportatiom and storage .............................................................. 7

10. Service life ...................................................................................... 7

11. Utilization rules................................................................................7

Dear customer!

We thank you for your happy choice and buying of a electric dehumidifier TIMBERK. It will serve you for a long time.

Is intended for dehydration of air in domestic premises

1. IMPORTANT INFORMATION

Is intended for dehydration of air in domestic premises the appliance is designed for air cooling in domestic premises. The manufacturer reserves the right to introduce changes in design, configuration and processing of the article with a view to improve its properties without any prior notification of customers. There may be some misprints in text and digital notations of the present manual. If after reading of this manual you have any questions concerning work and operation of the appliance, please, refer to a shop assistant or to a specialized service center for further explanations.

The article has a label with all the needed technical data and other useful information about the appliance. Use the appliance only for its intended purpose indicated in this manual.

www.timberk.com • Electric drier for changing of air humidity

2. SAFEGUARDS

3. SPECIFICATIONS

1. DON’T CLOSE VENTS! Make sure that vent inlet and outlet are free.

2. Don’t insert foreign objects in air-outlet grille of the drier. It is very dangerous, since the fan revolves at high speed.

3. Install the appliance only on a horizontal surface to avoid water leakage.

4. Don’t install the appliance in the following locations:

- where it is exposed to direct sunlight;

- near sources of open flame;

- near other working heating appliances;

- where the appliance may be exposed to water splashes or steam.

5. Don’t use the appliance in explosive or corrosive environment. Don’t keep petrol and other volatile flammable liquids near the drier – it’s very dangerous!

6. Don’t use the appliance only for drying (reducing of humidity level) of air in domestic premises.

7. Clean the filter occasionally to ensure efficient work of the appliance.

8. To ensure reliable work of the compressor, don’t incline the appliance.

9. To avoid electric shock, a damaged power cord should be replaced only in authorized service centers by qualified specialists.

10. Connect the appliance only to 220-230V~50Hz network. If needed, find out characteristics of your network from power suppliers

Specifications are shown in table below.

Model DH TIM 10 E5

Capacity of draining (L/d) 10

Water tank volume (L) 1.3

Rated power consumption (W) 220

Power supply, V/Hz 220~/50

Rated power current (A) 1.3

Air circulation m

Noise level dB(A) 46

Refrigerant R410A

Electrical protection class I class

Degree of protection against moisture IPX0

Filling of Freon, g 260

Operating temperature range: ° C 5-35

Net weight (kg) 10.5

Gross weight (kg) 11.5

Net dimensions (mm) 330x260x420

Packing dimensions (mm) 365x285x505

/h 130

www.timberk.com • Electric drier for changing of air humidity

4. APPLIANCE DESCRIPTION

Identification of parts

Front

Fig. 2.

1. Control panel

2. Air intake grille

3. Water bucket

4. Water level window

5. Handle se outlet

6. Air filter (behind the air intake grille)

7. Air Outlet grille

8. Drain hose outlet (see page 7)

9. Power cord band (Used only when storing the unit.)

10. Power Cord

11. Power Plug

Rear

Positioning the unit

A dehumidifier operating in a basement will have little or no effect in drying an adjacent enclosed storage area, such as a closet, unless here is adequate circulation of air in and out of the area.

• Do not use outdoors.

• This dehumidifer is intended for indoor residential applications only. • This dehumidifier should not be used for commercial or industrial applications.

• Place the dehumidifier on a smooth, level floor strong enough to support the unit with a full bucket of water.

• Allow at least 20cm of air space on all sides of the unit for good air circulation.

• Place the unit in an area where the temperature will not fall below 5OC(41OF). The coils can become covered with frost at temperatures below 5OC(41OF), which may reduce performance.

• Place the unit away from the clothes dryer, heater or radiator.

• Use the unit to prevent moisture damage anywhere books or valuables are stored.

• Use the dehumidifier in a basement to help prevent moisture damage.

• The dehumidifier must be operated in an enclosed area to be most effective.

• Close all doors, windows and other outside openings to the room.

NOTE:

All the pictures in the manual are for explanation purposes only.Your unit may be slightly different.The actual shape shall prevail.The operations and functions are the same.

www.timberk.com • Electric drier for changing of air humidity

Fig. 2.

Casters(Install at four points on the bottom of unit)

• Casters can only move laterally.

• Do not force casters to move over carpet, nor move the unit with water in the bucket. (The unit may tip over and spill water.)

NOTE:

Casters is optional,some models without.

5. DELIVERY SET

Completed set of the appliance: Appliance (air drier) - 1 piece Appliance packing - 1 piece User manual and Guarantee slip -1 piece

6. APPLIANCE CONTROL

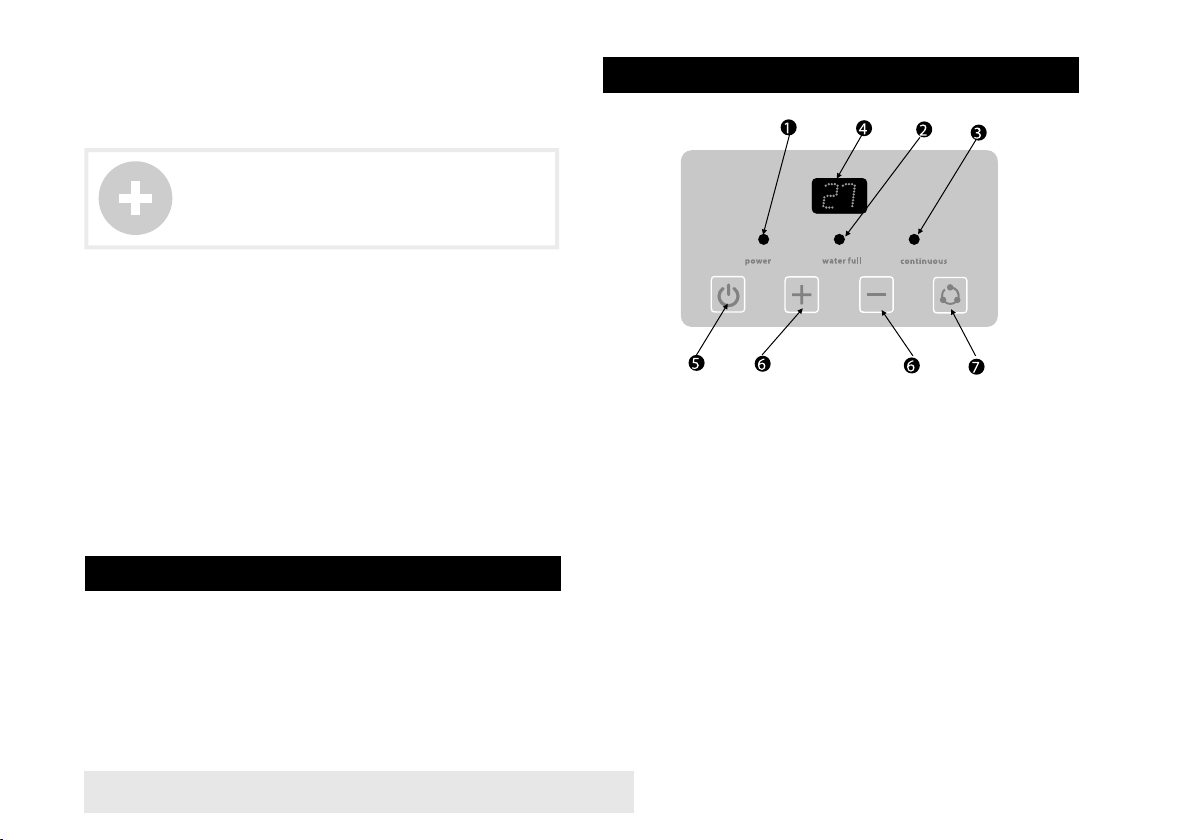

Indicator lights

1. Power on indicator light(green)

2. Continuous operation on indicator light(green)

3. Bucket full indicator light(red)

4. Display Shows the set % humidity level while setting, then shows the actual

(+5% accuracy) room % humidity level.

Error Codes:

E1- Humidity sensor error--Unplug the unit and plug it back in. If error repeats, call for service.

E2- Temperature sensor error-- Unplug the unit and plug it back in. If error repeats, call for service.

Protect Codes: P1- Unit is defrosting – Allow the unit to automatically defrost. The

portect will clear after the unit self defrosts. P2- Bucket is full or bucket is not in the right position – Empty the bucket

and replace in the right position.

Control pads

5. POWER Pad Press to turn the dehumidifier on and off.

6. Humidity Set Control Pads The humidity level can be set within a range of 35%RH(Relative Humidity)

to 80% RH(Relative Humidity) in 5% increments. For drier air, press the pad and set to a lower percent value(%). For damper air, press the pad and set to a higher percent value(%).

7. Continue Pad Select for the dehumidifier to operate continuously for maximum

dehumidification until the bucket is full. The Humidity set control pads cannot be used when. Continuous operation is on.Press this pad again to cancel Continuous operation.

Fig. 3.

www.timberk.com • Electric drier for changing of air humidity

Other features

Bucket Full Light

Glows when the bucket is ready to be emptied, or when the bucket is removed or not replaced in the proper position.

Auto Shut

Off The water level control switch shuts off the dehumidifier when the bucket is full, or when the bucket is removed or not replaced in the proper position. When the setting humidity is reached, the unit will be shut off automatically.

Wait 3 minutes before resuming operation

After the unit has stopped, it can not be restart opertation in the first 3 minutes. This is to protect the unit. Operation will automatically start after 3 minutes.

Auto Defrost

When frost builds up on the evaporator coils, the compressor will cycle off and the fan will continue to run until the frost disappears.

Auto-Restart(on some models)

If the unit breaks off unexpectedly due to the power cut, it will restart with the previous function setting automatically when the power resumes.

7. MAINTENANCE

There are two ways to remove collected water.

1. Use the bucket

When the bucket is full, the unit will automatically stop running, and the Full indicator light will flash.

Slowly pull out the bucket. Grip the left and right handles securely, and carefully pull out straight so water does not spill. Do not put the bucket on the floor because the bottom of the bucket is uneven. Otherwise the bucket will fall and cause the water to spill.

Throw away the water and replace the bucket. The bucket must be in place and securely seated for the dehumidifier to operate.

The machine will re-start when the bucket is restored in its correct position.

NOTE:

When you remove the bucket, do not touch any parts inside of the unit. Doing so may damage the product. Be sure to push the bucket gently all the way into the unit. Banging the bucket against anything or failing to push it in securely may cause the unit not to operate.

Pull out the bucket a little.

Fig. 4.

Hold both sides of the bucket with even strength, and pull it

out from the unit.

Pour the water out.

2. Continuous draining

Water can be automatically emptied into a floor drain by attaching the unit with a water hose (ID 13.5mm) (not included).

• Remove the rubber plug from the back of the unit and store it in a safe location.

• Insert the water hose into the unit from the drain outlet in the back of the unit as shown in Fig.5. Make sure the connection of the water hose and the drain hose outlet of the unit is tight and do not let the water leak.

• Then lead the water hose to the floor drain or a suitable drainage facility. The drainage facility should be lower than the drain outlet of the unit.

• Be sure to run the water hose sloping downward and let the water to flow out smoothly.Do not install the water hose as shown Fig.6.

NOTE:

When the continuous drain feature is not being used,remove the drain hose from the outlet and attach the rubber plug back to the drain outlet.

www.timberk.com • Electric drier for changing of air humidity

Fig. 5.

Do not block water flow

by a rise.

Do not block water flow

by a retortion.

Fig. 6.

Care and cleaning of the dehumidifier

Turn the dehumidifier off and remove the plug from the wall outlet before cleaning.

1. Clean the Grille and Case

Use water and a mild detergent. Do not use bleach or abrasives. Do not splash water directly onto the main unit. Doing so may cause an electrical shock, cause the insulation to deteriorate, or cause the unit to rust. The air intake and outlet grilles get soiled easily, so use a vacuum attachment or brush to clean.

2. Clean the bucket

Every few weeks, clean the bucket to prevent growth of mold, mildew and bacteria. Partially fill the bucket with clean water and add a little mild detergent. Swish it around in the bucket, empty and rinse.

NOTE:

Do not use a dishwasher to clean the bucket. After clean, the bucket must be in place and securely seated for the dehumidifier to operate.

3. Clean the air filter

The air filter behind the front grille should be checked and cleaned at least every 30 days or more often if necessary.

NOTE:

Do not rinse or put the filter in an automatic dishwasher.

To remove:

• Pull the water bucket out as shown in Fig.4. Grasp the lower side of the

filter and pull it downward, see Fig.7.

• Clean the filter with warm, soapy water. Rinse and let the filter dry before

replacing it. Do not clean the filter in a dishwasher.

To attach:

Insert the air filter into the unit from the side and push it upward. See Fig.10.

CAUTION:

DO NOT operate the dehumidifier without a filter because dirt and lint will clog it and reduce performance.

Fig. 7.

4. When not using the unit for long time periods

• After turning off the unit, wait one day before emptying the tank.

• Clean the main unit, bucket and air filter.

• Wrap the cord and bundle it with the band (see Fig.8).

• Cover the unit with a plastic bag.

• Store the unit upright in a dry, well-ventilated place.

www.timberk.com • Electric drier for changing of air humidity

Fig. 8.

8. TROUBLESHOOTING

In case of emergency, please, use the troubleshooting methods shown in tables. If it is impossible to solve problems with these methods, apply to the service center.

Failures and their possible reasons:

Problem What to check

• Make sure the dehumidifier s plug is pushed completely into

Unit does not start

Dehumidifier does not dry the air as it should

The unit makes a loud noise when operating

the outlet.

• Check the house fuse/circuit breaker box.

• Dehumidifier has reached its preset level or bucket is full.

• Bucket is not in the proper position.

• Did not allow enough time to remove the moisture.

• Make sure there are no curtains, blinds or furniture blocking the front or back of the dehumidifier.

• The humidity selector may not be set low enough.

• Check that all doors, windows and other openings are securely closed.

• Room temperature is too low, below 5 C(41 F).

• There is a kerosene heater or something giving off water vapor in the room.

• The air filter is clogged.

• The unit is tilted instead of upright as it should be.

• The floor surface is not level.

Problem What to check

Frost appears on the coils

Water on floor

Power indicator light flashes at 5 times per second.

This is normal. The unit has Auto defrost feature.

Hose to connector or hose connection may be loose. Intend to use the bucket to collect water, but the back drain plug is removed.

Temperature sensor or Humidity sensor error. Unplug the unit and plug it back in.If error repeats, call for service.

9. TRANSPORTATIOM AND STORAGE

Temperature requirements*

Humidity requirements*

Transportation and storage

We are exploring new technologies and we constantly improving the quality of our products. That’s why specifications, design and accessories are subject to change without any specific notice.

* This product must have storage in dry, well-ventilated space of warehouse at the temperature not lower than -30°

From -30° to +50°

From 15% to 85%

(without a condensate)

10.SERVICE LIFE

Service life of the appliance is 10 years provided that the respective installation and operation rules are observed.

Date of the conditioner manufacture is shown in a serial number of the device. For more details, please, ask a shop assistant.

11. UTILIZATION RULES

Upon expiration of the service life, the appliance should be utilized in accordance with norms, regulations and procedures effective in the place of utilization.

www.timberk.com • Electric drier for changing of air humidity

СОДЕРЖАНИЕ*

1. Важная информация ...................................................................... 9

2. Меры предосторожности ...............................................................10

3. Технические характеристики .........................................................10

4. Описание прибора .......................................................................... 11

5. Комплект поставки .........................................................................12

6. Управление прибором ....................................................................12

7. Обслуживание ................................................................................13

8. Устранение неисправностей ..........................................................15

9. Гарантийный талон .........................................................................18

Уважаемый покупатель!

Благодарим Вас за удачный выбор и приобретение осушителя воздуха TIMBERK.

Он прослужит Вам долго. Электрический осушитель воздуха предназначен для осу-

шения воздуха в бытовых помещениях. Просим вас внимательно ознакомиться с руководством по

эксплуатации перед тем, как вы начнете эксплуатацию изделия.

1. ВАЖНАЯ ИНФОРМАЦИЯ

Прибор предназначен для осушения воздуха в бытовых помещениях. Производитель оставляет за собой право без предварительного уве-

домления покупателя вносить изменения в конструкцию, комплектацию или технологию изготовления изделия с целью улучшения его свойств. В тексте и цифровых обозначениях данного руководства могут быть допущены опечатки.

Если после прочтения руководства у Вас останутся вопросы по работе и эксплуатации прибора, обратитесь к продавцу или в специализированный сервисный центр для получения разъяснений.

ВНИМАНИЕ!

На изделии присутствует этикетка, на которой указаны все необходимые технические данные и другая полезная информация о приборе. Используйте прибор только по назначению, указанному в данном руководстве.

* Руководство по эксплуатации может быть дополнено приложением №1, которое является неотъемлемой частью Руководства по эксплуатации.

www.timberk.сom • электрический осушитель для изменения влажности воздуха

+ 19 hidden pages
