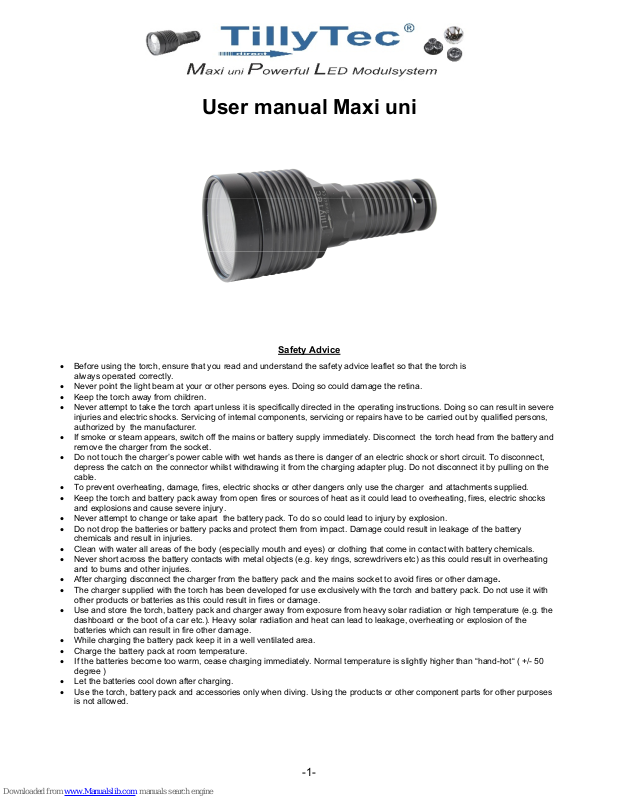

TILLYTEC MAXI UNI User Manual

User manual Maxi uni

-1-

Safety Advice

• Before using the torch, ensure that you read and understand the safety advice leaflet so that the torch is
always operated correctly.

• Never point the light beam at your or other persons eyes. Doing so could damage the retina.

• Keep the torch away from children.

• Never attempt to take the torch apart unless it is specifically directed in the operating instructions. Doing so can result in severe

injuries and electric shocks. Servicing of internal components, servicing or repairs have to be carried out by qualified persons,
authorized by the manufacturer.

• If smoke or steam appears, switch off the mains or battery supply immediately. Disconnect the torch head from the battery and
remove the charger from the socket.

• Do not touch the charger’s power cable with wet hands as there is danger of an electric shock or short circuit. To disconnect,
depress the catch on the connector whilst withdrawing it from the charging adapter plug. Do not disconnect it by pulling on the
cable.

• To prevent overheating, damage, fires, electric shocks or other dangers only use the charger and attachments supplied.

• Keep the torch and battery pack away from open fires or sources of heat as it could lead to overheating, fires, electric shocks

and explosions and cause severe injury.

• Never attempt to change or take apart the battery pack. To do so could lead to injury by explosion.

• Do not drop the batteries or battery packs and protect them from impact. Damage could result in leakage of the battery

chemicals and result in injuries.

• Clean with water all areas of the body (especially mouth and eyes) or clothing that come in contact with battery chemicals.

• Never short across the battery contacts with metal objects (e.g. key rings, screwdrivers etc) as this could result in overheating

and to burns and other injuries.

• After charging disconnect the charger from the battery pack and the mains socket to avoid fires or other damage.

• The charger supplied with the torch has been developed for use exclusively with the torch and battery pack. Do not use it with

other products or batteries as this could result in fires or damage.

• Use and store the torch, battery pack and charger away from exposure from heavy solar radiation or high temperature (e.g. the
dashboard or the boot of a car etc.). Heavy solar radiation and heat can lead to leakage, overheating or explosion of the
batteries which can result in fire other damage.

• While charging the battery pack keep it in a well ventilated area.

• Charge the battery pack at room temperature.

• If the batteries become too warm, cease charging immediately. Normal temperature is slightly higher than “hand-hot“ ( +/- 50

degree )

• Let the batteries cool down after charging.

• Use the torch, battery pack and accessories only when diving. Using the products or other component parts for other purposes

is not allowed.

User manual Maxi uni

-2-

General Care and Usage Instructions

• The O-rings (sealing rings) should only be removed if they require replacing.

• Lubricate the O-rings occasionally with a smear of silicone grease. Please do not apply to much grease. Do not use

silicone spray !

• Regularly inspect the O-rings for damage or contamination, and change them if necessary. We recommend that you
carry spare O-rings.

• The torches can be operated out of water for a short time, however they will become very hot very quickly so do not
leave unattended. Only operate until the torch head becomes warm.

• After use rinse the torch thoroughly with fresh water whilst still attached to the umbilical and battery pack. Never use
any other cleaning agents.

• Do not shine the torch into your eyes or the eyes of others as severe damage to the retina could result.

Advice on Using Battery Chargers

• You can use (series) with the short tube:

- 3 x AAA alkaline batteries in a battery holder (optional *)

- 3 x AAA NiMh battery in a battery holder (optional *)

- 1 x 18650 accumulator with mit space holder (optional *)

- 1 x 26650 accumulator

• You can use with the long tube (optional): Look on homepage www.TillyTec.de, under the buton „Infomation“.

• For the cell 18650 and 26650 we recommend only to use batteries from type LiCoMn (lithium – cobalt –

mangan). Otherwise there is danger for explosion !

*available only at Tilly-direct

All mentioned batterys and suitable charger are available

at TILLYTEC.de under accessoires !

-3-

User manual Maxi uni
