TileVision Mirage User Manual

Download

TILE

ILE

VISION

ISION

MIRA GE

IRAGE

HIGH-DEFINITION MULTIMEDIA INTERFACE

SPLASHPROOF

IP44

Safety Instructions and Warnings

Do not connect the Mirage to a trailing plug and socket outlet.

This may present a shock hazard.

Do not attempt to service the unit. Contact an authorised dealer or repair service.

Servicing the unit yourself may cause an electric shock or fire.

Keep the power adaptor away from any heat source.

This may cause a fire.

If there are any unusual sounds or smells coming from the unit, turn it off immediately and contact an authorised dealer or repair service.

This may cause an electric shock or fire.

Do not use a damaged socket and do not let the power cord touch a heat source.

This may cause an electric shock or fire.

Make sure the wall frame is securely fixed to the wall.

The mirror frame weighs 14.5 Kg (32 lb) and when the unit is open during installation all of the weight is on the hinged side.

Ensure the antenna is located away from overhead cables.

This may cause an electric shock.

If an outside antenna is connected to the unit, ensure the external to internal cable entry is fully sealed

This may cause an electric shock or fire.

Waste Electrical and Electronic Equipment (WEEE) Directive

In the European Union, this symbol indicates that this product should not be disposed of with household waste. It should be deposited at an appropriate facility to enable recovery and recycling.

This equipment must be installed by a competent person, in accordance with current IEE wiring regulations. If in doubt consult a qualified electrician.

Always switch off the electrical supply at the mains during installation.

Fitting in Bathrooms is subject to the appropriate location (see IEE Zones opposite). Refer to IEE Regulations.

This product is suitable for Zones 2 and Outside Zones. It is not suitable for installation in Zone 0 or Zone 1.

It is not suitable for installation in Saunas, Steam Rooms or Shower Cubicles.

Fire and Safety regulations must be obeyed.

The 12 VDC power adaptor is not waterproof and so must be positioned in a dry, well ventilated area away from any water and moisture.

This product has an Ingress Protection Rating of IP44 and is only suitable for indoor use.

Make sure the wall frame is securely attached to the wall in accordance with the installation instructions. The mirror frame weighs 14.5 Kg (32 lb) and when the unit is open during installation all of the weight is on the hinged side.

It is recommended that the unit is cleaned with a soft dry cloth when turned off. Do not use abrasive materials.

Failure to observe the above safety warnings may invalidate the warranty.

This equipment has an IP44 rating and is suitable for use in Zone 2 and Outside Zones.

Zone 1

Zone 2

600mm

2250mm

Zone 1

Zone 2

Radius 600mm

600mm

Zone 2

Zone 0

IEE Bathroom Zones

HIGH-DEFINITION MULTIMEDIA INTERFACE

SPLASHPROOF

IP4 4

CAUTION: RISK OF ELECTRIC SHOCK DO NOT OPEN

WARNING: TO PREVENT INJURY, THIS APPARATUS MUST BE SECURELY ATTACHED TO THE WALL IN

ACCORDANCE WITH THE INSTALLATION INSTRUCTIONS.

CAUTION: DO NOT REMOVE COVER. NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING

TO QUALIFIED SERVICE PERSONNEL. BEWARE OF STATIC SENSITIVE PARTS.

This product contains Electrical/Electronic Parts which are produced using components in compliance with the requirements of: European Union Directive 2002/195/EC for the Restriction of the use of certain Hazardous Substances in Electrical and Electronics Equipment (RoHS).

RoHS

COMPLIANT

☛

Silicone Sealant produces acetic acid during cure.

Use only in well ventilated areas. Irritating to eyes. Wash hands after use and before meals. Wash splashes from skin, clothing and other surfaces. In case of contact with eyes wash immediately with plenty of water.

Please observe safety precautions on the container.

Keep out of reach of children and animals.

The Mirage weighs a total of 16 Kg (35 lb) and must be fixed securely to the wall. It will be necessary to use screw fixings which are appropriate for the type of wall in question.

The eight mounting holes in the wall frame are 5.5 mm Ø and will accept a number 10 screw with a head diameter of up to 10 mm.

Table of ContentsItems Required

Silicone sealant

IRRITANT

Safety Instructions and Warnings ............................................................................................................................1

Items Required ................................................................................................................................................................2

Unpacking Your Mirage ................................................................................................................................................4

Installing the Wall Frame ...........................................................................................................................................6

Cabling Overview ............................................................................................................................................................7

Fitting the Mirror Frame to the Wall Frame ........................................................................................................8

The Mirage Connector Array ................................................................................................................................... 10

Connecting an Antenna or Cable ...........................................................................................................................10

The Component and Composite Video Connectors

.......................................................................................11

The HDMI and S-VIDEO Connectors

.....................................................................................................................12

The SCART Connector ................................................................................................................................................13

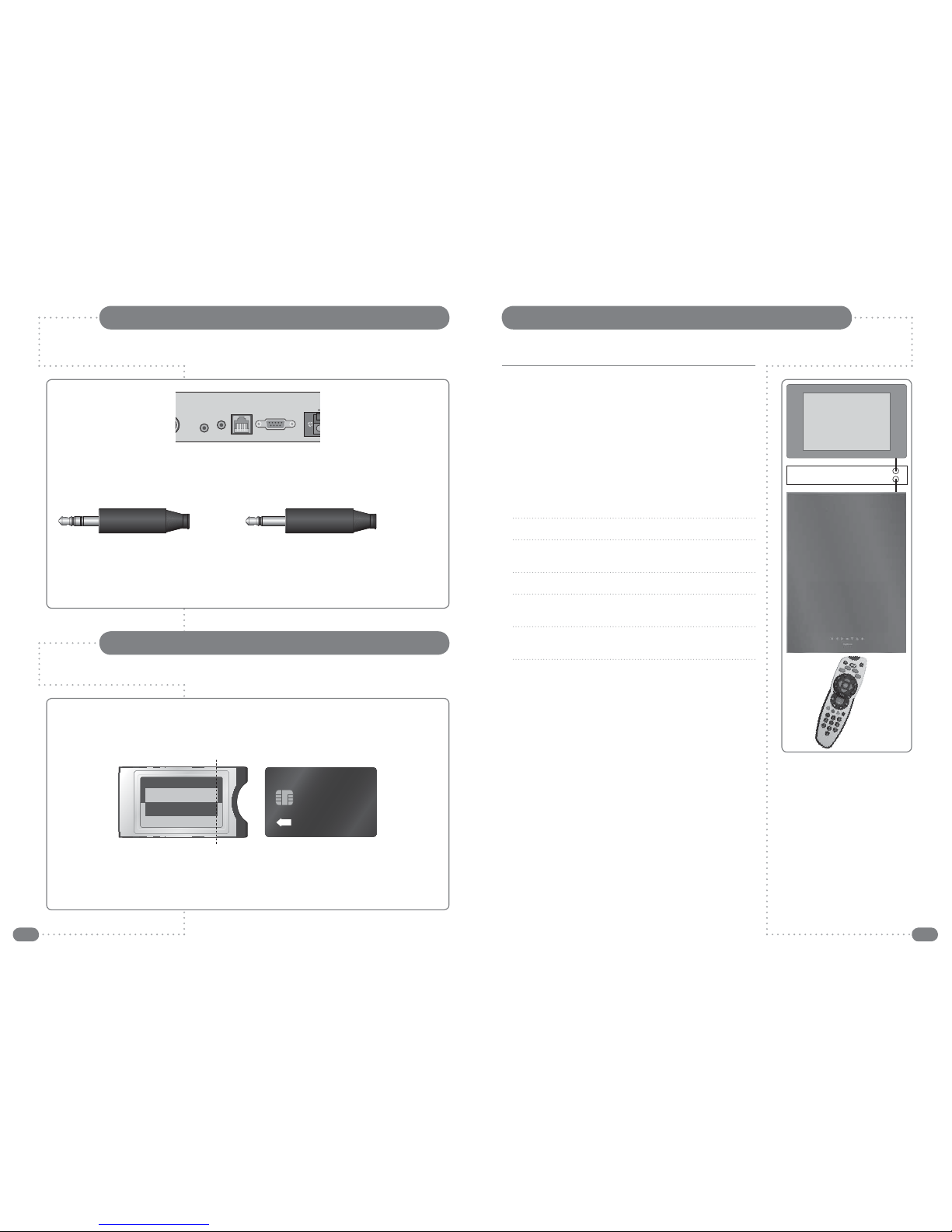

IR Links, RJ12 and RS-232 Connectors ............................................................................................................. 14

The Common Interface (CI) Port ........................................................................................................................... 14

Sky™ Remote Control Link Setup .........................................................................................................................15

The Waterproof Remote Control ............................................................................................................................16

Installing the Mirage – Setup and Tuning .........................................................................................................17

Installing the Mirage – Securing ..........................................................................................................................19

The Touch Controls ..................................................................................................................................................... 19

The Waterproof Remote Control Functions ......................................................................................................20

The Standard Remote Control Functions ........................................................................................................... 21

Switching the Mirage On/Off ...................................................................................................................................22

Selecting the On-screen Language ...................................................................................................................... 22

Selecting a Source ...................................................................................................................................................... 23

On-screen Menu Summary ...................................................................................................................................... 24

Auto Tuning .................................................................................................................................................................... 25

DTV Manual Tuning ..................................................................................................................................................... 26

ATV Manual Tuning .....................................................................................................................................................27

Programme Edit ...........................................................................................................................................................28

CI Information ...............................................................................................................................................................29

Changing Channels ..................................................................................................................................................... 30

Programme Information – Basic and Detailed Programme Information ................................................. 31

The Electronic Programme Guide (EPG) ............................................................................................................ 32

EPG Date and Programme Reminders ................................................................................................................ 33

Setting Programme Reminders .............................................................................................................................34

Picture Settings – Setting the Picture Mode and Personal Picture Mode

............................................... 36

Picture Settings – Setting the Colour Temperature and Personal Colour Temperature

.....................37

Picture Settings – Setting the Aspect Ratio

....................................................................................................... 38

Picture Settings – Noise Reduction and Subtitles

........................................................................................... 39

Sound Settings – Setting the Sound Mode, Personal Sound Mode and Sound Mute ........................ 40

Sound Settings – Adjusting the Balance, Auto Volume and Surround Sound

....................................... 41

Sound Settings – Audio Language and Channel Assignment

...................................................................... 42

Time Functions – Setting On and Off Times ...................................................................................................... 43

Time Functions – Setting the Sleep Timer and Time Zone ........................................................................... 44

The Setup Menu – On-screen Language and Audio Language ...................................................................45

The Setup Menu – Subtitle Language and Hearing Impaired ......................................................................46

The Lock Menu – Lock System and Change Password ................................................................................. 47

The Lock Menu – Block Programme ..................................................................................................................... 48

The Lock Menu – Parental Guidance and Restore Setting ............................................................................ 49

DTV Text ..........................................................................................................................................................................50

ATV Teletext ...................................................................................................................................................................51

Troubleshooting ............................................................................................................................................................ 52

IR Links and RJ12 Connections ............................................................................................................................. 53

RJ12 Command Code Format .................................................................................................................................54

IR Remote Control Codes/RJ12 Command Codes .........................................................................................55

Interface Connections – The RS-232 Port .........................................................................................................56

Specifications ................................................................................................................................................................ 57

No. 10 screws x 8

Wall plugs for solid walls

or expanding fixings for

studded walls x 8

Unpacking your Mirage

Please note – A technically competent person should carry out the

installation of your Mirage.

Unpacking your Mirage

Carefully remove the unit from the packing and lay it mirror side down on a horizontal

surface which has been protected to ensure that the mirror does not

get scratched.

The plastic film protecting the mirror should be left in place until the unit is fully installed.

Remove the screw cap and screw from each fixing

point on the side of the wall frame as shown.

The screws and caps must be retained as they need to be replaced in the fixing points to complete the Mirage installation.

The Mirage kit consists of:

1 wall frame

1 mirror frame

1 AC/DC adaptor with integral 4 metre lead and 2 AC leads

1 waterproof remote control

1 remote control holder

1 standard remote control

1 Mirage instruction manual.

☛

If any items are missing,

contact the dealer that supplied the Mirage.

Move the wall frame in the direction of the arrows as shown below to separate the wall frame from the mirror fame leaving the mirror frame face down.

Screws

and

screw

caps

Once both screws have been removed the wall frame can be removed by sliding it off the hinge pins as shown on page 5.

Lift the wall frame

away from the

mirror frame.

Move the frame down until the hinge pins are clear of the hinge.

Screw and screw cap

Wall frame

Mirror frame

away from th

irror fra

Please note – All electrical installation should be carried out by a competent person in

accordance with current IEE wiring regulations.

Cabling OverviewInstalling the Wall Frame

Please note – All required cabling for HDMI, PC RGB, SCART, S-Video, Component

and Composite Video should be installed at this stage.

Mirage Power Supply (12 V DC)

The 12 V DC power supply unit is not waterproof and so must be positioned in a dry, well-ventilated area outside the bathroom. It is fitted with an integral 4 metre lead which must not be cut, shortened or lengthened – this could potentially damage the power supply unit and the Mirage and have implications regarding safety.

The mains plug of the Mirage should be connected to a mains socket with a protective earth connection supplied via a readily operable disconnection device. The disconnect device such as a circuit breaker or switch should have contact separation of at least 3 mm in each pole and shall disconnect each pole simultaneously.

Either pierce a grommet in the wall frame and feed the cable from the power supply through the frame or feed the cable through an aperture as shown on page 6.

Mains plug

Mains power supply cable

Mains input socket

DC power

supply cable (4

Connector

TV aerial cable

(not supplied)

12 V DC

power supply

Installation and positioning

The cabling to the Mirage can be routed in two ways; either through an aperture in the wall, or vertically from above through the grommets at the top of the wall frame.

If the cabling is to be routed through an aperture in the wall.

The positions of the cable aperture and the inside edge of the wall frame should be marked, and the cable aperture cut, before the wall frame is fastened in place.

Cut the aperture 140 mm from the inside edge of the top of the wall frame and positioned centrally as shown.

Ensure that 500 mm of each cable protrudes through the aperture into the frame as shown.

If the cabling is to be routed via the grommets in the top of the wall frame.

It is essential that 650 mm of each cable protrudes into the frame.

Fasten the wall frame to the wall using fixings which are appropriate to ensure that the wall frame will support the 16 Kg (35 lb) total weight of the Mirage . The hinges MUST be on the right hand side with the hinge pins facing upwards.

Once the wall frame is fastened to the wall, apply silicone sealant between the wall and the wall frame on both the inside and outside of the frame.

Loudspeaker Connections

If external speakers are being used instead of the internal speakers the external speakers must have an impedance of 8 Ω.

Only one pair of speakers may be connected at any one time.

After fixing the frame to the wall, apply silicone sealant all around

the inside and outside of the frame

to seal the frame to the wall

The hinges must be on the right

with the pins pointing upwards

Three grommets in

top of wall frame

140 mm

TV Aerial Feed

A TV Distribution Amplifier may be required if you are in an area of weak signal or if other televisions are already being fed from the aerial. If in doubt, consult a qualified aerial technician.

If the Mirage is to be used with a Sky™ box which has two RF outputs, the channel can be changed on the Sky™ box using the Sky™ remote control via the Mirage. To use this facility install a good quality coaxial cable that runs directly from the RF2 outlet of the Sky™ box, or from the outlet of a RemoteLink amp, in a continuous uninterrupted run.

The Mirage will accept additional inputs from many sources and can be integrated with home automation and interactive hotel TV systems. See pages 10 to 15 for specific information.

☛

The mirror frame weighs 14.5 Kg (32 lb) and when

the unit is open during installation all of the weight is on the hinged side.

Ensure that the Mirage does not come into contact with water whilst it is open. Ensure that the Mirage does not come into contact with water whilst it is open.

Fitting the Mirror Frame to the Wall FrameFitting the Mirror Frame to the Wall Frame

Fitting the Mirror Frame to the Wall Frame

Lift the mirror frame and carefully align the hinges on the

mirror frame with both hinge pins on the wall frame and

lower the unit into place, making sure that both hinges

have been correctly located.

Once the hinges are seated in place the mirror frame can be released allowing the wall frame to take the full weight of the Mirage.

Attaching the hinge straps

The hinge straps must be used to connect the wall

frame and mirror frame together.

Unscrew the screw on the wall frame. Guide the

hinge strap to the wall frame. Secure the hinge

strap with the screw and star washer making sure that the screw is fastened tightly.

Repeat the above procedure to attach the second hinge strap.

ttachin

The hi

ram

hissRs

Fitting t

Lift t

Original position of hinge strap

Hinge strap

fastened with

screw and

star washer

Upper

hinge strap

Lower

hinge strap

Align the

hinges and

hinge pins

Please note: The mirror frame weighs

14.5 Kg (32 lb) and when the unit is open during installation all of the weight is on the hinged side.

The Component and Composite Video Connectors

Ensure that the Mirage does not get splashed whilst it is open. Ensure that the Mirage does not get splashed whilst it is open.

Mirage Connector Array

To view television channels, a signal must be received by the Mirage from one of the following sources:

an antenna

a satellite receiver

a cable television receiver.

Antenna Feed

Connect the antenna or input cable to the 75Ω coaxial connector on the rear of the Mirage.

Picture quality is determined by the signal level, it is recommended that a qualified aerial technician is consulted.

CVBS In

IR Link

Antenna In

Antenna input on

the Mirage

Cable Television

Network

(A) For Component Video

Connect the audio cable to the Left and Right Audio connectors (white and red) and the video cable

to the Component Y, Pb and Pr Inputs (green, blue and red) on the Mirage and the corresponding connectors on the external equipment such as a satellite receiver or DVD player.

If the external equipment only has a mono audio connector, it should be connected to the left

(white) connector of the Audio Input.

(B) For Composite Video

Connect the audio cable to the Left and Right Audio connectors (white and red) and the video cable

to the CVBS Composite connector (yellow) on the Mirage and the corresponding connectors on the external equipment such as a satellite receiver or DVD player.

If the external equipment only has a mono audio output, it should be connected to the left (white)

connector of the Audio Input.

CVBS In

PC In Out

Antenna InAudioComponentS-VideoEURO-SCART

Audio RL

YPb Pr

CI Port

Video Game Console

VCR

DVD Player/Recorder

Satellite Receiver,

Cable Box or Hard Disk

Recorder

(A) for Component Video

(B) for Composite Video

Mirage Connector Array

DC12V Power In

HDMI (High Definition Multimedia Interface)

PC/Analog RGB Input (D-SUB)

EURO-SCART – (RGB, FB, AV In, AV Out)

S-VIDEO In

Component Video Inputs: Green = Y, Blue = Pb (Cb), Red = Pr (Cr)

Component/S-VIDEO Audio In: White = Left, Red = Right

PC Audio In

Audio Out (Headphones)

CI Port for Conditional Access Module (CAM)

Composite Video Input (CVBS)

Antenna Input 75 Ω

Infrared Link – In and Out

RJ12 – for Hotel TV System Integration

RS-232 – for Home Automation Systems

Loudspeaker Connections – The internal

speakers are connected during manufacture. External 8 Ω speakers can be used instead of the built-in speakers but only one pair of speakers may be connected at any one time.

1 2 3 4 5 6

8 91011 12 13 15 1614

CVBS In

PC In

Out

RS-232

Right

Left

Loudspeakers

RJ12

IR Link

Antenna In

Out

AudioComponentS-VideoEURO-SCARTPC RGBHDMI12VDC

Audio RL

YPbPr

CI Port

Connecting an Antenna or Cable

19 17 15 13 11

9 7 5 3 1

20 18 16 14 12 10

8 6 4 2

PC In Out

AudioComponentS-VideoEURO-SCARTPC RGBHDMI12VDC

Audio RL

YPb Pr

CI Po

The SCART ConnectorThe HDMI and S-VIDEO Connectors

(A) For HDMI

Connect the HDMI cable to the HDMI connection on the Mirage and the HDMI connection on the

external equipment such as a satellite receiver or DVD/Blue-ray player.

(B) For S-VIDEO

Connect the S-VIDEO cable to the S-VIDEO connector and the audio cable to the Left and Right

Audio connectors (white and red) on the Mirage and the S-VIDEO and Audio Outputs on the external equipment such as a VCR, DVD player/recorder and some video game devices.

If the external equipment only has a mono audio output, it should be connected to the left (white)

Audio connector.

PC Connections

To use HDMI, connect the HDMI connector of the Mirage to the HDMI connector on the PC using a HDMI cable.

To use PC RGB, connect the PC RGB connector of the Mirage to the PC’s RGB connector and connect the PC Audio In connector on the Mirage to the PC’s audio out connector.

The EURO-SCART connector can be used with equipment which has RGB or composite video outputs and inputs. The EURO-SCART socket is fully wired as shown above.

SCART Connection Reference

Pin Name Description

1 AOR Audio Out Right 2 AIR Audio In Right 3 AOL Audio Out Left + Mono 4 AGND Audio Ground 5 BGND RGB Blue Ground 6 AIL Audio In Left + Mono 7 B RGB Blue 8 SWTCH Audio, RGB switch,16:9 9 GGND RGB Green Ground 10 CLKOUT Clock Out 11 G RGB Green 12 DATA Data Out 13 RGND RGB Red Ground 14 DATAGND Data Ground 15 R RGB Red 16 BLNK Blanking Signal 17 VGND Composite Video Ground 18 BLNKGND Blanking Signal Ground 19 VOUT Composite Video Out 20 VIN Composite Video In 21 SHIELD Chassis Ground, Cable Shield

Video Game Console

VCR

DVD Player/Recorder

PC In Out

AudioComponentS-VideoEURO-SCARTPC RGBHDMI12VDC

Audio RL

YPb Pr

Video Game Console

VCR

DVD Player/Recorder

Satellite Receiver,

Cable Box or Hard Disk

Recorder

Satellite Receiver,

Cable Box or Hard Disk

Recorder

(A) for HDMI

(B) for S-Video

CVBS In

PC In Out

Antenna In

AudioComponentS-VideoEURO-SCARTPC RGBHDMI12VDC

Audio RL

YPb Pr

CI Port

(A) SCART to SCART connector

(RGB + Audio L/R or

Composite Video + Audio L/R)

(B) SCART to RCA connectors

(Composite Video + Audio L/R)

SCART Pinouts

(solder side view)

PC RGB Video

HDMI

PC Audio

Ensure that the Mirage does not get splashed whilst it is open. Ensure that the Mirage does not get splashed whilst it is open.

IR Links, RJ12 and RS-232 Connectors

RS-232

RJ12

IR Link

Out

IR Link In

The IR Link In socket enables the Mirage to receive the IR code from an external IR receiver.

The RJ12 Connector

The RJ12 connector enables the Mirage to integrate with Interactive Hotel TV systems.

IR Link Out

Codes received by the IR receiver inside the Mirage can be relayed to an IR emitter via the IR Link Out socket.

The RS-232 Port

The RS-232 control port enables the Mirage to be controlled from home automation control systems.

The plug for the IR Out is a ‘mono’ 3.5 mm jack plug.The plug for the IR In is a ‘stereo’ 3.5 mm jack plug.

The Mirage infrared remote control uses the NEC protocol.

For a full listing of the IR remote control codes see page 55.

The Common Interface (CI) Port

If a Conditional Access Module (CAM) is being used to add channels to the Mirage the CAM should be inserted into the CI Port of Mirage with the power disconnected.

Take a note of the Smart Card’s serial number and follow the CAM/Smart Card manufacturer’s instructions to insert the Smart Card into the CAM and access the ser vice.

The Smart Card should be activated in accordance with its service provider’s instructions before the screws are tightened in the fixing points and the screw caps are inserted.

See page 29 for additional CI/Smart Card information.

The dotted line indicates the edge of the metalwork when a CAM is correctly inserted.

INSERT

The connection to the antenna connectors on the Mirage and the Sky™ box must be made with both the Mirage and the Sky™ box disconnected from the mains supply. Use good quality coax cable either directly from the RF2 outlet of the Sky™ box or the outlet of a Remote-Link amp in an uninterrupted run.

Once the connections have been made, the Sky™ box must be setup to supply power from the RF 2 socket as detailed below.

To set-up the Sky™ box to work with the Mirage the Sky™ remote control must be used via the main TV (TV 1).

On the Sky™ remote control press SERVICES to show the

SERVICES menu.

Press the 4 button for the SYSTEM SETUP menu.

Press the 0 button, then the 1 button, then the select button, in

sequence, to display the INSTALLER SETUP menu.

Press the 4 button to select RF OUTLETS.

Press the down arrow to select RF Outlet Power Supply and

press the left or right arrows to change the setting to ON.

Press the down arrow to select Save New Settings and press

select to save the settings.

Press the sky button to return to the previously viewed channel.

Sky™ Remote Control Link Setup

If the Mirage is used with a Sky™ box, the channel can be changed on the Sky™ box using the Sky™ remote control via the remote control sensor on the Mirage.

Sky™ box

RF 1 RF 2

TV 1

Installing the Mirage – Setup and TuningThe Waterproof Remote Control

When the connections have been made as shown on pages 9 to 15 it is time to close the Mirage and secure the mirror frame.

It may be necessary to adjust the position of the cables in order to close the mirror frame easily.

Apply light pressure to the left hand side of the mirror and insert one of the screws through a fixing point and into the wall frame. To ease hole alignment it may be necessary to remove the black caps from the fixing points and loosen the screws. There is no need to fully tighten the screw at this stage.

Switch the mains supply on and the Mirage should show a red indicator light showing that it is in standby mode. The touch sensitive controls need time to adjust their sensitivity to match their environment – they should not be touched for 30 seconds.

Initial Tuning

Press the POWER ( ) button on the remote control to switch the Mirage on from standby. After a few seconds the NEW INSTALLATION menu will be displayed.

The on-screen menus can be in any of the following nine languages: English, Español, Françes, Italiano, Nederlands, Polski, Portugês, Pyccкий, and Deutsch.

Press the LR buttons to select the required menu language.

Press the D button once to select Auto Tuning and press the

button to enter the Country selection window.

NEW INSTALLATION

Language English

Auto Tuning

EXIT MENU OK

EPG MENU

EXIT

EPG MENU

16:9

AUDIO

☛

If a Sky™ box is being used as a source it should

be switched on before tuning the Mirage. This will allow the Mirage to tune to the Sky™ box correctly.

Before the waterproof remote control can be used the insulating plastic film must be removed from beneath the battery.

Place the remote control face down on a horizontal flat surface and use the opener to release the battery cover by rotating it in an anti-clockwise direction. Set the battery cover and opener to one side.

Rest one finger lightly on the battery and pull the printed tag to ease the insulating film from underneath the battery. Try to avoid touching the black O-ring as it is coated in light grease.

Replace the battery cover and lock it back in place using the opener.

LiThium Cell

CR2032

LiThium Cell

CR2032

Remote control with battery cover removed.

Whenever the Mirage is reconnected to the mains supply the touch sensitive controls need time to adjust their sensitivity to match their environment – they should not be touched for 30 seconds.

Installing the Mirage – SecuringInstalling the Mirage – Setup and Tuning

Securing the Mirage

Apply light pressure to the left hand side of the mirror and insert the screws into the fixing points. Securely tighten the screws by hand.

To ease hole alignment it may be necessary to remove the black caps from the fixing points and loosen the screws. This will allow movement of the catch plate to enable alignment of all screws holes.

Retighten the screws. Insert the screw caps into the heads of the screws and push them firmly into place.

Remove the protective cover from the Mirage glass.

Cleaning Instructions

To clean the mirror and frames, use only a soft damp cloth. Under no circumstances are abrasive cleaners to be used, failure to observe this warning will invalidate the guarantee.

ing will

Screw and screw cap

Wall frame

Mirror frame

Mirror cut away to show mirror frame and fixing point

The Touch Controls

The touch controls on the mirror have the following functions:

Power On/Off – Turns the Mirage on from, or off to, standby.

VOL (Volume Down/Up) – Adjust the volume.

Input Source – Displays the Input Source menu and allows source selection: DTV,

ATV, SCART, COMPONENT, PC-RGB, HDMI, COMPOSITE, S-Video.

Each touch steps the menu to the next input. The highlighted input will be selected and the menu cleared when the control is not touched for a couple of seconds.

PR (Programme Down/Up) – Selects previous or next programme.

LED Lights On/Off – turns the built-in LED lights no and off – not available on the

remote controls.

The touch controls do not work if more than one symbol is touched at once.

NEW INSTALLATION

Language English Auto Tuning

Please select country first, Then select Start to update info.

Country selection UK

Start

Cancel

EXIT MENU OK

EPG MENU

EXIT

EPG MENU

EXIT

EPG MENU

16:9

AUDIO

Select the required country with the LR buttons. Choose from:

Australia, Austria, Belgium, Bulgaria, Croatia, Czech, Denmark, Finland, France, Germany, Greece, Hungary, Italy, Luxembourg, Netherlands, Norway, Poland, Portugal, Romania, Russia, Serbia, Slovenia, Spain, Sweden, Switzerland, UK.

Press the D button to select Start.

Press the OK ( ) button to start the auto tuning.

The Channel Tuning dialogue will be displayed to show the progress of the tuning.

When tuning is complete the Channel Tuning dialogue will be cleared and the first available channel will be selected.

If additional sources are being used with the Mirage their operation should now be checked (see input selection on page 23).

If a CAM is installed make sure it is activated and fully functional as per its service provider’s instructions.

Once the Mirage is tuned and external inputs are working correctly, press the POWER (

) button on the remote control to put the

Mirage into standby.

Channel Tuning

ATV : 0 Programme(s) DTV : 0 Programme(s) Radio : 0 Programme(s)

Press <Menu> to skip. Press <Exit> to exit.

EXIT

Please note – Do not use the touch controls until the power has been on for 30 seconds – the

controls need time to adjust their sensitivity to match their environment.

EPG MENU

EXIT

TEXT SIZEHOLD INDEX

2 3

4 5 6

7 809

16:9

FAV

VOL

AUDIO

TVS/00370/04

1 3 42

14 12

16 17

22 23

6 7 8

Where buttons have different functions in DTV mode than they have in ATV mode, ( ) denotes DTV mode functions and ( ) denotes ATV functions.

The Standard Remote Control FunctionsThe Waterproof Remote Control Functions

1 Power On/Off button – Tur ns the Mirage on from,

or off to, standby – page 22

2 Sound Mode button – Switches between sound modes:

Standard, Personal, Sports, Movie, Music – page 40

3 AUDIO button – ( ) Selects language for dual language

broadcasts – page 42

4 Sound Mute button – Turns the sound on or off – page 40

5 Aspect Ratio button – Switches between picture formats:

Auto, 16:9, 4:3, Zoom1, Zoom2 – page 38

6 Picture Mode button – Switches between picture modes:

Standard, Movie, Dynamic, Personal, Soft – page 36

7 Subtitles button – Switches subtitles on or off – page 39

8 Information button – ( ) Displays channel and programme

information – ( ) Displays channel information only – page 31

9 EPG button ( ) – Displays the Electronic Programme Guide –

page 32

MENU button – Displays or closes the menus

11 Up button – Menu and EPG navigation

Right button – Menu and EPG navigation

13 Down button – Menu and EPG navigation

Left button – Menu and EPG navigation

OK button – Accepts menu selections or displays the

programme list – page 30

16 Input Source button – Displays the Input Source menu and

allows source selection: DTV, ATV, SCART, COMPONENT, PC-RGB, HDMI, COMPOSITE, S-Video – page 23

EXIT button – Closes all on-screen menus and lists

Colour and Teletext buttons – ( ) DTV Text and text menu

options – ( ) Teletext and FastText functions – see page 51 for

Teletext functions

VOL (Volume Up/Down) buttons – Adjust the volume

PR (Programme Up/Down) buttons – Selects next or previous

programme

Number buttons – Input programme numbers – ( ) DTV Text

menu options – (

) Teletext page number input

Back button – switches between last and current programmes

FAV button – Displays or closes the favourite programme list.

POWER On/Off button – Tur ns the Mirage on from,

or off to, standby – page 22

2 MUTE button – Turns the sound on or off – page 40

3 Number buttons – Input programme numbers – ( ) DTV Text

menu options – ( ) Teletext page number input

4 NICAM button – ( ) Stereo/Mono

5 TV/RADIO button – ( ) switches between DTV and Radio

MENU button – Displays or closes the menus

INPUT button – Displays the Input Source menu and allows

source selection: DTV, ATV, SCART, etc. – page 23

8 Up button – Menu and EPG navigation

9 Right button – Menu and EPG navigation

10 Down button – Menu and EPG navigation

Left button – Menu and EPG navigation

12 ENTER button – Accepts menu selections or displays the

programme list – page 30

RETURN button – switches between last and current

programmes

EXIT button – Closes all on-screen menus and lists

VOL (Volume Up/Down) buttons – Adjust the volume

CH (Channel Up/Down) buttons – Selects next or previous

channel

Sound Mode button – Switches between sound modes:

Standard, Personal, Sports, Movie, Music – page 40

PIC button – Switches between picture modes: Standard,

Dynamic, Personal, Movie – page 36

SLEEP button – Displays/sets the sleep timer

ASPECT button – Switches between picture formats:

Auto, 16:9, 4:3, Zoom1, Zoom2 – page 38

AUTO button – No function on Mirage TV19

SRS button – No function on Mirage TV19

TEXT button – switches DTV Text or Teletext on or off

INFO button – ( ) Displays channel and programme

information – (

) Displays channel information only – page 31

FAV button – Displays or closes the favourite programme list

EPG button – ( ) Displays the Electronic Programme Guide –

page 32

Colour and Teletext buttons – ( ) DTV Text and text menu

options – ( ) Teletext and FastText functions – see page 51 for

Teletext functions

AUDIO button – ( ) Selects language for dual language

broadcasts – page 42

SUBTITLE button – Switches subtitles on or off – page 39.

☛

Make sure there are no

objects between the remote control and the Mirage.

Do not place the remote

control near a heater.

A strong blow to the

remote control may cause it not to operate.

☛

The standard remote

control is not waterproof and should not be splashed or immersed in water.

POWER MUTE

NICAM

TV/RADIO

INPUTMENU

RETURN

SOUND

ENTER

PIC

CHVOL

SLEEP

AUTO SRS TEXT

INFO

REVEAL HOLD LIST INDEX

SIZE AUDIO SUBTITLE

FAV EPG

ASPECT

EXIT

456

7890

SUBPAGE

1 2

19 20

22 23

24 25 26

6 7

28 29

The Input Source list allows selection of the following: DTV (Digital Television), ATV (Analogue Television), SCART, COMPONENT (Y, Pb, Pr), PC-RGB, HDMI, COMPOSITE, and S-Video.

Press the POWER ( ) button to switch the Mirage on.

Press the Input ( ) button to display the Input Source list.

Press the Input ( ) button or the UD buttons until the required

source is selected.

Press the OK ( ) button to confirm selection of the chosen

input and to clear the Input Source list from the screen.

Press the EXIT ( ) button to close the Input Source list without selecting an alternative source.

If external sources have been connected to the Mirage they may be viewed by selecting the appropriate input.

Selecting a Source

Please allow a minimum of five seconds after switching the Mirage off before switching it on again.

English is the preset language for the Mirage. The language for on-screen menus can be selected during initial set-up or at any time in the future.

To switch the Mirage on, press the POWER ( ) button.

The LED indicator will show green and Mirage will display a

picture within ten seconds.

To switch the Mirage to standby, press the POWER ( ) button

again. The LED indicator will show red to indicate that the Mirage is in standby mode

Switching the Mirage On/Off

EPG MENU

16:9

AUDIO

EPG MENU

EXIT

EPG MENU

16:9

AUDIO

EPG MENU

EXIT

EPG MENU

EXIT

Selecting the On-screen Language

The on-screen menus can be in any of the following nine languages: English, Español, Françes, Italiano, Nederlands, Polski, Portugês, Pyccкий, and Deutsch.

To change the language used follow the sequence below:

Press the MENU ( ) button to display the Channel menu.

Press the L button twice to display the SETUP menu.

Press the D button once to select Language.

Press the LR buttons to select the required language.

Press the EXIT ( ) button once or the MENU ( ) button twice

to save the language choice and close the SETUP menu.

All the on-screen displays will now be in the chosen language.

CHANNEL

Auto Tuning DTV Manual Tuning ATV Manual Tuning Programme Edit CI Information

SETUP

Language English

Audio Languages English Subtitle Languages English Hearing Impaired Off

Country UK

☛

The selected language applies to all modes.

Input Source

DTV ATV

SCART

COMPONENT

PC-RGB

HDMI

COMPOSITE

S-Video

EXIT OK

The CHANNEL menu is the default menu if the menu button is pressed whist watching DTV or ATV – the PICTURE menu is the default menu at all other times.

Auto Tuning

Press the MENU ( ) button to display the CHANNEL menu.

Press the D button to select the Auto Tuning and then press

the R or OK ( ) button.

Select the required country with the LR buttons. Choose from:

Press the D button to select Start.

Press the OK ( ) button to start the auto tuning.

The Channel Tuning dialogue will be displayed to show the progress of the tuning.

When tuning is complete the Channel Tuning dialogue will be cleared and, the first available, TV channel will be selected.

To delete, skip, move or name the stored programmes see

Programme Edit, on page 28.

Auto Tuning

Note: It is recommended that Auto Tuning is used when installing the Mirage as all available digital and analogue programmes will be stored.

On-screen Menu Summary

LOCK

Lock System Off Set Password Block Programme Parental Guidance Off Restore Factory Default

OPTION

Language English Audio Languages English Subtitle Languages English Hearing Impaired Off

Country UK


Color Temperature Medium

Red 43 Green 50 Blue 60 Aspect Ratio Auto Noise Reduction Auto

SOUND

Sound Mode Standard

Treble 50 Bass 50

Balance 0 Auto Volume Off Surround Sound Off

TIME

Clock -- --

-- -Off Time Off On Time Off Sleep Timer Off Auto Sleep Off Time Zone London GMT


Picture Mode Standard

Contrast 80 Brightness 50 Colour 50 Sharpness 65 Tint 0

CHANNEL

Auto Tuning DTV Manual Tuning ATV Manual Tuning Program Edit CI Information

EXIT OK

Press the MENU ( )

button to display the Channel menu.

Press the LR buttons to

select alternative menus.

Press UD buttons to

select menu items.

Press LR buttons to alter

a select menu item.

Press EXIT ( ) to save

settings and exit the menus.

☛

To move between the two Picture menus press the

buttons until the required menu is displayed.

The EXIT, MENU, OK and Arrow prompts are

common to all seven menus and have not been included on the following pages.

EPG MENU

EXIT

CHANNEL

Auto Tuning

DTV Manual Tuning ATV Manual Tuning Programme Edit CI Information

EXIT

CHANNEL

Auto Tuning

DTV Manual Tuning ATV Manual Tuning Programme Edit CI Information

Please select country first, Then select Start to update info.

Country selection UK

Start

Cancel

Channel Tuning

98 %... UHF CH68 DTV

ATV : 5 Programme(s) DTV : 61 Programme(s) Radio : 36 Programme(s)

Press <Menu> to skip. Press <Exit> to exit.

EXIT

EPG MENU

EXIT

Analogue Television Manual Tuning

Press the MENU ( ) button to display the CHANNEL menu.

Press the D button three times to select the ATV Manual Tuning

and then press the R or OK ( ) button.

Use the LR buttons to select which programme to tune.

Press the D button to select System.

Select a System with the LR buttons:

BG: Western Europe/Asia/Middle East/Africa/Australia I: UK/Hong Kong/South Africa DK: Russia/China/Eastern Europe L: France.

Press the D button twice to select Search and then press the

L or R

button to choose the search direction.

The search will stop when the next available station has been

tuned. To tune an alternative station press the

L or R

button to

continue searching.

If necessary select Fine-Tune and adjust the tuning with the LR

buttons to improve the picture or sound.

Press the Red button to save the settings and press the EXIT

(

) button to close the Manual Tuning window.

ATV Manual Tuning

Digital Television Manual Tuning

Press the MENU ( ) button to display the CHANNEL menu

and press the D button twice to select the DTV Manual Tuning.

Press the R or OK ( ) button.

If there is a signal on the required channel press the OK ( )

button to start tuning the stations on the selected channel.

The Mirage will confirm that it is searching for channels.

After a short time the dialogue will show the number of DTV and Radio programmes that have been tuned.

When the dialogue clears, the newly tuned station with the lowest number will be shown.

To tune additional programmes repeat steps 1 to 4.

DTV Manual Tuning

UHF CH

Please select channel then Press ENTER to search

Bad Normal Good

Searching, Please Wait..

Frequency

850.00 MHz

EXIT OK

Select the required channel (UHF 21–69) with the LR buttons.

The DTV Manual Tuning menu will show if a signal is being

received on the selected channel.

DTV Manual Tuning

UHF CH

Please select channel then Press ENTER to search

Bad Normal Good

Frequency

858.00 MHz

EXIT OK

NO SIGNAL

DTV Manual Tuning

UHF CH

Please select channel then Press ENTER to search

Bad Normal Good

Frequency

850.00 MHz

EXIT OK

Good Signal on the

selected channel –

OK to tune.

No Signal on the

selected channel –

Do not tune.

EPG MENU

EXIT

EPG MENU

EXIT

EPG MENU

EXIT

TEXT SIZEHOLD INDEX

EPG MENU

EXIT

EPG MENU

EXIT

EPG MENU

EXIT

The ATV Manual

Tuning dialogue.

ATV Manual Tuning

EXIT

SAVE

Storage To 1

System I

Current CH 1

Fine-Tune

Skip No

Frequency

74325 MHz

Search in progress.

ATV Manual Tuning

EXIT

SAVE

Storage To 1

System I

Current CH 1

Fine-Tune

Skip No

Frequency

74325 MHz

☛

If Skip is selected for a programme it is skipped past

with the PR + ( ) or RP - ( ) buttons. A skipped programme is included in the Channel List and can be selected in the normal way or by entering the channel number directly.

EPG MENU

EXIT

If a Conditional Access Module (CAM) is installed CI information is available via the CHANNEL menu as follows:

Press the MENU ( ) button to display the CHANNEL menu.

Press the D button five times to select CI Information and then

press the R or OK ( ) button.

If no CAM is installed in the Mirage, the message ‘Please insert CI Module’ will be displayed.

With a CAM installed the message ‘Loading CI MMI...’ will be displayed whilst the Mirage accesses the information from the CAM and viewing card.

When the Main menu is displayed, press the UD buttons to select a menu option and press the OK ( ) button to view the available information.

Press the EXIT ( ) or OK ( ) button to close the menu.

Module information typically includes: Serial number (the 14 digit number on the rear of the CAM), SAP number, Manufacturer, SW version, FW version, Mediaguard version and Download ID.

Smart card information typically includes: Serial number, Account date and Admin date.

The Language option allows a language to be chosen from those available for the purchased subscription services.

Software Download allows update of the software and/or firmware in the CAM.

After using any of the above options press the EXIT ( ) or MENU ( ) button to return to the Main menu (shown above) and press the EXIT ( ) or MENU ( ) button to close the Main menu.

CI Information

Deleted programme can only be restored by retuning the Mirage using Auto or Manual Tuning. Setting SKIP for unwanted programmes is usually a better option.

Programme Edit allows programmes to be deleted, skipped or selected as favourites.

Deleted programmes are removed completely and are not available at all until the Mirage is retuned using Auto or Manual Tuning.

Skipped programmes are not available by pressing the PR + ( ) or the PR – ( ) buttons but they can be selected from the EPG, the channel list or by entering a channel number directly.

Favourite programmes are included in the Favourite List which can be displayed by pressing the FAV ( ) button.

Programme Edit in DTV Mode

Press the MENU ( ) button to display the CHANNEL menu.

Press the D button four times to select Programme Edit and

then press the R or OK ( ) button.

Select a programme with the UD buttons and press the Red

button to delete the programme completely and make it unavailable until the Mirage is retuned.

Press the Blue button to select to skip past the programme when

using the PR + ( ) or PR – ( ) buttons to change channel.

Press the FAV ( ) button to include the programme in the

favourites list or to remove a programme from the favourites list.

Press the EXIT ( ) button to close the Programme Edit

dialogue and save settings.

Programme Edit in ATV Mode

Press the MENU ( ) button to display the CHANNEL menu.

Press the D button four times to select Programme Edit and

then press the R or OK ( ) button.

Select a programme with the UD buttons and press the Red

button to delete the programme completely and make it unavailable until the Mirage is retuned.

Press the Blue button to select to skip past the programme when

changing channel with the PR + ( ) or PR – ( ) buttons.

Press the Green button to edit a programme's name using the

buttons to select the character to edit and the UD buttons

to change the character displayed.

Press the Yellow button to allow a programme to be moved to a

different position in the channel list by using the UD buttons.

Press the EXIT ( ) button to close the Programme Edit

dialogue and save settings.

Programme Edit

1 BBC ONE 2 BBC TWO 3 ITV

4 Channel 4

5 Five 6 ITV2 7 BBC THREE 9 BBC FOUR 10 ITV3 11 SKY THREE

DTV

DELETE

SKIP

FAV

The DTV Programme Edit list.

Programme Edit

803 SMOOTH RADIO 804 The Hits Radio 805 Magic 806 Q 807 BBC World Sv 808 heat

1 BBC1

2 BBC2 3 ITV 4 CH4

Radio

DELETE

RENAME

MOVE

SKIP

FAV

The ATV Programme Edit list.

Module information Smart card information Language Software Download

Press OK to select, or Exit to quit

EXIT OK

Main menu

CHANNEL

Auto Tuning DTV Manual Tuning ATV Manual Tuning Programme Edit

CI Information

EPG MENU

EXIT

EPG MENU

EXIT

Changing Channels

2 3

4 5 6

7 809

FAV

VOL

EPG MENU

EXIT

EPG MENU

EXIT

2 3

4 5 6

7 809

FAV

VOL

There are five ways to change to a new channel on the Mirage:

1. Enter the programme number directly by pressing the number keys. When choosing a programme from 1–9 there is no need to press the 0 key first.

2. Press the PR + ( ) or PR - ( ) buttons to switch from programme to programme in sequence.

3. Press the OK ( ) button to display the Channel List. When the list is displayed use the UD buttons to select a programme and press the OK ( ) button to switch to the selected programme.

The PR + ( ) or PR - ( ) buttons can be used to move up or

down one page at a time.

The Channel List will continue to be displayed for a few seconds or until the EXIT ( ) button is pressed.

4. Press the FAV ( ) button to display the Favourite List. When the list is displayed use the UD buttons to select a programme and press the OK ( ) button to switch to the selected programme. To edit the Favourite Programme list see page 28.

The Favourite List will continue to be displayed for a few seconds

or until the EXIT ( ) button is pressed.

5. When watching DTV press the EPG ( ) button to display the Electronic Programme Guide.

PROGRAMME GUIDE

21 Aug 2008 10:33

DTV

1 BBC ONE

BBC TWO

ITV1

Channel 4

Five

ITV2

DTV 2

10:00 - 11:00

BBC TWO

Cash in the Attic

21 Aug

10:30 11:30

Cash in the Attic

This Morning

T4: Bea.. T4: Vo..

Michaela’s Zoo Babies

Airline

BBC News North .. Olympics 2008

Olympics 2008 Diagnosis Murder

Five Ne..

60 Minute Makeover

A Place by the Sea

House

Coronation Street Emmerdale Airline USA

News at Noon

Olympics 2008

EXIT INFO

page up

page down

DATE

Reminder

When the Programme Guide is displayed use the UD buttons to select a programme and press the OK (

) button to select the

chosen programme. Press the Red button for page down and the Green button for page up.

Press the EPG ( ) or EXIT ( ) button to close the EPG.

☛

Press the BACK ( )

button to switch between the current and last programme that was viewed.

☛

Because detailed information is not broadcast on

analogue television, pressing the INFO ( ) button will display the same information as is shown when changing channel.

Programme Information

Basic DTV Programme Information

The channel number, channel name and signal information are always displayed on screen for a few seconds whenever switching from one channel to another.

Basic ATV Programme Information

The channel number, channel name and signal information are always displayed on screen for a few seconds whenever switching from one channel to another.

EPG MENU

EXIT

Detailed DTV Programme Information

More detailed information about the current programme can be seen at any time by pressing the INFO ( ) button.

Press the INFO ( ) button again to clear the information banner from the screen.

The information contained in the banner is as follows:

Line 1 the programme title and the current time.

Line 2 the date and the start and end times of the programme.

Line 3 the availability of subtitles, the audio language, the

availability of MHEG digital text, and the video mode (576i denotes standard resolution).

To view the information on the next programme press the

button.

Programme Title

Thr, Aug 21 2008

09:30 10:00

Subtitle

English MHEG5 576i

Programme Classification

The broadcaster’s information on the selected programme . . .

11:34

DTV Channel Name

DTV

SD MPEG

ATV Channel Name

TV PAL I NICAM STEREO

EPG MENU

16:9

AUDIO

Date, Reminder and Schedule options are available by pressing the Yellow, Blue and Green coloured buttons.

Press the Yellow button to select and highlight the Date cell on

the EPG.

Press the LR buttons to choose a date up to seven days ahead.

Once the required date is displayed press the Yellow or D button

to exit the Date cell.

The EPG now shows two dates, today’s date and time is shown above the channel list, with the date of the listed programmes shown in the Date cell.

EPG Date and Programme Reminders

The EPG can show programmes up to seven days ahead and reminders can be saved to make the Mirage switch channel so that a chosen programme can be viewed.

Viewing the EPG

The EPG information is provided by the broadcasters.

Programme entries may appear blank or out of date as a result of the information broadcast on a given channel. The display will dynamically update as soon as new information becomes available.

EPG information can be viewed at any time when watching digital programmes.

Press the EPG ( ) button to display the Electronic Programme

Guide.

Use the

UDLR

buttons to move the highlight around the EPG

and use the Red and Green buttons to move down or up one page at a time.

Press the OK ( ) button to select the currently highlighted

channel.

Press the EPG ( ) or EXIT ( ) button to close the EPG.

Detailed programme information is available without closing the EPG by pressing the INFO ( ) button.

To return to the EPG press the INFO ( ) button again.

EPG MENU

EXIT

EPG MENU

16:9

AUDIO

EPG MENU

16:9

EXIT

TEXT SIZEHOLD INDEX

EXIT

TEXT SIZEHOLD INDEX

PROGRAMME GUIDE

21 Aug 2008 10:33

DTV

1 BBC ONE

BBC TWO

ITV1

Channel 4

Five

ITV2

DTV 2

10:00 - 11:00

BBC TWO

Cash in the Attic

21 Aug

10:30 11:30

Cash in the Attic

This Morning

T4: Bea.. T4: Vo..

Michaela’s Zoo Babies

Airline

BBC News North .. Olympics 2008

Olympics 2008 Diagnosis Murder

Five Ne..

60 Minute Makeover

A Place by the Sea

House

Coronation Street Emmerdale Airline USA

News at Noon

Olympics 2008

EXIT INFO

page up

page down

DATE

Reminder

PROGRAMME GUIDE

21 Aug 2008 10:33

DTV

1 BBC ONE

BBC TWO

ITV1

Channel 4

Five

ITV2

DTV 2

10:00 - 11:00

BBC TWO

Cash in the Attic

22 Aug

10:30 11:30

Cash in the Attic

This Morning

T4: Bea.. T4: Vo..

Trisha Goddard

Ant and Dec ..

BBC News North .. Olympics 2008

Olympics 2008 Diagnosis Murder

Five Ne..

60 Minute Makeover

A Place by the Sea

House Doctor

Coronation Street Emmerdale Judge Judy

News at Noon

Olympics 2008

EXIT DATE

The Electronic Programme Guide (EPG)

EXIT

Reminder

PROGRAMME GUIDE

21 Aug 2008 10:35

DTV 2 BBC TWO

Programme Title

21 Aug 2008

10:00

11:00

The broadcaster’s information on the selected programme . . .

INFO

page up

page down

DATE

PROGRAMME GUIDE

21 Aug 2008 10:33

DTV

1 BBC ONE

BBC TWO

ITV1

Channel 4

Five

ITV2

DTV 2

10:00 - 11:00

BBC TWO

Cash in the Attic

22 Aug

10:30 11:30

Cash in the Attic

This Morning

T4: Bea.. T4: Vo..

Trisha Goddard

Ant and Dec ..

BBC News North .. Olympics 2008

Olympics 2008 Diagnosis Murder

Five Ne..

60 Minute Makeover

A Place by the Sea

House Doctor

Coronation Street Emmerdale Judge Judy

News at Noon

Olympics 2008

EXIT

Reminder

OKINFO

page up

page down

DATE

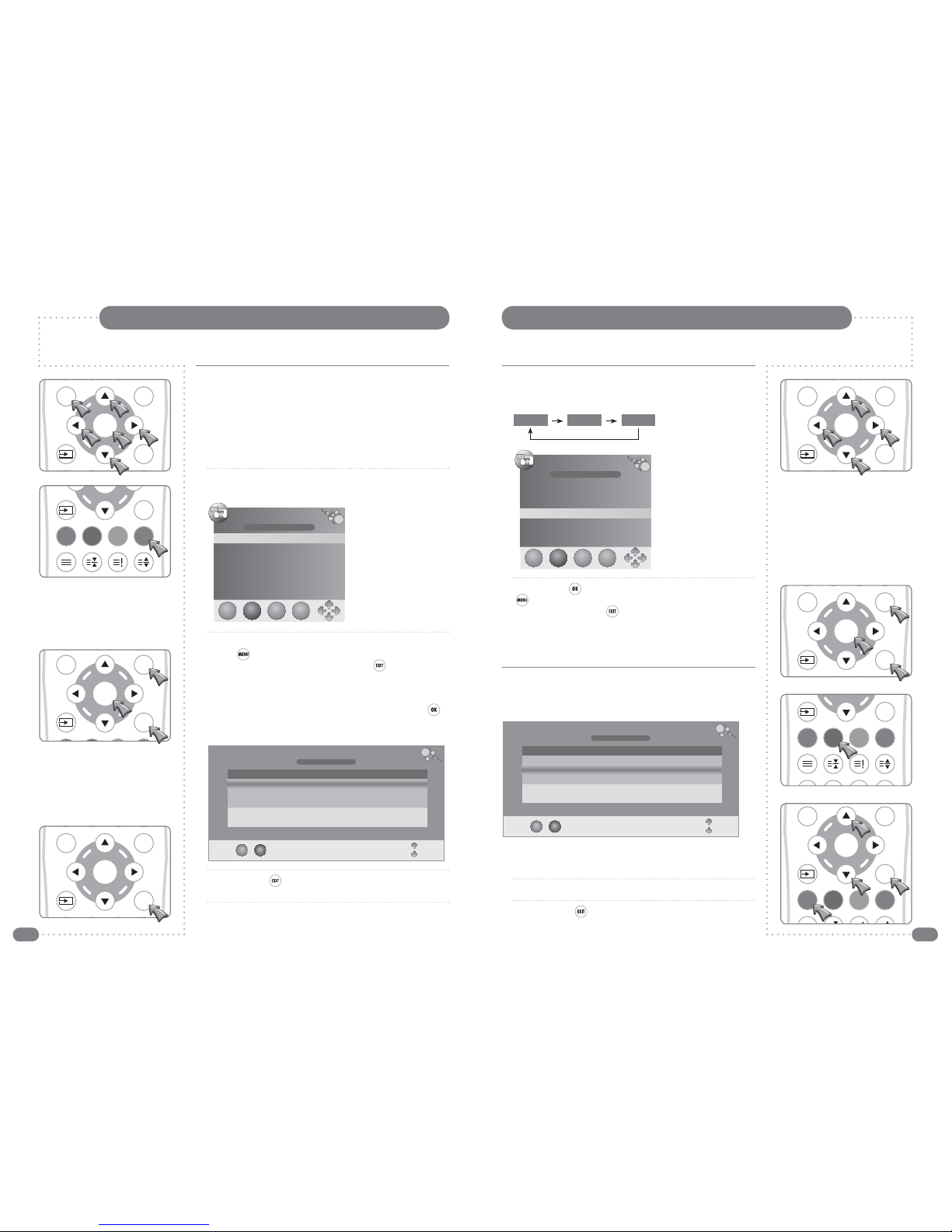

Setting Programme RemindersSetting Programme Reminders

To change the mode and make the reminder repeat, press the

buttons until Mode is selected and press the LR buttons to

select as below.

Press the OK ( ) button to save the reminder, press the MENU

( ) button to cancel setting the reminder and return to the EPG, or press the EXIT ( ) button to cancel setting the reminder and return to the television programme.

To view the Schedule List without saving the current reminder

press the Green button.

The Schedule List

The Schedule List can be displayed for checking or editing from the Reminder dialogue by pressing the Green button.

To delete a programme from the Schedule List:

Select the programme with the UD buttons.

Press the Red button to delete the programme.

Press the EXIT ( ) button to close the Schedule List.

Programme reminders make the Mirage switch to a chosen channel at a preset time. Reminders can be saved for any programme which has not started. They can be set to work once, repeat every day, or repeat every week.

To set a reminder:

Open the EPG and highlight a programme of interest which has

not started.

Press the Blue button to open the Reminder dialogue.

To cancel setting the reminder and return to the EPG press the

MENU ( ) button, or to cancel setting the reminder and return to the television programme press the EXIT ( ) button.

If the reminder is to repeat, either daily or weekly proceed to step 5 on the next page.

If the reminder is to be set for a single event press the OK ( ) button and the Schedule List will be displayed with the new reminder added to the list.

Press the EXIT ( ) button to close the Schedule List and return

to the television programme.

Reminder

Programme 4 Channel 4

Hour 11 Minute 30 Mode Once Date Fri. 22 Month Aug

21 Aug 2008 15:25

Schedule

EXIT MENU OK

Reminder

Programme 4 Channel 4 Hour 11 Minute 30

Mode Everyday

Date Fri. 22 Month Aug

21 Aug 2008 15:25

Schedule

EXIT MENU OK

Once Everyday Weekly

EXIT

SCHEDULE LIST

21 Aug 2008 10:35

DELETE

Title

Programme 1

Programme 2

Programme 3

Time

17:00

21:30

11:30

Date

Thurs. 21Aug

Thurs. 21 Aug

Fri. 22 Aug

Programme

ITV1

ITV2

Channel 4

Mode

Once

Weekly

Once

EXIT

SCHEDULE LIST

21 Aug 2008 10:35

DELETE

Title

Programme 1

Programme 2

Programme 3

Time

17:00

21:30

11:30

Date

Thurs. 21Aug

Thurs. 21 Aug

Fri. 22 Aug

Programme

ITV1

ITV2

Channel 4

Mode

Once

Weekly

Once

EXIT

TEXT SIZEHOLD INDEX

EPG MENU

EXIT

EPG MENU

EXIT

EPG MENU

EXIT

TEXT SIZEHOLD INDEX

EPG MENU

EXIT

TEXT SIZEHOLD INDEX

EPG MENU

EXIT

EPG MENU

EXIT

☛

Any data in the

reminder can be changed by selecting the appropriate line with the UD keys and altering the setting with the LR keys.

Picture Settings

The Colour Temperature can be set independently for each input. For example, DTV can be set to Normal and the HDMI input can be set to Personal for DVD playback.

The Picture Mode setting is independently adjustable for each input. For example, DTV can be set to Personal and the HDMI input can be set to Movie for DVD playback.

Setting the Colour Temperature

Three preset colour temperature settings can be selected or, using the Personal option, the mix of Red, Green and Blue can be set to preferred levels.

Press the MENU ( ) button.

Press the R button to select the first PICTURE menu and then

press the D button until the second PICTURE menu is displayed and Colour Temperature is selected.

Press the LR buttons to select any of the four settings as shown

below.

Press the EXIT ( ) button once or the MENU ( ) button twice

to save the settings and close the PICTURE menu.

Personal Colour Temperature

The levels of Red, Green and Blue can only be adjusted when using Personal Colour Temperature. Adjustments can be made as follows:

Press the MENU ( ) button.

Press the R button to select the first PICTURE menu and then

press the D button until the second PICTURE menu is displayed and Colour Temperature is selected.

Press the L or R button until Personal is selected.

Press the DU buttons to select Red, Green, or Blue and press

or R to adjust the selected item.

Adjustments are made with the PICTURE menu hidden so that most of the picture is visible. Only the item being adjusted is shown on the screen.

When all the settings are as required press the EXIT ( ) button

to save the settings and close the adjustment dialogue. Press the OK (

) button to return to the second PICTURE menu.

Setting the Picture Mode

Four preset picture modes can be selected or, using the Personal option, the Contrast, Brightness, Colour Intensity and Sharpness can be set to preferred levels.

Press the MENU ( ) button.

Press the R button to select the first PICTURE menu and then

press the D button once to select Picture Mode.

Press the LR buttons to select any of the different modes as

shown below.

Press the EXIT ( ) button once or the MENU ( ) button twice

to save the settings and close the PICTURE menu.

Personal Picture Mode

Contrast, Brightness, Colour and Sharpness can only be adjusted in Personal Picture Mode. Adjustments can be made as follows:

Press the MENU ( ) button.

Press the R button to select the first PICTURE menu, press

the D button once to select Picture Mode and press the L or R button until Personal is selected.

Press the DU buttons to select Contrast, Brightness, Colour or

Sharpness and press L or R to adjust the selected item.

Adjustments are made with the PICTURE menu hidden so that most of the picture is visible. Only the item being adjusted is shown on the screen.

When all the settings are as required press the EXIT ( ) button

to save the settings and close the adjustment dialogue. Press the OK ( ) button to return to the PICTURE menu.

The Tint adjustment does not apply to Mirage.

Picture Settings

EPG MENU

EXIT

EPG MENU

EXIT

EPG MENU

EXIT

EPG MENU

EXIT


Picture Mode Standard

Contrast 70 Brightness 50 Colour 55 Sharpness 50 Tint 0


Colour Temperature Normal

Red 50 Green 50 Blue 50

Aspect Ratio Auto Noise Reduction Auto Adjust


Colour Temperature Personal

Red 50 Green 80 Blue 65 Aspect Ratio Auto Noise Reduction Auto Adjust

Picture Mode Personal

Contrast 80 Brightness 50 Colour 50 Sharpness 65

Tint 0


Standard Dynamic Personal SoftMovie

Normal Warm Personal Cold

Contrast 50

Red 45

☛

The Picture Mode can be changed whilst watching

a programme. Press the Picture ( ) button to sequence through the five modes.

Noise Reduction can be independently set for each input except PC RGB where Noise Reduction setting is not required.

Noise Reduction

If noise reduction is needed, Auto Adjust is the recommended setting.

Noise reduction can be set as follows:

Press the MENU ( ) button.

Press the R button to select the first PICTURE menu and then

press the D button until the second PICTURE menu is displayed and Noise Reduction is selected.

Press the LR buttons to select any of the different settings as

shown below.

Press the EXIT ( ) button once or the MENU ( ) button twice

to save the settings and close the PICTURE menu.

Subtitles

Most DTV broadcasts include subtitles in at least one language. To select subtitles or turn subtitles off press the SUBTITLES ( ) button and the Subtitle Languages list will be displayed.

Press the UD buttons to select a language or turn Subtitles off and press the EXIT ( ) or OK ( ) button to save settings and close the list.

Picture Settings

The Aspect Ratio can be independently set for each input. For example, DTV can be set to Auto and the HDMI input can be set to Zoom1 for DVD playback.

Setting the Aspect Ratio

If the Aspect Ratio is set to Auto, the Mirage will alter the picture to best suit the programme being received and there will be little need to change the setting manually.

Press the MENU ( ) button.

Press the R button to select the first PICTURE menu and then

press the D button until the second PICTURE menu is displayed and Aspect Ratio is selected.

Press the LR buttons to select any of the different settings as

shown below.

Press the EXIT ( ) button once or the MENU ( ) button twice

to save the settings and close the PICTURE menu.

Picture Settings

EPG MENU

16:9

AUDIO


Colour Temperature Normal

Red 50 Green 50 Blue 50

Aspect Ratio Auto

Noise Reduction Auto Adjust


Colour Temperature Normal

Red 50 Green 50 Blue 50

Aspect Ratio Auto

Noise Reduction Auto Adjust

Auto Zoom2 Zoom1 16:9 4:3

Off Auto AdjustHighMidLow

How aspect ratio settings alter the picture

Zoom 2Zoom 1

4:3 16:9

☛

The aspect ratio can be changed whilst watching a

programme. Press the Aspect Ratio (

16:9

) button to

sequence through the five settings.

Subtitle Languages

EXIT OK

Off

English

EPG MENU

EXIT

EPG MENU

EXIT

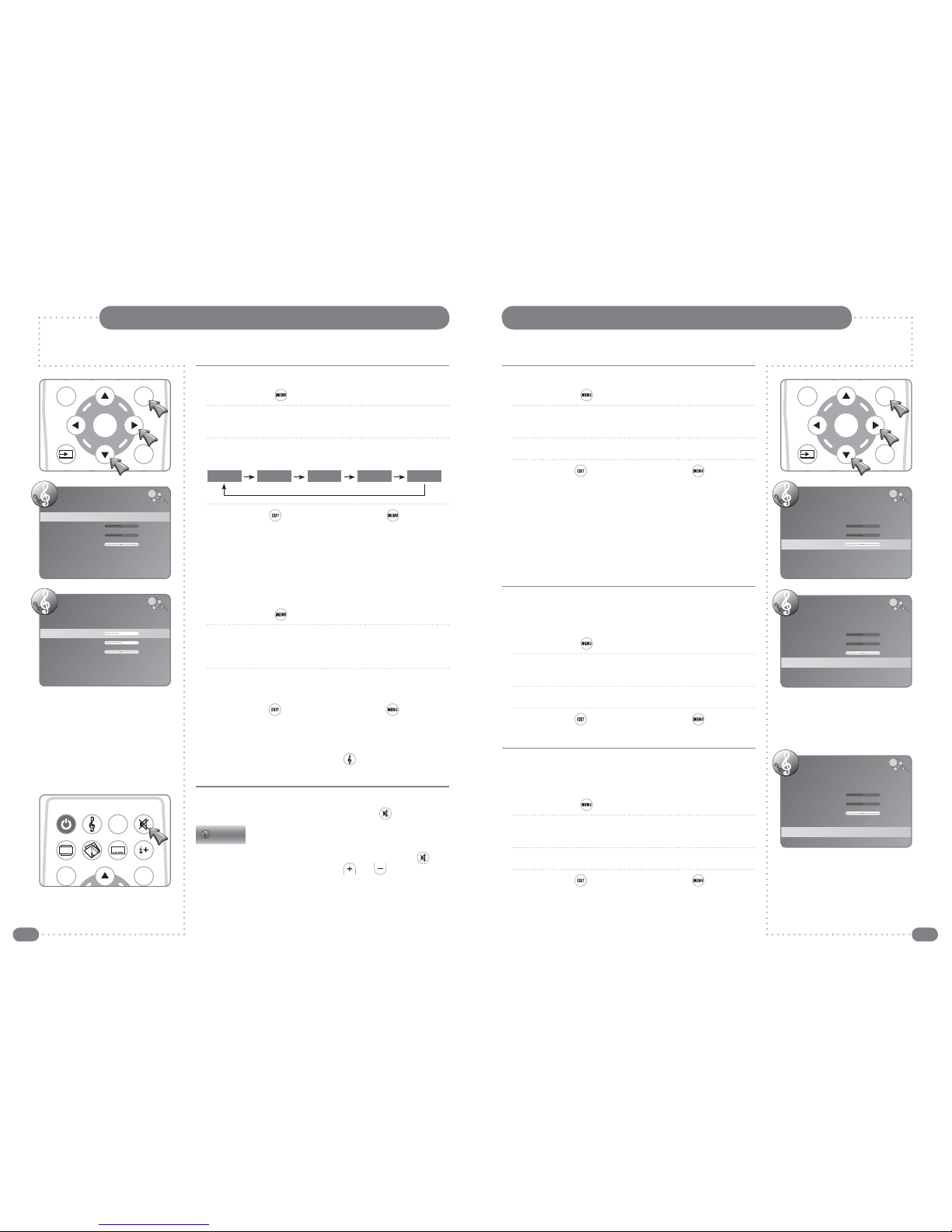

Four preset sound modes can be selected or, using the Personal option, Treble and Bass can be set to preferred levels.

Setting the Sound Mode

Press the MENU ( ) button.

Press the R button twice to select the SOUND menu and then

press the D button once to select Sound Mode.

Press the LR buttons to select any of the different modes as

shown below.

Press the EXIT ( ) button once or the MENU ( ) button twice

to save settings and close the SOUND menu.

Personal Sound Mode

Press the MENU ( ) button.

Press the R button twice to select the SOUND menu and then

press the D button once to select Sound Mode and press the R button until Personal is selected.

Press the DU buttons to select Treble or Bass and press L or

to adjust the selected item.

Press the EXIT ( ) button once or the MENU ( ) button twice

to save the settings and close the SOUND menu.

Adjusting the Balance

Press the MENU ( ) button.

Press the R button twice to select the SOUND menu and then

press the D button until Balance is selected.

Press the LR buttons to adjust the Left/Right balance.

Press the EXIT ( ) button once or the MENU ( ) button twice

to save the setting and close the SOUND menu.

Surround Sound

Surround sound will enhance the audio and provide a more enjoyable and involving presentation.

Press the MENU ( ) button.

Press the R button twice to select the SOUND menu and then

press the D button until Surround Sound is selected.

Press the LR buttons to switch between TruSurround and Off.

Press the EXIT ( ) button once or the MENU ( ) button twice

to save the setting and close the SOUND menu.

Auto Volume

If there is an large difference between the volume of one programme and another, setting Auto Volume to on will reduce the disparity.

Press the MENU ( ) button.

Press the R button twice to select the SOUND menu and then

press the D button until Auto Volume is selected.

Press the LR buttons to switch between On and Off.

Press the EXIT ( ) button once or the MENU ( ) button twice

to save the setting and close the SOUND menu.

Sound SettingsSound Settings

EPG MENU

EXIT

EPG MENU

EXIT

SOUND

Sound Mode Standard

Treble 50 Bass 50

Balance 0 Auto Volume Off Surround Sound Off

SOUND

Sound Mode Standard

Treble 50 Bass 50

Balance 0

Auto Volume On

Surround Sound Off

SOUND

Sound Mode Standard

Treble 50 Bass 50

Balance 0 Auto Volume Off

Surround Sound TruSurround

SOUND

Sound Mode Personal

Treble 40

Bass 50 Balance 0 Auto Volume On Surround Sound Surround

SOUND

Sound Mode Standard

Treble 50 Bass 50

Balance 0

Auto Volume Off Surround Sound Off

Standard PersonalSportsMovieMusic

☛

The Sound Mode can be changed without using

the menu. Press the Sound ( ) button to sequence through the five modes.

Sound Mute

The sound can be muted by pressing the MUTE ( ) button.

The mute flag will be displayed on the screen whenever the sound is muted.

To restore the sound to the previous level press the MUTE (

)

button or press either VOLUME button ( ) or ( ).

EPG MENU

16:9

AUDIO

MUTE

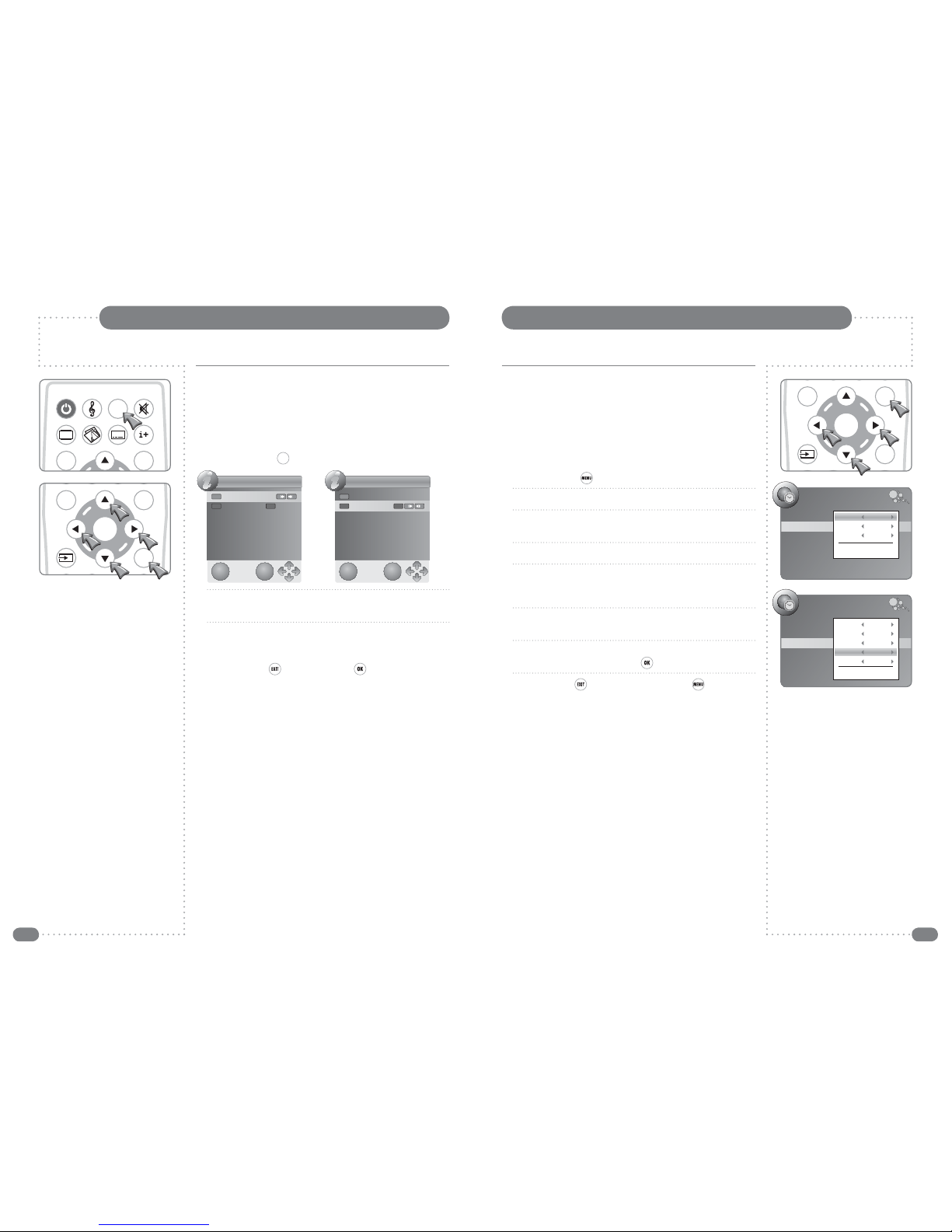

Setting On and Off Times

The time menu allows the Mirage to be programmed to switch on or off at preset times and to switch off after a channel closes down.

Both off and on times have the following repeat options available:

Off, Once, Everyday, Mon~Fri, Mon~Sat, Sat~Sun, Sun.

An off time can be set as follows:

Press the MENU ( ) button.

Press the L or R button three times to display the TIME menu.

Press the D button to select Off Time and press the R button to

open the settings window.

Press the L or R button to select the required Repeat setting.

When the Repeat has been set press the D button to move

down one line and press the LR buttons to set the Hour. The L or R button can be held down to help set the times more quickly.

When the Hour has been set press the D button to move down

one line and press/hold the LR buttons to set the Minutes.

When the off time has been set press the D button to move

down to Close and press the OK ( ) button.

Press the EXIT ( ) button once or the MENU ( ) button twice

to save settings and close the TIME menu.

Setting an on time is the same as setting an off time, except that settings are included for Volume and Mode. The range for the initial volume is 0–100 and the options for Mode are: DTV, ATV and Radio.

Time Functions

Some DTV broadcasts can include multiple audio languages and/or narrative audio descriptions for the visually impaired (V.I.). The Audio Languages menu allows available languages to be selected and broadcasts with audio descriptions to be chosen if required.

In DTV mode the sound output for the left and right speakers can be selected as follows:

Press the AUDIO (

AUDIO

) button to open the Audio Languages list.

Press the DU buttons to select the required broadcast language

and V.I. option.

Press the LR buttons to sequence through the three options;

L+R, L+L, or R+R.

Press the EXIT ( ) button or the OK ( ) button to save

settings and close the list.

Sound Settings

Audio Languages

EXIT OK

English

MPEG

MPEG V.I.

L R

Audio Languages

EXIT OK

English

MPEG

MPEG V.I. L R

EPG MENU

16:9

AUDIO

EPG MENU

EXIT

EPG MENU

EXIT

TIME

Clock

Off Time

On Time Sleep Timer Auto Sleep Time Zone London GMT

Repeat Sat~Sun Hour 00 Minute 00

TIME

Clock Off Time

On Time

Sleep Timer Auto Sleep Time Zone

Activete Mon~Fri Hour 19 Minute 30 Volume 30 Mode DTV

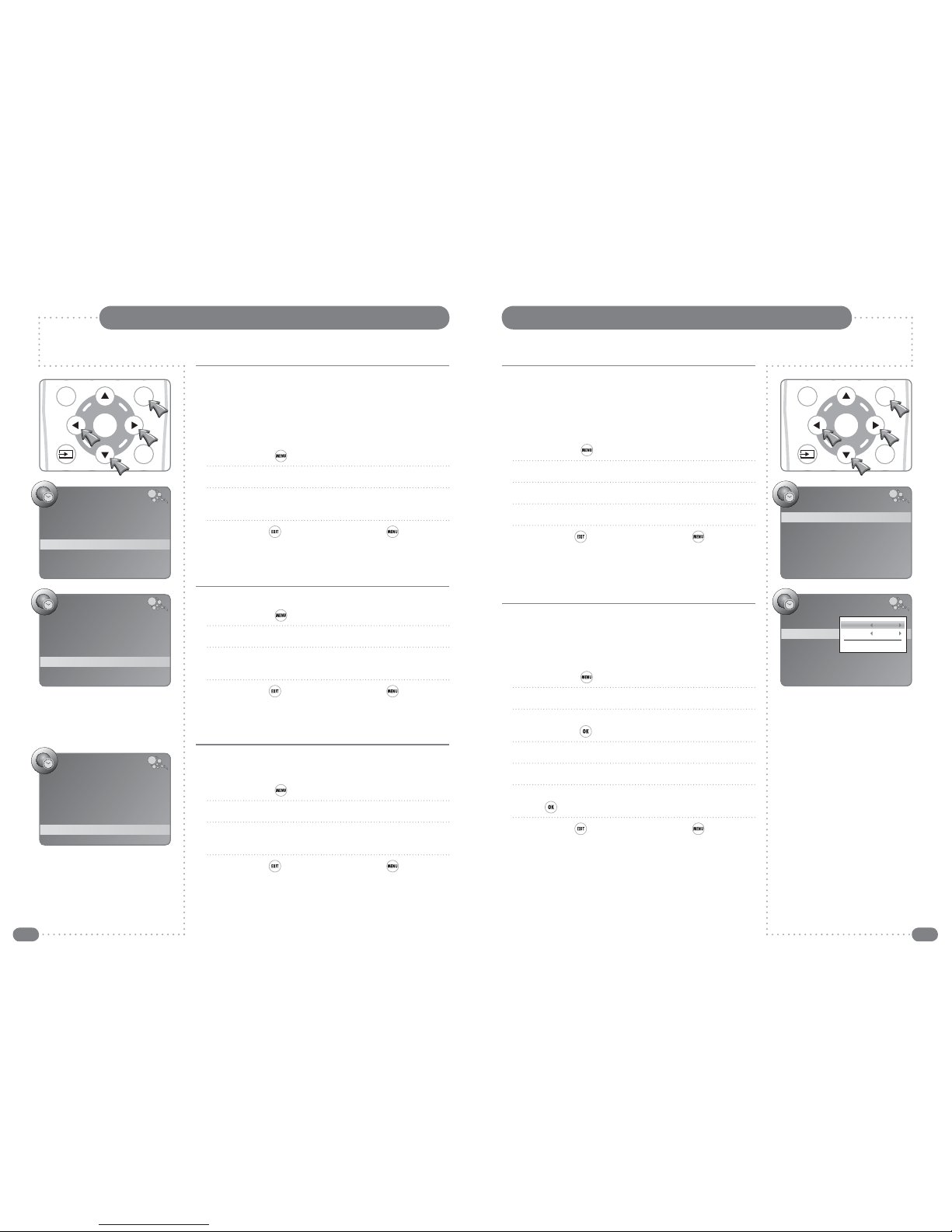

The Setup Menu

On Screen Language

The on-screen menus and lists can be in any of the following nine languages: English, Español, Françes, Italiano, Nederlands, Polski, Portugês, Pyccкий, and Deutsch.

To change the language used follow the sequence below:

Press the MENU ( ) button to display the Channel menu.

Press the L button twice to display the SETUP menu.

Press the D button once to select Language.

Press the LR buttons to select the required language.

Press the EXIT ( ) button once or the MENU ( ) button twice

to close the SETUP menu and save the desired language.

All the on-screen displays will now be in the chosen language.

Time Functions

The Sleep Timer

The Mirage incorporates a sleep timer which can be set to turn the unit off after a preset time. The available delay times are:

10, 20, 30, 60, 90, 120, 180, and 240 minutes.

The sleep timer can be set as follows:

Press the MENU ( ) button.

Press the L or R button three times to display the TIME menu.

Press the D button until Sleep Timer is selected and press the

buttons to select the required delay.

Press the EXIT ( ) button once or the MENU ( ) button twice

to save settings and close the TIME menu.

An on-screen countdown will be displayed from 30 seconds before the Mirage switches off.

Auto Sleep

Press the MENU ( ) button.

Press the L or R button three times to display the TIME menu.

Press the D button until Auto Sleep is selected and press the

buttons to select Off or On.

Press the EXIT ( ) button once or the MENU ( ) button twice

to save settings and close the TIME menu.

If auto sleep is set to on, the Mirage will automatically switch off after two minutes with no signal from the chosen source.

Audio Language

The primary or secondary language are used as appropriate if they are available when a multiple language source is broadcast.

Set the preferred audio languages as follows:

Press the MENU ( ) button.

Press the L button twice to display the SETUP menu.

Press the D button until Audio Language is selected and press

the R or the OK ( ) button to open the settings window.

Press the DU buttons to select Primary or Secondary.

Press the LR buttons to choose the required language.

When finished, press the DU buttons to select Close and press

the OK ( ) button to close the settings window

Press the EXIT ( ) button once or the MENU ( ) button twice

to save settings and close the SETUP menu.

Setting the Time Zone

There is a choice of 32 cities in various time zones.

Press the MENU ( ) button.

Press the L or R button three times to display the TIME menu.

Press the D button until Time Zone is selected and press the

buttons to select choose the appropriate setting.

Press the EXIT ( ) button once or the MENU ( ) button twice

to save settings and close the TIME menu.

TIME

Clock 20/Feb 16:16

Off Time 00:00 On Time 00:00

Sleep Timer 240

Auto Sleep Off Time Zone London GMT

SETUP

Language English

Audio Languages English Subtitle Languages English Hearing Impaired Off

Country UK

SETUP

Language English

Audio Language English

Subtitle Language English Hearing Impaired Off

Country UK

Primary English Secondary English

TIME

Clock 20/Feb 16:16

Off Time 00:00 On Time 00:00 Sleep Timer 240

Auto Sleep Off

Time Zone London GMT

TIME

Clock 20/Feb 16:16

Off Time 00:00 On Time 00:00 Sleep Timer 240 Auto Sleep Off

Time Zone London GMT

EPG MENU

EXIT

EPG MENU

EXIT

☛

The selected language applies to all modes.

The lock menu allows a password to be entered so that a number of key settings can be locked, selected programmes can be blocked and parental controls can be imposed.

Lock System

When lock system is on, Auto Tuning, DTV Manual Tuning, ATV Manual Tuning and Programme Edit can not be accessed from the CHANNEL menu without entering the password. All other menu options are not affected.

The Mirage default four digit password is 0000.

To turn the lock system on or off:

Press the MENU ( ) button.

Press the L button to display the LOCK menu.

Press the D button and enter the password to access the LOCK

menu.

Press the LR buttons to select on or off.

Press the EXIT ( ) button once or the MENU ( ) button twice

to save settings and close the LOCK menu.

The Lock MenuThe Setup Menu

Subtitle Language

The primary or secondary language are used as appropriate if they are available when multiple subtitle languages are broadcast.

Set the preferred subtitle languages as follows:

Press the MENU ( ) button.

Press the L button twice to display the SETUP menu.

Press the D button until Subtitle Language is selected and

press the R or the OK ( ) button to open the settings window.

Press the DU buttons to select Primary or Secondary.

Press the LR buttons to choose the required language.

When finished, press the DU buttons to select Close and press

the OK ( ) button to close the settings window

Press the EXIT ( ) button once or the MENU ( ) button twice

to save settings and close the SETUP menu.

SETUP

Language English Audio Language English

Subtitle Language English

Hearing Impaired Off

Country UK

Primary English Secondary English

SETUP

Language English Audio Languages English Subtitle Languages English

Hearing Impaired On

Country UK

EPG MENU

EXIT

EPG MENU

EXIT

EPG MENU

EXIT

Hearing Impaired

If a broadcast includes alternative audio for the hard of hearing it will be selected when Hearing Impaired is set to on.

The setting can be changed as follows:

Press the MENU ( ) button.

Press the L button twice to display the SETUP menu.

Press the D button until Hearing Impaired is selected and press

the L or R button to choose On or Off.

Press the EXIT ( ) button once or the MENU ( ) button twice

to save settings and close the SETUP menu.

Change Password

The password can be changed as follows:

Press the MENU ( ) button.

Press the L button to display the LOCK menu.

Press the D button and enter the password to access the LOCK

menu.

Press the D button to select Change Password.

Press the R button or press the OK ( ) button to open the

password window.

Enter and then confirm the new password.

Press the EXIT ( ) button once or the MENU ( ) button twice

to save the new password and close the LOCK menu.

LOCK

Lock System Off

Change Password

Block Program Parental Guidance Off Restore Setting

Please enter password

New – – – Conrm – – – –

LOCK

Lock System Off Change Password Block Program Parental Guidance Off Restore Setting

Please enter password

– – –

EPG MENU

EXIT

☛

If the default password of 0000 is replaced by a

user password and the password is forgotten there is no way to access any item on the LOCK menu. Please make sure that any password chosen is memorable.

The Lock Menu

Parental Guidance

The parental guidance option allows any age from 4 to 18 to be select for all programmes. Parental guidance is set as follows:

Press the MENU ( ) button.

Press the L button to display the LOCK menu.

Press the D button and enter the password to access the LOCK

menu.

Press the D button three times to select Parental Guidance.

Press the LR buttons to select an age from 4 to 18 or turn

parental guidance off.

Press the EXIT ( ) button once or the MENU ( ) button twice

to confirm the settings and close the LOCK menu.

Block Programme

Blocked programmes can only be viewed by entering the password. The programmes are selected in the normal way but it is necessary to enter the password before the programme is shown.

Programmes are blocked as follows:

Press the MENU ( ) button.

Press the L button to display the LOCK menu.

Press the D button and enter the password to access the LOCK

menu.

Press the D button twice to select Block Programme.

Press the R button or press the OK ( ) button to open the

Block Programme list.

Press UD to select the channel to block and press the Green button to toggle the lock setting for the chosen channel.

Press the EXIT ( ) button to close the list or press the MENU

( ) button to close the list and return to the LOCK menu.

The Lock Menu

EPG MENU

EXIT

EPG MENU

EXIT

LOCK

Lock System Off Change Password

Block Program

Parental Guidance Off Restore Setting

LOCK

Lock System Off Change Password Block Program

Parental Guidance 18

Restore Setting

Block Programme

1 BBC ONE 2 BBC TWO 3 ITV 4 Channel 4 5 Five

6 ITV2

7 BBC THREE 9 BBC FOUR 10 ITV3 11 SKY THREE

DTV

LOCK

MENUEXIT OK

☛

The OK ( ) button will make the Mirage switch to

the selected channel so it can be viewed when the list is closed.

If the selected channel is locked when the list is

closed the password must be entered so that the programme can be viewed.

☛

After the factory settings have been restored the

Mirage must be retuned (see page 25) and, if used, the preferred user password should be reentered (see page 47) as the password will have been reset to 0000.

Restore Settings

There is normally no need to restore factory settings. It can however, be useful to restore factory settings as an easy way of clearing all restrictions, a forgotten password, blocked and skipped channels, personal settings, etc.

Restore settings should also be used in the unlikely event that the Mirage freezes.

The default factory settings can be restored as follows:

Press the MENU ( ) button.

Press the L button to display the LOCK menu.

Press the D button and enter the password to access the LOCK

menu.

Press the D button until Restore Settings is selected.

Press the L button to select Yes and press the OK ( ) button

to restore factory settings.

LOCK

Lock System On Change Password Block Program Parental Guidance 15

Restore Setting

LOCK

Lock System On Change Password Block Program Parental Guidance 15

Restore Setting

Are you sure?

Yes No

ATV Teletext

B C D

Functions of Teletext

Part Display Contents

A Selected page number.

B Broadcast Station identity.

C Current page number or searching status.

D Date and time.

E Text information.

F FasText information.

Red, Green, Yellow, Blue

DTV Text

To access DTV Text press the TEXT ( ) or Red button depending on the programme’s broadcaster. A small banner 'loading…' will be displayed on screen. After a few seconds the broadcaster’s menu will appear, either overlaying part of the current programme:

or with the current programme in a smaller window next to the text menus and instructions:

Use the UD buttons (or in some cases the LR buttons) to navigate the menus and the OK ( ) button to select items. Use the Red, Green, Yellow and Blue buttons to access shortcuts, help and additional menus etc., as shown on screen.

To exit DTV Text press the TEXT ( ), the EXIT ( ) button or change channel.

All DTV Text navigation uses the

UDLR,

, Colour and 0–9

number buttons, all functions are available with the Mirage waterproof remote control.

Channel Logo

Item one Item two Item three Item four Item five Item six Item seven INDEX Latest news item:

To exit, press TEXT

Typical overlay example

Channel Logo

Item one 300 Item two 150 Item three 200 Item four 170 Item five 110 Item six 800 Item seven 160 Item eight 850 Item nine 121

TileVision Mirage User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
