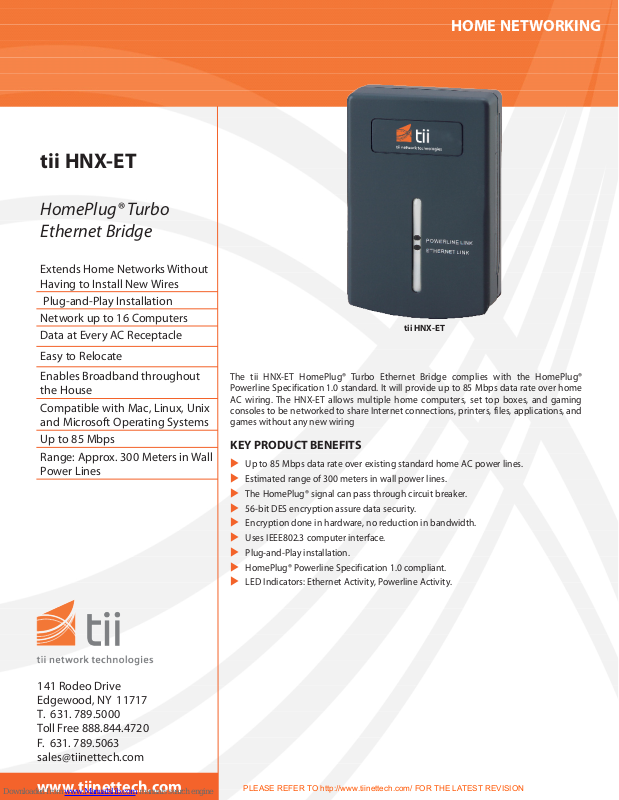

TII network technologies HPTURBOWALL, HNX-ET Specifications
tii HNX-ET
PLEASE REFER TO http://www.tiinettech.com/ FOR THE LATEST REVISION
HomePlug® Turbo
Ethernet Bridge
Extends Home Networks Without
Having to Install New Wires
Plug-and-Play Installation
HOME NETWORKING
Network up to 16 Computers
Data at Every AC Receptacle
Easy to Relocate
Enables Broadband throughout
the House
Compatible with Mac, Linux, Unix
and Microsoft Operating Systems
Up to 85 Mbps
Range: Approx. 300 Meters in Wall
Power Lines
tii HNX-ET
The tii HNX-ET HomePlug® Turbo Ethernet Bridge complies with the HomePlug®
Powerline Specification 1.0 standard. It will provide up to 85 Mbps data rate over home
AC wiring. The HNX-ET allows multiple home computers, set top boxes, and gaming
consoles to be networked to share Internet connections, printers, files, applications, and
games without any new wiring
KEY PRODUCT BENEFITS
Up to 85 Mbps data rate over existing standard home AC power lines. X
Estimated range of 300 meters in wall power lines. X
The HomePlug® signal can pass through circuit breaker. X
56-bit DES encryption assure data security. X
Encryption done in hardware, no reduction in bandwidth. X
Uses IEEE802.3 computer interface. X
Plug-and-Play installation. X
HomePlug® Powerline Specification 1.0 compliant. X
LED Indicators: Ethernet Activity, Powerline Activity. X
141 Rodeo Drive
Edgewood, NY 11717
T. 631. 789.5000
Toll Free 888.844.4720
F. 631. 789.5063
sales@tiinettech.com
www.tiinettech.com
tii HNX-ET
PLEASE REFER TO http://www.tiinettech.com/ FOR THE LATEST REVISION
Dimensions are in Inches
SPECIFICATIONS
Computer Interface IEEE802.3
Network Interface HomePlug® Powerline
Cabling 10/100Base-T Cat. 5 UTP
Installation Plug-and-Play
LED Indicators Powerline Activity, Ethernet Activity
Certifications FCC Class B / CE Mark
Power Supply Draws Power from the AC
Operating Temperature 0°C – 40°C
Humidity 5% - 90%
Housing Plastic
HomePlug® Configuration Utility Support Microsoft Windows 98 SE, ME, 2000, XP, and Vista
ORDERING
INFORMATION
Model No. Description
tii HNX-ET HomePlug® Turbo Ethernet Adapter
Standard Package:
Weight:
Package Includes: HNX-ET, CAT/RJ45 Ethernet Cable, User Manual, Installation CD
20 pieces
1 lb. 1 oz. each
NY-MDS-083, 1/08
