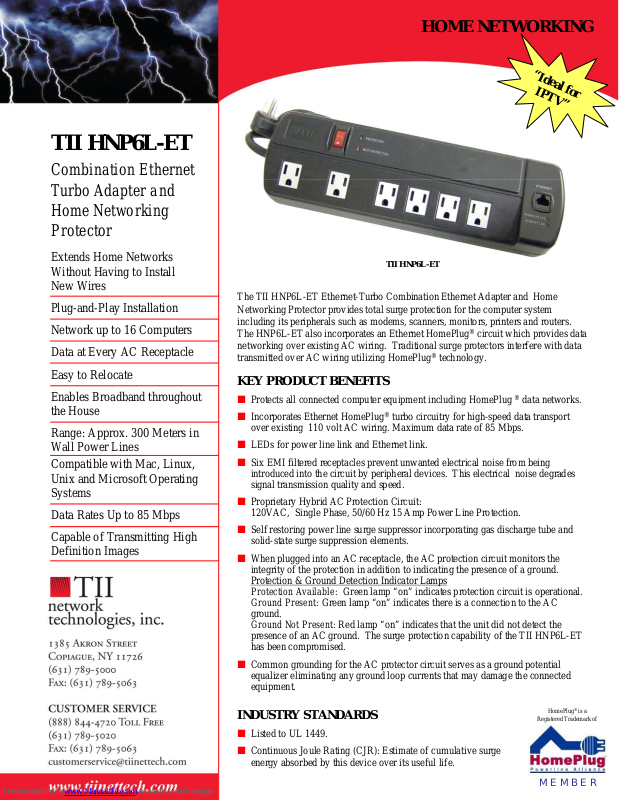

TII network technologies HPTURBO, HNP6L-ET Specifications
TII HNP6L-ET
Combination Ethernet
Turbo Adapter and
Home Networking
Protector
HOME NETWORKING
CATEGORY
“
I
d
e
a
l
f
I
o
T
V
r
”
P
Extends Home Networks
Without Having to Install
New Wires
Plug-and-Play Installation
Network up to 16 Computers
Data at Every AC Receptacle
Easy to Relocate
Enables Broadband throughout
the House
Range: Approx. 300 Meters in
Wall Power Lines
Compatible with Mac, Linux,
Unix and Microsoft Operating
Systems
Data Rates Up to 85 Mbps
Capable of Transmitting High
Definition Images
TII HNP6L-ET
The TII HNP6L-ET Ethernet-Turbo Combination Ethernet Adapter and Home
Networking Protector provides total surge protection for the computer system
including its peripherals such as modems, scanners, monitors, printers and routers.
The HNP6L-ET also incorporates an Ethernet HomePlug
networking over existing AC wiring. Traditional surge protectors interfere with d ata
transmitted over AC wiring utilizing HomePlug
®
technology.
®
circuit which provides data
KEY PRODUCT BENEFITS
Protects all connected computer equipment including HomePlug®data networks.
®
Incorporates Ethernet HomePlug
over existing 110 volt AC wiring. Maximum data rate of 85 Mbps.
LEDs for power line link and Ethernet link.
Six EMI filtered receptacles prevent unwanted electrical n oise from being
introduced into the circuit by peripheral devices. This electrical noise degrades
signal transmission quality and speed.
Proprietary Hybrid AC Protection Circuit:
120VAC, Single Phase, 50/60 Hz 15 Amp Power Line Protection.
Self restoring power line surge suppressor incorporating gas discharge tube and
solid-state surge suppression elements.
When plugged into an AC receptacle, the AC protection circuit monitors the
integrity of the protection in addition to indicating the presence of a ground.
Protection & Ground Detection Indicator Lamps
Protection Available: Green lamp “on” indicates protection circuit is operational.
Ground Present: Green lamp “on” indicates there is a connection to the AC
ground.
Ground Not Present: Red lamp “on” indicate s that the unit did not detect the
presence of an AC ground. The surge protection capability of the TII HNP6L-ET
has been compromised.
Common grounding for the AC protector circuit serves as a ground potential
equalizer eliminating any ground loop currents that may damage the connected
equipment.
turbo circuitry for high-speed data transport
INDUSTRY STANDARDS
Listed to UL 1449.
Continuous Joule Rating (CJR): Estimate of cumulative surge
energy absorbed by this device over its useful life.
HomePlug®is a
Registered Trademark of
M E M B E R
TII HNP6L-ET
TII Product
S P E C I F I C A T I O N S
12.50
Dimensions Are In Inches
3.75
2.00
SURGE SUPPRESSOR PERFORMANCE
AC SURGE SUPPRESSION (EMI Filtered Receptacles)
Suppression Voltage – 500 A, 8/20 μs waveform (Line to Neutral)
Steady State Clamping Voltage
Maximum Surge Current 8/20 μs waveform
(@500 A, 8/20 µs, 1000 operations)
LIFE TEST 5,000 A, 8/20 μs waveform
®
ETHERNET HOMEPLUG
PERFORMANCE
Data Rate
HomePlug
®
Security
®
HomePlug
Configuration Utility Support
High Speed Data Network
O R D E R I N G
I N F O R M A T I O N
DescriptionModel No.
TII HNP6L-ET
Standard Package:
Weight:
TII Ethernet-Turbo - Combination Ethernet Adapter and Home Networking Protector
with Embedded HomePlug
®
Circuitry
10 pieces
2.00 lbs.
> 30 dBInsertion Loss (2 – 27 MHz)
700 V Max.
300 V
20,000 A
6240 JSurge Energy Absorption Continuous Joule Rating
100 Surges
UL 1449Listed to:
Up to 85 Mbps
V 1.0
56-bit DES Encryption
Windows 98SE, 2000, ME, XP, and Vista
Modular RJ-45
US Patent No. 6,775,121 and Patent Pending
