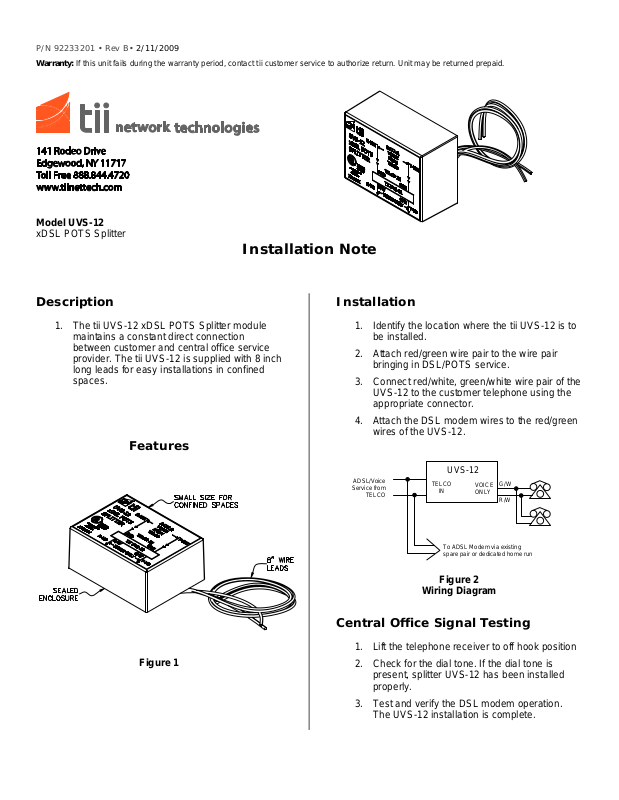

Tii UVS-12 User Manual

P/N 92233201 • Rev B• 2/11/2009

Warranty: If this unit fails during the warranty period, contact tii customer service to authorize return. Unit may be returned prepaid.

Model UVS-12

xDSL POTS Splitter

Installation Note

Description

1. The tii UVS-12 xDSL POTS Splitter module
maintains a constant direct connection
between customer and central office service
provider. The tii UVS-12 is supplied with 8 inch
long leads for easy installations in confined
spaces.

Features

Figure 1

Installation

1. Identify the location where the tii UVS-12 is to
be installed.

2. Attach red/green wire pair to the wire pair
bringing in DSL/POTS service.

3. Connect red/white, green/white wire pair of the
UVS-12 to the customer telephone using the
appropriate connector.

4. Attach the DSL modem wires to the red/green
wires of the UVS-12.

ADSL/Voice

Service from

TELCO

TELCO

IN

UVS-12

VOICE
ONLY

G/W

R/W

To ADSL Modem via existing
spare pair or dedicated home run

Figure 2

Wiring Diagram

Central Office Signal Testing

1. Lift the telephone receiver to off hook position

2. Check for the dial tone. If the dial tone is
present, splitter UVS-12 has been installed
properly.

3. Test and verify the DSL modem operation.

The UVS-12 installation is complete.
