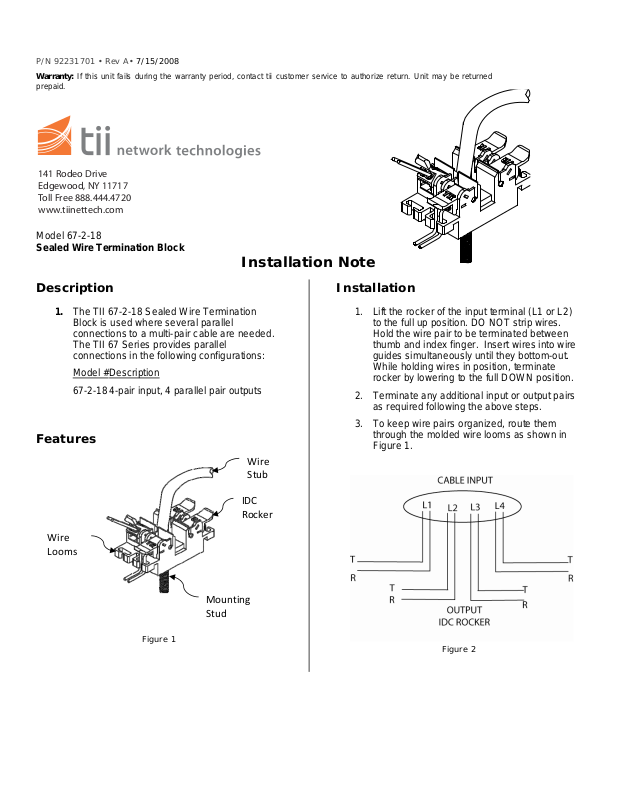

Tii 67-2-18 User Manual



P/N 92231701 • Rev A• 7/15/2008

Warranty: If this unit fails during the warranty period, contact tii customer service to authorize return. Unit may be returned
prepaid.

141 Rodeo Drive
Edgewood, NY 11717
Toll Free 888.444.4720
www.tiinettech.com

Model 67-2-18

Sealed Wire Termination Block

Installation Note

Description

1. The TII 67-2-18 Sealed Wire Termination
Block is used where several parallel
connections to a multi-pair cable are needed.
The TII 67 Series provides parallel
connections in the following configurations:

Model #
67-2-18 4-pair input, 4 parallel pair outputs

Description

Features

Wire
Looms

Figure 1

Mounting
Stud

Wire
Stub

IDC
Rocker

Installation

1. Lift the rocker of the input terminal (L1 or L2)
to the full up position. DO NOT strip wires.
Hold the wire pair to be terminated between
thumb and index finger. Insert wires into wire
guides simultaneously until they bottom-out.
While holding wires in position, terminate
rocker by lowering to the full DOWN position.

2. Terminate any additional input or output pairs
as required following the above steps.

3. To keep wire pairs organized, route them
through the molded wire looms as shown in
Figure 1.
