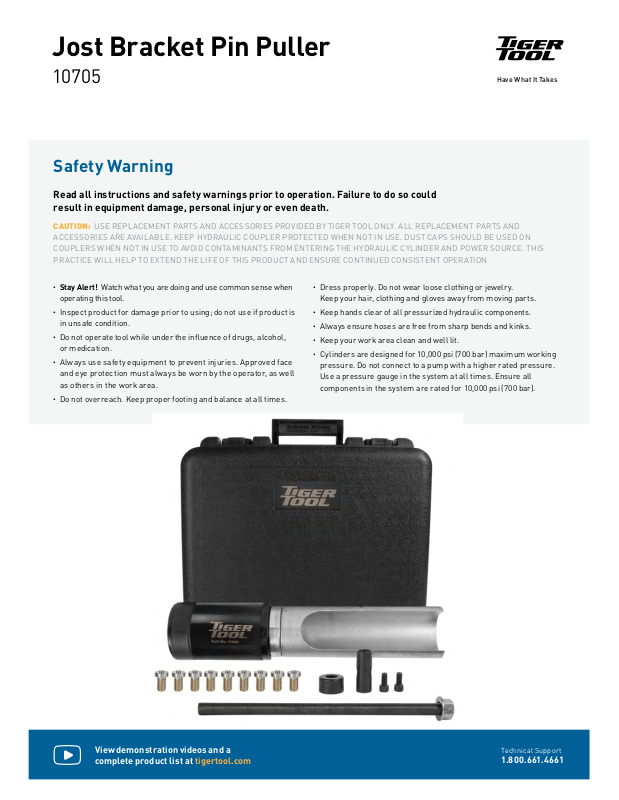

Tiger Tool 10705 User Manual

Jost Bracket Pin Puller

10705

Have Wh at It Takes

Safety Warning

Read all instructions and safety warnings prior to operation. Failure to do so could
result in equipment damage, personal injury or even death.

CAUTION: USE REPL ACEMENT PARTS AND ACCESSORIES PROVIDED BY TIGER TOOL ONLY. ALL REPL ACEMENT PARTS AND

ACCESSORIES ARE AVAILABLE. KEEP HYDRAULIC COUPLER PROTECTED WHEN NOT IN USE. DUST CAPS SHOULD BE USED ON
COUPLERS WHEN NOT IN USE TO AVOID CONTAMINANTS FROM ENTERING THE HYDRAULIC CYLINDER AND POWER SOURCE. THIS
PRACTICE WILL HELP TO EXTEND THE LIFE OF THIS PRODUCT AND ENSURE CONTINUED CONSISTENT OPERATION.

•

Stay Alert! Watch what you are doing and use common sense when

operating this tool.

•

Inspect product for damage prior to using; do not use if product is
in unsafe condition.

•

Do not operate tool while under the influence of drugs, alcohol,
or medication.

•

Always use safety equipment to prevent injuries. Approved face

and eye protection must always be worn by the operator, as well
as others in the work area.

•

Do not overreach. Keep proper footing and balance at all times.

•

Dress properly. Do not wear loose clothing or jewelry.

Keep your hair, clothing and gloves away from moving parts.

•

Keep hands clear of all pressurized hydraulic components.

•

Always ensure hoses are free from sharp bends and kinks.

•

Keep your work area clean and well lit.

•

Cylinders are designed for 10,000 psi (700 bar) maximum working

pressure. Do not connect to a pump with a higher rated pressure.
Use a pressure gauge in the system at all times. Ensure all
components in the system are rated for 10,000 psi (700 bar).

View demonstration videos and a
complete product list at tigertool.com

Technical Support

1.80 0.661.46 61

Jost Bracket Pin Puller

10705

Operating Instructions

1 Begin by removing the retainer bolts. Use a tap to

clean the threaded area inside the bracket pin.

2 Bolt the hammer adapter into the center threaded

hole of the bracket pin and strike it to shock it loose
from the 5th wheel. Clean any rust, paint, or scale
from the head of the bracket pin to create a clean
metal surface for welding.

3 There are two weld-on adapter sizes included in the

kit (1⁄2", 5⁄8"). Each adapter has a centering nub on the
mating side to ensure proper alignment during the
welding process. Weld the corresponding adapter to
the bracket pin and then thread the coupler adapter
onto the weld-on adapter. Next, thread the draw bar
into the coupler adapter.

1

2

Have Wh at It Takes

4

Slide the aluminum spacer tube and cylinder assembly

over the threaded draw bar and install the washer and
hex nut. Apply hydraulic pressure ensuring hands and
body are not in line with the cylinder and threaded
draw bar.

5

Once the cylinder has reached the end of its stroke

(2”) release hydraulic pressure allowing the piston to
retract. Then spin up the hex nut and apply hydraulic
pressure once again. Repeat as necessary until pin
is removed.

Here at Tiger Tool, your satisfaction is our number one
priority. Should you have any questions about this or any
of our products, please call us at 1.800.661.4661.

3

4

5
