BENGAL BRUTE

Current as of 02/22/2010

ASSEMBLIES

JD 62-6420

CAB

P A RTS LISTING WITH MOUNTING AND OPERATING INSTRUCTIONS

Tiger Corporation

3301 N. Louise Ave.

Sioux Falls, SD 57107

1-800-843-6849

1-605-336-7900

www.tiger-mowers.com

06011000

TO THE OWNER / OPERATOR / DEALER

All implements with moving parts are potentially hazardous. There is no substitute for a cautious, safe-minded operator who recognizes the potential hazards and follows reasonable safety practices. The manufacturer has designed this implement to be used with all its safety equipment properly attached to minimize the chance of accidents.

BEFORE YOU START!! Read the safety messages on the implement and shown in this manual. Observe the rules of safety and use common sense!

READ AND UNDERSTAND THIS MANUAL! Non–English speaking operators will need to GET THE MANUAL TRANSLATED as needed!

W arranty Information: Read and understand the complete W arranty Statement found in this manual. Fill out the W arranty Registration form in full and return it within 90 days. Make certain the Serial Number of the machine is recorded on the W arranty Card, and form that you retain.

FORWARD

This manual contains information about many features of the T iger mowing and roadside maintenance equipment. Some of these include: Safety precautions, Assembly instructions, Operations, Maintenance and Parts. This manual will also assist you in the proper break-in, daily care, andtroubleshooting of your new mower .

We recommend that you read carefully the entire manual before operating the unit. Also, time spent in becoming fully acquainted with its performance features, adjustments, and maintenance schedules will be repaid in a long and satisfactory life of the equipment.

T roubleshooting - Please, before you call, help us to help you!

Please look at the equipment to observe what is happening, then:

• Classify the problem

• Hydraulic, electrical or mechanical - Read the trouble shooting section

• Tractor or T ruck chassis - Contact vehicle dealer

• If unable to correct the problem yourself, contact your local Tiger Dealer af ter

gathering:

• Machine model _______________________

• Serial number ________________________

• Dealer name _________________________

• Detailed information about the problem including results of troubleshooting

Attention Owner / Operator / Dealer: It is your obligation to read, and understand, the warranty information section located at the back of this manual denoting that the purchaser understands the safety issues relating to this machine and has received and will read a copy of this manual.

If at any time, you have a service problem with your Tiger mower , Contact your local dealer for service and parts needed.

MANUF ACTURED BY: DISTRIBUTED BY : Tiger Corporation _____________________ 3301 N. Louise Ave. _____________________ Sioux Falls, SD 57107 1-_____-_____-________ 1-800-843-6849 1-_____-_____-________ 1-605-336-7900 www .tiger-mowers.com

T ABLE OF CONTENTS

SAFETY_____________________________________________ 1-1

Safety Information__________________________________ 1-2 ASSEMBLY / MOUNTING SECTION_______________________2-1 OPERATION SECTION_________________________________ 3-1 MAINTENANCE SECTION______________________________ 4-1 PARTS SECTION_____________________________________ 5-1

Parts Ordering Guide_______________________________ 5-2

Parts Table of Contents______________________________ 5-3

Common Parts Section____________________________ 6-1 WARRANTY INFORMATION_____________________________ 7-1

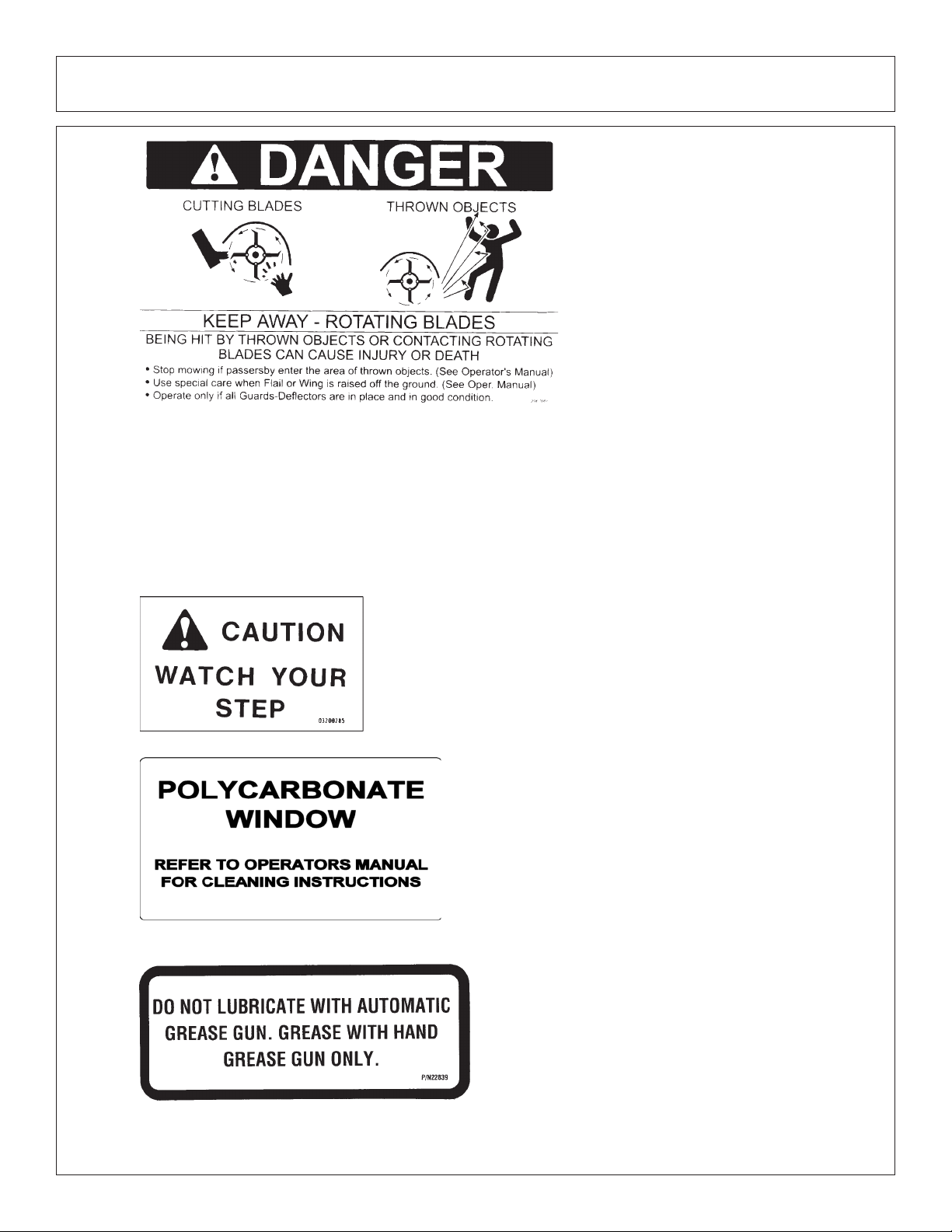

This symbol means:

CAUTION – YOUR SAFETY IS AT RISK!

When you see this symbol, read and

follow the associated instructions carefully

or personal injury or damage may result.

Tiger is a registered trademark.

ASSEMBLY

SECTION

Assembly Section 2-1

ASSEMBLY

Before attempting to mount your Tiger mower, it is

important to read an understand all of the Safety Messages in the Safety section of this manual.

Check complete shipment list against the packing list to make sure there are no

shortages. Make certain the tractor model is the appropriate one for the mower received!

Always use a floor jack, hoist or fork lift to lift and raise heavy parts.

Read and understand the entire assembly section instructions before attempting to

mount your Tiger mower . Refer to the part s section of this manual for detailed illustrations to locate all parts.

TRACTOR PREP ARA TION

A: Remove right hand steps. B: Disconnect battery cables from both batteries. C: Remove engine side panels, or raise hood to access front pulley. D: Remove plugs from tractor casting where main frame and pump

mount will be attached. E: Remove any front weights and weight supports. F: Raise the tractor onto jack-stands and remove the right rear wheel.

CRANKSHAFT ADAPTER

If necessary remove the four capscrews from the crankshaft pulley . Then install the

crankshaft adapter to the pulley with capscrews and lockwashers as shown in the parts section.

Assembly Section 2-2

ASSEMBLY

FRONT CRANKSHAFT PULLEY

John Deere has changed to a

the change, Tiger has found that the front crankshaft pulley used by JD will not allow for the installation of a front drive system. With the change on the 6X15 and 6X20 series tractors, you will need to order a different pulley, washer and bolt from John Deere to allow for a front drive to be installed on your tractor .

Inspect the front pulley on your tractor to verify you have the correct pulley needed to

mount the spacer plate. If your pulley has the (4) four holes needed to mount the spacer, your pulley is the correct one needed. If your pulley does not have the (4) four holes in the pulley , you will need to order the correct pulley, washer and bolt from John Deere.

new tier two engine on all 6000 series tractors. With

PARTS REQUIRED TO PURCHASE FROM JOHN DEERE:

Pulley from JD – R516320 Washer from JD – R517237 Bolt from JD – R516648 Torque on the pulley bolt with locktite is 369 lb-ft.*

Solution:

1. Clean nose of crankshaft using TY16285 clean and cure primer.

2. Apply a light 2-3 mm bead of TY15969 retaining compound around the leading edge of the crankshaft nose.

3. Dip damper mounting caps crew in clean SAE30 engine oil (Always use a new cap screw)

4. Position damper/pulley on the crankshaft and thread cap screw up tight (do not rely on the cap screw to pull the pulley straight onto the taper)

5. Tighten cap screw to specification 500Nm (369lb-ft) (the engine will most likely have to be pinned)

6. Measure run-out on the pulley, spec is 0.003” or less

Assembly Section 2-3

ASSEMBLY

DRIVESHAFT & FRONT PUMP MOUNTING

Install spacer plate on tractor engine using bolts and lockwashers as shown in

parts section. Grease sleeve section of the driveshaft and install from the side of the engine compartment. Once you have the sleeve section in place, bolt to spacer plate using bolts and lockwashers as shown in parts section. Install shaft end of driveshaft through opening and into driveshaft sleeve. Shaft and sleeve yokes should be aligned, if shaft does not insert easily in sleeve, turn shaft 180°, and then install. Shaft end

must be installed in correct orientation, failure to do so may result in damage to tractor and/or driveshaft. After installation of shaft end, install pump mount. Next,

install pump. After pump is secured, install driveshaft in to pump shaft. The end of driveshaft should be no more than 1/2” away from contact with pump housing. Tighten crimping bolt on driveshaft. Lube driveshaft & check all hoses, flanges, the pump, pump mount, driveshaft and mounting plate to ensure all fasteners are tightened before operation.

CAUTION: DO NOT START THE TRACTOR UNTIL ALL HOSES ARE

A TTACHED, TANK IS FILLED WITH PROPER OIL AND BALL VALVES ARE OPEN! STARTING AT THIS TIME WILL CAUSE SERIOUS DAMAGE TO THE PUMP.

ADJUSTING REAR WHEELS

Follow the instructions in the tractor owners manual for adjusting tires and

rims. The rear wheels MUST be adjusted to the widest setting. NOTE: This may

require switching the wheels to opposite sides of the tractor. Also take note of any width restrictions when transporting by trailer. (For ease of inst allation, it is best to leave rear wheels removed during installation of the mower).

Assembly Section 2-4

ASSEMBLY

WEATHER-PACK/METRI-PACK ASSEMBLY

These instructions apply to both Weather-Pack and Metri-pack connectors.

NOTE: Use the specific tool for the type of connector you are assembling.

1. Apply seal to cable, before stripping insulation.

3. Put terminal in crimping tool, then position wire and seal in place.

2. Align seal with cable insulation.

4. Crimp and visually inspect for a good crimp before installing in connector body .

INSTALLING O-RING FITTINGS

Installing straight, 45° and 90° O-rings requires that the O-ring and washer be up

against the swivel body. Insert the swivel and turn in until the swivel is pointed in the desired direction and O-ring contact is made. Hold swivel in set direction with a wrench and turn the O-ring nut away from the swivel body and carefully tighten.

Assembly Section 2-5

ASSEMBLY

POLYCARBONATE SAFETY WINDOW

NOTE: Installing a boom mower requires that all of the right side windows be replaced, or protected with a polycarbonate window. This should be done before mounting the main frame.

1. Disconnect gas shock at door. Remove the right side cab door/window glass

from tractor cab by removing hinge pins. Also, remove rear right side window.

2. Remove the existing hardware and discard factory glass door and window.

3. Place small beed of adhesive seal in the botom of the trim lock bubble beed.

4. Install trim lock bubble seal on polycarbonate starting at the center bottom

horizontal portion.

5. Install existing hardware removed from glass door and window on the

polycarbonate.

6. Install the polycarbonate assembly in the cab with existing and supplied

hardware.

7. Place the retaining brackets on the upper front and lower front of the cab

door/window with the 8mm capscrews.

8. Place the third bracket at the bottom of the door by the fender as shown in the

illustration below. Hold the bracket in place and mark the door jam.

9. Drill 21/64” hole in the door jam for the 5/16” capscrew and mount the bracket.

10. Install the right rear poly window into place where factory window was removed.

Assembly Section 2-6

ASSEMBLY

MAIN FRAME INSTALLATION

With an overhead hoist and / or jack-stands, raise one side of the frame up to the

correctly matching mounting holes. Install capscrews and all other hardware as shown in main frame parts section to secure the sides of the main frame to the tractor casting, DO NOT tighten at this time. Remove the capscrews one at a time and apply a thread locking agent. Reinsert the capscrews and tighten / torque to values noted in the torque chart located in the maintenance section of this manual.

VALVE MOUNTING PLATE

Align the mounting bracket to the existing holes on top of the tractor remote valve at

the rear of the tractor. Secure the bracket to the tractor with the hardware shown in the parts section of the manual. Attach the valve mounting plate to the valve mounting bracket on the rear of the tractor as shown below. Then place and secure the lift valve on top of the valve plate, in the position shown in the parts section. Install the control cables to the valve and route the hydraulic lines from the lift valve to the hydraulic cylinders as noted on the lift valve page of the parts section.

HUSCO VALVE

DANFOSS VALVE

Assembly Section 2-7

ASSEMBLY

CABLE CONTROL LEVER STAND

On the corner cab post, mark a point at 1-3/8” from the windshield and 22 ½” from

thefloor; then cut a ¾” diameter hole through the outer plastic shell. This will expose a threaded steel boss to attach the control box support bracket.

The rear corner of the cable control stand is

placed approximately 5 ¾” from the edge of the mat. The front edge of the stand is up against the corner cab post and the door sill lip of the mat. Before you mark or drill any holes, check for support plates or wires under the mat & the cab floor. NOTE: Cutting into plates or wires makes more work for everyone and could be dangerous. When you know where the wires/plates lie, mark one of the mounting holes. Drill a 3/8” hole through the mat and through the floor of the cab. Next, lift the mat up and mark the other two holes on the cab floor. Drill the holes through the floor. Mark the mat and drill the other two 3/8” holes. Use a 1” hole saw and cut a 1” hole through the mat over each 3/8” hole. Secure the stand to the floor with the spacers, capscrews and nylock nuts provided.

Cut a 1 ¾” hole in the floor to route the cables and wires through. It needs to have a

¼” clearance for the trim lock. Before you mark or drill any holes, check for support plates or wires under the cab floor. NOTE: Cutting into plates or wires makes more work for everyone and could be dangerous. Look under the floor for cables and plates that you need to avoid. The hole should be approximately 4 ½” from the door sill and 4 ¾” from the lip of the mat under the console. Install the trim lock around the metal edges of the hole, then route the control cables and wires through the hole.

Next, wrap the cables with the 6” split hose at

the point they pass through the hole, and secure the zip-ties. Apply RTV sealer in and around individual cables and split hose, inside and outside of the cab for a water tight seal. Install upper support bracket from cab post to the control lever stand.

Assembly Section 2-8

ASSEMBLY

WIRE ACCESS FOR SWITCH BOX (CABLE)

Refer to the parts section for wiring diagrams. Remove right side cowl panel,

tach panel, and hour meter panel for access to the wires.

Route the red wire from the switch box to the bare electrical plug in the fuse box,

or other un-used “keyed” hot wire. NOTE: +12 VOLTS ELECTRICAL POWER

MUST BE TAKEN FROM A SOURCE LOCATION WHERE IT IS LIVE ONLY WHEN THE IGNITION SWITCH IS IN THE “ON” POSITION.

Drill a ½” hole in the 9” X 5” right side panel to route the green & blue safety

switch wires.

The switch box is to be secured to the operators side of the control handles, or

valve stand.

The green & blue wires will connect to the neutral safety switch blue wires,

located on the back of the ignition switch, under the cowl panel.

SWITCH BOX WIRING (CABLE)

Refer to the parts section for wiring diagram to hook up the switch box. Cover all

the wires from the switch box with plastic wire wrap provided. Route the wires from the switch box to the front console panel as shown on previous page. Remove the console panel under the steering wheel to access tractor wires. Locate the brown colored wire. Using a test light or meter to verify this wire is the neutral safety wire. Cut the brown wire and connect the green wires from the switch box as shown in the wiring diagram.

To run the white wire to the solenoid valve, you will need to drill a hole in the front

edge of the cab floor on the right side of the front console. Insert a rubber grommet into the hole to protect the wire, and route the wire out of the cab. The red wire is to be hooked to the tractor ignition switch or an available slot in the fuse box. NOTE: Be certain that the power taken for the switch box is “HOT”

only when the tractor ignition is “ON”. Also double check that the line is fused.

The travel lock red wire from the switch box should also run with the white wire

through the rubber grommet and be covered with wire wrap. This wire will be connected to the electronic travel lock located on the main boom cylinder. The wires from the switch box are longer than needed and should carefully cut and spliced as required. Zip ties should be used to secure the wires to the tractor framework and boom hoses to eliminate vibation and rubbing.

Assembly Section 2-9

ASSEMBLY

HUSCO CONTROL VAL VES IDENTIFICATION

Manual, cable controlled (Husco control valve) boom mowers require check valves

with integral restricting orifice (#06502036) installed in the control valve work ports that are connected to the gland ends of the main and secondary boom cylinders. This check valve allows oil to free flow into the gland end of the main and secondary boom cylinders, but restricts flow out of the cylinder, thereby providing proper boom control. This check valve, #06502036(Vendor #1968R-.063) is similar in appearance to hose adapter #33271 and Adapter #34396, with.06 orifice. These components can be identified as follows, and are to be installed per parts section for the lift valve.

Assembly Section 2-10

ASSEMBLY

SWITCH BOX WIRING (JOYSTICK)

Refer to the parts section for wiring diagram to hook up the switch box. Cover

the four wires (1-white / 2-green & blue / 1-red) from the on / off terminal of the switch box with plastic wire wrap provided. Run these wires through the drilled hole in the right side panel of the steering column on next page.

With the panel under the steering wheel removed to access the wires, locate the

brown wire. Using a test light or meter to verify this wire is the neutral safety wire. Cut the brown wire and connect the green & blue wires from the switch box as shown in the wiring diagram.

To run the white wire to the solenoid valve, you will need to drill a hole in the front

edge of the cab behind the front council. Insert a rubber grommet into the hole to protect the wire, and route the wire out of the cab to the solenoid valve. The red wire from the on / off terminal is to be hooked to the tractor ignition switch or an available slot in the fuse box. NOTE: +12 VOLTS ELECTRICAL POWER

MUST BE TAKEN FROM A SOURCE LOCATION WHERE IT IS LIVE ONLY WHEN THE IGNITION SWITCH IS IN THE “ON” POSITION. THIS WIRE MUST BE FUSED AT THE SOURCE LOCATION

The travel lock red wire from the switch box should also be covered with wire

wrap and should run with the white wire through the grommet. This wire will be connected to the electronic travel lock located on the main boom cylinder. The wires from the switch box are longer than needed and should be carefully cut and spliced as required. Zip ties should be used to secure the wires to the tractor framework and boom hoses to eliminate vibation and rubbing.

The black ground wire from the switch box can be attached to the switch box

mounting bracket.

A 2-1/8” hole must be drilled in the floor of the cab on the right side of the steering

wheel. The center of the hole is located 12” from the front window and 4-1/2” from the right cab door. Shown on the next p age.

Wrap the valve cables in hose wrap and route the cables through the hole in the

floor of the cab. The hose wrap will stick out above and below the hole in the cab floor. Use zip ties to secure the hose wrap to the cables. Seal the edge of the hole with silicon sealant or strip caulk.

Assembly Section 2-11

ASSEMBLY

SWITCH BOX MOUNTING (JOYSTICK)

Locate the 2 holes in the right front corner of the cab frame. These will be the

mounting holes for the 2 mounting bolts of the switch box bracket. See picture on the last page. Mount the bracket using the hardware supplied, as noted in the parts section.

Cut slot in right side panel of steering column to run wires from switch box.

NOTE: When cutting or drilling hole, be sure not to damage existing wires running behind panels.

Assembly Section 2-12

ASSEMBLY

JOYSTICK MOUNTING

The joystick control will require that the right armrest be modified and an additional bracket attached that will accommodate the joystick. In doing this, the armrest must be removed by sliding off the plastic cover and removing the capscrew from the lower right side of the seat. After the capscrew is removed the armrest should be loose from the seat and able to be removed at this point. Once the armrest is removed, then place the joystick holder under the armrest, so that the indentation on the outside of the armrest is lined up with the hole in the armrest bracket for the capscrew to pass through. Once the correct placement is achieved, then mark on the armrest where the hole passes through the armrest bracket. At this point a 1/2” hole must be drill through the armrest so that the bracket can be secured to the armrest. Af ter the hole is drilled, then on the inside of the armrest the 1/2” hole must be cut to a larger diameter up to the metal plate in the armrest so that a spacer and hex nut can be fastened to the capscrew that secures the armrest bracket. Install the armrest bracket on the armrest with the hardware as shown in the parts section.

Once the bracket is installed on the armrest then reattach the armrest back onto the seat using the existing hardware previously removed. Then install the joystick in the bracket with the machine screws as shown in the parts section.

Assembly Section 2-13

ASSEMBLY

PRESSURE LINE INSTALLATION

The hydraulic pressure line will be plumbed into the side of the tractor rear remotes. Locate the pressure port on the spacer and remove the plug (refer to the illustration below and the Parts Section pages for position of the pressure port). After the plug is removed then install 22mm adapter or elbow . Next connect a 1/2” hose from the tractor remote valve to the Tiger valve.

RETURN LINE INSTALLATION

The return line will be plumed next to the pressure line on the side of the tractor rear remotes. Locate the return port and remove the plug (refer to the illustration below and the Parts Section for the position of the return port). Af ter the plug is removed then install 22mm adapter or elbow . Next connect a 1/2” hose from the tractor remote valve to the Tiger valve.

HUSCO VA LVE

PRESSURE

RETURN

LOAD SENSE

Assembly Section 2-14

ASSEMBLY

DANFOSS LOAD SENSE LINE INSTALLATION

The load sense line will be plumbed into the side of the tractor remote valve (shown in the picture on the last page). Locate the plug on the spacer for the load sense, and remove the plug. Install a 14mm elbow and then connect the 1/4” hose from the spacer to the T iger valve. Refer to the Parts Section p ages for an exploded diagram of the tractor remote valve hookup.

HUSCO LOAD SENSE LINE INSTALLATION

To install the load sense line from a Husco valve to the tractor remote valve, first locate the load sense port located on the bottom of the spacer. Remove the plug and install 14mm elbow , then attach the 1/4” hose to the end cap and to the top front port on the Husco valve.

For more information refer to the Parts Section pages for a complete diagram of the tractor valve hookup.

ACCUMULATOR INSTALLATION / PLUMBING

Install the accumulator bracket on top of the main frame mast with the capscrews and lockwashers shown. Install the accumulator in the bracket and secure with the hardware shown. Install the tee on the accumulator and the hose from the accumulator to the gland on the main boom cylinder. Install hose from accumulator to the control valve.

SELECTOR VALVE INSTALLATION

NOTE: Refer to the parts section and illustration below for hardware and position.

The selector valve is attached to the boom rest. The 1/4” hoses from the swivel section of the lift valve are plumbed to the “A” and “B” ports on the selector valve. A run tee is added to the return section of the lift valve. Attach the 1/2” hose from the “T” port of the selector valve to the run tee. 1/4” hoses are attached to the “A1”, ”A2”, “B1” & “B2” ports on the selector valve to the knuckle cylinder and swivel cylider .

Assembly Section 2-15

03-01-05

ASSEMBLY

FILLING HYDRAULIC RESERVOIR

Refer to the maintenance section for filling specifications and hydraulic oil requirements.

NOTE: Starting or running your Tiger mower before filling reservoir will cause serious damage to hydraulic pump.

HYDRAULIC T ANK INSTALLA TION

Install all fittings and tubes into tank and tank filter as shown in the parts section illustration. Insert tank sight glass into front side of tank. Install the temperature sensor (optional), or pipe plug into side of the tank.

Place the tank in the mounting bracket on the main frame as shown in the parts section. Secure the tank in the mounting bracket with the tank strap and nylock nuts.

Install the filter gauge into the filter housing so that it points to the rear of the tractor and is clearly visible to the operator. Locate the tank breather and reducer bushing (bushing may be already installed in the tank along with many of the for-mentioned parts). These will be installed after tank is filled.

TEMPERATURE GAUGE MOUNTING

(OPTIONAL)

Mount the temperature gauge where it is clearly visible to the operator. Attach the green (-) wire from the negative post on the gauge to a grounded bolt on the tractor frame. Remove paint if needed to make a good ground. Remove the pipe plug from the side of the hydraulic reservoir, and inst all the temperature sensor using thread sealing tape. Run the white wire from the (s) sensor post of the gauge to the temperature sensor on the hydraulic reservoir tank.

GENERAL HOSE INSTALLATION

Refer to the parts section for detailed information about hoses and fittings for this application.

Assembly Section 2-16

ASSEMBLY

BENGAL BRUTE HOSE ROUTING

WARNING NOTE: The sudden release of hydraulic pressure could cause the

sudden movement of very heavy parts. Anyone in the way of these parts could be severely hurt or killed. DO NOT ALLOW these hydraulic hoses to BREAK or BURST in order to prevent hydraulic failure Make sure the hoses do not pinch or stretch as boom moves. Measure TWICE, check TWICE then proceed with caution.

Route the hoses through the space between the swivel and the boom mounting bracket. Connect the hoses to the preformed tubes and move the boom arm to a few feet from full forward. Assemble the swivel clamp and place the return hose for the motor on top and the pressure line on the bottom. Place the ¼” hoses in the “C” clamp and add it to the bottom screw of the swivel clamp. Next, make sure there is enough slack for all hoses to pivot at the joint where the main boom arm bends in the swivel, as shown in the next image, and tighten the hoses in the clamp.

Assembly Section 2-17

ASSEMBLY

Arrange the hoses in the clamp that attaches to the boom mounting bracket as shown above, with the 1” motor hoses closest to the bracket and the return hose closest to the boom arm. Pull the hoses snug from the swivel to the mounting bracket clamps, when main boom is still forward, and tighten the hoses in the clamp.

Make sure the 1” motor hoses do not kink as the boom arm is moved into the stowing position. If this happens the motor hoses will have to be shortened, because there is too much hose between clamps.

Assembly Section 2-18

ASSEMBLY

Assembly Section 2-19

ASSEMBLY

GREASELESS BEARING INSTALLATION

It is recomended that grease is to be applied to the bore to aide in insertion of the greaseless bearing.

Assembly Section 2-20

ASSEMBLY

AXLE BRACE MOUNTING

The axle braces are to be mounted under the rear axle of the tractor . The other end of the axle brace mounts on the outside of the lower rear corners of the main frame. Af ter att aching the boom rest, it should fit tightly and level under the tractor. Attach the right axle brace to the main frame with hardware shown in the parts section and tighten. Att ach the axle braces to the rear axle using the mounting hardware shown in the parts section, but DO NOT tighten.

BOOM REST MOUNTING

Carefully raise the boom rest and align the holes with those of the axle brace. Now install all attaching hardware as shown in the parts section loosely, to allow for the alignment with the left and right axle brace. T ighten / torque all hardware on the brace and the boom rest. If mounting the 60” rotary head, attach the additional stop to the lower resting position as shown in the parts section. Finally, add the rest strips to the boom rest as shown in the parts section.

Assembly Section 2-21

ASSEMBLY

BOOM MOUNTING BRACKET

Using a floor jack and / or a hoist, raise the boom mounting bracket up to level and slide the bracket into position onto main frame as shown in parts section.

Install pin through main frame and bracket. Secure with cap-screw, lock-washer and hex nut through boss on main frame as shown.

Secure mounting bracket to main frame with the cap-screws, lock-washers, flatwashers, cut flat-washers and hex nuts provided. Secure using the two slotted holes on the bracket and main frame.

SWIVEL BRACKET MOUNTING

Install the boom swivel bracket onto the boom mounting bracket with the swivel pin. Secure the pin in place using the capscrews, etc. through the hole in the boss and pin. NOTE: The head of the capscrew must be toward the front of the tractor.

Install all new swivels and fittings on the swing cylinder with swivel openings facing each other. Fittings will vary in type and direction depending on your application, refer to your parts section for more details.

Install bearings in the main frame anchor for the swing cylinder . This may already be done for you.

Install the swing cylinder between the boom mounting bracket cylinder anchor and the boom swivel with the pins. Insert roll pins through the top and the bottom hole in the pins.

Now the hoses can be attached from the control valve to the swing cylinder .

PREFORMED TUBE INSTALLATION

Lay booms on floor so the side with the nuts welded on is up. If mounting a ditcher head, only the main boom tube installation is required. Locate all tube clamps and install them loosely in the welded nuts on the left side of the booms.

Arrange the tubes and hoses as outlined in the parts section diagram. Install the smaller tube closest to the boom arm, being careful not to pinch the tubes. Place the large tubes outside of the small tubes. Snug all clamp bolts, but do not tighten. Check all tubes for correct alignment and that none are pinched or bent. The clamp bolts can now be tightened.

Assembly Section 2-22

ASSEMBLY

MAIN BOOM INSTALLATION

Install the boom swivel into the main frame as shown in the parts section using a hoist. Line up holes in swivel and main frame for large swivel pin and insert pin. Secure with hardware as shown.

Attach the inner end of the main boom to the swivel bracket with the cylinder anchors positioned upward, and at a right angle to the tractor. Secure it with the horizontal hinge pin. Secure the hinge pin in the boss with capscrews, etc. (see parts section).

Attach the butt end of the main boom cylinder to the swivel bracket anchor with the special “bracket head” cylinder pin and roll pin shown in parts section.

Install the travel lock on the butt end of the main boom cylinder. This should be facing the butt end of the cylinder after installation.

Install the fittings and hoses to the main boom cylinder per parts section.

GREASELESS BEARINGS ARE DARK GRAY AND SHOULD NEVER BE GREASED. THE MAIN BOOM CYLINDER AND THE SECONDAR Y CYLINDER ARE NOT GREASELESS AND NEED TO BE GREASED.

SWITCHING SIDE MOUNT TO BOOM ARM

If you are changing over from a side mounted mower you must first close the ball valves and remove the motor hoses from the motor to the solenoid valve. Also remove and replace any fittings that do not match the ones shown in the parts section diagram.

Next, disconnect all hoses from the control valve. Remove the pin that connects the lift cylinder to the mast on the main frame. Remove the inner draft beam pin.

At this point the mower should be loose from the tractor.

Remove the two spool valve and mount the four spool valve for the boom according the diagram in the parts section. Also refer to the parts section for the new hoses that will need to be used.

DECK ATTACHMENT

The pivot assembly is used to attach the head to the secondary boom. Install the deck pivot cylinder using the pins and hardware, which is illustrated in the common section.

Connect the fittings and hoses from the pivot cylinder to the small preformed tubes on the boom arm. Connect the fittings and hoses from the motor to the large preformed tubes on the boom arm. Connect all remaining hoses from the control valve to the cylinders and / or preformed tubes on the boom arm. Refer to common section for diagrams.

SOLENOID BRAKE VALVE

Install a solenoid valve mounting bracket with the supplied hardware. While installing fittings to the brake valve, the electrical coil on the spool must be removed to make room. When reinstalling the coil, it is important to use no more than 5 ft. lbs. (or 60 in. lbs.) torque. Over torque to the coil will result in hydraulic failure of spool.

Assembly Section 2-23

ASSEMBLY

HOSE COVERING

Secure hoses together with zip ties wherever loose. Wrap the hoses with the hose covers as illustrated in the parts book. Where hoses may contact the frame or other edges, wrap with split hose and secure with hose clamps or zip ties. On non cab units the pressure and return hoses from the control valve will also need to be routed inside the protective clear hose wrap.

WHEEL WEIGHT MOUNTING

For the BoomKat mower, a wheel weight will be required for the lef t side rear wheel. It will be necessary to mount the 1700 pound wheel weight in the wheel using the long capscrews, lockwahers, flatwashers, and hex nuts per diagram in the parts section.

Installation is most easily done with a small fork lift, inserting a fork in the center slot of the wheel weight. The head of the capscrews is to be toward the OUTSIDE of the weight, with flatwashers on both inside and outside of the assembly.

The left rear tire must also be filled with a mixture of water and calcium chloride at about five pound per gallon. Tire air pressure should be maint ained at approximately 30 P .S.I.

EXTENDING ZERK ON FLAIL HEAD

Due to the belt shield covering the cutter shaft bearing on the flail head a hose, elbow, & grease zerk have been added to the bearing. Remove the existing grease zerk from the bearing and discard. Att ach the elbow to the bearing. Next, the hose is attached to the elbow and routed through the belt shield(shown below) and attached to the outside of the shield. The additional zerk is connected to the end of the hose for easier bearing maintenance.

ATTACH

HOSE HERE

After assembling all components, double check the complete assembly from the main frame to the cutter head. Check the diagrams in the parts sections for proper placement and assembly of all components.

Assembly Section 2-24

ASSEMBLY

BOOM JOYSTICK CONTROL CALIBRA TION

SUB-D

This Danfoss PVG32 control valve is now equipped with higher-resolution actuators on Main Boom, Secondary Boom, Deck Roll, and Swivel functions. These actuators have “active fault monitoring”. The Deck Shield section does not have “active fault monitoring”. The joystick is unchanged and provides a ratio-metric voltage signal. The neutral signal voltage is half or 50% of tractor supply voltage. A 25% signal voltage will shift the valve spool to full “A-Port”, and 75% signal voltage will shift the spool to full “B-Port” in the Main, Secondary, and Swivel valve sections. On the Deck Roll function a 34% signal voltage will shift the valve spool to full “A-Port” and a 68% signal voltage will shift the spool to full “B-port”. If an actuator with active fault monitoring receives a signal from the joystick that is less than 15% or greater than 85% of supply voltage the actuator will “fault out” and shut down. Also if there is an internal failure in the actuator or if the spool position is greater than that specified by the signal voltage from the joystick, the actuator will “fault out” and shut down. An “active fault” condition causes the actuator to drive the spool to neutral, shut down, and activate a “red” LED on the top of the actuator. The active fault can be canceled by simply cycling the Master Switch “OFF” and then “ON”, which resets the fault monitoring, and causes the LED on top of the actuator be “green” again.

The joystick control is equipped with signal adaption potentiometers.

These provide the capability to individually adjust the oil flow to each boom function. It is important that the boom functions do not travel too fast. Excessive boom speed can reduce the stability of the unit and decrease operator control.

Note: Use a Phillips screw driver and be sure to adjust the screws carefully! DO NOT turn the potentiometers beyond their stopping point, potentiometers are very delicate! Turning the “A” or “B” port potentiometers clockwise increases the oil flow to increase the boom function speed, and turning them counterclockwise decreases the oil flow to decrease the boom function speed. See the graphic on the next few pages for help in adjusting.

Assembly Section 2-25

ASSEMBLY

Run tractor at normal operating RPM to adjust the settings as follows.

Set the dead band compensation potentiometer first.

Set the dead band compensation potentiometer at 50%, or halfway between full clockwise and full counter-clockwise. .

Setting Signal Adaptation Potentiometers:

Disconnect the Deutsch connectors from the actuators of the valve. Use a Volt/Ohm meter to measure signal voltage and adjust the signal adaptation potentiometers as needed. Pin #4 is tractor supply voltage. Pin #1 is signal voltage from the joystick, and pin #3 is ground. First measure supply voltage between pins 4 and 3. Then measure signal voltage between pins 1 and 3 while indexing the joystick function fully in both the “A” and “B” port direction. Divide the signal voltage by the supply voltage to get signal voltage as a % of supply voltage. This percentage should not be less than 25% or greater than 75% for the Main Boom, Secondary Boom, or Swivel function. This percentage should not be less than 30% or greater than 62% for the Deck Roll function. Note these initial settings for the Deck Roll function should prevent the spool from shifting into float. After making this first adjustment to deck roll if the spool still goes

into float, adjust the “B” port screw additionally counterclockwise.

Reconnect Deutsch connectors on control cables to actuators on Danfoss valve. Run tractor until hydraulic system is at operating temperature. Now refine the adjustments of the signal adaptation potentiometers for both “A” and “B” ports for all proportional functions to achieve the following function times. Note: turning potentiometer clockwise increases the flow or the function speed, and turning them counterclockwise decreases the flow or the function speed. Note, if during this procedure the trim potentiometer is set to full “counterclockwise” but the function is still too fast, use the mechanical stops at the manual actuator end of the valve section to further limit flow. Turn limit screw in or clockwise to limit flow. The upper limit screw limits flow to “B-port”, and the lower limit screw limits flow to “A-port”. However DO NOT adjust the limit screw on “B-port” of deck roll function. Limiting “B-port” will prevent “float” function.

Assembly Section 2-26

ASSEMBLY

MAIN BOOM: “A” Port, Boom UP: 7-9 Seconds

(Note: Extend secondary boom completely; roll deck to be level with ground, and lower main boom until deck is on ground. Now index main boom “up” function and determine the time required for main boom to rise completely.)

“B” Port, Boom Down: 6-8 Seconds

(Note: Extend secondary boom completely , roll deck to be level with ground, and raise the main boom to “full up”. Then index the main boom “down” function to determine the amount of time required for the deck to contact the ground. CAUTION: Stop the boom just as the deck contacts the ground.)

SECONDARY BOOM: “A” Port, Boom Out: 8-10 Seconds

(Position main boom full up, roll deck out until deck cylinder is fully retracted, and bring secondary boom in completely . Then index the secondary boom “out” function and determine the time required for boom to extend out completely.)

“B” Port, Boom In: 8-10 Seconds

(Position the main boom full up, roll deck out until deck cylinder is fully retracted, and extend secondary boom completely. Then index the secondary boom “in” function and determine the time required for boom to come in.)

DECK ROLL: “A” Port, Deck Out: 7-9 Seconds

(Raise main boom to vertical, extend secondary boom out slightly so that deck can be articulated without contacting the main boom, and roll deck in until deck cylinder is completely extended. Then index the deck roll “out” function and determine the time required for the deck to roll out.)

“B” Port, Deck In: Target 7-9 Seconds (but DO NOT use Limit Screw)

(Raise main boom to vertical, extend secondary boom out slightly so that deck can be articulated without contacting the main boom, and roll deckout until deck cylinder is completely retracted. Then index the deck roll “in” function and determine the time required for the deck to roll in.)

BOOM SWIVEL: “A” Port, Boom Aft: 14-16 Seconds

(Extend booms completely; rotate head to be level with ground, lower main boom until deck is just above ground, and swivel boom full forward. Then index the boom swivel “aft” function and determine the time required for the boom to swivel aft. Use caution when doing this, stop boom before main boom contacts tire.)

“B” Port, Boom Forward: 14-16 Seconds

(Extend booms completely, rotate head to be level with ground, lower main boom until

deck is just above ground, and swivel boom aft and until near tire. Then index the boom swivel “forward” function and determine the time required for the boom to swivel full forward. )

Assembly Section 2-27

ASSEMBLY

Assembly Section 2-28

ASSEMBLY

FINAL PREPARATION FOR OPERATION

Place operators safety and operation decals on the steering column and side counsel where they are clearly visible to the operator. These decals should be understood by each operator of the machine in conjunction with the safety and operation section of this book. The decals are to be maintaned in good condition as a reminder to the operator , and should be replaced if damaged.

Finally , all bosses, pins and pivot points will need to be greased as instructed in the maintenance section of this manual. The hydraulic reservoir can also be filled with the recommended fluid (see maintenance section) and the filter installed in the top of the tank. Double check all fittings and fasteners BEFORE starting tractor. Also secure any loose hoses together with zip ties and wrap with split hoses where friction may occur on the hoses.

BEFORE starting or operating the tractor you must read and understand the safety and operation sections of this manual completely.

BE SURE THE BALL V ALVES ARE OPEN! S tart tractor and allow instruments to stabilize. Using a piece of paper or cardboard as noted in the safety and maintenance sections, check all fittings and connections for hydraulic leaks.

If a leak is found, you must shut down the tractor, set the cutter on the ground. Before attempting to fix the leak, you must actuate the lift valve handles several times to relieve any pressure in the lines.

Before operating the mower, the cutter head and boom should be slowly moved throughout the full range of motion. Watch for any condition that would cause pinching or excess stress on the hoses. The steering and front axle travel should also be carefully moved through their full range of motion. If any condition occurs in which the hoses contact the tires, the steering and / or front axle travel may need to be limited as described in the tractor operators manual. This should also be done if the tires rub, or are extremely close to any other part of the mower such as the hydraulic tank or draft beam. This may include adding shims, or adjusting stop bolts in the tractor front to solve the problem. While checking motion, you should also check that the control circuits are connected according to the operators decal for the valve handles.

MOWER TESTING

T ake the tractor to a place free of loose objects on the ground. Operate the cylinders through their full range of motion again, to clear the lines of air. Follow the instructions in the operation section to operate the mower. V ibration of the mower should be minimal at all times. After a 5 minute test run, the knife bolts should be retorqued and once again after the first few hours of operation.

If any parts of this assembly section, or any other section of this manual are not clearly understood you must contact your dealer or the address on the front of this manual for assistance!

Assembly Section 2-29

ASSEMBLY

Assembly Section 2-30

SAFETY

SECTION

Safety Section 1-1

SAFETY

A safe and careful operator is the best operator. Safety is of primary importance to the manufacturer and should be to the owner / operator. Most accidents can be avoided by being aware of your equipment, your surroundings, and observing certain precautions. The first section of this manual includes a list of Safety Messages that, if followed, will help protect the operator and bystanders from injury or death. Read and understand these Safety Messages before assembling, operating or servicing this mower. This equipment should only be operated by those persons who have read the Manual, who are responsible and trained, and who know how to do so safely and responsibly.

The Safety Alert Symbol combined with a Signal Word, as seen below, is used throughout this manual and on decals which are attached to the equipment. The Safety Alert Symbol means: “ATTENTION! BECOME ALERT! YOUR SAFETY IS INVOLVED!” The symbol and signal word are intended to warn the owner / operator of impending hazards and the degree of possible injury when operating this equipment.

Practice all usual and customary safe working precautions and

above all -- remember safety is up to YOU! Only YOU can

prevent serious injury or death from unsafe practices.

This is the Safety Alert Symbol. When you see this symbol on your machine or in these instructions, be alert to the potential for personal injury .

The lowest level of Safety Message; warns of possible injury. Decals located on the equipment with this signal word are Black and Yellow.

Serious injury or possible death! Decals are Black and Orange.

Imminent death / critical injury . Decals are Red and White.

READ, UNDERSTAND , and FOLLOW the following Safety

Messages. Serious injury or death may occur unless care is taken to follow the warnings and instructions stated in the Safety Messages. Always use good common sense to avoid hazards. (SG-2)

Safety Section 1-2

SAFETY

PELIGRO!

DANGER!

WARNING!

Si no lee Ingles, pida ayuda a alguien que si lo lea para que le traduzca las medidas de seguridad. (SG-3)

Never operate the Tractor or Implement until you have read and completely understand this Manual, the Tractor Operator’s Manual, and each of the Safety Messages found in the Manual or on the Tractor and Implement. Learn how to stop the tractor engine suddenly in an emergency. Never allow inexperienced or untrained personnel to operate the Tractor and Implement without supervision. Make sure the operator has fully read and understood the manuals prior to operation. (SG-4)

Always maintain the safety decals in good readable condition. If the decals are missing, damaged, or unreadable, obtain and install replacement decals immediately. (SG-5)

Make certain that the “Slow Moving Vehicle” (SMV) sign is installed in such a way as to be clearly visible and legible. When transporting the Equipment use the Tractor flashing warning lights and follow all local traffic regulations. (SG-6)

LEA EL

INSTRUCTIVO!

WARNING!

DANGER!

Operate this Equipment only with a Tractor equipped with an approved roll-over-protective system (ROPS). Always wear seat belts. Serious injury or even death could result from falling off the tractor--particularly during a turnover when the operator could be pinned under the ROPS. (SG-7)

Do not modify or alter this Implement. Do not permit anyone to modify or alter this Implement, any of its components or any Implement function. (SG-8)

BEFORE leaving the tractor seat, always engage the brake and/or set the tractor transmission in parking gear, disengage the PTO, stop the engine, remove the key, and wait for all moving parts to stop. Place the tractor shift lever into a low range or parking gear to prevent the tractor from rolling. Never dismount a Tractor that is moving or while the engine is running. Operate the Tractor controls from the tractor seat only.

(SG-9)

Safety Section 1-3

SAFETY

DANGER!

WARNING!

DANGER!

Never allow children or other persons to ride on the Tractor or Implement. Falling off can result in serious injury or death.

(SG-10)

Never allow children to operate or ride on the Tractor or Implement.

(SG-11)

Do not mount the Tractor while the tractor is moving. Mount the Tractor only when the Tractor and all moving parts are completely stopped. (SG-

12)

Start tractor only when properly seated in the Tractor seat. Starting a tractor in gear can result in injury or death. Read the Tractor operators manual for proper starting instructions. (SG-13)

DANGER!

Never work under the Implement, the framework, or any lifted component unless the Implement is securely supported or blocked up to prevent sudden or inadvertent falling which could cause serious injury or even death. (SG-14)

DANGER! Do not operate this Equipment with hydraulic oil leaking. Oil is

expensive and its presence could present a hazard. Do not check for leaks with your hand! Use a piece of heavy paper or cardboard. Highpressure oil streams from breaks in the line could penetrate the skin and cause tissue damage including gangrene. If oil does penetrate the skin, have the injury treated immediately by a physician knowledgeable and skilled in this procedure. (SG-15)

Safety Section 1-4

SAFETY

WARNING! The operator and all support personnel should wear hard hats,

safety shoes, safety glasses, and proper hearing protection at all times for protection from injury including injury from items thrown by the equipment. (SG-16)

CAUTION!

WARNING!

PROLONGED EXPOSURE TO LOUD NOISE MAY CAUSE PERMANENT HEARING LOSS! Tractors with or without an Implement at-

tached can often be noisy enough to cause permanent hearing loss. We recommend that you always wear hearing protection if the noise in the Operator’s position exceeds 80db. Noise over 85db over an extended period of time will cause severe hearing loss. Noise over 90db adjacent to the Operator over an extended period of time will cause permanent or total hearing loss. Note: Hearing loss from loud noise [from tractors, chain saws, radios, and other such sources close to the ear] is cumulative over a lifetime without hope of natural recovery. (SG-I7)

Transport only at safe speeds. Serious accidents and injuries can result from operating this equipment at unsafe speeds. Understand the T ractor and Implement and how it handles before transporting on streets and highways. Make sure the Tractor steering and brakes are in good condition and operate properly .

Before transporting the Tractor and Implement, determine

the safe transport speeds for you and the equipment.

Make

sure you abide by the following rules:

T est the tractor at a slow speed and increase the speed slowly. Apply the Brakes smoothly to determine the stopping characteristics of the Tractor and Implement. As you increase the speed of the Tractor the stopping distance increases. Determine the maximum safe transport speed for you and this Equipment.

Test the equipment at a slow speed in turns. Increase the speed

through the turn only after you determine that it is safe to operate at a higher speed. Use extreme care and reduce your speed when turning sharply to prevent the tractor and implement from turning over. Determine the maximum safe turning speed for you and this equipment before operating on roads or uneven ground.

Only transport the Tractor and Implement at the speeds that you

have determined are safe and which allow you to properly control the equipment.

Be aware of the operating conditions. Do not operate the Tractor with weak or faulty brakes. When operating down a hill or on wet or rain slick roads, the braking distance increases: use extreme care and reduce your speed. When operating in traffic always use the Tractor’s flashing warning lights and reduce your speed. Be aware of traffic around you and watch out for the other guy. (SG-19)

Safety Section 1-5

SAFETY

WARNING! Never attempt to lubricate, adjust, or remove material from the

Implement while it is in motion or while tractor engine is running. Make sure the tractor engine is off before working on the Implement.

(SG-20)

WARNING!

DANGER!

Periodically inspect all moving parts for wear and replace when necessary with authorized service parts. Look for loose fasteners, worn or broken parts, and leaky or loose fittings. Make sure all pins are properly secured. Serious injury may occur from not maintaining this machine in good working order. (SG-21)

Always read carefully and comply fully with the manufacturers instructions when handling oil, solvents, cleansers, and any other chemical agent. (SG-22)

Never run the tractor engine in a closed building or without adequate ventilation. The exhaust fumes can be hazardous to your health.

(SG-23)

DANGER!

KEEP AWAY FROM ROTATING ELEMENTS to prevent entanglement and possible serious injury or death. (SG-24)

Never allow children to play on or around Tractor or Implement. Children can slip or fall off the Equipment and be injured or killed. Children can cause the Implement to shift or fall crushing themselves or others. (SG-25)

Safety Section 1-6

SAFETY

DANGER!

DANGER! Operate the Tractor and/or Implement controls only while properly seated

WARNING!

NEVER use drugs or alcohol immediately before or while operating the

Tractor and Implement. Drugs and alcohol will affect an operator’s alertness and coordination and therefore affect the operator’s ability to operate the equipment safely. Before operating the Tractor or Implement, an operator on prescription or over-the-counter medication must consult a medical professional regarding any side effects of the medication that would hinder their ability to operate the Equipment safely. NEVER knowingly allow anyone to operate this equipment when their alertness or coordination is impaired. Serious injury or death to the operator or others could result if the operator is under the influence of drugs or alcohol. (SG-27)

in the Tractor seat with the seat belt securely fastened around you. Inadvertent movement of the Tractor or Implement may cause serious injury or death. (SG-29)

Mow only in conditions where you have clear visibility in daylight or with adequate artificial lighting. Never mow in darkness or foggy conditions where you cannot clearly see at least 100 yards in front and to the sides of the tractor and mower. Make sure that you can clearly see and identify passersby, steep slopes, ditches, drop-offs, overhead obstructions, power lines, debris and foreign objects. If you are unable to clearly see this type of items discontinue mowing. (SGM-1)

DANGER!

DANGER! All Safety Shields, Guards and Safety devices including

There are obvious and hidden potential hazards in the operation of this Mower. REMEMBER! This machine is often operated in heavy brush and in heavy weeds. The Blades of this Mower can throw objects if shields are not properly installed and maintained. Serious injury or even death may occur unless care is taken to insure the safety of the operator, bystanders, or passersby in the area. Do not operate this machine with anyone in the immediate area. Stop mowing if anyone is within 100 yards of mower. (SGM-2)

(but not limited to) - the Deflectors, Chain Guards, Steel Guards, Gearbox Shields, PTO integral shields , and Retractable Door Shields should be used and maintained in good working condition. All safety devices should be inspected carefully at least daily for missing or broken components. Missing, broken, or worn items must be replaced at once to reduce the possibility of injury or death from thrown objects, entanglement, or blade contact. (SGM-3)

Safety Section 1-7

SAFETY

DANGER!

WARNING!

The rotating parts of this machine have been designed and tested for rugged use. However, the blades could fail upon impact with heavy, solid objects such as metal guard rails and concrete structures. Such impact could cause the broken objects to be thrown outward at very high velocities. To reduce the possibility of property damage, serious injury, or even death, never allow the cutting blades to contact such obstacles.

Extreme care should be taken when operating near loose objects such as gravel, rocks, wire, and other debris. Inspect the area before mowing. Foreign objects should be removed from the site to prevent machine damage and/or bodily injury or even death. Any objects that cannot be removed must be clearly marked and carefully avoided by the operator. Stop mowing immediately if blades strike a foreign object. Repair all damage and make certain rotor or blade carrier is balanced before resuming mowing.

Many varied objects, such as wire, cable, rope, or chains, can become entangled in the operating parts of the mower head. These items could then swing outside the housing at greater velocities than the blades. Such a situation is extremely hazardous and could result in serious injury or even death. Inspect the cutting area for such objects before mowing. Remove any like object from the site. Never allow the cutting blades to contact such items. (SGM-6)

(SGM-4)

(SGM-5)

WARNING!

Mow at the speed that you can safely operate and control the tractor and mower. Safe mowing speed depends on terrain condition and grass type, density, and height of cut. Normal ground speed range is from 0 to 5 mph. Use slow mowing speeds when operating on or near steep slopes, ditches, drop-offs, overhead obstructions, power lines, or when debris and foreign objects are to be avoided. (SGM-7)

Avoid mowing in reverse direction when possible. Check to make sure there are no persons behind the mower and use extreme care when mowing in reverse. Mow only at a slow ground speed where you can safely operate and control the tractor and mower. Never mow an area that you have not inspected and removed debris or foreign material. (SGM-8)

Do not put hands or feet under mower decks. Blade Contact can result serious injury or even death. Stay away until all motion has stopped and the decks are securely blocked up. (SGM-9)

DANGER!

Replace bent or broken blade with new blades. NEVER ATTEMPT TO STRAIGHTEN OR WELD ON BLADES SINCE THIS WILL LIKELY CRACK OR OTHERWISE DAMAGE THE BLADE WITH SUBSEQUENT FAILURE AND POSSIBLE SERIOUS INJURY FROM THROWN BLADES. (SGM-10)

Safety Section 1-8

WARNING!

SAFETY

Do not mow with two machines in the same area except with Cab tractors with the windows closed.

(SGM-11)

DANGER!

Rotary and Flail Mowers are capable under adverse conditions of throwing objects for great distances

(100 yards or more) and

causing serious injury or death. Follow safety messages carefully.

STOP MOWING IF PASSERSBY ARE WITHIN 100 YARDS UNLESS:

-Front and Rear Deflectors are installed and in good,

working condition;

-Mower Head is running close to and parallel to the ground

without exposed Blades;

-Passersby are outside the existing thrown-object zone;

-All areas have been thoroughly inspected and all foreign

material such as rocks, cans, glass, and general debris

has been removed.

NOTE:

Where there are grass and weeds high enough to hide debris that could be struck by the blades, the area should be: inspected and large debris removed, mowed at an intermediate height, inspected closely with any remaining debris being removed, and mowed again at desired final height.

(SBM-1)

Use extreme caution when raising the Mower head. Stop the Blades from turning when the Mower Head is raised and passersby are within 100 yards. Raising the Mower head exposes the Cutting Blades which creates a potentially serious hazard and can cause serious injury by objects thrown from the Blades or by contact with the Blades.

(SBM-2)

DANGER!

WARNING!

Be particularly careful in transport. The Mower has raised the center

of gravity for the tractor and has increased the possibility of overturn. Turn

curves or go up slopes only at low speed and using a gradual turning angle. Slow down on rough or uneven surfaces. (SBM-3)

Never Leave the mower unattended while the head is in the raised position. The mower could fall causing serious injury to anyone who might inadvertently be under the mower.

(SBM-4)

The rotating parts of this machine continue to rotate even after the Tractor has been turned off. The operator should remain in his seat for 60 seconds after the brake has been set, the PTO disengaged, the tractor turned off, and all evidence of rotation has ceased. (SBM-5)

“Wait a minute...Save a life!”

Safety Section 1-9

SAFETY

Relieve hydraulic pressure prior to doing any maintenance or repair work on the Implement. Place the Mower Head on the ground or securely supported on blocks or stands, disengage the PTO, and turn off the engine. Push and pull the control Levers or Joystick several times to relieve pressure prior to starting any maintenance or repair work.

(SBM-6)

DANGER!

Always keep a careful lookout and use extreme care when working around overhead obstructions. Never allow the Mower head or boom within 10 feet of any power line. When working close to overhead power lines consult your electric company for a safe code of operation.

When transporting Boom Mower on a truck or trailer, the height or width may exceed legal limits when the boom is in the transport position. Contact with side or overhead structures or power lines can cause property damage or serious injury or death. If necessary lower boom to reduce height and/or remove mowing head to reduce width to the legal limits. (SBM-8)

Never operate the Tractor and Mower Unit without an OPS (Operators Protective Structure) or Cab to prevent injury from objects thrown from ground or from overhead trimming. Stop mowing if workers or passersby are with in 100 yards. (SBM-9)

Each Rear Wheel must have a minimum of 1500 pound contact with the surface to prevent lateral instability and possible tip-over which could result in serious bodily injury or even death. Widen the wheel tread and add weights if needed. Refer to the mounting instructions or call Customer Service if you need assistance with Couterweight Procedure. (SBM-11)

(SBM-7)

DANGER!

Always disconnect the wire leads from the mower pump solenoid before performing service on the Tractor or Mower. Use caution when working on the Tractor or Mower. Tractor engine must be stopped before working on Mower or Tractor. The Mower Blades could inadvertently be turned on without warning and cause immediate dismemberment, injury or death. (SBM-12a)

The flail cutter shaft is designed for standard rotation (same rotation as the tractor wheels during forward travel). Never operate the cutter shaft in the reverse rotation. Operating this mower in reverse rotation may cause objects to be thrown out the front of the mower head.

Safety Section 1-10

SAFETY

WARNING!

Engine Exhaust, some of its constituents, and certain components contain or emit chemicals known to the state of California to cause cancer and birth or other reproductive harm.

WARNING!

Battery posts, terminals and related accessories contain lead and lead compounds, chemicals known to the state of California to cause cancer and birth or other reproductive harm. Wash hands after handling!

Tiger mowers use balanced and matched system components for blade carriers, blades, cutter-shafts, knives, knife hangers, rollers, drive-train components and bearings. These parts are made and tested to Tiger specifications. Non-genuine “will fit” parts do not consistently meet these specifications. The use of “will fit” parts may reduce mower performance, void mower warranties and present a safety hazard. Use genuine Tiger mower p arts for economy and safety.

SEE YOUR DEALER

In addition to the design and configuration of this Implement, including Safety Signs and Safety Equipment, hazard control and accident prevention are dependent upon the awareness, concern, prudence, and proper training of personnel involved in the operation, transport, maintenance, and storage of the machine. Refer also to Safety Messages and operation instruction in each of the appropriate sections of the Tractor and Equipment Manuals. Pay close attention to the Safety Signs affixed to the Tractor and Equipment. (SG-18)

Safety Section 1-11

SAFETY

P ART NO. LOCA TION

002369

HYDRAULIC T ANK

Safety Section 1-12

00725746

INSIDE OF CAB

00769737

MOWER DECK

SAFETY

P ART NO. LOCA TION

00758194

MOWER DECK

02962764

MAIN BOOM, SECONDARY BOOM, MAIN FRAME

02962765

MAIN FRAME

02965262

HYDRAULIC T ANK

Safety Section 1-13

SAFETY

P ART NO. LOCA TION

02967668

MOWER DECK

02971123

HYDRAULIC T ANK

03200285

OUTSIDE OF CAB

22645

INSIDE OF CAB

22839

MOWER DECK

Safety Section 1-14

SAFETY

P ART NO. LOCA TION

22840

INSIDE OF CAB

24028

MOWER DECK

25387

INSIDE OF CAB

Safety Section 1-15

10” x 5.5” 31522 MOWER DECK, MAIN BOOM

18.25” x 10” 31523 HYDRAULIC T ANK

13.5” x 7” 31513

SAFETY

P ART NO. LOCA TION

27001

INSIDE OF CAB

31935

INSIDE OF CAB

Safety Section 1-16

32707

HYDRAULIC T ANK

42350

MOWER DECK

SAFETY

P ART NO. LOCA TION

32708

HYDRAULIC T ANK

32709

INSIDE OF CAB

Safety Section 1-17

33224

MOWER DECK

33438

MAIN BOOM

SAFETY

P ART NO. LOCA TION

06550012 INSIDE OF CAB

Safety Section 1-18

33743

INSIDE OF CAB

SAFETY

P ART NO. LOCA TION

RED 42399 REFLECTIVE T APE

MOWER DECK

AMBER 4240006 REFLECTIVE T APE

MOWER DECK

6T3217

MOWER DECK

6T3219

INSIDE OF CAB

Safety Section 1-19

6T3220

FRONT PUMP MOUNT

SAFETY

P ART NO. LOCA TION

6T3221

INSIDE OF CAB

6T3222

INSIDE OF CAB

Safety Section 1-20

6T3224

MOWER DECK

6T3225

INSIDE OF CAB

SAFETY

P ART NO. LOCA TION

6T3230

INSIDE OF CAB

6T3231

INSIDE OF CAB

6T3233

HYDRAULIC T ANK

6T3234

INSIDE OF CAB

Safety Section 1-21

6T3236

MOWER DECK

SAFETY

P ART NO. LOCA TION

6T3237

INSIDE OF CAB

06550008

INSIDE OF CAB

6T3243

INSIDE OF CAB

6T3249A

MOWER DECK

6T3261

MOWER DECK

Safety Section 1-22

SAFETY

TB1011

MOWER DECK

Safety Section 1-23

34852

HYDRAULIC TANK

SAFETY

ITEM PART NO. QTY. DESCRIPTION

50023 AVAIL MANUAL CANISTER COMPLETE

1 00776031 1 ROUND MANUAL CANISTER

33997 1 DECAL, SHEET, MANUAL CANISTER 2 * DECAL 3 * DECAL 4 * DECAL 5 * AVAIL SPECIFIC PRODUCT MANUAL 6 33753 1 E M I SAFETY MANUAL 7 34296 1 FRONT ADHESIVE PAD 8 34297 1 REAR ADHESIVE PAD 9 6T1823 4 ZIP TIE 14” LONG

NOTE:

The manual canister can be bolted, zip tied or adhered to a variety of surfaces. Locate a protected area within the view of the operator. Then select an installation method and attach the canister . CAUTION - AVOID DRILLING HOLES INTO UNKNOWN AREAS, wires and other parts may be located behind these areas. When adhering the canister to a surface, thoroughly clean that surface before installing the canister .

Safety Section 1-24

SAFETY

FEDERAL LAWS AND REGULATIONS

This section is intended to explain in broad terms the concept and effect of federal laws and regulations concerning employer and employee equipment operators. This section is not intended as a legal interpretation of the law and should not be considered as such.

Employer-Employee Operator Regulations

U.S. Public Law 91-596 (The Williams-Steiger Occupational and Health Act of 1970) OSHA

This Act Seeks:

“...to assure so far as possible every working man and woman in the nation safe and healthful working conditions and to preserve our human resources...”

DUTIES

Sec. 5 (a) Each employer(1) shall furnish to each of his employees employment and a place of employment which are free from recognized hazards that are causing or are likely to cause death or serious physical harm to his employees; (2) shall comply with occupational safety and health standards promulgated under this Act. (b) Each employee shall comply with occupational safety and health standards and all rules, regulations and orders issued pursuant to this Act which are applicable to his own actions and conduct.

OSHA Regulations

OSHA regulations state in part: “At the time of initial assignment and at least annually thereafter , the employer shall instruct every employee in the safe operation and servicing of all equipment with which the employee is, or will be involved.”

Employer Responsibilities:

T o ensure employee safety during Tractor and Implement operation, it is the employer’s responsibility to:

1. Train the employee in the proper and safe operation of the T ractor and Implement.

2. Require that the employee read and fully understand the Tractor and Implement Operator’s manual.

3. Permit only qualified and properly trained employees to operate the Tractor and Implement.

4. Maintain the Tractor and Implement in a safe operational condition and maintain all shields and guards on the equipment.

5. Ensure the Tractor is equipped with a functional ROPS and seat belt and require that the employee operator securely fasten the safety belt and operate with the ROPS in the raised position at all times.

6. Forbid the employee operator to carry additional riders on the Tractor or Implement.

7. Provide the required tools to maintain the T ractor and Implement in a good safe working condition and provide the necessary support devices to secure the equipment safely while performing repairs and service.

Child Labor Under 16 Years of Age

Some regulations specify that no one under the age of 16 may operate power machinery. It is your responsibility to know what these regulations are in your own area or situation. (Refer to U.S. Dept. of Labor, Employment Standard Administration, W age & Home Division, Child Labor Bulletin #102.)

Safety Section 1-25

SAFETY

Safety Section 1-26

OPERATION

SECTION

Operation Section 3-1

OPERATION

Safety is of primary importance to the owner / operator and to the manufacturer.

The first section of this manual includes a list of Safety Messages, that, if followed, will help protect the operator and bystanders from injury or death. Many of the messages will be repeated throughout the manual. The owner / operator / dealer should know these Safety Messages before assembly and be aware of the hazards of operating this mower during assembly, use, and maintenance.

The Safety Alert Symbol combined with a signal word, as seen below, is intended to warn the owner / operator of impending hazards and the degree of injury possible during operation.

The lowest level of Safety Message; Warns of possible minor injury. Decals located on the cutter with this Signal Word are Black and Yellow.

Serious injury or possible death! Decals are Black and Orange.

Imminent death / critical injury . Decals are Red and White.

WARNING!

Before any operation of tractor and mower, the user should read and understand the safety and operating instructions for both the tractor and the mower. The user should also be familiar with the location and functions of the units instruments and controls. Being familiar with the

machine and it’s controls will increase efficiency and reduce possibility of serious injury or damage to the unit. The operator should work slowly and carefully until he feels comfortable with the machine. Speed and skill will be att ained much easier if the necessary time is spent to familiarize yourself with the machine and its operations.

Since tractor makes and models vary, we recommend reading and following the

operators manual provided by the manufacturer pertaining to your particular unit.

WARNING!

Operation Section 3-2

OPERATION

STARTING TRACTOR AND MOWER

Check the operators manual received from the tractor manufacturer, for

their recommendation and procedures pertaining to your particular make and model.

When rotating parts are in motion, serious injury may occur if caution is

not used or danger is not recognized. Never allow bystanders within 300

feet of the machine when mower is in operation.

Be sure the ball valves on the mower hydraulic tank are OPEN before

starting the tractor. Serious damage to the hydraulic system can occur if

the valves are not open.

Check to make sure mower switch is in the “OFF” position. The unit is

designed not to start if the switch is in the “on” position. If tractor starts

with switch on, turn off tractor and contact your local Tiger dealership for

assistance.

Start the tractor and allow the instrument s to stabilize. Without starting the mower, practice positioning the boom and deck. Remember, speed and skill will be attained easier if the necessary time is spent familiarizing yourself with the machine and its operations. When you feel comfortable at controlling the position of the mower , return the mower to the travel position, and transport the mower to the desired mowing location.

NOTE: Each mower head has a specific resting position for flatbed travel.

If mowing for the first time with a Tiger Boom Mower, we recommend choosing a ditch or area relatively flat with a minimum of sign posts, guard rails, etc. As always, you should inspect the area for other objects that can cause potential hazards and removing them before mowing.

The Mower Control switch turns the mower “ON” and “OFF. This switch is to be in

the “OFF” position to start the tractor. If the switch is “ON” and the tractor ignition switch is turned to “ON” the red “mower run” indicator light will come on. However, the tractor will not start with the Mower Control switch in the “ON” position. Upon starting tractor the “mower run” indicator light may flash briefly , and may flash briefly again when tractor is shut down.

If tractor starts with switch on, turn off tractor and contact your local Tiger dealership for assistance.

NOTE: The tractor ignition switch and the Master Switch must be “ON” ” to allow movement of the mower deck.

Operation Section 3-3

OPERATION

CABLE CONTROLLED MOWERS

A control lever decal similar to the one shown below should be near the control valve

to remind the operator of the lever functions.

The main control valve on the Tiger Rear Stow Boom has multiple sections with tapered spools, located near the right side of the steering wheel. The malfunction of a section of the valve does not necessitate the replacement of the entire “bank”, only the faulty section. Each section of the valve controls a certain position of the boom or deck. Seated in the operators seat, the controls from left to right are #1 - primary(main) boom, #2 – secondary boom, #3 – deck roll, #4 – boom (swivel)swing & knuckle boom, and #5 boom(safety) shield.

Lever #4 is set up to be used for both the swivel function and the knuckle function. When using the knuckle, stop any movement of the boom. Then push the button on the end of Lever #4. At this time the indicator light on the switch box will light up, telling you the knuckle funcion is activated. You will then be able to straighten the knuckle and move it backward.

To switch back to the swivel function, stop any movement to the boom. Push the button on the end of Lever #4. The indicator light will shut off, letting you know that the swivel is now active.

NOTE: The mower head can still move if the switch box has no power.

Operation Section 3-4

OPERATION

LEVER #1

MAIN BOOM

LEVER #2

SECONDARY BOOM

LEVER #3

DECK ROLL

LEVER #4

BOOM SWIVEL

INDICATOR LIGHT OFF

LEVER #4

WITH BUTTON PRESSED

BOOM KNUCKLE

INDICATOR LIGHT ON

LEVER # 5

BOOM SHIELD

SWIVEL

KNUCKLE

Operation Section 3-5

OPERATION

SWITCHBOX

The Safety Shield lever opens and closes the shield located on the front of the cutter head. When mowing at or near the ground, always have the shield in the closed position. When mowing in brush or in trees above ground level the shield may be opened for easier cutting. Read and follow the warnings on the decal shown below. Do not run the cutter head into material larger than 6” diameter.

Operation Section 3-6

OPERATION

MOWER OPERATION

When rotating parts are in motion, serious injury may occur if caution is not used or danger is not recognized. Never allow bystanders within 300 feet of the machine when in operation. Extreme care should be taken when operating near loose objects – such as gravel, rocks and debris. These conditions should be avoided.

The rotating parts in this machine have been designed and tested for rugged use. However, they could fail upon impact with heavy solid objects – such as steel guard rails, concrete abutments, etc., causing them to be thrown at a very high velocity . Never allow cutter head to contact such objects. Inspecting the cutting area for such objects and removing them prior to mowing can help eliminate these potential hazards.

Once on location, lower the mower deck slightly above the material to be cut, so the mower does not have to start under a load. With the tractor at an idle, engage mower. Bring tractor R.P.M. up to 1900 – 2200 R.P .M. and slowly lower deck to ground level.

A flail mower deck should be carried so that part of the deck weight is carried by the boom and part carried by the ground roller , when mowing on the ground. When the flail mower is carried this way, the ground roller follows the contour of the ground more easily during mowing operations.

The rotary mower deck should always be carried rather than dragged on the skid shoes when mowing on the ground. Dragging the rotary mower deck increases the side loads on the boom, decreases the horsepower available to the cutter head, and reduces the ability of the accumulator the carry part of the weight of the boom during mowing operations.

During mower operation, the hand throttle must be used to maintain engine speed at1900 – 2200 R.P .M. This prevent s radical changes in mower spindle speeds, reducing the possibility of cutter assembly damage.

The horizontal positioning action of the boom is designed to position the cutting head and provide a limited pressure relief when excessive pressure is applied to the boom. Do not force the cutting head into heavy branches or stumps. Damage to the unit may result.

When using the rotary cutting head for trimming trees and shrubs, let the mower saw into them. Do not lower the mower head down directly onto a tree or stump. The mower blades are designed to cut with the end, and misuse can cause damage to the blade and a hazardous situation for the operator.

Powering the boom down, forcing mower deck onto ground may damage mower deck and it’s attachment to the boom, creating a potentially hazardous situation.

Operation Section 3-7

OPERATION

T o ensure a clean cut, engine speed should be maint ained at approximately 1900 – 2200 R.P.M. If the tractor slows to less than 1800 R.P.M., shift to the next lower gear. DO NOT ride the clutch, this will cause premature clutch failure. The engine should

not be operated at any time at more than 2400 R.P.M. on the tractor tachometer.

For cutting brush it is usually best to stop the tractor and swivel the boom and mower into foliage. The horizontal positioning action of the boom is designed to position the cutting head and provide a limited pressure relief when excessive pressure is applied to the boom.

DO NOT use excessive force when positioning cutting head into heavy branches or stumps. Damage to the unit may result. It is best to let the cutter head “eat away” slowly at heavy cutting jobs.

If foliage falls on top of mower deck causing tractor to become unstable, move the boom “Forward” and “Out” to relieve tipping of the tractor. Lower mower deck to ground and shut down unit. Af ter all motion stops, remove foliage from mower deck.

The mower will operate more efficiently in tougher conditions and with less power if the knives are kept sharp. If the mower begins to vibrate, stop the tractor, check for wire wrapped in the spindle or damaged knives. When replacing knives, replace all knives with new knives to ensure proper balance so the mower will not vibrate. Severe vibration will result, if knives with unequal wear are used.

Begin a pass at the top side of the trees and work down with each consecutive pass. When cutting trees and shrubs, use a lower speed to allow the knives time to cut as well as mulch the foliage.

If bystanders approach within 300 feet while mower is in operation turn mower switch “OFF” immediately! Af ter shutdown, never leave the tractor or allow bystanders to approach within 300 FEET of the unit until all motion stops completely.

If cutter shaft jams and stops, turn mower switch to “OFF”, and swivel boom “AFT”. Normally this action will clear the cutter head. If not, roll mower deck until adjacent to the secondary boom, then lower boom to rest mower deck on ground. Shut off the tractor, set p arking break, allow all motion to cease. At that point it is safe to leave the tractor and clear the cutter heads manually .

Begin each pass at the top side of the trees and work down with each consecutive pass. Use a low speed to allow the cutting blades time to mulch as well as cut the foliage. When the initial pass has been made, disengage the mower , and return boom to a safe travel position. Return to starting point and make next pass, etc..

After the first day of operation, all bolts should be checked and tightened securely. This should be done periodically to ensure the bolts do not become loose and cause damage to the tractor or mower, or injury to the operator.

Operation Section 3-8

OPERATION

DANFOSS JOYSTICK CONTROLLED MOWERS

NOTE: DO NOT operate mower head while boom mower is in the boom rest, or in the stored position! Red “Mower Run” light indicates mower is “ON”.

The boom functions are controlled by an electronic joystick. The Joystick Master Switch enables the joystick control for controlling the boom motion functions. This switch is to be in the “OFF” position when starting the tractor and when boom is stowed for transporting the machine.

If the joystick control is not operating properly , turn the master switch to the “OFF” position. Install the manual valve handle onto valve and operate the functions individually to stow boom. Af ter boom is stowed in rest, transport the unit to the maintenance facility and contact your T iger dealer for assistance.

DO NOT attempt to operate the valve manually for mowing operations!

Note: Pushing manual valve handles “out” or “away” from the tractor cab will bring the main boom “up”, secondary boom “out”, roll deck “out”, and swivel boom “aft”. Pulling manual handles toward cab will let main boom “down”, bring secondary boom “in”, roll deck “in”, and swivel boom “forward”.

MAIN CONTROL SWITCH BOX

Operation Section 3-9

OPERATION

DANFOSS JOYSTICK CONTROL AND

SWITCH BOX

The diagrams below and on the following pages show the functions that are

performed through the use of the joystick controller.

Operation Section 3-10

OPERATION

JOYSTICK FWD / BACK

MOVES MAIN BOOM

JOYSTICK LEFT / RIGHT

MOVES SECONDARY BOOM

LEFT JOYSTICK ROLLER

MOVES DECK ROLL

RIGHT JOYSTICK ROLLER

MOVES BOOM SWIVEL

RIGHT JOYSTICK ROLLER

WITH BUTTON PRESSED

MOVES BOOM KNUCKLE

SHIELD SWITCH

OPERATES SAFETY

SHIELD

Operation Section 3-11

SWIVEL

KNUCKLE

OPERATION

The Safety Shield switch opens and closes the shield located on the front of the cutter head. When mowing at or near the ground, always have the shield in the closed position. When mowing in brush or in trees above ground level the shield may be opened for easier cutting. Read and follow the warnings on the decal shown below. Do not run the cutter head into material larger than 4” diameter.

HEA VY DUTY ROT AR Y

The Heavy Duty Rotary mower was designed for cutting brush and foliage up to 6 inches in diameter or multiple branches that have a total cross section area equivalent to one 6 inch branch. Cutting multiple limbs at the same time may overload the mower causing it to slow down or stall completely. Regardless of the size of material being cut, the speed of the cutter head must be maintained. To ensure that the cutter head is running at maximum speed, run the tractor at full throttle during mowing operations. If the cutter head slows to the point that the knives are folding back, move the mower head away fron the foliage and allow the cutter head to regain full speed.

Operation Section 3-12

OPERATION

Operating the mower in a manner that allows the cutting knives to continually fold back will cause permanent damage to the knives, rotary disk, and spindle assembly.

The Heavy Duty Rotary cutter head is designed for clockwise rotation

(clockwise as seen from the top or the currer head). Never operate the cutter head in the counterclockwise rotation. Operating this mower in counterclockwise rotation may cause objects to be thrown towards the

tractor.

50” BOOM FLAIL

The 50” boom flail mower was designed for cutting brush and foliage up to 2 inches in diameter or multiple branches that have a total cross section area equivalent to one 2 inch branch. Cutting multiple limbs at the same time may overload the mower causing it to slow down or stall completely. Regardless of the size of material being cut, the cutter shaft speed must be maintained. To ensure that the cutter shaft is running at maximum speed, run the tractor at full throttle during mowing operations. If the cutter shaft slows to the point that the knives are folding back, move the mower head away from the foliage and allow the cutter shaft to regain full speed.

Operating the mower in a manner that allows the knives to continually fold back or allowing knife lugs to contact foliage will cause permanent damage to the cutter shaft drum, knives, and knife attachment parts.

The 50” boom flail cutter shaft is designed for standard rotation (same rotation as the tractor wheels during forward travel). Never operate the cutter shaft in reverse rotation. Operating this mower in reverse rotation may cause objects to be thrown out the front of the mower head.

The 50” boom flail equipped with free swinging brush knives is intended for brush cutting only. Cutting grass is not recommended.

Do not allow knives to cut down to the ground. Position ground roller to maintain knife arc at a minimum of 2 inches above the ground. Knife contact or lug contact with ground will cause permanent damage to cutter shaft, knives, and knife attachment parts.

Operation Section 3-13

OPERATION

63” BOOM FLAIL

The 63” boom flail mower was designed for cutting grass. The cutter shaft speed must be maintained for proper cutting. T o insure that the cutter shaf t is rotating at maximun speed, run tractor at full throttle during mowing operations. If cutter shaft slows to the point that the knives are folding back against the cutter shaft, move the mower head away from the foliage and allow the cutter shaft to regain full speed.

Operating the mower in a manner that allows the knives to contact the drum will cause permanent damage to the cutter shaft drum, knives, and knife attachment parts.

The 63” boom flail cutter shaft is designed for standard rotation (same rotation as the tractor wheels during forward travel). Never operate the cutter shaft in reverse rotation. Operating this mower in reverse rotation may cause objects to be thrown out the front of the mower head.

UNSTOWING BOOM

To un-stow the boom from the boom rest, proceed as follows. Extend the secondary boom “OUT” and lift the head off of the boom rest. Extend the knuckle boom “STRAIGHT”. Move main boom “UP” off of main boom support. Swivel boom “FORWARD” perpendicular to tractor and switch travel lock to “OFF”. The head and booms are now ready for full operation.

TRANSPORTING MOWER

Transporting under the units own power:

NOTE: ONLY when transporting under the units own power is it permissible to rest the head in any of the resting positions. When transporting on a trailer the head MUST be resting on the position designed for the head you are using.

When transporting between job sites, the following procedure should be followed: Shut off the power to the cutting head and allow all motion to come to a complete stop. Roll the mower deck “OUT” all the way until it is adjacent to the secondary boom. Extend the secondary boom “OUT” to clear the boom rest. Next, swivel the boom “AFT” and manuver the main boom until it rests on the boom rest. Switch over to the knuckle control and curl the knuckle “Back” fully . Slowly and carefully lower the secondary boom until it contacts the desired cradle. Lastly, place the “Travel Lock” switch on the main control switch box to the “ON” position. The unit is now ready for self transportation. (See picture of stowed boom on next page).

Operation Section 3-14

OPERATION

Transporting unit by flatbed trailer:

Park flatbed on level area. Drive tractor onto center of flatbed to avoid uneven distribution of weight and staying within local width restrictions. Boom head must be stowed on Boom Rest. The FLAIL HEAD MUST be stowed in the UPPER position. The 50” ROTARY HEAD MUST be stowed in the LOWER position. The 60” ROTARY HEAD MUST be stowed in the LOWER position WITH the STOP in place.

Operation Section 3-15

OPERATION

Operation Section 3-16

MAINTENANCE

SECTION

Maintenance Section 4-1

MAINTENANCE

Tiger Mowers are designed for high performance and rugged durability, yet with simplified maintenance. The purpose of this section of the manual is to help the operator in the regular servicing of the mower. Regular maintenance at the intervals mentioned will result in the maximum efficiency and long life of the T iger Mower.

When you purchase a T iger Mower you also acquire another valuable asset, Tiger’s parts organization. Our rapid and efficient service has guaranteed the customer satisfaction for many years. T iger parts keep up with the demands for efficiency , safety and endurance expected of the Tiger Mower.

MAINTENANCE PRECAUTIONS

· Be sure end of grease gun and zerks are clean before using. Debris injected into bearings, etc. with grease will cause immediate damage.

· DO NOT grease greaseless bearings. They can be identified by blackish/grey color. DO NOT use a power grease gun to lubricate bearings. These require very small and exact amounts of lubrication. Refer to the detailed maintenance section for specific lubrication instructions. DO NOT over-grease bearings.

· Polycarbonate windows should be washed with mild soap or detergent and luke warm water, using a sof t clean sponge or soft cloth. DO NOT use abrasive or alkaline cleaners or metal scrapers on Polycarbonate windows!

· Be alert to maintenance indicators such as the in-tank filter pressure gauge, hydraulic reservoir sight gauge, etc. T ake the required action to correct any problems immediately .

Release of energy from pressurized systems may cause inadvertent actuation of cylinders, or sudden release of compressed springs. Before disconnecting any hoses relieve pressure by shutting tractor off, setting cutter on ground and actuating lift valve handles.

DO NOT use hands to check for suspected leaks in hydraulic hoses! Hydraulic fluid escaping under pressure can have sufficient force to penetrate skin and cause serious injury . If fluid is injected into skin, it mustbe surgically removed within a few hours or gangrene may result. Use a small piece of wood or cardboard, not hands, to search for pin hose leaks. Be sure all pressure is relieved whenever disconnecting lines. Be sure all connections are tight and hoses and lines are not damaged before applying pressure.

BREAK IN PERIOD

In addition to following the break in instructions for your particular tractor , the in-tank hydraulic fluid filter should be replaced after the first 50 hours of service. Thereafter the filter should be replaced every 500 hours, or yearly, which ever comes first.

Re-torque wheel lugs after first five hours of operation and periodically thereafter. See torque specifications listed in the tractor’s service manual for your particular model.

Wheel lugs must always be re-torqued whenever a wheel is removed and reinstalled.

Maintenance Section 4-2

MAINTENANCE

DANGER!

WARNING!

Do not modify or alter this Implement. Do not permit anyone to modify or alter this Implement, any of its components or any Implement function. (SG-8)

DANGER!

Maintenance Section 4-3

MAINTENANCE

REGULAR MAINTENANCE

The intervals at which regular servicing should be done are based on hours of operation. Use the tractors hour meter to determine when regular servicing is required.

This symbol indicates a point that needs to be greased at an interval noted in the section below. Refer to the Det ailed Maintenance section for further instructions on greasing. Copy and use the Daily Maintenance sheet located at the end of this section.

DAILY OR EVERY 8 HOURS

ITEM SERVICE COMMENTS

Drive Shaft Yoke, U-Joint Grease Grease as instructed in & Stub Shaft detailed maint. section Pump Drive Shaft Coupler Check and Lube Insure drive shaft end play

Crankshaft Adapter Check rubber grommets Replace grommets if

damaged or missing

Main & Secondary Lubricate Inject grease until it Cylinder Pivot Points appears at ends

Hydraulic Fittings Check for leaks Tighten when needed.

Do Not use hands to check for leaks, see maint. Precautions

Knives Check Inspect for missing or

damaged knives, change or sharpen as needed

Spindle mounting bolts Check 3/4” x 2” torque to 331 ft. (spindle to deck) lbs.

Knife mounting bolts Check 1-1/8” special bolt torque (knife to disk) to 1070 dry or 800 oiled ft.

lbs. Disk mounting blolts Check 5/8” x 1-3/4” bolt torque to (disk to spindle) 204 dry or 184 oiled ft. lbs. Belts Check / Adjust Check if broken, tighten

as required Main Frame and Check Retorque bolts to torque

Deck specifications in this section Hydraulic Fluid Level Check Add if required per

fluid recommendations Rear Flail Drive (if applicable) Lubricate Grease as instructed in

Bearing Flange and detailed maint. section Shaft Coupler

Cutter Shaft and Lubricate Grease as instructed in Ground Roller detailed maint. section

Maintenance Section 4-4

MAINTENANCE

WEEKLY OR EVERY 50 HOURS

ITEM SERVICE COMMENTS

In T ank Hyd. Fluid Change Change after first 50 Filter hours only , then every (10 micron filter) 500 hours or yearly

In-Line High Pressure Change Change after first 50 Filter hours only , then every

(10 micron filter) 500 hours or yearly

MONTHLY OR EVER Y 150 HOURS

Hydraulic Fluid Level Check Add as needed Hyd. Tank Breather Clean / Check / Replace Clean or replace

Element as require

Rear Tire Type Max P.S.I.

18.4-34 30

YEARLY OR EVER Y 500 HOURS

Spindle Grease Change Hyd. T ank Fluid Change In T ank Hyd. Fluid Change

Filter

(10 micron filter)

In-Line High Pressure Change or Change when indicated Filter by restriction indicator .

(10 micron filter)

Hyd. T ank Breather Change

TROUBLESHOOTING

SYMPTOMS CAUSE REMEDY

Vibration 1. Loose bolts 1. Check all bolts and tighten to

recommended torque specs.

2. Cutter assembly 2a. Check for damaged blades, disc. Unbalanced or cutter shaft. Replace if needed.

2b. Check for wire, rope, etc.

entangled in cutter assembly

Mower will not lift 1. Hyd. Fluid low 1. Check and refill Hyd Fluid

2. Leaks in line 2. Tighten or replace fittings and hoses

3. Faulty relief valve 3. Check pressure in line. Line

pressure in Control V alve should be at least 2500 P.S.I.

4. Kinked or blocked 4. Clean or replace lines

5. Faulty cylinder 5. Inspect, repair or replace cylinder

Maintenance Section 4-5

MAINTENANCE

SYMPTOMS CAUSE REMEDY

Mower will not start 1. Blown fuse 1. Check fuse between mower switch or run and ignition / replace

2. Ball valves closed 2. Make sure valves are open

3. Low oil level 3. Check Hyd. tank and fill

4. Line leak 4. Check all fittings and lines,

re-tighten or replace.

5. Electronic 5a. Without the tractor running, turn

solenoid faulty the mower switch to on. A low

audible click should be heard if the solenoid is engaging the solenoid spool. If click is not heard, leave switch in on position and with a screwdriver or other steel object, touch the small nut on the end of the solenoid. If the metallic object is not attracted to the nut, check the fuse and wiring for an open circuit. If the object is attracted but no “click” is heard, replace the solenoid.

5b. Remove the four bolts holding the

small block to the main block. Lift and remove small block being careful not to damage O-rings / filter. Clean filter and re-install.

5c. Remove large nut on side of large

valve block. Remove spring, and use needle nose vise grip to pull spool from block. Check block and spool for contaminates and scratches. Clean parts or replace if scratched.

Motor runs but 1. Belts 1. Inspect belts and pulleys. Replace will not cut. belts and repair as needed.

2. Tensioner 2. Adjust tensioner nut until flat washer

washer is flush with top of guide.

Motor turns slowly 1. Contaminants 1. Remove large nut on side of large or not at all. restricting spool valve block. Remove spring, and use

movement in needle nose vise grip to pull spool valve body . from block. Check block and spool

for contaminates and scratches. Clean parts or replace if scratched.

2. Suction lines 2. Check for kinkes or obstruction in

obstructed suction hose.

3. Low oil level 3. Check Hyd. tank level and fill.

Pump will not work 1. Excessive wear 1. Disassemble and repair.

on internal parts

Motor will not work 1. Excessive wear 1. Disassemble and repair.

on internal parts

Maintenance Section 4-6

MAINTENANCE

NOTE: If flow meter is available, check pressure and flow volume for all suspected hydraulic problems.

If the solution to your problem cannot be found in this section, call the Technical Service representative at the number shown on the front cover of this manual.

Maintenance Section 4-7

MAINTENANCE

TORQUE SPECIFICATIONS

* These are intended to be general specifications. See tractor operators or

service manual for exact specifications for your unit.

Maintenance Section 4-8

MAINTENANCE

LUBRICATION RECOMMENDATIONS

Description Application General Specification Recomended

Mobil Lubricant

Tractor Hydraulics Reservoir JD-20C Mobilfluid 424

MF M1 135,M1 141 FNHM2C134D (FNH201)

Mower Hydraulics Reservoir

Cold T emperatures 0 F S tart-Up ISO 46 Anti-Wear - Low T emp Mobil DTE 15M Normal T emperatures 10 F S tart-Up JD-20C Mobilfluid 424

MF M1 135,M1 141

FNH M2C134D (FNH201) Normal T emperatures 15 F S tart-Up ISO 46 Anti-Wear Mobil DTE 25 High Operating T emp. Above 90 F ISO 100 Anti-W ear Mobil DTE 18M

Flail Rear Gearbox Grease PAO Synthetic Extreme Mobil SHC 75W-90

Pressure Gear Lube Mobil 1 Synthetic Gear

Cutter Shaft & Ground Grease Lithium-Complex Mobilgrease CM-S

Roller Shaft (Flail) Gu n Extreme Pressure

NLGI 2 - ISO 320

Drive Shaft Coupler Grease Lithium-Complex Mobilgrease CM-S

(Flail and Rotary) Gu n Extreme Pressure

NLGI2 - ISO 320

Drive Shaft Y oke, U-Joint & S tub Shaft Grease Lithium-Complex Mobilgrease CM-S

Gu n Extreme Pressure

NLGI 2 - ISO 320

Main Boom Cylinder & Grease Lithium-Complex Mobilgrease CM-S Secondary Boom Cylinder Pivots Gu n Extreme pressure

NLGI2 - ISO 320

Deck Boom Pivot & Grease Lithium-Complex Mobilgrease CM-S Deck Stop Adjustment G un Extreme pressure

(Rotary & Flail) NLGI 2 - ISO 320

Deck Spindle (Rot ary) Grease Tiger Spindle Lubricant Mobilith SHC 220

Gu n part number 06540000

Maintenance Section 4-9

03-01-05

MAINTENANCE

RECOMMENDED FILLING INSTRUCTIONS

FOR HYDRAULIC RESERVIORS

When filling or checking the oil level, the unit should be parked on a level surface, shut “OFF”, and allowed sufficient time to cool to ambient temperature. Use caution when removing the pressurized breather. Do not place face over opening when removing the breather.

The reservior should be filled to the top of the lower sight glass on the side of the tank. Do not over-fill. The reservior has been over-filled when oil is visible in the upper sight glass. If tank has too much oil, the excess may be expelled through the pressurized breather.

DETAILED MAINTENANCE

REPLACEING IN-TANK HYDRAULIC FILTER:

Loosen the four bolts on the top cover of the filter housing. T urn cover counterclockwise until cover is free. Remove and replace filter. Replace top cover and cover bolts in opposite order as removed.

Maintenance Section 4-10

MAINTENANCE

DETAILED MAINTENANCE

REPLACEING HIGH PRESSURE HYDRAULIC FILTER ELEMENT:

Assure system has been shut down and de-pressurized. Locate High Pressure Filter housing. Confirm that the element that is about to be installed matches the element p/n on the filter model tag. Example: V3.0510-06 (world line 100, HD049 model) Locate the bottom of the High Pressure Bowl, and use the appropriate spanner wrench –or- ratchet that matches the hex pattern. Using the spanner wrench -or- ratchet and turning in a counterclockwise rotation, (looking at the bottom of the bowl) remove the bowl from the head, The first couple rotations will seam tight as the o-ring passes the sealing flats, once the o-ring has cleared the sealing flats the bowl should spin freely. T aking care not to drop the bowl, finish removing the bowl from the head. WARNING: bowl will be full of oil! Pour the oil from the bowl into a container, this oil should be considered contaminated due to the flow direction through the element is outside ~ in. Clean the inside of the bowl if “dirt” is present. Remove the old element from the filter head by pulling with a rotation motion. Dispose of the used element properly. Remove the new element from the packaging. Using your finger , dab and lubricate the o-ring in the top of the new element. Install the new element into and on the mounting boss with in the head; assure that the element is fully seated on the boss. Clean and inspect the o-ring that is affixed in the bowl, lubricate with oil. Using a clockwise rotation, screw the bowl back into the head, assuring that the bowl has not been cross threaded into the head. Continue “tighten” the bowl into the head, using the spanner wrench –orratchet, the rotation of the bowl will become tighter once the o-ring engages the sealing flats. Once the bowl has been fully inserted into the head, and the o-ring has reached the sealing flats, the bowl can no longer be “tightened” and bottoms out. Once the bowl has bottomed out, “back-off” the bowl by 1/6 turn, this assures that the o-ring is seated properly with in the sealing flats. Element change out and reassembly is now complete. Start the machine and inspect the filter area checking that there is no oil leaking from the filter assembly . This is first to be done at 50 hours of operation, then yearly(500 hours) or when indicated by restriction indicator.

Maintenance Section 4-11

HEAD

BOWL

MAINTENANCE

GREASING CUTTER SHAFT – FLAIL MOWERS

Locate grease zerks on each end of cutter shaft(s), these are located on the bearing cover. Normal conditions require one or two pump in each bearing, using Lithium-Complex Extreme Pressure grease conforming to NLGI2-ISO 320 specifications. This is to be done with a standard grease gun daily or at 8 hour

intervals. CAUTION: Over greasing may cause premature seal failure.

GREASING GROUND ROLLER SHAFT – FLAIL

Locate grease zerks on each end of roller tube at lower rear of head. Normal conditions require one or two pump in each bearing, using Lithium-Complex Extreme Pressure grease conforming to NLGI2-ISO 320 specifications. This is to be done with a standard grease gun daily or at 8 hour intervals.

CAUTION: Over greasing may cause premature seal failure.

Maintenance Section 4-12

MAINTENANCE

GREASING PUMP DRIVE SHAFT COUPLER

With engine stopped, ensure drive shaft alignment by grasping coupler and sliding back and forth. Coupler should slide freely with approximately 1/8” of end play . If coupler does not slide freely, inspect for loose pump mount bolts, or damaged or loose crank shaft adapter. Inject Lithium-Complex Extreme Pressure grease conforming to NLGI2-ISO 320 specifications into coupler until grease begins to protrude from ends. Grease daily or every 8 hours. Do not over grease.

DRIVE SHAFT YOKE, U-JOINT & STUB SHAFT

With engine stopped, inject Lithium-Complex extreme pressure grease conforming to NLGI2-ISO 320 specifications into universal joints and slip yoke untill grease appears at the seal. Grease them daily or every 8 hours .

Maintenance Section 4-13

MAINTENANCE

VISUAL MAP OF GREASE POINTS

Please read the specific instructions for each area.

Maintenance Section 4-14

MAINTENANCE

GREASELESS BEARINGS ON THE BOOM

The pivot points on the boom have greaseless bearings. Check the guide on the

last page for greasing points.

NOTE: The new greaseless bearing is blackish/gray in color and should not be greased.

GREASING BOOM CYLINDERS

Locate the zerk on the butt end tang and on rod end tang of the main and secondary boom cylinder. Inject Lithium-Complex Extreme Pressure grease conforming to NLGI2-ISO 320 specifications until grease begins to protrude from ends. This procedure is to be performed daily or at 8 hour intervals.

GREASING SPINDLE

Locate grease fitting on inside of deck housing. Inject Tiger Spindle Lubricant, part number 06540000 into spindle housing. Fill with lubricant until lubricant weeps out of top spindle seal. Lubricate spindle at end of day while mower is still warm.

Maintenance Section 4-15

MAINTENANCE

ADJUSTING / CHECKING BELT TENSION

To adjust belt tension or replace belts on flail cutter head, remove four bolts that secure belt cover and remove cover. The hex nuts shown below can be adjusted to increase / decrease the belt tension as needed. (NOTE: Location of adjustment nuts may vary on flail cutter heads.) Be sure to replace the belt cover BEFORE

operating mower!

DECK STOP ADJUSTMENT

Loosen locking nut. Turn adjustment bolt in, and run deck cylinder out to full extension. Adjust bolt out until the head just touches the boom, and tighten lock nut.

NOTE: Bolt should not hit boom before cylinder reaches full travel.

Maintenance Section 4-16

MAINTENANCE

TIGHTENING KNIFE BOLTS AND DISK BOLTS:

After every 8 hours of operation or daily , the Knife Bolt s and Disk Bolt s should be

tightened as follows: Knife mounting bolts (3ea.) torque to 1070 dry or 800 oiled ft. lbs.(Recomended oiled)

Disk mounting bolts (6ea. ) torque to 204 dry or 184 oiled ft. lbs.(Recomended oiled)

TIGHTENING SPINDLE BOLTS

The spindle mounting bolts should be checked and retorqued daily or every 10

hours of service. Torque the (6) bolts shown below to 331 ft. lbs.

Maintenance Section 4-17

MAINTENANCE

BALL VALVES

The ball valve at the hydraulic reservoir may need to be closed during certain maintenance or repair procedures. THE BALL VALVES MUST BE OPEN (handle

parallel with valve) WHEN TRACTOR IS RE-STARTED OR PUMP IS COUPLED TO MOTOR OR P.T.O. ! Failure to do so will result in component failure!

Maintenance Section 4-18

MAINTENANCE

INSPECTION OF ROTARY KNIFE

Failure to follow the following warnings and instructions may result in serious injury or damage to the equipment or property!

1 – DO NOT weld on the knives or bolts. Damaged or worn knives must be replaced.

2 – Knives must be replaced in sets. Knives with unequal wear may cause

serious vibration and resulting structural damage to the mower.

3 – The self-locking nuts for the knife mounting bolts must NOT be reused. If the self-locking nut is removed from the knife mounting bolt, the nut must be replaced with a new self-locking nut.

4 – Inspect the condition and tightness of the knife mounting bolts and disk mounting bolts daily .

ROTARY KNIFE REPLACEMENT

1 – Be sure you have a complete matching set of new knives for replacement. 2 – Remove knives and inspect holes for damage. Also watch for cracks in the disk

around the holes. 3 – Install bolt through knife and disk from bottom side of disk. Install new self-locking

nuts and torque them to 1070 dry or 800 oiled ft. lbs. It is recommended that they are oiled.

4 – The knives should swing freely to absorb shocks from impact when striking objects.

WHEN CUTTING HEAVY BRUSH, KNIFE BOLTS SHOULD BE INSPECTED HOURLY AND RETORQUED TO 1070 DRY OR 800 OILED FT. LBS.

Maintenance Section 4-19

MAINTENANCE

REPLACEMENT OF ROTARY DISK

Failure to follow the following warnings and instructions may result in serious injury or damage to the equipment or property!

1 – The bolts that attach the disk to the spindle must be grade 8. These 5/8 inch bolts are to be torqued to 204 dry or 184 oiled ft. lbs.

2 – A thread locking agent may be applied to threads of all mounting bolts before they are installed.

3 – Disks must be inspected daily for hairline cracks between spindle

mounting bolts or around the knife mounting bolts. These cracks indicate metal fatigue caused by severe abuse. If cracks are present the disk must be replaced.

4 – Inspect the disk mounting bolts daily when checking tightness of knife mounting bolts. If a disk mounting bolt is loose, it must be removed, threads cleaned, fresh thread locking agent applied, and tightened to proper torque value.

5 – If a knife mounting bolt is loose, the self locking nut must be replaced as a safety precaution. Install bolts through knife and disk from bottom side of disk. Install self locking nuts and torque them to 1070 dry or 800 oiled ft. lbs. It is then recommended that the head of the knife mounting bolt be struck sharply with a hammer and self locking nuts retorqued to 1070 dry or 800 oiled ft. lbs.

50” FLAIL KNIFE BLADE REPLACEMENT

1 – If knives are damaged or badly worn, they will need to be replaced as a set.

Replacing a single knife can cause severe vibration and possible damage to the mower. The knife should not be welded on for any reason.

2 - Always replace the knife bolts when replacing the knives. DO NOT REUSE THE KNIFE BOLTS OR NUTS.

3 – Assemble knives, bushings, bolts and nuts as shown in part section of the manual.

4 – Install the locking hex nut so that the flat face of the nut is towards the knife. 4 – Apply loctite “271” to threads. 5 – Torque nut to 176 ft lbs. Knife must swing freely.

DO NOT re-use the locking hex nuts for mounting the knives. If hex nut become loose, or require removal for knife replacement or any other reason, they must be discarded and replaced with new nuts.

Maintenance Section 4-20

MAINTENANCE

50” BOOM FLAIL KNIFE REPLACEMENT

(Old style cutter shaft)

1 – If knives are damaged or badly worn, they will need to be replaced as a set.

Replacing a single knife can cause severe vibration and possible damage to the mower.

2 – Assemble knives, bushings, collars, bolts and nuts as shown in part section of manual.

3 – Install locking hex nut so that the flat face of nut is towards the knife. 4 – apply loctite “271” to threads. 5 – Torque nut to 108 FT. LBS.

DO NOT re-use the locking hex nuts for mounting the knives. If hex nut become loose, or require removal for knife replacement or any other reason, they must be discarded and replaced with new nuts.

Knives should not be welded on for any reason.

63” BOOM FLAIL KNIFE REPLACEMENT

1 – If knives are damaged or badly worn, they will need to be replaced as a set.

Replacing a single knife can cause severe vibration and possible damage to the mower.

2 – Assemble knives, clevis, bolts and nuts as shown in part section of manual. 3 – Install locking hex nut so that the flat face of nut is towards the knife. 4 – apply loctite “271” to threads. 5 – Torque nut to 54 FT. LBS.

DO NOT re-use the locking hex nuts for mounting the knives. If hex nut become loose, or require removal for knife replacement or any other reason, they must be discarded and replaced with new nuts.

Knives should not be welded on for any reason.

Maintenance Section 4-21

MAINTENANCE

HEAVY DUTY SPINDLE ASSEMBLY

INSTALLA TION AND BEARING ADJUSTMENT

WARNING! A press MUST be used to install bearing cups, bearing cones, and

seals. DO NOT use a hammer to install races, bearings, or seals. The parts of assembly may be damaged.

NOTE: The grease zerk and gussets are located on the top side of the spindle

housing. Be sure the spindle is assembled correctly.

Be sure to wear eye protection and other protective equipment as needed

when working on spindle assembly .

THE SPINDLE ASSEMBLY

See the diagram below for identification of spindle parts, while servicing.

Maintenance Section 4-22

Tiger Electronics JD 62-6420 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
