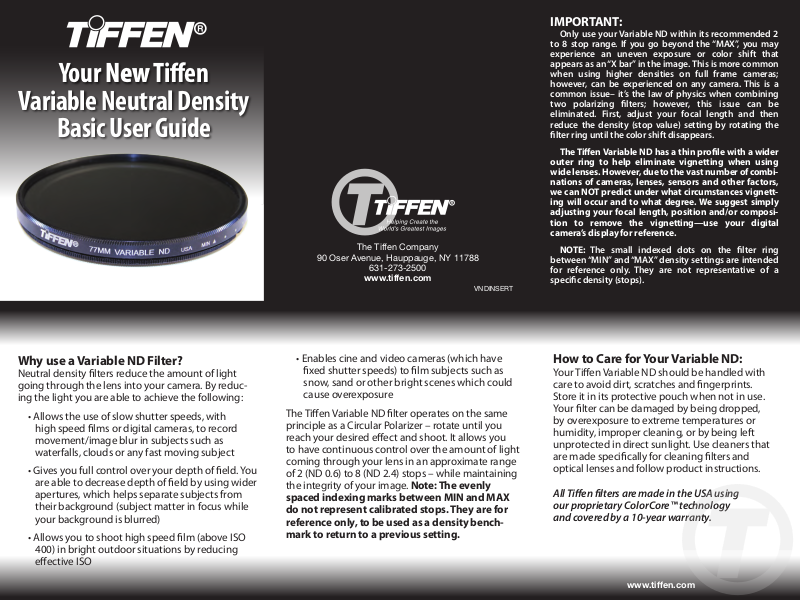

Page 1
Your New Tien
Variable Neutral Density
Basic User Guide
90 Oser Avenue, Hauppauge, NY 11788
The Tiffen Company
631-273-2500
www.tiffen.com
VNDINSERT
IMPORTANT:
Only use your Variable ND within its recommended 2
to 8 stop range. If you go beyond the “MAX”, you may
experience an uneven exposure or color shift that
appears as an “X bar” in the image. This is more common
when using higher densities on full frame cameras;
however, can be experienced on any camera. This is a
common issue– it’s the law of physics when combining
two polarizing lters; however, this issue can be
eliminated. First, adjust your focal length and then
reduce the density (stop value) setting by rotating the
lter ring until the color shift disappears.
The Tien Variable ND has a thin prole with a wider
outer ring to help eliminate vignetting when using
wide lenses. However, due to the vast number of combinations of cameras, lenses, sensors and other factors,
we can NOT predict under what circumstances vignetting will occur and to what degree. We suggest simply
adjusting your focal length, position and/or composition to remove the vignetting—use your digital
camera’s display for reference.
NOTE: The small indexed dots on the lter ring
between “MIN” and “MAX” density settings are intended
for reference only. They are not representative of a
specic density (stops).
Why use a Variable ND Filter?
Neutral density lters reduce the amount of light
going through the lens into your camera. By reducing the light you are able to achieve the following:
• Allows the use of slow shutter speeds, with
high speed lms or digital cameras, to record
movement/image blur in subjects such as
waterfalls, clouds or any fast moving subject
• Gives you full control over your depth of eld. You
are able to decrease depth of eld by using wider
apertures, which helps separate subjects from
their background (subject matter in focus while
your background is blurred)
• Allows you to shoot high speed lm (above ISO
400) in bright outdoor situations by reducing
eective ISO
• Enables cine and video cameras (which have
xed shutter speeds) to lm subjects such as
snow, sand or other bright scenes which could
cause overexposure
The Tien Variable ND lter operates on the same
principle as a Circular Polarizer – rotate until you
reach your desired eect and shoot. It allows you
to have continuous control over the amount of light
coming through your lens in an approximate range
of 2 (ND 0.6) to 8 (ND 2.4) stops – while maintaining
the integrity of your image. Note: The evenly
spaced indexing marks between MIN and MAX
do not represent calibrated stops. They are for
reference only, to be used as a density benchmark to return to a previous setting.
How to Care for Your Variable ND:
Your Tien Variable ND should be handled with
care to avoid dirt, scratches and ngerprints.
Store it in its protective pouch when not in use.
Your lter can be damaged by being dropped,
by overexposure to extreme temperatures or
humidity, improper cleaning, or by being left
unprotected in direct sunlight. Use cleaners that
are made specically for cleaning lters and
optical lenses and follow product instructions.
All Tien lters are made in the USA using
our proprietary ColorCore™ technology
and covered by a 10-year warranty.
www.tiffen.com
Page 2
How do I use my new Variable ND Filter?
Mount your Tien Variable ND to the front of your
lens and set to the “MIN” (lightest) density. Frame
and focus as usual on the minimum density setting.
Sometimes your lens may not focus properly on a
heavier (darker) density. If this occurs, focus at the
“MIN” density setting, then turn o Auto Focus (set
on Full Manual Mode) and turn the ring to the
desired density. The heavier the density, the slower
your shutter speed will be. This longer exposure
allows the shutter to remain open long enough to
record the same amount of light.
For example, when shooting outdoors your camera’s
shutter speed may be set at 1/500 at f8 with no
Variable ND on the lens. By adding a Variable ND
lter to your lens and setting it at the minimum
density (2 stops) the shutter speed is now 1/125 at
f8 and at maximum density (8 stops) your camera’s
shutter speed would be ½ second at f8. This could
be converted into even slower equivalent exposure
by reducing the lens aperture - 1 second at f11, or 2
seconds at f16, or 4 seconds at f22.
• With the Tien Variable ND lter mounted to
your camera lens, reset the ISO to the lowest
setting especially if you are trying to achieve
image blur. This will give you longer exposure
times and minimize noise
• Rotate the ring to the MIN density setting.
Focus your image. Once you have grabbed
focus, turn OFF your Auto Focus and set to
Full Manual Mode
• Your camera’s internal exposure meter will not
be completely accurate when determining the
exact exposure when using a Variable ND at
Before and After Shots
No ltration – Exposure 1/125 at f8
Tien Variable ND – Exposure 1/15 at f8
high density values; however, the reading it
gives you will be relatively close. When using
a DSLR in the manual mode, the histogram
will give you more control of your exposure
as you go through your test shots. Use this as
a starting point and look at this as an opportunity to really learn more about the relationship between f-stops and exposure time
• Now you have your image in focus, you’ve
turned o the Auto Focus and set your
camera on Manual Mode, and based upon
your internal exposure meter you have
turned the ring to a setting that you think
will give you the result you’re looking for —
for example, f8 with an exposure time of 1/15
seconds — take a test shot
• If the image appears overexposed, then
reduce your exposure time or reduce your
aperture, depending on whether or not you
want to aect your depth of eld (changing
your aperture changes your depth of eld).
By the same token, if the image is underexposed, open up the aperture or increase the
exposure time. With some practice, you
should be able to go from that initial test
shot to an actual usable image within two
or three attempts
• When using a lm camera, bracket rst and
record your exposures. The indexing on the
outer ring will prove useful; however keep
in mind these marks are not calibrated to
specic densities
Photos by: Michael Cassara
