Tiffen TiltTrigger Pro-SQ, QR66, Pro-SQ Specifications

Stroboframe • Stroboframe

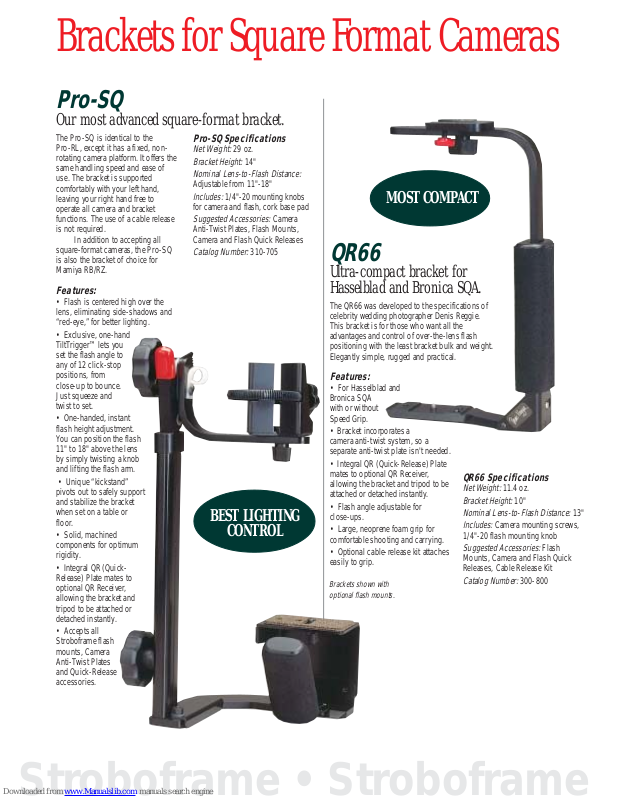

Brackets for Square Format Cameras

BEST LIGHTING

CONTROL

The Pro-SQ is identical to the
Pro-RL, except it has a fixed, non­rotating camera platform. It offers the
same handling speed and ease of
use. The bracket is supported
comfortably with your left hand,
leaving your right hand free to
operate all camera and bracket
functions. The use of a cable release
is not required.

In addition to accepting all
square-format cameras, the Pro-SQ
is also the bracket of choice for
Mamiya RB/RZ.

Features:

• Flash is centered high over the
lens, eliminating side-shadows and
“red-eye,” for better lighting.

• Exclusive, one-hand
TiltTrigger™ lets you
set the flash angle to
any of 12 click-stop
positions, from
close-up to bounce.
Just squeeze and
twist to set.

• One-handed, instant
flash height adjustment.
You can position the flash
11" to 18" above the lens
by simply twisting a knob
and lifting the flash arm.

• Unique “kickstand”
pivots out to safely support
and stabilize the bracket
when set on a table or
floor.

• Solid, machined
components for optimum
rigidity.

• Integral QR (Quick­Release) Plate mates to
optional QR Receiver,
allowing the bracket and
tripod to be attached or
detached instantly.

• Accepts all
Stroboframe flash
mounts, Camera
Anti-Twist Plates
and Quick-Release
accessories.

Pro-SQ Specifications

Net Weight:

29 oz.

Bracket Height:

14"

Nominal Lens-to-Flash Distance:

Adjustable from 11"-18"

Includes:

1/4"-20 mounting knobs

for camera and flash, cork base pad

Suggested Accessories:

Camera
Anti-Twist Plates, Flash Mounts,
Camera and Flash Quick Releases

Catalog Number:

310-705

Pro-SQ

Our most advanced square-format bracket.

QR66

Ultra-compact bracket for
Hasselblad and Bronica SQA.

The QR66 was developed to the specifications of
celebrity wedding photographer Denis Reggie.
This bracket is for those who want all the
advantages and control of over-the-lens flash
positioning with the least bracket bulk and weight.
Elegantly simple, rugged and practical.

Features:

• For Hasselblad and
Bronica SQA
with or without
Speed Grip.

• Bracket incorporates a
camera anti-twist system, so a
separate anti-twist plate isn't needed.

• Integral QR (Quick-Release) Plate
mates to optional QR Receiver,
allowing the bracket and tripod to be
attached or detached instantly.

• Flash angle adjustable for
close-ups.

• Large, neoprene foam grip for
comfortable shooting and carrying.

• Optional cable-release kit attaches
easily to grip.

MOST COMPACT

QR66 Specifications

Net Weight:

11.4 oz.

Bracket Height:

10"

Nominal Lens-to-Flash Distance:

13"

Includes:

Camera mounting screws,

1/4"-20 flash mounting knob

Suggested Accessories:

Flash
Mounts, Camera and Flash Quick
Releases, Cable Release Kit

Catalog Number:

300-800

Brackets shown with
optional flash mounts.
