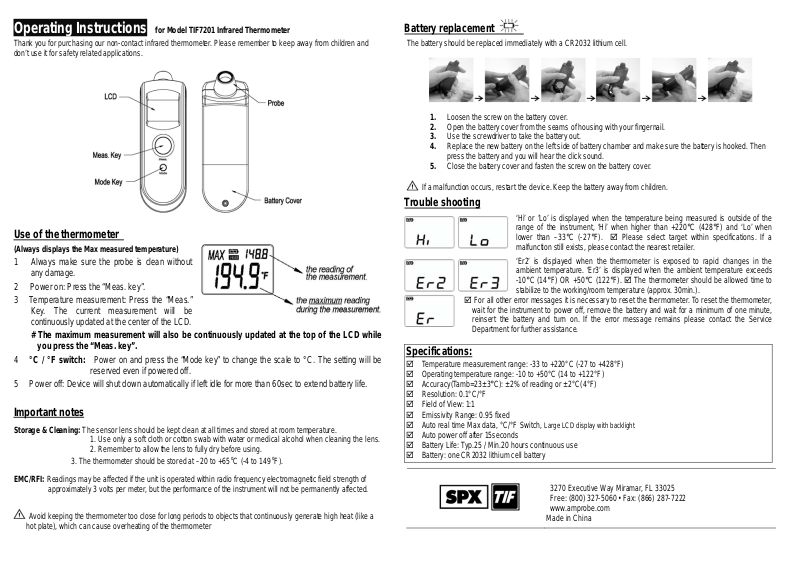

TIF 7201 User Manual

Operating Instructions for Model TIF7201 Infrared Thermometer

Thank you for purchasing our non-contact infrared thermometer. Please remember to keep away from children and
don’t use it for safety related applications.

Battery replacement

The battery should be replaced immediately with a CR2032 lithium cell.

Use of the thermometer

(Always displays the Max measured temperature)

1 Always make sure the probe is clean without

any damage.
2 Power on: Press the “Meas. key”.
3 Temperature measurement: Press the “Meas.”

Key. The current measurement will be

continuously updated at the center of the LCD.

# The maximum measurement will also be continuously updated at the top of the LCD while

you press the “Meas. key”.

4 °C / °F switch: Power on and press the “Mode key” to change the scale to °C. The setting will be

reserved even if powered off.

5 Power off: Device will shut down automatically if left idle for more than 60sec to extend battery life.

Important notes

Storage & Cleaning: The sensor lens should be kept clean at all times and stored at room temperature.

1. Use only a soft cloth or cotton s wab with water or medic al alcoho l when cleani ng the len s.

2. Remember to allow the lens to fully dry before using.

3. The thermometer should be stored at –20 to +65

o

C (-4 to 149 oF).

1. Loosen the screw on the battery cover.

2. Open the battery cover from the seams of housing with your fingernail.

3. Use the screwdriver to take the battery out.

4. Replace the new battery on the left side of battery chamber and make sure the battery is hooked. Then

press the battery and you will hear the click sound.

5. Close the battery cover and fasten the screw on the battery cover.

If a malfunction occurs, restart the device. Keep the battery away from children.

Trouble shooting

‘Hi’ or ’Lo’ is displayed when the temperature being measured is outside of the
range of the instrument, ‘Hi’ when higher than +220°C (428°F) and ‘Lo’ when

; For all other error messages it is necessary to reset the therm ometer. To reset the thermometer,

wait for the instrument to power off, remov e the battery and wait f or a minimum of one minute,
reinsert the battery and turn on. If the error message remains please contact the Service
Department for further assistance.

lower than –33°C (-27°F). ; Please select target within specifications. If a
malfunction still exists, please contact the nearest retailer.

‘Er2’ is displayed when the thermometer is exposed to rapid changes in the
ambient temperature. ‘Er3’ is displayed when the ambient tem perature exceeds

-10°C (14°F) OR +50°C (122°F). ; The thermometer should be allow ed time to
stabilize to the working/room temperature (approx. 30min.).

Specifications:

; Temperature measurement range: -33 to +220°C (-27 to +428°F)
; Operating temperature range: -10 to +50°C (14 to +122°F)
; Accuracy(Tamb=23±3°C): ±2% of reading or ±2°C(4°F)
; Resolution: 0.1°C/°F
; Field of View: 1:1
; Emissivity Range: 0.95 fixed
; Auto real time Max data, °C/°F Switch,
; Auto power off after 15seconds
; Battery Life: Typ.25 / Min.20 hours continuous use
; Battery: one CR2032 lithium cell battery

Large LCD display with backlight

EMC/RFI: Readings may be affected if the unit is operated within radio frequency electromagnetic field strength of

approximately 3 volts per meter, but the performance of the instrument will not be permanently affected.

Avoid keeping the thermometer too close for long periods to objects that continuously generate high heat (like a

hot plate), which can cause overheating of the thermometer
