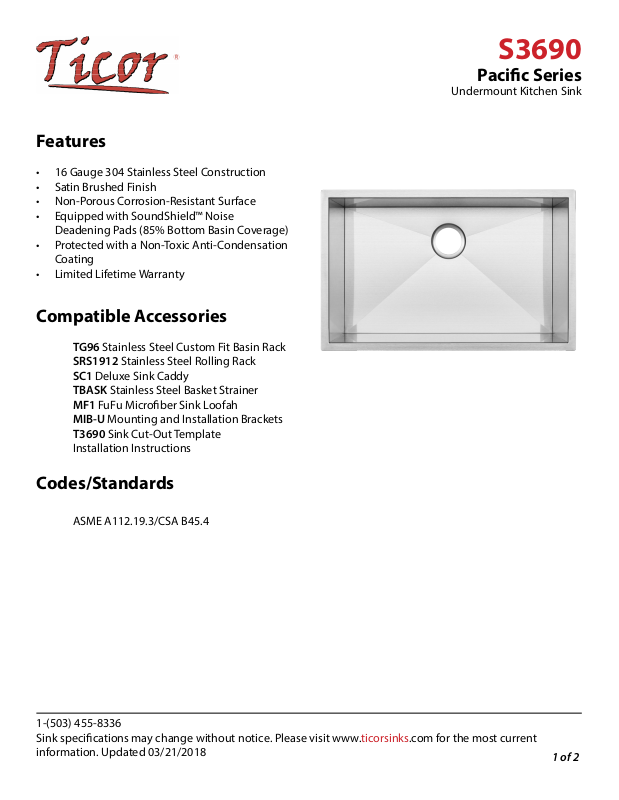

Page 1

Features

• 16 Gauge 304 Stainless Steel Construction

• Satin Brushed Finish

• Non-Porous Corrosion-Resistant Surface

• Equipped with SoundShield™ Noise Deadening Pads (85% Bottom Basin Coverage)

• Protected with a Non-Toxic Anti-Condensation Coating

• Limited Lifetime Warranty

Compatible Accessories

TG96 Stainless Steel Custom Fit Basin Rack SRS1912 Stainless Steel Rolling Rack SC1 Deluxe Sink Caddy TBASK Stainless Steel Basket Strainer MF1 FuFu Microber Sink Loofah MIB-U Mounting and Installation Brackets T3690 Sink Cut-Out Template Installation Instructions

S3690

Pacic Series

Undermount Kitchen Sink

Codes/Standards

ASME A112.19.3/CSA B45.4

1-(503) 455-8336 Sink specications may change without notice. Please visit www.ticorsinks.com for the most current information. Updated 03/21/2018

1 of 2

Page 2

S3690

Pacic Series

Undermount Kitchen Sink

30”

28”

5¾”

3⁄”

17”19”

15”

10”

Technical Information

• Sink Collection: Pacic Series

• Sink Model Number: S3690

• Corner Style: Zero Radius

• Sink Length (inches): 30

• Sink Width (inches): 19

• Sink Basin Depth (inches): 10

• Drain Opening (inches): 3.5

• Drain Position: Rear

• Bowl Conguration: Single

• Installation Type: Undermount

• Minimum Sink Base Cabinet Width Required: 33”

(Cabinet May Require Additional Modications at Minimum Size. Consult an Installer for Conrmation)

1-(503) 455-8336 Sink specications may change without notice. Please visit www.ticorsinks.com for the most current information. Updated 03/21/2018

2 of 2
