TIC GS3, GS4, GS50, GS5 Instruction Manual

GS series

Outdoor Omnidirectional
In-Ground/Surface-Mount Speaker

Instruction Manual

[page intentionally left blank]

1

Before you begin

A passive outdoor loudspeaker system is one of the best audio entertainment investment you can make for both residential and
commercial installations. Investing the time and labor to install a wired speaker system will provide the safest and most dependable
sound solution that can be easily upgraded and customized over time.

Before connecting the speakers, please take the time to design and review the overall system, making sure the speakers are well­situated to provide an even coverage with adequate sound level. Depending on the specific model, the speaker may or may not
include a wire tail. You will likely need to purchase additional speaker wires to connect the entire sound system. The longer the
distance covered, the higher gauge of speaker wires should be used to maximize audio performance.

When selecting and connecting an amplifier to a passive loudspeaker, it is important to understand the relationship and impact of
impedance load and power wattage between amplifier and loudspeaker. Caution must be used to ensure impedance load of
loudspeaker system is compatible with the selected amplifier’s operable range, especially when loudspeakers are wired in parallel,
series, or a combination of the two. Incorrect impedance matching may cause irreparable harm to your audio equipment.

When considering power of your amplifier, most audio professionals and audiophile will recommend an amplifier with an output
power above the loudspeaker’s power handling rating. This is the ideal set up to maximize audio performance as the extra power
will ensure delivery of sufficient power during short periods of audio peaks along with fuller dynamic range and effortless loud
volume output. However, the ability to deliver extra power may cause potential damage to the loudspeaker, especially when playing
loudly in a sustained period. Caution and restrain must be used to ensure longevity of the loudspeaker under the ideal set up. If
longevity and safe operation is more important than optimal audio performance, you should select an amplifier with a RMS power
rating at or slightly below the loudspeaker’s rating. Please consult a professional installer if you are unsure about impedance and
power level matching.

If you need help or have further question, please contact us at www.ticcorp.com.

2

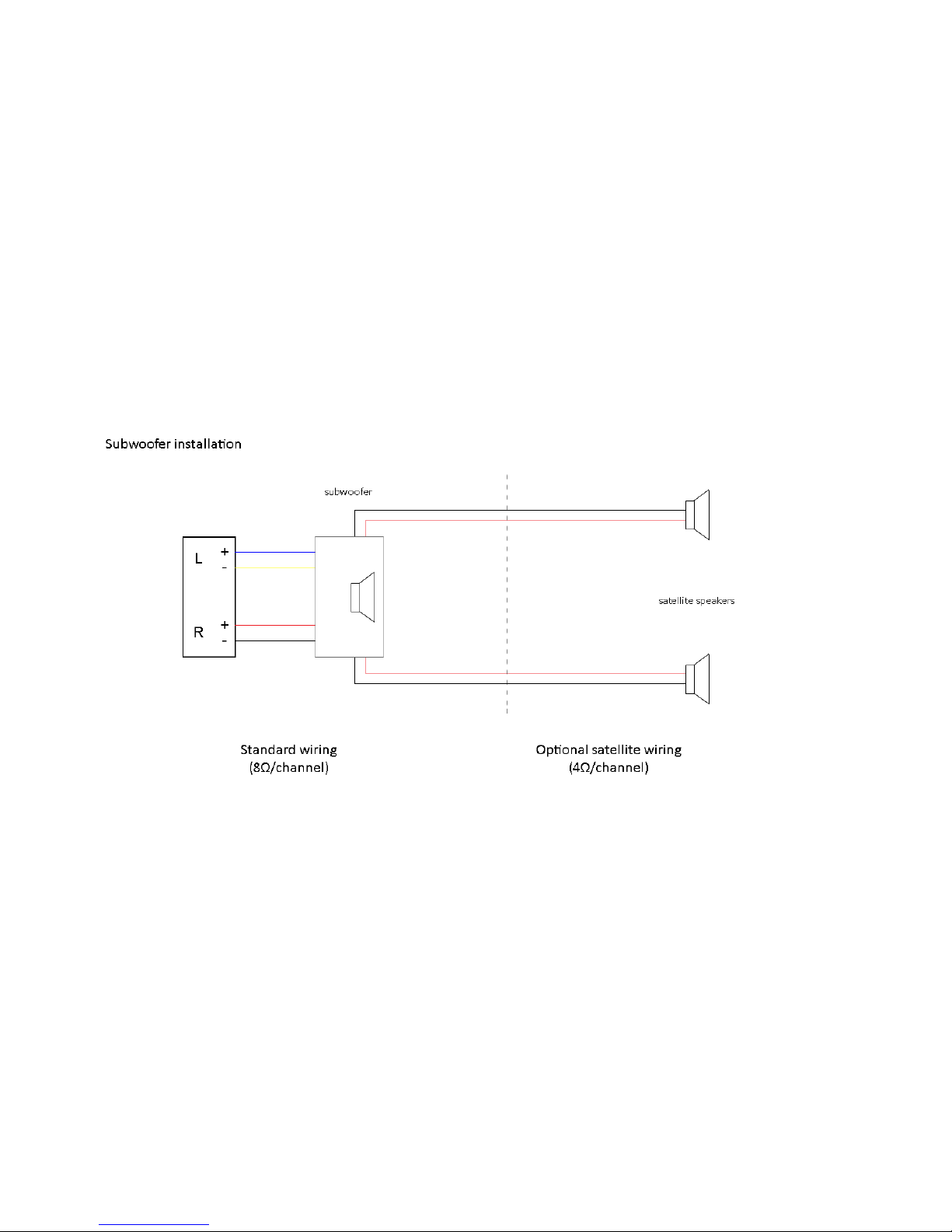

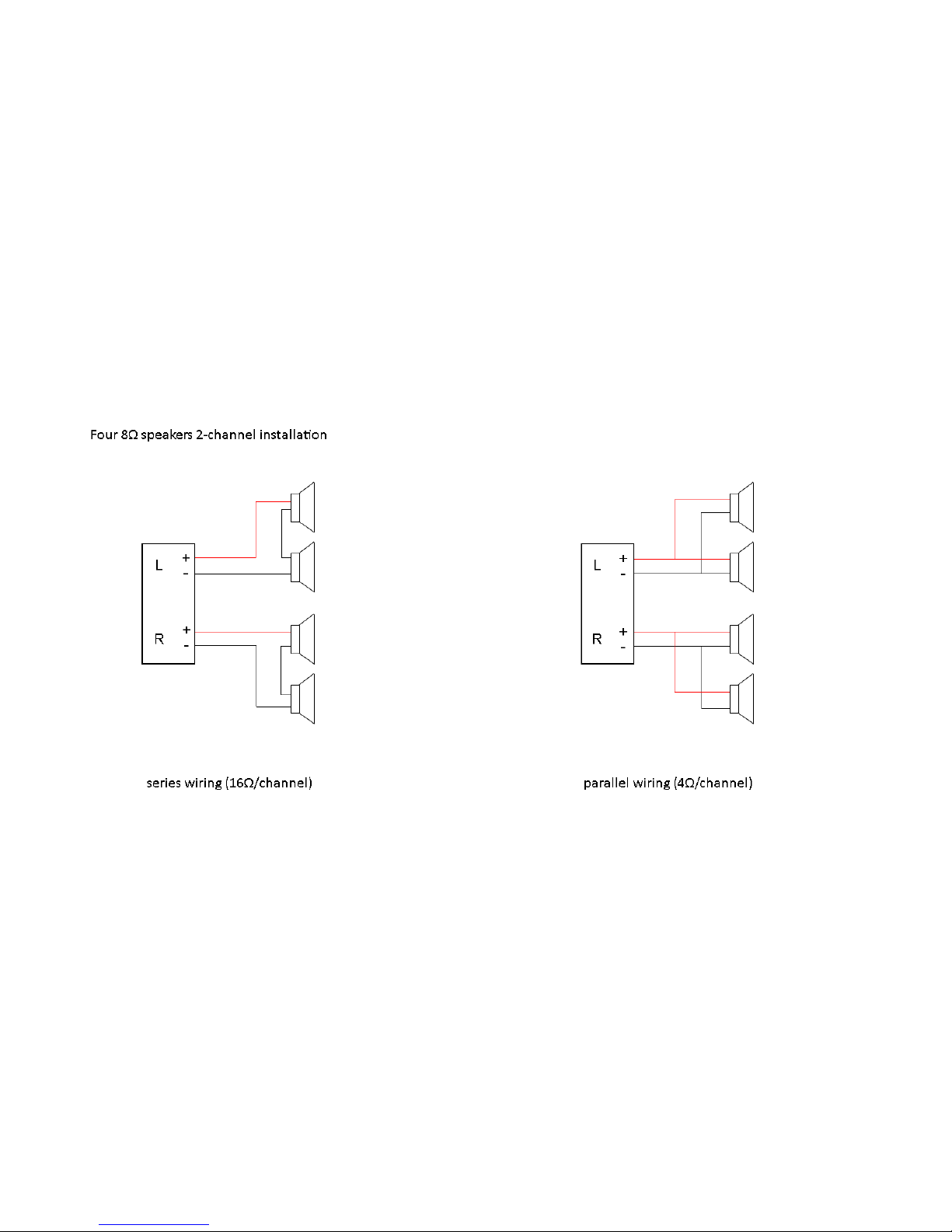

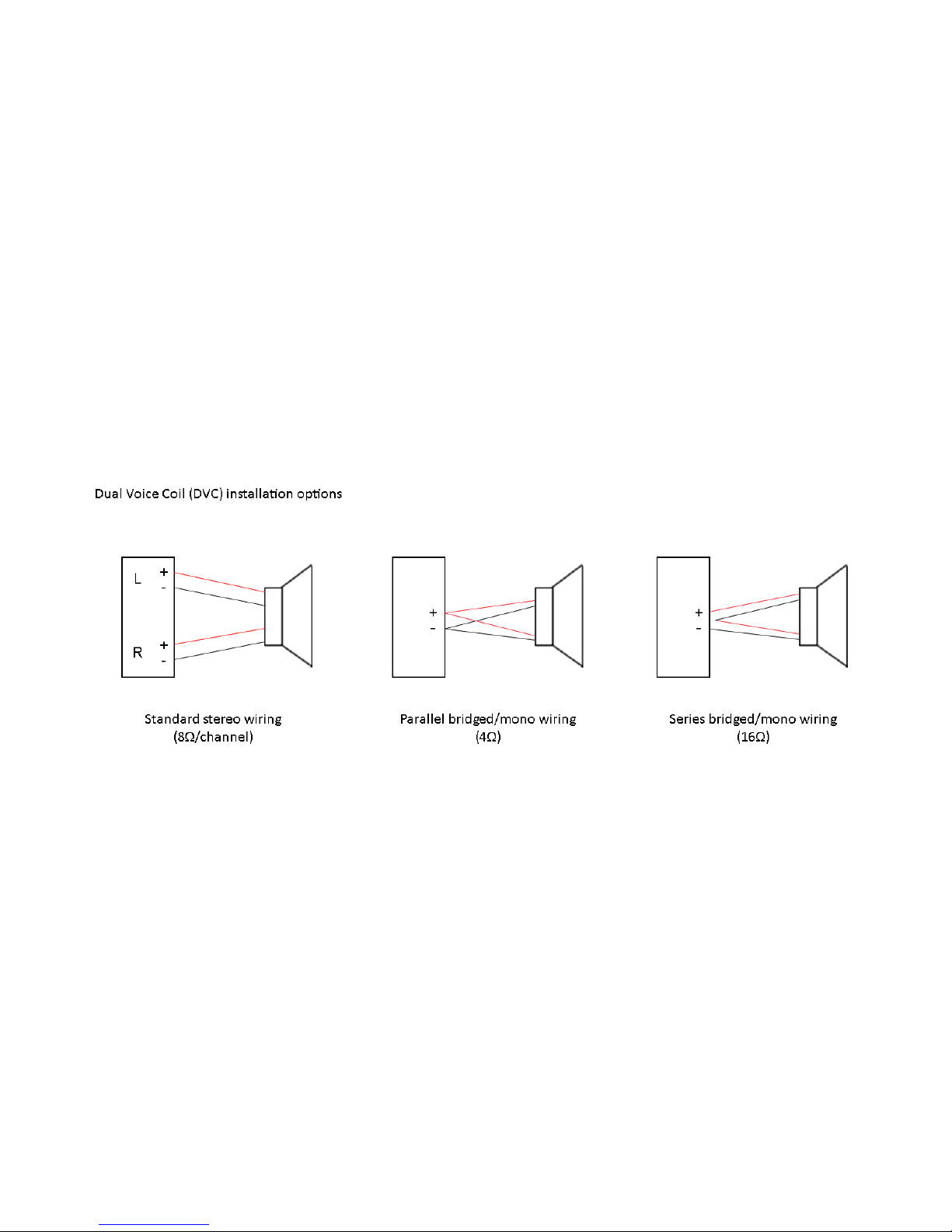

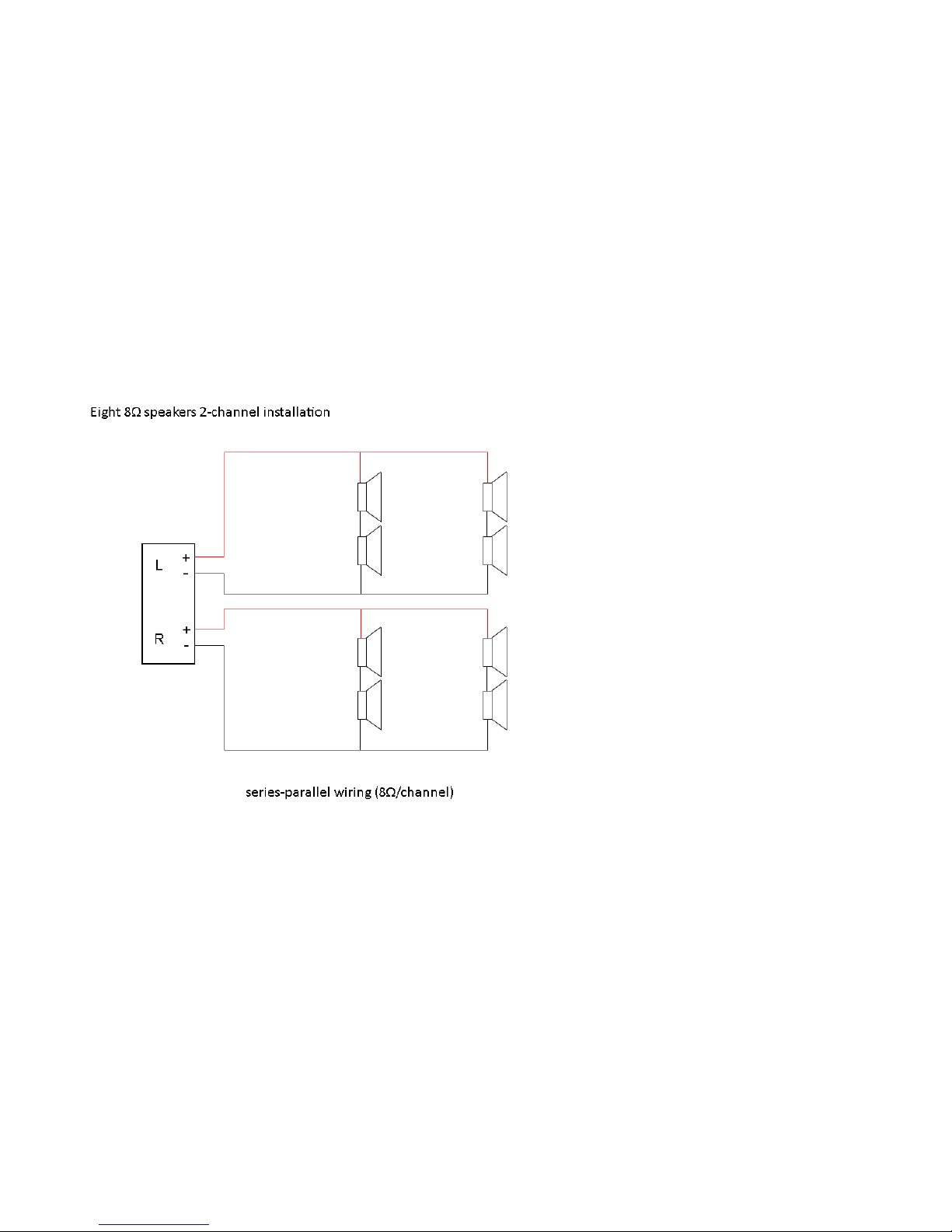

Wiring Diagram

Choose the appropriate wiring option depending on your model and overall system design.

* Colorized version of wiring diagrams and manual is available on our website (www.ticcorp.com). In typical installations,
positive terminals are connected to red wires and negative terminals are connected to black wires.
