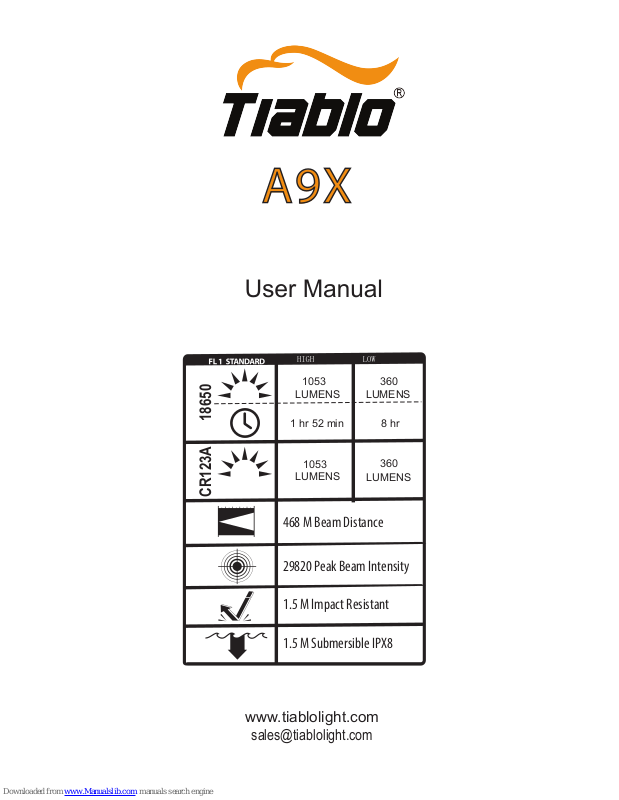

Tiablo A9X User Manual

A9X

18650

468 M Beam Distance

29820 Peak Beam Intensity

1.5 M Impact Resistant

1.5 M Submersible IPX8

1053 360

CR123A

LUMENS LUMENS

1053

LUMENS

360

LUMENS

1 hr 52 min 8 hr

www.tiablolight.com

[e-mail]

Specifications

LED: CREE XP-L Lifetime 50 000 Hours
Reflector: Aluminum smooth 41mm diameter x 38.5mm deep
Hotspot: 8cm diameter at 1 meter distance
Circuit: High efficient constant current circuit and output-luminance.

Durable custom-designed Micro controller drive circuit.

Working Voltage: 2.7VDC to 6.7VDC
Candle: 45 Watt daylight over a 30 Square Meter Area
Lens: Toughened Ultra Clear coated anti-abrasive glass
Body: Hard Anodized Type III Aircraft Grade T6063 Aluminum Alloy
Colour: Black
Size: Lenght 169mm, Head diameter 45mm, Body diameter 25.4mm
Weight: 161 Grams without batteries
Accessories included: Lanyard, spare o-ring and tail cap button.

Accessories

Operating Instructions

Turn on/off the flashlight using the tail cap button. The
default mode is high output. With the flashlight on, press
and hold the side switch to ramp through the infinite variable
brightness 100% to 1% to 100% in 1% increments. When
the desired brightness can be seen, release the switch to
memorize the output. Click the side switch to turn the
flashlight on/off with the memorized output. Using the tail
cap switch to turn off the flashlight will reset the memory to
high mode. With the flashlight on, turn the tail cap 1/8 turn
to use the lockout feature in high mode.

Hidden Strobe and SOS

With the flashlight on, double click the side switch to access
the hidden strobe mode. Double click again to access SOS
Mode. To exit the hidden modes, click the side switch once.

Tiablo, founded May 21, 2007, is with a proven
reputation and dedication to the manufacturing
of reliable high performance LED flashlights.

The powerful Tiablo A9X flashlight is a unique
crossover combining the best of our Tactical,
Sports, and Every Day Carry products into one.

An excellent choice for use in law enforcement,
spotlighting, hiking, and a great illumination toll
for service technicans.

Tiablo is registered a trademark in multiple countries.
Copyright 2015, all rights reserved.

L.B. 141

Laprairie

Quebec

J5R 3Y2

Canada

Candle Instructions

Remove the reflector housing assembly from the LED
Module, turn on to the desired setting, and then stand on
the tail cap. Store the reflector housing assembly in a
manner to keep dust, debris, elements, and water away
from the reflector.

Caution

Damage will occur if the inside surface of the reflector is
touched. Use cleaning products for eyeglasses to prevent
damage to the lens and waterproof seals. Clean and
lubricate the threads with a soft cloth and silicone grease
twice a year. The use of petroleum based lubricates will
damage the seals. Install the battery anode, positive (+)
towards the LED to prevent failure. Avoid shining the light
of Tiablo A9X into eyes as can cause injury.

Warranty

Tiablo warrants our A9X model flashlight to be free from
defect in workmanship and materials for two years from the
date of purchase. Tiablo A9X must be purchased through
an Authorized Dealer. Tiablo’s liability will be limited to the
cost of the flashlight. Proof or purchase, serial number,
and an RMA number issued by Tiablo are required before
returning the Tiablo A9X flashlight or the defective part.
Improper use, misuse, abuse, or alteration will void the
warranty. For assistance, or complete warranty details,
terms, conditions, or how to claim, contact your dealer,
distributor, or contact us at: [e-mail]
