ThyssenKrupp Levant User Manual

Levant stairlift

User Manual

A ThyssenKrupp

Elevator company

ThyssenKrupp Accessibility

Levant stairlift

User Manual

ATTENTION

READ THIS USER MANUAL CAREFULLY BEFORE USING

THE STAIRLIFT

PAY SPECIAL ATTENTION TO THE CHAPTER ‘SAFETY

INSTRUCTIONS’

KEEP THIS MANUAL IN THE VICINITY OF THE STAIRLIFT

SO THAT YOU WILL ALWAYS HAVE THE INFORMATION

YOU NEED AVAILABLE

All rights reserved. Nothing in this document may be reproduced and/or published by means of printing, photocopy, microfilm or any other means whatsoever without the prior written permission of ThyssenKrupp Accessibility B.V..

Levant Stairlift

Table of contents

Preface 3

Safety instructions 6

1. Introduction 9

2. Operation 11

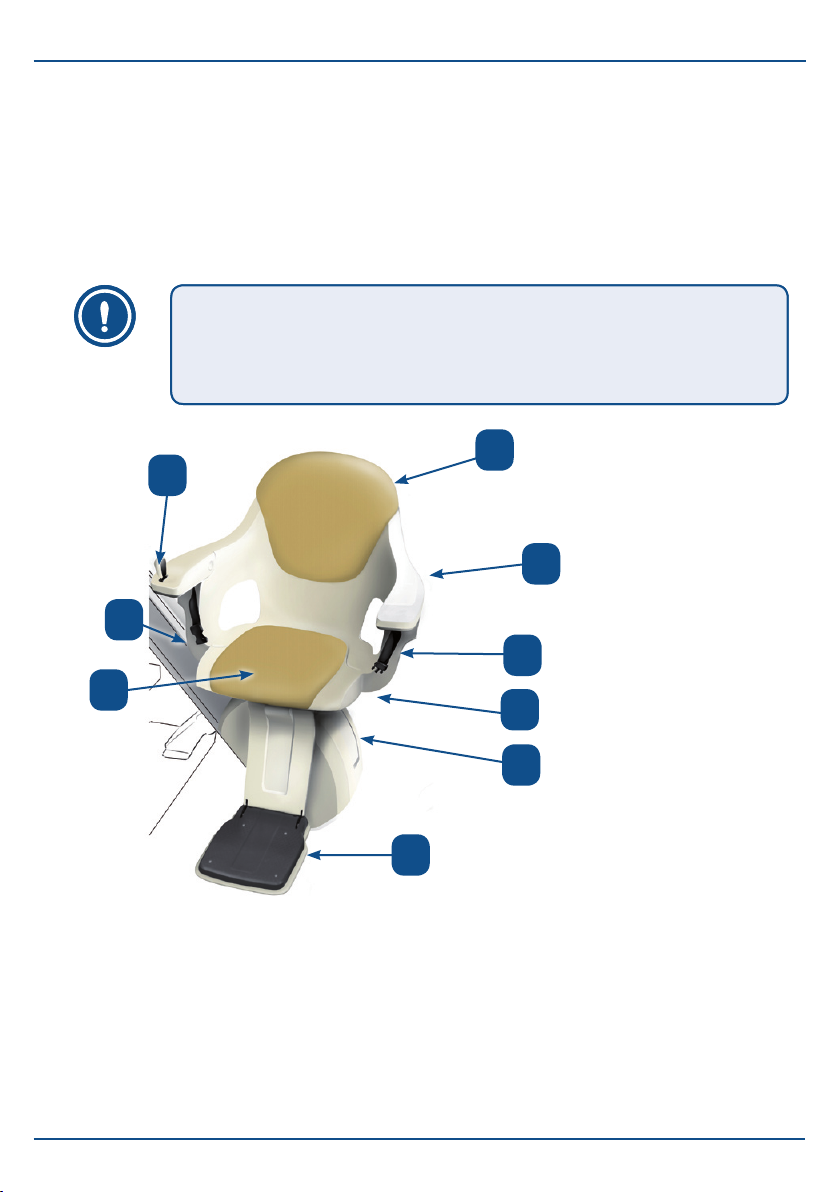

2.1 Operating parts 11

2.1.1 Call and send stations 11

2.1.2 Control unit 12

2.1.3 Main switch 12

2.2 Use of the stairlift 13

2.2.1 Calling the stairlift 13

2.2.2 Unfolding the chair 14

2.2.3 Taking a seat on the chair 15

2.2.4 Driving the stairlift 15

2.2.5 Rising from the chair 16

2.2.6 Folding up the chair 16

2.3 Signals during normal use 16

3. Warning signals 17

3.1 Warning and alarm signals 17

3.2 Examples 18

3.2.1 Self chosen stop 18

3.2.2 Obstacle on the staircase 18

3.2.3 Batteries not sufciently charged 18

A ThyssenKrupp

Elevator company

ThyssenKrupp Accessibility

Levant Stairlift

4. Maintenance and service 19

4.1 Cleaning 19

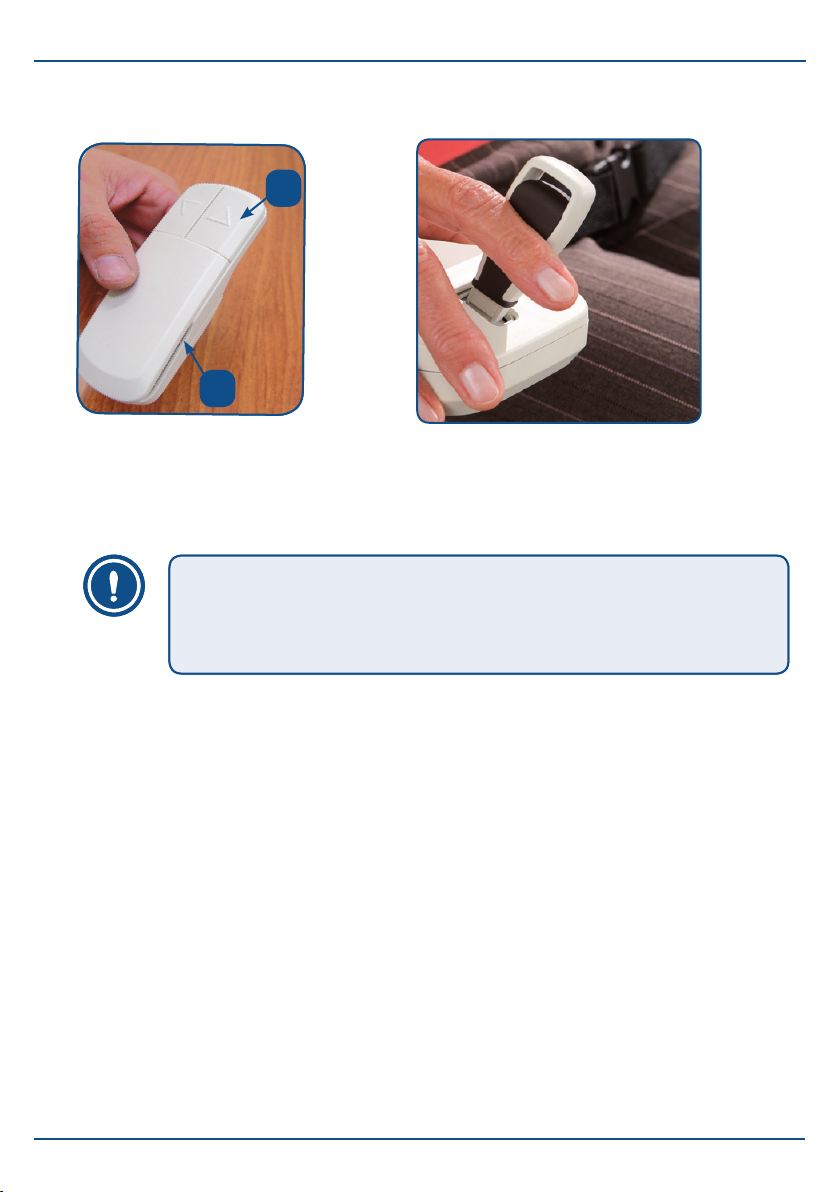

4.2 Changing the batteries of the call and send station 19

4.3 Preventive maintenance 20

4.4 Technical specications 21

4.5 Contact 22

Levant Stairlift

Preface

Congratulations!

You have chosen a stairlift produced by ThyssenKrupp Accessibility. A modern, user-friendly and safe product that will give you years of service.

We will do everything (in our power) to justify the condence you have

placed in us. To make the best possible use of the stairlift, it is important to

read these instructions carefully before rst using the Levant.

These instructions

These instructions are meant for you as the user of the Levant stairlift. The instructions contain all necessary information for the correct and safe use of the stairlift. In the instructions the words “left”, “right”, “front” and “back” are used to indicate a certain part of the stairlift. Here the basic premise is always the position of you as the user, sitting on the stairlift.

Levant Stairlift

Symbols

In this user manual the following symbols will be used:

TIP

Tips for and advice about the correct performance of a

Tips for and advice about the correct performance of a procedure.

procedure.

CAUTION

Risk of damage to (parts of) the stair lift and/or minor

Risk of damage to (parts of) the stair lift and/or minor physical injury in the event of failure to comply with the

physical injury in the event of failure to comply with the instructions in full.

instructions in full.

WARNING

Risk of severe physical injury in the event of failure to comply

Risk of severe physical injury in the event of failure to comply with the instructions in full.

with the instructions in full.

Stairlifts and the environment

Batteries

The stairlift contains two batteries for the supply of the electrical motor, 12 V (7 Ah). These batteries may only be replaced by authorised engineers. The user may replace the batteries in the call and send stations.

Do not deposit old batteries with household wastes but turn them in when you buy the new batteries. If this is not possible, consult your Local Authority to determine the recommended disposal.

Disposing of the stairlift

Stairlifts that are no longer in use are often taken back by your dealer after consultation. If this is not possible, consult your Local Authority to determine the possibility of recycling them or other environmentally friendly ways of processing the materials.

Levant Stairlift

Safety instructions

General

Your Levant stairlift has been designed for maximum user-friendliness in domestic households. To ensure that the stairlift is operated correctly, it is important that every user is aware of the instructions in this user manual. You, as end user of the stairlift, are always completely responsible for compliance with local safety requirements and directives.

ThyssenKrupp Accessibility is therefore not responsible for damage or injury caused by failure to correctly observe the safety requirements and directives as described in the user manual, or improper use during the use or maintenance of the stairlift.

Warning stickers on the stairlift

The warning stickers on the Levant stairlift are an important part of our safety measures. The stickers may therefore not be covered or removed and must always be visible and legible. If the warning stickers are unreadable or damaged, they must be replaced immediately. You can contact your supplier for this.

Users

Only adults who are aware of the contents of the instructions are

permitted to use the stairlift.

Minors and the mentally handicapped may only use the stairlift under

supervision.

The stairlift is exclusively intended for the transportation of one

person per ride.

Never exceed the maximum capacity allowed (permissible weight:

300 lb).

Do not use the stairlift to transport animals or goods.

Never change the sequence of the actions to be performed!
