INSTRUCTION MANUAL

Belt-driven Version

組裝說明書

No.4855

This radio control model is not a toy! Before beginning assembly, please read this manual thoroughly.

本產品為高性能模型非一般玩具，組裝與操作前請詳閱本產品說明書。

The contents are subject to change without prior notice due to product improvements and specification changes.

本套件所附之零件可能跟圖示有所差異。因產品後續之設計研發或功能不斷改善之原因，我們將保留產品規格變更權力，不再另行通知使用者。

Page 2

CONTENTS

Introduction

Thunder Tiger

Belt-driven Version

INTRO & CAUTION / 簡介與注意事項 OTHER ITEMS REQUIRED / 其餘必須配件 ASSEMBLY / 組裝步驟

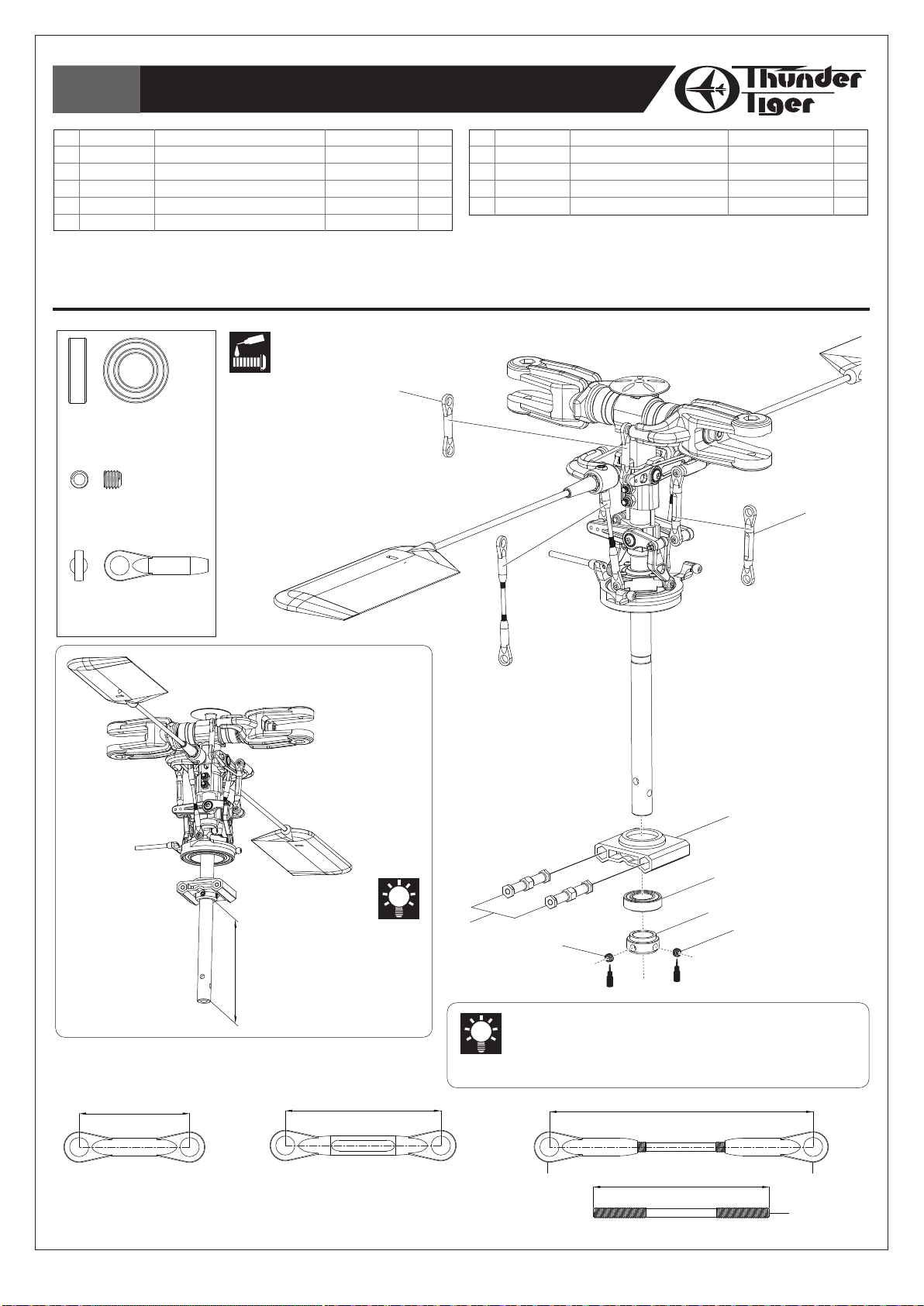

MAIN ROTOR / 主旋翼機構組裝 Main Rotor Head Linkage Rod Installation / 主旋翼頭連桿組裝 Tail Boom Bracket Assembly / 尾管固定座組裝 Main Frame Assembly / 本體組裝 Engine Assembly / 引擎動力組裝 Landing Skid Assembly / 腳架組組裝 Tail Unit Assembly / 尾旋翼組組裝 Tail Boom Adjustment / 尾管調整 Servo Installation / 伺服機裝配 Servos Linkage Rod Installation / 伺服機連桿組裝 Receiver & Gyro Configuration / 接收機與陀螺儀配置 Main Rotor Blade Assembly / 主旋翼組裝

SET-UP SECTION / 設定程序說明

2 4 6 6 10 11 12 15 17 21 23 24 25 26 27 28

Engine Throttle Control Linkage / 引擎的飛行前調整 Electric Device Connection / 電子設備連接說明 Configuring The Titan X50 / Titan X50 設定 Radio and Control Linkage Setup For Titan X50 遙控器設定 & Collective Pitch Setup 螺距設定 Setting Up Data For Your Reference 參數設定參考 Tail Control And Gyro Setup 尾舵控制及陀螺儀控制 Swashplate Type Setting / 十字盤模式設定 Swashplate & Servo Movement Setting / 十字盤及伺服機動作設定 Blade Tracking Adjustment 主旋翼軌跡調整 After Flight Checklist 飛行後的檢查項目 & Trouble Shooting 異常處置

SPARE PARTS LIST / 維修零件包表格 OPTIONAL PARTS / 改裝零件表 EXPLODED VIEW / 爆炸突檢索

-1-

28 28 29 30 31 32 33 33 34 35 36 47 49

Page 3

INTRODUCTION / 簡介

Thank you for purchasing the Thunder Tiger Titan X50 engine R/C helicopter. This new helicopter is the latest innovation by Thunder Tiger. It has the perfect combination of flying stability and the agility for 3D flying. This helicopter is an excellent choice for flying enthusiasts like you. For convenient assembly and safe operation of the helicopter, please read the instructions carefully. Retain the user manual in case you need it for any information or reference.

感謝您購買雷虎科技Titan X50直昇機產品，本項產品為雷虎科技全新開發機種，兼具高度穩定性與3D飛行特性，是熱衷引擎直昇機的您不可錯過的選擇。請於使用本產品前詳盡閱讀使用手冊，以利於組裝工作順暢進行與安全操控本產品。請妥善保存使用說明書，以利後續調整與維修參考用途。

CAUTION / 警告

1. R/C models are not toys. This product is a high-precision flying machine. Possibilities of unexpected crashes may occur due to electronic interference, incorrect operation, or poor mechanical maintenance. Although it is a small-sized helicopter, the rotor blades rotate at high speeds, which may cause serious damage, injury, or death if the model hits people or property. Therefore, extreme caution must be exercised during operation.

2. Thunder Tiger ensures parts packaged in this product is of the highest quality. However, after assembly and usage, parts damaged due to wear or misuse will not be replaced under any circumstances. If you have any questions regarding its operation and repair, Thunder Tigers service agents are able to provide free technical guidance.

3. This product is only recommended for users ages 16 and up. Because flying a R/C helicopter is difficult, beginners must receive guidance and supervision from experienced pilots to minimize unexpected danger. Practice in spacious areas, far away from obstacles such as buildings, trees, electrical towers, or crowds.

4. To decrease the cost of repair and maintenance for beginners, it is recommended to fly the helicopter with a practice rack and to learn basic flying skills with a computer R/C flying simulator. (Crashes in simulators are free to repair!)

1. 本項遙控直昇機產品並不是玩具，是一項結構精密、高專業度模型產品，如果未經正確組裝與操控，將可能對操控者或其他人造成身體傷害。使用者必須了解，若未確實進行飛行前安全檢查或操控不當，而造成人員受傷或物體損壞，使用者必須負起法律責任。

2. 本產品由高品質零組件組成，雷虎科技對於安裝過程、使用過後..等人為因素造成損壞事件不負損壞賠償之責。如您需要本產品相關組裝、調整或其他協助，可與雷虎科技全省經銷商聯繫。

3. 本項產品禁止十六歲以下青少年與孩童使用。強烈建議初學者應取得技術支援後再進行飛行，以避免危險發生。請於空曠地區操控本產品，並避免於建築物、樹木、電塔..等障礙物區域飛行。

4. 建議初學者可安裝練習架或透過電腦模擬軟體練習，可達到實際練習效果與符合經濟效益。

AMA INFORMATION / 特別注意事項

Operating a model helicopter requires a high degree of responsibility and skill. If you are a newcomer to the hobby, it is best to seek help and guidance from accomplished model helicopter pilots. This will greatly speed up the learning process and have you flying successfully in a reasonable amount of time. We also would strongly urge you to join the Academy of Model Aeronautics. The AMA is a non-profit organization that provides its members with a liability insurance plan as well as monthly magazine entitled Model Aviation. All AMA charter aircraft clubs require all pilots to hold a current AMA sporting license prior to operation of their models at club fields. For further information, contact the AMA at: Academy of Model Aeronautics 5151 East Memorial Drive Muncie, IN 47302 (317) 287-1256

操控遙控直昇機對於飛行安全要求極高，需要高度的負責任態度配合，以及較高的操控技巧。如果您是一位初學者，建議您必須向當地專業模型經銷商，或是遙控直昇機相關組織以及經驗豐富的玩家尋求相關協助，以獲得您所需要的訊息以及專業知識。如此可有效協助您縮短學習的時間，更容易學會遙控直昇機的組裝、設定與操控技巧。

-2-

Page 4

FLIGHT SAFETY CHECKLIST / 飛行前安全確認工作項目

1. Make sure that the transmitter battery is fully charged before flying.

2. Make sure all control surfaces are operated properly before flying.

3. Do a range check of the radio before the first flight. The electronic equipment must operate properly

at a range of at least 5 meters (18 ft) even with the transmitter antenna collapsed.

4. Make sure there are no other pilots using the same radio frequency with yours and that there are no

other radio interference on your frequency.

Be sure to turn on the transmitter first with the throttle stick in the idle position. Plug the battery into the

ESC last.

6. The main rotor and the tail rotor spin at very high RPM. Make sure nothing can come in contact with

the rotor blades during flight.

7. Always maintain a safe distance from the helicopter during flight.

8. Never fly the helicopter in the rain or in excessive wind conditions.

9. Always operate and fly the helicopter in a safe and responsible manner.

10. Never fly the helicopter over other pilots, spectators, cars or anything that could result in injury or

property damage.

1. 確認接收機與發射機電池，均已確實充電完成。

2. 確認所有操控介面運作順暢。

3. 確認無其他無線電波干擾，且不與其他同好同時使用相同頻率。

4. 確實將油門搖桿放置於低速，再將發射機電源開啟，然後再將電池接上。

確認遙控器發射器與接收機工作正常，將機體放至於距離5公尺外，確認遙控器是否正常，機體控制動作是否正確。

6. 主旋翼與尾旋翼轉速相當高，運轉時須避免任何障礙物與旋翼接觸。

7. 飛行時，需與遙控直升機保持安全距離。

8. 勿於下雨天或是強風的狀態下操控遙控直升機。

9. 請以安全為第一考量，並以高度負責任的態度參與遙控直升機活動。

10. 禁止於人群、車輛..或任何其他障礙物上方飛行遙控直升機，避免意外發生。

POST FLIGHT INSPECTION / 飛行結束安全檢查事項

1. Inspect the model thoroughly to insure no parts have come loose or become damaged during the flight

and landing. Replace damaged parts and tighten loose screws before flying again.

2. Clean the helicopter body.

3. Lubricate all moving parts to ensure smooth operation for the next flying.

4. Replace any worn ball links and damaged bearings.

5. Store the model in a cool, dry place. Avoid putting it under direct sunlight or near a source of heat.

Following these simple rules will allow you to enjoy the thrill of model helicopter flying for many years.

1. 飛行結束後確認機體所有的零件與螺絲是否有損壞或鬆動，更換損壞零件與確實固定鬆動的螺絲。

2. 機體清潔乾淨。

3. 檢查所有活動零組件是否運作順暢，以利下次飛行。

4. 更換所有鬆動的連桿、接頭，以及損壞的軸承。

5. 將機體存放於陰涼通風處，避免機體放置於陽光直射處或接近熱源。

確實執行上述幾項簡單的步驟，將可確保您的愛機維持數年的壽命！

CAUTION / 注意事項

When the model has crashed, inspect the flybar, rotor shaft and the blade spindle to make sure they are not bent. If any item is damaged, it must be replaced with a new part to ensure safe operation. Do not glue any broken or damaged plastic parts. Do not repair broken rotor blades. It is very important to inspect the motor, speed control and the battery. Always inspect the following items: Gears, Ball links, Link rods, Bearings, Main shaft, Flybar, Spindle, Tail boom and support, Fins, Tail rotor shaft, Belt, Main blades, Tail blades, the Motor, the Speed control and the Battery.

機體一但發生墜落事件，請確實檢查平衡桿、主軸、橫軸是否有彎曲變形，如果有任何的損壞，請立即更換原廠新的零組件，確認機體操作安全！切勿使用任何接著劑嘗試黏合塑膠零件；請勿使用修復過的主旋翼。馬達、速控器、電池的安全檢查工作亦相當重要。發生機體墜落事件後，請確實檢查下列項目：齒輪組、球頭連桿、連桿頭、軸承、主軸、橫軸、尾軸、平衡桿、平衡片、尾管、尾管支撐架、垂直與水平尾翼、尾驅動輪、皮帶、主旋翼、尾旋翼、馬達、速控器、電池。

-3-

Page 5

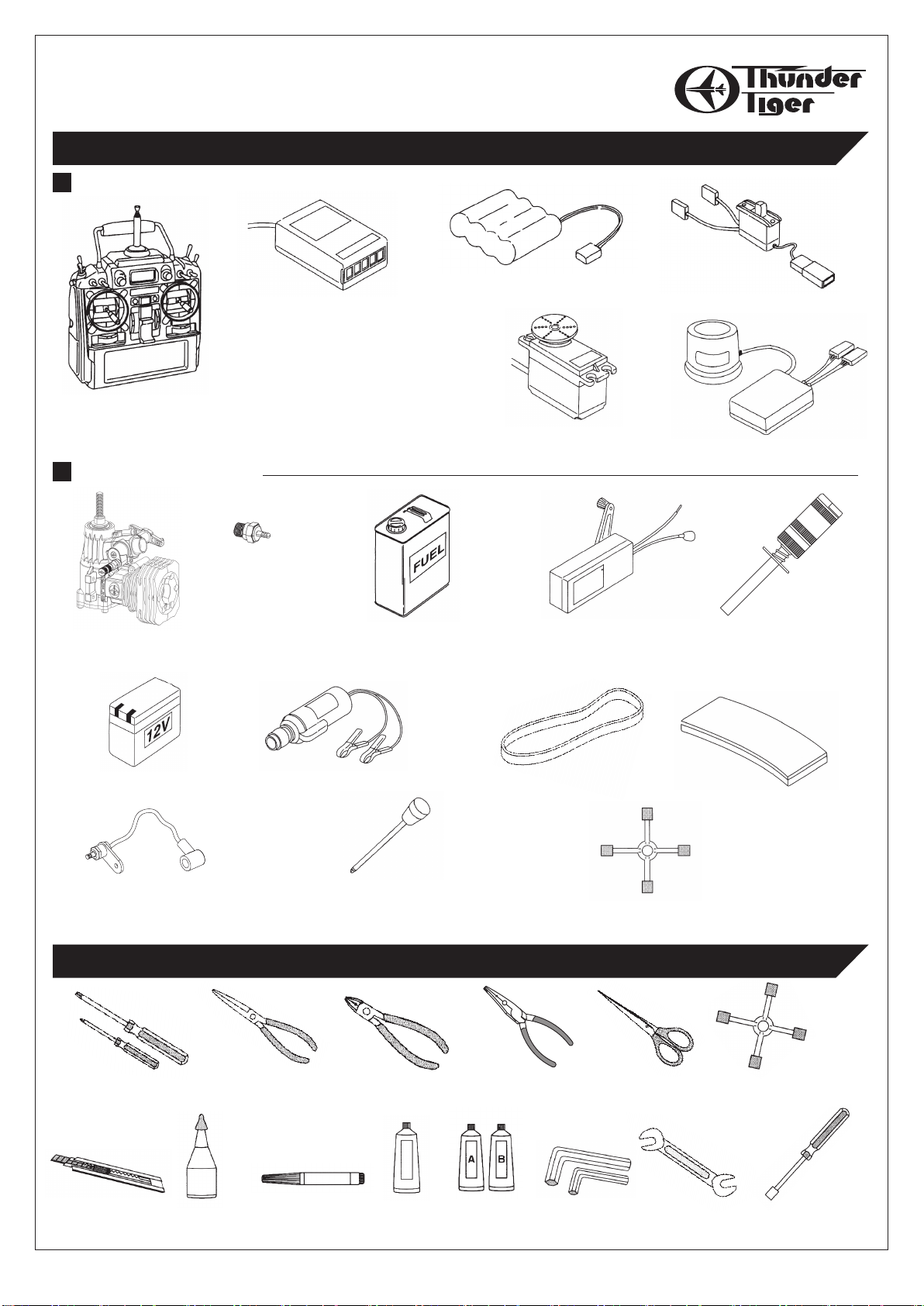

OTHER ITEMS REQUIRED 需自行準備的配件

RADIO SET / 遙控系統

Transmitter (helicopter type only, 6 or more channels)

發射機（需具備直昇機控制功能的6動以上遙控器）

ENGINE / 引擎系統

Glow Plug

專用火星塞

Rc Hilecopter engine

直昇機專用引擎

Receiver

接收機

Battery 接收機電池 1000mAh

Servo x 5

伺服機x 5個（部分陀螺儀會指定使用單一規格伺服機）

Glow Fuel(15%-30%)

直昇機專用燃油

Fuel Pump

加油泵

Switch Harness

具備充電線的開關組

Gyro

陀螺儀

1.5V Glow Starter (1.2V~1.5V)

1.5V快速電夾

12V Battery

電瓶

Remote Glow Plug Extension

火星塞外接線（可視需求自行選擇）

12V Electric Starter

啟動馬達

Extended 6mm Hex Starting Tool

啟動棒

Rubber Band

橡皮筋

Glow Plug Wrench

可卸火星塞的十字套筒板手

TOOLS REQUIRED FOR ASSEMBLY 需要準備的工具

Screw Driver

各種規格的螺絲起子

Hobby Knife

美工刀

C.A Glue

瞬間膠

Needle Nose Pliers

尖嘴鉗

Threadlocker

螺絲防鬆膠

Nipper

斜口鉗

Grease

潤滑油

Ball Link Pliers

拆連桿頭的專用鉗子

Epoxy

環氧樹酯

Hex Wrench

六角板手

Scissors

剪刀

5.5mm

Wrench

開口板手

Foam

雙面膠帶

5.5mm

Metric 4-way Wrench

十字套筒板手

7mm

Socket Drivers

套筒螺絲起子

7mm 8mm

5.5mm 7mm 8mm

10mm

-4-

Page 6

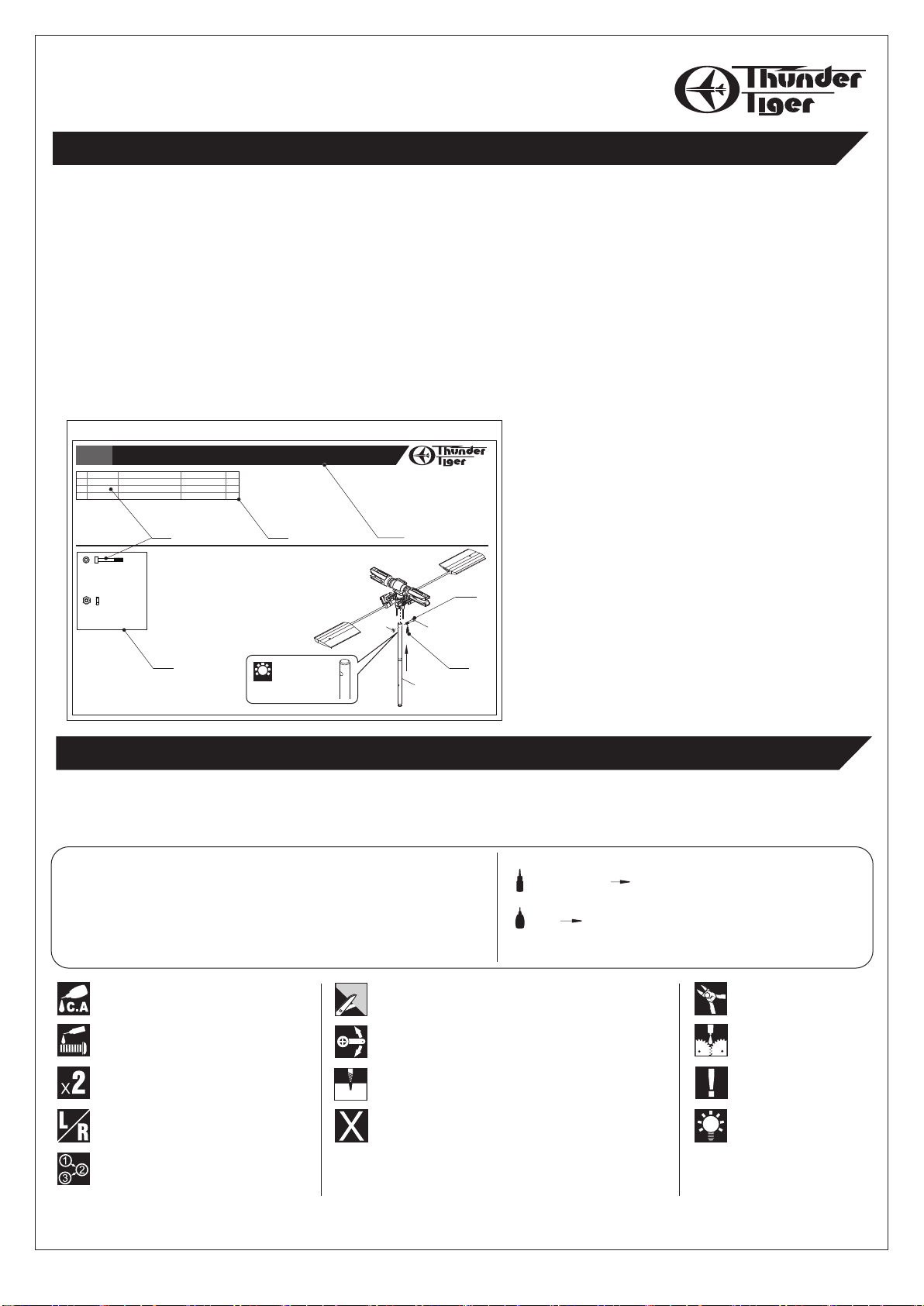

MANUAL FORMAT / 說明書使用方式

How to read the instruction manual?

說明書導讀

A: Indicates the assembly step number and the parts bags that are to be assembled. B: Displays actual size drawings, and part quantities used. C: All parts, except screws, are identified by its order numbers. When purchasing spare parts, identify the part

required and cross reference this to the spare parts list in the end of this maunal, which shows the purchasable spare parts and the corresponding order numbers.

D: This instruction manual uses several symbols. Pay careful attention to them during construction. Details are given at

the bottom of each page.

A: 顯示組立步驟及需組立之零件包順序 B: 零件實際對照尺寸及使用數量 C: 請比對零件形狀以及後附零件料號對照圖示找出需求零件料號 D: 操作說明符號可更有效協助組裝者使用此說明書，請依說明書符號指示進行組裝步驟

Example 說明範例

Bag A

No.

1 2 3

Material No. BK1502 BK1086 HML2

Main Rotor-5 /

Description HARDENED MAIN SHAFT SOCKET SCREW M2×14 M2 NUT

主旋翼機構組裝

名稱高強度主軸內六角半牙螺絲

螺帽

M2×14

-5

Qty

1 1 2

BK1086 SOCKET SCREW M2×14

內六角半牙螺絲

M2×14

HML2 M2 NUT M2

螺帽

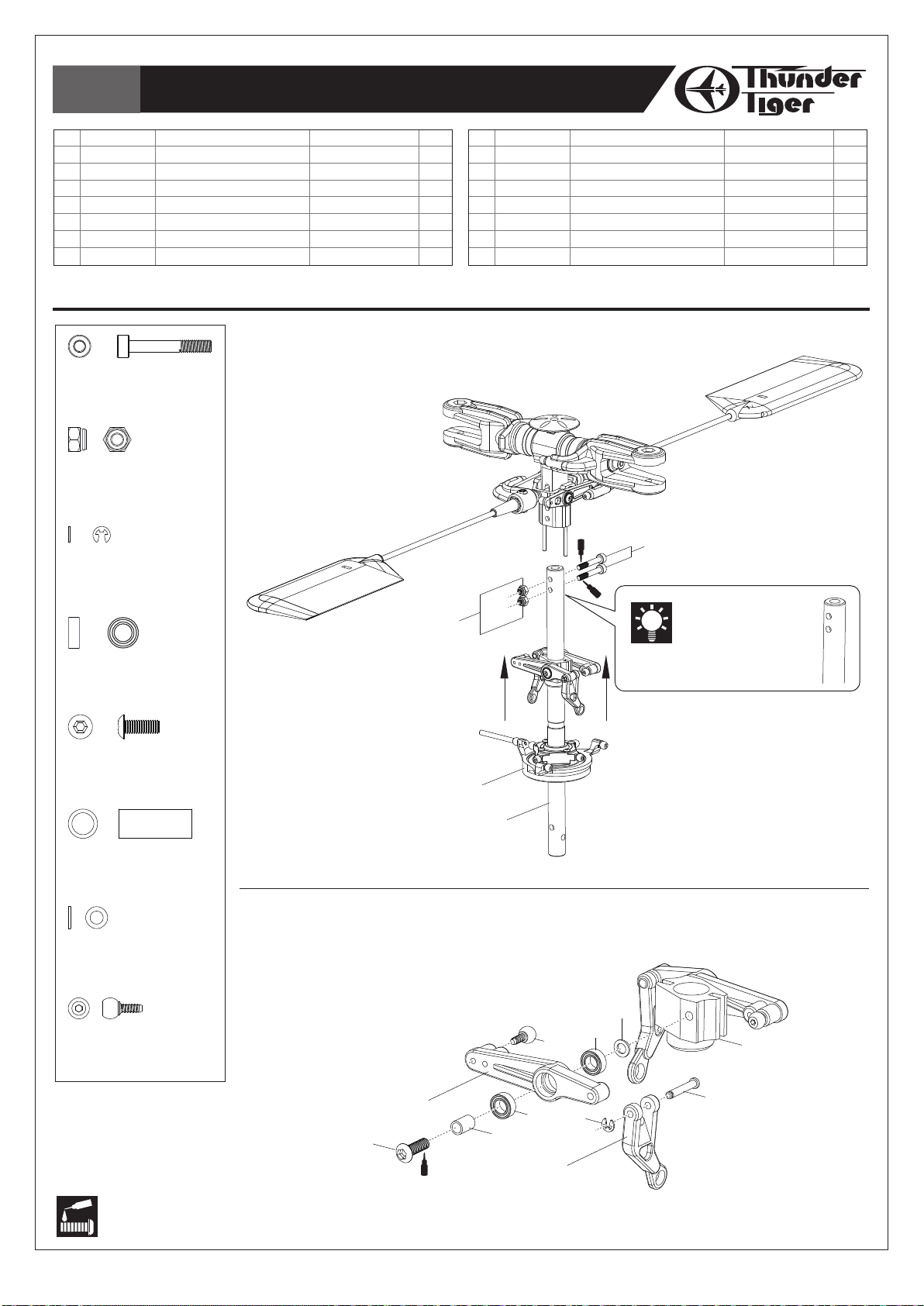

Step 1 / 步驟一

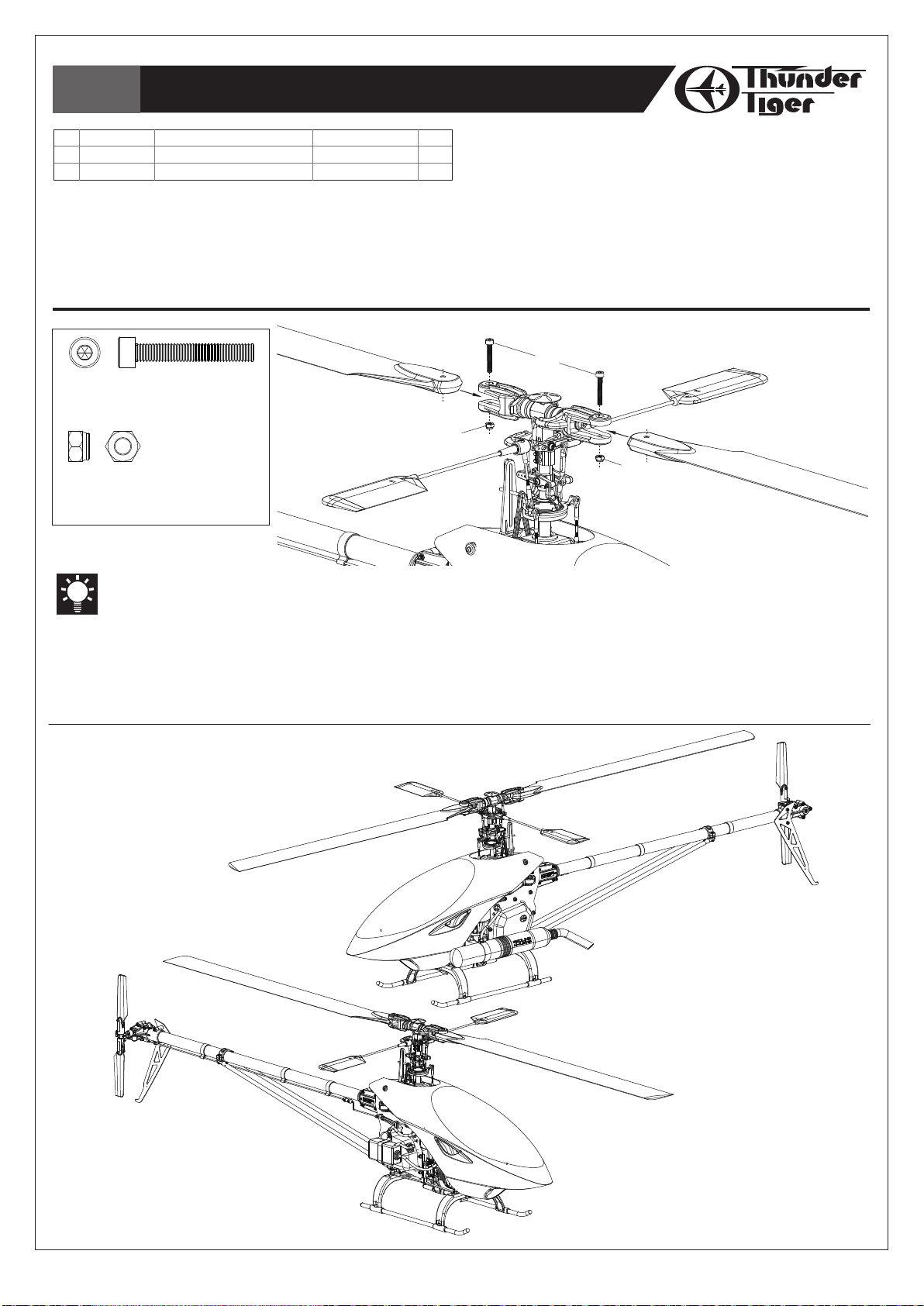

1. Insert the main rotor head set into the Main Shaft. Note the end with a hole of the Main Shaft has to insert into the Hub.

2. Line up the holes on the Main Shaft & Hub.

3. Insert the Socket Screw (M2 x 14, #2) through the Hub and apply a

drop of threadlocking to screw it with the Nut.

1. 將主軸穿過組裝完成的主旋翼頭組。

2. 對正主軸及固定座上孔位。

3. 以半牙內六角螺絲穿過固定座及主軸後，

套上螺帽並使用適量防鬆劑固定。

The hole should point up.

請注意，有孔位的一端應朝上

(3)

(2)

T22

(1)

SYMBOLS USED THROUGHOUT THE MANUAL / 符號說明

The parts in the Titan X50 are packed according to each major assembly steps. The part number and quantity are always shown in the square box on each page. As good practice, only open up the bag that you need for the paticular assembly.

零件均依照組裝步驟包裝，請依照組裝程序，逐一開啟零件包，避免零件遺失。

Note / 注意

Assembly drawings will contain icons that indicate use of Threadlocker or CA glue as needed. Examples of the icons are as right shown:

請依組裝步驟圖示，使用防鬆膠或接著劑。圖示範例如右：

T22(#262) THREADLOCKER / 螺絲防鬆膠

CA CA GLUE / 快乾膠

Apply C.A Glue

使用快乾膠黏合

Apply threadlocker

使用螺絲防鬆膠

Assemble as many times as specified

依指示組裝所需數量

Assemble left and right side the same way

左右側組件相同

Assemble in right order

依標示順序組裝

Cut off shaded portion

依標示部分裁切

Ensure smooth, non-binding movement when assembling

確認組件靈活度

Drill holes with the specified diameter

依標示尺寸鑽孔

Must be purchased separately

改裝品需另購

-5-

Cut off excess

裁剪多餘部分

Apply grease

使用潤滑油膏(黃油)

Pay close attention here

注意組裝步驟

Hint

組裝提示

Page 7

ASSEMBLY / 組裝步驟

Bag A

No.

BV2181

BV2186

BK2187

HSA3-10

BK2187

COLLAR,d3xD4xW3.8

軸環,d3xD4xW3.8

HSA3-10

BUTTON HEAD SOCKET SCREW,M3x10

半圓頭內六角螺絲,M3x10

HMC25-8B

SOCKET SCREW,M2.5×8

內六角螺絲,M2.5×8

Main Rotor-1 /

METAL MAIN ROTOR HUB METAL SEESAW HUB COLLAR,d3xD4xW3.8 BUTTON HEAD SOCKET SCREW,M3x10

主旋翼機構組裝

名稱

金屬主旋翼固定座金屬穩定桿固定座軸環,d3xD4xW3.8 半圓頭內六角螺絲,M3x10

QtyMaterial No. Description

1 1 2 2

-1

No.

5 6 7 8

HMC25-8B BK2182 BV2183 BK0649-1

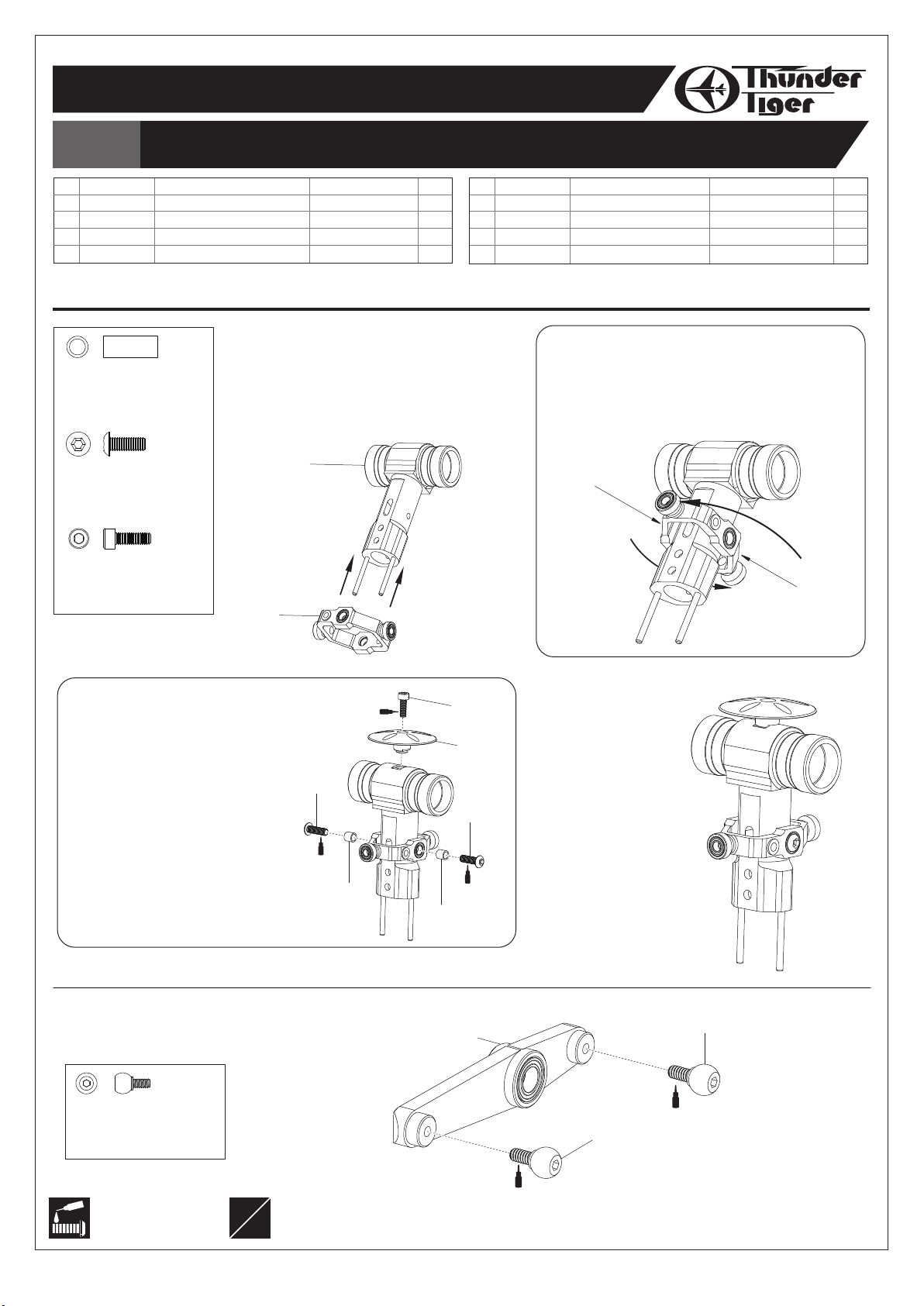

Step 1 / 步驟一

1. Slide the Metal Seesaw Hub into the Main Rotor Hub.

Note the orientation of the Metal Seesaw Hub.

1. 將主旋翼固定座穿過穩定桿固定座。

2. 注意穩定桿固定座安裝方向。

(1)

(2)

QtyMaterial No. Description SOCKET SCREW,M2.5×8 METAL HEAD BUTTON METAL MIXING LEVER

LINKAGE BALL(A)

名稱

內六角螺絲,M2.5×8 金屬旋翼頭制動器金屬混控臂內六角連接頭螺絲(A)

Step 2 / 步驟二

Rotate the Metal Seesaw Hub toward for 90 degree.

2. Note the orientation of the Chamfer on the Metal Seesaw Hub.

1. 90度旋轉穩定桿固定座。

2. 注意金屬穩定固定座倒角方向。

chamfer

倒角

chamfer

倒角

1 1 2 4

Step 3 / 步驟三

Fit the Collar into the bearings, tighten the screws and ensure the Metal Seesaw Hub runs effortlessly.

如圖示，鎖緊固定螺絲，並確認穩定桿固定座能自由活動。

(4)

T22

(3)

Step 1 / 步驟一

Secure the Linkage Balls to the Mixing Lever.

依圖示，安裝控制臂球頭，並適量使用螺絲防鬆劑。

BK0649-1

LINKAGE BALL(A) 內六角連接頭螺絲(A)

(3)

(5)

(6)

(4)

T22

(7)

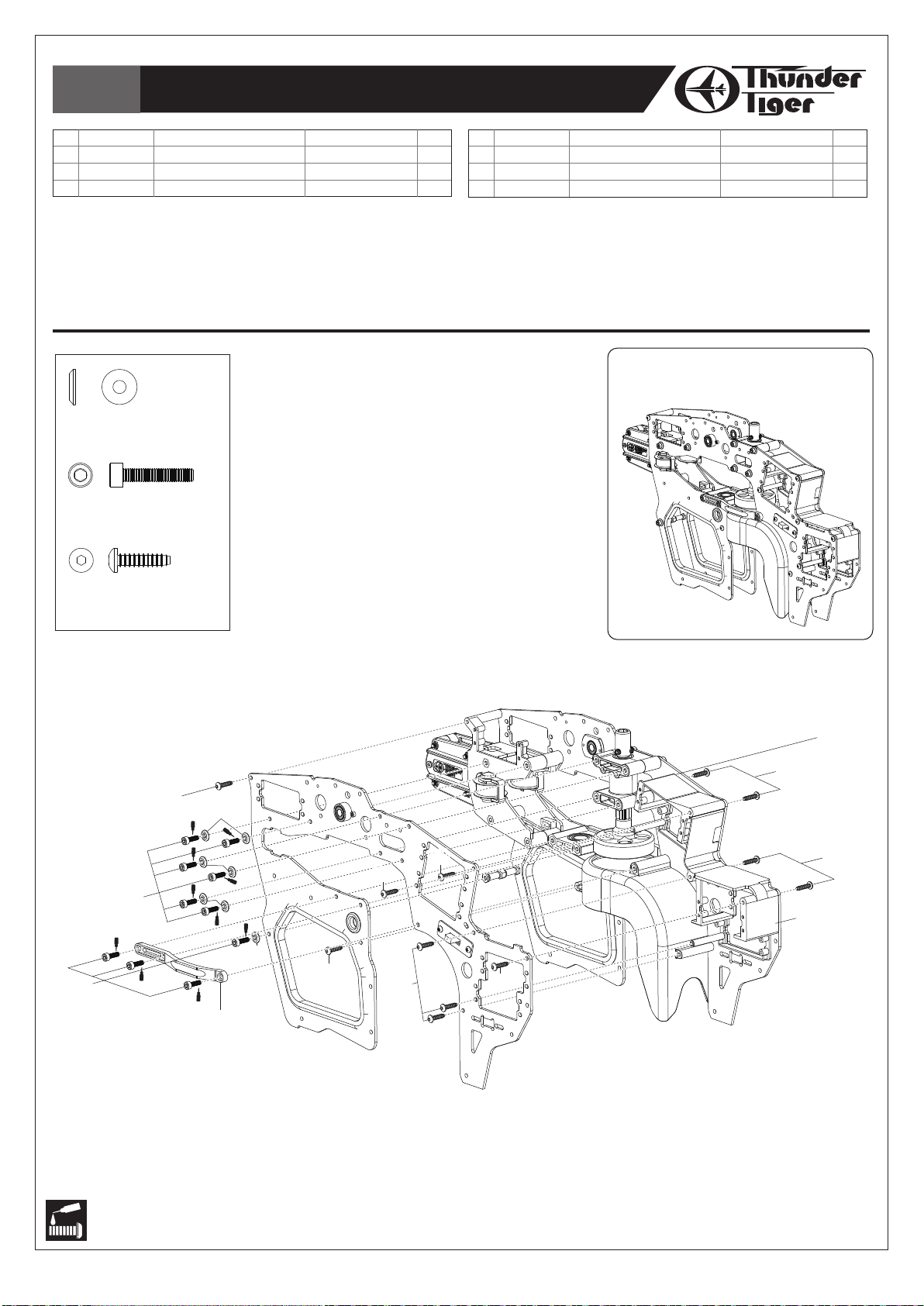

Completed View

組裝完成

(8)

T22

(8)

Apply threadlocker

使用螺絲防鬆膠

T22

Assemble left and right side the same way

左右側組件相同

-6-

Page 8

Bag B

Main Rotor-2 /

主旋翼機構組裝

-2

No.

BK0077

HSA3-10

BK0002

BK0005-1

BK0649-2

COLLAR,d3xD4xW6 BUTTON HEAD SOCKET SCREW,M3x10 FLYBAR CONTROL ARM FLYBAR ARM BUSHING LINKAGE BALL(B)

Step 2 / 步驟二

1. Secure the Metal Mixing BK0077 COLLAR,d3xD4xW6

軸環,d3xD4xW6

HSA3-10 BUTTON HEAD SOCKET SCREW,M3x10

半圓頭內六角螺絲,M3x10

BK0649-2 LINKAGE BALL(B)

內六角連接頭自攻螺絲(B)

2. Make sure the Metal Mixing

1. 將金屬控制臂安裝於金屬穩定

2. 確認控制臂能自由動作，無干

Step 1 / 步驟一

1. Secure the Linkage Ball to the Metal Flybar

HME4-5B SET SCREW,M4x5

無頭內六角螺絲,M4x5

HME3-10B SET SCREW,M3x10

無頭內六角螺絲,M3x10

Apply threadlocker

使用螺絲防鬆膠

2. Assemble the Metal Flybar Control Post and the

1. 牢固的將球頭安裝於金屬穩定翼轉臂上。

2. 將金屬穩定翼轉臂柱及穩定翼臂裝配完成。

名稱

軸環,d3xD4xW6 半圓頭內六角螺絲,M3x10

穩定翼轉臂轉臂六角襯套內六角連接頭自攻螺絲(B)

Lever to the Metal Seesaw Hub.

Lever runs effortlessly.

桿固定座，並適量使用螺絲防鬆劑。

涉及過鬆現象。

Contorl Arm.

Flybar Control Arm.

(6)

(4)

T22

QtyMaterial No. Description

No.

2 2 2 2 2

HME4-5B

BK0631

HME3-10B

BK0067L

SET SCREW,M4x5 SUS FLYBAR SET SCREW,M3x10 FLYBAR PADDLE(BLUE)

名稱無頭內六角螺絲,M4x5 穩定桿無頭內六角螺絲,M3x10 穩定翼(藍)

QtyMaterial No. Description

2 1 2 2

Completed View

組裝完成

(2)

(1)

(2)

T22

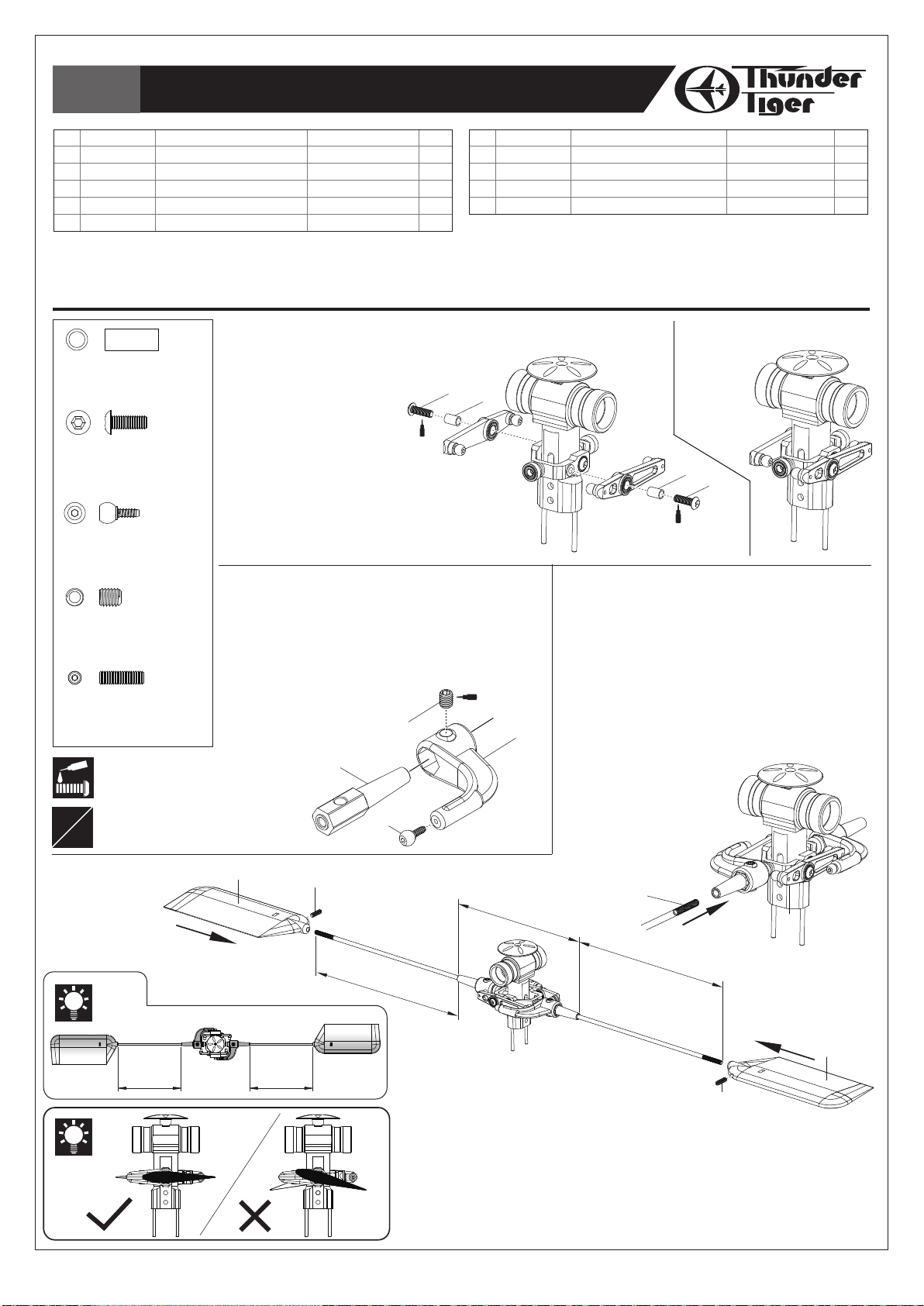

Step 2 / 步驟二

1. Insert the Flybar Rod through the Flybar Control Arms & the Metal Seesaw Hub.

2. Ensure the Flybar Rod have equal protrusion from each side of the Metal Flybar Control Post.

3. Line up the holes of the Flybar Control Arms and the flat spot of the Flybar Rod, and then screw

T22

(3)

the Flybar Control Arms & the Flybar Rod tightly.

1. 將穩定桿穿過穩定翼控制臂、金屬穩定桿固定座和金屬旋翼固定座。

2. 確認穩定桿凸出金屬穩定翼控制臂柱兩側等距。

3. 對正穩定翼控制臂上鎖固孔與穩定翼桿上平面凹槽後，再鎖緊螺絲。

Assemble left and right side the same way

左右側組件相同

(9)

110mm 110mm

(8)

(5)

(7)

116mm

139.5mm

Step 3 / 步驟三

1. Thread the Paddles onto the Flybar Rod, equal the length to the Flybar Control Arms of each side.

2. Ensure the leading edges of the Paddles are toward the same side to the Metal Flybar Control Posts.

3. Line up the Paddles with the Flybar Control Arms.

1. 旋上穩定翼於穩定翼桿上，確認兩側的穩定翼至控制臂距離相等。

2. 確認穩定翼前緣與穩定翼控制轉臂方向相同。

3. 對正穩定翼與穩定翼控制臂呈水平狀態。

(8)

(9)

-7-

Page 9

Bag B

Main Rotor-3 /

主旋翼機構組裝

-3

No.

Material No. Description

BK2511

BK0649-2

BK0596-1

BK2214

BK2572

BK2573

BK2511 WASHER,d2xD4.5xW0.8

墊圈,d2xD4.5xW0.8

BK0649-2 LINKAGE BALL(B)

內六角連接頭自攻螺絲(B)

BK2525 FLAP COLLAR,d7xD10xW1.5

避震軸環,d7xD10xW1.5

WASHER,d2xD4.5xW0.8 LINKAGE BALL(B) MAIN ROTOR PITCH HOUSING HARDENED FEATHERING SHAFT INNER DAMPER(7mm) OUTER DAMPER(7mm)

名稱墊圈,d2xD4.5xW0.8 內六角連接頭自攻螺絲(B) 主旋翼轉座強化固定軸內避震墊圈(7mm) 外避震墊圈(7mm)

Qty

No. 2 2 2 1 2 2

BK2525

BK0435

HMC4-8B

HMV1370ZZWY

BK2216

HMX0612

FLAP COLLAR,d7xD10xW1.5 WASHER,d4xD11xW1.7 SOCKET SCREW M4×8 BEARING,d7xD13xW5 THRUST WASHER,d10xD13xW0.5 THRUST BEARING,d6xD12xW4.5

名稱避震軸環,d7xD10xW1.5 墊圈,d4xD11xW1.7 內六角螺絲M4×8 滾珠軸承,d7xD13xW5 止推墊片,d10xD13xW0.5 止推軸承,d6xD12xW4.5

QtyMaterial No. Description

2 2 2 4 2 2

1. Secure the Linkage alls to the Main Rotor Grips.

2. Insert the Flap Damper into the Main Rotor Hub.

3. Insert the Feathering Shaft through the Flap Dampers & the Main Rotor Hub with some amount of silicon oil or Vaseline. Center the Feathering Shaft in the Main Rotor Hub.

4. Apply Locitite on the Socket Screw (M4x 8),and then secure the Main Rotor Grips on the Feathering Shaft with bearings & washers tightly.

1. 將連桿接頭固定於主旋翼夾座。

2. 將旋翼橫軸避震套環置入主旋翼夾座內。

3. 可塗抹些許矽膠油脂或凡士林於旋翼橫軸避震套環上，以便安裝。

4. 依圖示，組裝金屬主旋翼固定座，使用M4X8內六角螺絲鎖入橫軸時需使用螺絲防鬆膠。

(6)

(4)

(5)

(7)

(3)

HMC4-8B SOCKET SCREW M4×8

內六角螺絲M4×8

HMV1370ZZWY BEARING,d7xD13xW5

滾珠軸承,d7xD13xW5

BK2216 THRUST WASHER,d10xD13xW0.5

止推墊片,d10xD13xW0.5

HMX0612 THRUST BEARING,d6xD12xW4.5

止推軸承,d6xD12xW4.5

Diagram for Thrust Bearing Assembly

止推軸承安裝示意圖

Large Internal Diameter always goes toward the Main Rotor Hub

內徑較大的一側，面向主旋翼中心座組。（內側）

Small Internal Diameter always goes toward the Blade

內徑較小的一側，面向主旋翼組（外側）。

(2)

(1)

T22

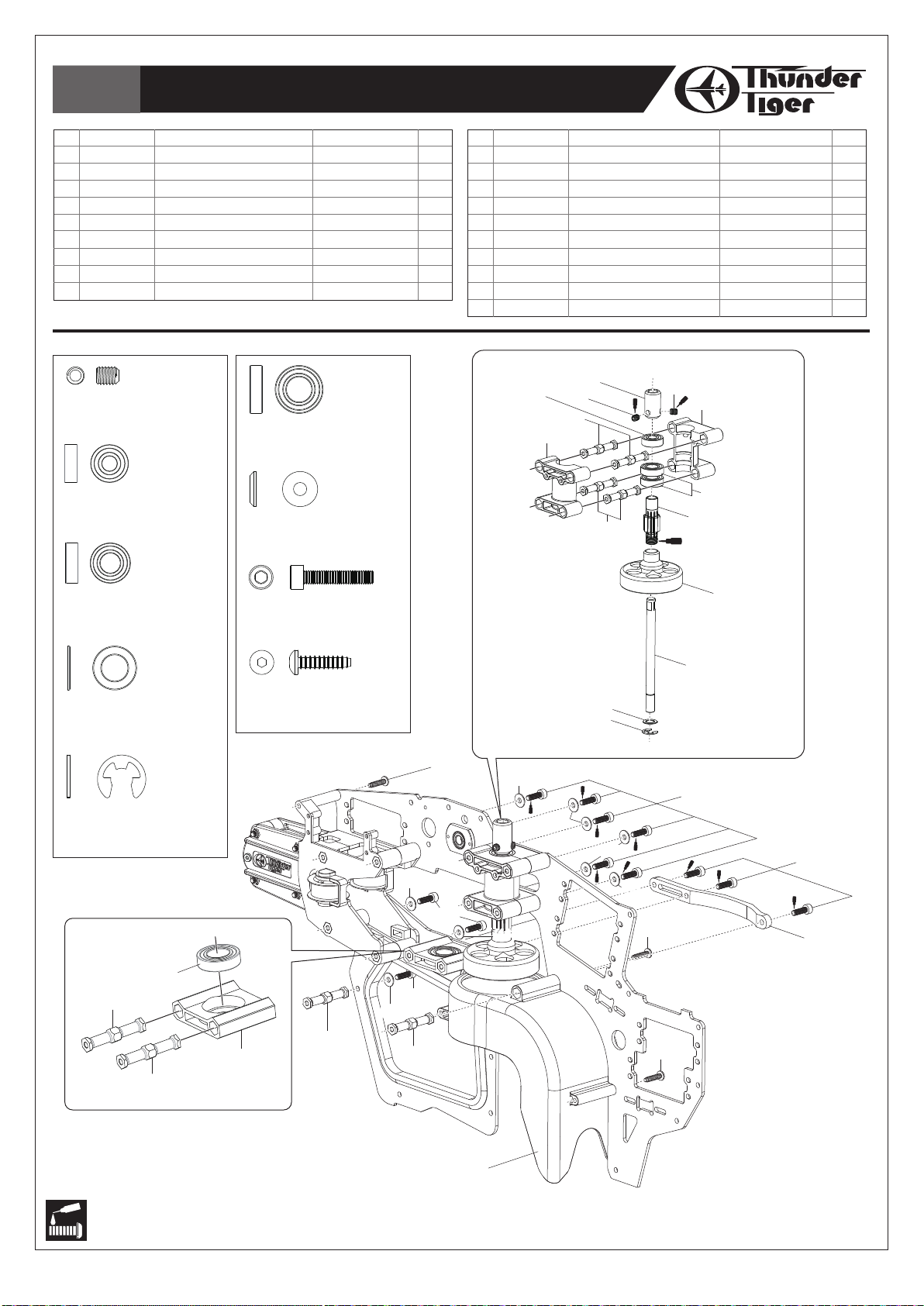

Assemble the main rotor pitch housing as drawing

主旋翼轉座組裝示意圖

(11)(10)(10) (12)

Completed View

組裝完成

(8)

(9)

Checking Tips: >

轉動角度： > （轉動角度大者，內孔大；轉動角度小者，內孔小）

-8-

Apply grease

使用潤滑油膏(黃油)

Apply threadlocker

使用螺絲防鬆膠

Page 10

Bag B

Main Rotor-4 /

主旋翼機構組裝

-4

No.

BK2289

BK0616

HMM3Z

BK0015

BK0016-1

BK0171

HMS15

BK0616 SOCKET SCREW,M3x20

內六角螺絲(半牙),M3x20

HMM3Z NYLON NUT,M3

止鬆螺帽,M3

HMS15 E RING

E型扣環

HARDENED MAIN SHAFT SOCKET SCREW,M3x20 NYLON NUT,M3 FLYBAR CONTROL LEVER WASHOUT LINKAGE PIN E RING

名稱強化主軸內六角螺絲(半牙),M3x20 止鬆螺帽,M3 穩定翼控制臂連接座插銷 E型扣環

QtyMaterial No. Description

No. 1 2 2 2 2 2 2

BK2196

HMV740ZZY

HSA3-10

BK0077

BK0088

BV2188A

BK0649-2

METAL WASHOUT BASE BEARING,d4xD7xW2.5 BUTTON HEAD SOCKET SCREW,M3x10 COLLAR,d3xD4xW6 WASHER,d3xD5xW0.5 METAL SWASHPLATE

LINKAGE BALL(B)

T22

(2)

名稱控制臂座滾珠軸承,d4xD7xW2.5 半圓頭內六角螺絲,M3x10 軸環,d3xD4xW6 墊片,d3xD5xW0.5 金屬十字盤組內六角連接頭自攻螺絲(B)

QtyMaterial No. Description

1 4 2 2 2 1 2

HMV740ZZY BEARING,d4xD7xW2.5

滾珠軸承,d4xD7xW2.5

HSA3-10 BUTTON HEAD SOCKET SCREW,M3x10

半圓頭內六角螺絲,M3x10

BK0077 COLLAR,d3xD4xW6

軸環,d3xD4xW6

BK0088 WASHER,d3xD5xW0.5

墊片,d3xD5xW0.5

BK0649-2

LINKAGE BALL(B) 內六角連接頭自攻螺絲(B)

(3)

(13)

(1)

(14)

The holes should point up.

請注意，有孔位的一端應朝上

(12)

(9)

(8)

Apply threadlocker

使用螺絲防鬆膠

(10)

(4)

T22

-9-

(11)

(9)

(7)

(6)

(5)

Page 11

Bag B

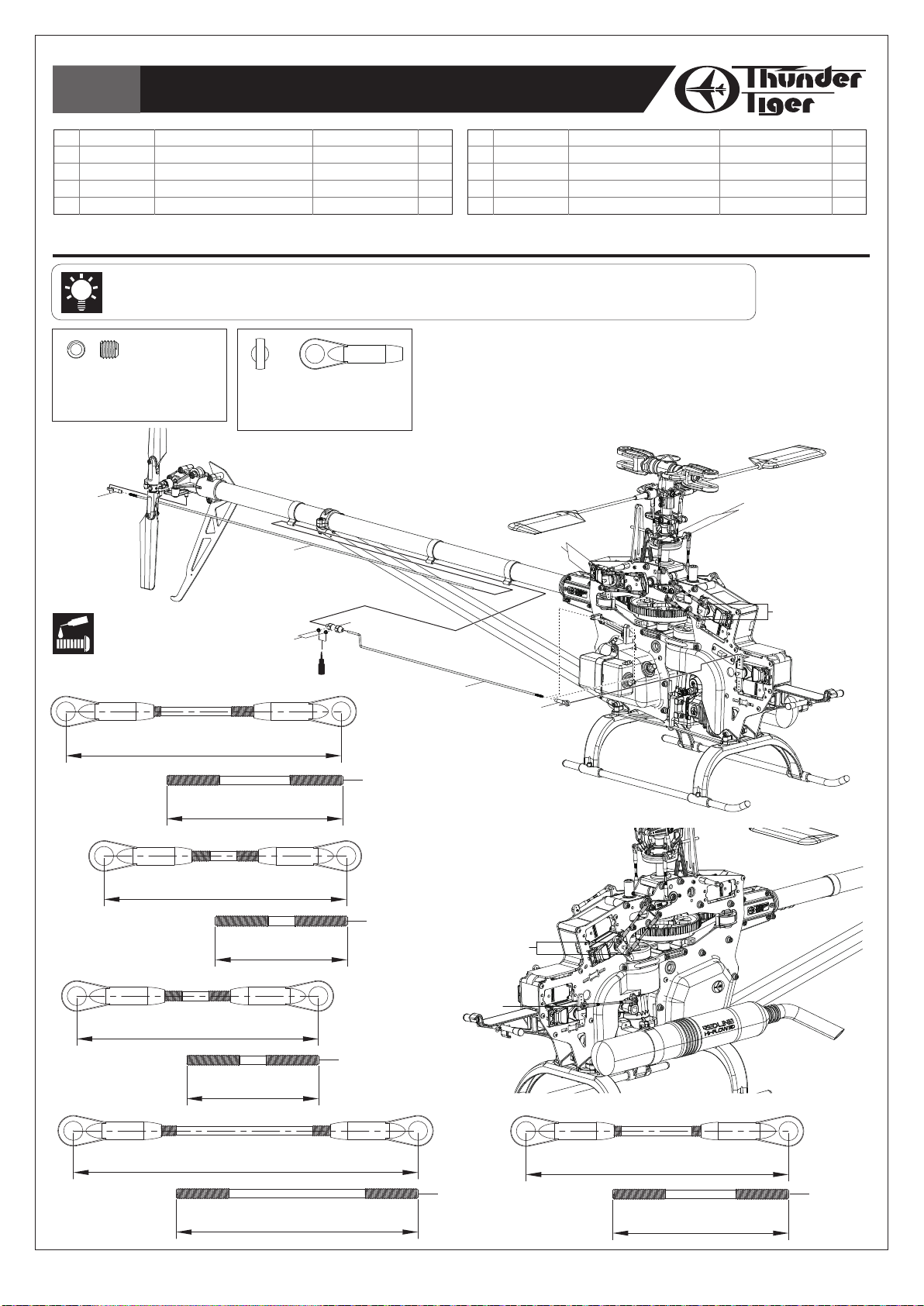

Main Rotor Head Linkage Rod Installation / 主旋翼頭連桿組裝

No.

BK2236

BK2219

HMV6800ZZY

BK2206

HME4-3B

HMV6800ZZY BEARING,d10xD19xW5

滾珠軸承,d10xD19xW5

HME4-3B SET SCREW,M4x3

無頭內六角螺絲,M4x3

UPPER BRG FRAME SPACER BEARING,d10xD19xW5 MAIN SHAFT LOCK RING SET SCREW,M4x3

名稱

上軸承座六角連接支柱滾珠軸承,d10xD19xW5 止檔圈無頭內六角螺絲,M4x3

Apply threadlocker

使用螺絲防鬆膠

(6)

QtyMaterial No. Description

(A)

No.

1 1

6 7 8 9

BK2179 BK2228 BK2516 BK0086

Description DOUBLE JOINT BALL LINK FLYBAR JOINT BALL LINK LINKAGE ROD,40mm BALL LINK, d4.8x20

名稱

雙頭連接桿穩定翼連接桿連接桿,40mm 單頭連接桿, d4.8x20

QtyMaterial No.

2 2 2 4

(7)

(B)

BK0086 BALL LINK, d4.8x20

單頭連接桿, d4.8x20

Scale=1:1 (unit:mm)

The distance from the Lock Ring to the end of the Main Shaft is approx.

78.5mm.

78.5mm

主軸末端至止擋圈距離為

78.5公釐。

(2)

(C)

(1)

(3)

(4)

(5)

T22

The length may vary when using different servos, please re-adjust the length as actual condition.

搭配不同品牌伺服機時，連桿長度或有不同，調機時，請再依實際狀況進行微調。

T22

25.1

35.4

(A) (B) (C)

x2 x2 x2

(9)

(8)

-10-

Page 12

Bag C

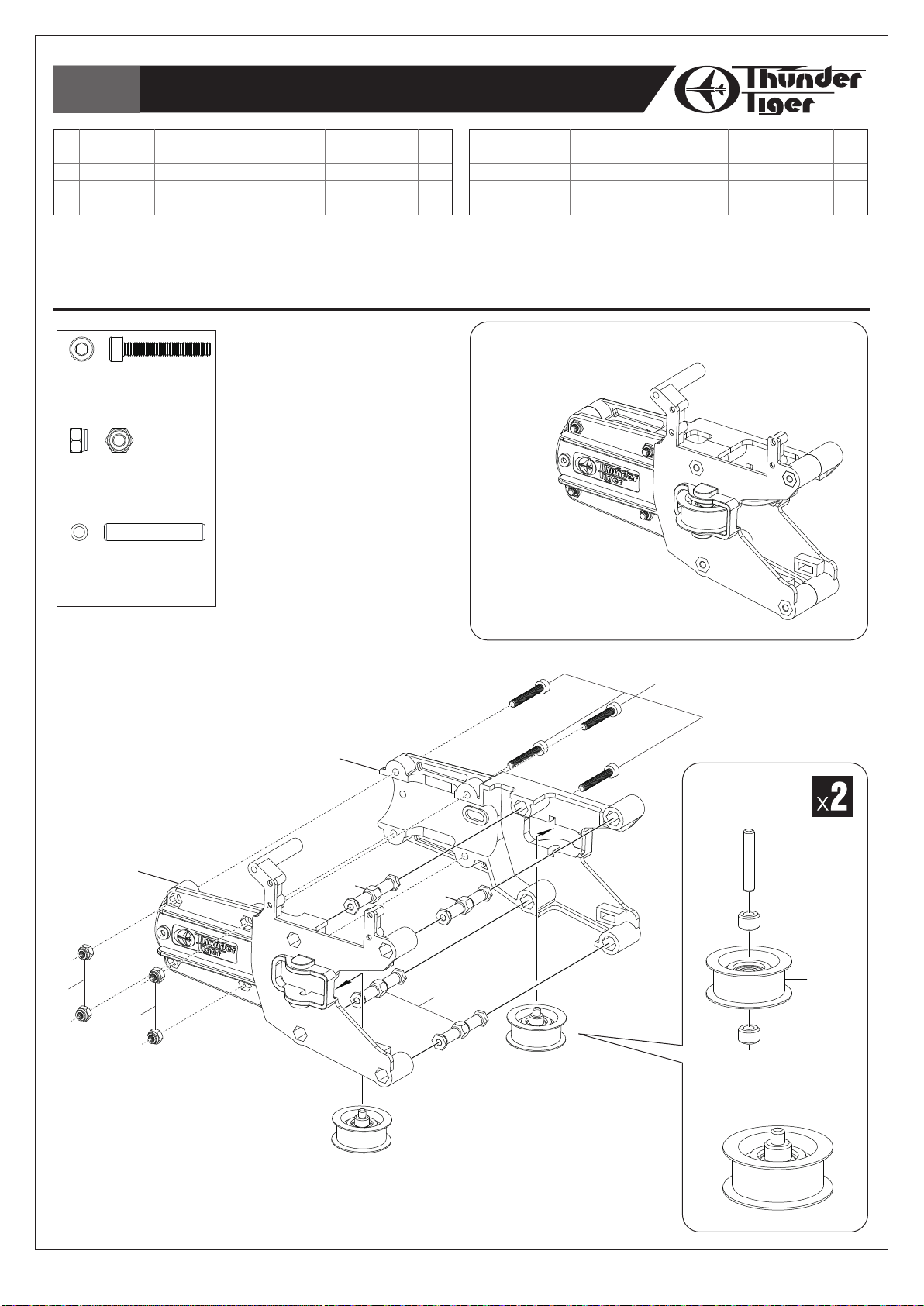

Tail Boom Bracket Assembly /

尾管固定座組裝

No.

BK2217-L

BK2217-R

BK2219

HMC3-20B

HMC3-20B SOCKET SCREW,M3x20

內六角螺絲,M3x20

HMM3Z NYLON NUT,M3

止鬆螺帽,M3

BK0081 PIN,D3x18

固定銷,D3x18

TAIL BOOM BRACKET-L TAIL BOOM BRACKET-R FRAME SPACER SOCKET SCREW,M3x20

名稱尾管固定座(左) 尾管固定座(右) 六角連接支柱內六角螺絲,M3x20

QtyMaterial No. Description

1 4 4

Assemble the Tail Boom Bracket as drawing. Secure the Screws but do not tighten at this step.

參考圖示組裝尾管固定座，螺絲只需稍事固定，暫無需鎖緊。

No.

5 6 7 8

HMM3Z BK0081 BK0036 BV0035

Description NYLON NUT,M3 PIN,D3x18 PULLEY COLLAR GUIDE PULLEY

Completed View

組裝完成

名稱止鬆螺帽,M3 固定銷,D3x18 惰輪襯套主惰輪組

QtyMaterial No.

4 2 4 2

(5)

(2)

(5)

(1)

(3)

(4)

(6)

(3)

(7)

(8)

(3)

(7)

Completed View

組裝完成

-11-

Page 13

Bag D+E

Main Frame Assembly-1 /

本體組裝

-1

No.

BK2215

HMC2-4B

BK2246

HMC2-4B

內六角螺絲,M2x4 SOCKET SCREW,M2x4

SIDE FRAME

SOCKET SCREW,M2x4

TANK RUBBER GROMMETS

Left Frame / 左側板

(5)

名稱機身側板內六角螺絲,M2x4 油箱保護膠套

T22

QtyMaterial No. Description

No.

2 4 2

5 6

BK0274 BV2238 BV2237

RUBBER GROMMETS ELEVATOR WASHER MOUNT SET-L ELEVATOR WASHER MOUNT SET-R

名稱橡膠墊圈升降舵墊片座組(左) 升降舵墊片座組(右)

QtyMaterial No. Description

2 1 1

Completed View

組裝完成

(2)

(1)

(3)

Right Frame / 右側板

T22

(2)

(4)

(6)

(1)

Completed View

組裝完成

Apply threadlocker

使用螺絲防鬆膠

(3)

-12-

Page 14

Bag D+E

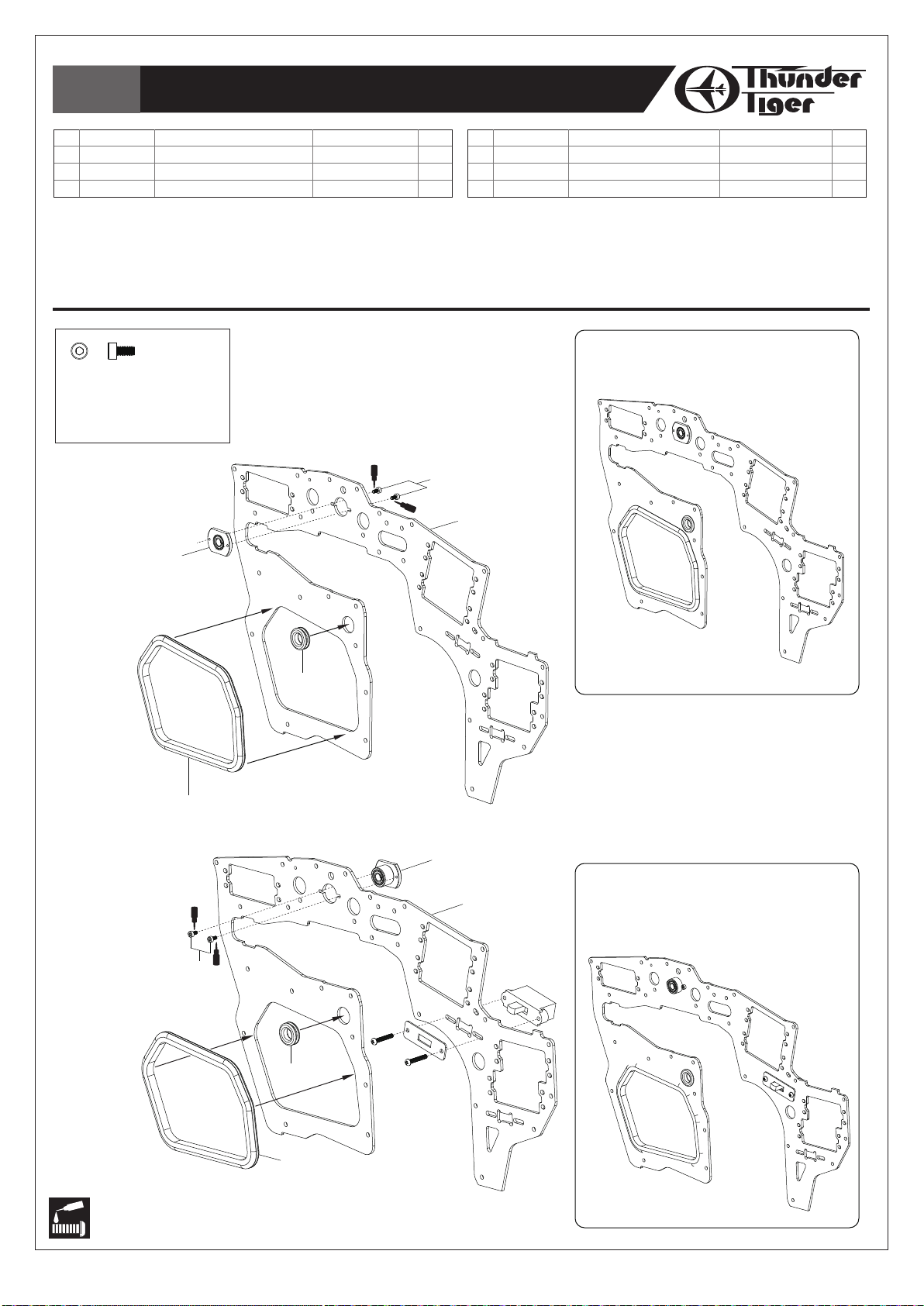

Main Frame Assembly-2 / 本體組裝-2

No.

BK0594

BK2241-L

BK2241-R

BK2219

HME4-5B

HMV696ZZY

HMV1680ZZY

BK0779-1

BV1194-1

HME4-5B SET SCREW,M4x5

無頭內六角螺絲,M4x5

HMV696ZZY BEARING,d6xD15xW5

滾珠軸承,d6xD15xW5

STARTER COUPLING CLUTCH BEARING BLOCK-L CLUTCH BEARING BLOCK-R FRAME SPACER SET SCREW,M4x5 BEARING,d6xD15xW5 BEARING,d8xD16xW5 PINION,10T CLUTCH BELL SET

名稱

啟動接頭啟動棒軸承固定座(左) 啟動棒軸承固定座(右) 六角連接支柱無頭內六角螺絲,M4x5 滾珠軸承,d6xD15xW5 滾珠軸承,d8xD16xW5 驅動軸,10T 離合器罩組

HMV6800ZZY BEARING,d10xD19xW5

滾珠軸承,d10xD19xW5

BK0087 WASHER,d3xD8xW1.4

墊片,d3xD8xW1.4

QtyMaterial No. Description

No.

1 1

1 8 2

1 2

BK0592

BK0584

HMS5

HMV6800ZZY

BK2225

BK2220

BK0087

HMC3-10B

HNX3-12B

BK2229

(6)

STARTER SHAFT THRUST WASHER E -CLIP,5mm BEARING,d10xD19xW5 LOWER BRG COOLING FAN CASING WASHER,d3xD8xW1.4 SOCKET SCREW,M3x10 S.B.H SELF TAPPING SCREW MOUNTING BLOCK

(1)

(5)

(4)

(2)

名稱

啟動軸止推墊片 E型扣環,5mm 滾珠軸承,d10xD19xW5 下軸承座風扇罩墊片,d3xD8xW1.4 內六角螺絲,M3x10 半圓頭內六角自攻螺絲側板補強肋

(3)

QtyMaterial No. Description

1 1 1 1 1 1 9

3 1

(7)

(4)

(8)

T22

HMV1680ZZY BEARING,d8xD16xW5

滾珠軸承,d8xD16xW5

BK0584 THRUST WASHER,d6xD10xW0.5

止推墊片,d6xD10xW0.5

HMS5 E -CLIP,5mm

E型扣環,5mm

HMC3-10B SOCKET SCREW,M3x10

內六角螺絲,M3x10

HNX3-12B S.B.H SELF TAPPING SCREW

半圓頭內六角自攻螺絲

(13)

(4)

(14)

(4)

(16)

(17)

(4)

(18)

(17)

(16)

(11) (12)

(16)

(9)

(10)

(17)

(18)

(19)

(18)

Apply threadlocker

使用螺絲防鬆膠

(15)

-13-

Page 15

Bag D+E

Main Frame Assembly-3 / 本體組裝-3

No.

BK0087

HMC3-10B

HNX3-12B

BK0087 WASHER,d3xD8xW1.4

墊片,d3xD8xW1.4

HMC3-10B SOCKET SCREW,M3x10

內六角螺絲,M3x10

HNX3-12B S.B.H SELF TAPPING SCREW

半圓頭內六角自攻螺絲

WASHER,d3xD8xW1.4 SOCKET SCREW,M3x10 S.B.H SELF TAPPING SCREW

名稱

墊片,d3xD8xW1.4 內六角螺絲,M3x10 半圓頭內六角自攻螺絲

QtyMaterial No. Description

10 12

No.

4 5 6

BK2229 BK2259 BK2232

MOUNTING BLOCK SERVO FRAME B SERVO FRAME A

名稱側板補強肋伺服機座B 伺服機座A

QtyMaterial No. Description

1 1 1

Completed View

組裝完成

(2)

(3)

(1)

(4)

(1)

(3)

(5)

(3)

(6)

(3)

Apply threadlocker

使用螺絲防鬆膠

-14-

Page 16

Bag F

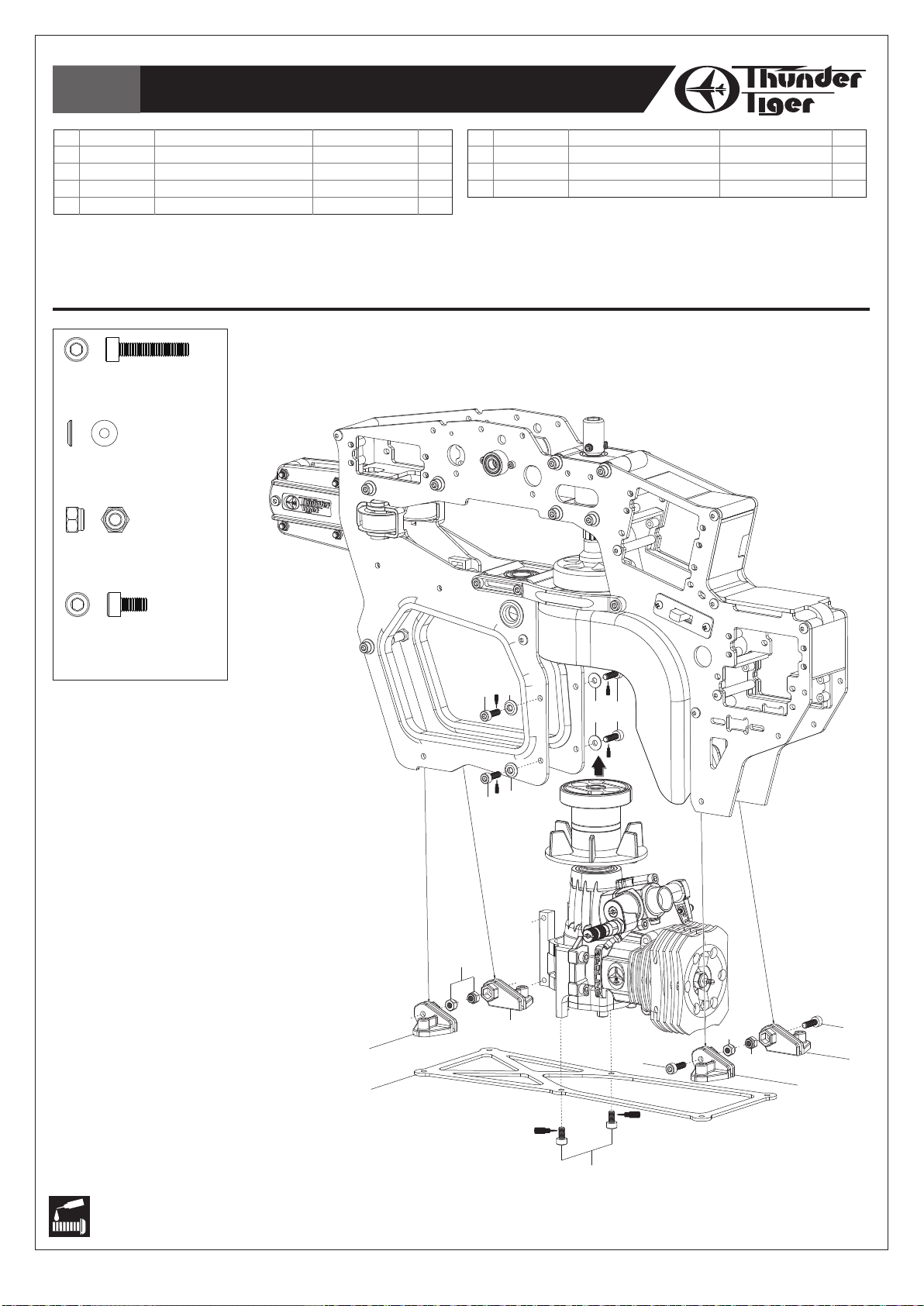

Engine Assembly /

引擎動力組裝

No.

BV0589

BK0170

BV0143

HMC3-10B

HMC3-14B

BK0170 SHIM,d16xW0.15

離合器墊片,d16xW0.15

HMC3-10B SOCKET SCREW,M3x10

內六角螺絲,M3x10

HMC3-14B SOCKET SCREW,M3x14

內六角螺絲,M3x14

HMF2-10N PHILLIPS MACHINE SCREW,M2x10

圓頭十字螺絲(細),M2x10

CLUTCH SHOE SHIM COOLING FAN SOCKET SCREW,M3x10 SOCKET SCREW,M3x14

(1)

名稱離合器組離合器墊片冷卻風扇組內六角螺絲,M3x10 內六角螺絲,M3x14

(4)

T22

QtyMaterial No. Description

No. 1 1 1 2 4

BK2231

HMF2-10N

BK0075

HML2

Description ENGINE MOUNT PHILLIPS MACHINE SCREW,M2x10 LINK BALL NUT,M2

名稱引擎固定座圓頭十字螺絲(細),M2x10 連接頭六角螺帽,M2

QtyMaterial No.

1 1 1 1

Completed View

組裝完成

T22

BK0075 LINK BALL,

連接頭,

Ø4.8

HML2 NUT,M2

六角螺帽,M2

(5)

Ø4.8

T22

(2)

(3)

(9)(9)

(8)

(7)

(6)

Must be purchased separately

改裝品需另購

-15-

Apply threadlocker

使用螺絲防鬆膠

Page 17

Bag G

Main Frame Assembly-4 /

本體組裝

-4

No.

HMC3-10B

BK0087

BK2240-L

BK2240-R

HMC3-10B SOCKET SCREW,M3x10

內六角螺絲,M3x10

BK0087 WASHER,d3xD8xW1.4

墊片,d3xD8xW1.4

HMM3Z NYLON NUT,M3

止鬆螺帽,M3

SOCKET SCREW,M3x10 WASHER,d3xD8xW1.4 PLATE MOUNTING BLOCK-L PLATE MOUNTING BLOCK-R

名稱內六角螺絲,M3x10 墊片,d3xD8xW1.4 底盤固定座(左) 底盤固定座(右)

QtyMaterial No. Description

No.

6 4 2 2

HMM3Z

BK2234

HMC3-6B

NYLON NUT,M3 CARBOM BOTTOM FRAME SOCKET SCREW,M3x6

名稱

止鬆螺帽,M3 碳纖維底盤內六角螺絲,M3x6

QtyMaterial No. Description

4 1 2

HMC3-6B SOCKET SCREW,M3x6

內六角螺絲,M3x6

(4)

(6)

(5)

(1)

(2)

(3)

(2)(1)

(1)

(5)

(1)

(3)

(4)

Apply threadlocker

使用螺絲防鬆膠

-16-

T22

(7)

Page 18

Bag G

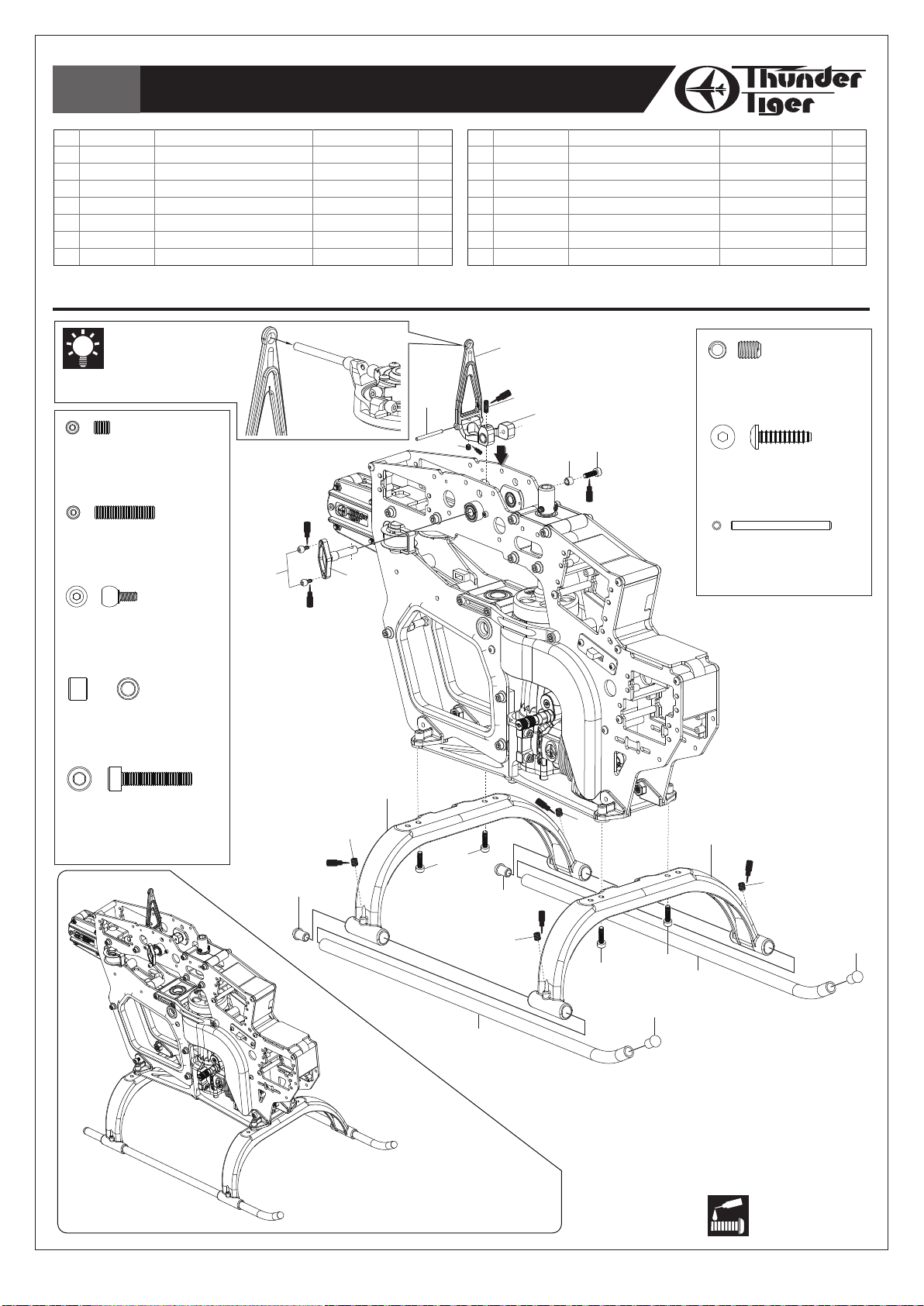

Landing Skid Assembly /

腳架組組裝

No.

BK0023

BK0084

BK2514

HME3-3B

HME3-8B

BK2161

BK0649-1

The larger hole goes toward the swashplate. 較大孔面朝十字盤

HME3-3B

SET SCREW.M3x3 無頭內六角螺絲,M3x3

HME3-8B

SET SCREW,M3x8 無頭內六角螺絲,M3x8

BK0649-1

LINKAGE BALL(A) 內六角連接頭螺絲(A)

名稱

ELEVATOR CONTROL ARM LINK PIN

,D2x22.8 METAL ELEVATOR CONTROL ARM SET SCREW.M3x3 SET SCREW,M3x8 ELEVATOR LEVER ROD LINKAGE BALL(A)

升降舵連接座固定銷,D2x22.8 金屬升降舵控制臂無頭內六角螺絲,M3x3 無頭內六角螺絲,M3x8 升降舵推拉桿內六角連接頭螺絲(A)

T22

(7)

(6)

T22

QtyMaterial No. Description

(2)

1 1 1 1 1 1 2

(4)

No.

9 10 11 12 13 14

BK2515 HMC3-10B BK2261 BK0064T BK0065 HME4-5B HMC3-14B

(1)

(5)

(3)

COLLAR,d3xD5xW4.2 SOCKET SCREW,M3x10 LANDING SKID SKID PIPE SKID PIPE END CAP SET SCREW,M4x5 SOCKET SCREW,M3x14

(9)

(8)

T22

名稱

控制臂軸環,d3xD5xW4.2 內六角螺絲,M3x10 腳架底座圓管圓管塞無頭內六角螺絲,M4x5 內六角螺絲,M3x14

HME4-5B

SET SCREW,M4x5 無頭內六角螺絲,M4x5

HNX3-12B S.B.H SELF TAPPING SCREW 半圓頭內六角自攻螺絲

BK0084

PIN,D2x22.8 固定銷,D2x22.8

QtyMaterial No. Description

1 1 2 2 4 4 4

BK2515

COLLAR,d3xD5xW4.2 控制臂軸環,d3xD5xW4.2

HMC3-10B

SOCKET SCREW,M3x10 內六角螺絲,M3x10

T22

(12)

(13)

(10)

(14)

(11)

(12)

(13)

T22

(13)

(14)

(2)

T22

(13)

(12)

(14)

(11)

(12)

Completed View

組裝完成

-17-

Apply threadlocker 使用螺絲防鬆膠

Page 19

Bag H

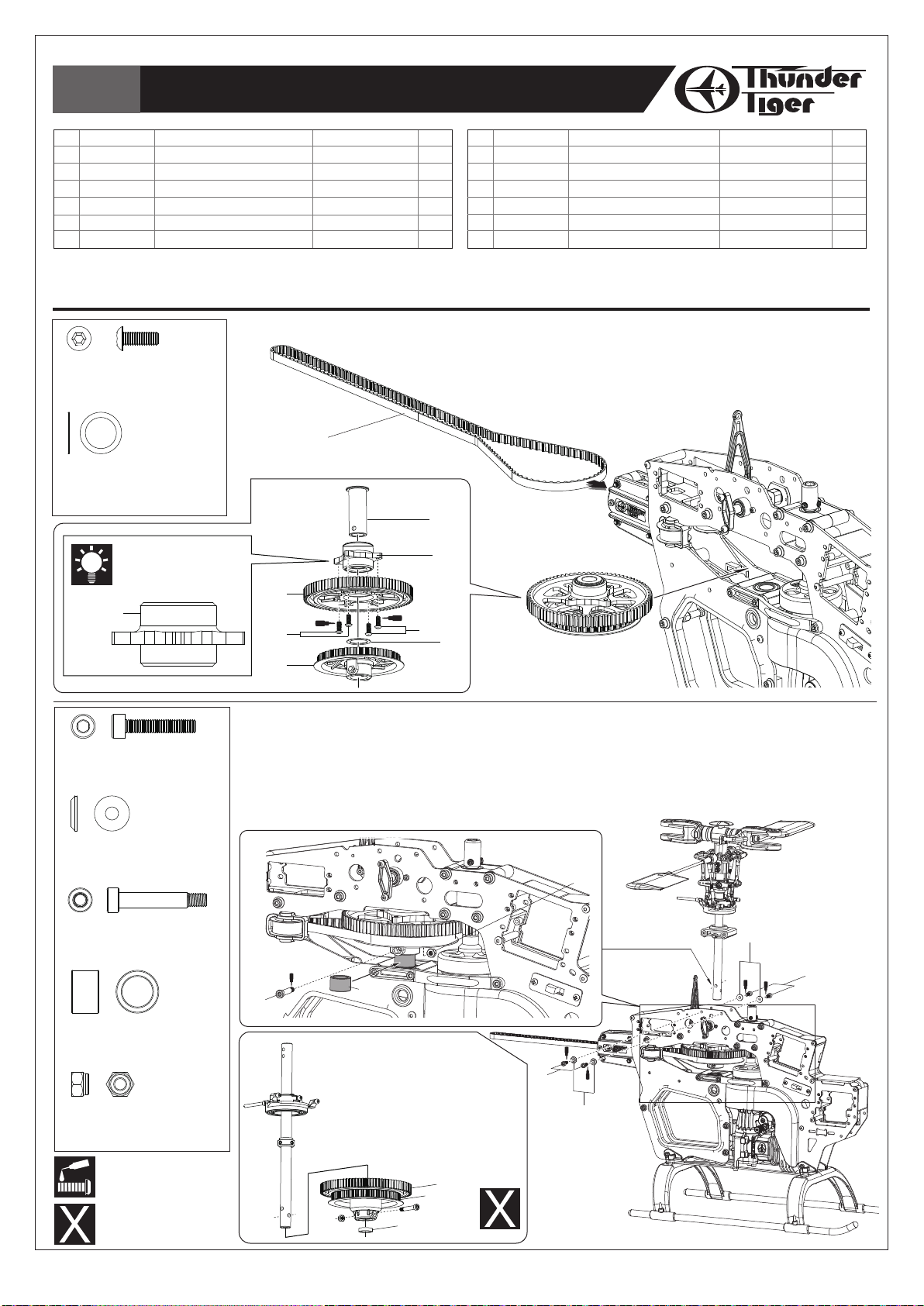

Main Frame Assembly-5 /

本體組裝

-5

No.

BK2282

BV2281

BK2285

HSA3-8

BK2524

BK2286

HSA3-8 BUTTON HEAD SOCKET SCREW,M3x8

半圓頭內六角螺絲,M3x8

BK2524 MAIN GEAR WASHER,d14.2xD19xW0.5

主齒輪墊片,d14.2xD19xW0.5

ONE WAY BEARING SHAFT ONE WAY CLUTCH HOUSING MAIN GEAR,85T BUTTON HEAD SOCKET SCREW,M3x8 MAIN GEAR WASHER AUTOROTATION TAIL DRIVE PULLEY,41T

Note the chamfer should point up.

注意有倒角端朝上

BV2281

(3)

(4)

(6)

名稱

單向軸套單向離合組主齒輪,85T 半圓頭內六角螺絲,M3x8 主齒輪墊片尾驅動主齒,41T

(7)

T22

QtyMaterial No. Description

No.

1 1 1 4 1 1

BK0858-1

HMC3-10B

BK0087

BK1197

BK2290

HMM3Z

TAIL ROTOR DRIVE BELT,343T SOCKET SCREW,M3x10 WASHER,d3xD8xW1.4 MAIN SHAFT BOLT,M3x20 COLLAR NYLON NUT,M3

名稱

時規皮帶,343T 內六角螺絲,M3x10 墊片,d3xD8xW1.4 內六角半牙螺絲,M3x20 軸環止鬆螺帽,M3

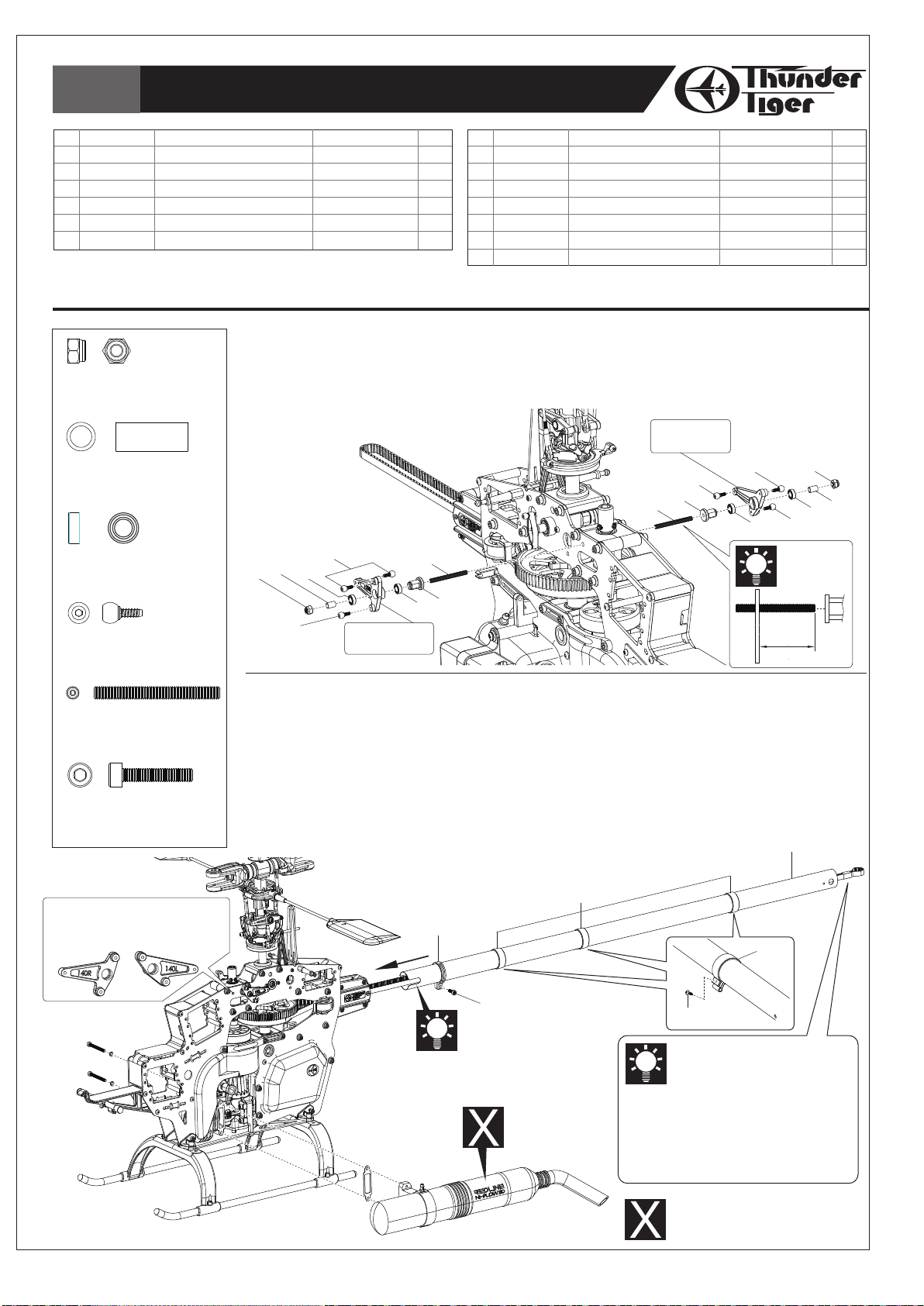

1. Insert the Belt into Tail Boom Bracket.

2. Slide the Main Gear Set into the Main Frame Set, and then wrap the Belt around the Autorotation Tail Drive Pulley.

1. 將皮帶穿過尾管固定座。

2. 主齒輪組套入側板組後，將皮帶繞過尾驅動輪（熄火降落組）。

(1)

(2)

T22

(4)

(5)

QtyMaterial No. Description

1 4 4 1 1 1

HMC3-10B SOCKET SCREW,M3x10

內六角螺絲,M3x10

BK0087 WASHER,d3xD8xW1.4

墊片,d3xD8xW1.4

BK1197 MAIN SHAFT BOLT,M3x20

內六角半牙螺絲,M3x20

BK2290 COLLAR,d10xD14xW9

軸環,d10xD14xW9

HMM3Z NYLON NUT,M3

止鬆螺帽,M3

Apply threadlocker

使用螺絲防鬆膠

Must be purchased separately

改裝品需另購

1. Insert the Main Shaft into Main Gear Set, Main Gear Washer & Lower Bearing Block.

2. Line up the holes of the Autorotation Tail Drive Gear, One Way Bearing Shaft & Main Shaft, and then insert the Socket Screw to fix them with a Nut. Add a drop of threadlocker when securing, but do not over tighten.

1. 將主軸依序穿過主齒輪組、主齒輪墊片及下軸承座。

2. 對尾驅動齒、單向軸套及主軸上孔位後，穿入內六角螺絲並加上螺帽，並使用適量防鬆劑固定。注意! 請勿過度緊迫螺絲。

(12)

(9)

T22

(8)

(11)

(10)

The Main Gear & Autorotation Tail Drive Pulley from Raptor 50 series (Item No. 4852, 4853, 4854) are also applied to Titan X50. Please insert the Socket Screw to the lower hole of the Main Shaft to fix the Main Gear Set as drawing.

主齒盤（AK0148）及尾驅動輪（PV0672 ）亦可沿用舊版翼手龍50系列；以內六角螺絲鎖固時，請穿入主軸下方孔位，並墊入專用墊片（料號PV1341-2）

AK0148

PV0672

PV1341-2

T22

(8)

(9)

-18-

Page 20

Bag H

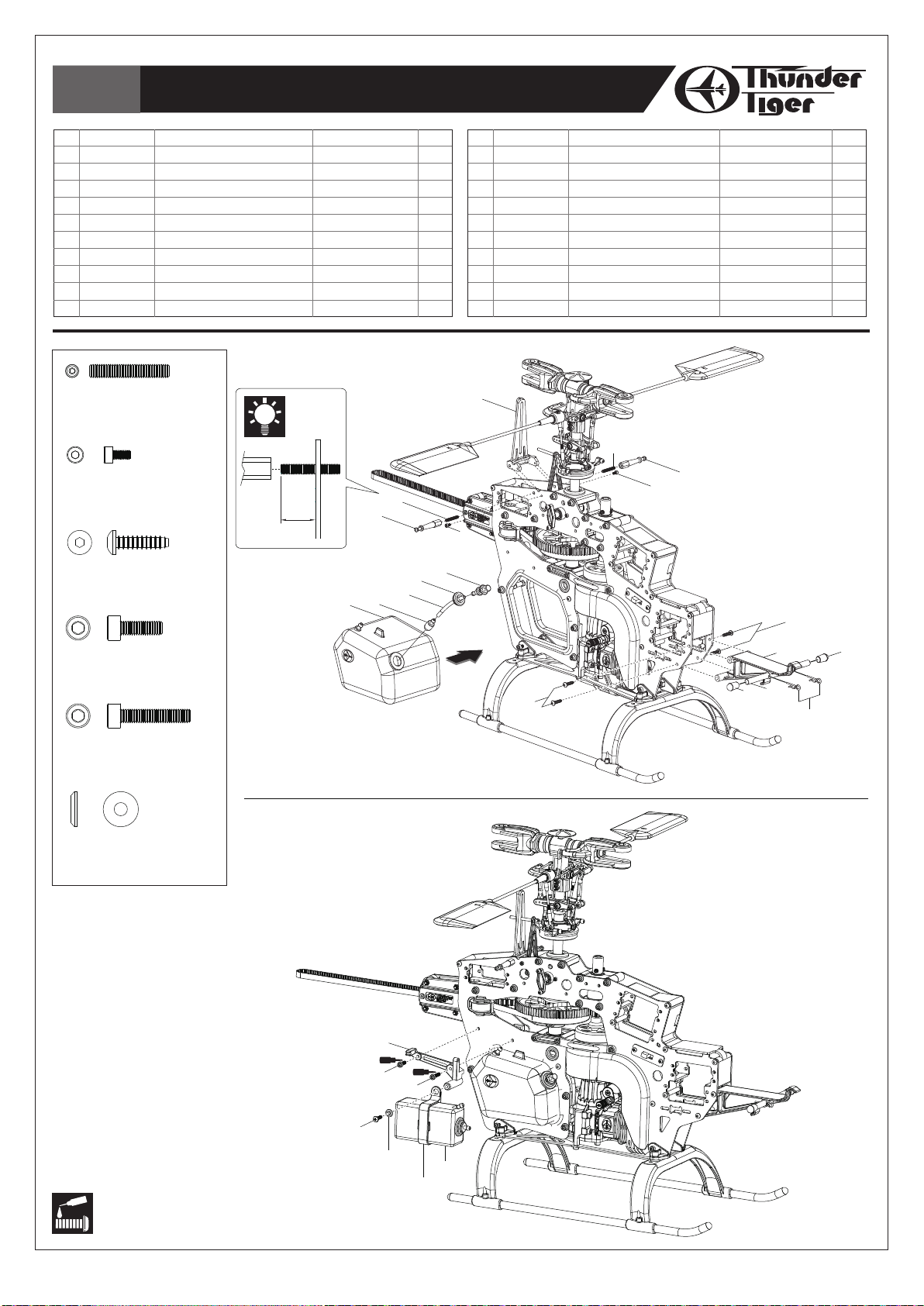

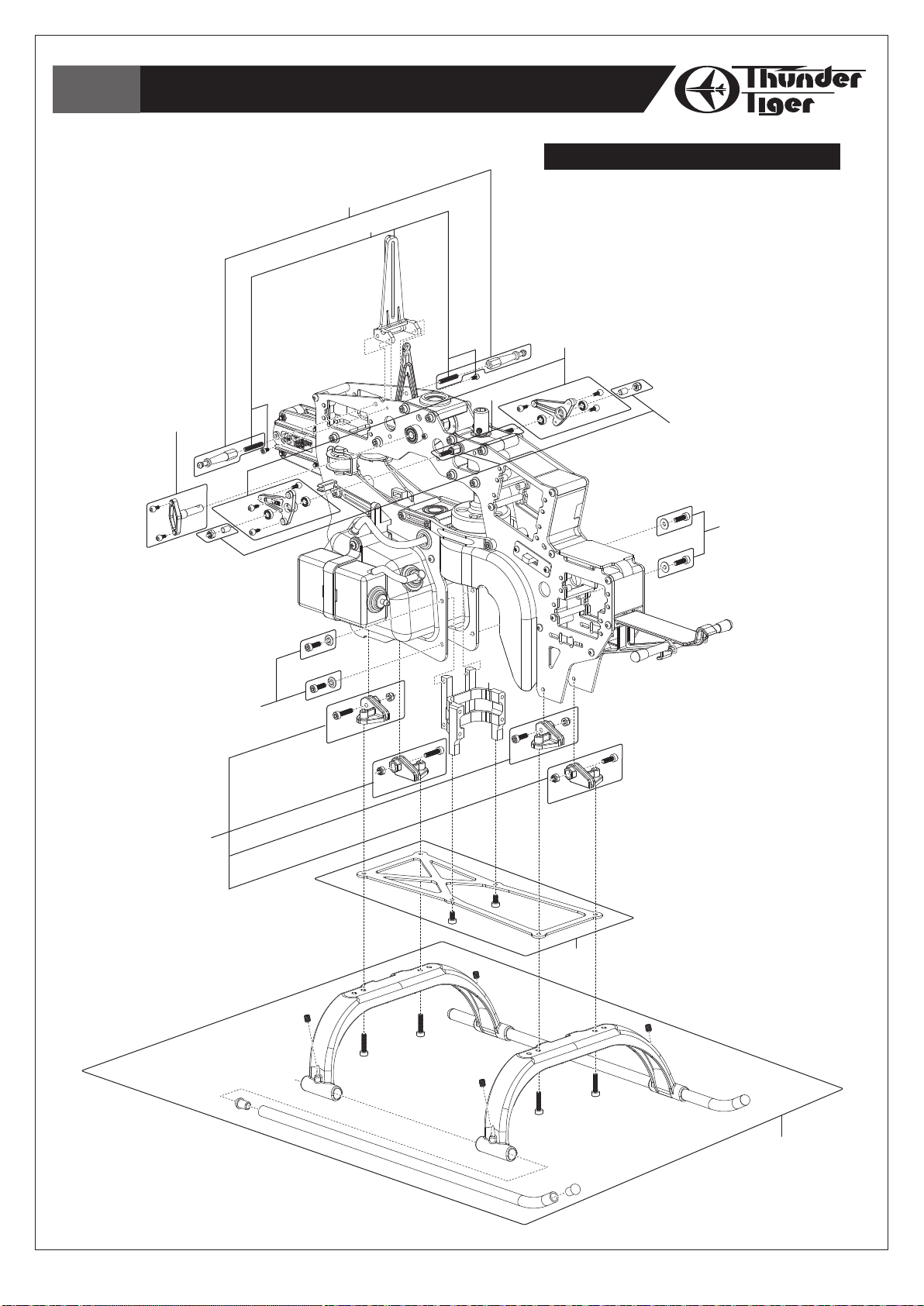

Main Frame Assembly-6 /

本體組裝

-6

No.

BK2230

BE1867

BB0363-60

BK0062

BK0463

BK2248

BK2249

HME3-18B

HMC2-4B

HNX3-12B

HME3-18B SET SCREW,M3x18

無頭內六角螺絲,M3x18

HMC2-4B SOCKET SRCEW,M2x4

內六角螺絲,M2x4

HNX3-12B S.B.H SELF TAPPING SCREW

半圓頭內六角自攻螺絲

FUEL TANK CLUNK FUEL TUBE,D3.5mm x 60mm FUEL TANK GROMMET FUEL TANK NIPPLE PHASING CONTROL TRACK CANOPY RETAINING POST SET SCREW,M3x18 SOCKET SRCEW,M2x4 S.B.H SELF TAPPING SCREW

10.5mm

名稱

油箱油箱重錘耐熱油管,D3.5mm x 60mm 油嘴栓油嘴相位控制導軌機殼固定鋁柱無頭內六角螺絲,M3x18 內六角螺絲,M2x4 半圓頭內六角自攻螺絲

(8)

(7)

(4)

(3)

(2)

(1)

QtyMaterial No. Description

(5)

No.

1 1 1 1 1 1 2 2 2 5

BK2224

BK0473-1

BK0474

HNLR6

BK2247

HMC3-10B

HMC3-14B

BK0087

BK0506

BV0502

RECEIVER FRAME CANOPY SPACER GROMMET R CLIP ROD GUIDE MOUNTING BLOCK SOCKET SCREW,M3x10 SOCKET SCREW,M3x14 WASHER,d3xD8xW1.4 TANK MOUNT HEADER TANK

名稱

接收機座機殼支撐柱橡膠帽 R形插銷尾拉桿座內六角螺絲,M3x10 內六角螺絲,M3x14 墊片,d3xD8xW1.4 副油箱固定座副油箱組

QtyMaterial No. Description

1 2 2

(6)

(8)

(7)

(9)

(10)

HMC3-10B SOCKET SCREW,M3x10

內六角螺絲,M3x10

HMC3-14B SOCKET SCREW,M3x14

內六角螺絲,M3x14

BK0087 WASHER,d3xD8xW1.4

墊片,d3xD8xW1.4

(15)

T22

(16)

(17)

(10)

(13)

(11)

(12)

(13)

(14)

Apply threadlocker

使用螺絲防鬆膠

(10)

(18)

(20)

(19)

-19-

Page 21

Bag H+K

(10)

Main Frame Assembly-7 /

本體組裝

-7

No.

HMM3Z

BK0077

HMV740ZZY

BK0649-2

BK2160-R

BK2160-L

HMM3Z NYLON NUT,M3

止鬆螺帽,M3

BK0077 COLLAR,d3xD4xW6

軸環,d3xD4xW6

HMV740ZZY BEARING,d4xD7xW2.5

滾珠軸承,d4xD7xW2.5

BK0649-2 LINKAGE BALL(B)

內六角連接頭自攻螺絲(B)

HME3-30B SET SCREW,M3x30

無頭內六角螺絲,M3x30

HMC3-10B SOCKET SCREW,M3x10

內六角螺絲,M3x10

This hole (Left & Right side both) is design for 140°Control Arms(PV1409)

此孔位（左右二側）用於140°控制搖臂（PV1409）

NYLON NUT,M3 COLLAR,d3xD4xW6 BEARING,d4xD7xW2.5 LINKAGE BALL(B) 120° CONTROL ARM-R 120° CONTROL ARM-L

名稱止鬆螺帽,M3 軸環,d3xD4xW6 滾珠軸承,d4xD7xW2.5 內六角連接頭自攻螺絲(B) 120° 控制搖臂(右) 120° 控制搖臂(左)

QtyMaterial No. Description

No.

2 2 4 6

1 1

BK2227

HME3-30B

BK0859-1

BK2559

HNN2-6B

BK2159

HMC3-10B

ARM COLLAR SET SCREW,M3x30 TAIL BOOM,663mm ROD GUIDE TAPPING SCREW,M2x3 TAIL BOOM Clamp SOCKET SCREW,M3x10

名稱

擺臂固定軸環無頭內六角螺絲,M3x30 尾管,663mm 固定環墊圈自攻螺絲,M2x3 尾管止檔環內六角螺絲,M3x10

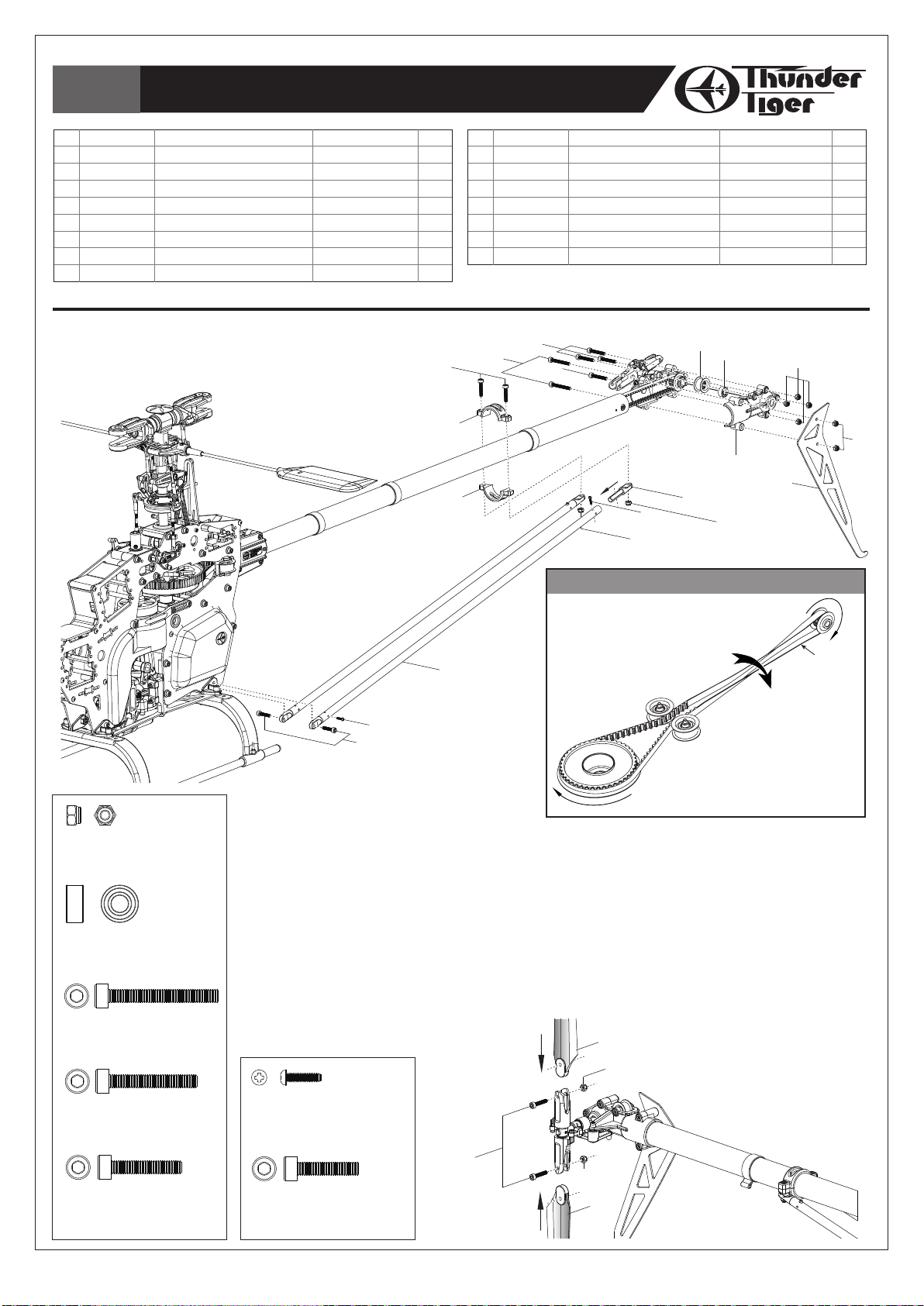

Step 1 / 步驟一

Attach the Control Arms onto the Main Frame Set as drawing, and note the difference of Left & Right Control Arms, please refer the “120L”/ “120R” mark on the arms.

參考圖示將控制搖臂裝上主側板上，請注意左、右邊的控制搖臂不同，請對照控制搖臂上L或R凸字安裝。

Left side

(6)

左側

(3)

21mm

(9)

(1)

(4)

(3)

(1)

(2)

(3)

(4)

(5)

(8)

Right side

右側

(3)

(7)

Step 2

1. Slide the 3 Tail Rod Guides onto the Tail Boom and space them out evenly as drawing, and then slide the Tail Boom Clamp onto Tail Boom.

2. Insert the Belt into the Tail Boom. Push the Tail Boom in to the Tail Boom Bracket all the way to the end. Refer the drawing and note the orientation of slot on the Tail Boom.

3. Not fix the 3 Tail Rod Guides and not screw tighten the Tail Boom Clamp at this step; the

(4)

(8)

(4)

(7)

步驟二

1. 將3個固定環穿入尾管，並參考圖示平均分配距離，然後再穿入尾管止擋環。

2. 將皮帶穿入尾管。將尾管推入尾管固定座至底，請參考圖示，注意尾管上定位凹槽方向。

3. 此時暫不需固定固定環及止擋環，以便後續調整。

4. 安裝排氣管。

position of these parts may be

adjusted later.

4. Attach the Muffler.

(10)

(12)

QtyMaterial No. Description

2 2

1 3 3

(2)

-20-

(13)

(11)

First tape the belt & insert the end of the belt as shown, and not twist the belt at this step.

使用膠帶將皮帶尾端貼合，會使皮帶容易穿過尾管，並請勿扭轉皮帶。

Must be purchased separately

改裝品需另購

Page 22

Bag I

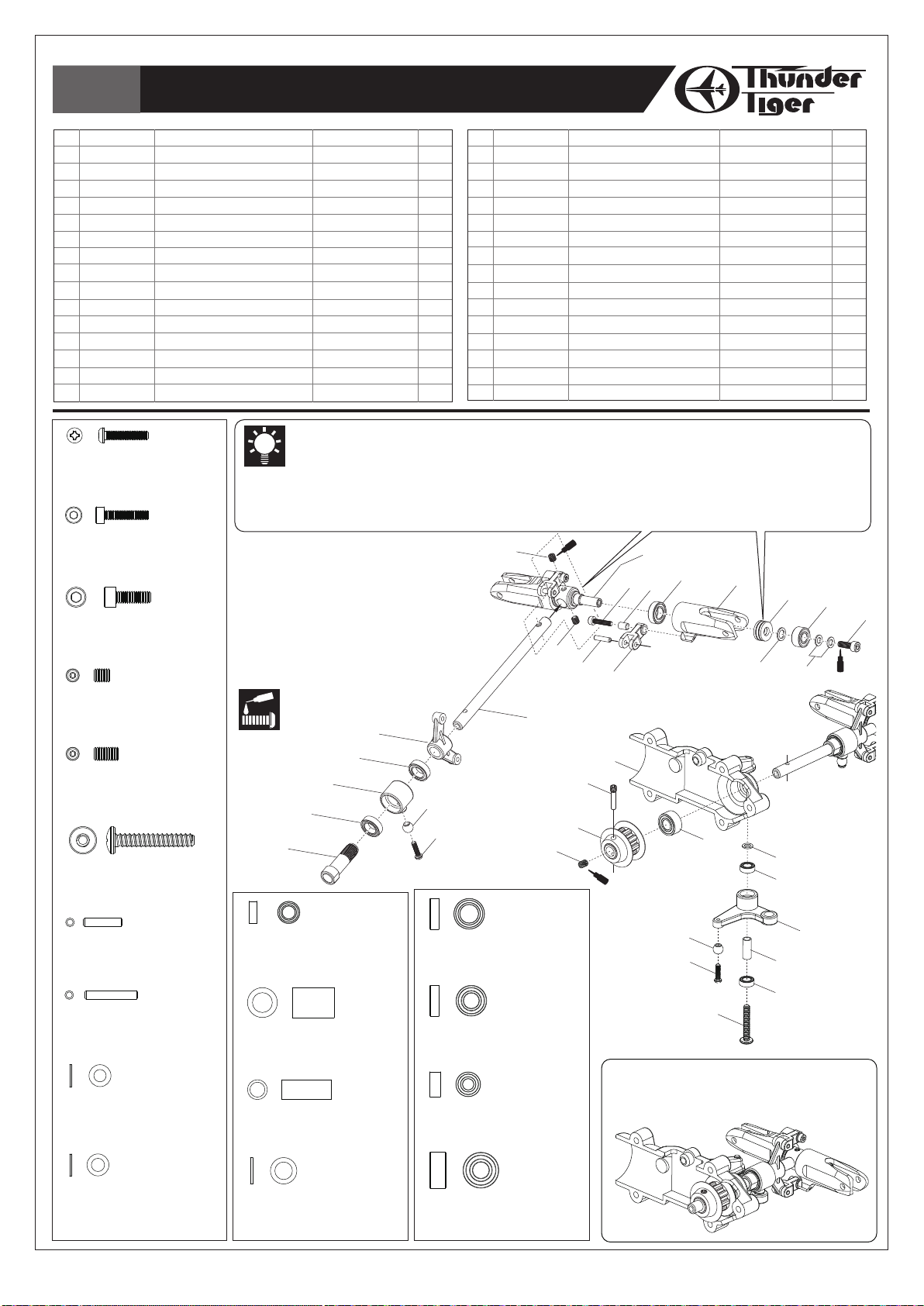

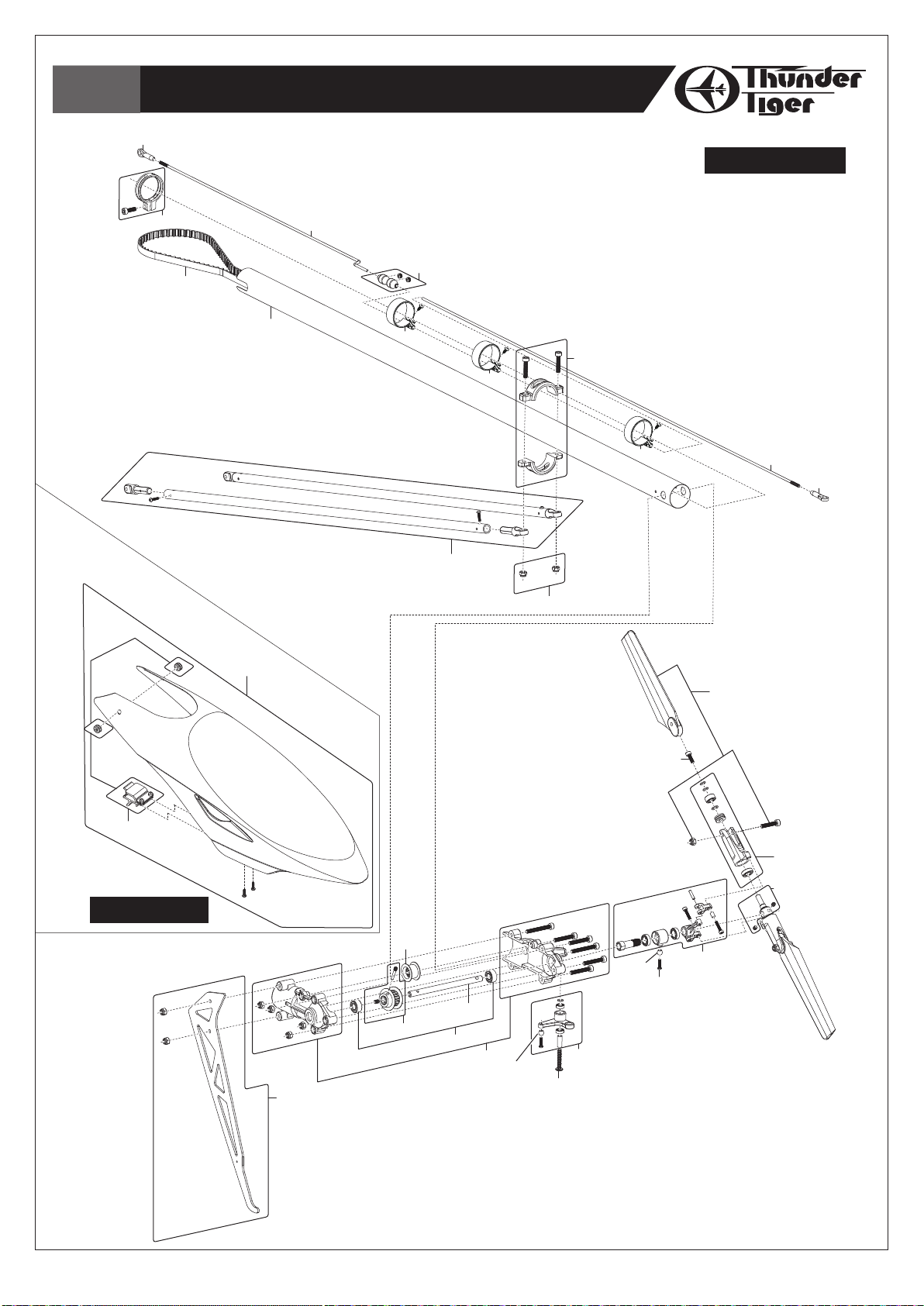

Tail Unit Assembly-1 /

尾旋翼組組裝

-1

No.

BK0028

HMV1060ZZY

BK0027

BK0025

HMF2-8N

BK0075

BK0053

HME3-3B

BK2284

BK2272

HMV1050ZZWY

BK0082

HMC2-10B

BK0083

BK0026

HMF2-8N PHILLIPS MACHINE SCREW,M2x8

圓頭十字螺絲(細),M2x8

HMC2-10B SOCKET SCREW,M2×10

內六角螺絲,M2×10

HMC25-6B SOCKET SCREW,M2.5×6

內六角螺絲,M2.5×6

HME3-3B SET SCREW,M3x3

無頭內六角螺絲,M3x3

HME3-4B SET SCREW,M3x4

無頭內六角螺絲,M3x4

HSE3-18B SELF TAPPING SCREW,M3x18

扁圓頭十字自攻螺絲,M3x18

TAIL PITCH CONTROL SLIDER BUSHING BEARING,d6xD10xW3 TAIL PITCH CONTROL SLIDER TAIL PITCH CONTROL FORK PHILLIPS MACHINE SCREW,M2x8 LINK BALL TAIL ROTOR SHAFT SET SCREW,M3x3 TAIL ROTOR HUB METAL TAIL GRIP BEARING,d5xD10xW3 COLLAR,d2xD3xW4.2 SOCKET SCREW,M2×10 PIN,D2x8.8 TAIL PITCH CONTROL LINK

名稱尾旋翼控制軸套滾珠軸承,d6xD10xW3 尾旋翼控制滑座尾旋翼控制座圓頭十字螺絲(細),M2x8

4.8

連接頭

4.8

尾旋翼軸無頭內六角螺絲,M3x3 尾旋翼T型座金屬尾旋翼座滾珠軸承,d5xD10xW3 軸環,d2xD3xW4.2 內六角螺絲,M2×10 固定銷

,D2x8.8

尾旋翼連接頭

1. Note the orientation of the Thrust Bearings; please refer page8, Diagram for Thrust Bearing Assembly.

2. Line up the concave of Tail Rotor Shaft and the hole of Hub when securing the Tail Rotor Hub onto the Tail Rotor Shaft.

1. 請參考第8頁止推軸承安裝示意圖，注意安裝方向性。

2. 將尾旋翼固定座鎖上尾旋翼主軸時，請注意軸上凹槽需對正固定座上螺絲孔。

Assemble the tail unit as drawing. Secure the screws with a drop of threadlocking but not over tighten, ensure the moveable parts run effortlessly.

依圖示順序組裝。使用適量防鬆劑固定，但請勿過度鎖緊，確保每個可動機構皆作動順暢。

Apply threadlocker

使用螺絲防鬆膠

(4)

(2)

(3)

(2)

(1)

QtyMaterial No. Description

(6)

1 2 1 1 2 2 1 2 1 2 2 2 2 2 2

(5)

No.

HMC25-6B

HMO26

BK2276

HMV940ZZY

HMX0409Y

BK0047

BD7143

BV2565

HME3-4B

HMV1150ZZSY

HSE3-18B

HMV740ZZY

BK0076

BK0024

BK0088

(8)

(7)

(24)

SOCKET SCREW,M2.5×6 WASHER,d2.8xD5xW0.5 WASHER,d4xD6xW0.5 BEARING,d4xD9xW4 THRUST BEARING,d4xD9xW4 TAIL UNIT HOUSING-R SET SCREW METAL TAIL PULLEY 9T SET SCREW,M3x4 BEARING,d5xD11xW5 SELF TAPPING SCREW,M3x18 BEARING,d4xD7xW2.5 COLLAR,d3xD4xW10 TAIL PITCH CONTROL LEVER FLAT WASHER,d3xD5xW0.5

T22

(13)

(9)

(12)

(11)

(8)

(14)

(15)

(21)

(22)

(23)

T22

名稱

內六角螺絲,M2.5×6 墊片,d2.8xD5xW0.5 尾旋翼轉座墊片,d4xD6xW0.5 滾珠軸承,d4xD9xW4 止推軸承,d4xD9xW4 尾座(右) 固定螺絲(長) 金屬尾皮帶輪9T 無頭內六角螺絲,M3x4 滾珠軸承,d5xD11xW5 扁圓頭十字自攻螺絲,M3x18 滾珠軸承,d4xD7xW2.5 軸環,d3xD4xW10 尾旋翼控制桿墊片,d3xD5xW0.5

(10)

(20)

(19)

(18)

(17)

(25)

(30)

QtyMaterial No. Description

2 4 2 2 2 1 1 1 1 1 1 2 1 1 1

(16)

T22

BK0083 PIN,D2x8.8

固定銷,D2x8.8

HMY2-12 PIN,D2x12

固定銷,D2x12

HMO26 WASHER,d2.8xD5xW0.5

墊片,d2.8xD5xW0.5

BK0088 FLAT WASHER,d3xD5xW0.5

墊片,d3xD5xW0.5

HMV740ZZY BEARING,d4xD7xW2.5

滾珠軸承,d4xD7xW2.5

BK0082 COLLAR,d2xD3xW4.2

軸環,d2xD3xW4.2

BK0076 COLLAR,d3xD4xW10

軸環,d3xD4xW10

BK2276 WASHER,d4xD6xW0.5

尾旋翼轉座墊片,d4xD6xW0.5

HMV1060ZZY BEARING,d6xD10xW3

滾珠軸承,d6xD10xW3

HMV1050ZZWY BEARING,d5xD10xW3

滾珠軸承,d5xD10xW3

HMV940ZZY BEARING,d4xD9xW4

滾珠軸承,d4xD9xW4

HMV1150ZZSY BEARING,d5xD11xW5

滾珠軸承,d5xD11xW5

-21-

(6)

(5)

(29)

(28)

(27)

(26)

Completed View

組裝完成

Page 23

Bag J+K

Tail Unit Assembly-2 /

尾旋翼組組裝

-2

No.

BK2190

HMM3Z

BK0046

HMV1150ZZSY

BV0052

HMC3-20B

HMC3-25B

HMC3-16B

CARBON VERTICAL FIN NYLON NUT,M3 TAIL UNIT HOUSING-L

BEARING,d5xD11xW5

TAIL IDLE PULLEY

SOCKET SCREW,M3x20 SOCKET SCREW,M3x25 SOCKET SCREW,M3x16

名稱

碳纖維垂直尾翼止鬆螺帽,M3 尾座(左) 滾珠軸承,d5xD11xW5 尾舵輪內六角螺絲,M3x20 內六角螺絲,M3x25 內六角螺絲,M3x16

QtyMaterial No. Description

1 1 1 4 2 4

(8)

(10)

(9)

(11)

No.

9 10 11 12 13 14 15

(7)

BK0797 BK0798 BK0524-T BK0447 HMJ2-8N HMC3-14B BK0404-B

(6)

名稱

BRACKET-UPPER

BRACKET-LOWER

TAIL SUPPORT ROD TAIL SUPPORT ROD END

SELF TAPPING SCREW-M2x8 SOCKET SCREW-M3x14

TAIL BLADE(BLACK)

固定座(上) 固定座(下) 尾管支撐架尾管支撐架接頭自攻螺絲(細)-M2x8 內六角螺絲-M3x14 尾旋翼(黑)

(5)

(4)

(3)

(1)

(12)

(13)

(2)

BELT INSTALLATION 傳動皮帶安裝

Metal Tail Pulley

金屬尾惰輪

Rotate the belt 90° counterclockwise. 逆時針方向旋轉皮帶90°

QtyMaterial No. Description

1 1 2 4 4 2 2

(2)

Belt

皮帶

HMM3Z NYLON NUT,M3

止鬆螺帽,M3

HMV1150ZZSY

BEARING,d5xD11xW5 滾珠軸承,d5xD11xW5

HMC3-20B

SOCKET SCREW,M3x20 內六角螺絲,M3x20

HMC3-25B

SOCKET SCREW,M3x25 內六角螺絲,M3x25

HMC3-16B

SOCKET SCREW,M3x16 內六角螺絲,M3x16

(13)

(14)

Autorotation TailDrive Pulley

尾驅動輪

1. Remove the tape from the rear of the belt and twist it toward left by 90° (view from tail to nose), then warp around the Metal Tail Pulley.

2. Assembly the Tail Pulley Case, but do not over close these 2-half of the Tail Case tightly and ensure the Tail Pulley runs effortlessly.

3. Attach the Carbon Vertical Fin.

4. Assembly the Tail Support Bracket & Tail Boom Supports as drawing, but do not tighten at this step; the position of Tail Support Bracket may be adjusted later.

5. Attach Tail Rotor Blades by the Socket screws but do not over tighten.

6. Ensure the leading edge of the blades are toward proper side as shown.

1. 移去皮帶尾端膠帶並向左扭轉90度（由機尾朝機首看），繞在金屬尾輪上。

2. 組裝尾座組，切勿過度迫緊兩側尾座殼，確認金屬尾輪運轉順暢。

3. 裝上碳纖垂直安定面。

4. 依圖示將支撐桿固定座及尾管支撐桿鎖附，支撐桿固定座暫時不鎖緊，以便後續微調。

5. 裝上尾旋翼，切勿過度鎖緊。

6. 請確認旋翼前櫞朝向正確方向（如圖示）

(15)

Guide Pulley

惰輪

(2)

HMJ2-8N

SELF TAPPING SCREW-M2x8 自攻螺絲(細)-M2x8

(8)

(2)

HMC3-14B

SOCKET SCREW-M3x14 內六角螺絲-M3x14

(15)

-22-

Page 24

Tail Boom Adjustment /

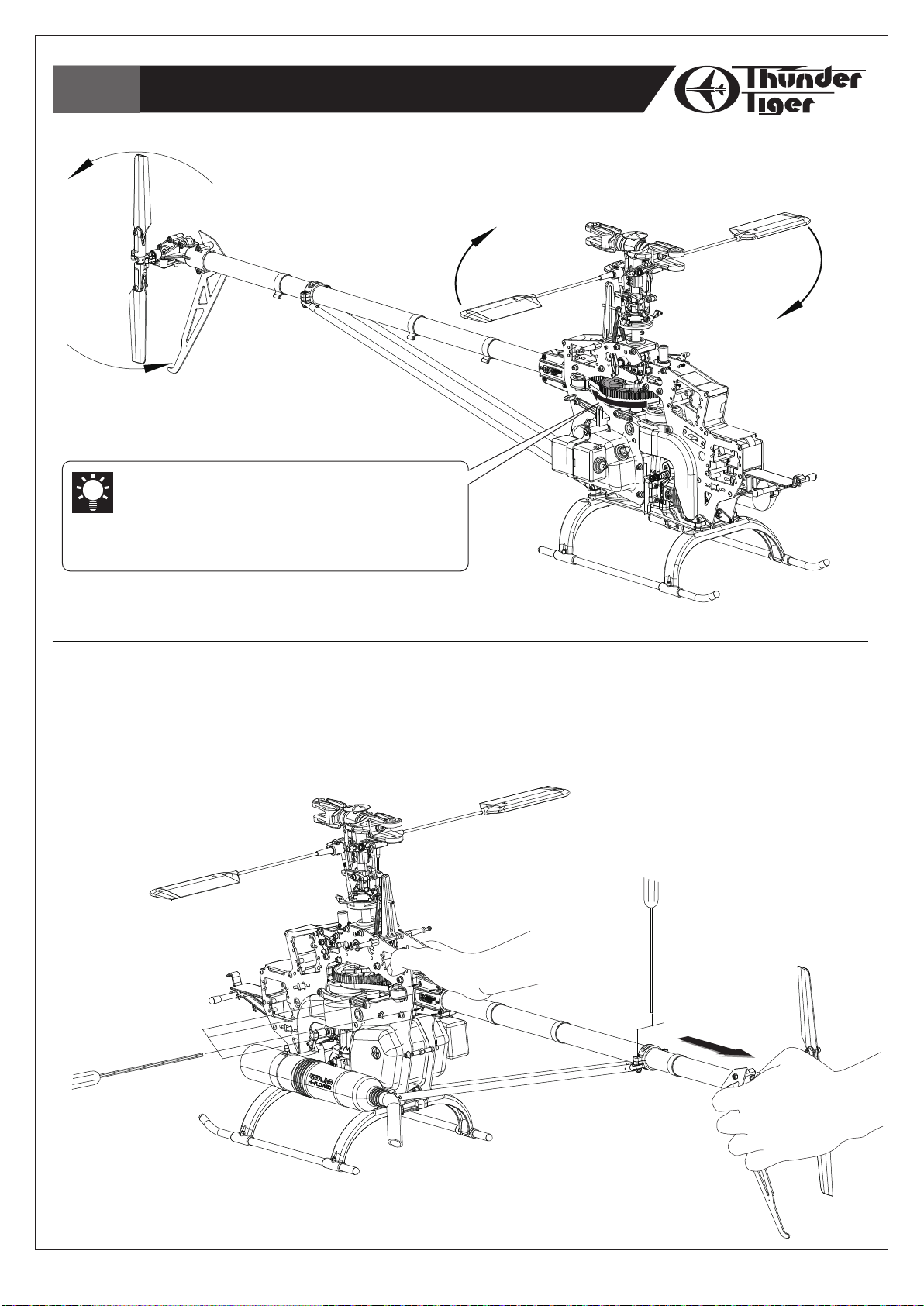

Ensure both the main & tail rotor heads rotate effortlessly in correct direction: turn the Main Gear clockwise, the Main Rotor Grips turn clockwise, and the Tail blades turn counter clockwise.

請確認主旋翼及尾旋翼皆旋轉方向正確且順暢：當順時針撥動主齒輪時，主旋翼轉座順時針、尾旋翼逆時針轉動。

尾管調整

1. Pull the Tail Boom out slightly by grasping the Tail Unit with one hand and the main frame set with the other. Adjust until the belt deflects by about 0.5mm (3/16”).

2. Tighten the Socket Screws on the Tail Boom Bracket, Tail Support Bracket & Tail Boom Clamp.

3. Attach the Tail Boom Support onto the Main Frames as drawing.

1. 一手固定主側板組，一手握住尾部將尾管向外拉，使皮帶拉緊。適當的皮帶緊度應於推壓皮帶時陷下少於0.5mm (3/16”)。

2. 將尾管固定座、支撐桿固定座及尾管止擋環上螺絲鎖緊。

3. 依圖示將尾管支撐桿鎖附上主側板組。

Screw Driver

螺絲起子

Screw Driver

螺絲起子

-23-

Page 25

Bag L

Servo Installation / 伺服機裝配

No.

HSE2614N

BK0104

HSE2614N BUTTON PHILLIPS TAPPING SCREW, M2.6X14

扁圓自攻螺絲( 粗 )

The distance from the center of the servo horn to both sides of the linkage balls should be the same.

伺服機擺臂中心至兩邊球頭距離必需相等。

BUTTON PHILLIPS TAPPING SCREW, M2.6X14 SERVO MOUNTING

, M2.6X14

名稱

扁圓自攻螺絲( 粗 ) 伺服機固定片

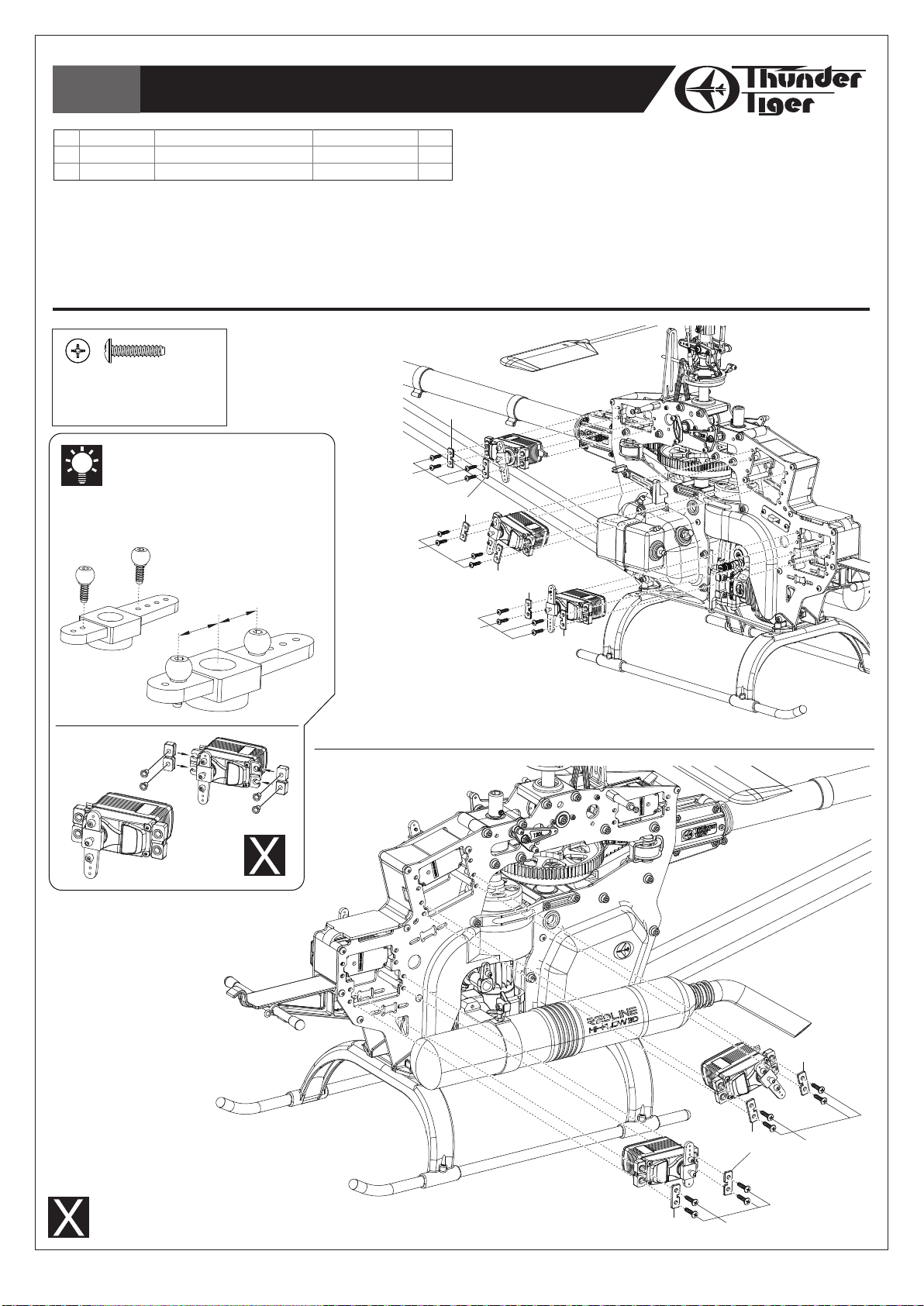

Attach the Servos onto the Servo Trays of Main Frame Set as drawing.

參考圖示將伺服機裝入主側板組上伺服機座。

, M2.6X14

(1)

QtyMaterial No. Description

20 10

(2)

(1)

(2)

Must be purchased separately

改裝品需另購

-24-

(2)

(1)

(2)

(1)

Page 26

Bag K+L

Servos Linkage Rod Installation / 伺服機連桿組裝

No.

HME4-3B

BK0105-1

BK2195

BK0086

The length may vary when using different servo, please re-adjust the length as actual condition.

連桿長度可能因搭配伺服機品牌不同而有所差異，可依實際情況調整。

HME4-3B SET SCREW,M4x3

無頭內六角螺絲,M4x3

(4)

SET SCREW,M4x3 TAIL CONTROL ROD JOINT TAIL SERVO LINKAGE ROD,345mm BALL LINK, d4.8x20

BK0086 BALL LINK, d4.8x20

單頭連接桿, d4.8x20

(5)

名稱

無頭內六角螺絲,M4x3 尾控制桿軸環尾伺服機推拉桿,345mm 單頭連接桿, d4.8x20

QtyMaterial No. Description

No.

1 1

Assemble the Linkage Rods as drawings. The linkage length is measured by the center of the 2 Ball Links. These drawings are printed actual size; you can lay the linkage sets on the left drawings to measure the correct length.

請參考圖示組裝連桿及連桿頭。連桿長度距離的計算應以兩端連桿頭中心點為基準。圖示尺寸與實物相同，您可直接對照左方圖示以快速獲得正確長度。

6 7 8

BK0175 BK0092 BK2516 BK0436

LINKAGE ROD,575mm LINKAGE ROD,30mm LINKAGE ROD,45mm LINKAGE ROD,55mm

名稱推拉桿,575mm 連接桿,30mm 連接桿,40mm 連接桿,55mm

(C)

(A)

QtyMaterial No. Description

1 4 4 1

Apply threadlocker

使用螺絲防鬆膠

Scale=1:1 (unit:mm)

62.6

55.1

(1)

(2)

T22

(6)

(A) x2

(7)

(B) x2

(6)

(B)

(3)

(4)

(E)

(D)

78.4

(D) x1

(8)

-25-

(E) x2

59.7

(7)

Page 27

Bag L+M

Receiver & Gyro Configuration / 接收機與陀螺儀配置

No.

BK2177

BK0102

HNX3-12B S.B.H SELF TAPPING SCREW

半圓頭內六角自攻螺絲

FRP CANOPY RUBBER GROMMET

名稱

玻纖機殼機身固定墊圈

QtyMaterial No. Description

No.

1 2

BK2278

HNX3-12B

CANOPY BRACKET S.B.H SELF TAPPING SCREW

名稱機殼固定座半圓頭內六角自攻螺絲

QtyMaterial No. Description

Gyro / 陀螺儀

Double Sided Tape / 雙面膠布

Receiver / 接收機

Double Sided Tape / 雙面膠布

Battery Pack / 接收機電池

(2)

Double Sided Tape / 雙面膠布

Must be purchased separately

改裝品需另購

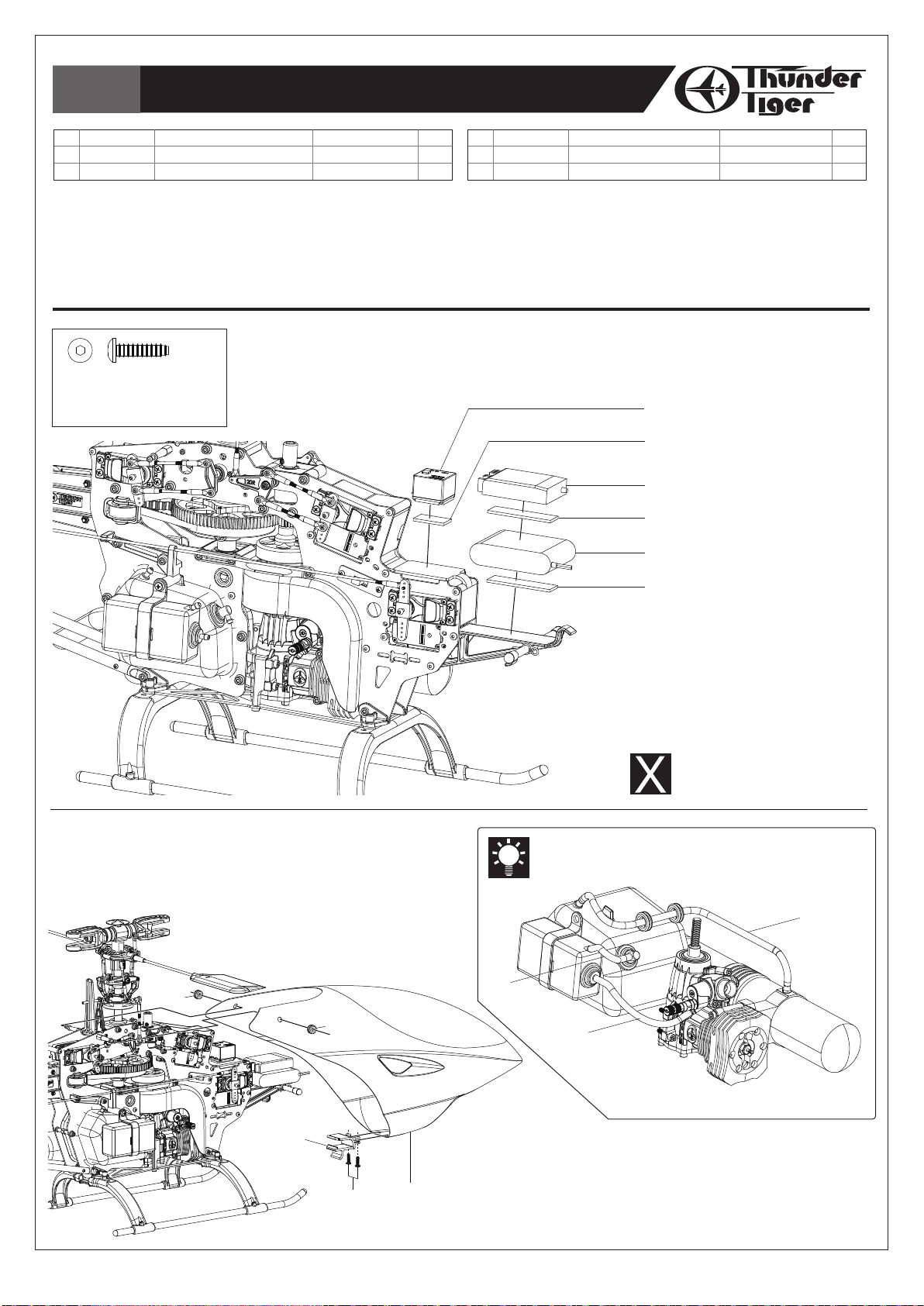

Assemble the fuel tube as drawing

油管組裝示意圖

360mm

70mm

(2)

140mm

(3)

(4)

(1)

-26-

Page 28

Bag KP1

Main Rotor Blade Assembly /

主旋翼組裝

No.

HMC4-27B

HMM4Z

HMC4-27B 內六角螺絲,M4x27 SOCKET SCREW,M4x27

HMM4Z

止鬆螺帽,M4 NYLON NUT,M4

1. You may need to adjust the linkage to ensure the blade tracking. Please refer Page 38, 〝Blade Tracking

2. Install the main blades with the Socket Screw (HMC4-27B). Do not over tighten and ensure the blades run

3. For safety the rpm of using carbon blades should not exceed 2600.

1. 您可能必需調整相關的連桿來確保旋翼旋轉軌跡正常。請參閱第38頁〝主旋翼軌跡調整〞說明。

2. 以內六角螺絲安裝上主旋翼。請勿過度鎖緊。

3. 安全起見，碳纖維主旋翼轉速請勿超過2600rpm。

SOCKET SCREW,M4x27 NYLON NUT,M4

Adjustment.〞

effortlessly.

名稱內六角螺絲,M4x27 止鬆螺帽,M4

QtyMaterial No. Description

2 2

(1)

(2)

Completed View

組裝完成

-27-

Page 29

SET-UP SECTION / 設定程序說明

Engine Throttle Control Linkage / 引擎的飛行前調整

Mount the steel linkage ball to the outer hole on the plastic throttle arm. At full throttle stick, the carburetor hole should open completely. At low throttle and with the throttle trim all the way down, the carburetor hole should close completely. Adjust the ATV function in your transmitter to achieve the above requirement. Listen to the servo, it should not make any binding noise. Try to keep the throttle ATV between 90% and 110%. If your radio does not have ATV, then adjust the location of the steel link ball on the throttle servo arm to get the correct throttle travel.

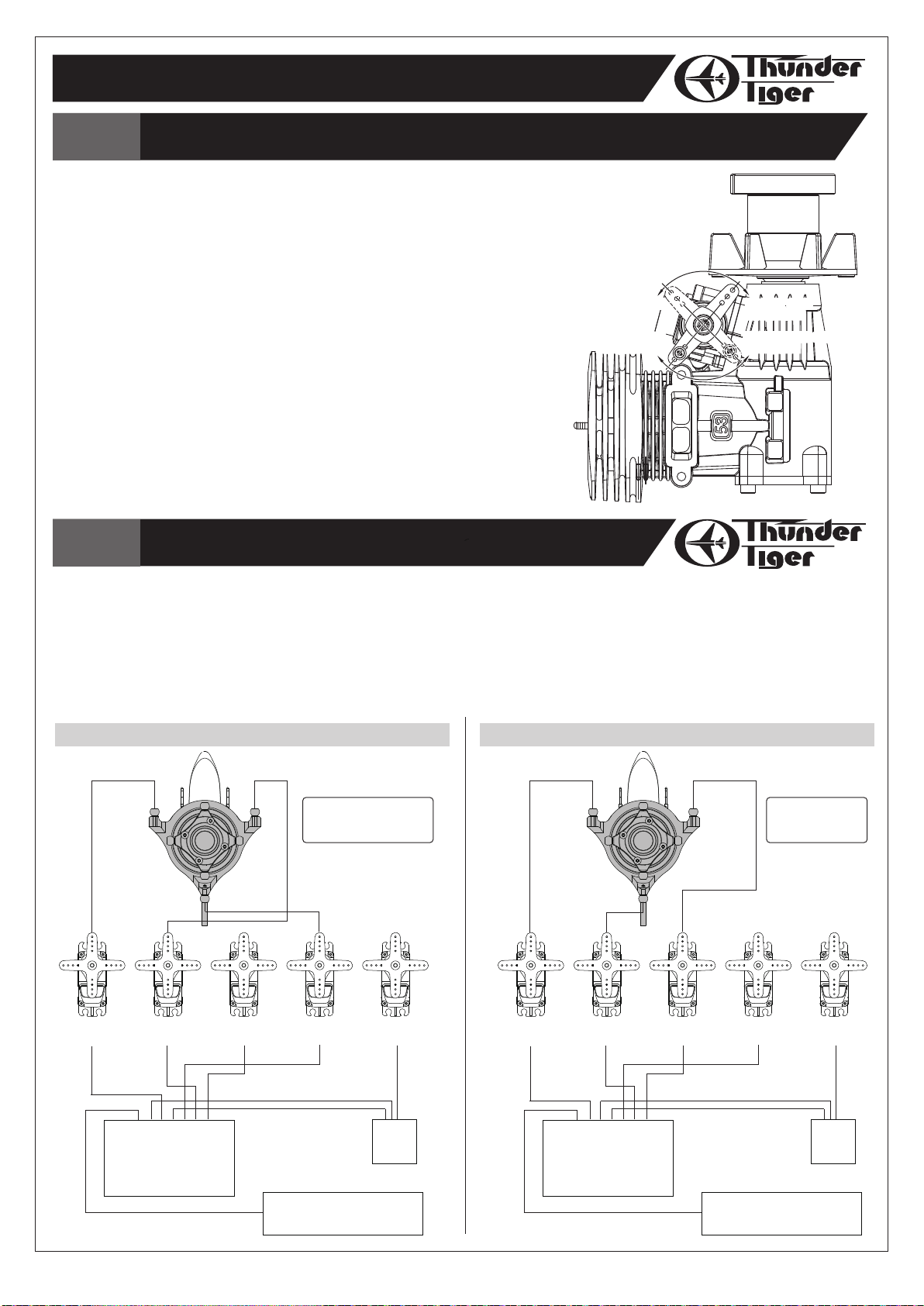

當您裝置引擎時，建議您先在化油器的節氣閥先以油性簽字筆作關閉、中速、高速位置的記號，化油器控制搖臂裝置在機身時，必須調整至與油門伺服機控制搖臂平行的位置，通常我們建議以引擎中速位置與伺服機中速位置來作相互對照的調整依據，如此各個調整點才不會因為控制與被控制機構間的不同步，發生調整上的差異。基本上由前面所要求的各項裝置數據均能滿足使用上的需求，當發生伺服機行程上的差異時，可以選擇使用遙控器上的ATV功能調整，但是我們建議調整的範圍雙邊（高、低速）不要有總合20%以上的調整差距，並儘可能的維持在90% 到110%的範圍內。

THROTTLE FULLY OPEN

THROTTLE FULLY OPEN 油門全開位置

油門全開位置

THROTTLE CLOSE

油門關閉位置

THROTTLE CLOSE

油門關閉位置

THROTTLE FULLY OPEN

油門全開位置

Electric Device Connection / 電子設備連接說明

E-CCPM system requires 3 channel for aileron, elevator and an AUX(for pitch). But people may get confused because the 3 channels are not referred to any independent movement. They are operated together to carry out the rolling, flipping and collective controlling. As a result, the following connecting manner is recommended. The following chart is the E-CCPM connecting for your reference. Please also consult your radio instruction manual.

E-CCPM系統需要使用三個通路予副翼、升降舵、與螺距（使用AUX通道）。許多愛好者可能會對於此設定感到困惑，但是在混控模式下，必須藉由三顆伺服機同時完成動作，因此建議依照下列說明完成伺服機與接收機連結。下列圖示為安裝範例，實際接線方式，請參照您的遙控器使用說明書。

ACE RC / FUTABA / HITEC Radio SysymJR Radio Sysym

AUX1 (CH6) / CH2* CH6 / CH1* CH1 / CH6*CH2 / AUX1 (CH6)*

CH3

*CH2 & Aux1(CH6) are

Interchangeable

*CH2 & Aux1(CH6) 可互換

CH2

*CH1 & CH6 are

Interchangeable

*CH1 & CH6 可互換

Pitch

螺距

Aileron

左右/副翼

CH3

CH4

AUX 1

AUX 2

Batt

7 channel receiver

七動作接收器

CH2

CH1

CH3

CH2

CH1

Aileron

左右/副翼

Throttle

油門

Elevator

前後/升降舵

Gyro Gain Wire Gyro Gain Wire

Batteay of receiver 4.8-5.8V

接收器電池 4.8-5.8V

Rudder

尾舵

Gyro

陀螺儀

Pitch

螺距

Elevator

前後/升降舵

CH4

CH5

CH6

AUX 1

(Batt)

7 channel receiver

七動作接收器

-28-

Throttle

油門

陀螺儀訊號線

Batteay of receiver 4.8-5.8V

接收器電池 4.8-5.8V

Rudder

尾舵

Gyro

陀螺儀

Page 30

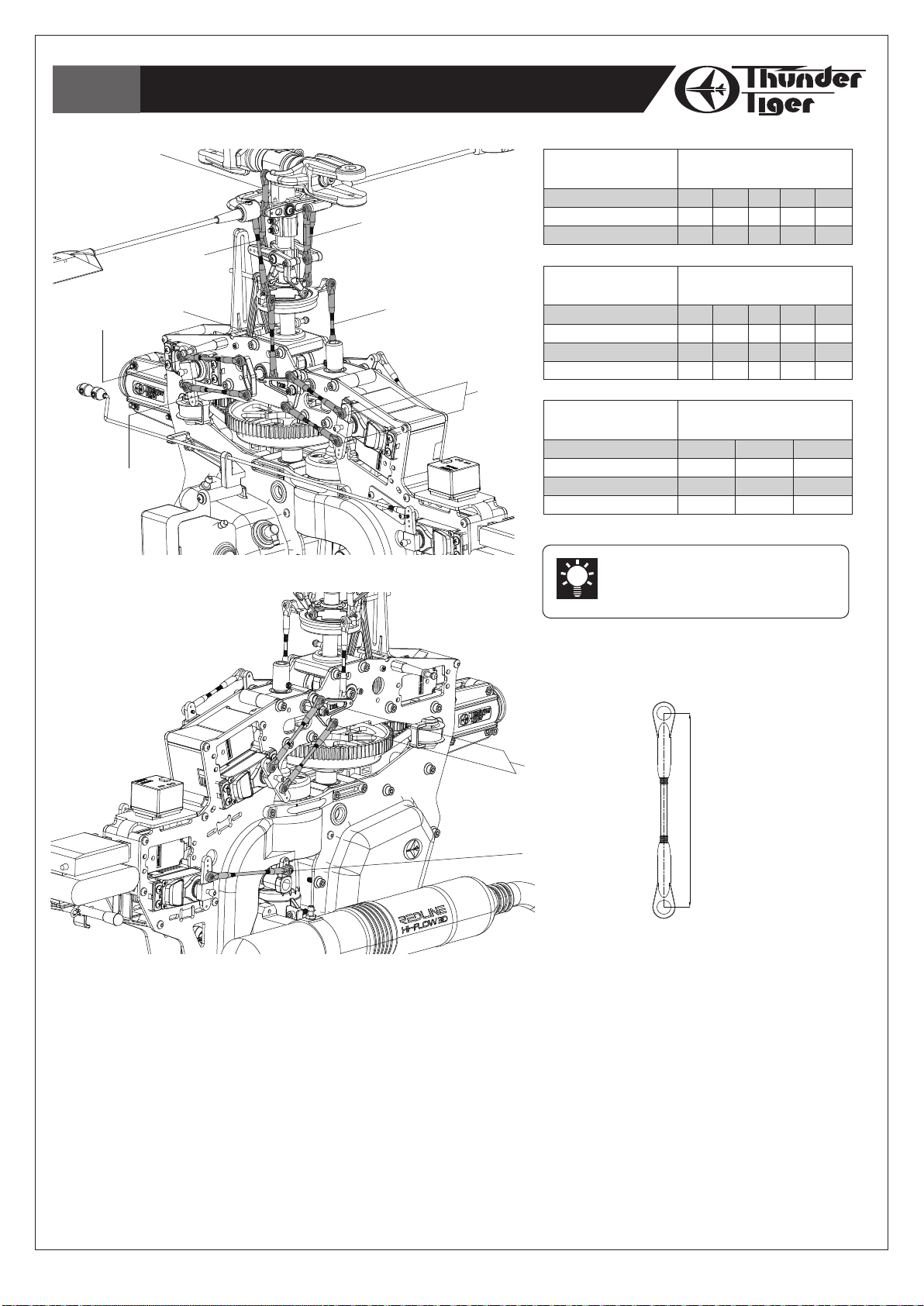

Configuring The Titan X50 / Titan X50 設定

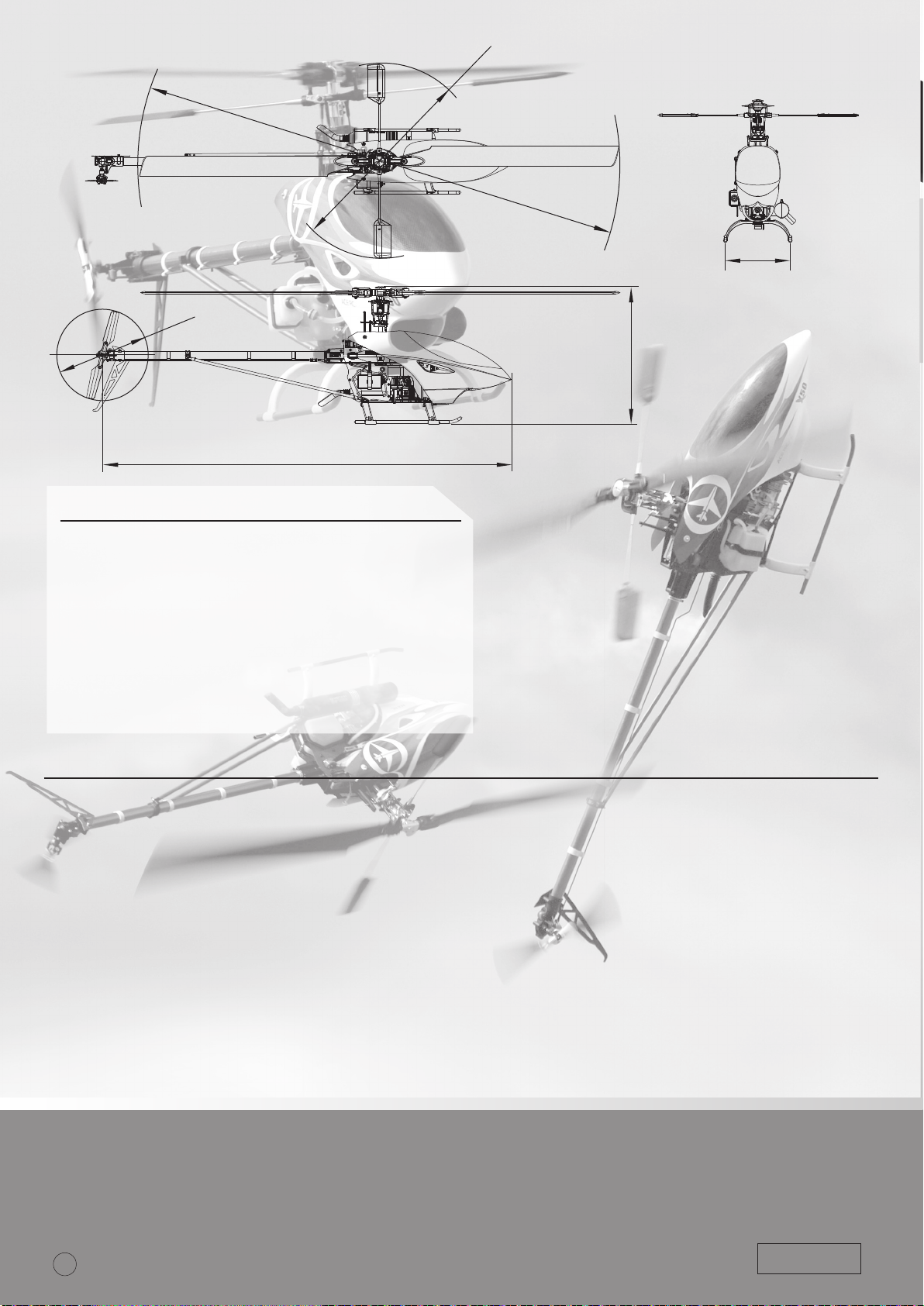

25.1mm

62.2mm

60mm

55mm

35.4mm

55mm

55.1mm

Normal 正常模式 Idle-up1 特技模式1 Idle-up2 特技模式2

Normal 正常模式 Idle-up1 特技模式1 Idle-up2 特技模式2 Hold 熄火降落

The settings may differ, the table is for your reference only.

每人操作習慣或有不同，僅供參考。

5-Point Throttle Curves

5點油門曲線

100

5-Point Pitch Curves

點螺距曲線

100

Blade Pitch Angles (degrees)

螺距角度

-4

-12

-15

6 0 0 0

10 12 15 15

Length

59.7mm

78.4mm

The above pushrod lengths permit 3D flying with the Titan X50. Use these lengths as a starting point. Pushrod lengths are measured from ball link center to ball link center. Suggested throttle and collective pitch set up: Idle-up1 is for continuous 3D flying and aerobatics. Idle-up2 is for those who have very good collective pitch management skills. Use a pitch gauge to check blade angles. It is easier to start setting up idle-up2 blade pitch angles first. For safety, to inhibit idle-up modes and just use a normal mode setting for a novice is recommended. The model should hover at around 1550 rpm in normal mode, and flies at around 2000rpm in idle-up1/2. With 1700 or higher headspeed, the use of carbon/FRP blades is recommended.

以上為 Titan X50 直昇機之3D飛行連桿長度設定值。這些設定值可作為初始設定時之參考標準。在螺距及油門曲線設定方面，建議設定兩個特技模式。進行連續3D飛行時使用特技模式-1，而進行倒飛練習時則可使用特技模式-2 。此外，建議初學者暫時不要使用特技模式進行練習。至於轉速的設定方面，建議停懸及特技模式之轉速分別為1550rpm及2000rpm。建議當轉速高於1700rpm以上時，請將主旋翼更換為玻璃纖維或碳纖維主旋翼。切記！即便使用高性能碳纖維主旋翼，轉速仍有其上限，請參照旋翼的使用說明，切勿超轉使用。

measured from ball link center to ball link center

由此連桿頭中心測量至另一頭連桿頭中心

-29-

Page 31

Radio and Control Linkage Setup For Titan X50 遙控器設定

The performance of any RC helicopter and how well it fly depends strongly on how the model has been set up. Before you start, please make up the length of all the pushrods according to the recommended length. The pushrod lengths we have provided are valid for beginners to expert 3D flying. Then, we recommend using the reset function on your transmitter to reset all settings to factory default values. Check the end point adjustment or ATV value, on your transmitter to make sure the values are at 100%. Next we recommend program the numerical value we have provided in the table for the five points in the throttle curves and the collective pitch curves. Now you can proceed to do the mechanical adjustments. Throttle Adjustment. The throttle arm on the carburetor should always be parallel to the throttle servo arm. When the throttle barrel is half open, the throttle arm should be straight down. Leave it at this position. Turn on the transmitter and leave the throttle in the normal throttle mode. Set the throttle trim to the bottom and set the throttle stick to the middle. Adjust the throttle pushrod to the correct length. Check the throttle servo travel direction to confirm moving the throttle stick to the high position will move the throttle arm to the full open position. When the throttle stick is moved to the highest or the lowest position, it will fully open or fully close the throttle arm without binding.

在遙控直昇機的領域中有句老話：三分飛行，七分調整。意即一架遙控直昇機好飛與否或性能優劣，取決於調整與設定的恰當與否。為了讓消費者可以更瞭解 Titan X50 並進行最佳之設定，本節將一步一步說明機體與遙控器的設定方式，以完全發揮 Titan X50 直昇機的飛行性能。在開始設定之前，請按照前述之3D連桿設定長度，將機體之連桿調整至適當長度。該連桿長度適用於初學者及高階玩家。此外，建議將遙控器所有參數歸零至原廠初始值，並將所有頻道之行程量調整至100%。接下來將油門曲線與螺距曲線調整至本說明書所提供之數值，以作為初始設定。再來便可以進行更細部的設定了。油門調整在正常模式之下，確認油門伺服機之正逆轉，將油門微調置於熄火位置，選擇適合之油門伺服機擺臂、適當之球頭孔位，並調整油門連桿長度與遙控器之油門ATV值，使其正負值相近且接近100%，並使其在高速與低速的位置下確定化油器全開與全關，如此便完成油門行程之設定。在理想狀況下，引擎化油器之擺臂應該與油門伺服機之擺臂平行，而當化油器開啟於中速狀態，伺服機與化油器擺臂應均是接近垂直的。

Collective Pitch Setup 螺距設定

Since you have been setting the lengths of the pushrod as mentioned, the linkage should be cenntered well as described below.

若您已經依照前述參數設定油門對螺距曲線，連桿應會如下處於置中位置。

■ Centering

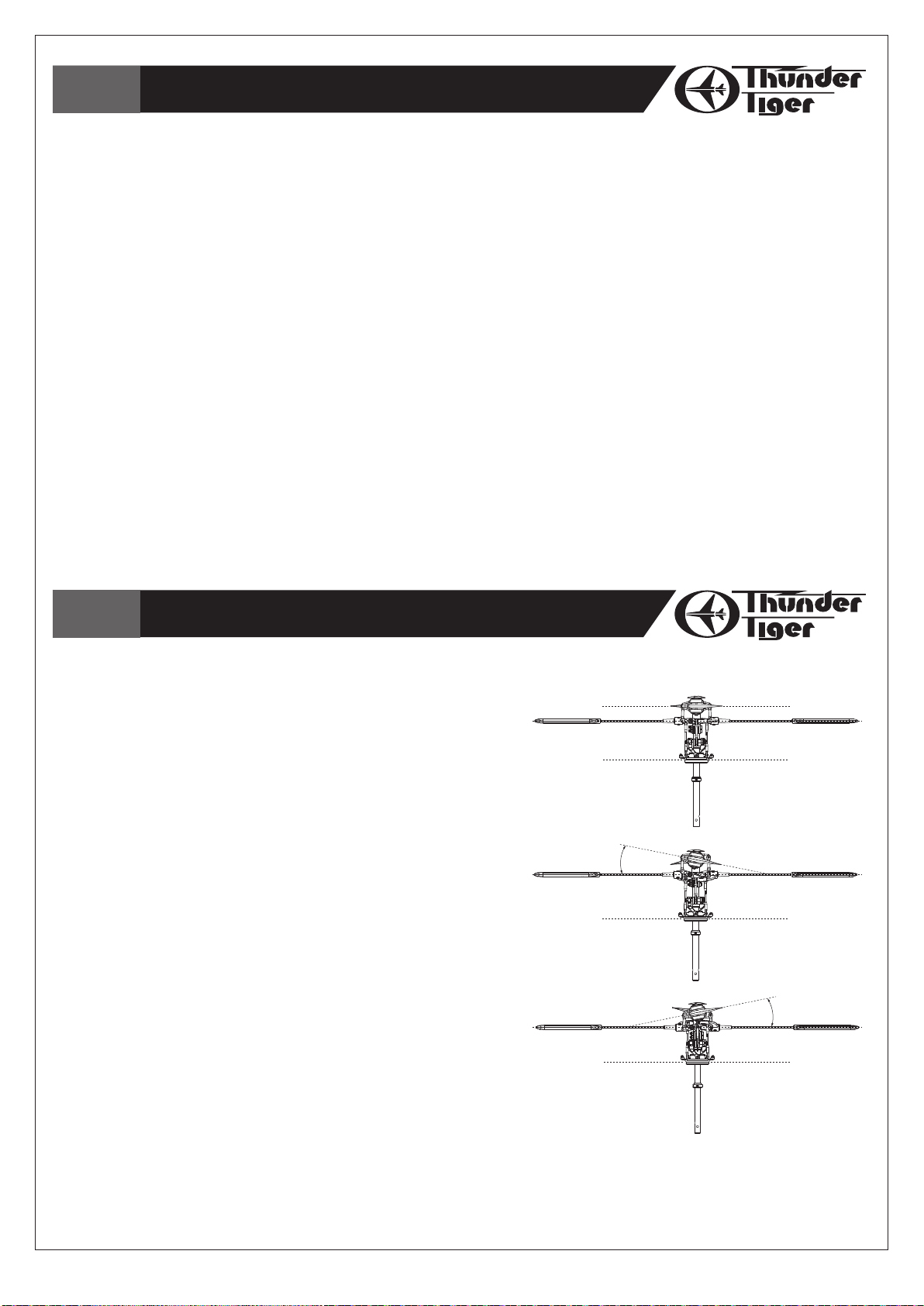

1. The elevator and aileron control levers should be as the drawing below while centering the collective pitch stick.

2. Parallel the flybar, the main blades should be at 0 degree and the swashplate should be level.

■ 中立點

1.當發射機螺距撥桿置中時，升降舵面及副翼控制搖臂位置應成水平狀態。

2.主旋翼與穩定翼平行，兩者間角度為0，且十字盤為水平狀態。

■ Maximizing

1. Place the collective stick at high end.

2. The main blades should be at +15 degree and

the swashplate should be level.

■ 最大螺距設定

1.將發射機螺距撥桿上推至最高點。

2.主旋翼相對於穩定翼呈+15度角，且十字盤為水平狀態。

■ Minimizing

1. Place the collective stick at low end.

2. The main blades should be at -15 degree and the

swashplate should be level.

■ 最小螺距設定

1.將發射機螺距撥桿上撥至最低點。

2.主旋翼相對於穩定翼呈-15度角，且十字盤為水平狀態。

NOTE1: The steps above defines the limits of the collective pitch setting. NOTE2: The setting of the maximum collective pitch depends on your personal flying skill and style. Too much collective

pitch could overload the engine and drive system.

說明1：上述步驟在設定主旋翼螺距的範圍值。說明2：請依個人飛行技巧及習慣來設定最大螺距。過大的角度會增加引擎及傳動系統的負荷而縮短壽命。

+15°

0°

-15°

-30-

Page 32

Setting Up Data For Your Reference 參數設定參考

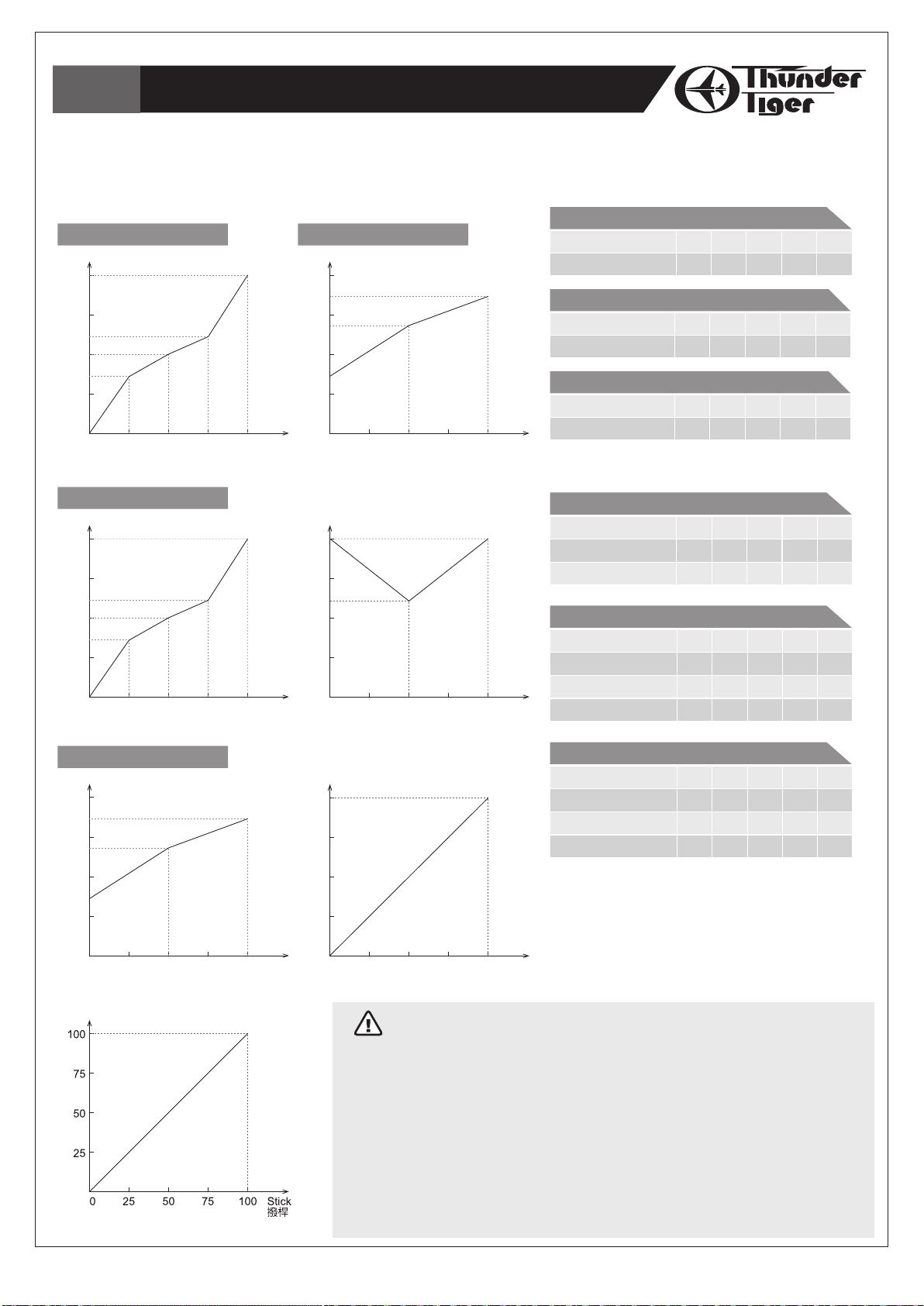

The following is the setting up data of pitch curve and throttle curve for your reference only. Please ask experienced pilot to help you if you have never done this before.

下列參數設定僅供參考，請依實際狀況進行調整，或詢求有經驗的玩家協助。

■ Beginner / 一般飛行

Throttle Curve 油門曲線

Thro.

油門

100

0 25

50 75 100 Stick

Pitch Curve 螺距曲線

Pitch

螺距

100

撥桿

0 25 50 75 100 Stick

■ 3D

Throttle Curve 油門曲線

Thro.

油門

100

0 25

◎ Normal / 一般飛行 ◎ Idle / 特技模式 1

50 75 100 Stick

撥桿

100

0 25

Thro.

油門

撥桿

50 75 100 Stick

撥桿

Throttle Curve 油門曲線

00253550507565100

Normal 一般飛行

Pitch Curve 螺距曲線

03525-507075-100

Normal 一般飛行

Pitch Curve 螺距曲線

Normal 一般飛行

-4°25-

Throttle Curve 油門曲線

Normal 一般飛行 Idle-up 1 特技模式 1

100

Pitch Curve 螺距曲線

Normal 一般飛行 Idle-up 1 特技模式 1 Hold 鎖定模式

0 0

50 +6°75-

50 50 60

50 70

75 65

100

100 +10°

100 100 100

100

100 100

Pitch Curve 螺距曲線

Pitch

螺距

100

0 25

50 75 100 Stick

◎ Normal / 一般飛行

Pitch

螺距

◎ Hold / 鎖定模式

100

撥桿

0 25

◎ Idle / 特技模式 1

Pitch Curve 螺距曲線

Pitch

螺距

50 75 100 Stick

撥桿

Normal 一般飛行 Idle-up 1 特技模式 1 Hold 鎖定模式

-4°

-15°

+6°

WARNING 警告

1. Too much collective pitch will bring about too much loading to the engine and drive system.

2. Too much headspeed will lead to blades (grips) explosion.

3. It's very dangerous for setting the headspeed over the blades (grips) limit.

4. Please do not set the collective pitch to the maximam (±15) unless you have very good collective pitch management skill.

1.過大的聚合螺距設定會使引擎及傳動系統超載。

2.過快的主旋翼轉速會造成主旋翼轉座崩裂或射槳。

3.將旋翼轉速設定超過槳片負載極限極端危險!

4.請勿將聚合螺距設定超過最大值（+15度角）。

100 +10° +15° +15°

-31-

Page 33

Tail Control And Gyro Setup 尾舵控制及陀螺儀控制

It is recommended to use a Heading Hold Gyro. With a Heading Hold Gyro, you may not use the trim and the revolution mixing function of tail control. First, choose the length of the tail servo arm referring to the manual of the Gyro. You may try 13.5mm as the starting setting. Then mount the servo arm for the moment and check the movement of the tail servo:

1. While giving the right rudder control, the servo arm should move toward the nose of helicopter.

2. Rotate the helicopter with your hand counterclockwise, the servo arm should move toward the nose of helicopter.

建議搭配鎖頭式陀螺儀，可使您無需額外設定微調及混控功能來控制尾舵。首先，參考陀螺儀說明書來選用尾舵伺服機擺臂長度，建議初始可先設定為13.5mm。暫將伺服機擺臂固定後進行尾舵伺服機作動確認：

1. 當執行右舵時，伺服機擺臂應朝機頭方向作動。

2. 將整台直昇機逆時針旋轉時，伺服機擺臂應朝機頭方向作動。

Rudder Servo

尾舵伺服機

After ensuring the moving direction of tail servo, you have to mount the servo arm in the correct position. Please reset the receiver power and do not move the helicopter. While the tail control stick and trim are centered, mount the servo arm vertically. If you cannot mount the servo arm vertically, please try another servo arm. Next, two points may be your concern:

1. The traveling limit of the rudder servo may not go beyond the mechanical movement.

2. The rudder servo arm should be vertical while the tail rotor are at 0 pitch or with a little offset to the right. (Referring to the photo below)

確認尾舵伺服機動作正確後，即可將伺服機擺臂確實安裝固定；請勿移動直昇機並重新啟動接收機電源。當尾舵撥桿與微調置中時，將伺服機擺臂垂直尾管安裝固定。若無法正確垂直，請更換合適的擺臂。接著，請特別注意下列兩者：

1. 尾舵伺服機最大行程量切勿大於機械行程量。

2. 當尾旋翼螺距為0或稍偏向右時，尾舵伺服機擺臂應在垂直位置。（請對照下圖）

90°

Rudder Servo

尾舵伺服機

Note1: To find the traveling limit, you have to adjust the Gyro referring to its manual. Note2: To adjust the pirouetting speed of the helicopter, please use the "Travel Adjustment" or the "D/R & EXP" function of your transmitter.

說明1：請參考陀螺儀說明書調整陀螺儀以確認伺服機最大行程量。說明2：調整尾舵自旋速度，請設定發射機上“行程設定（Travel Adjustment ）”或“大小動（D/R）、指數值（EXP）”功能。

-32-

Page 34

Swashplate Type Setting / 十字盤模式設定

Set the model type for helicopter in your Transmitter and set the swashplate type as 120°CCPM. Refer your Transmitter manual to find a proper

Nose / 機首方向

120°

swashplate setting.

請參閱遙控器說明書，設定正確之十字盤設定模式。

120° 120°

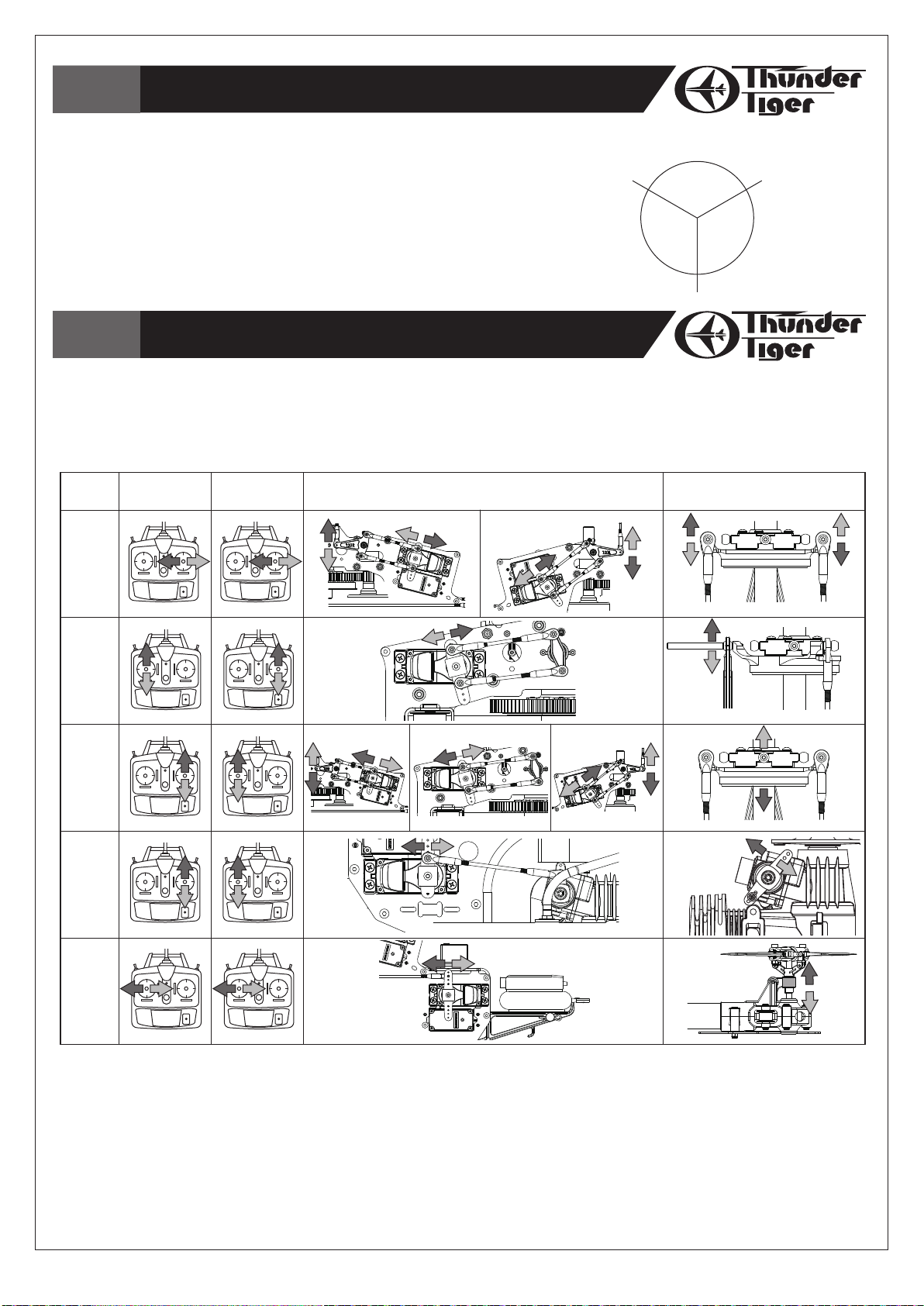

Swashplate & Servo Movement Setting / 十字盤及伺服機動作設定

As going through these setup procedures, ensure there is none of the controls bind at full travel. Next, please refer below illustrations to ensure the direction of servo movement and swash mixing settings are correct for the controls properly.

在繼續設定之前，請先確認伺服機及連桿作動皆順暢可達最大作動量。然後，請參考下表圖示，確認伺服機動作及十字盤混控設定可正確對應撥桿動作。

Aileron

副翼

Model 1 Model 2

Servo Horn movement

伺服機擺臂動作

Right Side/右側

Left Side/左側

Check Point

機構動作確認

Elevator

升降舵

Pitch

螺距

Throttle

油門

Rudder

尾舵

Right Side/右側

Left Side/左側

Right Side/右側

Front View / 前視圖

Right View / 右視圖

Left Side/左側

Front View / 前視圖

If the movements of servos or swashplate are not correct, please adjust the servo reverse settings for one or more channels in your Transmitter.

若伺服機或十字盤作動方向不正確，請調整您遙控器上個別的伺服機逆轉功能。

-33-

Page 35

Blade Tracking Adjustment 主旋翼軌跡調整

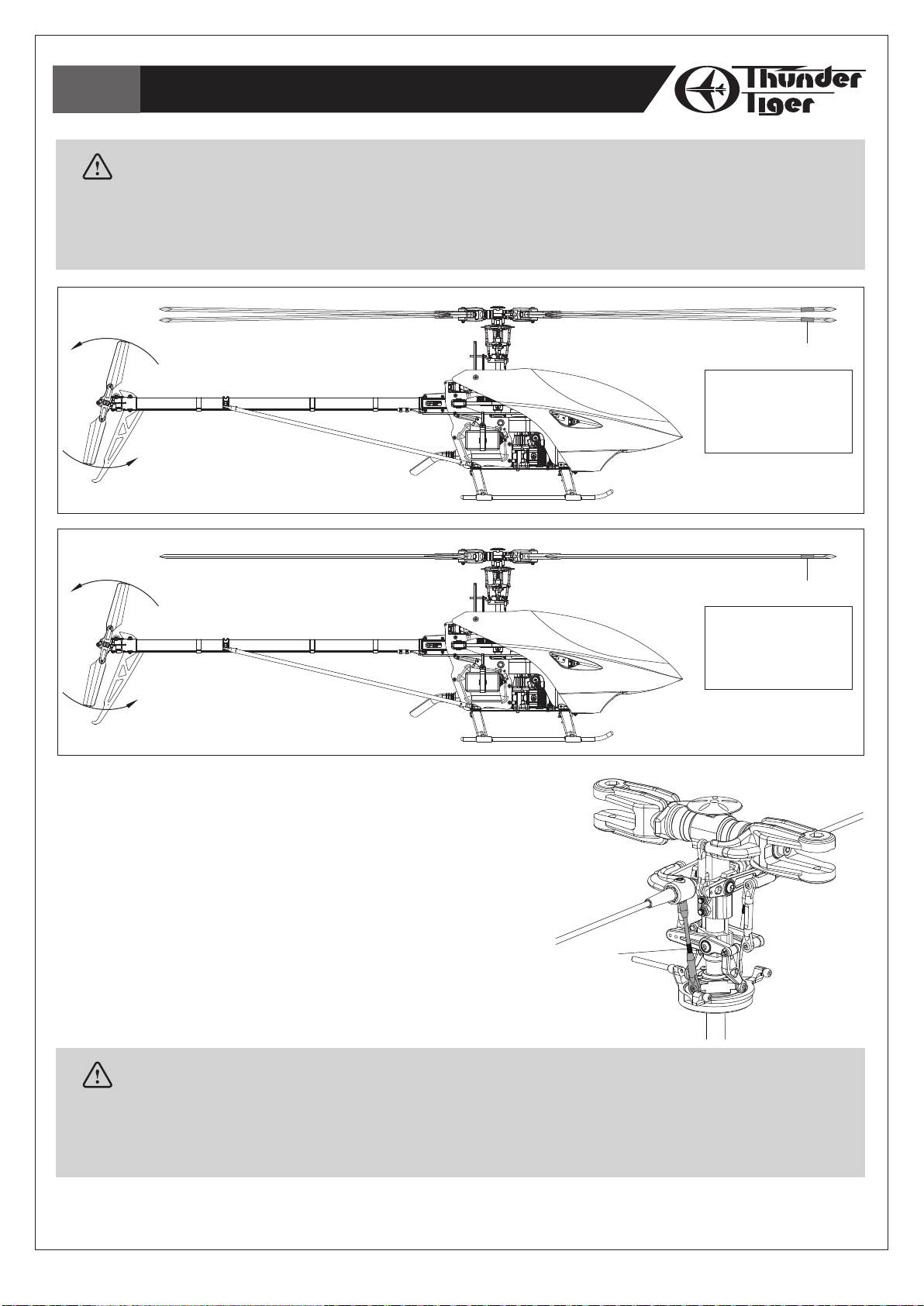

CAUTION / 警告 For safety, ensure to keep a safe distance from the helicopter at least 10 meter (30 feet) while making tracking adjustment.

安全起見，進行主旋翼軌跡調整時，請至少與直昇機保持10米（30呎）的安全距離。

color tape / 色標貼

Out of Track / 雙槳

Adjustment is necessary.

需要調整

1. Use a color tape at the tip of main blades for tracking identification easily.

2. Increase the main blade speed to just before the helicopter lifts-off.

3. Observe which blade appears to be lower than the other, and increase the pitch of the lower blade one turn of the Linkage Rod C (refer Page 12) at a time until each blade runs in track. If both main blades rotate in the same path, it doesn,t need to be adjusted.

1. 在主旋翼前端貼上色標可方便辨識軌跡。

2. 提高主旋翼轉速使機體稍懸浮於地面。

3. 觀察兩支旋翼軌跡是否有落差（雙槳），調整軌跡較低旋翼上

的連桿C (參閱第12頁) 長度，一次調整一圈，直至兩支旋翼軌跡一致。若軌跡一致則無需調整。

color tape / 色標貼

In Track / 軌跡正確

Adjustment is unnecessary.

不需要調整

Linkage Rod C (refer Page 12)

連桿C (參閱第12頁)

CAUTION / 警告 Out of track causes vibration, instability and a loss of power due to additional drag. Please adjust the tracking repeatedly until the blades are in track properly.

旋翼軌跡落差（雙槳）會造成直昇機震動、不平衡及損失動力。請務必進行調整以使旋翼軌跡精準正確。

-34-

Page 36

After Flight Checklist 飛行後的檢查項目

(1) Check every screw and bolt to make sure none has loosened due to vibration. (2) Check every rotating and movable part to ensure they still move smoothly and normally. (3) Clean off the exhaust residue from the muffler, engine, and helicopter. (4) Check all movable parts, such as gears, ball links, belt, etc. for unusual wear.

(1) 每次飛行後必須詳細的檢查機體的各部位螺絲有無鬆動情形，若發生鬆動必須確實鎖緊再進行下飛行。 (2) 每次飛行後檢查每一個轉動部位（含單頭連接桿）均能順暢的運作。 (3) 排氣管、引擎、直昇機本體必須確實的清潔。 (4) 檢查每一個動作部位，加齒輪、球頭、皮帶等。

Trouble Shooting 異常處置

[1]The engine will not start.

* The engine starting shaft will not turn:

The engine may be flooded with too much fuel. Please remove the glow plug first, then turn the engine with the electric starter until the excess fuel spits out of the glow plug hole.

* The engine turns when the electric starter is applied, but the engine will not start:

(1) Is the glow plug working? Remove the glow plug and does the platinum coil glow red when a 1.5 volt battery is applied to the plug? If not,

then the glow plug battery may be weak and old. (2) Is the carburetor needle properly set? Please refer to the engine instruction manual for the proper needle setting. (3) Does the throttle control arm move properly and in the correct direction according your transmitter command?

* Engine will start, but quits immediately.

Use the transmitter to increase the carburetor opening slightly. The throttle stick should never exceed the 1/3 positiom when starting the engine.

(1) (2) Try a new or different type of glow plug. There are different types of glow plugs on the market for different types of fuel and operating

conditions. Seek the advice of experienced fliers and also experiment with different types of glow plugs until you find the one that suits

your operating condition the best.

* Engine runs, but the helicopter will not lift off.

Check the main rotor blade pitch angle, they should be set at 5.5 to 6 degrees when the transmitter throttle/collective stick is at the center position.

(1) (2) Does the engine throttle arm move properly? The carburetor opening should be fully open when the transmitter throttle/collective stick is

moved up. The carburetor opening should be nearly closed when the transmitter throttle/collective stick is moved down. And the opening

should be completely closed when the transmitter throttle/collective stick is moved down and the throttle trim is also moved down. (3) Check your engine manual for proper starting point settings. Then try again to start your engine. If smoke is excessive when adding throttle

your high speed needle may be too rich. Try a few clicks turning clockwise and try again. Once proper needle settings are achieved, model

should lift off effortlessly.

[2] Helicopter problems.

* The helicopter shakes.

(1) Is the blade spindle bent? (2) Is the flybar bent? (3) Is the main rotor shaft bent?

Are the two control paddles mounted at the same distance from the rotor shaft, and the paddles are parallel to each other, and in the proper direction?

(4) (5) Is the tail rotor shaft bent? The tail rotor blades mounted properly or damaged? (6) Are the main rotor blades damaged or mounted in the proper orientation? The blades may require additional balancing. The blade balance

can be checked by removing both blades and then use one of the 4mm blade bolt and nut to hold the two blades together like a teeter

totter. Then, hold the blade bolt with your thumb and index finger. The two blades should teeter and remain in a level position. If not, then

add some tape to the lighter blade near the blade tip until the two blades teeter in a level position. Hobby shops also sell blade balancers

that are designed solely for balancing model helicopter blades.

1. 引擎無法啟動或無法正常起飛時：

當引擎啟動軸無法轉動時：將您的機身拆下，由前側將火星塞拆下，重複使用啟動器的程序，直到引擎內積存的燃油排出為止，再將火星塞鎖回去，重複啟動的程序。當引擎可以轉動，但是無法順利啟動時：

1. 檢查電夾是否有足夠的電源，可以將預備的火星塞接到電夾上作確認，若電夾顯示正常，可能需要更換一個新的火星塞。

2. 化油器的油針設定是否需要重新設定？請檢查主副油針的相關設定。

3. 試著將油門微調調高或是將油門控制桿稍微往上推，再進行啟動程序，較低的油門設定可能無法順利啟動引擎。引擎啟動後馬上熄火的處置：

1. 引擎啟動後，加速的動作稍微減緩，當引擎的低速油針設定的較富油時，可能會發生此狀況。

2. 試著更換多種其他類型的火星塞，依據您所使用的燃油、引擎來選擇最適用的火星塞。

引擎已經啟動，但是無法正常起飛：

1. 檢查主旋翼的攻角，在中速位置主旋翼的攻角應該是在5.5~6度的範圍。

2. 檢查當油門推桿在高速位置時，能夠讓節氣閥達到高速的位置；當低速時，節氣閥必須在接近關閉的位置。

3. 化油氣的油針是否位做適當的設定？先順時針旋轉將主油針關閉，再逆時針放開約2~2.5圈（此設定值請參考同好之間的設定或是各廠牌引擎的說明書建議值），引擎的排煙若是顯得較少，並有咳嗽的聲音發出，此時引擎呈現貧油的現象，必須鬆退油針；當引擎顯得無力，並由消音器中噴出許多燃油時，此時引擎是處於富油的情形，必須適時的鎖進少許油針。

2. 直昇機的問題

機體發生明顯的震動時：

1. 檢查皮帶是否設定的太鬆或過緊，未正確安裝或發生反纏的現象。

2. 檢查平衡桿是否兩端長度不一致或是彎曲。

3. 檢查主軸是否彎曲。

4. 檢查主旋翼兩端轉座是否跟主軸等距。在組裝旋翼頭時，若未於旋翼緩衝橡皮上油，可能會發生橫軸位置偏移的現象，此時當直昇機低速時會發生明顯的機體震動現象。

5. 尾旋翼軸是否彎曲？尾旋翼轉座是否鬆動或損毀？尾旋翼是否有單邊毀損的情形？

主旋翼出廠前均已做過嚴謹的配對檢驗工作，但使用時仍必須再次進行主旋翼的重心、重量微調，您可以使用市售的主旋翼重心調整器來作旋翼重心的

調校標準。在直昇機套件的貼紙中或主旋翼中均附有寬度約1公分的重心調整用貼紙，當主旋翼裝置在重心調整器上，裁剪適當長度大小的貼紙貼在較輕一端的主旋翼上，將可改善因主旋翼重心、重量不均所產生的震動問題。

7. 主旋翼以及尾旋翼的鬆緊度必須一致，若有單一側較緊的情況，也可能造成機體震動。

-35-

Page 37

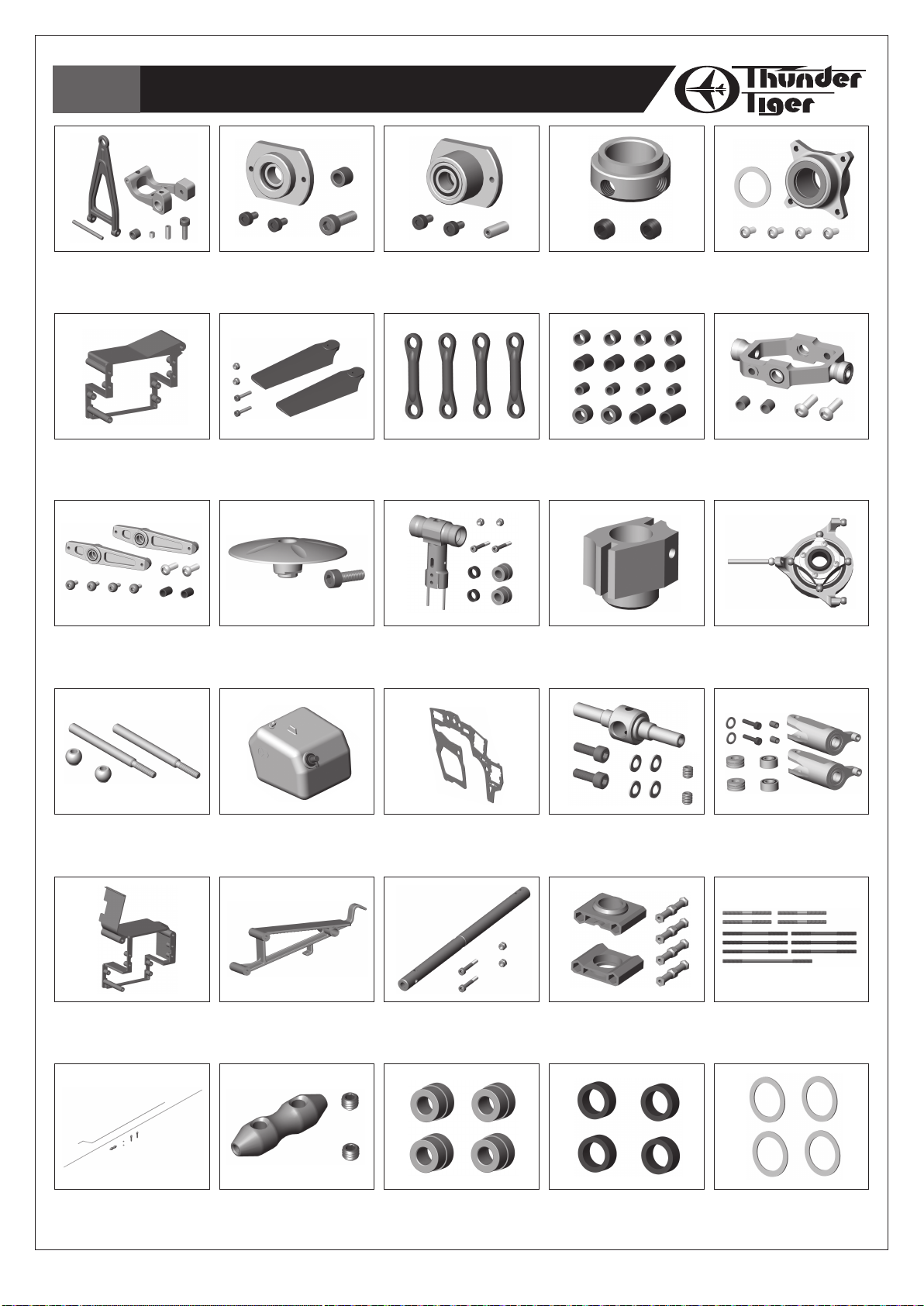

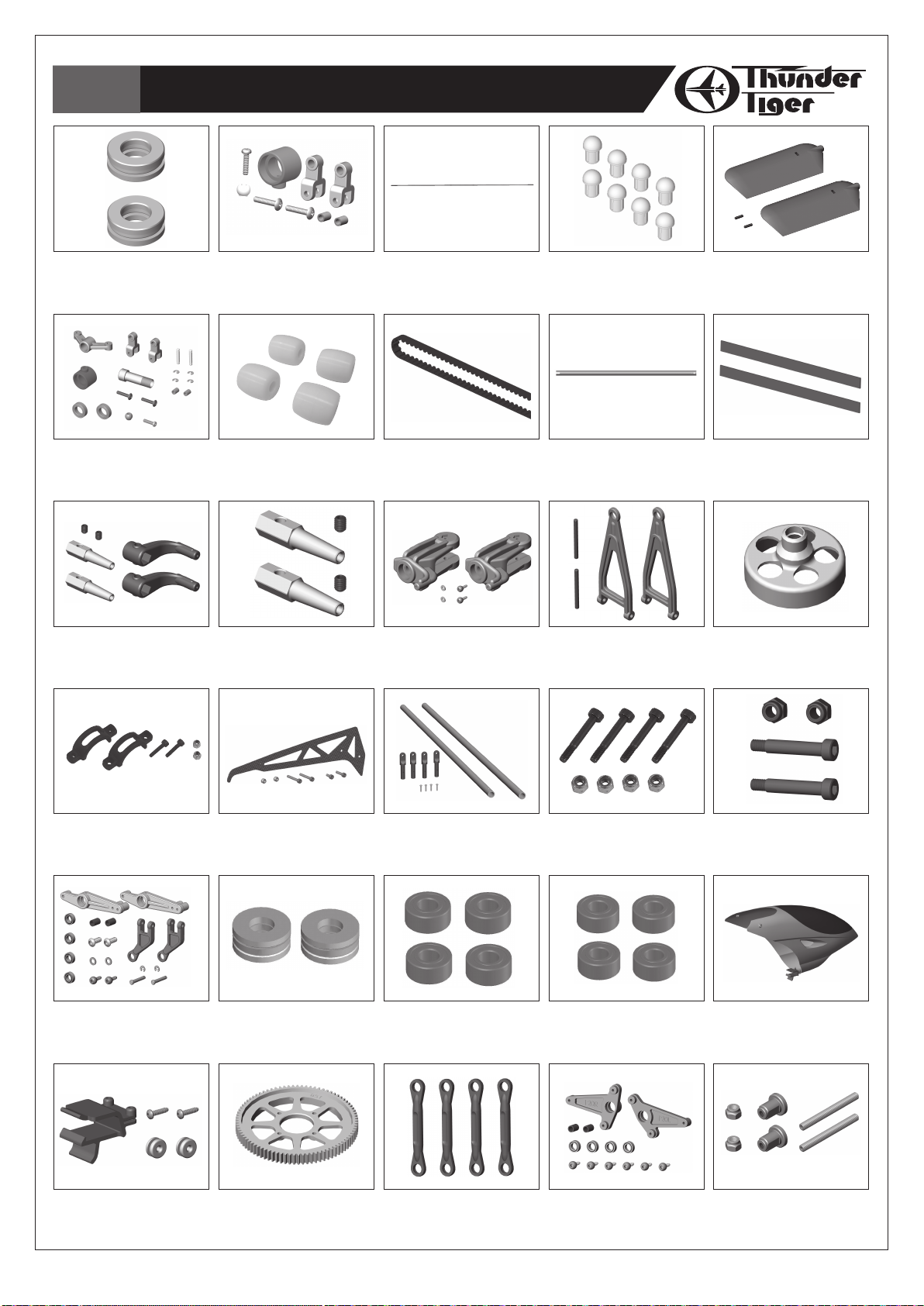

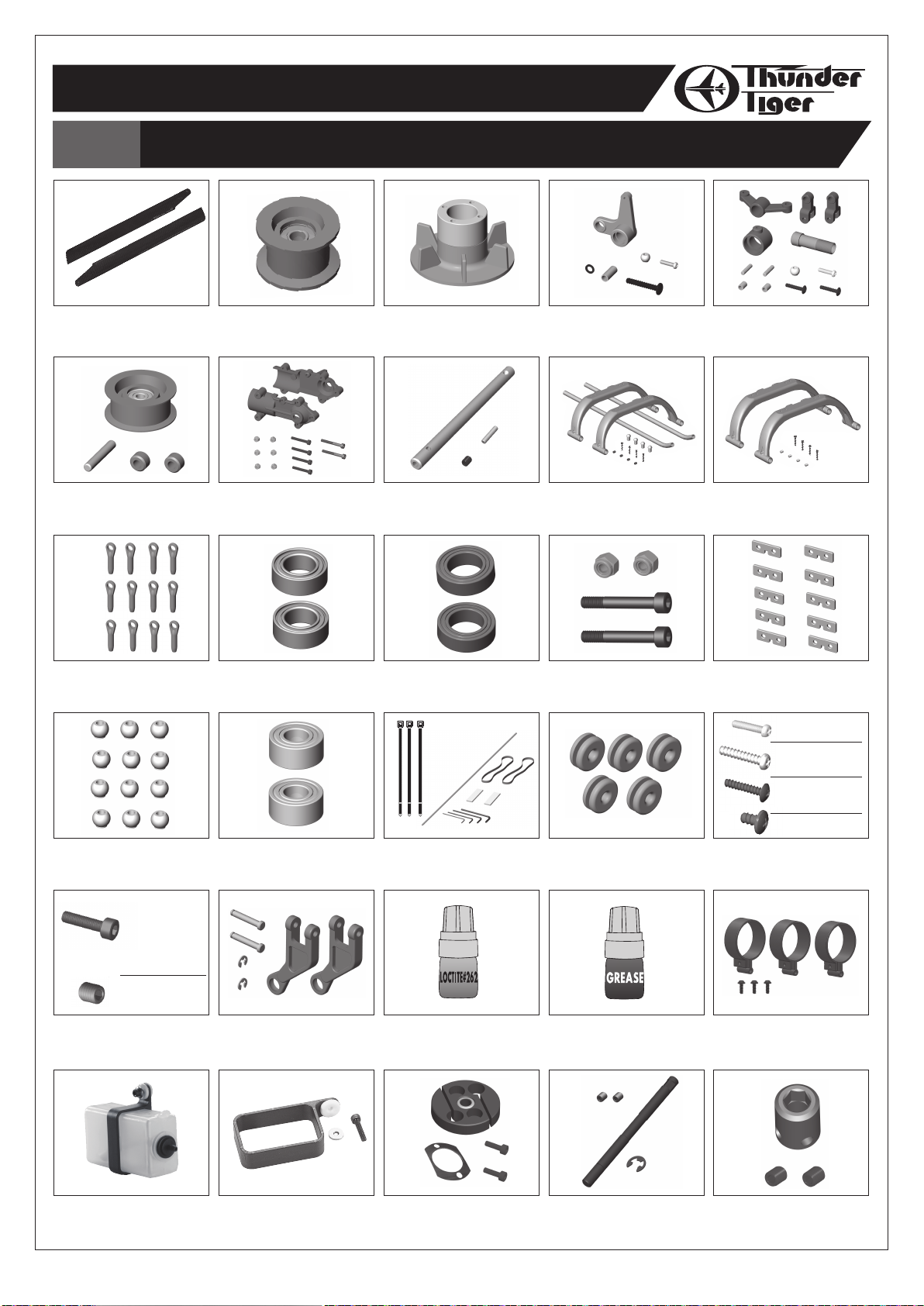

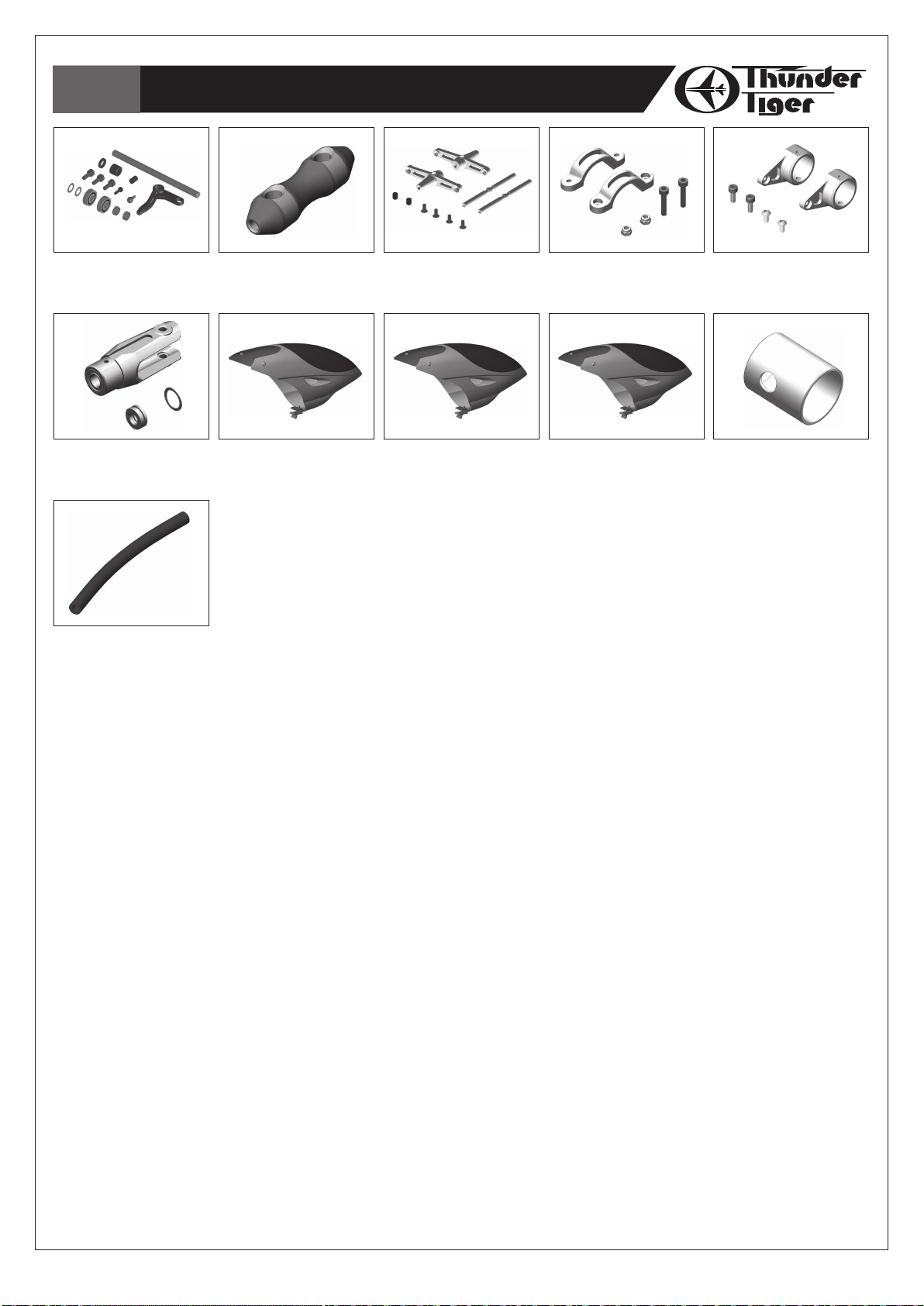

PARTS LIST SECTION / 零件包目錄

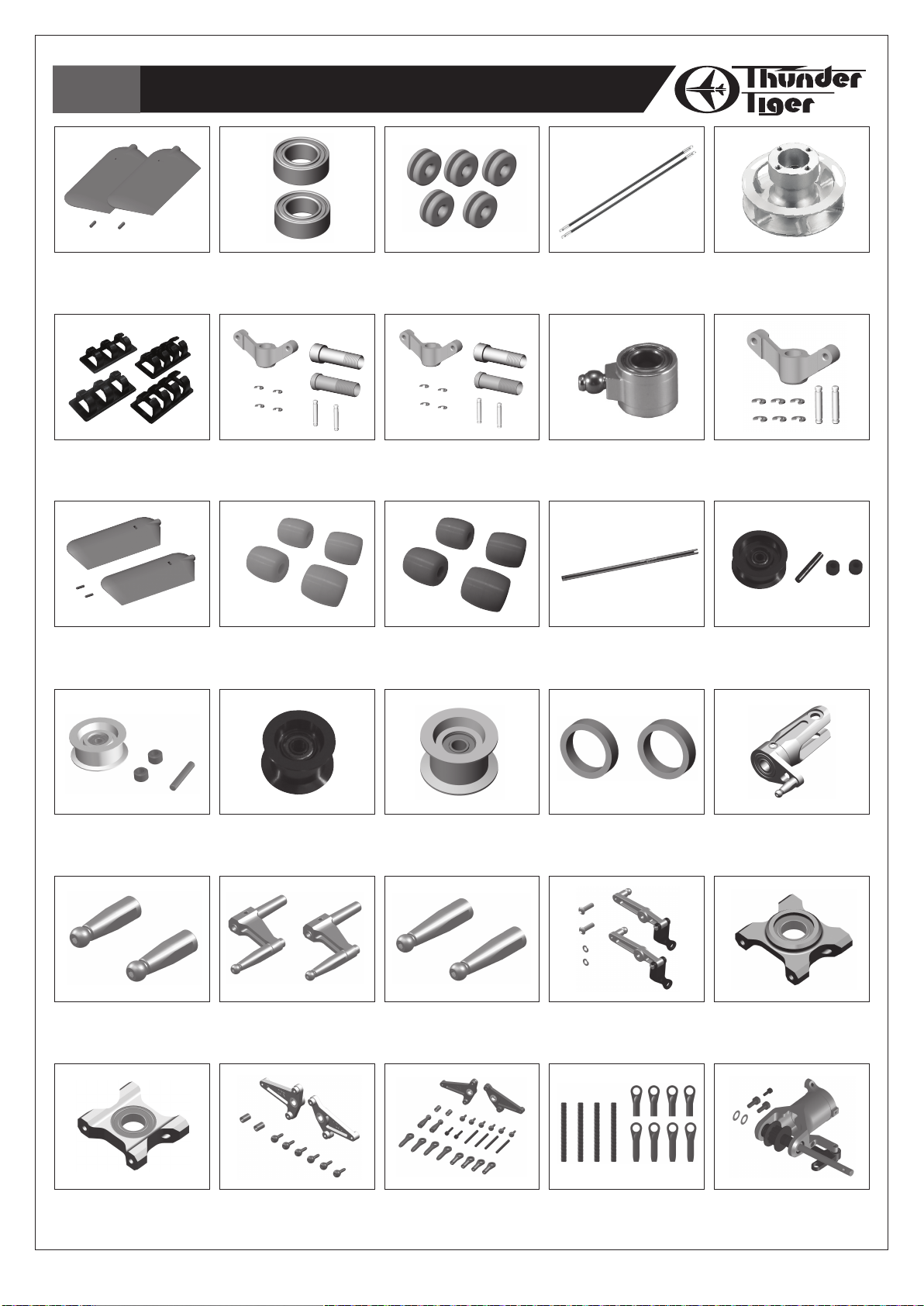

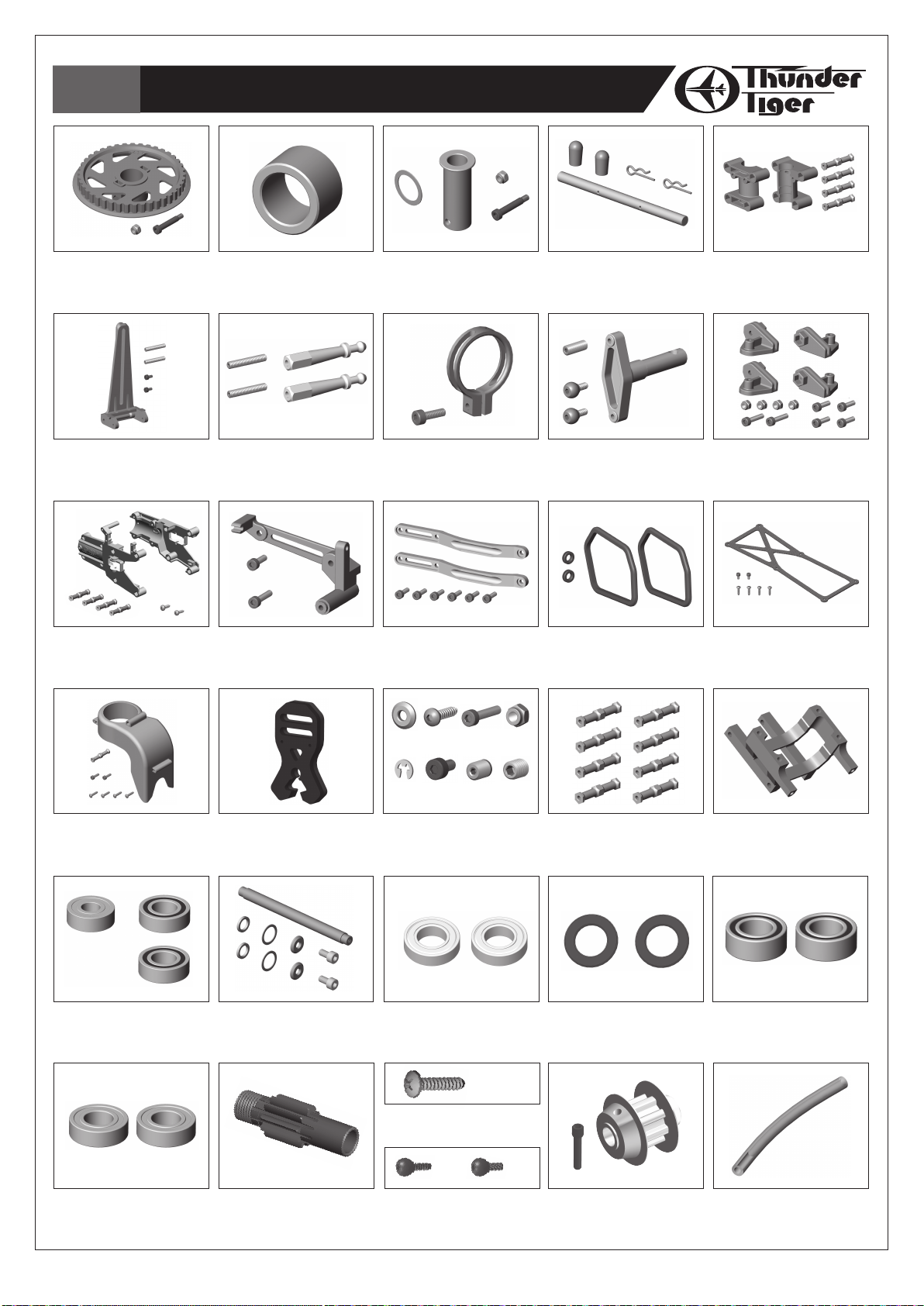

SPARE PARTS / 零件表

NO.3878 TT V2 Carbm Blade 600mm

碳纖主旋翼600mm

PV0021 GUIDE PULLEY ASSY.

主惰輪

PV0041 BALL LINK

單頭連接桿

PV0058 LINKAGE BALL

連接頭

M3x10, M3x12 M3x14, M3x20 M3x25, M3x32 M3x8 MK0616 M3x20

M3x10, M3x18 M4x5

AV0052 TAIL IDEL PULLEY ASSY.

尾惰輪組

PV0027 TAIL CASE

尾座組

PV0051 LEAVER BRG

軸承組

PV0059 TAIL SLIDER BRG

軸承組

AV0143 COOLING FAN

冷卻風扇

PV0030 TAIL ROTOR SHAFT

尾旋翼軸

PV0052 TAIL SLIDER BRG

軸承組

PV0060 INSTALLATION SET

組合附件包

PV0016 TAIL PITCH CONTROL LEVER

尾旋翼控制桿

PV0035-2 LANDING SKID SET

腳架組

PV0053 ROTOR BOLT

主旋翼螺絲組

PV0062 RUBBER GROMMETS(WHITE)

機身固定墊圈組

PV0017 TAIL PITCH SLIDER SET

尾旋翼滑座組

PV0035-3 LANDING SKID

腳架

PV0054 SERVO MOUNTING PLATE

伺服機固定片組

M2x6, M2x8

M2x10, M2x14 M2x22, M2x6

M2x10, M2.6x12 M3x12, M3x18

M3x5

PV0088 SCREW BAG(6 PCS EACH)

圓頭十字螺絲組

PV0089 SCREW BAG(6 PCS EACH)

內六角螺絲組

PV0311 HEADER TANK, 60CC

副油箱零件包,60CC

PV0115-1 WASHOUT LINKAGE

連接座

PV0312 HEADER TANK SUPPORT

副油箱固定座

PV0268 LOCTITE #262

高強度防鬆劑（紅）

PV0359 CLUTCH

離合器組

-36-

PV0270 GREASE(FOR BEARING)

止推軸承滑油脂（黑）

PV0360 STARTER SHAFT

啟動軸

PV1377 ROD GUIDE

固定環

PV0361 STARTER COUPLING

啟動接頭

Page 38

SPARE PARTS / 零件表

PV0365 THRUST BRG. d6xD12xW4.5 止推軸承組 d6xD12xW4.5

PV0504

TAIL PITCH SLIDER SET

尾旋翼滑座組

PV0661-1

FLYBAR CONTROL ARM

穩定翼轉臂組

PV0407

TAIL PITCH SLIDER

尾旋翼滑座

PV0512-W

SKID DAMPER (WHITE) 腳架墊圈(螢光白)

PV0661-2

METAL FLYBAR ARM BUSHING

金屬轉臂六角襯套

PV0450

SUS FLYBAR ROD

SUS平衡桿零件包

PV0520-1 TAIL DRIVE BELT

時規皮帶(686XL)343T

PV0663-1

MAIN ROTOR GRIP

主旋翼轉座

PV0454

SKID PIPE END CAP

圓管塞

PV0521-2 TAIL BOOM

尾管

PV0665

ELEVATOR A ARM

升降舵A臂

PV0482-L ULTRA LIGHT PADDLE(BLUE) 超輕量穩定翼(藍色)

PV0532-1

CLUTCH LINER

離合器片

PV0671-1

CLUTCH BELL SET

離合器罩組

PV0677

TAIL SUPPORT BRACKET

尾支撐桿固定座

PV0683-1

FLYBAR CONTROL LEVER

穩定翼控制臂

PV1310-1 CANOPY BRACKET, X50 機殼固定座, X50

PV0678-1

CARBON VERTICAL FIN

碳纖維垂直安定面

PV0769

THRUST BEARING

止推軸承組

PV1311 MAIN GEAR, 85T 主齒輪盤, 85T

PV0679-T

TAIL SUPPORT

尾管支撐架組

PV0771

BEARING

滾珠軸承組

PV1312

FLYBAR JOINT BALL LINK

穩定翼連接桿組

-37-

PV0681

MAIN HUB BOLT

主旋翼頭固定螺絲

PV0919 BEARING

軸承

PV1313

120°CONTROL ARM

120°控制搖臂

PV0682

MAIN SHAFT BOLT

主軸齒輪固定螺絲

PV1310 X50 FRP Canopy (Red) X50玻纖機頭罩（紅）

PV1313-1

ARM COLLAR

擺臂固定軸環

Page 39

SPARE PARTS / 零件表

PV1314 ELEVATOR ARM SET

升降舵控制組

PV1317 CYCLIC SERVO TRAY

循環螺距伺服機座

PV1322 METAL MIXING LEVER

金屬混控臂

PV1314-1 METAL ELEVATOR WASHER MOUNT SET(L)

金屬升降舵墊片座組(左)

PV1318 TAIL BLADE SET (BLACK)

尾旋翼組(黑)

PV1323 METAL HEAD BUTTON

金屬旋翼頭制動器

PV1314-2 METAL ELEVATOR WASHER MOUNT SET(R)

金屬升降舵墊片座組(右)

PV1319 DOUBLE LINK

雙頭連接桿

PV1324 METAL MAIN ROTOR HUB

金屬主旋翼固定座

PV1315 MAIN SHAFT LOCK RING

主軸止檔圈

PV1320 COLLAR SET

軸環組

PV1325 METAL WASHOUT BASE

金屬控制臂座

PV1316 ONE WAY CLUTCH HOUSING

單向離合器組

PV1321 METAL SEESAW HUB

金屬穩定桿固定座

PV1326 METAL SWASHPLATE SET

金屬十字盤組

PV1327 SWASHPLATE CONTROL ROD

十字盤穩定桿

PV1332 THROTTLE SERVO TRAY

油門伺服機座

PV1337 TAIL CONTROL ROD

尾推拉桿

PV1328 FUEL TANK SET

油箱組

PV1333 RECEIVER TRAY

接收機座

PV1338 TAIL CONTROL ROD JOINT

尾控制桿軸環

PV1329 CARBON FRAME

機身側板

PV1334 HARDENED MAIN SHAFT

強化主軸

PV1339 Outer Damper(7mm)

外避震墊圈(7mm)

-38-

PV1330 METAL TAIL ROTOR HUB

金屬尾旋翼固定座

PV1335 MAIN SHAFT BEARING BLOCK

主軸上下軸承座

PV1339-1 Inner Damper(7mm)

內避震墊圈(7mm)

PV1331 METAL TAIL GRIP

金屬尾旋翼座

PV1336 LINKAGE ROD SET

連接桿組

PV1340 MAIN GEAR WASHER

主齒輪墊片

Page 40

SPARE PARTS / 零件表

PV1341 AUTOROTATION TAIL PULLEY, X50

自旋尾驅動輪41T, X50

PV1345 PHASING CONTROL TRACK

相位控制導軌

PV1350 TAIL BOOM BRACKET

尾管固定座

PV1341-1 MAIN GEAR COLLAR-X50

主齒輪組軸環-X50

PV1346 CANOPY RETAINING POST

機殼固定鋁柱

PV1351 ROD GUIDE MOUNTING BLOCK

尾拉桿座

PV1342 ONE WAY CLUTCH SHAFT

單向離合器軸組

PV1347 METAL TAIL BOOM LOCK RING

金屬尾管止檔環

PV1352 METAL MOUNTING BLOCK

金屬側板補強肋

PV1343 CANOPY SPACER

機殼防震支柱

PV1348 METAL ELEVATOR LEVER ROD

金屬升降舵推拉桿

PV1353 TANK RUBBER GROMMETS

油箱保護膠套

PV1344 CLUTCH BEARING BLOCK

啟動棒軸承固定座

PV1349 PLATE MOUNTING BLOCK

底盤固定座

PV1354 CARBON BOTTOM FRAME

碳纖維底盤

PV1355 COOLING FAN CASING

風扇罩

PV1360 STARTER SHAFT BRG.

啟動棒軸承組,X50

PV1356 BLADE SUPPORT

主旋翼固定架

PV1361 SPINDLE(7mm) SET, X50

固定軸(7mm)組,X50

(12) (12) (6) (6)

(6)(6) (6) (6)

PV1357 SCREW BAG

螺絲零件包

PV0244 BALL BEARING, d10xD19XW5

滾珠軸承組, d10xD19XW5

(20)

PV0261 SELFTAPPING SCREW (M2.6x14 )

扁圓型自攻螺絲組

(M2.6x14 )

(10)(10)

PV1358 FRAME SPACER

六角連接支柱

PV0372 THRUST COLLAR

止推墊片

PV1359 ENGINE MOUNT,X50

引擎固定座,X50

PV1362 SPINDLE(7mm) BRG. SET d7xD13xW5

固定軸(7mm)軸承組,d7xD13xW5

PV1363 TAIL GRIP BEARING

尾旋翼座軸承組

PV1364 10T PINION GEAR

10T 驅動齒輪

PV1379 LINKAGE BALL SCREW SET

球頭螺絲組

-39-

PV1416 METAL TAIL PULLEY 9T(SLIVER)

金屬皮帶輪9T

1179

耐熱油管(透明),2ft SILCONE FUEL LINE,2ft

Page 41

SPARE PARTS LIST / 維修零件包表格

No. Description Part No.中文名稱 Description Qty

1179

3878

AV0052

AV0143

PV0016

PV0021

PV0027

PV0030

PV0035-2

PV0035-3

PV0041

PV0051

PV0052

PV0053

PV0054

PV0058

PV0059

PV0060

PV0062

PV0088

SILCONE FUEL LINE, 2ft

TT V2 Carbm Blade 600mm

TAIL IDEL PULLEY ASSY.

COOLING FAN

TAIL PITCH CONTROL LEVER

GUIDE PULLEY ASSY.

TAIL CASE

TAIL ROTOR SHAFT

LANDING SKID SET, X50

LANDING SKID, X50

BALL LINK

LEAVER BRG, d4xD7xW2.5

TAIL SLIDER BRG, d6xD10xW3

ROTOR BOLT

SERVO MOUNTING PLATE

LINKAGE BALL,D4.8(12)

TAIL SLIDER BRG, d5xD11xW5

INSTALLATION SET

RUBBER GROMMETS(WHITE)

SCREW BAG(6 PCS EACH)

耐熱油管(透明), 2ft

碳纖主旋翼600mm

尾惰輪組

冷卻風扇

尾旋翼控制桿

主惰輪

尾座組

尾旋翼軸

腳架組,X50

腳架,X50

單頭連接桿

軸承組,d4xD7xW2.5

軸承組,d6xD10xW3

主旋翼螺絲組

伺服機固定片組

連接頭,D4.8

軸承組,d5xD11xW5

組合附件包

機身固定墊圈組

圓頭十字螺絲組

CB0362

BV6033

BV0052

BV0143

BK0024

BK0075

BK0076

BK0088

HMF2-8N

HSE3-18B

BV0035

BK0036

BK0081

BK0046

BK0047

HMC3-20B

HMC3-25B

HMM3Z

BK0053

HMY2-12

HME3-4B

BK2261

BK0064T

BK0065

HME4-5B

HMC3-14B

BK2261

HME4-5B

HMC3-14B

BK0086

HMV740ZZY

HMV1060ZZY

HMC4-27B

HMM4Z

BK0104

BK0075

HMV1150ZZSY

BE1052

BK0106

BK0109

HNI15

HNI2

HNI25

HNI3

HNJ-1

BK0102

HMF2-6N

HMF2-8N

HMJ2-10N

HMJ2-14N

FUEL TUBE, d2.5xt1.5x

TT V2 CARBON BLADE 600mm

TAIL IDEL PULLEY

COOLING FAN

TAIL PITCH CONTROL SLIDER

LINKAGE BALL

COLLAR, d3xD4xL10

FLAT WASHER

SELFTAPPING SCREW, M2x8

SELFTAPPING SCREW, M3x18

GUIDE PULLEY

PULLEY COLLAR

PIN, D3xL18

TAIL UNIT HOUSING(L)

TAIL UNIT HOUSING(R)

SOCKET SCREW, M3x20

SOCKET SCREW, M3x25

LOCK NUT, M3

TAIL ROTOR SHAFT

PIN, D2xL12

SET SCREW, M3x4

LANDING SKID

SKID PIPE

SKID PIPE END CAP

SET SCREW, M4x5

SOCKET SCREW, M3x14

LANDING SKID

SET SCREW, M4x5

SOCKET SCREW, M3x14

BALL LINK

BEARING, d4xD7xW2.5

BEARING, d6xD10xW3

CAP SCREW, M4x27

LOCK NUT, M4

SERVO MOUNTING PLATE

LINKAGE BALL

BEARING, d5xD11xW5

ANTENNA TUBE

DOUBLE SIDE TAPE

RUBBER BAND, 5x3 20xT1

HEX WRENCH 1.5m/m

HEX WRENCH 2m/m

HEX WRENCH 2.5m/m

HEX WRENCH 3m/m

TIE BAND 2.5x100

BODY MOUNT RUBBER

SCREW, M2x6

SCREW, M2x8

SELFTAPPING SCREW, M2x10

SELFTAPPING SCREW, M2x14

ø5.5mm

中文名稱

耐熱油管（透明）, d2.5xt1.5xø5.5mm

碳纖主旋翼 600mm

小惰輪組

冷卻風扇

尾旋翼控制桿

連接頭

軸環, d3xD4xL10

墊片

自攻螺絲（細）, M2x8

扁圓自攻螺絲（細）, M3x18

主惰輪組

惰輪襯套

固定銷, D3xL18

尾座（左）

尾座（右）

內六角螺絲, M3x20

內六角螺絲, M3x25

止鬆螺帽, M3

尾旋翼軸

軸承滾珠, D2xL12

無頭內六角螺絲, M3x4

腳架

底座圓管

圓管塞

無頭內六角螺絲, M4x5

內六角螺絲, M3x14

腳架

無頭內六角螺絲, M4x5

內六角螺絲, M3x14

單頭連接桿

滾珠軸承, d4xD7xW2.5

滾珠軸承, d6xD10xW3

內六角螺絲, M4x27

止鬆螺帽, M4

伺服機固定片

連接頭

滾珠軸承, d5xD11xW5

油門拉桿導管

雙面膠布

耐熱橡皮圈,5x3 20xT1

六角扳手

固定束帶

機身固定墊圈

圓頭十字螺絲, M2x6

圓頭十字螺絲, M2x8

自攻螺絲, M2x10

自攻螺絲, M2x12

Index Page

10,25

9,20,21

10,25

-40-

Page 42

SPARE PARTS LIST / 維修零件包表格

No. Description Part No.中文名稱 Description Qty

PV0089

PV0115-1

PV0244

PV0261

PV0268

PV0270

PV0311

PV0312

PV0359

PV0360

PV0361

PV0365

PV0372

PV0407

SCREW BAG(6 PCS EACH)

WASHOUT LINKAGE,X50

BALL BEARING, d10xD19XW5

SELFTAPPING SCREW, M2.6x14

LOCTITE #262

THRUST BEARING GREASE

HEADER TANK

HEADER TANK SUPPORT

CLUTCH

STARTER SHAFT

STARTER COUPLING

THRUST BRG. d6xD12xW4.5

THRUST COLLAR

TAIL PITCH SLIDER

HMJ2-6B

HMJ3-22B

HSE2-10B

HSE2612N

HSE3-12B

HSE3-18B

HSE3-5B

內六角螺絲組

連接座,X50

滾珠軸承組, d10xD19XW5

扁圓型自攻螺絲組

高強度防鬆劑(#262/紅色)

止推軸承潤滑脂

副油箱零件包,60CC

副油箱固定座

離合器組

啟動軸

啟動接頭

止推軸承組 d6xD12xW4.5

止推墊片

尾旋翼滑座

BK0616

HMC3-10B

HMC3-12B

HMC3-14B

HMC3-20B

HMC3-25B

HMC3-32B

HMC3-8B

HME3-10B

HME3-18B

HME4-5B

BK0016-1

BK0171

HMS15

HMV6800ZZY

HSE2614N

BV0450

BV0452

BK0087

BK0102

BK0506

BV0502

HMC3-14B

BK0087

BK0102

BK0506

HMC3-14B

BK0170

BV0589

HMC3-10B

BK0592

HME4-5B

HMS5

BK0594

HME4-5B

HMX0612

BK0584

BK0026

BK0027

BK0075

BK0082

HMJ2-8N

HSE2-10B

SELFTAPPING CCREW, M2x6

SELFTAPPING SCREW, M3x22

SELFTAPPING SCREW, M2x10

SELFTAPPING SCREW, M2.6x12

SELFTAPPING SCREW, M3x12

SELFTAPPING SCREW, M3x18

SELFTAPPING SCREW, M3x5

SOCKET SCREW, M3x20

SOCKET SCREW, M3x10

SOCKET SCREW, M3x12

SOCKET SCREW, M3x14

SOCKET SCREW, M3x20

SOCKET SCREW, M3x25

SOCKET SCREW, M3x32

SOCKET SCREW, M3x8

SET SCREW, M3x10

SET SCREW, M3x18

SET SCREW, M4x5

WASHOUT LINKAGE

E RING

BALL BEARING, d10xD19XW5

BUTTON PHILLIPS TAPPING SCREW , M2.6x14

LOCTITE #262

THRUST BEARING GREASE

WASHER

RUBBER GROMMER

HEADER TANK SUPPORT

HEADER TANK

SOCKET SCREW, M3x14

WASHER

RUBBER GROMMER

HEADER TANK SUPPORT

SOCKET SCREW, M3x14

SHIM

CLUTCH SHOE

SOCKET SCREW, M3x10

STARTER SHAFT

SET SCREW, M4x5

E-CLIP, 5m/m

STARTOR COUPLING

SET SCREW, M4x5

THRUST BEARING

THRUST COLLAR

TAIL PITCH CONTROL LINK

TAIL PITCH CONTROL SLIDER

LINKAGE BALL

COLLAR, d2xD3xW4.3

SCREW, M2x8

SELF TAPPING SCREW, M2x10

中文名稱

圓頭十字自攻螺絲, M2x6

自攻螺絲, M3x22

扁圓型自攻螺絲, M2x10

扁圓型自攻螺絲, M2.6x12

扁圓型自攻螺絲, M3x12

扁圓型自攻螺絲, M3x18

扁圓型自攻螺絲, M3x5

內六角螺絲（半牙）, M3x20

內六角螺絲, M3x10

內六角螺絲, M3x12

內六角螺絲, M3x14

內六角螺絲, M3x20

內六角螺絲, M3x25

內六角螺絲, M3x32

內六角螺絲, M3x8

無頭內六角螺絲, M3x10

無頭內六角螺絲, M3x18

無頭內六角螺絲, M4x5

連接座

插銷

E 型扣環

滾珠軸承組, d10xD19XW5

扁圓型自攻螺絲組(粗) , M2.6x14

高強度防鬆劑(#262/紅色)

止推軸承潤滑脂

墊圈

機身固定墊圈

副油箱固定座

副油箱組

內六角螺絲, M3x14

墊圈

機身固定墊圈

副油箱固定座

內六角螺絲, M3x14

離合器墊片

離合器組

內六角螺絲, M3x10

啟動軸

無頭內六角螺絲, M4x5

E 型扣環, 5m/m

啟動接頭

無頭內六角螺絲, M4x5

止推軸承組

止推墊片

尾旋翼連接頭

尾旋翼控制滑座

連接頭

軸環, d2xD3xW4.3

自攻螺絲（粗）, M2x8

扁圓自攻螺絲（細）, M2x10

Index Page

-41-

Page 43

SPARE PARTS LIST / 維修零件包表格

No. Description Part No.中文名稱 Description Qty

PV0450

PV0454

PV0482-L

PV0504

PV0512-W

PV0520-1

PV0521-2

PV0532-1

PV0661-1

PV0661-2

PV0663-1

PV0665

PV0671-1

PV0677

PV0678-1

PV0679-T

PV0681

PV0682

PV0683-1

SUS FLYBAR ROD

SKID PIPE END CAP

ULTRA LIGHT PADDLE(BLUE)

TAIL PITCH SLIDER SET

SKID DAMPER (WHITE)

TAIL DRIVE BELT,X50

TAIL BOOM(663mm),X50

CLUTCH LINER,X50

FLYBAR CONTROL ARM,X50

FLYBAR ARM BUSHING,X50

MAIN ROTOR GRIP,X50

ELEVATOR A ARM

CLUTCH BELL SET,X50

TAIL SUPPORT BRACKET

CARBON VERTICAL FIN,X50

TAIL SUPPORT

MAIN HUB BOLT

MAIN SHAFT BOLT

FLYBAR CONTROL LEVER,X50

SUS平衡桿零件包

圓管塞

超輕量穩定翼(藍)

尾旋翼滑座組

腳架墊圈(螢光白)

時規皮帶(686XL)343T,X50

尾管(663mm),X50

離合器片,X50

穩定翼轉臂組,X50

轉臂六角襯套,X50

主旋翼轉座,X50

升降舵A臂

離合器罩組,X50

尾支撐桿固定座

碳纖維垂直安定面,X50

尾管支撐架組

主旋翼頭固定螺絲

主軸齒輪固定螺絲

穩定翼控制臂,X50

BK0631

BK0065

BK0067L

HME3-10B

BK0025

BK0026

BK0027

BK0028

BK0075

BK0082

BK0546

HMF2-8N

HSE2-10B

HMS15

HMV1060ZZY

BK0819W

BK0858-1

BK0859-2

BK0887-1

BK0002

BK0005-1

HME4-5B

BK0005-1

HME4-5B

BK0596-1

BK2511

BK0649-2

BK0023

BK0084

BV1194-1

BK0797

BK0798

HMC3-16B

HMM3Z

BK2190

HMC3-25B

HMM3Z

HMC3-6B

HMC3-10B

BK0447

BK0524-T

HMJ2-8N

BK0616

HMM3Z

BK1197

HMM3Z

BK0015

HMV740ZZY

BK0077

BK0088

SUS FLYBAR

SKID PIPE END CAP

ULTRA LIGHT PADDLE(20G, BLUE)

SET SCREW, M3x10

TAIL PITCH CONTROL FORK

TAIL PITCH CONTROL LINKAGE

TAIL PITCH CONTROL SLIDER

TAIL PITCH CONTROL SLIDER BUSHING

LINKAGE BALL

COLLAR, d2xD3xL4

PIN, 2mm

SCREW, M2x8

SELFTAPPING SCREW, M2x8

E RING

BEARING, d6xD10xW3

SKID DAMPER, WHITE

TAIL DRIVE BELT(686XL)

TAIL BOOM(663mm)

SHIM

FLYBAR CONTROL ARM

FLYBAR ARM BUSHING

SETSCREW, M4x5

FLYBAR ARM BUSHING

SETSCREW, M4x5

MAIN ROTOR GRIP

WASHER, d2xD4.5xW0.8

LINKAGE BALL(B)

ELEVATOR CONTROL ARM LINK

CLUTCH BELL SET

BRACKET(UPPER)

BRACKET(LOWER)

SOCKET SCREW, M3x16

LOCK NUT, M3

CARBON VERTICAL FIN

SOCKET SCREW, M3x25

NYLON NUT, M3

SOCKET SCREW, M3x6

SOCKET SCREW, M3x10

TAIL SUPPORT ROD END

TAIL SUPPORT ROD

SELFAPPING SCREW

SOCKET SCREW, M3x20

LOCK NUT, M3

MAIN SHAFT BOLT

LOCK NUT, M3

FLYBAR CONTROL LEVER

BEARING, d4xD7xW2.5

COLLAR, d3xD4xW6

WASHER, d3xD5xW0.5

中文名稱

SUS 平衡桿

圓管

超輕量穩定翼（20G, 藍色）

無頭內六角螺絲, M3x10

尾旋翼控制座

尾旋翼連接頭

尾旋翼控制滑座

尾旋翼控制軸套

連接頭

軸環, d2xD3xL4

插銷, 2mm

圓頭十字螺絲, M2x8

扁圓自攻螺絲（細）, M2x8

E 型扣環

滾珠軸承, d6xD10xW3

腳架墊圈, 螢光白

時規皮帶(686XL)343T

尾管(663mm)

離合器墊片

穩定翼轉臂

轉臂六角襯套

無頭內六角螺絲, M4x5

轉臂六角襯套

無頭內六角螺絲, M4x5

主旋翼轉座

墊圈, d2xD4.5xW0.8

內六角連接頭自攻螺絲(B)

升降舵連接座

插銷

離合器罩組

固定座（上）

固定座（下）

內六角螺絲, M3x16

止鬆螺帽, M3

碳纖維垂直安定面

內六角螺絲, M3x25

止鬆螺帽, M3

內六角螺絲, M3x6

內六角螺絲, M3x10

尾管支撐架接頭

尾管支撐架

自攻螺絲（細）, M2x8

內六角螺絲, M3x20

止鬆螺帽, M3

凸肩內六角螺絲

止鬆螺帽, M3

穩定翼控制臂

滾珠軸承, d4xD7xW2.5

軸環, d3xD4xW6

墊片, d3xD5xW0.5

Index Page

-42-

Page 44

SPARE PARTS LIST / 維修零件包表格

No. Description Part No.中文名稱 Description Qty

PV0769

PV0771

PV0919

PV1310

PV1310-1

PV1311

PV1312

PV1313

PV1313-1

PV1314

PV1314-1

PV1314-2

PV1315

PV1316

PV1317

PV1318

PV1319

PV1320

THRUST BEARING

BEARING

BEARING, d3xD6xW2.5(4)

X50 FRP Canopy (Red),X50

CANOPY BRACKET, X50

MAIN GEAR(85T),X50

FLYBAR JOINT BALL LINK,X50

120° CONTROL ARM,X50

ARM COLLAR,X50

ELEVATOR ARM SET,X50

METAL ELEVATOR WASHER MOUNT SET(L),X50

METAL ELEVATOR WASHER MOUNT SET(R),X50

MAIN SHAFT LOCK RING,X50

ONE WAY CLUTCH HOUSING,X50

CYCLIC SERVO TRAY,X50

TAIL BLADE SET (BLACK),X50

DOUBLE LINK,X50

COLLAR SET,X50

止推軸承組 d4xD9xW4

滾珠軸承組 d4xD9xW4

軸承d3xD6xW2.5

X50 玻纖機頭罩 (紅),X50

機殼固定座

主齒輪盤(85T),X50

穩定翼連接桿組,X50

120° 控制搖臂,X50

擺臂固定軸環,X50

升降舵控制組,X50

金屬升降舵墊片座組(左),X50

金屬升降舵墊片座組(右),X50

主軸止檔圈,X50

單向離合器組,X50

循環螺距伺服機座,X50

尾旋翼組(黑),X50

雙頭連接桿,X50

軸環組,X50

HSA3-10

BK0649-2

BK0016-1

BK0171

HMS15

HMX0409Y

HMV940ZZY

HMV630ZZY

BK2177

BK0102

BK2278

HNX3-12B

BK2285

BK2228

BK2160-L

BK2160-R

BK0649-2

HMV740ZZY

BK0077

BK2227

HME3-30B

HMM3Z

BK0023

BK2514

BK0084

HME3-3B

HMC3-10B

BK2515

HME3-8B

BV2238

HMC2-4B

HMC3-10B

BK2515

BV2237

HMC2-4B

HME3-8B

BK2206

HME4-3B

BV2281

HSA3-8

BK2524

BK2259

BK0404-B

HMC3-16B

HMM3Z

BK2179

BK2187

BK2515

BK0077

BK0082

BUTTON HEAD SOCKET SCREW, M3x10

LINKAGE BALL(B)

WASHOUT LINKAGE

E RING

THRUST BEARING

BEARING, d4xD9xW4

BEARING, d3xD6x

FRP CANOPY SET, X50

RUBBER GROMMET

CANOPY BRACKET

S.B.H SELF TAPPING SCREW

MAIN GEAR, 85T

FLYBAR JOINT BALL LINK

120° CONTROL ARM(L)

120° CONTROL ARM(R)

LINKAGE BALL(B)

BEARING, d4xD7xW2.5

COLLAR, d3xD4xW6

ARM COLLAR

SET SCREW, M3x30

NYLON NUT, M3

ELEVATOR CONTROL ARM LINK

METAL ELEVATOR CONTROL ARM

SET SCREW, M3x3

SOCKET SCREW, M3x10

COLLAR, d3xD5xW4.2

SET SCREW, M3x8

ELEVATOR WASHER MOUNT SET(L )

SOCKET SCREW, M2x4

SOCKET SCREW, M3x10

COLLAR, d3xD5xW4.2

ELEVATOR WASHER MOUNT SET(R)

SOCKET SCREW, M2x4

SET SCREW, M3x8

MAIN SHAFT LOCK RING

SET SCREW, M4x3

ONE WAY CLUTCH HOUSING

BUTTON HEAD SOCKET SCREW, M3x8

MAIN GEAR WASHER

SERVO FRAME B

TAIL BLADE(BLACK)

SOCKET SCREW (M3x16)

NYLON NUT, M3

DOUBLE LINK

COLLAR, d3xD4xW3.8

COLLAR, d3xD5xW4.2

COLLAR, d3xD4xW6

COLLAR, d2xD3xW4.2

W2.5

中文名稱

半圓頭內六角螺絲, M3x10

內六角連接頭自攻螺絲(B)

連接座

插銷

E型扣環

止推軸承, d4xD9xW4

滾珠軸承, d4xD9xW4

軸承, d3xD6xW2.5

玻纖機殼組, X50

機身固定墊圈

機殼固定座

半圓頭內六角自攻螺絲

主齒輪盤, 85T

穩定翼連接桿

120°控制搖臂(左)

120°控制搖臂(右)

內六角連接頭自攻螺絲(B)

滾珠軸承, d4xD7xW2.5

軸環, d3xD4xW6

擺臂固定軸環

無頭內六角螺絲, M3x30

止鬆螺帽, M3

升降舵連接座

金屬升降舵控制臂

固定銷

無頭內六角螺絲, M3x3

內六角螺絲, M3x10

控制臂軸環, d3xD5xW4.2

無頭內六角螺絲, M3x8

升降舵墊片座組(左)

內六角螺絲, M2x4

內六角螺絲, M3x10

控制臂軸環, d3xD5xW4.2

升降舵墊片座組(右)

內六角螺絲, M2x4

無頭內六角螺絲, M3x8

止檔圈

無頭內六角螺絲, M4x3

單向離合組

半圓頭內六角螺絲, M3x8

主齒輪墊片

伺服機座B

尾旋翼(黑)

內六角螺絲(M3x16)

止鬆螺帽, M3

雙頭連接桿

軸環, d3xD4xW3.8

控制臂軸環, d3xD5xW4.2

軸環, d3xD4xW6

軸環, d2xD3xW4.2

Index Page

-43-

Page 45

SPARE PARTS LIST / 維修零件包表格

No. Description Part No.中文名稱 Description Qty

COLLAR, d3xD4xW10

METAL SEESAW HUB

COLLAR, d3xD4xW3.8

BUTTON HEAD SOCKET SCREW, M3x10

METAL MIXING LEVER

LINKAGE BALL(A)

COLLAR, d3xD4xW6

BUTTON HEAD SOCKET SCREW, M3x10

METAL HEAD BUTTON

SOCKET SCREW, M2.5×8

METAL MAIN ROTOR HUB

INNER DAMPER(7mm)

OUTER DAMPER(7mm)

SOCKET SCREW, M3x20

NYLON NUT, M3

METAL WASHOUT BASE

METAL SWASHPLATE

SWASHPLATE CONTROL ROD

LINKAGE BALL

FUEL TANK SET

SIDE FRAME

TAIL ROTOR HUB

SET SCREW, M3x3

SOCKET SCREW, M2.5×6

WASHER, d2.8xD5xW0.5

METAL TAIL GRIP

THRUST BEARING, d4xD9xW4

BEARING, d4xD9xW4

WASHER, d4xD6xW0.5

SOCKET SCREW, M2×10

COLLAR, d2xD3xW4.2

SERVO FRAME A

RECEIVER FRAME

HARDENED MAIN SHAFT

SOCKET SCREW, M3x20

NYLON NUT, M3

UPPER BRG HOUSING

LOWER BRG HOUSING

FRAME SPACER

LINKAGE ROD, 30mm

LINKAGE ROD, 40mm

LINKAGE ROD, 55mm

TAIL SERVO LINKAGE ROD, 345mm

LINKAGE ROD, 575mm

TAIL CONTROL ROD JOINT

SET SCREW, M4x3

BALL LINK

TAIL CONTROL ROD JOINT

SET SCREW, M4x3

INNER DAMPER(7mm)

PV1321

PV1322

PV1323

PV1324

PV1325

PV1326

PV1327

PV1328

PV1329

PV1330

PV1331

PV1332

PV1333

PV1334

PV1335

PV1336

PV1337

PV1338

PV1339-1

METAL SEESAW HUB,X50

METAL MIXING LEVER,X50

METAL HEAD BUTTON,X50

METAL MAIN ROTOR HUB,X50

METAL WASHOUT BASE,X50

METAL SWASHPLATE SET,X50

SWASHPLATE CONTROL ROD,X50

FUEL TANK SET,X50

CARBON FRAME,X50

METAL TAIL ROTOR HUB,X50

METAL TAIL GRIP,X50

THROTTLE SERVO TRAY,X50

RECEIVER TRAY,X50

HARDENED MAIN SHAFT,X50

MAIN SHAFT BEARING BLOCK,X50

LINKAGE ROD SET,X50

TAIL CONTROL ROD,X50

TAIL CONTROL ROD JOINT,X50

INNER DAMPER(7mm),X50

金屬穩定桿固定座,X50

金屬混控臂,X50

金屬旋翼頭制動器,X50

金屬主旋翼固定座,X50

金屬控制臂座,X50

金屬十字盤組,X50

十字盤穩定桿,X50

油箱組,X50

機身側板,X50

金屬尾旋翼固定座,X50

金屬尾旋翼座,X50

油門伺服機座,X50

接收機座,X50

強化主軸,X50

主軸上下軸承座,X50

連接桿組,X50

尾推拉桿,X50

尾控制桿軸環,X50

內避震墊圈(7mm),X50

BK0076

BV2186

BK2187

HSA3-10

BV2183

BK0649-1

BK0077

HSA3-10

BK2182

HMC25-8B

BV2181

BK2572

BK2573

BK0616

HMM3Z

BK2196

BV2188A

BK2209

BK0075

BV2230

BK2215

BK2284

HME3-3B

HMC25-6B

HMO26

BV2272

HMX0409Y

HMV940ZZY

BK2276

HMC2-10B

BK0082

BK2232

BK2224

BK2289

BK0616

HMM3Z

BK2236

BK2225

BK2219

BK0092

BK2516

BK0436

BK2195

BK0175

BK0105-1

HME4-3B

BK0086

BK0105-1

HME4-3B

BK2572

中文名稱

軸環, d3xD4xW10

金屬穩定桿固定座

軸環, d3xD4xW3.8

半圓頭內六角螺絲, M3x10

金屬混控臂

內六角連接頭螺絲(A)

軸環, d3xD4xW6

半圓頭內六角螺絲, M3x10

金屬旋翼頭制動器

內六角螺絲, M2.5×8

金屬主旋翼固定座

內避震墊圈(7mm)

外避震墊圈(7mm)

內六角螺絲(半牙), M3x20

止鬆螺帽, M3

控制臂座

金屬十字盤組

十字盤穩定桿

連接頭

油箱組

機身側板

尾旋翼固定座

無頭內六角螺絲, M3x3

內六角螺絲, M2.5×6

墊片, d2.8xD5xW0.5

金屬尾旋翼座

止推軸承, d4xD9xW4

滾珠軸承, d4xD9xW4

尾旋翼轉座墊片, d4xD6xW0.5

內六角螺絲, M2×10

軸環, d2xD3xW4.2

伺服機座A

接收機座

強化主軸

內六角螺絲(半牙), M3x20

止鬆螺帽, M3

上軸承座

下軸承座

六角連接支柱

連接桿, 30mm

連接桿, 40mm

連接桿, 55mm

尾伺服機推拉桿, 345mm

推拉桿, 575mm

尾控制桿軸環

無頭內六角螺絲, M4x3

單頭連接桿

尾控制桿軸環

無頭內六角螺絲, M4x3

內避震墊圈(7mm)

Index Page

11, 13

-44-

Page 46

SPARE PARTS LIST / 維修零件包表格

No. Description Part No.中文名稱 Description Qty

PV1339

PV1340

PV1341

PV1341-1

PV1342

PV1343

PV1344

PV1345

PV1346

PV1347

PV1348

PV1349

PV1350

PV1351

PV1352

PV1353

PV1354

PV1355

PV1356

OUTER DAMPER(7mm),X50

MAIN GEAR WASHER,X50

AUTOROTATION TAIL PULLEY,X50

MAIN GEAR COLLAR-X50,X50

ONE WAY CLUTCH SHAFT,X50

CANOPY SPACER,X50

CLUTCH BEARING BLOCK,X50

PHASING CONTROL TRACK,X50

CANOPY RETAINING POST,X50

METAL TAIL BOOM Clamp,X50

METAL ELEVATOR LEVER ROD,X50

PLATE MOUNTING BLOCK,X50

TAIL BOOM BRACKET,X50

ROD GUIDE MOUNTING BLOCK,X50

METAL MOUNTING BLOCK,X50

TANK RUBBER GROMMETS,X50

CARBON BOTTOM FRAME

COOLING FAN CASING,X50

BLADE SUPPORT,X50

外避震墊圈(7mm),X50

主齒輪墊片,X50

自旋尾驅動輪41T,X50

主齒輪組軸環-X50,X50

單向離合器軸組,X50

機殼防震支柱,X50

啟動棒軸承固定座,X50

相位控制導軌,X50

機殼固定鋁柱,X50

金屬尾管止檔環,X50

金屬升降舵推拉桿,X50

底盤固定座,X50

尾管固定座,X50

尾拉桿座,X50

金屬側板補強肋,X50

油箱保護膠套,X50

碳纖維底盤

風扇罩,X50

主旋翼固定架,X50

BK2573

BK2524

BK2286

BK1197

HMM3Z

BK2290

BK2282

BK1197

HMM3Z

BK2524

BK0473-1

BK0474

HNLR6

BK2241-L

BK2241-R

BK2219

BK2248

HME3-18B

HMC2-4B

BK2249

HME3-18B

BK2159

HMC3-10B

BK2161

HME3-8B

BK0649-1

BK2240-R

BK2240-L

HMM3Z

HMC3-10B

HMC3-14B

BK2217-L

BK2217-R

BK2219

HSA3-6

BK2247

HMC3-14B

HMC3-10B

BK2229

HMC3-10B

BK2246

BK0274

BK2234

HMC3-6B

HNX3-12B

BK2220

BK2219

HMC3-10B

HNX3-12B

BK0116-1

OUTER DAMPER(7mm)

MAIN GEAR WASHER

AUTOROTATION TAIL PULLEY

MAIN SHAFT BOLT, M3x20

NYLON NUT, M3

COLLAR

ONE WAY BEARING SHAFT

MAIN SHAFT BOLT, M3x20

NYLON NUT, M3

MAIN GEAR WASHER

CANOPY SPACER

GROMMET

R CLIP

CLUTCH BEARING BLOCK(L)

CLUTCH BEARING BLOCK(R )

FRAME SPACER

PHASING CONTROL TRACK

SET SCREW, M3x18

SOCKET SRCEW, M2x4

CANOPY RETAINING POST

SET SCREW, M3x18

TAIL BOOM CLAMP

SOCKET SCREW, M3x10

ELEVATOR LEVER ROD

SET SCREW, M3x8

LINKAGE BALL(A)

PLATE MOUNTING BLOCK(R)

PLATE MOUNTING BLOCK(L)

NYLON NUT, M3

SOCKET SCREW, M3x10

SOCKET SCREW, M3x14

TAIL BOOM BRACKET(L)

TAIL BOOM BRACKET(R)

FRAME SPACER

BUTTON HEAD SOCKET SCREW, M3x6

ROD GUIDE MOUNTING BLOCK

SOCKET SCREW, M3x14

SOCKET SCREW, M3x10

MOUNTING BLOCK

SOCKET SCREW, M3x10

TANK RUBBER GROMMETS

RUBBER GROMMETS

CARBON BOTTOM FRAME

SOCKET SCREW, M3x6

S.B.H SELF TAPPING SCREW

COOLING FAN CASING

FRAME SPACER

SOCKET SCREW, M3x10

S.B.H SELF TAPPING SCREW

BLADE SUPPORT

中文名稱

外避震墊圈(7mm)

主齒輪墊片

尾驅動主齒41T

內六角半牙螺絲, M3x20

止鬆螺帽, M3

軸環

單向軸套

內六角半牙螺絲, M3x20

止鬆螺帽, M3

主齒輪墊片

機殼支撐柱

橡膠帽

R形插銷

啟動棒軸承固定座(左)

啟動棒軸承固定座(右)

六角連接支柱

相位控制導軌

無頭內六角螺絲, M3x18

內六角螺絲, M2x4

機殼固定鋁柱

無頭內六角螺絲, M3x18

尾管止檔環

內六角螺絲, M3x10

升降舵推拉桿

無頭內六角螺絲, M3x8

內六角連接頭螺絲(A)

底盤固定座(右)

底盤固定座(左)

止鬆螺帽, M3

內六角螺絲, M3x10

內六角螺絲, M3x14

尾管固定座(左)

尾管固定座(右)

六角連接支柱

圓頭內六角螺絲, M3x6

尾拉桿座

內六角螺絲, M3x14

內六角螺絲, M3x10

側板補強肋

內六角螺絲, M3x10

油箱保護膠套

橡膠墊圈

碳纖維底盤

內六角螺絲, M3x6

半圓頭內六角自攻螺絲

風扇罩

六角連接支柱

內六角螺絲, M3x10

半圓頭內六角自攻螺絲

主旋翼固定架

Index Page

13, 14

-45-

Page 47

SPARE PARTS LIST / 維修零件包表格

No. Description Part No.中文名稱 Description Qty

PV1357

PV1358

PV1359

PV1360

PV1361

PV1362

PV1363

PV1364

PV1377

PV1379

PV1416

SCREW BAG,X50

FRAME SPACER,X50

ENGINE MOUNT,X50

STARTER SHAFT BRG.,X50

SPINDLE SET(7mm), X50

SPINDLE BRG. SET(7mm) d7xD13xW5(2),X50

TAIL GRIP BRG SET,X50

PINION GEAR(10T),X50

ROD GUIDE

LINKAGE BALL SCREW SET

METAL TAIL PULLEY 9T

螺絲零件包,X50

六角連接支柱,X50

引擎固定座,X50

啟動棒軸承組,X50

固定軸組(7mm),X50

固定軸軸承組(7mm),d7xD13xW5(2),X50

尾旋翼座軸承組,X50

驅動齒輪(10T),X50

固定環

球頭螺絲組

金屬尾皮帶輪9T

BK0087

HNX3-12B

HMC2-4B

HME4-5B

HME3-4B

HMS15

HMC3-16B

HMM3Z

BK2219

BK2231

HMV696ZZY

HMV1680ZZY

BK2214

BK2525

BK2216

BK0435

HMC4-8B

HMV1370ZZWY

HMV1050ZZWY

BK0779-1

BK2559

HNN2-6B

BK0649-1

BK0649-2

BV2565

BD7143

HME3-4B

WASHER d3xD8xW1.4

S.B.H SELF TAPPING SCREW

SOCKET SCREW, M2x4

SET SCREW, M4x5

SET SCREW, M3x4

E RING

SOCKET SCREW, M3x16

NYLON NUT, M3

FRAME SPACER

ENGINE MOUNT

BEARING d6xD15xW5

BEARING d8xD16xW5

HARDENED FEATHERING SHAFT

FLAP COLLAR, d7xD10xW1.5

THRUST WASHER, d10xD13xW0.5

WASHER, d4xD11xW1.7

SOCKET SCREW, M4×8

BEARING, d7xD13xW5

BEARING, d5xD10xW3

PINION(10T)

ROD GUIDE

TAPPING SCREW, M2x6

LINKAGE BALL SCREW

LINKAGE BALL SLEFTAPPING SCREW

METAL TAIL PULLEY 9T

SHAFT FIXED SCREW

SET SCREW, M3x4

中文名稱

墊片, d3xD8xW1.4

半圓頭內六角自攻螺絲

內六角螺絲, M2x4

無頭內六角螺絲, M4x5

無頭內六角螺絲, M3x4

E型扣環

內六角螺絲, M3x16

止鬆螺帽, M3

六角連接支柱

引擎固定座, X50

滾珠軸承, d6xD15xW5

滾珠軸承, d8xD16xW5

強化固定軸(D7)

避震軸環, d7xD10xW1.5

止推墊片, d10xD13xW0.5

墊圈, d4xD11xW1.7

內六角螺絲, M4×8

滾珠軸承, d7xD13xW5

滾珠軸承, d5xD10xW3

驅動軸(10T)

固定環

墊圈自攻螺絲, M2x6

內六角連接球頭螺絲

內六角連接球頭自攻螺絲

金屬尾皮帶輪9T

傳動軸固定螺絲

無頭內六角螺絲, M3x4

Index Page

6,17

7,,8,9,20

-46-

Page 48

OPTIONAL PARTS / 改裝零件表

PV0036 PADDLE(BLACK), 30g

穩定翼組(黑), 30g

PV0384 WIRE CLAMP

電線整理零件包

PV0482-R ULTRA LIGHT PADDLE(RED), 20g

超輕量穩定翼(紅), 20g

PV0050 BEARING SET, d5xD13xW4(METAL TAIL UNIT BRG)

軸承組, d5xD13xW4(金屬尾座專用)

PV0439 METAL TAIL PITCH FORK

尾旋翼控制座

PV0512-Y SKID DAMPER (YELLOW)

腳架墊圈(黃)

PV0062-Y RUBBER GROMMETS(YELLOW)

機身固定墊圈組（黃色）

PPV0439-L METAL TAIL PITCH FORK(BLUE)

尾旋翼控制座(藍)

PV0512-L SKID DAMPER (BLUE)

腳架墊圈(藍)

PV0103 Carbon Tail Boom Support

碳纖維尾支撐架組

PV0457 METAL TAIL SLIDER

金屬尾旋翼控制滑座

PV0523-1 CARBON TAIL BOOM(663mm)

碳纖維尾管(663mm)

PV0106 COOLING FAN

金屬冷卻風扇

PV0466 METAL TAIL PITCH FORK

金屬尾旋翼控制座

PV0668 GUIDE PULLEY ASSY

金屬主惰輪

PV0668-1 METAL GUIDE PULLEY(SILVER)

金屬主惰輪(銀)

PV1402 METAL MAIN ROTOR GRIP POST

金屬旋翼轉座支柱

PV1407 METAL LOWER-BRG BLOCK

金屬下軸承座

PV0674 METAL IDEL PULLEY

金屬舵輪

PV1403 METAL FLYBAR CONTROL ARM SET

金屬穩定翼轉臂組

PV1408 120° METAL CONTROL ARM

120° 金屬控制搖臂

PV0674-1 METAL IDEL PULLEY(SILVER)

金屬舵輪(銀)

PV1404 METAL FLYBAR CONTROL ARM POST

金屬穩定翼轉臂支柱

PV1409 140° METAL CONTROL ARM

140° 金屬控制搖臂

-47-

PV1341-2 MAIN GEAR COLLAR

主齒輪組軸環

PV1405 METAL FLYBAR CONTROL LEVER

金屬穩定翼控制臂組

PV1410 140° CONTROL ARM LINKAGE ROD

140°控制搖臂連接桿

PV1401 METAL MAIN ROTOR GRIP

金屬旋翼轉座組

PV1406 METAL UPPER-BRG BLOCK

金屬上軸承座

PV1411 METAL TAIL UNIT

金屬尾座組

Page 49

OPTIONAL PARTS / 改裝零件表

PV1412

TAIL ROTOR SHAFT SET

尾旋翼軸組

PV1418 METAL MAIN ROTOR GRIP

金屬旋翼轉座(本體)

1179-B

耐熱油管(黑),2ft SILCONE FUEL LINE,2ft

PV1413 TAIL CONTROL ROD JOINT

尾控制桿軸環

PV1310-W

X50 FRP Canopy (Unpainted White) X50玻纖機頭罩（未塗裝白殼）

PV1414 METAL STABILIZER CONTROL CAGE

金屬穩定翼控制框

PV1310-Y

X50 FRP CANOPY (YELLOW) X50玻纖機頭罩（黃色）

PV1415 METAL TAIL SUPPORT BRACKET

金屬尾支撐桿固定座

PV1310-G

X50 FRP CANOPY (GREEN) X50玻纖機頭罩（綠色）

PV1417 METAL ROTOR GRIP LEVER

金屬轉座擺臂

PV1380 TAIL UNIT LINING

尾座內襯

-48-

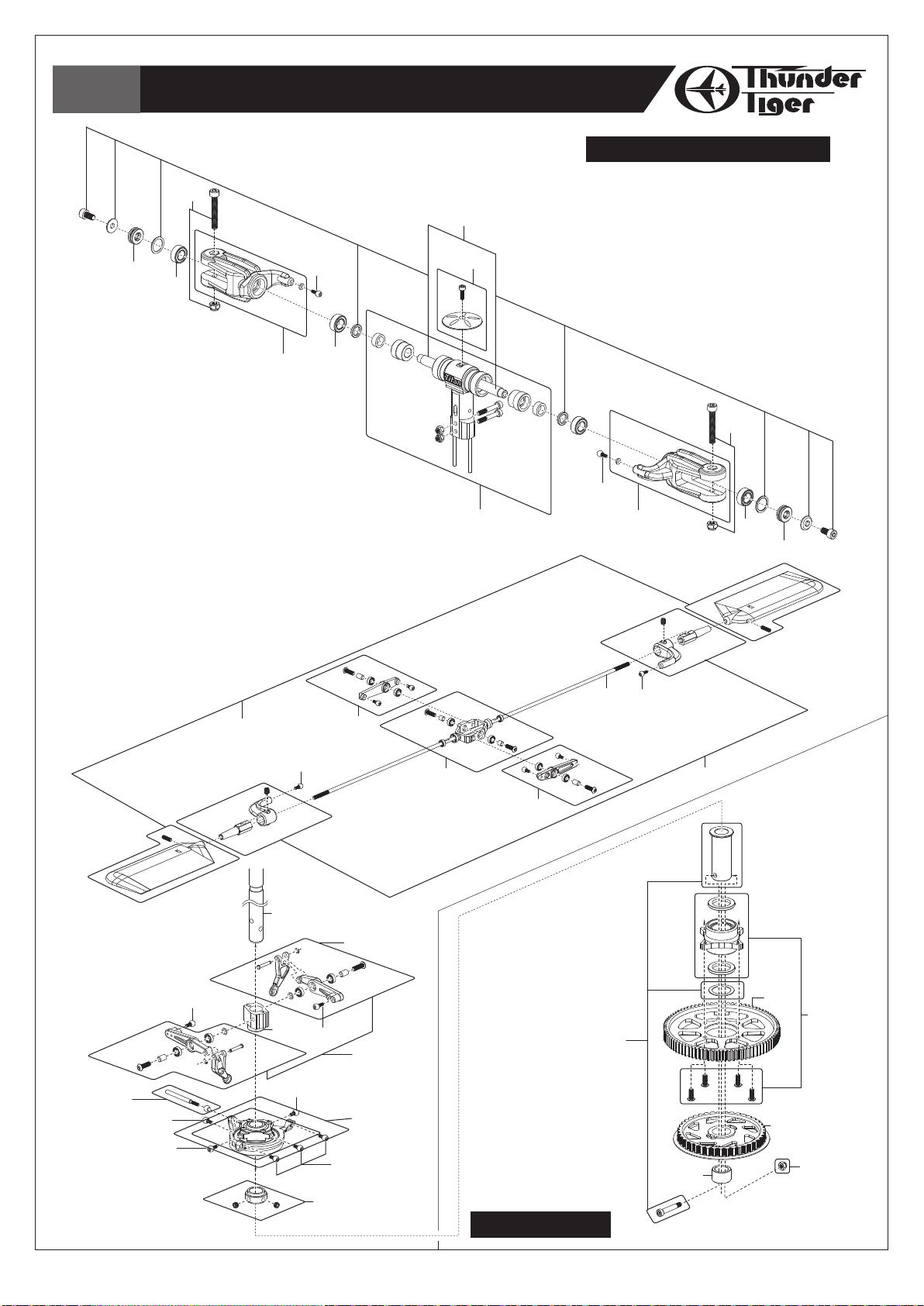

Page 50

Exploded View / 爆炸圖檢索

PV0053

PV1361

MAIN ROTOR HEAD

PV0365

PV1362

PV0482-L

PV0633-1

PV1379

PV1362

PV1322

PV1323

PV1324

PV1379

PV0450

PV0633-1

PV1379

PV0053

PV1362

PV0365

PV1327

PV1379

PV1334

PV1325

PV1379

PV1315

PV0683-1

PV1326

PV1321

PV1322

PV1342

PV0661-1

PV1341-1

PV1311

PV1316

PV1341

PV1342

GEAR SET

-49-

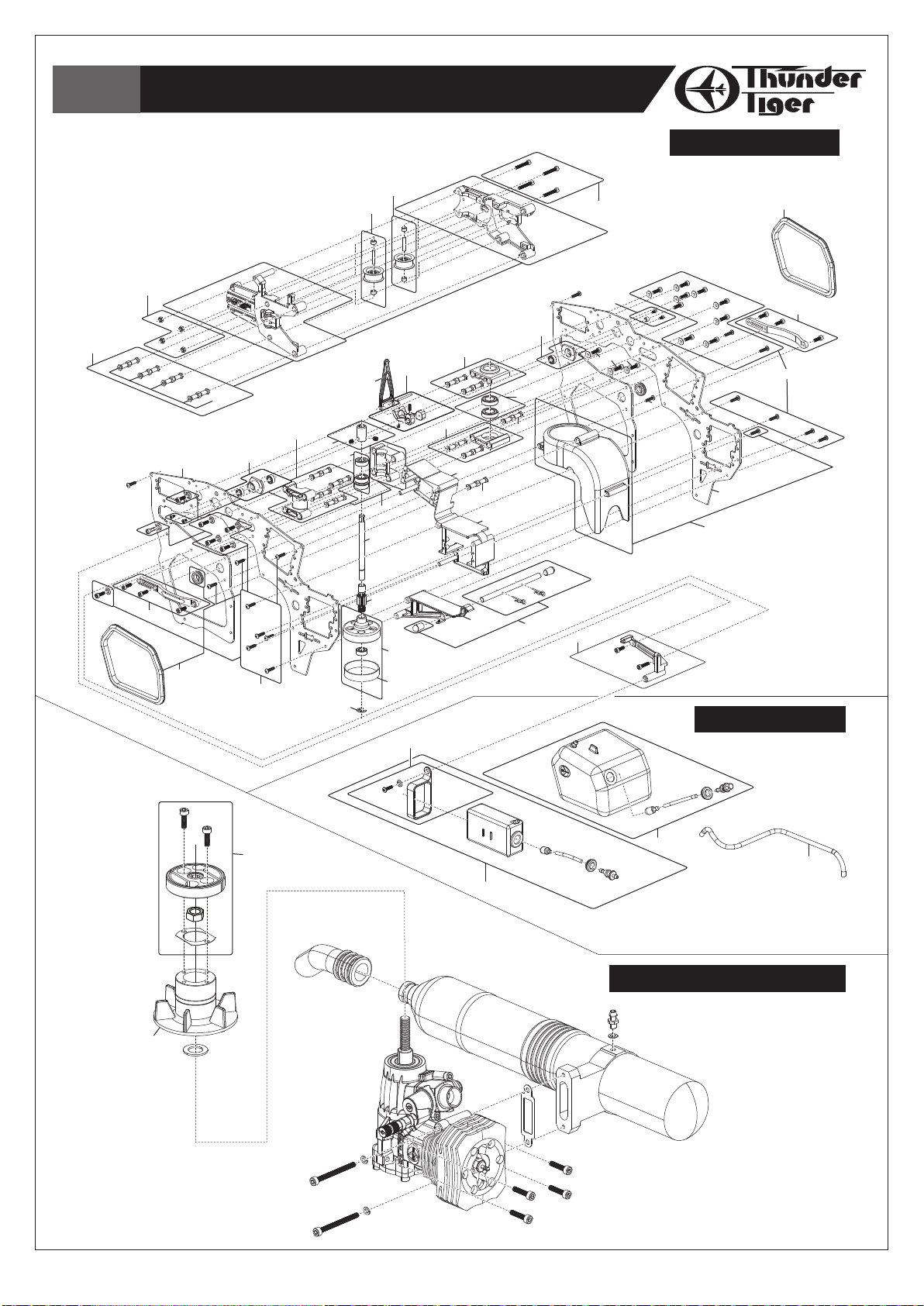

Page 51

Exploded View / 爆炸圖檢索

MAIN FRAME

PV1350

PV1357

PV1352

PV1329

PV1353

PV1358

PV1314-2

PV1357

PV1344

PV0361

PV0360

PV0021

PV0665

PV0021

PV1344

PV0360

PV1364

PV1314

PV0671-1

PV0532-1

PV0312

PV1335

PV1317

PV1335

PV1358

PV1332

PV1333

PV1314-1

PV0244

PV1358

PV1343

PV0089

PV1314-1

PV1351

PV1357

PV1353

PV1357

PV1353

PV1352

PV1357

PV1329

PV1355

FUEL TANK

AVQ143

PV0359

PV1328

PV1179

PV0311

CLUTCH & ENGINE

-50-

Page 52

Exploded View / 爆炸圖檢索

PV1346

PV1345

SKID & ENGINE MOUNT

PV1313

PV1313-1

PV1348

PV1349

PV1313-1

PV1357

PV1359

PV1357

-51-

PV1354

PV0035-2

Page 53

Exploded View / 爆炸圖檢索

PV1337

TAIL UNIT

PV0347

PV0520-1 PV0520

PV0521-2

PV1337

PV1377

PV0679-T

PV1377

PV0677

PV1377

PV1337

PV1310-1

CANOPY

PV1310

PV0678-1

AV0052

PV1416

PV0030

PV1363

PV0027

PV0058

PV0016

PV0088

PV0058

PV1318

PV1330

PV1331

PV1330

PV0504

PV0088

-52-

Page 54

ø1345

ø260

1200

SPECIFICTION / 規格表

Fuselage Length / 全長:

Fuselage Width / 全寬:

Main Rotor Diameter / 主旋翼旋轉直徑:

Main Rotor Length / 主旋翼長度:

Tail Rotor Length / 尾旋翼長度:

Tail Rotor Diameter / 尾旋翼旋轉直徑:

Gear Ratio / 齒輪傳動比:

Fully Equipped Weight / 全配重量:

Fuel Tank Capacity / 油箱容量:

Header Tank Capacity / 副油箱容量:

ø556

200

400

1200mm (47.24") 200mm (7.87") 1345mm (52.95") 600mm (23.62") 95mm (3.74") 260mm (10.24") 1:8.5:4.56 3,100g (w/o fuel) 420cc 60cc

FEATURES / 特色

1. 1 piece Carbon Frames, Slim Profile Design (Only 30mm Wide)

2. Dual Radial, Single Thrust Bearings Metal Tail Grips with 95mm Blades

3. Lightweight & Vented Clutch Bell/ Metal-reinforced Ribs

4. Lightweight & Vented Main & Tail Gear Set Design

5. Lightweight Tail Boom Bracket

6. Lightweight & Tough Landing Skid

7. Carbon Base Plate & Carbon Fin

8. 10mm Hardened Main Shaft & 7mm Feathering Shaft

9. Shrouded-fan for Efficient Thermal Dissipation

10. Spacious 3-deck Tray for Electronic Devices.

11. Main & Header Tanks Total Capacity: 480 cc

12. Metal Tail Boom Clamp

13. High-quality Fiberglass Canopy Preprinted

14. Equipped with Lightweight Paddles for 3D (20-gram)

15. New Underslung Rotor Head for Ultimate 3D Performance

16. +/- 15° Collective Pitch

manufactured by

THUNDER TIGER

1. 單片式窄機身碳纖側板設計(僅30mm寬)

2. 標準95mm尾旋翼搭配雙滾珠軸承包覆止推軸承

3. 輕量化鏤空離合器罩及機身金屬強化肋條

4. 輕量化鏤空主齒盤及尾傳動齒輪組

5. 輕量化尾支撐桿固定座

6. 高強度輕量化腳架

7. 碳纖強化底板及碳纖垂直安定翼

8. 10mm強化主軸及7mm橫軸

9. 高效率包覆式散熱風扇罩

10. 三層式電子設備固定座設計

11. 加大主油箱，含副油箱容量達480cc

12. 金屬尾管固定夾座

13. 原廠塗裝完成高亮彩玻纖機頭罩

14. 標準配備20克3D版輕量化平衡翼

15. 完全對應3D飛行旋翼頭設計（平衡翼在下）

16. 主旋翼攻角達+/-15度

C 2011

http://www.thundertiger.com

JK0361V3

Thunder Tiger 4855 User guide

Specifications and Main Features

Frequently Asked Questions

User Manual
