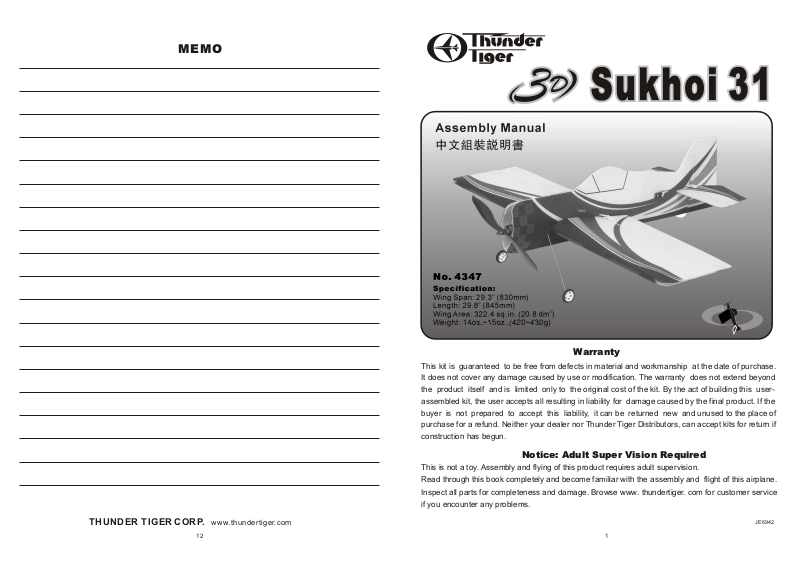

MEMO
Assembly Manual
No. 4347
Specification:
Wing Span: 29.3” (830mm)
Length: 29.8” (845mm)
Wing Area: 322.4 sq.in. (20.8 dm )
Weight: 14oz.~15oz. (420~430g)
2
Warranty
This kit is guaranteed to be free from defects in material and workmanship at the date of purchase.
It does not cover any damage caused by use or modification. The warranty does not extend beyond
the product itself and is limited only to the original cost of the kit. By the act of building this user-
assembled kit, the user accepts all resulting in liability for damage caused by the final product. If the
buyer is not prepared to accept this liability, it can be returned new and unused to the place of
purchase for a refund. Neither your dealer nor Thunder Tiger Distributors, can accept kits for return if
construction has begun.
Notice: Adult Super Vision Required
This is not a toy. Assembly and flying of this product requires adult supervision.
THUNDER TIGER CORP.
12 1
www.thundertiger.com
Read through this book completely and become familiar with the assembly and flight of this airplane.
Inspect all parts for completeness and damage. Browse www. thundertiger. com for customer service
if you encounter any problems.
JE6942
INTRODUCTION
PARTS DRAWINGS
Introduction
Thank you for your purchase of the Thunder Tiger 3D Sukhoi EP. You can make this proven 3D fun flyer
easily do any aerobatics and 3D maneuvers, includes Knife Edge, Hovering, Torque Rolls, Cobra...etc.
Made of Anti-Impact EPP material that reduce the crash damage. Very good for those who are interested in
learning 3D-aerobatics or experienced 3D pilots who are looking for a relaxed practicing plane that can be
used both outdoor and indoor.
The 3D Sukhoi EP is designed for intermediate pilot minded. Before beginning the assembly read
the instructions thoroughly to give an understanding of the sequence of steps and a general awareness of
the recommended assembly procedures. Check the entire contents of your kit against the parts drawing
and photos to make sure that no parts are missing or damaged. This will also help you to become familiar
with each component of your plane. If you find that any of the parts are either missing or damaged, please
contact Thunder Tiger Distributors for Customer Service.
TABLE OF CONTENTS
Introduction.........................................................................................................................2
Parts Drawings........................................................................................................................3
Wing…………………..........................................................................................…….…...……...4
Tail........................................................................................................................................5
Motor………...........................................................................................………….....……........6
Landing Gear………........................................................................................………….....……..7
Setup....................................................................................................................................8-10
.............................................................................................................................11
Open the box and check that you have all the parts as shown below.
AS6647 Fuselage
Fuselage (1)
Firewall (1)
AS6648 Main Wing
1.5 CFK Rod 230 (2)
Velcro A (1)
Velcro B (1)
Wing (1)
Aileron (L/1,R/1)
1.5 CFK Rod 98 (2)
Glue (1)
Tail Gear (1)
1.5 CFK Rod 390 (2)
2.3x12mm Wood Screw (1)
Hinge (8)
OTHER ITEMS REQUIRED FOR ASSEMBLY
A checklist is provided as below which will make shopping for these items easier.
Brushless Motor: Recommend
OBL29/09-07A motor ( No.2354)
Controller: ACE BLC 12A
(No. 8026) is a perfect controller
that controlling OBL motor
efficiently.
Battery: Recommend the use
of a ACE Power Lipo battery
3S1P 1100mAh(No.2804).
Extension Wire: 2 pieces of
extension wire in length of 12”.
Propeller: There is a 11x8 prop. in
the kit, yet it is only for test flight.
Recommended APC 10x4.7 SF
propeller for high performance 3D
aerobatics.
TOOLS AND SUPPLIES NEEDED
Paper Towel
Hobby Knife
Ruler
Pen, Pencil or Marker
Phillips&Flat Head Screw Drivers
Scissors
Nose Plier
Drill Bit 5/64” (2mm)
Radio: A 4-channel radio with
3 micro servos and mini receiver
are required.
Adhesives: You will need the
thick instant (cyanoacrylate)
adhesives.
AS6649 Tail
Horizontal Tail (1)
2 CFK Rod 340 (1)
1.5 CFK Rod 180 (2)
AS6650 Pushrod
Clevis (4)
Pushrod (4)
AS6651 Landing Gear
Landing Gear (2)
Wheel Colar (2)
Mount (2)
Vertical Fin (1)
Hinge (4)
No.2354 OBL 29/09-07A
3x6mm Sink Screw (4)
Cross Mount (1)
Adaptor (1)
Outrunner Brushless Motor 29/27-07A (1)
AS6653 11x8 SF Propeller
5 11X8 Propeller (1)
AS6652 Control Horn
FRP Control Horn (4)
Reinforced Plate (1)
2x6mm Screw (3)
3x10mm Wood Screw (4)
AS6336 Wheel
Prop Nut (1)
Superlite Wheel (2)
2
3
WING
TAIL
Rudder
1.Carefully and slowly insert the main wing into the
fuselage then center it in place.
2. Glue the CFK rods on Aileron, Rudder and Elevator
as indicated.
4. Install four CA hinges on the aileron as shown,
carefully use the sharp hobby knife to cut the slots on
aileron and trailing edge of wing for the hinges.
5. Attach the aileron to the trailing edge of main wing
then apply CA glue to all hinges and make sure
they are jointed well. Do the same procedure on
the other aileron.
7. Glue the FRP control horn and elevator reinforced
plates together as shown. Make sure the two
rein forced pieces are glued properly at each side of
elevator so the control horn could be installed
perpendicularly at left.
8. Do the same procedure as elevator control horn
to install the rudder control horn as shown at right.
10. Cut a slot at the bottom rear fuselage, install tail
skid in place with CA glue.
11. Drill 5/64”(2mm) pilot holes for mounting the
elevator servo, next connect a 12” extension wire
before you secure the servo in place. Do the same
way on rudder servo.
3. Install and center the horizontal tail in place, make
sure the horizontal tail is perpendicular to the vertical
fin and parallel with the main wing. Next CA the main
wing and horizontal tail firmly in place.
12. Locate the pushrod and clevis, thread the clevis
6. Install four CA hinges on the rudder, use the same
way as you did on aileron. Next glue the rudder on
the vertical fin.
4
9. Do the same procedure on both aileron control horns.
at least 6mm then snap onto the FRP control horn,
make sure servo is in neutral position then make
Z-bend and cut the excess pushrod. Insert the
Z-bend end to the servo horn and secure the servo
horn on the servo as shown. Do the same way to
the other pushrod.
5

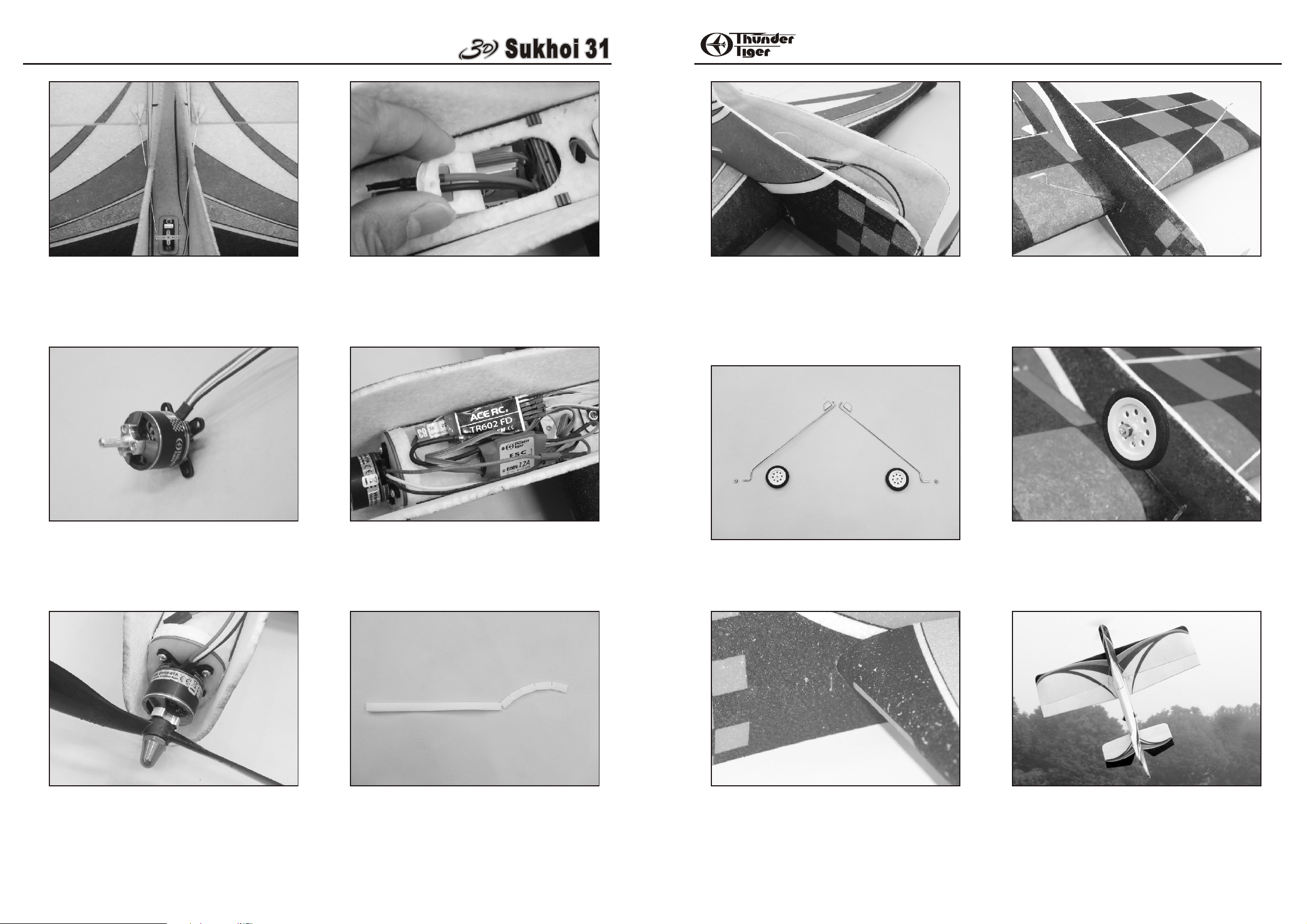

MOTOR
LANDING GEAR
13. Secure the aileron servo and attach the aileron
pushrods as shown.
14. Secure the cross mount on brushless motor with
four 3x6mm sink screws. Install the adaptor to the
brushless motor with three 2x6mm screws as shown.
16. Open the hatch and place the Lipo battery in the
compartment. Secure the battery in place with the
2.3X12mm wood screw.
17. Connect the receiver and controller properly,
secure these electric devices with the furnished
wide Velcro.
19. Apply the furnished glue on fuselage opening
and Velcro, wait for 10 minutes before gluing them
together. Hint: It is very important to wait for couple
minutes before gluing together. You may blow the
glue area and it will be cured faster. Do not
separate the Velcro. Carefully attach the Velcro to
the fuselage opening on one side first then apply the
other side of fuselage to the Velcro.
20. Locate the landing gear wires, mounts, wheels
and stoppers. Bend the wire as shown and trim the
excess wire.
22. Trial fit the landing gear wire and mount first,
CA the wire and landing gear mount in place
when satisfied. Note two landing gear wires are
angled properly.
23. Install the wheel and CA the wheel stopper. Make
sure wheel rotates freely.
15. CA the firewall in place then install the brushless
motor on the firewall with four 3x10mm wood screws.
Next install the furnished propeller and with prop nut.
If user would try extreme 3D then APC 10x4.7
SF is recommended.
18. Locate the narrow/long Velcro strip and trim as
shown to accommodate the fuselage opening.
Note: do not cut it off and make sure it is connected.
6 7
21. Locate the landing gear mounting slot where
near the leading edge of main wing as shown.
Congratulations! Now you are ready to fly. Make
sure to adjust the plane as the suggestion in next
two pages.
CONTROL THROWS
LONGITUDE BALANCE
Control Throws
The following control throw of 3D Sukhoi EP is merely a starting point for your radio setup and can be
tailored to fit your flying style.
For all three models the aileron and elevator of the same throws but rudder are different as shown below.
2-3/4” (70mm)
2-3/4” (70mm)
2-1/2” (65mm)
2-1/2” (65mm)
3” (79mm)
3” (79mm)
3” (79mm)
Aileron-Low Rate
Elevator/Low Rate
Rudder /Low Rate
2” (50mm)
2” (50mm)
1-3/4” (46mm)
1-3/4” (46mm)
2-1/4” (58mm)
2-1/4” (58mm)
Aileron-High Rate
Elevator/High Rate
Rudder/High Rate
LONGITUDE BALANCE
C.G. Must be set on thrust line
C.G. is too low C.G. is correct
As 3D planes do a lot of hovering so it is very important to do longitude balance to make hovering much
more stable. Try to create a small hole after the motor and on the thrust line. Get music wire or string then
thread the wire through the hole. Make sure that model hangs perfectly vertical as illustration. If not then
try to adjust the location of battery, receiver or ESC to get good longitude balance.
BALANCE
It is important to balance the plane to get correct C.G. before you fly.
Balance Point as indicated in each diagram.
2” (53mm)
Congratulations
Your done, may you have many successful flights filled with fun and lots of 3D maneuvers.
Thank you for purchasing this plane from Thunder Tiger and we look forward to providing you with other
great R/C products in the near future.
SETTING UP FOR 3D FLIGHT
Servo Output
Stick Travel
High Rate
Low Rate
Note: For the best flight performance of the Sukhoi, A high center of gravity is important.
8
1/3 1/3 1/3
9
SETUP
Exponetial
To make your 3D flight successful, the most important
is to set up your radio properly and fine-tune the
exponential. We would suggest that could show the
exponential graph as the illustration.
Normally this computerized radio has dual rates or
even triple rates. Once you fly it fine with low rate in
normal flight. Next you will have to set up 3D rate.
We suggest the 3D-rate setting is same as low rate
setting around 1/3 of the total stick travel in the
beginning. If you look at the graph , the middle section
of 1/3 travel are most likely the same at low rate and
3D high rate .Beyond this middle section the 3D rate
setting is far higher than the low rate.
SIMULATOR
FLYING
Even though you set up the airplane , it needs to be
setup and fine-tuned in the air. Always start on low
rates when launch the airplane or take off of the
ground. Once you fine trim the airplane in the air then
tune the exponential setting, you will be able to fly it
all the time on the 3D rates.
Once you got confidence to do hovering or do 3D
aerobatics, we suggest you fly it near you. The closer
the airplane, the better you fly it near you. The closer
the airplane, the better you can control the plane as
you can see it very clear even if it has a slight
movement. The other advantage is the lower or closer
to ground, the less potential energy. It is useful for a
dead battery or ESC cut off suddenly.
A good tool to practice 3D easier is to fly simulator.
One may say simulator is not realistic but this is not
true. There are some simulators available in the
market and its scenery and performance are just like a
real thing .For example, Aerofly Pro Deluxe USB
version from ikarus or Real Flight G3 from
Greatplanes are all good simulators you can choose
from .
Simulator is a must buy tool if you seriously want to fly
3D aerobatics. There is no genius or born 3D pilot,
remember that practice makes perfect.30 minutes a
day on a simulator can help you do hovering, torque
roll easily as well as other aerobatics. If you would like
to be a good 3D pilot, flying everyday is necessary.
The reaction to control the airplane will be more
nature. As there is no time to think when you do 3D
aerobatics.
Simulator practice might be perfect yet suggest to do
some actual flying as the supplemental so it will not
go too far from the real thing as there are many things
that you can not learn in screen.
30cm
3x10mm
2x6mm
10
11
Loading...
