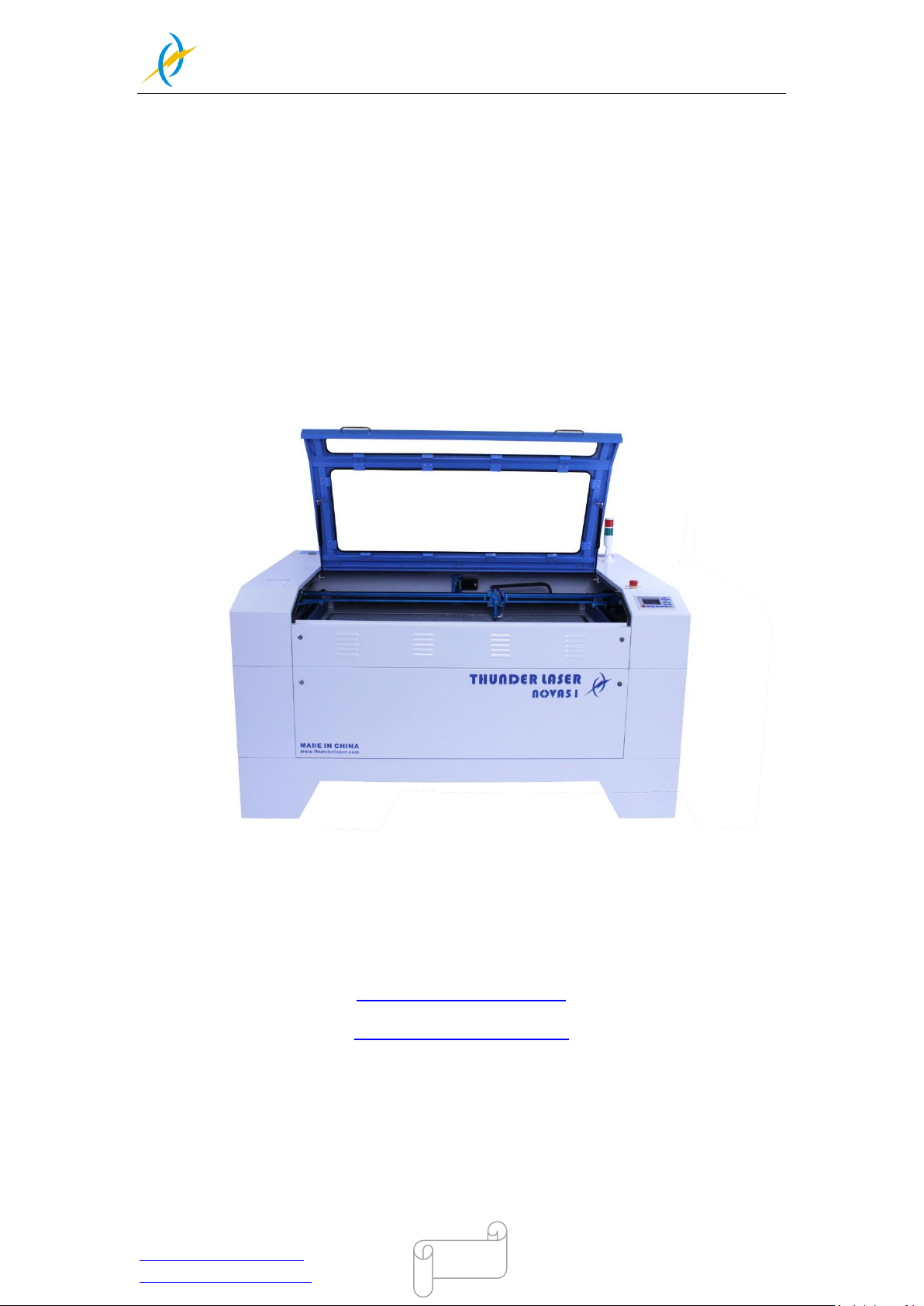

Page 1
THUNDER LASER NOVA-51
1
THUNDER LASER
SYSTEMS
User’s manual for NOVA-51
www.thunderlaser.com
February 17, 2017
Original Instruction
www.thunderlaser.com DONGGUAN THUNDER LASER EQUIPMENT CO.,LTD
[email protected] No.197, Hudong Road, Shatian Town,
Tel :(86)769 826653 Dongguan, Guangdong, China
Page 2
THUNDER LASER NOVA-51
2
Introduction
This manual has been designated as the thunder laser systems, laser cutting
machine installation and user guide；The manual is divided into five chapters，
Including general information instructions, safety instructions, the key
components of every laser cutting systems and the installation steps, operation
instructions and maintenance instructions from THUNDERLASER Company.
Frist, it should be emphasized that the installation of each system must meet
the requirements, and make it consistent with the installation requirements of
THUNDERLASER. If not, the machine will not working properly，poor performance，
life shortened，maintenance costs increased and even machine damage .
The note is for getting a specific requirement of system installation，and we
hope every customer try to understand these notes before installation and usage,
thus you can correctly install and use. If you meet any installation problems，
you can contact our technical staff and customer service staff.（At the same time,
you can also refer to the machine installation video that we posted on youtube.
The specific URL is
http://www.thunderlaser.com/how-to-use-your-laser-machine/how-to-setup-your-nova-las
er-cutter.html Or
https://www.youtube.com/watch?v=NpLo1L0NQx8&list=PLjSZrgjcrhs7QucNN-3jx7rZapDGfj
G-5 .）
www.thunderlaser.com DONGGUAN THUNDER LASER EQUIPMENT CO.,LTD
[email protected] No.197, Hudong Road, Shatian Town,
Tel :(86)769 826653 Dongguan, Guangdong, China
Page 3
THUNDER LASER NOVA-51
3
Contents
Chapter1 General .................................................................................................................................. 5
1.1 General Information ...................................................................................................................... 5
1.2 Designated .................................................................................................................................... 6
1.3 Disposal remarks .......................................................................................................................... 6
1.4 Technical Data/Device Specification ............................................................................................ 7
1.5 Manufacturer’s Label .................................................................................................................... 9
Chapter 2 Safety .................................................................................................................................. 10
2.1 General Safety Information ...................................................................................................... 10
2.2 Laser Safety Information .......................................................................................................... 12
2.3 Safety Precautions When Operating the Device ....................................................................... 13
2.4 Warning and Information Labels ................................................................................................ 14
Chapter 3 Process of Installing ........................................................................................................ 16
3.1 Unpacking ................................................................................................................................... 16
3.2 Location ........................................................................................................................................ 17
3.3 Before Installaion ........................................................................................................................ 18
3.4 Exhaust System - Requirements ................................................................................................... 20
3.5 Air System - Requirements ........................................................................................................... 20
3.6 Computer - Requirements ............................................................................................................. 21
3.7 Connections .................................................................................................................................. 22

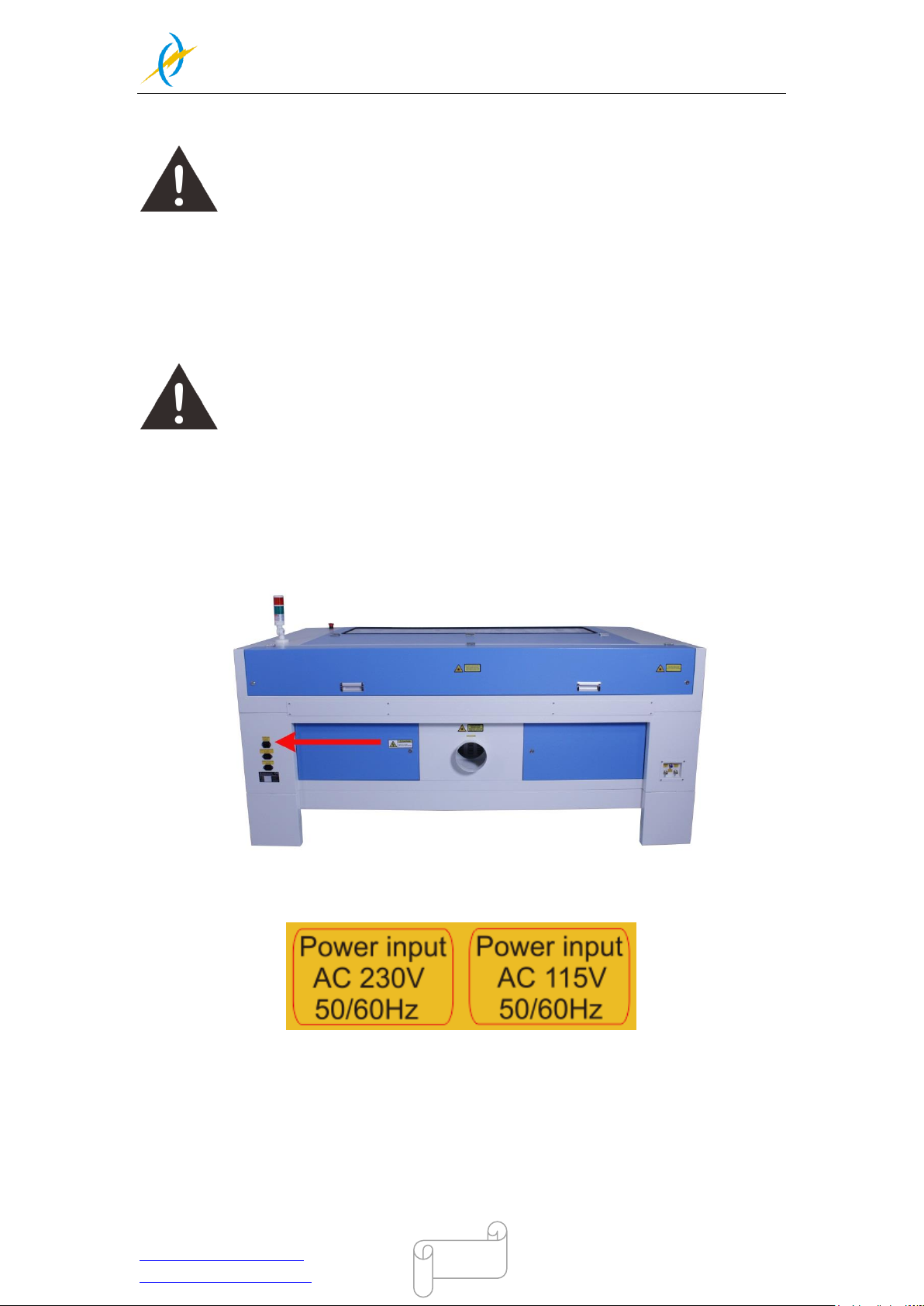

3.7.1 Connecting the Mains .......................................................................................................... 22

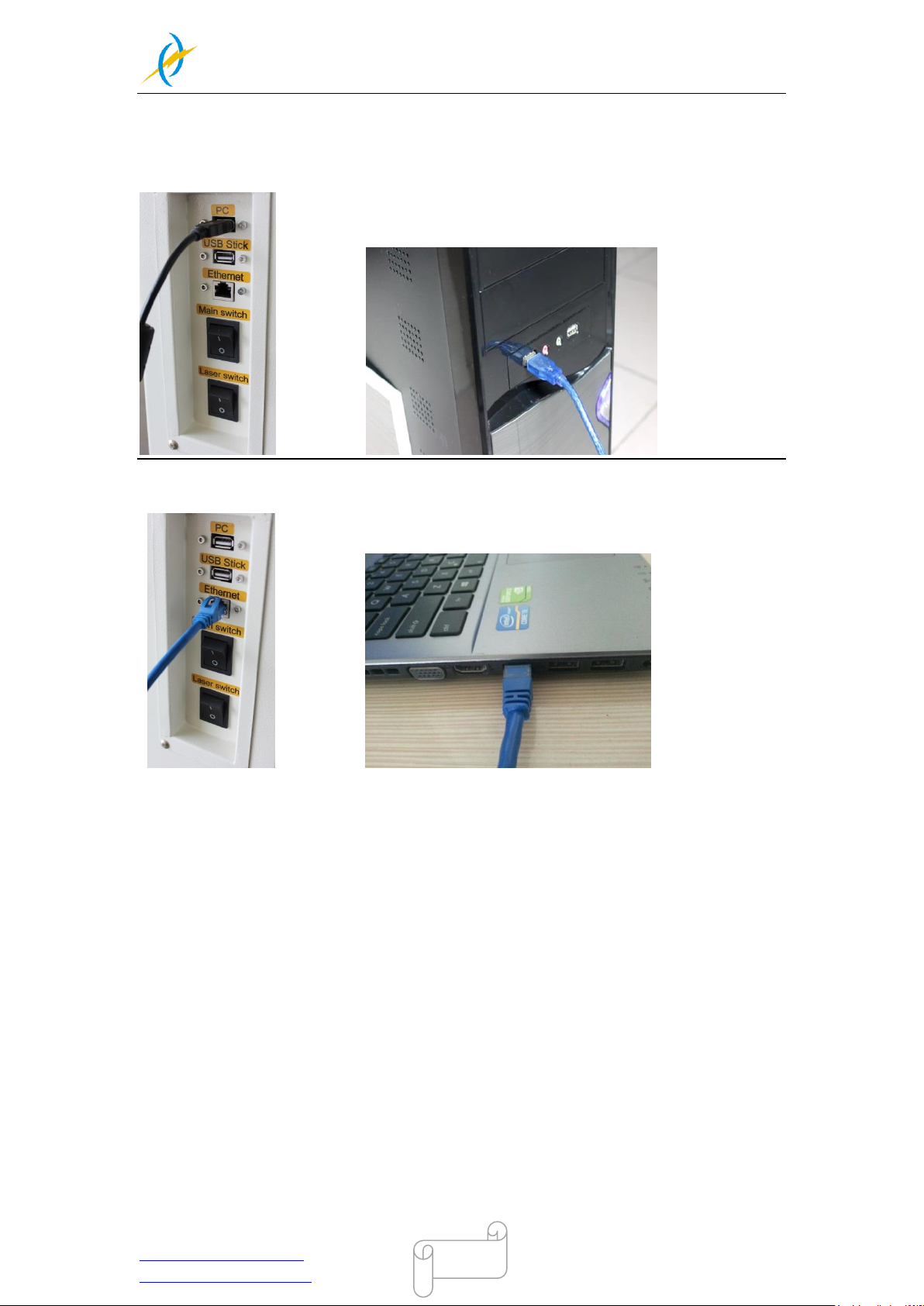

3.7.2 Connecting the Computer .................................................................................................... 23
3.7.3 Connecting the Exhaust System .......................................................................................... 24

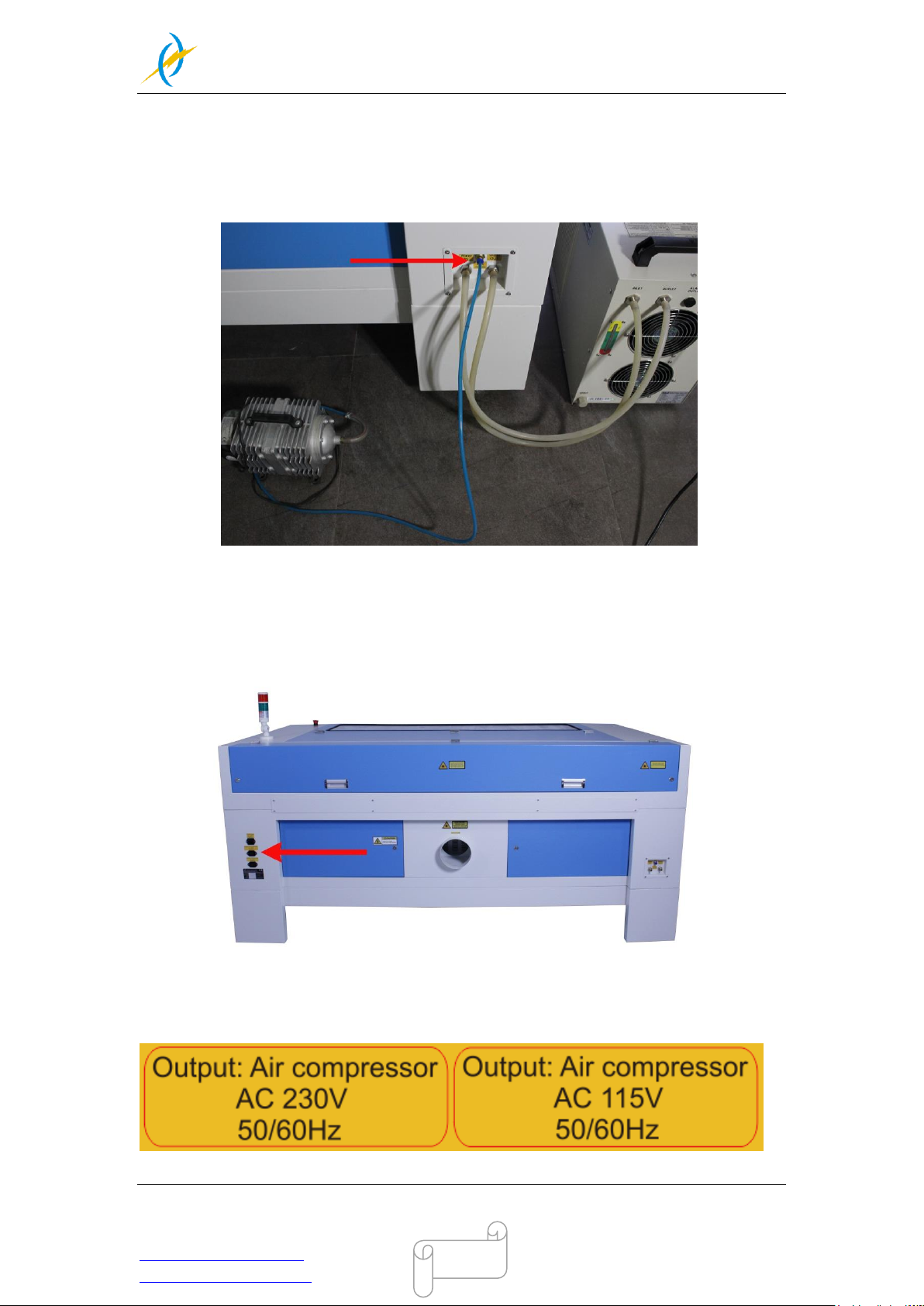

3.7.4 Connecting the Air System .................................................................................................. 26
3.7.5 Connecting the Cooling System .......................................................................................... 27
Chapter 4 Operation ......................................................................................................................... 28

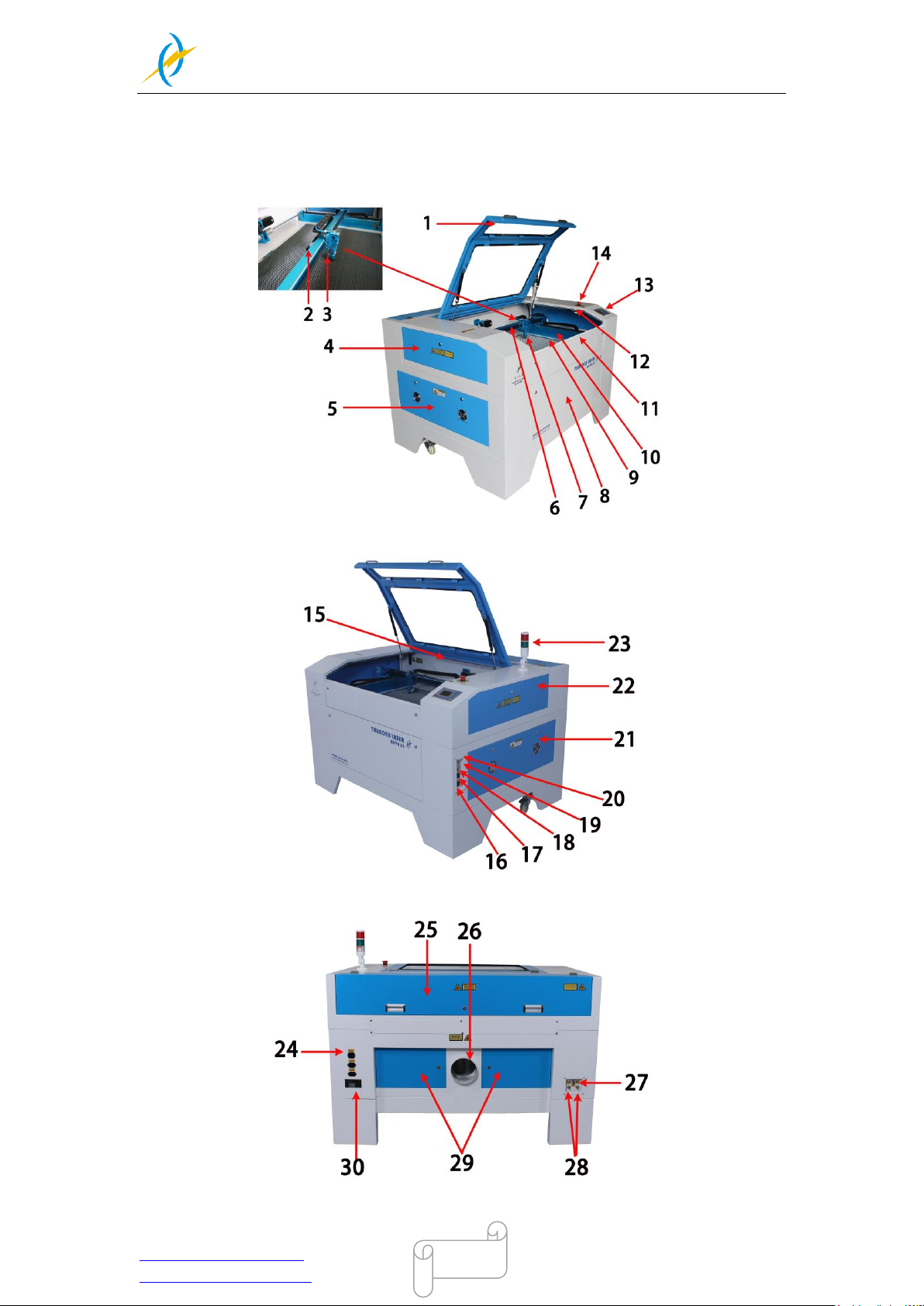

4.1 Machine View ............................................................................................................................. 28
4.2 ON/OFF Switch .......................................................................................................................... 32

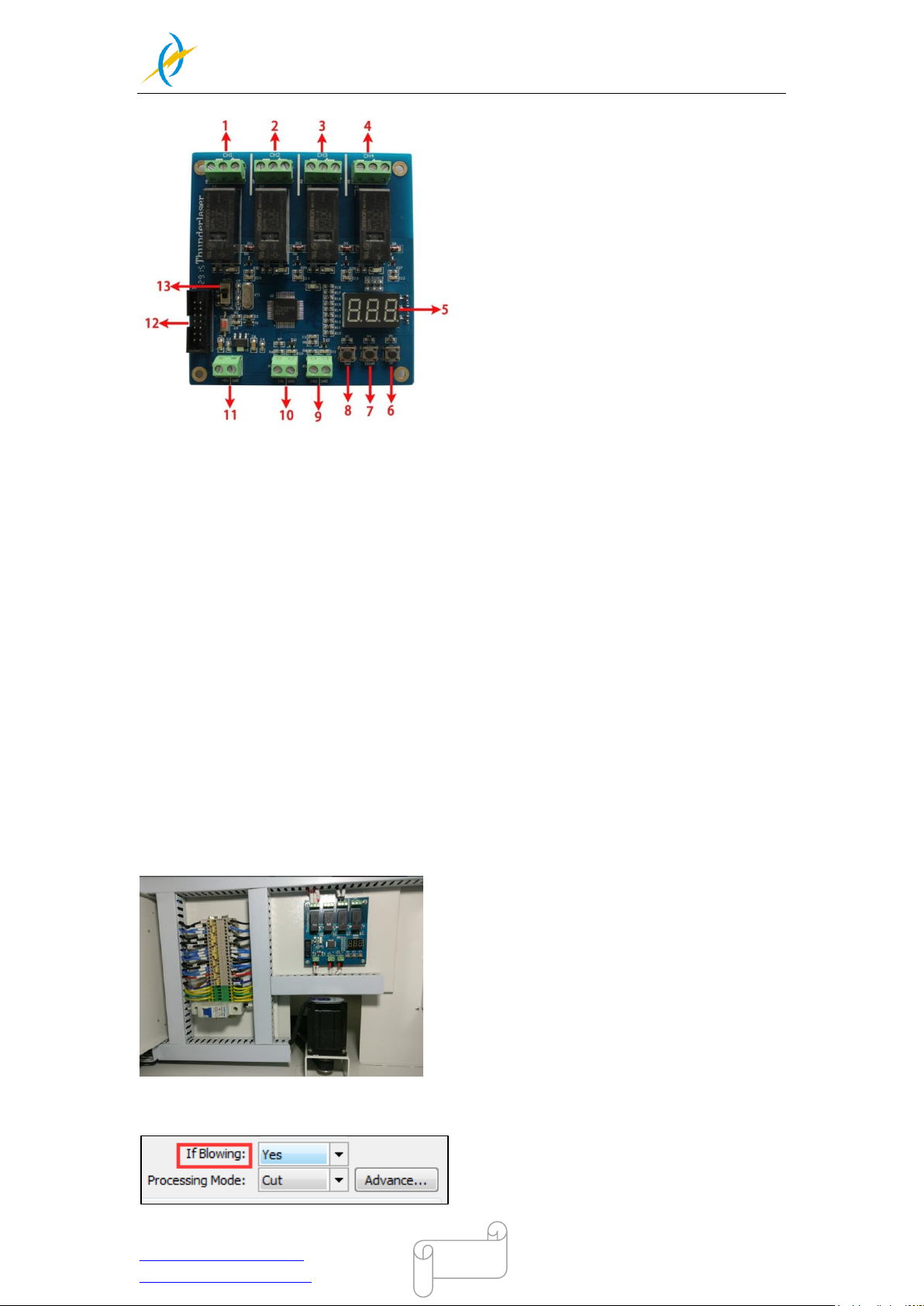

4.3 How to use the TL-Timer ........................................................................................................... 33

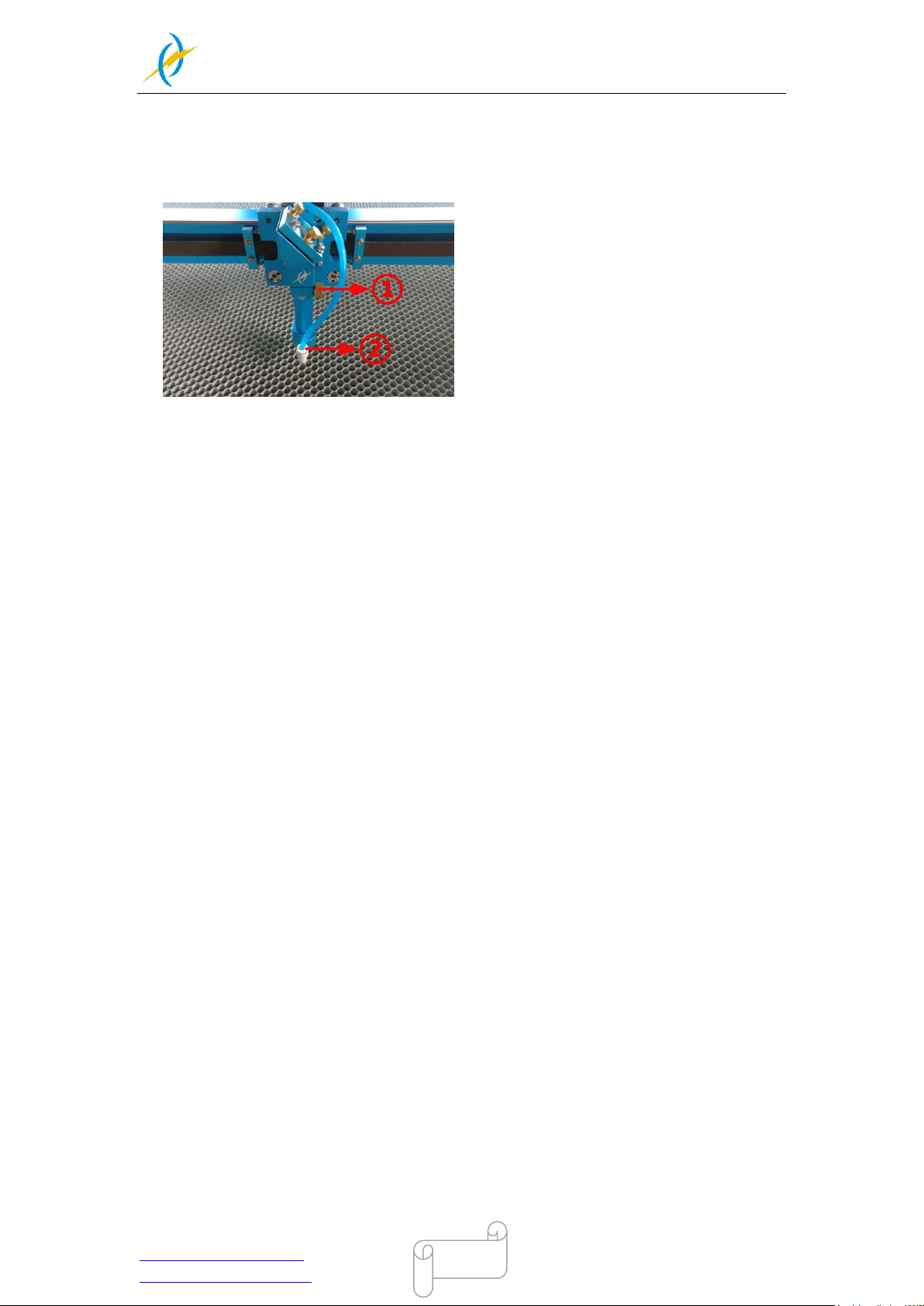

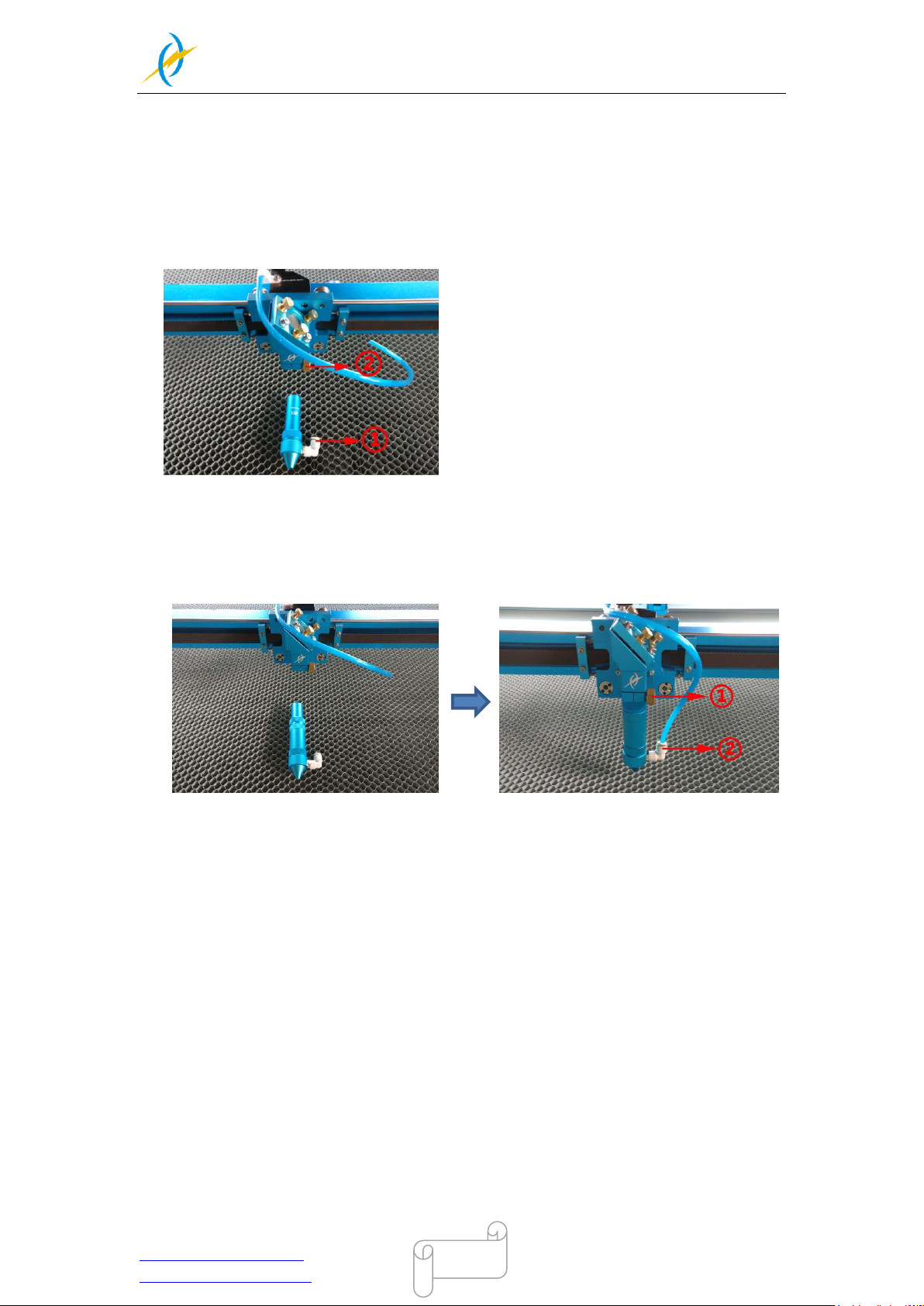

4.4 How to replace the 4 inch laser head and HR laser head ............................................................ 35

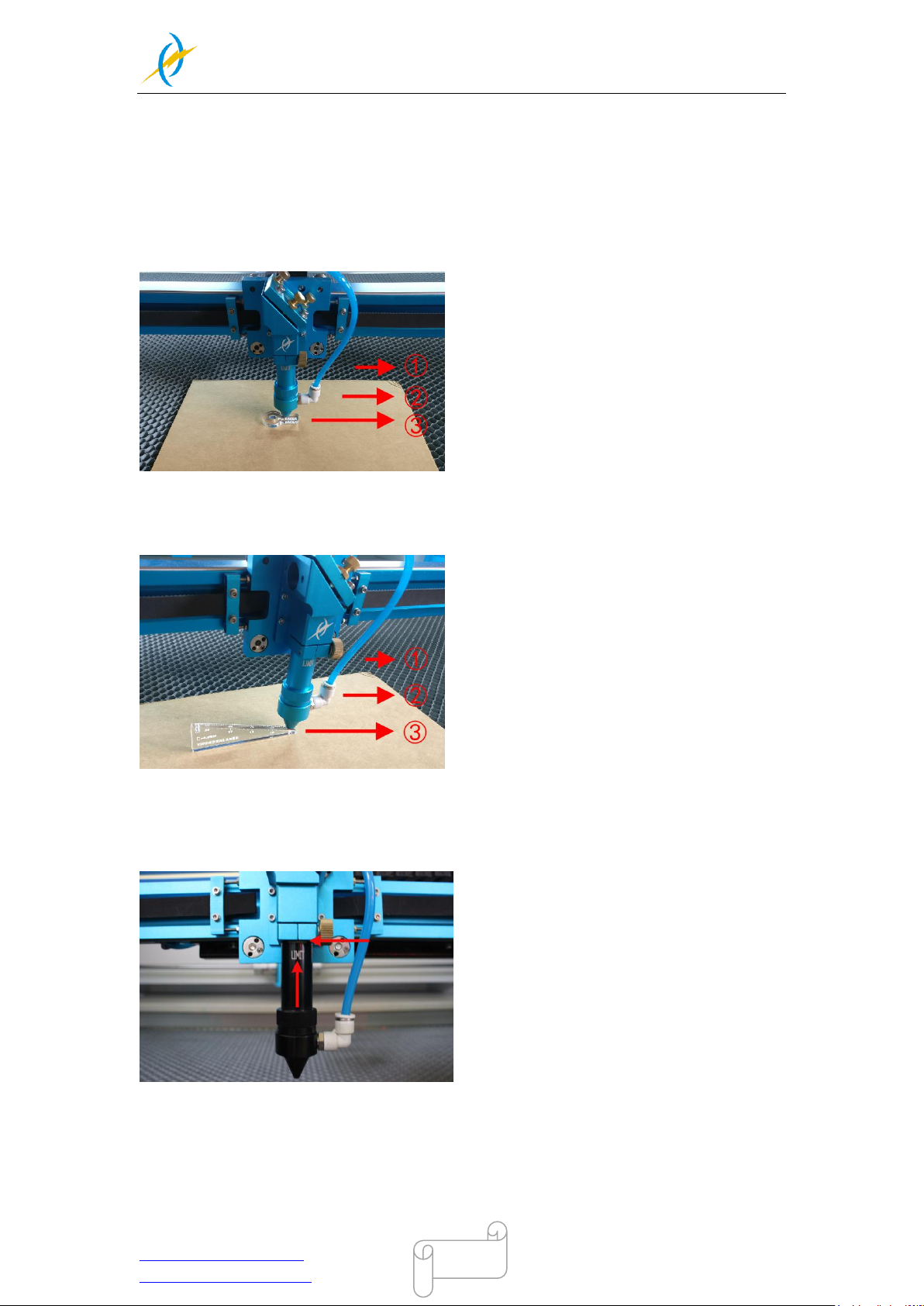

4.5 How to adjust focus distance using manual/auto ........................................................................ 37
4.6 How to Use the Display .............................................................................................................. 40

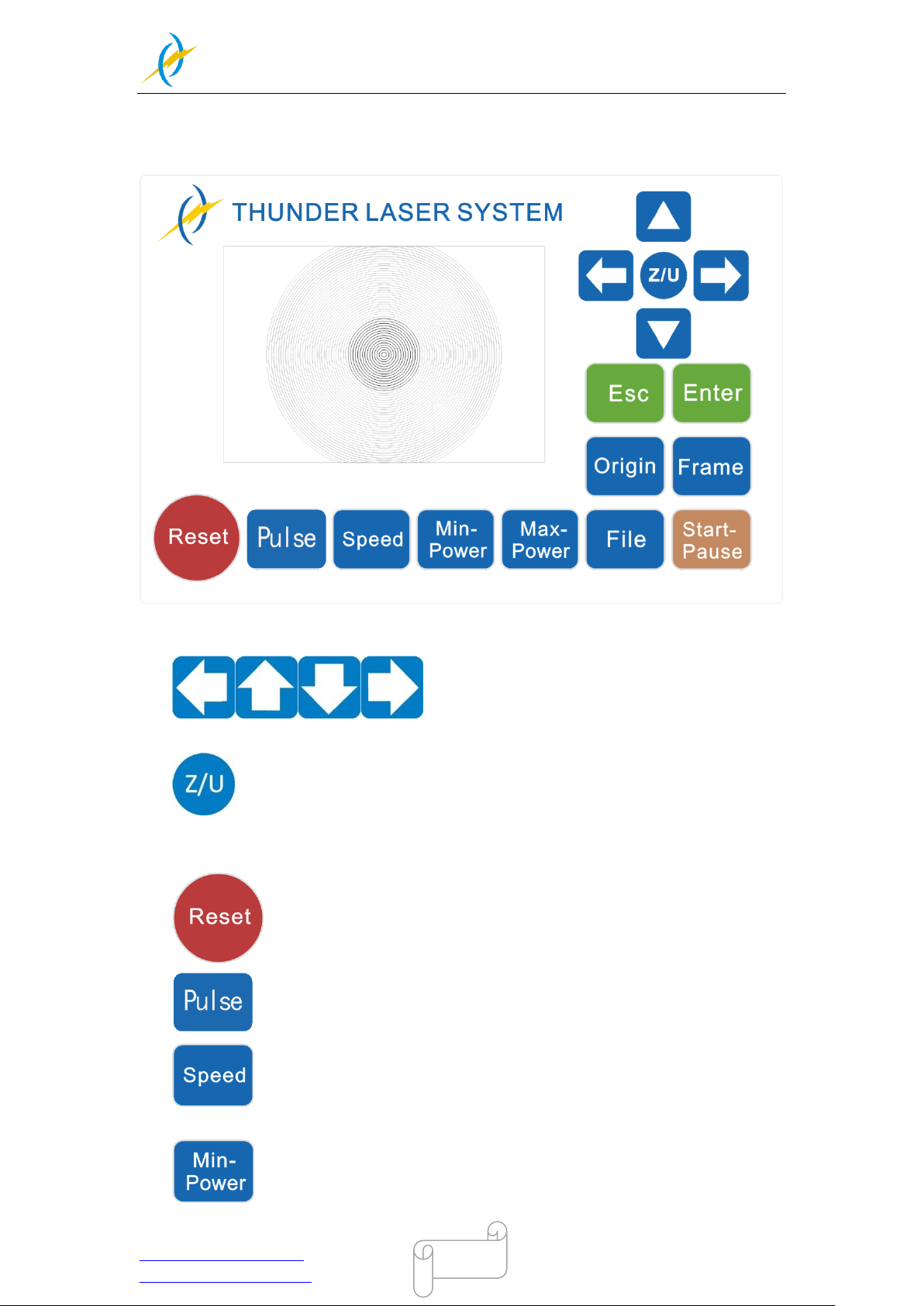

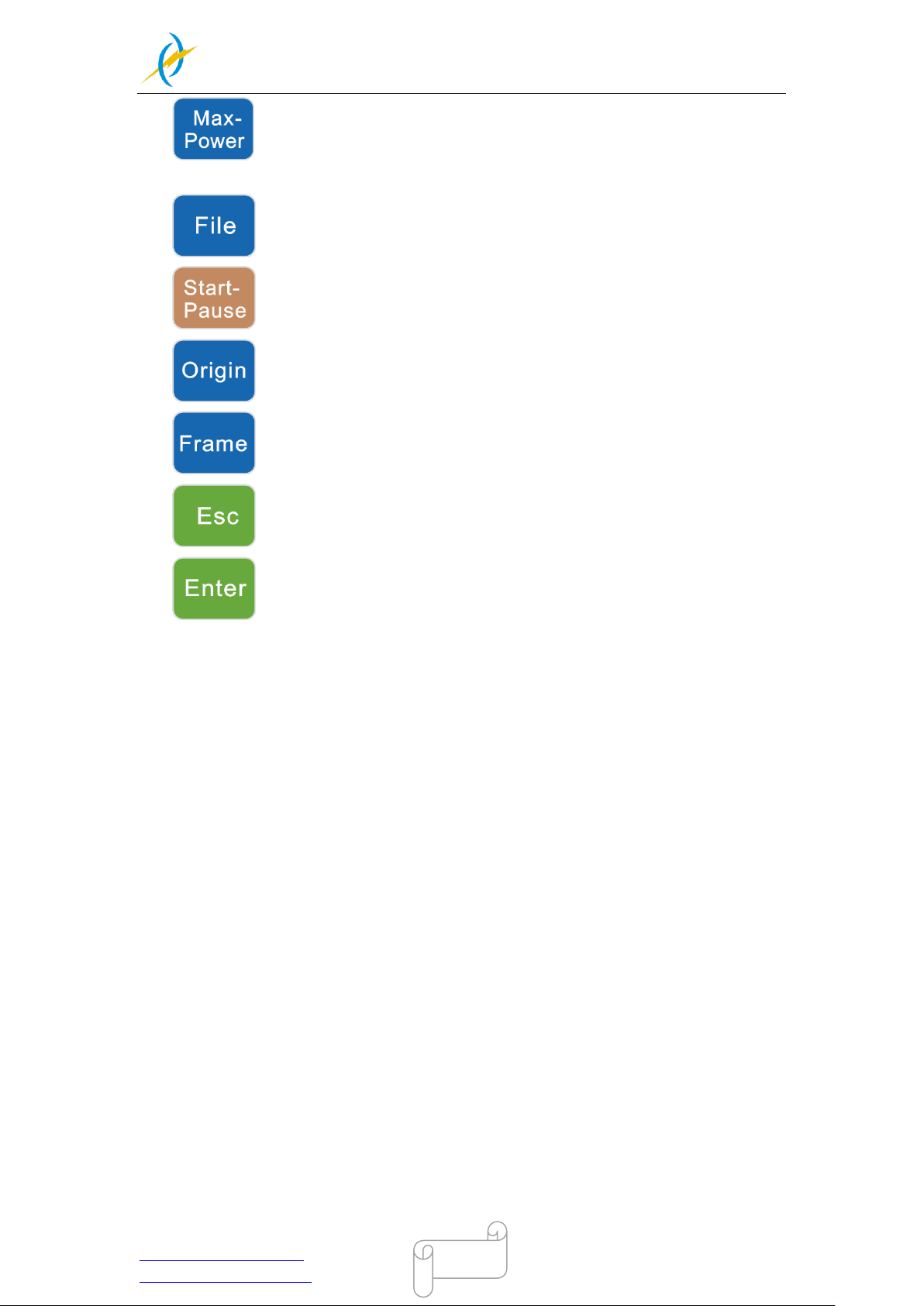

4.6.1 Function of the Buttons ....................................................................................................... 40

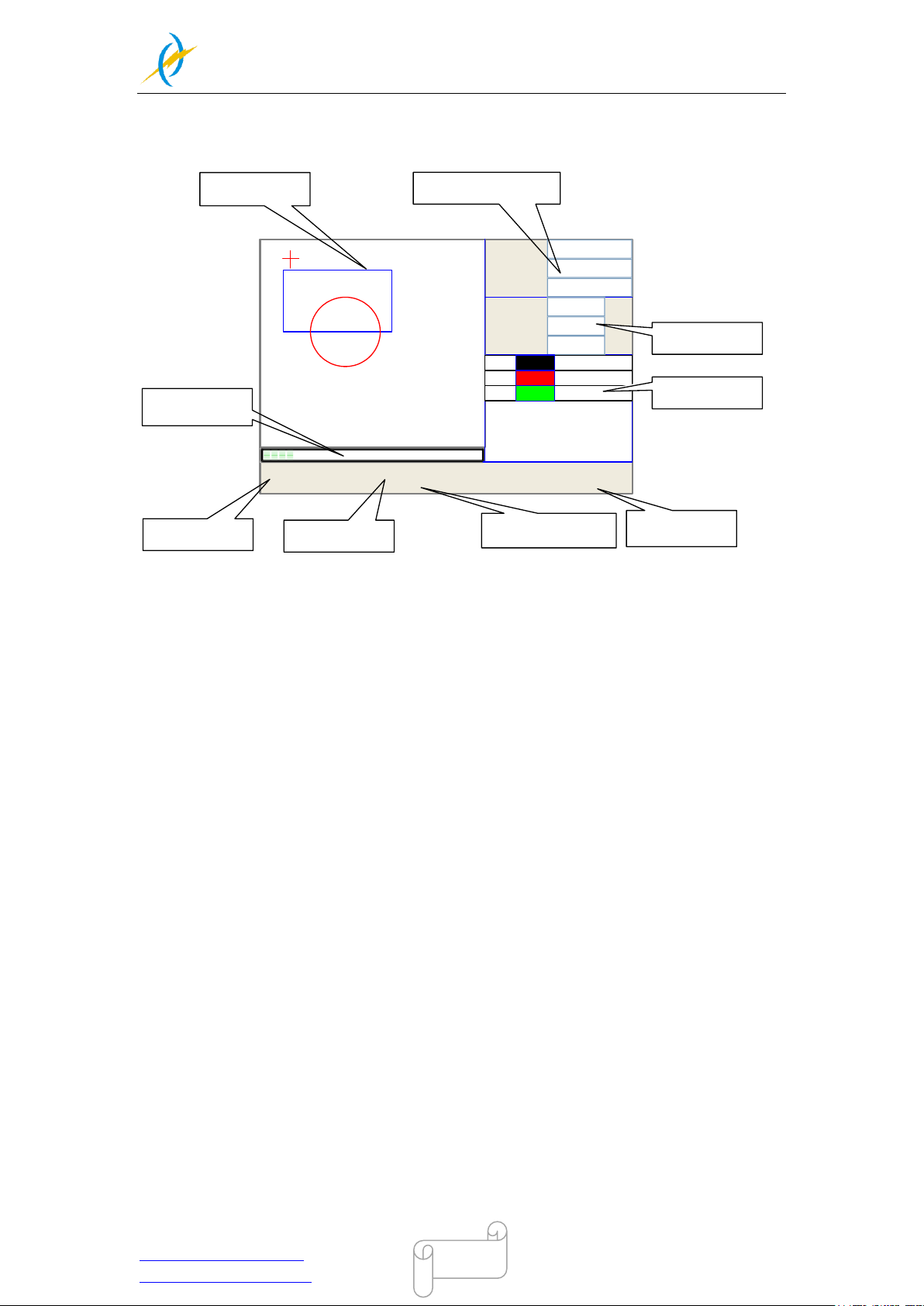

4.6.2 The Main Interface............................................................................................................... 42
4.6.3 Speed Key ............................................................................................................................ 43
4.6.4 Max/Min Power Keys .......................................................................................................... 43
4.6.5 Set the Layer Parameters ..................................................................................................... 44
4.6.6 Z/U Key ............................................................................................................................... 44
4.6.7 Z Move ................................................................................................................................ 45
4.6.8 U Move ................................................................................................................................ 45
4.6.9 Axis Reset+ .......................................................................................................................... 45
4.6.10 Manual Set+ ....................................................................................................................... 46
4.6.11 Laser Set+ .......................................................................................................................... 46
4.6.12 Origin Set ........................................................................................................................... 47
4.6.13 Set Fact Parameters ............................................................................................................ 48
www.thunderlaser.com DONGGUAN THUNDER LASER EQUIPMENT CO.,LTD
[email protected] No.197, Hudong Road, Shatian Town,
Tel :(86)769 826653 Dongguan, Guangdong, China
Page 4
THUNDER LASER NOVA-51
4
4.6.14 Def. Fact Parameters .......................................................................................................... 48

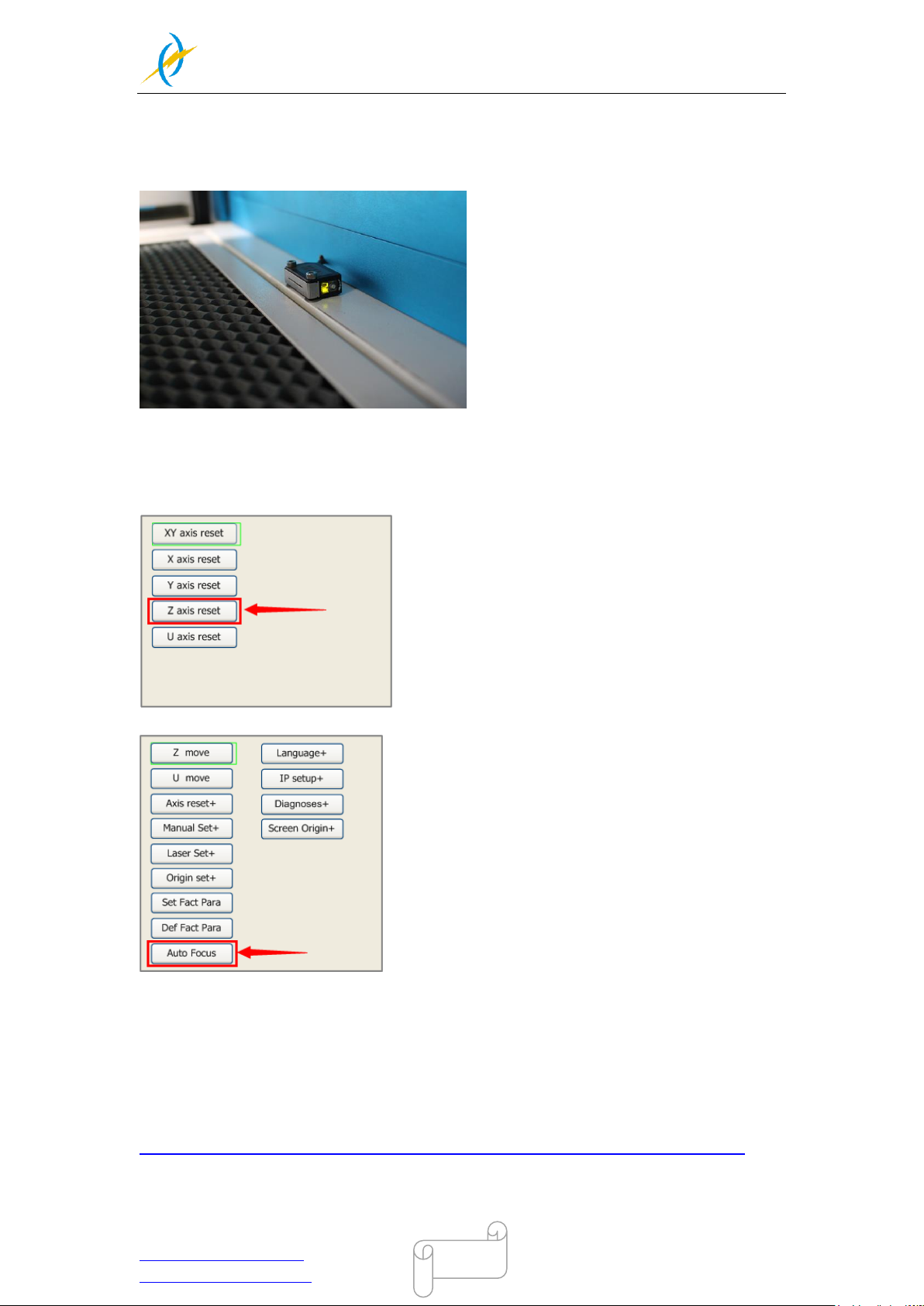

4.6.15 Auto Focus ......................................................................................................................... 48
4.6.16 Language ........................................................................................................................... 48
4.6.17 IP Setup .............................................................................................................................. 49

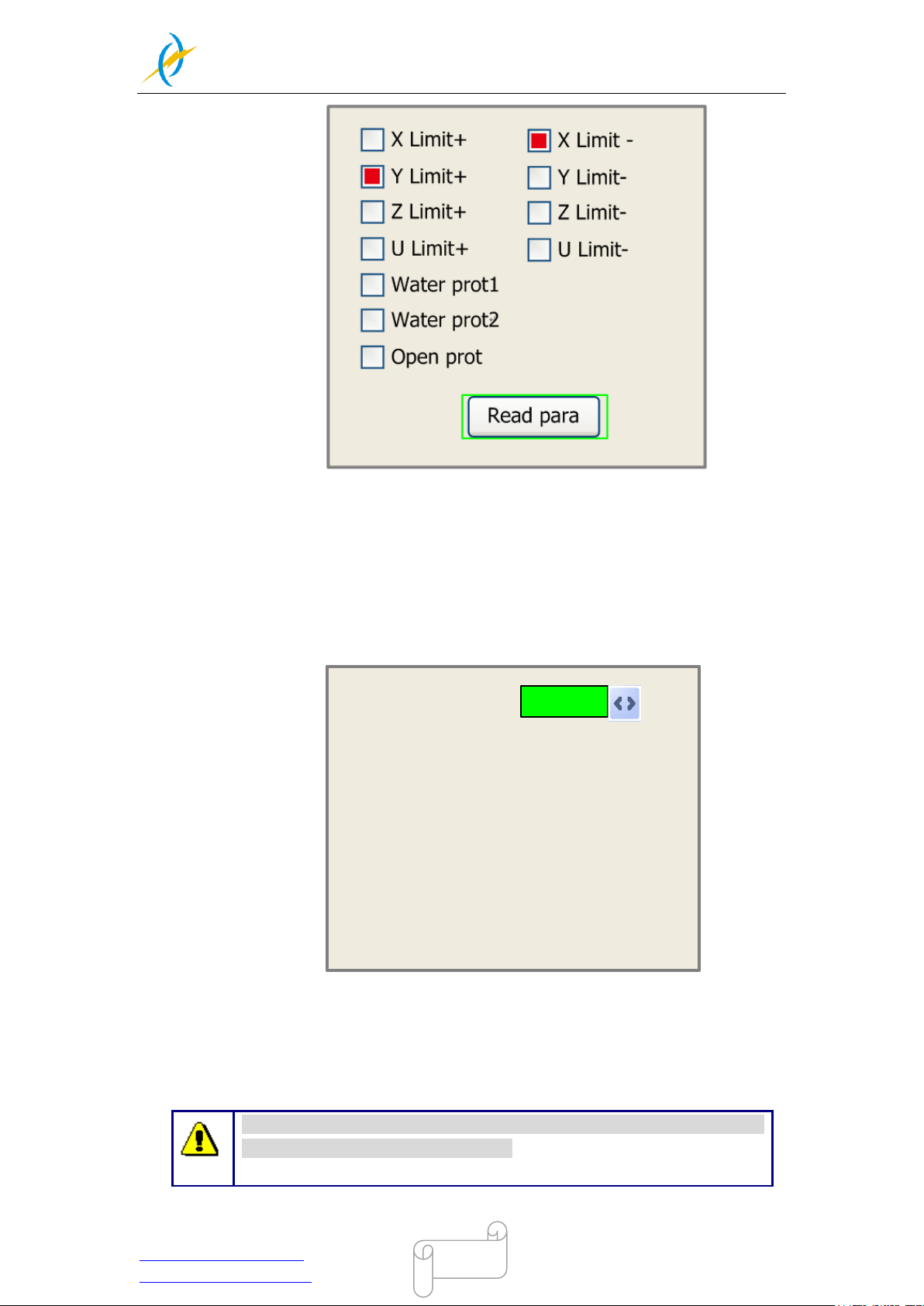

4.6.18 Diagnoses ........................................................................................................................... 49
4.6.19 Screen Origin ..................................................................................................................... 50
4.6.20 File Key ............................................................................................................................. 51
4.6.21 Alarm Information of Display ............................................................................................ 53
4.7 The First Time Running the Laser .............................................................................................. 54

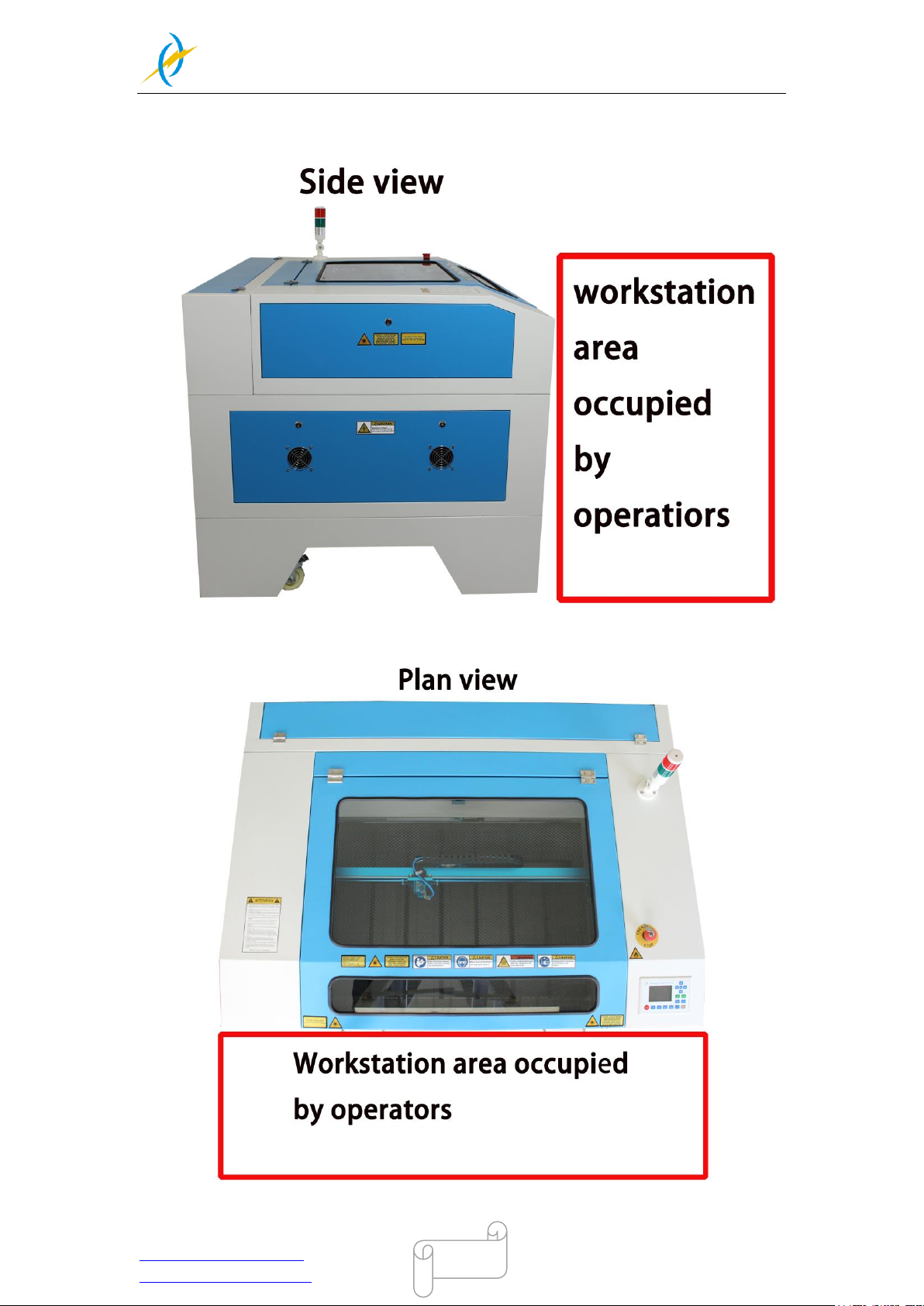

4.8 Workstation Area Indication ......................................................................................................... 56

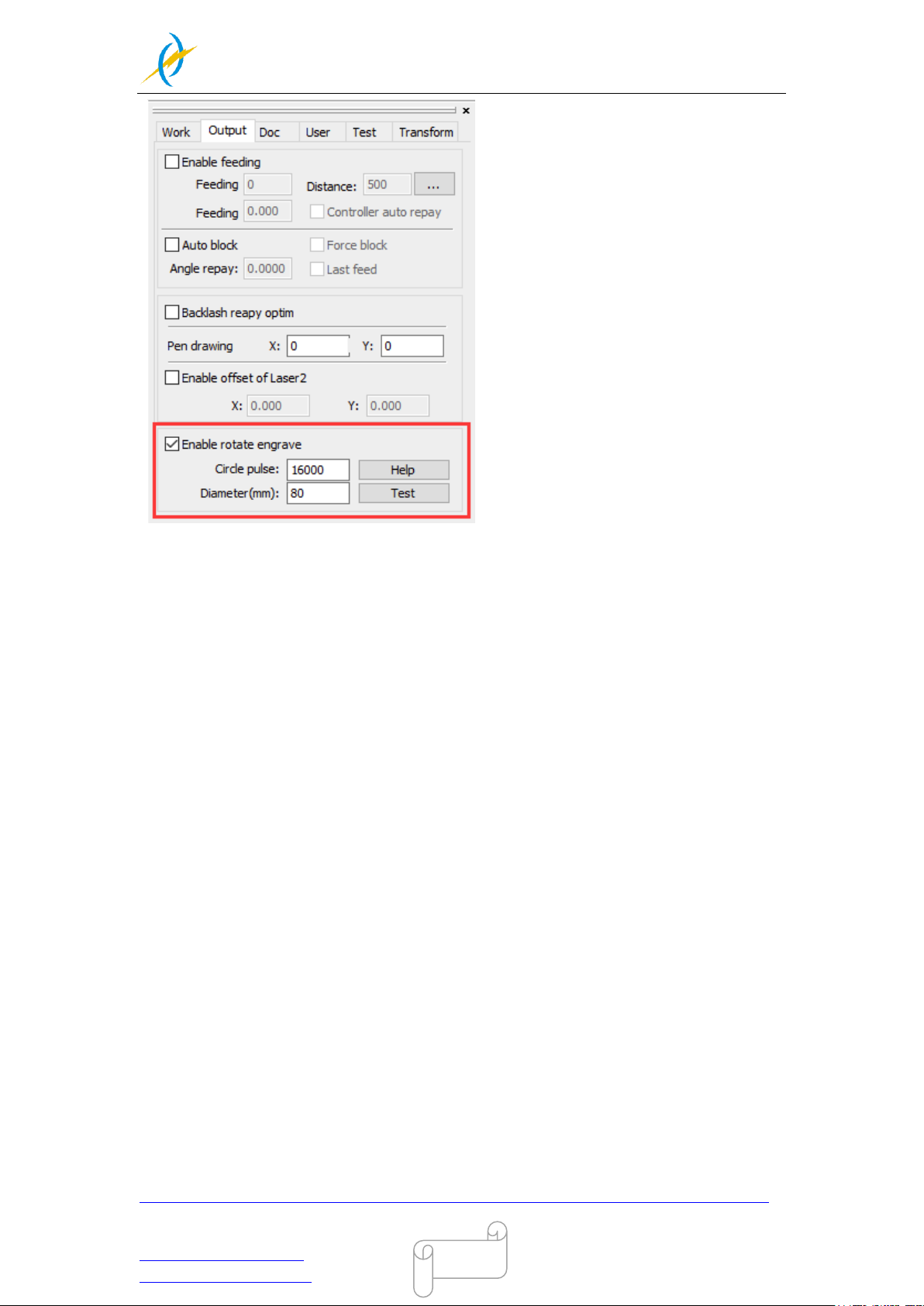

4.9 Rotary Engraving Attachment .................................................................................................... 57
4.10 For Laser Engraving ................................................................................................................. 60
Chapter 5 Maintenance .................................................................................................................... 61
5.1 Cleaning the Laser Machine ....................................................................................................... 61
5.2 Cleaning the Optical Parts .......................................................................................................... 62

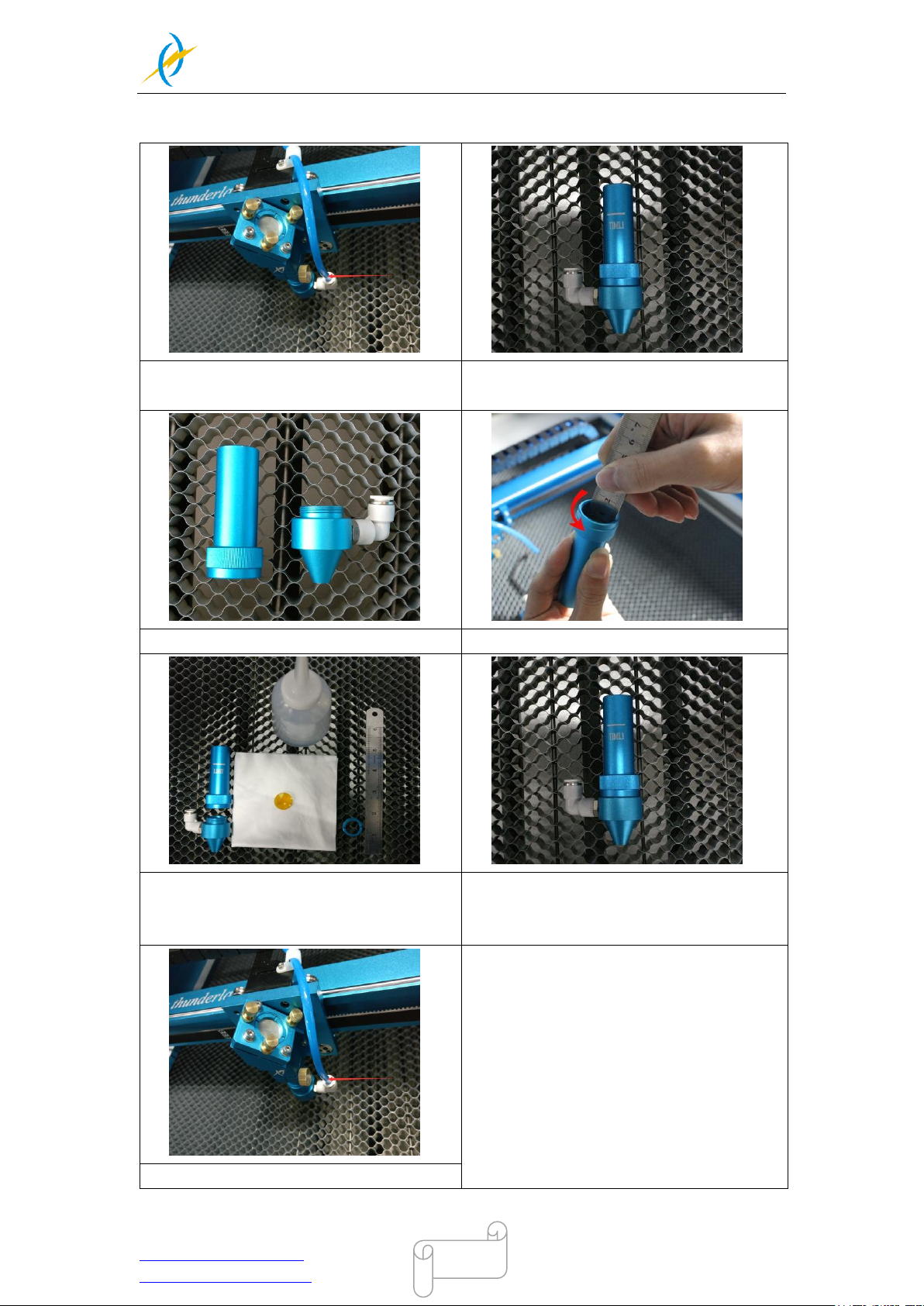

5.2.1 Cleaning the Focus Lens ...................................................................................................... 62

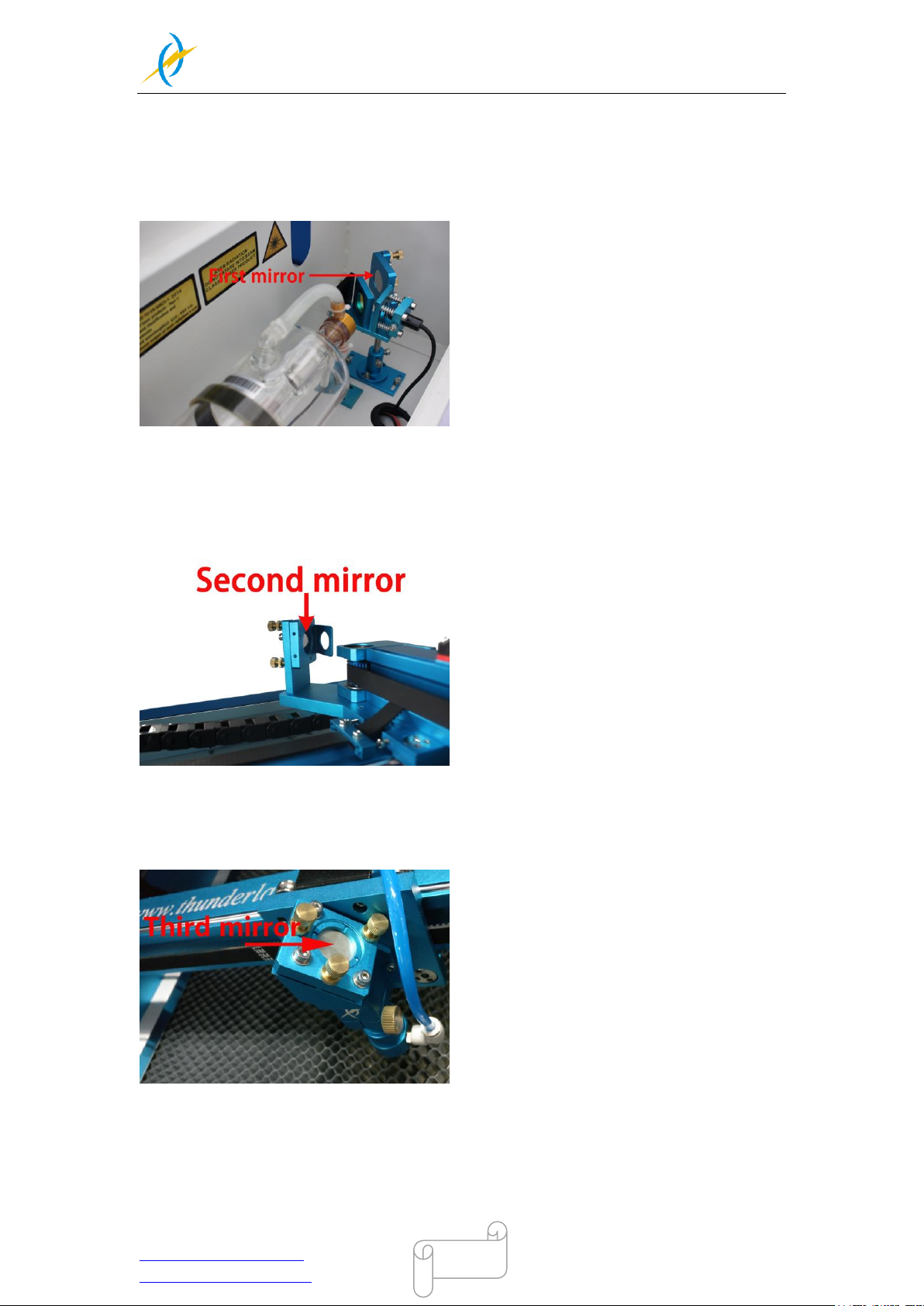

5.2.2 Cleaning the Mirrors .......................................................................................................... 64
5.2.3 Cleaning Beam Combiner .................................................................................................... 66
5.3 Maintain the X/Y/Z Rails ........................................................................................................... 67
5.4 Check the Beam Path .................................................................................................................. 68
5.5 Change Cooling Water for The Water Chiller ............................................................................... 69
5.6 Maintenance Plan ........................................................................................................................ 70
www.thunderlaser.com DONGGUAN THUNDER LASER EQUIPMENT CO.,LTD
[email protected] No.197, Hudong Road, Shatian Town,
Tel :(86)769 826653 Dongguan, Guangdong, China
Page 5
THUNDER LASER NOVA-51
5
Chapter1 General
1.1 General Information
Caution:
Please read and follow this Operation Manual carefully, before installation
and operation. Damage to persons and/or material can result from not following
individual points of the Operation Manual!
Operation of the system is only permitted with equipment and spare parts
supplied or listed in the spare parts and consumables lists.
Auxiliary equipment must be adjusted to the base machine (any queries to
dealer or manufacturer).

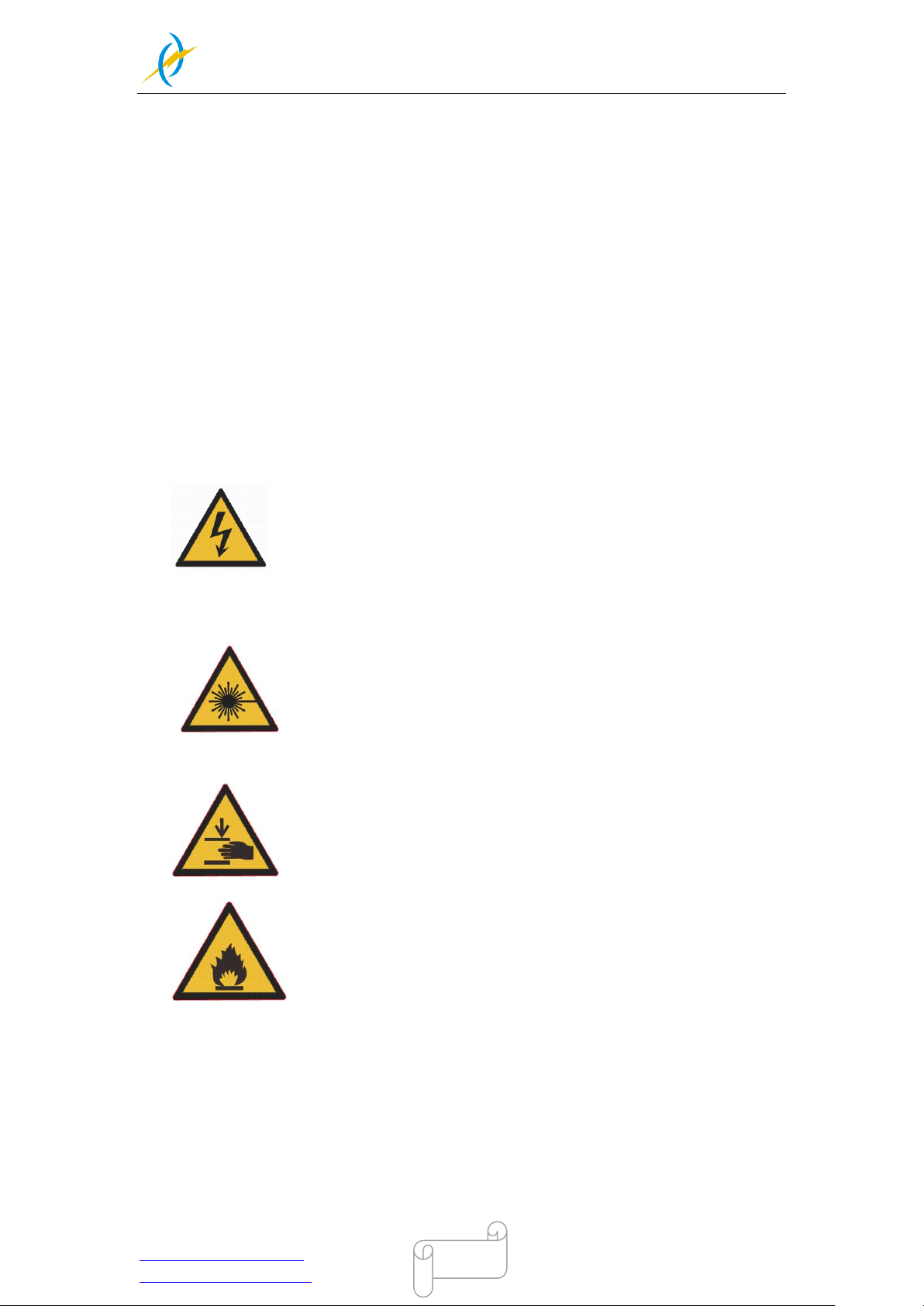

The following symbols are used for easier understanding of the Operation Manual:
Caution: This component is under voltage. In these areas strictly
observe the safety instructions regarding electricity. Care is to be taken
in particular during maintenance and repair work.
Caution: In this area pay attention to the possible dangers of the laser
beam.
Caution: Warning of hand injury
Caution: Indicates the potential for fire danger when operation the
laser. Do operate the laser machine when unattended
Tips: Note or information on individual components of the device that
simplify the use or make it more understandable.
www.thunderlaser.com DONGGUAN THUNDER LASER EQUIPMENT CO.,LTD
[email protected] No.197, Hudong Road, Shatian Town,
Tel :(86)769 826653 Dongguan, Guangdong, China
Page 6
THUNDER LASER NOVA-51
6
1.2 Designated
The THUNDER LASER NOVA-51 is used for engraving and cutting of signs, stamps
and suchlike.
A wide variety of materials such as rubber, acrylic, coated metal, tin, special steel,
anodized aluminum, cork, cardboard, glass, leather, marble, several plastics and wood
can be processed on the laser.
1. The engraving process must only be performed with a perfectly adjusted machine.
2. For cutting applications with 100 W the use of the cutting table is absolutely necessary.
3. Use of the system in other areas is against the designated use. The manufacturer does
not admit liability for damage to personal and/or equipment resulting from such use.
4, The system must only be operated, maintained and repaired, by personnel that are
familiar with the designated field of use and the dangers of the machine!
5. Non-observance of the instructions for operation, maintenance and repair described in
this Operation Manual excludes any liability of the manufacturer if a defect occurs.
6. Caution when processing conductive materials (carbon fibers), Conductive dust or
particles in the ambient air might damage electrical components and lead to short circuits.
Bear in mind that those defects are not warranted.
1.3 Disposal remarks
Do not dispose the machine with domestic waste!
Electronic devices have to be disposed according to the regional directives on electronic
and electric waste disposal. In case of further questions, please ask your supplier. He
might take care of proper disposal.
www.thunderlaser.com DONGGUAN THUNDER LASER EQUIPMENT CO.,LTD
[email protected] No.197, Hudong Road, Shatian Town,
Tel :(86)769 826653 Dongguan, Guangdong, China
Page 7
THUNDER LASER NOVA-51
7
1.1 Technical Data / Device Specification
Mechanics
Working area 51.2“x 35.4“/ 1300 x 900 mm
Table Size 55.1“x 40.6“/ 1400 x 1030 mm
Z Axis Height 9.1 inch / 230 mm
Max. Height of work piece (Motorized Table, Standard laser head) 9.1 inch / 230 mm
Max. Height of work piece (No Motorize Table, Standard Laser head) 1-2.1 inch /27- 55mm
Max. Engraving speed 39 inch/sec. / 1000 mm/sec. Standard
Cutting speed depending on material, thickness, laser power
Motor Easy Servo Motor
Drive Hybrid Servo Drive
Work piece table Solid metal (Honey comb table)
Max. load of work piece table 30 kg
Net Weight 230kgs (507Ibs)
Lenses available (focal distance) 2, 0”
Focus lens diameter 20mm
Reflector diameter 25mm
Beam combiner diameter 25mm
Dimensions
W x D x H 74.8“x 55.3“x 40.9“/ 1900 x 1405 mm x 1040 mm
Max Part Size (W x L x H)
Front Door Closed 55.1“x 40.6“x 10.6“/ 1400 x 1030 mm x 230 mm
Pass-Through Door 55.1“ x∞“x 1.2“/ 1400 x∞mm x 20 mm
Features
Standard:
Red Dot Pointer, Auto Focus, Motorized Table, Pass-Through Door, Air Assist, Water
Pump, Exhaust Fan, Honey Comb Table, 2,0”(50.8mm)Focus Lens, Easily Adjustable
Home Position, LCD Display, 3D Engraving, “No Water “protection, Emergency Stop,
Maintenance mode, Open cover protection, TL-Timer, The warning light.
Optional:
Rotary Attachment, Water Chiller Attachment, High Resolution head (up to 1000DPI, while
standard laser head Max is 500DPI), High air compressor set (Includes water filter).
Control System
Laser power Adjustable from 2 - 70% (typically 12-70%)
Interface Hardware USB: connect to PC and U-disk
Ethernet: connect to PC
Interface Software RDWorksV8
Operating Modes Optimized raster, vector, and combined mode
Buffer Memory 128 MB Standards
www.thunderlaser.com DONGGUAN THUNDER LASER EQUIPMENT CO.,LTD
[email protected] No.197, Hudong Road, Shatian Town,
Tel :(86)769 826653 Dongguan, Guangdong, China
Page 8
THUNDER LASER NOVA-51
8
Laser Equipment
Laser Type Sealed CO2 Glass Laser Tube
Laser Power: 80W, 100W, 130W, 150W
Wavelength 10, 6µm
Red dot pointer Laser Power< 5mW
Wavelength 630nm – 680nm
Cooling System

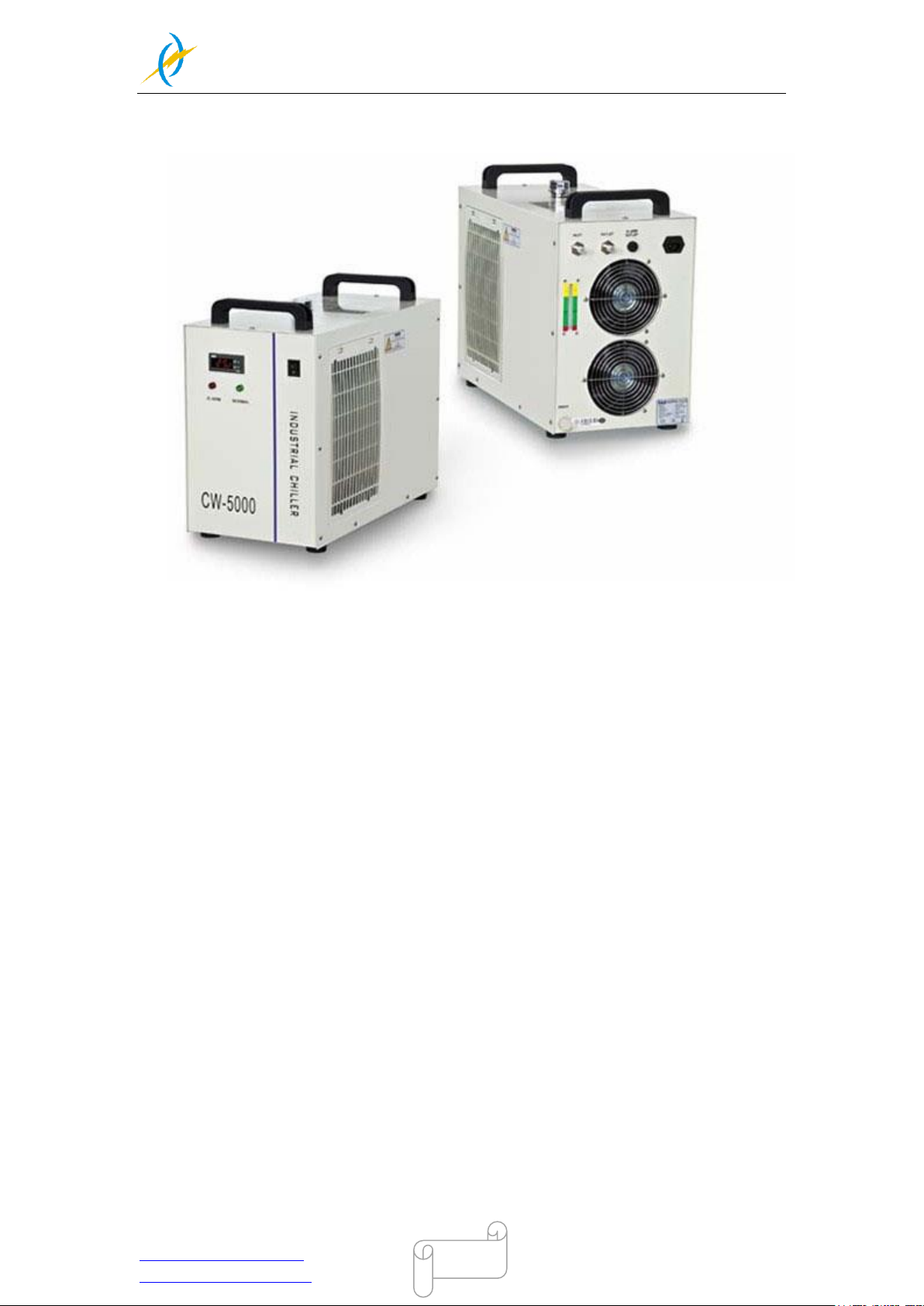

Air Cooling System Air-Cooled
Water Cooling System Water Cooled
Electricity, Power, Fuse
Electricity Requirement 110 to 240 volts, 50 or 60 Hz, Single phase
Power consumption 1400W (Assembly 80Watt Laser Tube)
1500W (Assembly 100Watt Laser Tube)
1700W (Assembly 130Watt Laser Tube)
1700W (Assembly 150Watt Laser Tube)
Recommended fuse 15A, 230V (80W/100W Laser Tube)
20A, 115V (80W/100W Laser Tube) and 20A, 230V (130W Laser Tube)
25A, 115V (130W Laser Tube)
Ambient Conditions
Ambient temperature +15°C to +25°C / 59°F to 77°F
Humidity 40% to max. 70%, not condensing
Laser Safety
Laser class CDRH Laser Safety
Laser Class 2(H)
CE compliant FDA approved
www.thunderlaser.com DONGGUAN THUNDER LASER EQUIPMENT CO.,LTD
[email protected] No.197, Hudong Road, Shatian Town,
Tel :(86)769 826653 Dongguan, Guangdong, China
Page 9
THUNDER LASER NOVA-51
9

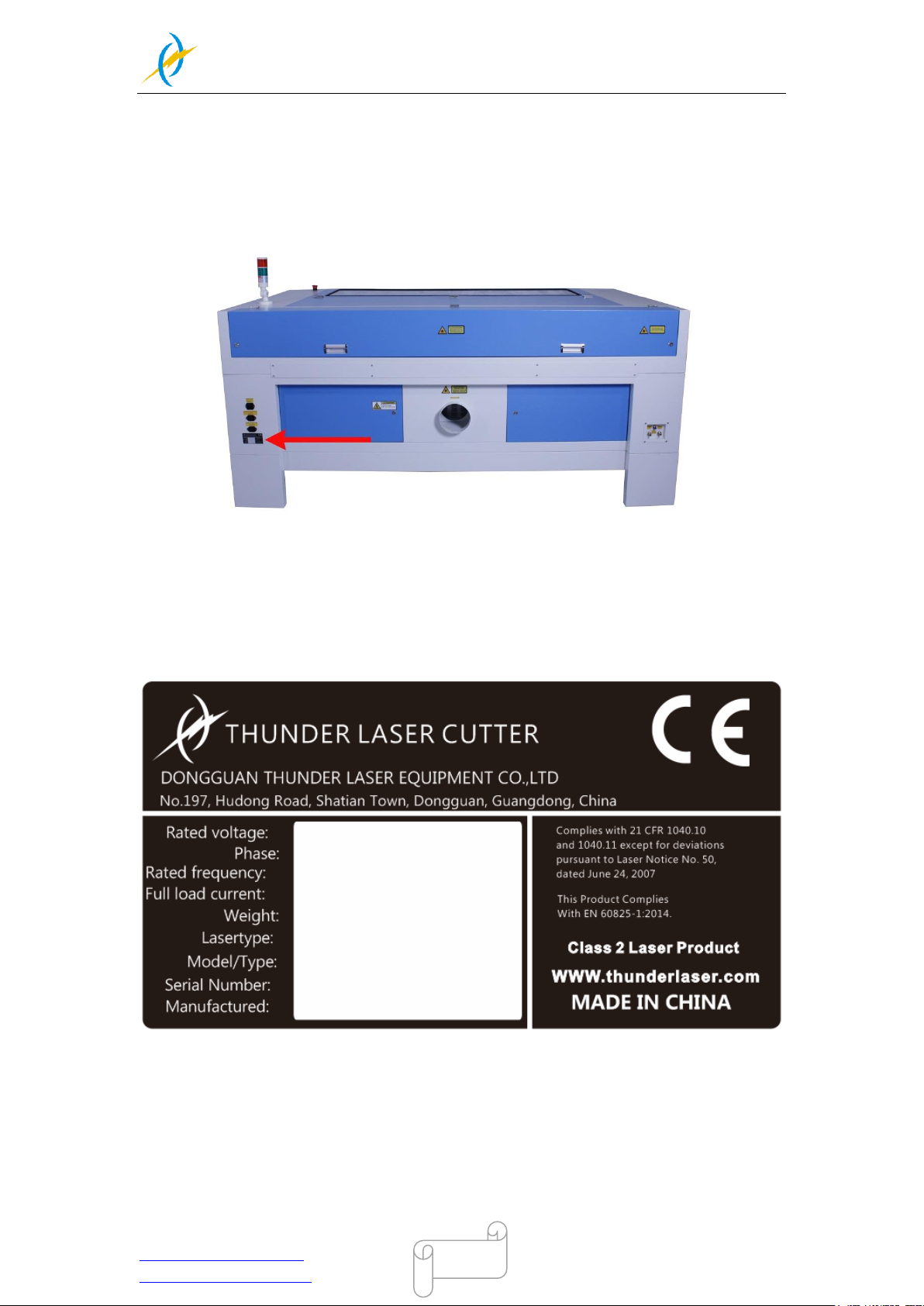

1.2 Manufacturer's Label
The manufacturer's label is located on the back of the device (see Figure below).
It is recommended to enter data such as serial number and year of manufacture into the
Manufacturer label below so that you always have this data handy if you have problems
with your device or require spare parts.
www.thunderlaser.com DONGGUAN THUNDER LASER EQUIPMENT CO.,LTD
[email protected] No.197, Hudong Road, Shatian Town,
Tel :(86)769 826653 Dongguan, Guangdong, China
Page 10
THUNDER LASER NOVA-51
10
Chapter 2 Safety
2.1 General Safety Information
All personnel involved in installation, set-up, operation maintenance and repair of the
machine, must have read and understood the Operation Manual and in particular the
"Safety" section. The user is recommended to generate company-internal instructions
considering the professional qualifications of the personnel employed in each case, and
the receipt of the instruction/Operation Manual or the participation at introduction/training
should be acknowledged in writing in each case.
Safety-conscious of Working
The machine must only be operated by trained and authorized personnel.
The scopes of competence for the different activities in the scope of operating the
machine must be clearly defined and observed, so that under the aspect of safety no
unclear questions of competence occur. This applies in particular to activities on the
electric equipment, which must only be performed by special experts.
For all activities concerning installation, set-up, start-up, operation, modifications of
conditions and methods of operation, maintenance, inspection and repair, the switch-off
procedures that may be provided in the Operation Manual must be observed.
Safety Information for the User and/or Operating Personnel
1. No working methods are permitted that affect the safety of the machine.
2. The operator must also ensure that no unauthorized persons work with the machine
(e.g. by activating equipment without authorization).
3. It is the duty of the operator, to check the machine before start of work for externally
visible damage and defects, and to immediately report changes that appear (including
behavior during operation) that affect the safety.
4. The user must provide that the machine is only operated in perfect condition.
5. The user must guarantee the cleanness and accessibility at and around the machine
by corresponding instructions and controls.
6. Principally, no safety components may be removed or disabled (already here we
emphasize the imminent dangers, for example severe burns, loss of eye-sight). If the
removal of safety components is required during repair and service, the replacement
of the safety components must be performed immediately after completion of the
service and repair activities.
7. Preparation, retooling, change of work piece, maintenance and repair activities must
only performed with equipment switched off, by trained personnel.
www.thunderlaser.com DONGGUAN THUNDER LASER EQUIPMENT CO.,LTD
[email protected] No.197, Hudong Road, Shatian Town,
Tel :(86)769 826653 Dongguan, Guangdong, China
Page 11
THUNDER LASER NOVA-51
11
8. It is forbidden to perform unauthorized modifications and changes to the machine. It is
emphasized, that any unauthorized modifications to the machine are not permitted for
safety reasons.
www.thunderlaser.com DONGGUAN THUNDER LASER EQUIPMENT CO.,LTD
[email protected] No.197, Hudong Road, Shatian Town,
Tel :(86)769 826653 Dongguan, Guangdong, China
Page 12
THUNDER LASER NOVA-51
12
2.2 Laser Safety Information
1. To assess the potential dangers laser systems pose, they are classified into
2 safety classes, thunder laser NOVA-51 is a device of class 2. This is guaranteed by the
protective housing and the safety installations.
Please note that improper and warranty operation of the device can override the status of
Safety class 2 and can cause the emission of harmful radiation.
2. This laser engraving system contains a carbon dioxide (CO2) laser of class 2
that emits intensive and invisible laser radiation. Without safety precautions
the direct radiation or even diffuse reflected radiation is dangerous!
3. Without safety precautions, the following risks exist with exposure to laser radiation:
Eyes: Burns to the cornea
Skin: Burns
Clothing: Danger of fire
4. Never try to modify or disassemble the laser and do not try to start up a system that had
been modified or disassembled!
5. Dangerous radiation exposure can result from the use of operation or adjustment
equipment other than that described here, and if different operational methods are
performed.
www.thunderlaser.com DONGGUAN THUNDER LASER EQUIPMENT CO.,LTD
[email protected] No.197, Hudong Road, Shatian Town,
Tel :(86)769 826653 Dongguan, Guangdong, China
Page 13
THUNDER LASER NOVA-51
13
2.3 Safety Precautions when Operating the Device
In your thunder laser NOVA-51, a closed safety system is integrated which immediately
stop a job when the protection cover is opened. Consequently an incomplete engraving
can occur if the cover is opened during operation. Therefore, first press the "PAUSE"
button, if you want to interrupt an engraving process.
Please remember the following safety precautions when working with this device:
CO2 Fire extinguishers should be placed near laser
Do not store any flammable materials in the inside of the device. Particularly leftovers of
produced materials have to be removed to prevent fire hazard.
Please maintain Free air-flow surrounding this system. At all times, do not cover during
operation.
These lasers emit invisible radiation; safety glasses should be worn when maintenance
these machines for your protection.
Do not disable limit switches or safety features as this can invalidate warranties and cause
damage to you and the machine.
Do not leave the laser unattended when it is working, small scraps can ignite and without
supervision can destroy the machine if not checked.
Adjustment of the beam path must be performed only by especially trained personnel. An
improper setting can lead to uncontrolled emission of the laser radiation.
Before processing materials the user must verify, whether harmful materials can be
generated and whether the filter equipment of the exhaust system is suitable for the
harmful materials. We emphasize that it is the responsibility of the user, to consider the
national and regional threshold values for dust, fogs and gases when selecting the filters
and the exhaust system. (The values for the maximum workplace concentration must not
be exceeded.)
PVC (polyvinyl chloride) must under no circumstances be processed with the laser.
Should you have further questions before starting work, please feel free to write us
an email at: [email protected]
www.thunderlaser.com DONGGUAN THUNDER LASER EQUIPMENT CO.,LTD
[email protected] No.197, Hudong Road, Shatian Town,
Tel :(86)769 826653 Dongguan, Guangdong, China
Page 14
THUNDER LASER NOVA-51
14

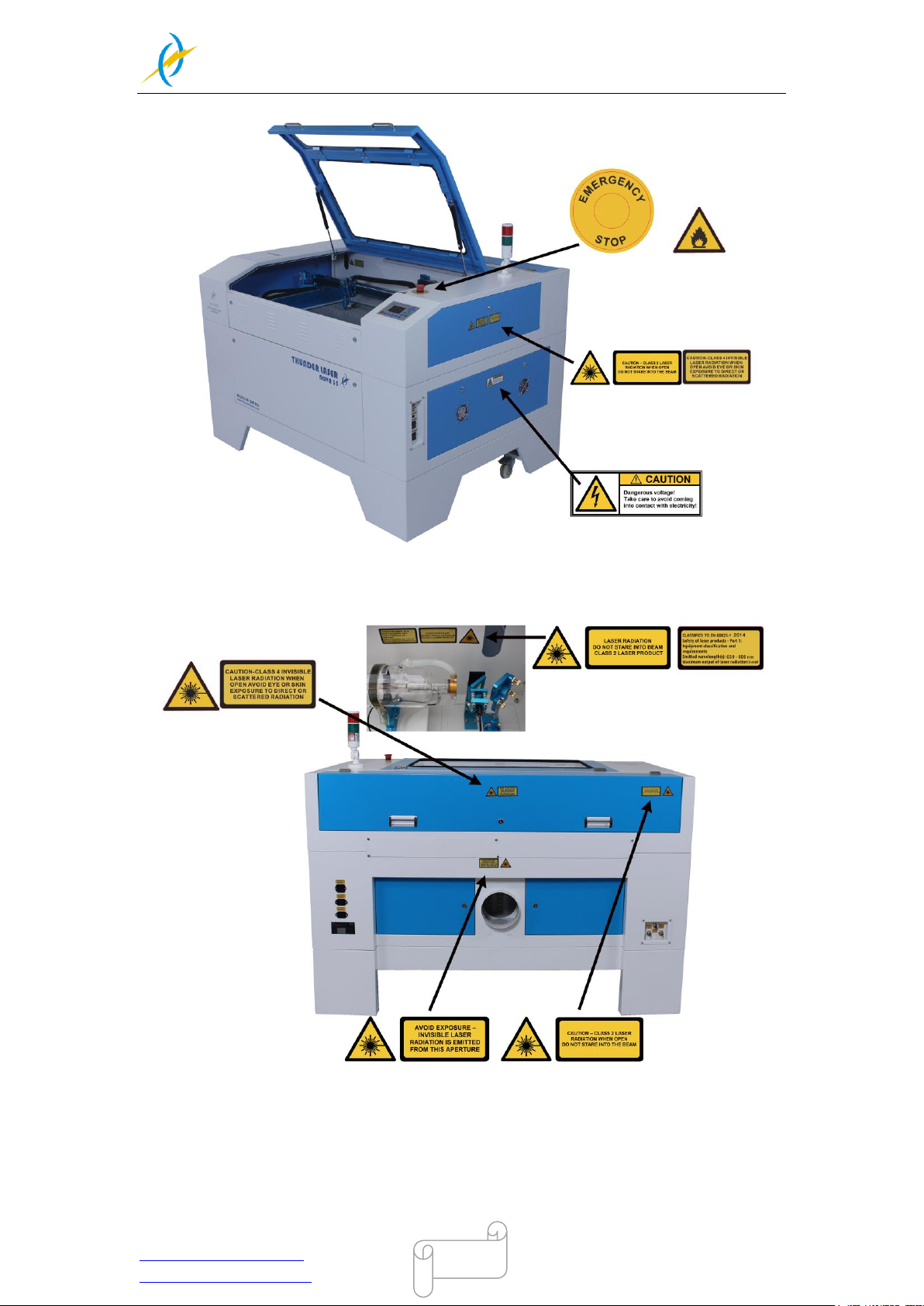

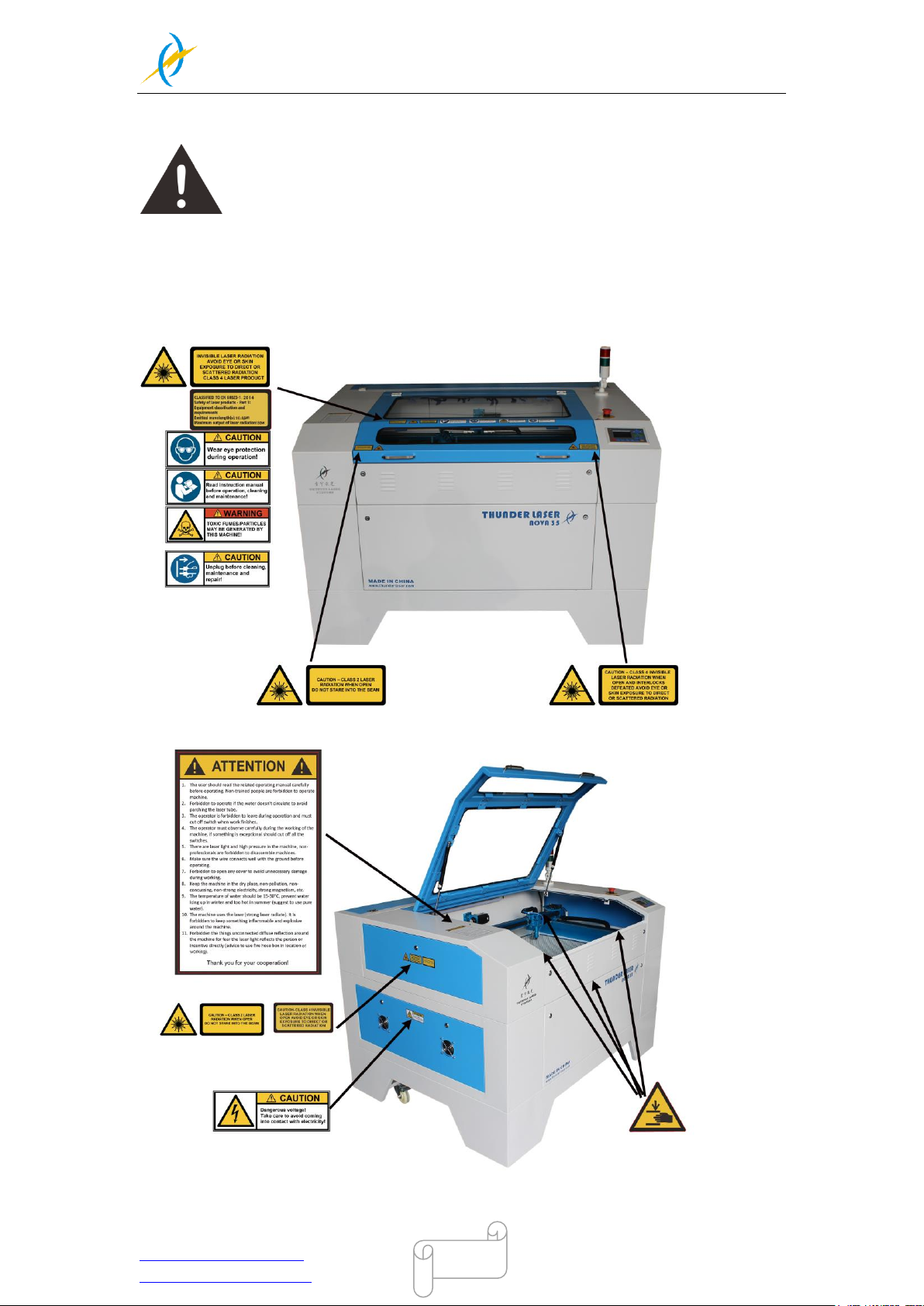

2.4 Warning and Information Labels
The warning and information labels are attached in such positions of the device that could
represent a source of danger during set-up and operation. Therefore, follow the
information on the labels. If labels are lost or damaged, they must be replaced
immediately.
www.thunderlaser.com DONGGUAN THUNDER LASER EQUIPMENT CO.,LTD
[email protected] No.197, Hudong Road, Shatian Town,
Tel :(86)769 826653 Dongguan, Guangdong, China
Page 15
THUNDER LASER NOVA-51
15
www.thunderlaser.com DONGGUAN THUNDER LASER EQUIPMENT CO.,LTD
[email protected] No.197, Hudong Road, Shatian Town,
Tel :(86)769 826653 Dongguan, Guangdong, China
Page 16
THUNDER LASER NOVA-51
16
Chapter 3 Process of Installing
3.1 Unpacking
You receive your THUNDER LASER NOVA-51 packed in a wooden box, which contains
the laser machine and additional accessories. The following steps give you an overview of
the unpacking and assembly of the laser. Please follow these steps carefully.
Tips: Keep the packing box. You will require it in case of a return.
Dispose all waste according to the applicable waste disposal law.
1. Put the wooden box on a flat and spacious room for unpacking.
2. Remove the machine box; carefully remove the foam material, which protects the
viewing window of the cover and around the machine.
3. Take out the key，open the door of the laser，Remove the accessories box which
contains all accessory parts required for the installation of the laser machine.
And check if there’s anything damaged or missed during shipping.
4. You will see an attachment table on the machine; please check whether the
accessories are all on the table.
5. Please keep the keys and the warranty certificate well (and please show us your
warranty certificate if you need tech support for the machine failure, then we will provide
you the best technical service).
6. Remove the sponge and nylon cable ties from inside the machine, and then start to
install the machine (below chapters are installation details)
www.thunderlaser.com DONGGUAN THUNDER LASER EQUIPMENT CO.,LTD
[email protected] No.197, Hudong Road, Shatian Town,
Tel :(86)769 826653 Dongguan, Guangdong, China
Page 17
THUNDER LASER NOVA-51
17
3.2 Location
Before you install the laser system, you should select an appropriate location. Follow the
guidelines shown below:
1. Avoid locations where the system is exposed to high temperatures, dust and high
humidity. (The humidity must not exceed 70% and the temperature must not be close
to the dew point.)
2. Avoid locations, where the system is exposed to mechanical shocks.
1. Fuse protection:
Do not connect other devices via the laser fuse, as the laser system requires the full
amperage.
Tips:
1. Avoid locations with poor air circulation; select a location close to ventilation (if
available).
2. Select a location, whose room temperature is between 15 °C and 25 °C (59° – 77° F).
This is fundamental to maintain consistent and reliable operation of a CO2 laser, Metal
RF or Glass tube and the machine itself.
Avoid higher ambient temperatures and strong exposure of the engraver to the sun.
Use blinds, if required.
3. Mechanical shock and vibration of the laser will have detrimental effects on the
performance and life expectancy of the machine. It will manifest (over a period of time)
with a noticeable decrease in performance and increased maintenance required,
possibly even damage. Setting your Thunder Laser up in s suitable temperature
controlled, dust free, moisture free, level, stable surface (a level concrete floor) with
the recommended extraction is critical to the ongoing performance of the machine. It
is also a warranty condition.
www.thunderlaser.com DONGGUAN THUNDER LASER EQUIPMENT CO.,LTD
[email protected] No.197, Hudong Road, Shatian Town,
Tel :(86)769 826653 Dongguan, Guangdong, China
Page 18
THUNDER LASER NOVA-51
18
3.3 Before Installation

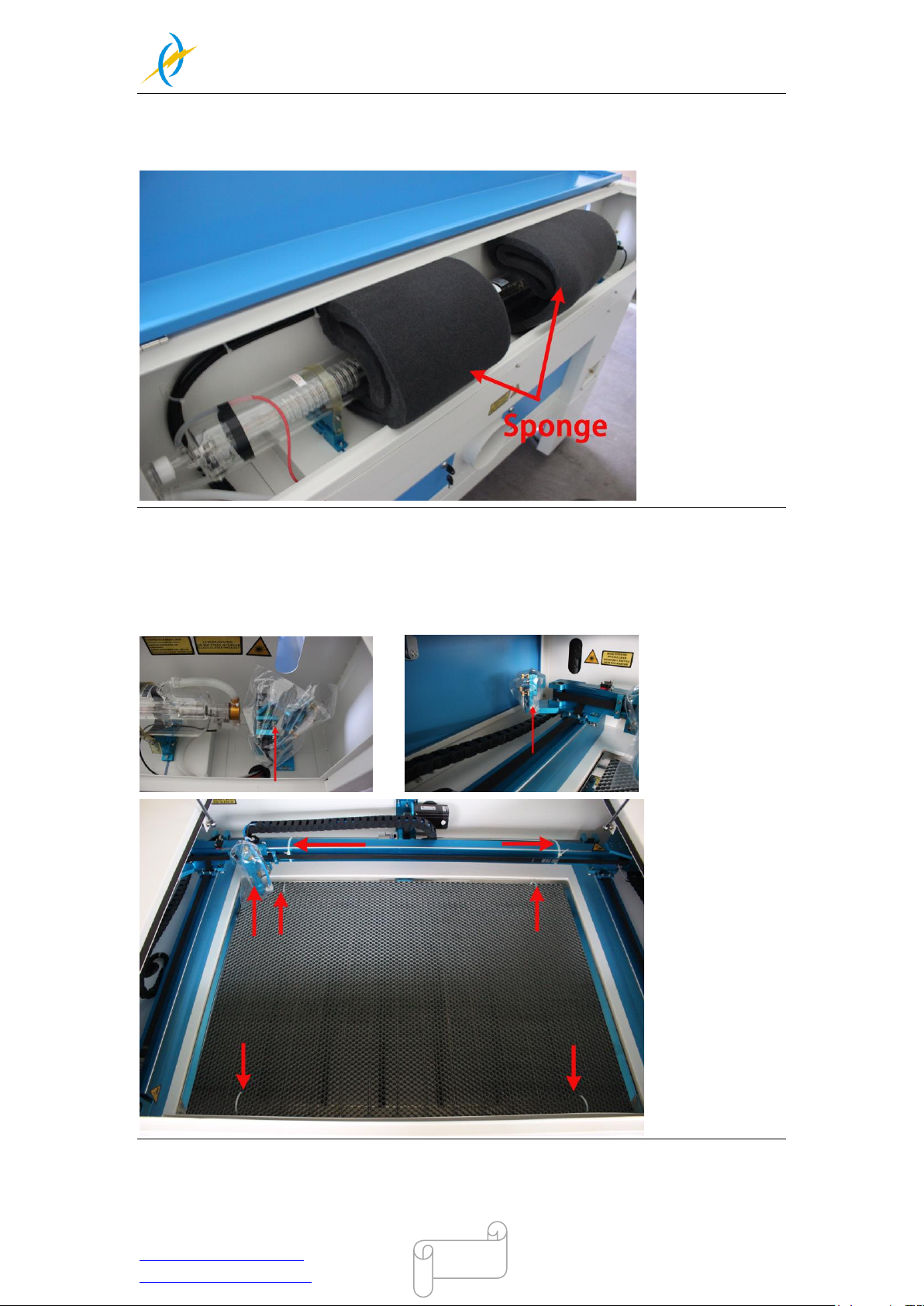

1. Take out the sponge around the laser tube. Like below:
2. Take out the nylon cable ties around the honey comb plate and X axis.
Remove the transparent bag out of the first mirror mounts, the second mirror
mounts, the third mirror mounts and the standard laser head. Like below:
PS: The lid with a set of key and a manual focusing tool for users
www.thunderlaser.com DONGGUAN THUNDER LASER EQUIPMENT CO.,LTD
[email protected] No.197, Hudong Road, Shatian Town,
Tel :(86)769 826653 Dongguan, Guangdong, China
Page 19
THUNDER LASER NOVA-51
19

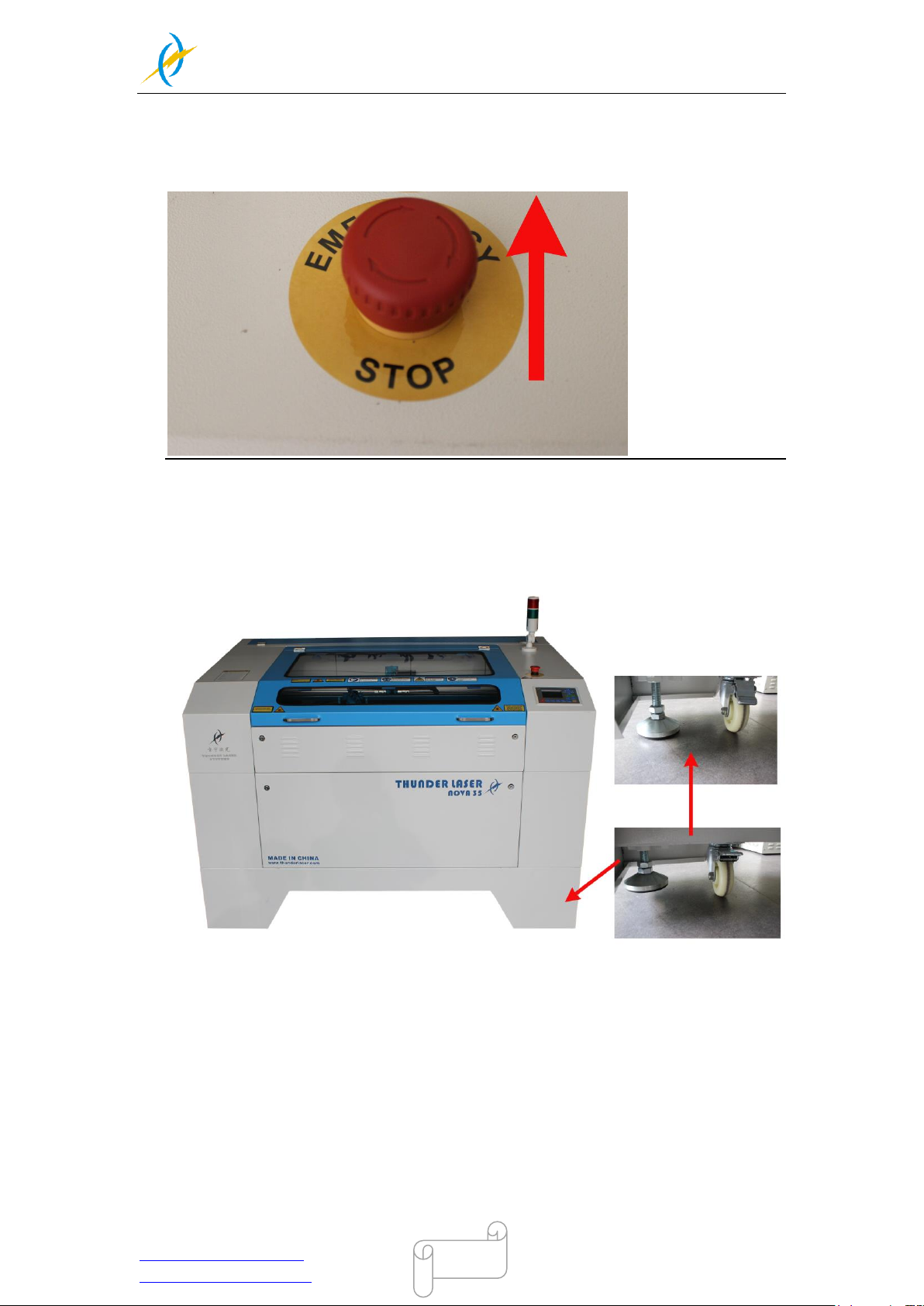

3. Open the emergency switch (must do it for the first time to use the machine).
Like below
4. After carried the machine into room, please re-fix the foot of the four corners.
Please refer to below shown:
www.thunderlaser.com DONGGUAN THUNDER LASER EQUIPMENT CO.,LTD
[email protected] No.197, Hudong Road, Shatian Town,
Tel :(86)769 826653 Dongguan, Guangdong, China
Page 20
THUNDER LASER NOVA-51
20

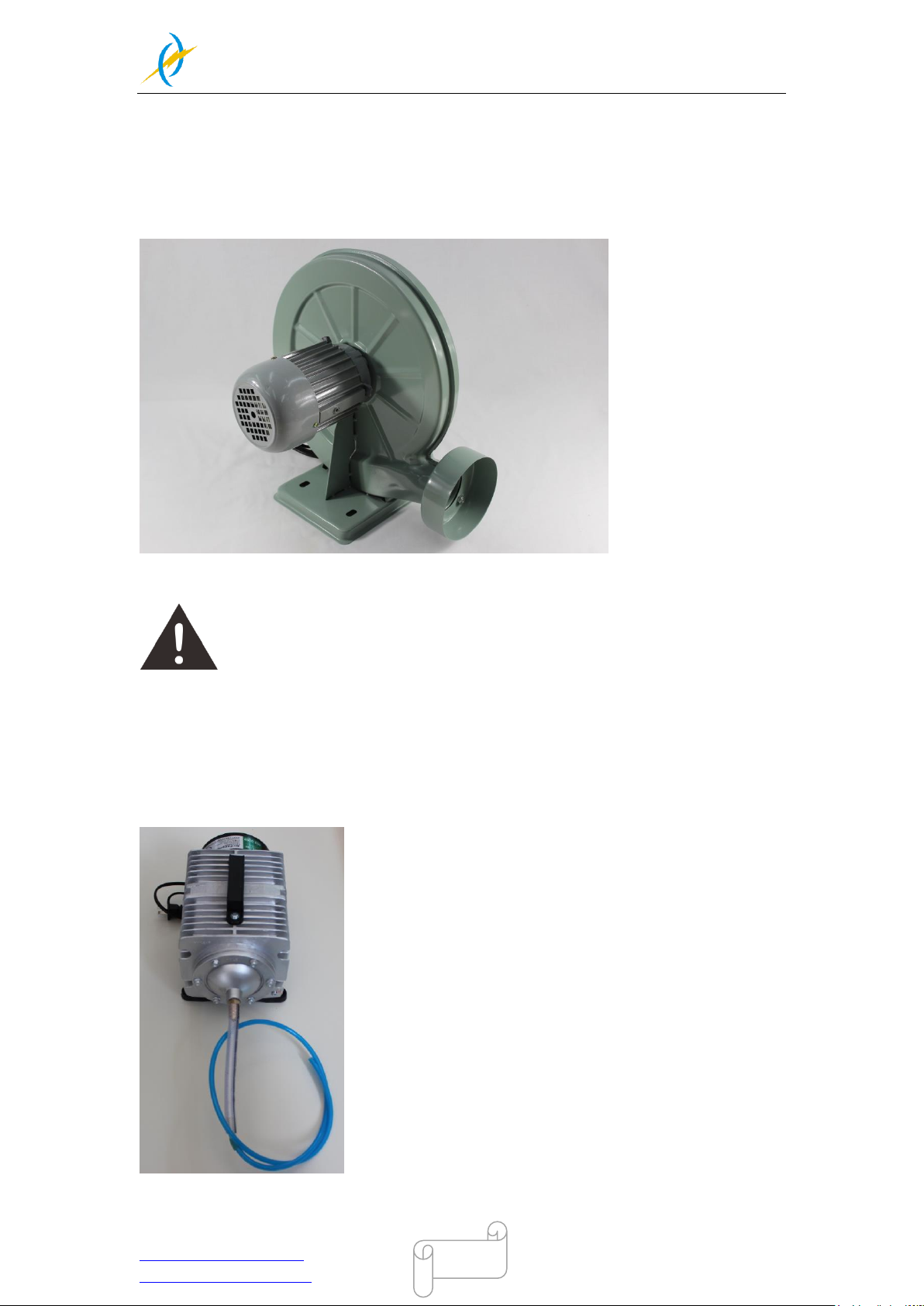

3.4 Exhaust System – Requirements
To guarantee the right ventilation during the engraving and the cutting. The device must
be equipped with a fine exhaust fan(generation of rubber dust), if you use an carbon filter
(neutralization of smells) will be better for exhaust effect. A good exhaust fan of the
outgoing air is also required when cutting plastics or engraving wood.
Connection - see section 3.7.3 connecting the Exhaust System.
Do not start the machine without an adequate exhaust system.
3.5 Air System – Requirements
To guarantee do not catch file and too much smoke during the engraving and the cutting.
The device must be connecting with the laser to make sure the laser is safe during the
work.
www.thunderlaser.com DONGGUAN THUNDER LASER EQUIPMENT CO.,LTD
[email protected] No.197, Hudong Road, Shatian Town,
Tel :(86)769 826653 Dongguan, Guangdong, China
Page 21
THUNDER LASER NOVA-51
21
3.6 Computer – Requirements
The following recommendation represents the minimum requirements. When using a
more powerful computer the graphics are generated and displayed faster and the
computing times and the data transfer to the laser are reduced. To use the newest
software version, you might have to abide other requirements.
• Windows 10 (32 bit or 64 bit )
• Windows 8 (32 bit or 64 bit )
• Windows 7 (32 bit or 64 bit )
Windows Vista (with Service Pack 1 or later)
Windows XP (with Service Pack 2 or later)
• 1024 MB of RAM, 400 MB of hard disk space
• Pentium® 3 or 4 processor or AMD Athlon™ XP
• 1024 x 768 or better monitor resolution
• 1 free USB interface
• 1 free Ethernet interface
• Mouse
www.thunderlaser.com DONGGUAN THUNDER LASER EQUIPMENT CO.,LTD
[email protected] No.197, Hudong Road, Shatian Town,
Tel :(86)769 826653 Dongguan, Guangdong, China
Page 22
THUNDER LASER NOVA-51
22
3.7 Connections
Perform the connections exactly in the order described; otherwise electrostatic charging
can damage your computer and/or the electronics of the laser system.
3.7.1 Connecting the Mains
Connect one end of the mains cable with the connection socket at the rear side of the
laser device (see Figure below) and the other end with a protected power outlet.
Mains voltage and operating voltage must correspond (AC 230V 50/60 Hz or AC 115V
50/60 Hz) – see information label beside the connection socket.
Under no circumstances switch on the device if the voltages do not correspond.
www.thunderlaser.com DONGGUAN THUNDER LASER EQUIPMENT CO.,LTD
[email protected] No.197, Hudong Road, Shatian Town,
Tel :(86)769 826653 Dongguan, Guangdong, China
Page 23
THUNDER LASER NOVA-51
23
3.7.2 Connecting the Computer
Connecting the Computer and the machine by using the USB cable. Like below:
Connecting the Computer and the machine by using the Ethernet cable. Like below:
www.thunderlaser.com DONGGUAN THUNDER LASER EQUIPMENT CO.,LTD
[email protected] No.197, Hudong Road, Shatian Town,
Tel :(86)769 826653 Dongguan, Guangdong, China
Page 24
THUNDER LASER NOVA-51
24

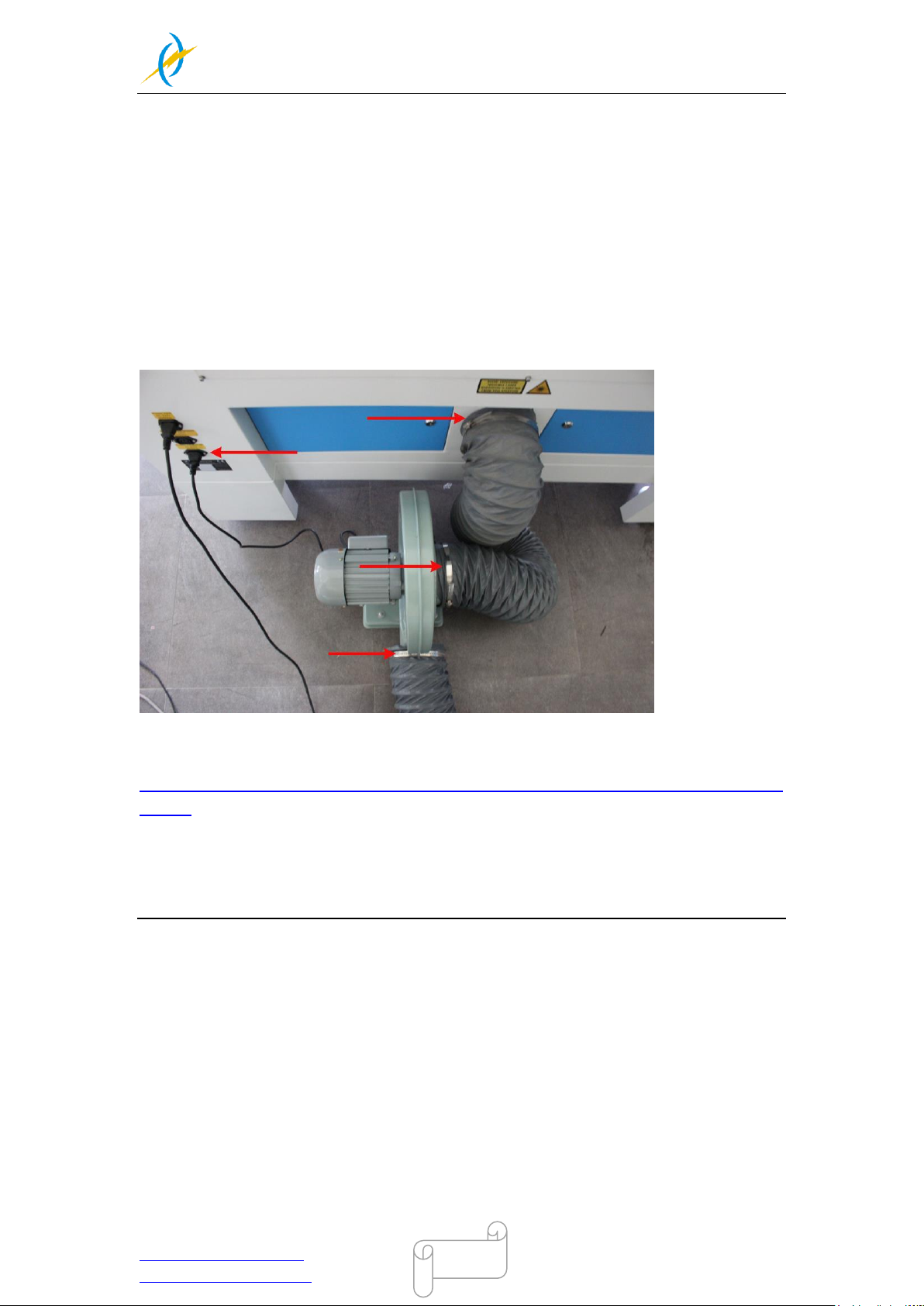

3.7.3 Connecting the Exhaust System
How to set up the exhaust system
Insert one side of the gray exhaust pipe into the fan inlet and the other side into the
fuselage behind the exhaust tank. Insert one side of the gray exhaust pipe into the fan
outlet and put the other side of the pipe outside where you work (If the machine is far from
the outside of the room that the gas manufactured by the machine cannot be discharged;
then you might need an dust/fume filter, it can keep the air quality of your working
environment well).
Please refer to the following pictures about how to install the exhaust pipe:
Also you can refer to the video on how to set up your Nova laser machine in our website
http://www.thunderlaser.com/how-to-use-your-laser-machine/how-to-setup-your-nova-laser-cut
ter.html
The input voltage must correspond (AC 230V 50/60 Hz or AC 115V 50/60 Hz) – see
information label beside the connection socket.
www.thunderlaser.com DONGGUAN THUNDER LASER EQUIPMENT CO.,LTD
[email protected] No.197, Hudong Road, Shatian Town,
Tel :(86)769 826653 Dongguan, Guangdong, China
Page 25
THUNDER LASER NOVA-51
25

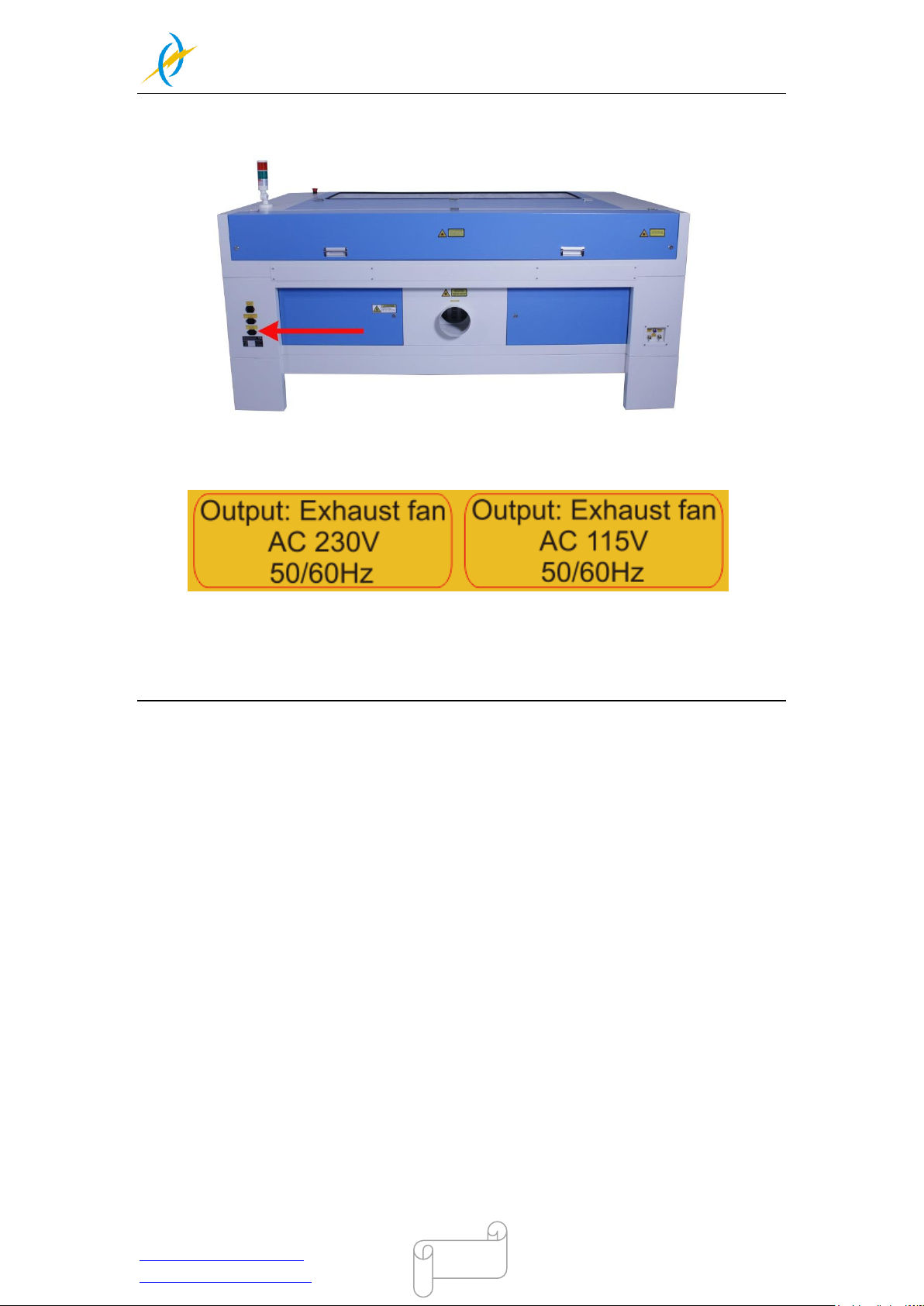

Tips: Do not connect the air compressor or the water chiller to the above interface，if
connect them to the above interfaces that cause in failure of the machine, the warranty
does not covered.
www.thunderlaser.com DONGGUAN THUNDER LASER EQUIPMENT CO.,LTD
[email protected] No.197, Hudong Road, Shatian Town,
Tel :(86)769 826653 Dongguan, Guangdong, China
Page 26
THUNDER LASER NOVA-51
26
3.7.4 Connecting the Air System
First of all, Install a air blowing mouth (copper) to the air system, then connect the hoses
(white side) to the mouth, the other side to the machine. After that, please connect the
power cable (of the air system) to the machine. Like below:
The input voltage must correspond (AC 230V 50/60 Hz or AC 115V 50/60 Hz) – see
information label beside the connection socket.
www.thunderlaser.com DONGGUAN THUNDER LASER EQUIPMENT CO.,LTD
[email protected] No.197, Hudong Road, Shatian Town,
Tel :(86)769 826653 Dongguan, Guangdong, China
Page 27
THUNDER LASER NOVA-51
27

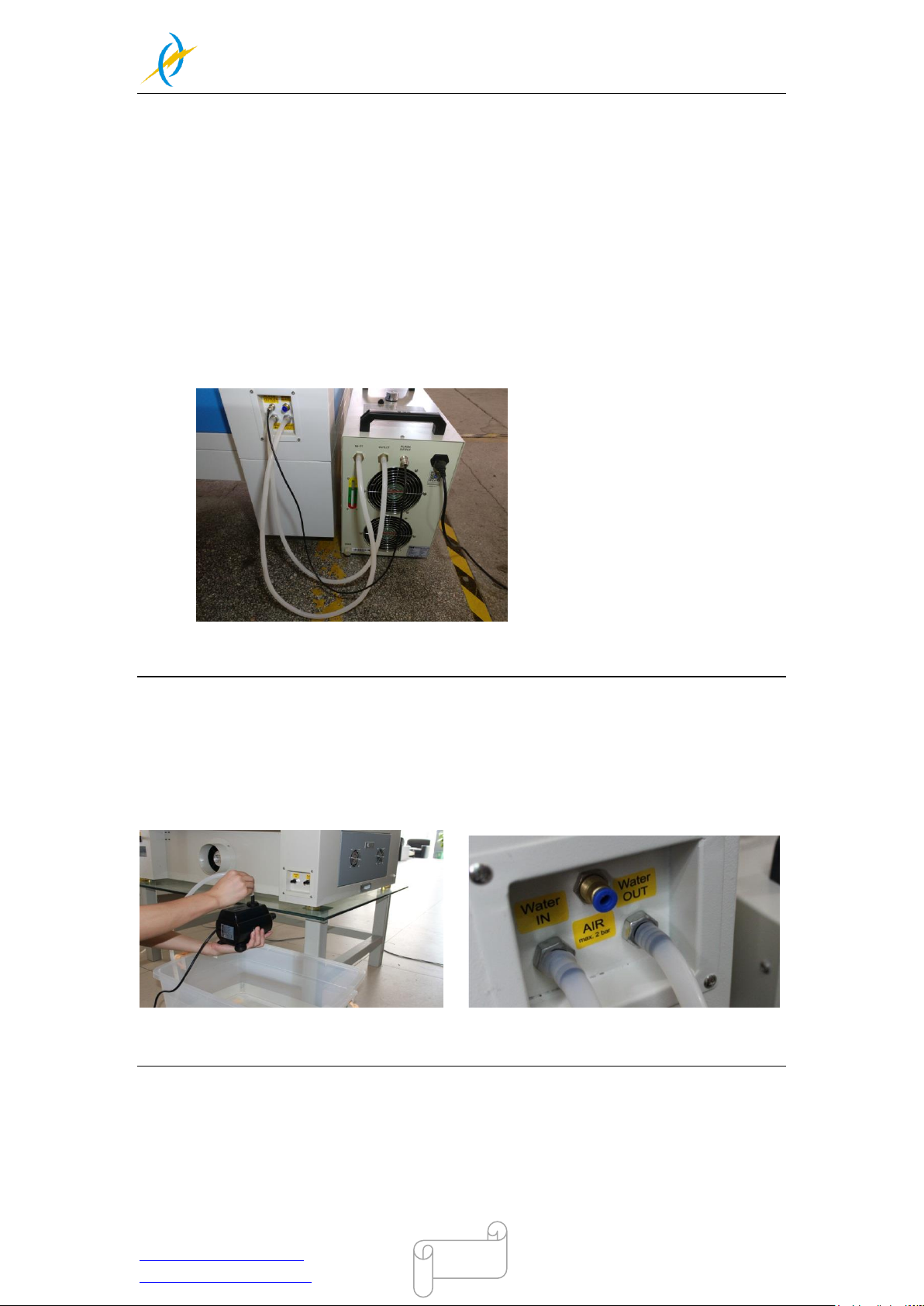

3.7.5 Connecting the Cooling System
If you have the water chiller, and please connect to the water chiller priority. If not, and
please connect to the water pump.
The connection of the machine and the Water chiller.
① Take out one of the water pipes and connect to the water chiller where marked as
“OUTLET”, the other side of the pipe connect to the machine where marked as
“Water IN”.
② The other pipe, please connect to “INLET” of water chiller and “Water OUT” of
machine.
③ Find the cable（in the toolbox）for “No Water” protection, please connect to
“ALARM OUTLET” of water chiller and machine.
We will provide a certain chiller power cable for different countries, and the power cable
will be put inside a box together with the water chiller.
The connection of the machine and the Water pump
① Take out one of the water pipes and connect to the water pump，the other side
connect to the machine where marked as “Water IN”.
② The other pipe, please connect to the machine where marked as “Water OUT”.,
the other side directly into the water.
Like below:
We will provide a certain pump power cable for different countries, and the power cable
has been connected to the pump already before we send it out.
Get through the water chiller or the water pump, and turn on the main power.
Check the water chiller or pump to work（If normally work, the green light will light or water
will flow from the pipe）.
www.thunderlaser.com DONGGUAN THUNDER LASER EQUIPMENT CO.,LTD
[email protected] No.197, Hudong Road, Shatian Town,
Tel :(86)769 826653 Dongguan, Guangdong, China
Page 28
THUNDER LASER NOVA-51
28
Chapter 4 Operation
4.1 Machine View
www.thunderlaser.com DONGGUAN THUNDER LASER EQUIPMENT CO.,LTD
[email protected] No.197, Hudong Road, Shatian Town,
Tel :(86)769 826653 Dongguan, Guangdong, China
Page 29
THUNDER LASER NOVA-51
29
1. Top lid 16. Laser power switch
2. Hand valve Pneumatic Fitting 17. Main power switch
3. Auto focus sensor 18. Ethernet port
4. Left-up side door 19. U-disk connection port(USB)
5. Left side door 20. PC connection port(USB)
6. X-axis 21. Right side door
7. Laser heads 22. Right-up side door
8. Front door 23. Indicate light
9. Honey comb table 24. Power supply socket
10. Y-axis 25. Laser tube cover
11. Front up door 26. Exhaust hose
12. Flap protection sensor 27. Blow air port
13. Control panel 28. Water in and water out
14. Emergency stop switch 29. Rear door
15. LED lamp 30. Manufacturer’s label
1. Top lid
If the Top lid is opened, no data is processed. When the protection cover is opened
during working, the motion system is stopped and the laser source is turned off.
During processing of commands the protection cover must only be opened after
pressing the “Pause “button.
2. Hand valve Pneumatic Fitting
It’s used for adjust that blow air amount.
3. Auto focus sensor
Used for the automatic focusing of the work table.
4. Left-up side door
Open this door for cleaning the second reflective mirror or align that laser beam
5. Left side door
There is laser power supplier, Ammeter, TL-Timer etc. please open this door for
checking these parts, but must pay attention to the electric current.
6. X-axis
The motion system is that performs the mechanical movements in X direction. The
X-axis is visible in the working area.
7. Laser head
Laser beam and red dot pointer are all come out from the laser head, and the Auto
Focus switch is installed on the laser head, too. The bottom of laser head is parallel to
the bottom of the autofocus switch.
8. Front door
Open this door for cleaning the waste after working.
www.thunderlaser.com DONGGUAN THUNDER LASER EQUIPMENT CO.,LTD
[email protected] No.197, Hudong Road, Shatian Town,
Tel :(86)769 826653 Dongguan, Guangdong, China
Page 30
THUNDER LASER NOVA-51
30
This door is locked by using two outside locks.

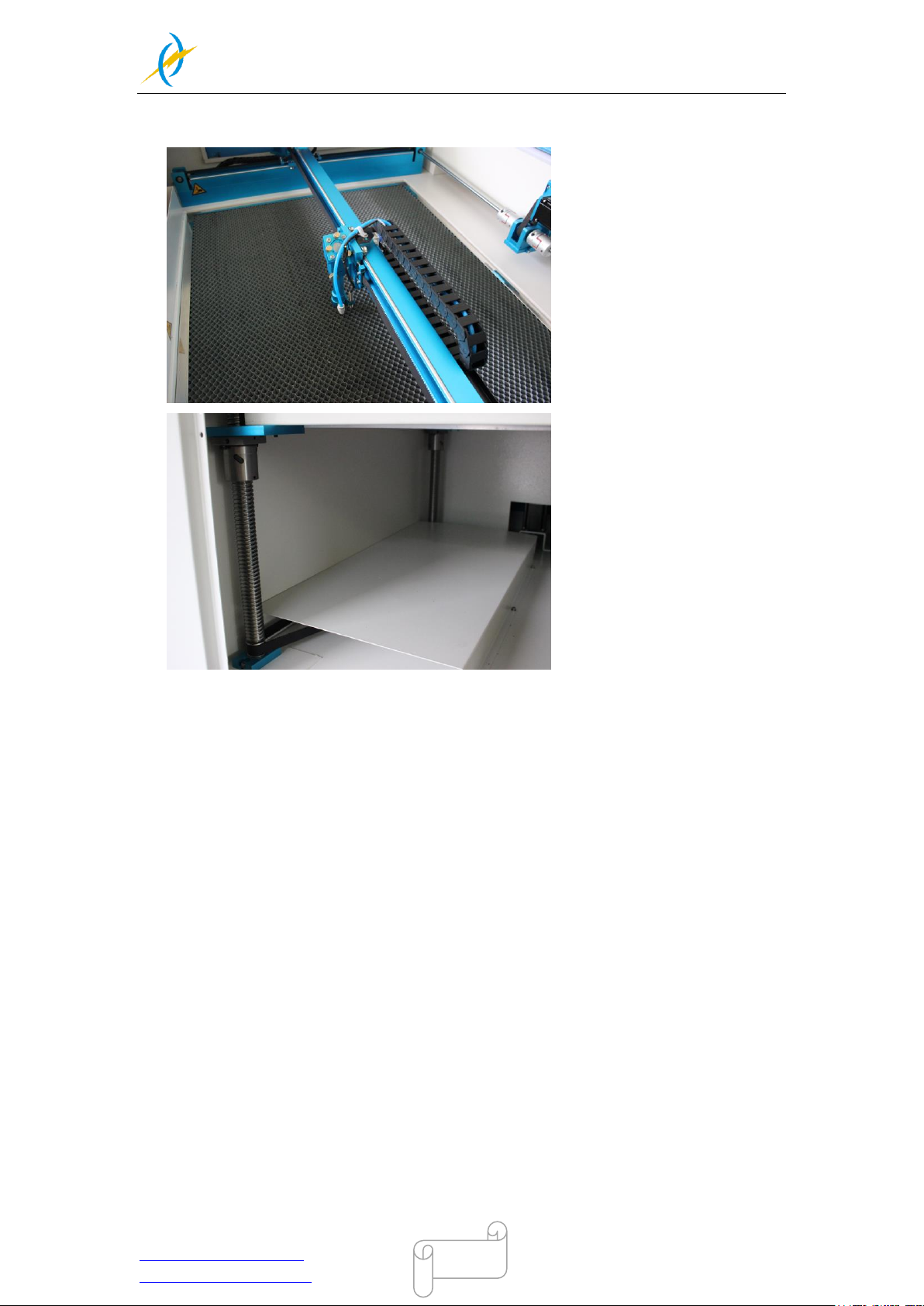

9. Honey comb table
The honey comb plate to be processed is put onto the working table. Put the material
on the working table for engraving & cutting
10. Y-axis
The motion system is that performs the mechanical movements in Y direction. The
Y-axis is visible in the working area.
11. Front up door
Open this door for take out the honey comb table and it’s convenient to put that
material on working table
This door is locked by using inside screws and outside locks.
12. Flap protection sensor
This is where Open flat protection exist. Laser will stop working once the cover is
opened during working.
13. Control panel
You can control the X-axis, Y-axis and Z-axis manually by the display panel, it also
shows the working time, power, speed and the whole working time and affords many
function options(please view this chapter 4.3 for detail).
14. Emergency stop switch
Once there’s an accident happen (laser catch fire, laser out leakage) during working,
please turn off this switch immediately. It will be cut off the laser power and motion
power immediately.
15. LED lamp
It’s used for lighting the working table once turn the Main switch on.

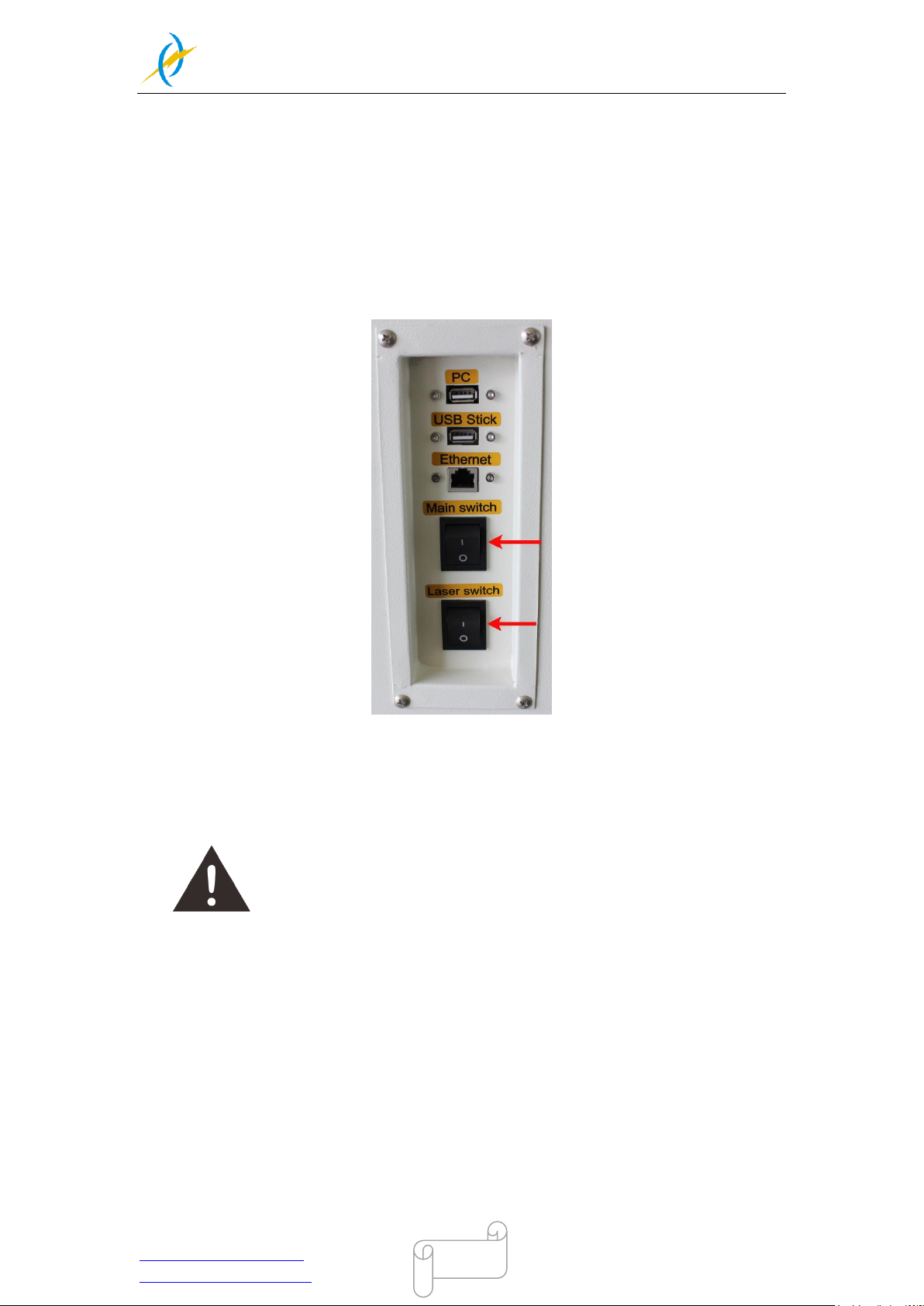

16. Laser power switch
The laser power will be on while you turn it on
17. Main power switch
The laser machine will be start while you turn it on
18. Ethernet port
This Ethernet port is for connecting computer.
19. U-disk connection port(USB)
You can save the file as a U-disk File by press “SaveToUFile” on the software, then
save it to the u-disk and insert the u-disk to the port of laser machine, then use the
control panel to select and control it to work
www.thunderlaser.com DONGGUAN THUNDER LASER EQUIPMENT CO.,LTD
[email protected] No.197, Hudong Road, Shatian Town,
Tel :(86)769 826653 Dongguan, Guangdong, China
Page 31
THUNDER LASER NOVA-51
31
20. PC connection port(USB)
This USB is for connecting computer.
21. Right side door
There are laser controller, driver(Hybrid Servo Drive and Micro Stepper Drive ),
power supplier (both 24v DC and 36vDC), the main connecting cables and cooling fan
here, please open this door for checking these parts, but must pay attention to the
electric current. if you need to repair, please contact with professional maintenance
staff.
22. Right-up side door
Maintenance for the Emergency stop button if required
This door is locked by using outside locks.
23. Indicate light
The light is always keeping green color while the laser does not work or working but
the lid is closed.
The light will turns to red color while the lid/cover is opened during working.
24. Laser supply socket
To connect the main power and the extend power according the label information. And
in the main power socket have the fuses.
25. Laser tube cover

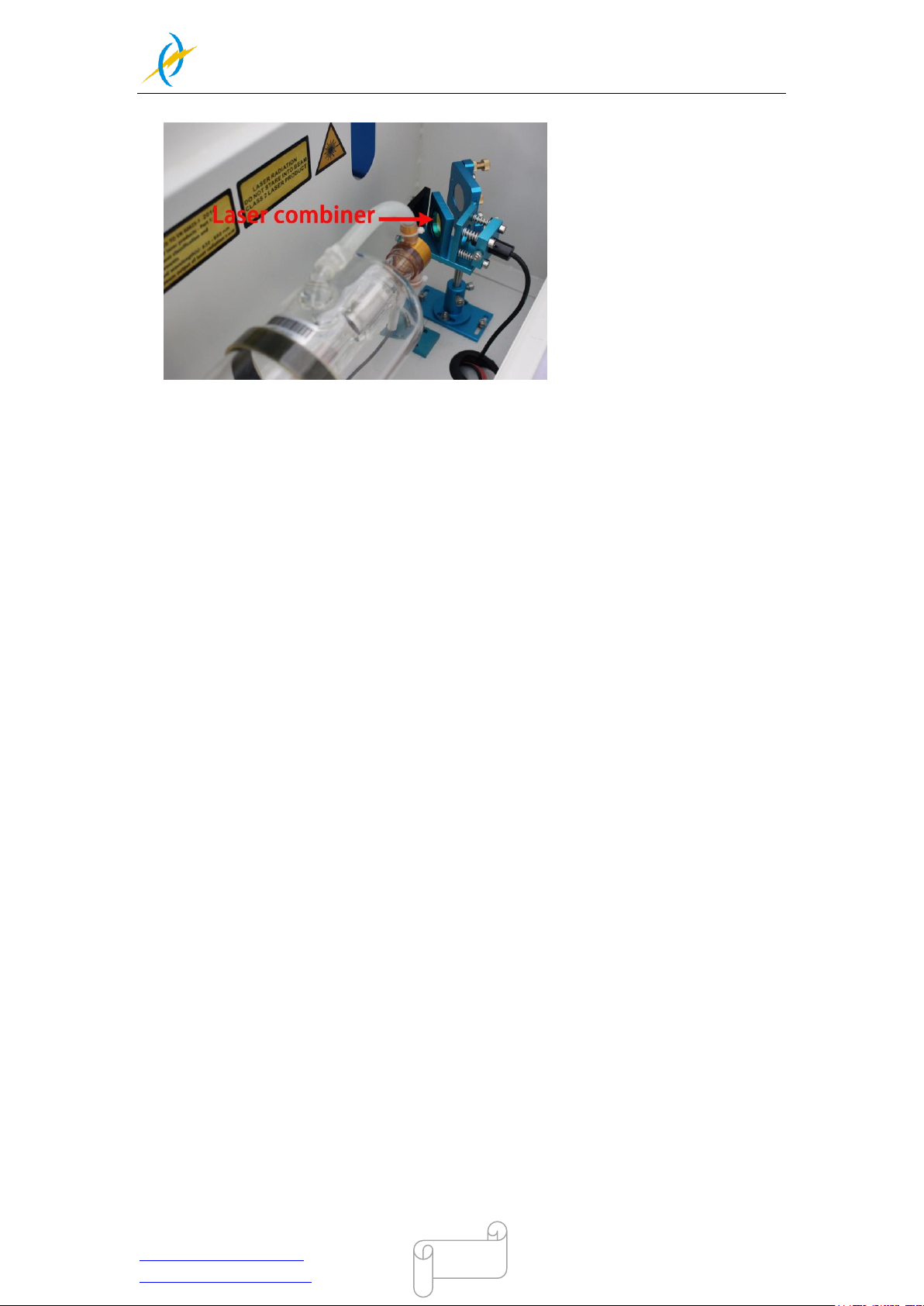

There are installed the laser tube, red dot pointer device, beam combiner and the first
reflective mirror mount.
26. Exhaust hose
This is for installing the exhaust device.
27. Blow air port
This port is for connecting hoses of the air compressor.
28. Water in and water out
Both ports are for connection with water pump or water chiller.
29. Rear door
There are installed cables banks etc. please open this door for checking these parts,
but must pay attention to that electric current.
30. Manufacture’s Label
It’s Show you the laser information like serial number or manufacturing date etc.
www.thunderlaser.com DONGGUAN THUNDER LASER EQUIPMENT CO.,LTD
[email protected] No.197, Hudong Road, Shatian Town,
Tel :(86)769 826653 Dongguan, Guangdong, China
Page 32
THUNDER LASER NOVA-51
32
4.1 ON/OFF Switch
The mains and the laser supply power ON/OFF switch
The following conditions must be fulfilled for correct start up:
Unrestricted freedom of motion of the mechanics
No materials under the engraving table
Protection covers closed
When turn on the power of machine, and note that turn on the main switch first and then
the laser supply power switch
If all covers are closed, immediately after being switched on, the device starts the
referencing process. When the referencing process is completed correctly, an acoustic
signal sounds and the device is ready for operation. The operation panel will display the
home screen when the laser is completed resets.
Before switching on the device, the user must make sure that no objects
of any kind are located inside the operating space, which could limit or obstruct the
mechanics of the device.
www.thunderlaser.com DONGGUAN THUNDER LASER EQUIPMENT CO.,LTD
[email protected] No.197, Hudong Road, Shatian Town,
Tel :(86)769 826653 Dongguan, Guangdong, China
Page 33
THUNDER LASER NOVA-51
33
4.3 How to use the TL-Timer
The TL-Timer is an additional tool for laser machines.
It will control laser machines periphery like exhaust fan, warning lights, electrical locks and
lost of other stuff automatically.
This will increase the ease of use of your laser machine.
Please note the different types of connection, which makes the TL-Timer able to work with
each kind of laser controller.
Operation:
Normal use:
The TL-Timer gets activated by a work status signal from laser controller and an
open/close signal from the lid.
When the laser is working with the lid is closed, the second red LED and third red LED
lights up and 2 relays will be activated until the signal from controller gets turned off.
Without control signal the 2 relays will stay turned on until a given delay time has expired.
When the laser is working with the lid is opened, the first red LED light will be on and the
relay will be activated until you closed the lid.
Each relay has a freely adjustable delay time from 0-99 seconds.
Set up delay time:
Enter “Set” switch once. The red LED will blink and the display will show you the delay
time in second for the first relay. A red LED close to the active relay will show you. Which
one is active?
The display does show the delay time in seconds. By pressing “down” or “up” you can
change the value. By holding a switch down for more than 1 second the value will
increase or decrease automatically.
By pressing “Set” you can switch to relay number 2 now and confirm the delay time for this
one.
For changing delay values for 3rd and 4
When 4th relay is active and you press “Set” again, the TL-Timer will turn back to normal
operating mode, the red LED will stop blinking, but the blue LED will be still keeping on
After turning of power the TL-Timer will remember the delay-time-values, you did enter
before.
Relay-Output:
Each of the 4 relays offers an opening and closing switch with current capacity of max.
8 Amps and a power capacity of max. 1000W.
Higher loads must be controlled by using a power contactor.
th
relay you have to press “Set” again.
www.thunderlaser.com DONGGUAN THUNDER LASER EQUIPMENT CO.,LTD
[email protected] No.197, Hudong Road, Shatian Town,
Tel :(86)769 826653 Dongguan, Guangdong, China
Page 34
THUNDER LASER NOVA-51
34
About TL-Timer controller interface and buttons description：
1：Interface 1，connection with warning light ，delay time is set to 0 second（Factory default
settings, change it if required）
2：Interface 2，spare interface，users can connect the relevant equipment if require
3：Interface 3，connection with exhaust fan，delay time is set to 15 second（Factory default
settings, change it if required）
4：Interface 4，spare interface，users can connect the relevant equipment if required
5：LED lights display，set the delay time for viewing each interface and enter
6：”UP” button to increase delay time
7：”DOWN” button to reduce delay time
8：”Set” button to confirm your setting
9：Interface 9,” lid state” interface
10：Interface 10, “Working state” interface
11: Interface 11, 5V DC voltage power interface
12: upgrade interface
13: auto and manual
Where the TL-Timer is installed with Thunder Laser machine, please refer to the pictures
as below（Backside of machine）:
In addition: The on/off of air pump is controlled by the layer of software, like below:
www.thunderlaser.com DONGGUAN THUNDER LASER EQUIPMENT CO.,LTD
[email protected] No.197, Hudong Road, Shatian Town,
Tel :(86)769 826653 Dongguan, Guangdong, China
Page 35
THUNDER LASER NOVA-51
35
4.4 How to replace the 4 inch and HR laser head
1）How to replace the 4 inch laser head
1. Move the table down till there’s enough space to take the standard head out and
install the 4” laser head.
2. Remove the standard head like below：
①take out the air hose
②loosen the screw
3. Install the 4” laser head like below:
①fix the laser head
②connect the air hose
Tips: Please keep the 4’’ laser head to the max height of laser head.
www.thunderlaser.com DONGGUAN THUNDER LASER EQUIPMENT CO.,LTD
[email protected] No.197, Hudong Road, Shatian Town,
Tel :(86)769 826653 Dongguan, Guangdong, China
Page 36
THUNDER LASER NOVA-51
36
2）How to replace the HR laser head
1. Move the table down till there’s enough space to take the standard head out and
install the HR head.
2. Install HR head, like below:
①fix the head
②connect the air hose
Tips: Since HR head is sensitive for focus distance, it’s suggested to adjust the
focus by manual rather than auto focus.
www.thunderlaser.com DONGGUAN THUNDER LASER EQUIPMENT CO.,LTD
[email protected] No.197, Hudong Road, Shatian Town,
Tel :(86)769 826653 Dongguan, Guangdong, China
Page 37
THUNDER LASER NOVA-51
37

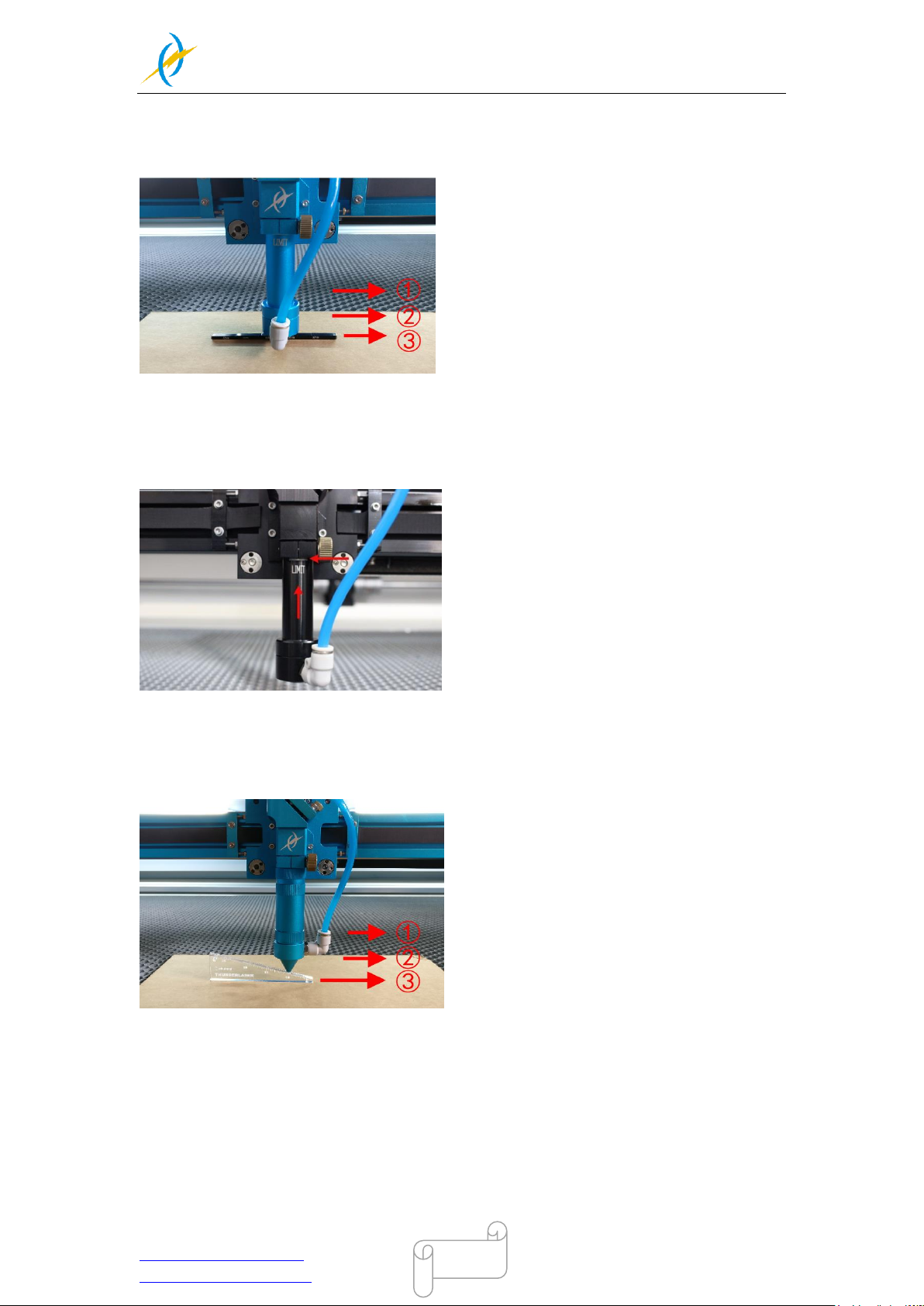

4.5 How to adjust focus distance by manual or auto
1). If there’s no auto focus function for your machine or there’s fault for your auto focus,
you can refer to below instructions about how to adjust focus by manually:
1. For standard laser head:
find the 6mm Acrylic Focus Tool for help to adjust the focus directly like below:
①Working Table
②Material
③Focus Tool
If the focus tool is not the best one for your material, you can use the focus ruler for help
like below:
①Working Table
②Material
③Focus Ruler
Please note that the limit line of the head, this limit line indicates the max height of laser
head, and keep the limited line inside the laser head mount. So as to protect the laser
head from crashing into the honey comb table while z-axis does reset/auto focus
www.thunderlaser.com DONGGUAN THUNDER LASER EQUIPMENT CO.,LTD
[email protected] No.197, Hudong Road, Shatian Town,
Tel :(86)769 826653 Dongguan, Guangdong, China
Page 38
THUNDER LASER NOVA-51
38
2. For HR laser head
Since HR head is very sensitive for focus distance, thus we’ve tested and made a special
focus tool (with a best distance) for each HR head, like below:
①Working Table
②Material
③The Best Focus Distance
④Focus Tool
Please note that the limit line of the head, this limit line indicates the max height of laser
head, and keep the limited line inside the laser head mount. So as to protect the laser
head from crashing into the honey comb table while z-axis does reset/auto focus
3. For 4’’ laser head
4” laser head is not so sensitive for focus distance; you can set the distance about
10mm with the help of focus ruler
①Working Table
②Material
③Focus Rule
PS: Please keep the 4’’ laser head to the max height of laser head
www.thunderlaser.com DONGGUAN THUNDER LASER EQUIPMENT CO.,LTD
[email protected] No.197, Hudong Road, Shatian Town,
Tel :(86)769 826653 Dongguan, Guangdong, China
Page 39
THUNDER LASER NOVA-51
39
2) If there’s Auto Focus function for your machine like below, you can adjust the focus by
auto.
1. Reset Z-axis.(Z-axis will move up until touch the Auto focus switch, here the coordinate:
0,0 ) please refer to Pic 1.
2. Select “Auto focus” on display panel, then the table will auto focus directly, please refer
to pic 2.
1
2
PS: please do not use “auto focus” function while laser head
is HR laser head or 4’’ laser head.
Also you can refer to the video of how to use auto focus in our website：
http://www.thunderlaser.com/how-to-use-your-laser-machine/how-to-use-auto-focus.html
www.thunderlaser.com DONGGUAN THUNDER LASER EQUIPMENT CO.,LTD
[email protected] No.197, Hudong Road, Shatian Town,
Tel :(86)769 826653 Dongguan, Guangdong, China
Page 40
THUNDER LASER NOVA-51
40
4.6 How to use the display
4.6.1 Function of the Buttons
Arrow buttons: control the movement of the laser
head.(also can be used to change the parameters in the control panel)
Z/U button: The Z/U key can be pressed when the system is idle or the work
is finished. On pressing this key, it will show some entries in the interface, each entry
includes some functions, Z axes move, U axes move, each axes to go home etc.
Reset button: reset the machine.
Pulse button: single press to draw a dot, press and hold to drill a hole.
Speed button: Set the speed of the current running layer, or set the
direction keys’ move speed.
Min-Power button: Set the min laser power of the current running layer.
www.thunderlaser.com DONGGUAN THUNDER LASER EQUIPMENT CO.,LTD
[email protected] No.197, Hudong Road, Shatian Town,
Tel :(86)769 826653 Dongguan, Guangdong, China
Page 41
THUNDER LASER NOVA-51
41
Max-Power button: Set the max laser power of the current running layer,
or set the power of “Laser” Key.
File button: The management of the memory and U disc files.
Start-Pause button: run/pause the current job.
Origin button: set the starting point for the laser head.
Frame button: To track by the current file’s frame.
Esc button: To stop work, or return to the last menu.
Enter button: confirm your selection.
www.thunderlaser.com DONGGUAN THUNDER LASER EQUIPMENT CO.,LTD
[email protected] No.197, Hudong Road, Shatian Town,
Tel :(86)769 826653 Dongguan, Guangdong, China
Page 42
THUNDER LASER NOVA-51
42
File：
Speed：
MaxPow ：
01
300mm/s
30.0%/30.0%
X：
Y：
Z：
150.2
153.5
3000
mm
mm
mm
01 400 25.0
02 200 29.1
03 100 31.5
Idle
00. 00. 00 Count: 99 X : 180. 5 mm Y : 235. 6 mm
connect
Graph display
area
Graph layer
parameters
Running
Status
Working
Number
Running
parameters
Net Status
File dimension
Coordinate
Running
progress bar
4.6.2 The main interface
When the system is powered on, the screen will show as below:
When work is Idle or finished, all keys can be pushed, users can select a file to run, set
some parameters, preview to a select file etc. But, when work is running or paused, some
keys don’t respond when they are pushed.
www.thunderlaser.com DONGGUAN THUNDER LASER EQUIPMENT CO.,LTD
[email protected] No.197, Hudong Road, Shatian Town,
Tel :(86)769 826653 Dongguan, Guangdong, China
Graph Display Area: To display the whole file’s track, and display the running
track.
Running parameters: To display the running file’s file number, speed, max power
etc.;
Coordinate: To display the current coordinate of X,Y and Z axes
Graph layer parameters: To display the layers’ information of the current file,
such as max or min power, speed etc.. When system is idle, dblclick the layer,
then users can change the layer’s parameters and the changing would be
saved.
Running Status: To display the current status of the machine, such as Idle, Run,
Pause, Finish, etc.;
Running Progress Bar: To display the progress bar of the current running file;
Working Number: To accumulate the work number of the current file.
File Dimension: To display the dimension of the current file;
Net status: To display the connecting status of the Ethernet.
Page 43
THUNDER LASER NOVA-51
43
Speed：
mm/s
Modified press Enter
300
%
Modified press Enter
%
MaxPower1:
MaxPower2:
30.0
30.0
Press Z/U move item
%
Modified press Enter
%
MinPower1:
MinPower2:
30.0
30.0
Press Z/U move item

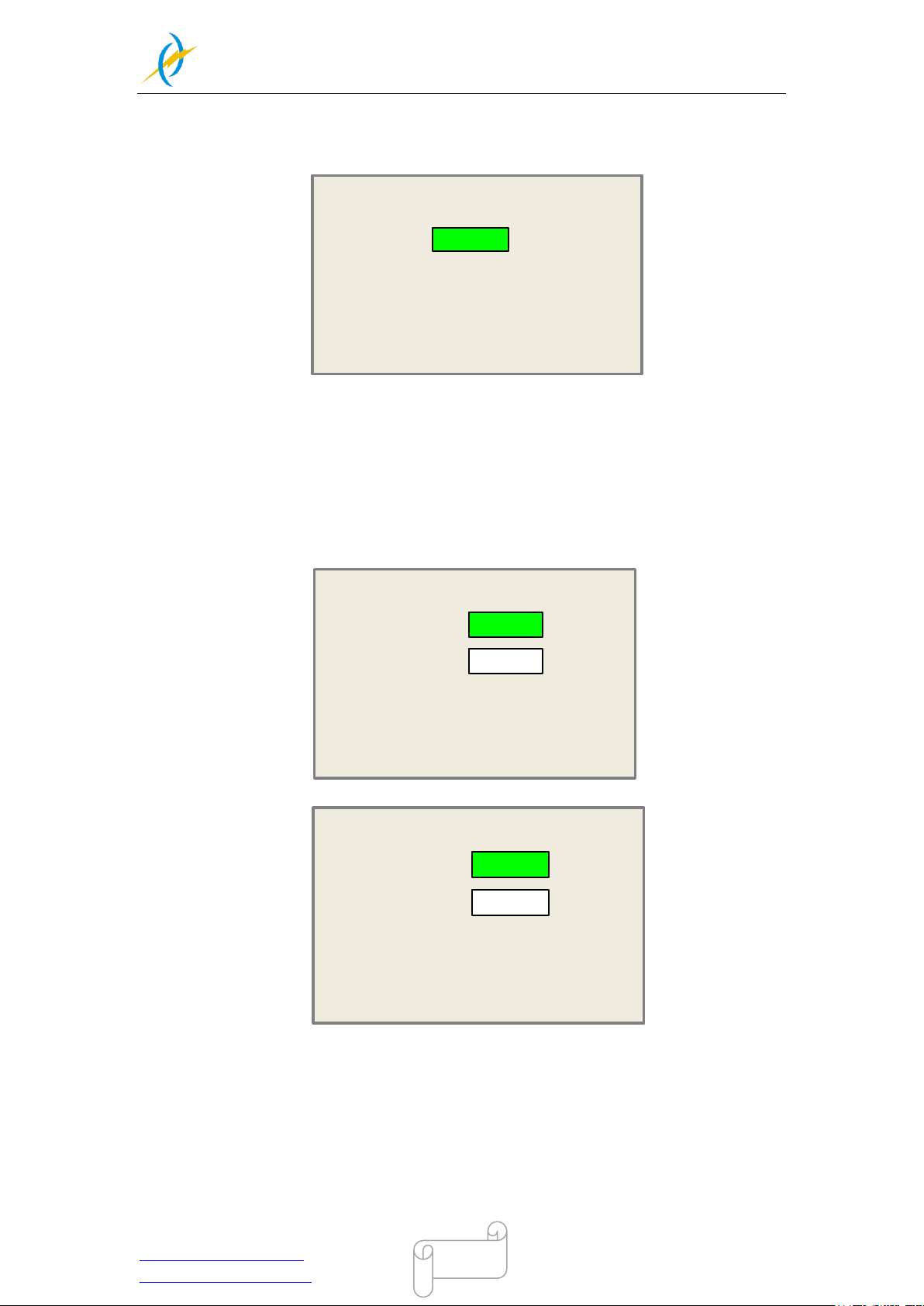

4.6.3 Speed Key
Push the “Speed” key when the screen is on the main interface, it will show as below:
Push the “X+/-“ Keys to move the cursor in the numeral area, and push the “Y+/-” keys to
change the value, then push the “Enter” key to save the change, push the “Esc” key to
invalidate the change.
4.6.4 Max/Min Power Keys
Push the “Max Power” or the “Min Power” keys when the screen is on the main interface, it
will show as below:
When “Z/U” key is pushed, the green block can move up and down to denote the
changing item, then “Y+/-” keys and “X+/-” keys can be used to change the value.
www.thunderlaser.com DONGGUAN THUNDER LASER EQUIPMENT CO.,LTD
[email protected] No.197, Hudong Road, Shatian Town,
Tel :(86)769 826653 Dongguan, Guangdong, China
Page 44
THUNDER LASER NOVA-51
44
02 200 29.1
03 100 31.5
01 400 25.1
MaxPower1：
%
Modified press Enter
30.0
MaxPower2：
Press Z/U move item
%
30.0
Layer0：
MinPower1：
%
22.0
MinPower2：
%
30.0
Speed：
mm/s
400
4.6.5 Set the Layer Parameters
After selecting a file to preview on the main interface, user can push “Enter” key to let the
cursor move to the first layer, then “Y+/-” Keys can be pushed to select the intent layer, on
that time, user can push “Enter” key to check the selected layer’s parameters, show as
below:
User can push “Z/U” Keys to move the green block on the intent parameter, then he could
change the parameter if needed. “OK” to validate the change, and “Esc” to invalidate the
change.
4.6.6 Z/U Key
The Z/U key can be pressed when the system is idle or the work is finished. On pressing
this key, it will show some entries in the following interface:
www.thunderlaser.com DONGGUAN THUNDER LASER EQUIPMENT CO.,LTD
[email protected] No.197, Hudong Road, Shatian Town,
Tel :(86)769 826653 Dongguan, Guangdong, China
Page 45
THUNDER LASER NOVA-51
45
U move
Axis reset+
Manual Set+
Laser Set+
Origin set+
Set Fact Para
Def Fact Para
Auto Focus
Language+
IP setup+
Diagnoses+
Screen Origin+
Z move
X axis reset
Y axis reset
Z axis reset
U axis reset
XY axis reset
Press up and down arrow keys to move the green block to the anticipant item, and then
push the “Enter” key to display the sub menu.
4.6.7 Z Move
When the green block is on “Z Move” item, to move the Z-axis table up and down by press
left and right arrow keys, then press ESC to go back to normal x & Y axis control.
4.6.8 U Move
When the green block is on “U Move” item, to move the Z-axis table up and down by press
left and right arrow keys,
4.6.9 Axis Reset+
When the green block is on this item, push the “Enter” key to show as below:
Press up and down arrow keys to move the cursor to one of the entry, then push “Enter”
key to restart the selected axis, the screen will show some information when resetting.
www.thunderlaser.com DONGGUAN THUNDER LASER EQUIPMENT CO.,LTD
[email protected] No.197, Hudong Road, Shatian Town,
Tel :(86)769 826653 Dongguan, Guangdong, China
Page 46
THUNDER LASER NOVA-51
46
manual：
mm
Modified press Enter
300
Mode:
Press Z/U move item
continue
Laser Set：
ms
Modified press Enter
50
Mode：
Press Z/U move item
continue
4.6.10 Manual Set+
When the green block is on this item, push the “Enter” key to show as below:
Push “Z/U” key to move the green block, and when the green block is on the “Mode” item,
push “X+-“ keys to select the anticipant value, “Continue” or “Manual”. When “Continue”
item is selected, then the “Manual” item is not valid, on that time, push the direction keys
to move the corresponding axes, and when the pushed key is loosed, then the
corresponding axes will finish moving. When the Mode item is “manual”, then pushing the
direction key one time, the corresponding axes will move a fixed length, unless the scope
is overstepped.
4.6.11 Laser Set+
When the green block is on this item, push the “Enter” key to show as below:
Push “Z/U” key to move the green block, and when the green block is on the “Mode” item,
push “X+-“ keys to select the anticipant value, “Continue” or “Manual”. When “Continue”
item is selected, then the “Laser Set” item is not valid, on that time, push the Laser key
to splash the enabled lasers, and when Laser key is loosed, then the lasers will finish
splashing. When the Mode item is “manual”, then pushing the Laser key one time, the
enabled lasers will splash a fixed time.
www.thunderlaser.com DONGGUAN THUNDER LASER EQUIPMENT CO.,LTD
[email protected] No.197, Hudong Road, Shatian Town,
Tel :(86)769 826653 Dongguan, Guangdong, China
Page 47
THUNDER LASER NOVA-51
47
Modified press Enter
Press Z/U move item
1
Origin enable1 Origin enable3
Origin enable2 Origin enable4
Set origin：
Next origin：
0
Muti origin enable
4.6.12 Origin Set
When the green block is on this item, push the “Enter” key to show as below:
Push “Z/U” key to move the green block to the anticipant item, and when the green block
is on “enable” items, push “Enter” key to enable or disable the item, when enabled, the
small diamonds is green, and when disabled, the small diamonds is grey. When the green
block is on the “Set origin” item or the “Next origin” item, push the “X+-“ keys to select the
value.
Pay attention to if when the green block is on the “Set origin” item, push the “X+-“ keys to
select a value, then, “Enter” key must be pushed to valid the change, or, the change is
invalid.
Each item introduced as below:
Multiple Origins Enable: “Yes” or “No” can be selected. If you select “No”, the
system will use the single-origin logic. You can press the “Origin” key and set the
origin, and only this origin can become valid. If you select “Yes”, the system will
use the multiple- origin logic and the “Origin” key on the keyboard become invalid.
In such a case, the parameter of each origin must be set in the menu as follows.
Origin Enable1/2/3/4: after the multiple-origin logic is enabled, the four origins
can independently be prohibited and enabled.
Set Origin 1/2/3/4: after the multiple- origin logic is enabled, you can stop the
cursor at “Set as Origin 1/2/3/4”. Press the “Enter” key on the keyboard and the
system will take the coordinate figures of current X/Y axles as the corresponding
ones to the origin 1/2/3/4.
Next Origin: there are such five digits as 0~4 for option, which are the origins to
be used for the next figure. Origin 0 means the origin set by the “Origin” key on
the panel in the single- origin logic. 1~4 means the serial number of the origins in
the multiple- origin logic. Next origin can be modified to any one of origin 1~4, so
as to control the start location of next work (the premise is that the origin is
enabled), but it can’t be modified to origin 0.
www.thunderlaser.com DONGGUAN THUNDER LASER EQUIPMENT CO.,LTD
[email protected] No.197, Hudong Road, Shatian Town,
Tel :(86)769 826653 Dongguan, Guangdong, China
Page 48
THUNDER LASER NOVA-51
48
Once the multiple- origin logic is selected and if the serial number
of the next origin is 1 and four origins are enabled, when the memory file
function is started or the processing file is uploaded into the PC and this
file selects “Take the Original Origin as current Origin”, the work started
for each time will use different origins. The rotation order of origin is
1->2->3->4->1->2…….
0 1 2 3 4 5 6 7 8 9
A B C D E F G H I J
K L M N O P Q R S T
U V W X Y Z
123456
Password error
Password：
After the manufacturer regulates all parameters of the machine well
(including all manufacturer parameters and user parameters), this
function can be used to store the well-regulated parameters to help
users to recover the original parameters (including all manufacturer
parameters and user parameters) through selecting “Recover Para”
when they regulate parameters improperly.
Prompt
Prompt
4.6.13 Set Fact Parameters
After the “Set Fact Para” is selected and the Enter key pressed, the interface will show the
specific password to be entered when set as default parameter.
Push “X+/-” keys and “Y+/-” keys to select the characters, and push the “Enter” key to
valid the characters, when finishing enter the password ,that is to say, the six characters, if
the password is error, it prompts there is some error, or, all parameters are stored.
4.6.14 Def. Fact Parameters
After the “Def Fact Para” is selected and the Enter key pressed, the “Successful Recovery”
dialog box will pop up to prompt that all manufacturer parameters and user parameters
are recovered successfully. You can return to the previous menu by press the Enter key.
4.6.15 Auto Focus
When the cursor stops at “Auto Focus”, press the Enter key to search for the focus(When
there is z axes, and the z axes reset function is enabled, the auto focusing is valid); press
the Esc key to return the prior menu.
The item “Language” helps you to select a appropriate langue which is displayed on the
pane:
www.thunderlaser.com DONGGUAN THUNDER LASER EQUIPMENT CO.,LTD
[email protected] No.197, Hudong Road, Shatian Town,
Tel :(86)769 826653 Dongguan, Guangdong, China
4.6.16 Language
Page 49
THUNDER LASER NOVA-51
49
Tradition
English
Simplify
IP address:
192
Gateway:
. . .
168 1 100
202
. . .
96 134
133
Modified press Enter
Press Z/U move item
4.6.17 IP Setup
When the green block is on this item, push the “Enter” key to show as below:
Push “Z/U” key to move the changing item, then push “X+/-” keys and “Y+/-” keys to
change the value, when all the IP value and the Gateway value are changed, push “Enter”
key to validate the change, or “Esc” key to invalidate the change.
4.6.18 Diagnoses
If the “Diagnoses” item is pressed, the system will show as below:
www.thunderlaser.com DONGGUAN THUNDER LASER EQUIPMENT CO.,LTD
[email protected] No.197, Hudong Road, Shatian Town,
Tel :(86)769 826653 Dongguan, Guangdong, China
Page 50
THUNDER LASER NOVA-51
50
Top left
Origin locat：
Modified press Enter
To modify pressß /à
This item is only used to preview the file on the screen, and it is no
meaning to the machine’s movement.
Caution
This interface shows some system input information, such as limiter status, the status of
the water protecting, and the status of the foot switch etc.. When the input is validated, the
color frame will be red, otherwise it’s gray.
4.6.19 Screen Origin
If the “Screen Origin” item is pressed, the system will show as below:
There are four entries to be selected: Top Left, Top Right, Bottom Left and Bottom Right.
When one is selected, the previewed graph on the screen would be enantiomorphous
based on X or Y direction.
www.thunderlaser.com DONGGUAN THUNDER LASER EQUIPMENT CO.,LTD
[email protected] No.197, Hudong Road, Shatian Town,
Tel :(86)769 826653 Dongguan, Guangdong, China
Page 51
THUNDER LASER NOVA-51
51
File：
Speed：
MaxPow：
01
300mm/s
30.0%/30.0%
X：
Y：
Z：
150.2
153.5
3000
mm
mm
mm
01 400
02 200
03 100
File： Count：
Udisk+
Other+
Run
Track
Work time
Clear count
Delete
Copy to udisk
Read mem file
Idle 00.00.00 Count: 99 X: 180.5 mm Y: 235.6 mm connect

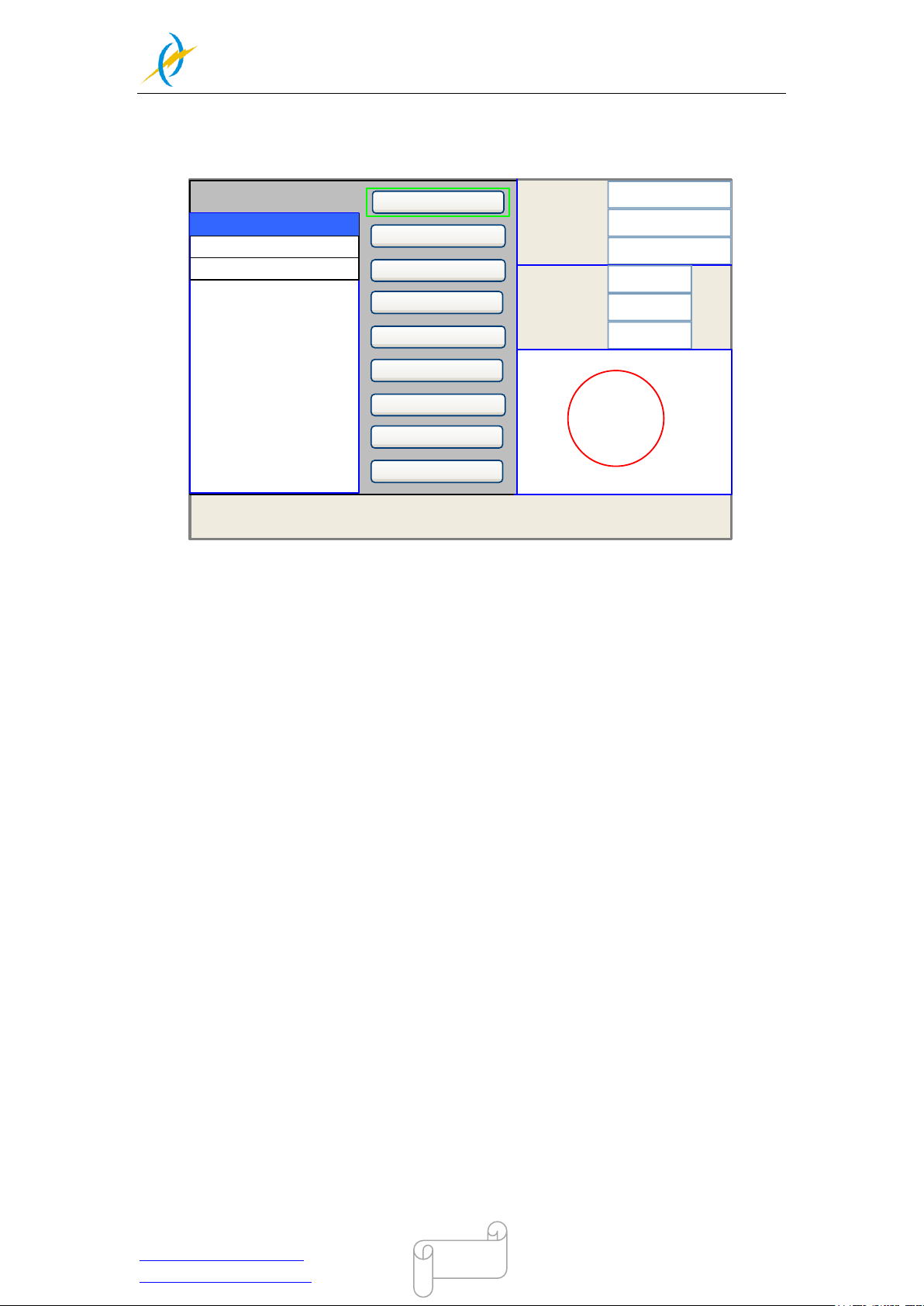

4.6.20 File Key
1). Memory File
On the main interface, if “File” key is pressed, it will show as below:
When showing this menu, the system would read the memory file firstly, the file name and
the work times would be listed in the area, and the selected file is previewed in the bottom
right area. “Y+/-” keys could be used to move the cursor on the file name list. When the
cursor is on a target file name, presses the “Enter” key, the selected file will be previewed
on the main interface, and then if “Esc” key is pushed, the preview will disappear.
“X+/-” keys could be used to move the cursor left and right. All the item show as below:
Read mem file: read the memory file list;
Udisk: read the U disk file list;
Other: the other operation of the memory files;
Run: To run the selected file;
Track: To track the selected file, and the track mode is optional;
Work time: To forecast the running time of the selected file, and the time is
accurate to 1ms;
Clear count: To clear the running times of the selected file;
Delete: To delete the selected file in the memory;
Copy to Udisk: To copy the selected file to Udisk;
If the “Other” entry is pressed, the system will show as below:
www.thunderlaser.com DONGGUAN THUNDER LASER EQUIPMENT CO.,LTD
[email protected] No.197, Hudong Road, Shatian Town,
Tel :(86)769 826653 Dongguan, Guangdong, China
Page 52
THUNDER LASER NOVA-51
52
10
Total：
delete all file
Clear all count
Current work time
Clear
Format drastically
Format speedly
01
02
03
File:
Delete
Copy to memery
Read udisk
Current work time: To forecast the running time of the current file(the current
file No. is showed on the main interface), and the time is accurate to 1ms.
Clear all count: To clear the running times of every file in the memory
Delete all file: To delete all memory files
Format speedily: To format memory speedily, and then all the files in memory
will be deleted.
Format drastically: To format memory drastically, and then all the files in
memory will be deleted.
Total: the total running times of all the files.
2). U-Disk File
If the “U-disk” entry in figure 8.4-1 is pressed, the system will show as figure 8.4-3,
and the operation method is all the same as figure 8.4-1.
www.thunderlaser.com DONGGUAN THUNDER LASER EQUIPMENT CO.,LTD
[email protected] No.197, Hudong Road, Shatian Town,
Tel :(86)769 826653 Dongguan, Guangdong, China
Page 53
THUNDER LASER NOVA-51
53
This system supports such file formats of Udisk as FAT32 and FAT16,
but it can identify them when the files are put under the root directory of
Udisk. The file name of more than 8 characters will automatically be cut
out by the system. The file name that has only English letters and digits
will not show when they are copied to the mainboard. The files copied
from the mainboard to Udisk will be placed under the root directory of
Udisk.
Water error
Esc Enter
Prompt
Read Udisk: read the file list in the Udisk;
Copy to memory: copy the target Udisk file to the memory;
Delete: delete the selected Udisk file;
4.6.21 Alarm Information of Display
When users are operating the system, or when the machine is running, some alarm
information such as water protecting error maybe shows as below:
Push “Enter” key or “Esc” key, the system will execute some relative steps.
www.thunderlaser.com DONGGUAN THUNDER LASER EQUIPMENT CO.,LTD
[email protected] No.197, Hudong Road, Shatian Town,
Tel :(86)769 826653 Dongguan, Guangdong, China
Page 54
THUNDER LASER NOVA-51
54
4.7 The First Time Running the Laser
1. Using the machine for the first time, and please note that the machine working voltage
of 230V (115V for USA).
2. Please put the honeycomb on the standard table. Unless you need to cut on the
Aluminum blade platform.
3. Move up the laser head, ensure the limit line of head tube is cover inside the holder.so
as to protect the laser head from crashing into the honey comb table while z-axis does
reset/auto focus.
4. Please reset Z-axis after turn on the laser machine (watch the guiding video to learn
how to reset the Z-axis, and refer to the thunder laser operation video).
5. Please don’t use the autofocus function if there’s no materials on the table.
For example, first engraving tests
The following steps describe how to successfully engrave a first pattern. Please follow the
individual steps:
1. First switch on the computer and the Laser.
Tips: When turn on the power of machine, and note that turn on the Main switch first
and then the Laser switch.
2. Put the object to be engraved into the laser and move into the desired position on the
engraving table. Usually the object is positioned in the upper left-hand corner. Use the
rulers to determine the dimensions of the object to be engraved.
3. With the frame keys to ensure that the laser head is positioned over the material to be
engraved. You focus with the help of the focus tool or by auto focus.
4. Generate a graphic with the help of your graphics software, or lead in a picture that
you want to engrave, but before this, you must click the “Port setting” in the software.
The size of the graphic does not matter as the printer driver adjusts it to the work
piece automatically if requested.
If you have any questions, and also consult the Software Manual for further information.
5. Double-click the Layer in the window of "Work", then you can modify the parameters
such as speed, Min Power, Max Power, ramp Effect, Ramp Length, Interval and so
on.
6. Select "Download", you can change the file name. If you don’t change the file name,
that will be the default name for “default”, and will be covered the last file.
7. Click “Original” and “Frame” on the display, please make sure that the material is in
the right location and there is enough space for working.
www.thunderlaser.com DONGGUAN THUNDER LASER EQUIPMENT CO.,LTD
[email protected] No.197, Hudong Road, Shatian Town,
Tel :(86)769 826653 Dongguan, Guangdong, China
Page 55
THUNDER LASER NOVA-51
55
8. Please check the water cooling system is working properly; the water is running into
and filling the laser tube. Please do not start your work if the laser tube isn’t full of
water, because that may led to laser tube damage due to the high temperature.
9. Finally press the “Start-Pause” button in the display, to start the engraving process.
10. While the laser is engraving, you can generate the next graphic.
11. When the engraving is complete, the laser machine will give out the notification sound
and the laser head will go back to the original point, and the warning light will return to
the green light, then you can repeat engraving.
www.thunderlaser.com DONGGUAN THUNDER LASER EQUIPMENT CO.,LTD
[email protected] No.197, Hudong Road, Shatian Town,
Tel :(86)769 826653 Dongguan, Guangdong, China
Page 56
THUNDER LASER NOVA-51
56
4.8 Workstation Area Indication
www.thunderlaser.com DONGGUAN THUNDER LASER EQUIPMENT CO.,LTD
[email protected] No.197, Hudong Road, Shatian Town,
Tel :(86)769 826653 Dongguan, Guangdong, China
Page 57
THUNDER LASER NOVA-51
57
4.9 Rotary axis Attachment
The rotary axis attachment option in the printer driver is used in combination of the rotary
axis attachment, to engrave cylindrical objects. To compensate for the different diameters
of different objects, the image must be adjusted. This is performed automatically by the
engraving driver, by selecting the rotary axis option and entering the diameter of the object
to be engraved.

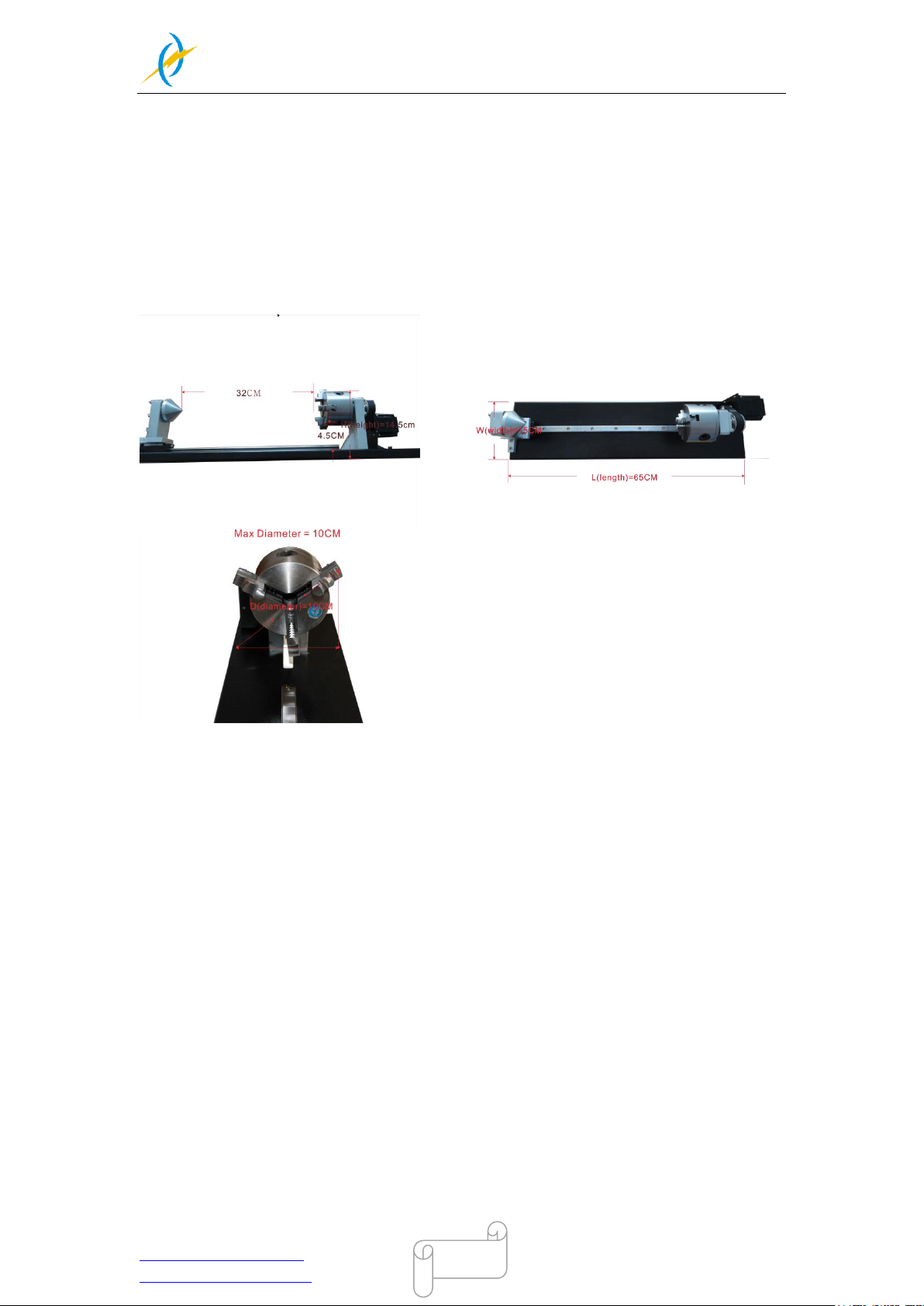

The Rotary size:
To install and set-up the rotary axis attachment proceed as described as follows:
1. Move the working table to the lower position switch off the laser and open the top lid.
2. Put the rotary axis attachment onto the working table and align the rotary attachment
with the x-axis are parallel, with the jaw chuck closest to where the rotary attachment
plugs in and is switched on / off

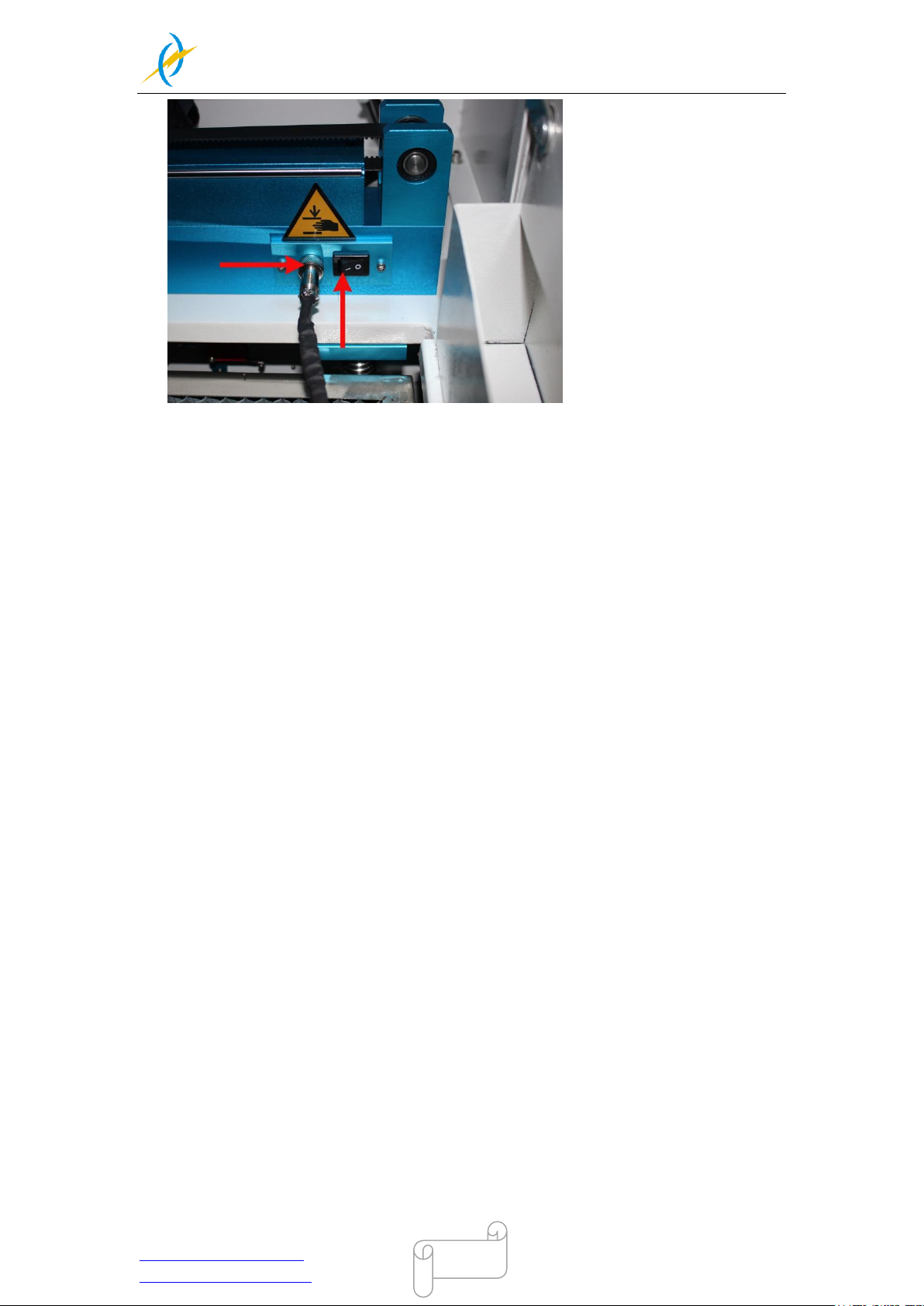

3. Connect the rotary axis attachment via the control cable with the connector of the
motion system. The connector is located inside the right front of the laser. Connected
it to this interface and fixed, then turn on the switch (- is on) and reset the rotary device
by press the “reset” button on the display (1 is on, 0 is off), and then you have finished
the device connection. Like below:
www.thunderlaser.com DONGGUAN THUNDER LASER EQUIPMENT CO.,LTD
[email protected] No.197, Hudong Road, Shatian Town,
Tel :(86)769 826653 Dongguan, Guangdong, China
Page 58
THUNDER LASER NOVA-51
58
4. Before you mount the object into the rotary axis attachment, measure the diameter of
the object at the position to be engraved with a sliding caliper or a similar tool. Write
down this value. For example:80
5. Adjust and fix the slider to make the work piece fitting into the rotary axis attachment.
6. Once the rotary is plugged in and switched on the y axis, y-axis will be inoperable by
jog control and will have to be gently moved by hand in and out of position above the
rotary axis attachment. Any reset of the controller or repowering of the machine will
start the homing function. The x-axis will head off to towards its limit switch and y-axis
now controlling the rotary will just spin for while before timing out and setting a zero
point. Be very aware
Set your focus manually, carefully and safely. It is not recommended to use the auto
focus with a rotary axis attachment for the simple reason that you are not working with
a flat object. Set your origin
7. Generate a graphic with the help of the graphics software. The graphics size must be
adjusted until less than the dimensions of the work piece.
8. Select “Output”, and then input the diameter of the object and the circle pulse. Like
below:
www.thunderlaser.com DONGGUAN THUNDER LASER EQUIPMENT CO.,LTD
[email protected] No.197, Hudong Road, Shatian Town,
Tel :(86)769 826653 Dongguan, Guangdong, China
Page 59
THUNDER LASER NOVA-51
59
Select “Output”, and then tick“Enable rotate engrave”
① The Circle pulse is set to 16000 （Please set circle pulse to 7601 while your machine is bought
before February 2016, Not including Feb 2016）
② The diameter of the target item
9. Select "Download", click “Origin” and “Frame” on the display, please make sure that
the material is in the right location and enough space for working.
10. Switch on the cooling system. And connect the exhaust system and the air pump to
behind of the laser. Please check the water cooling system is working properly; the
water is running into and filling the laser tube. Please do not starts your work if laser
tube isn’t full of water, because that may led to laser tube damage due to the high
temperature.
11. Finally press the “Start-Pause” button in the display, to start the engraving or cutting
process.
12. When you are finished with the rotary attachment:
Move the y-axis back by hand before switching the rotary off (0 is off) and unplugging it
to give yourself plenty of room to remove it safely.
Uncheck “Enable rotate engrave” in the output tab in the RDworks software otherwise
the next user will find their engraving and cutting will be stretched along the y-axis
Reset the laser (reset button on the controller) so it can relearn its home position,
ready for the next user.
Also you can refer to the video of how the rotary axis works in our website：
http://www.thunderlaser.com/how-to-use-your-laser-machine/how-the-rotary-axis-works.html
www.thunderlaser.com DONGGUAN THUNDER LASER EQUIPMENT CO.,LTD
[email protected] No.197, Hudong Road, Shatian Town,
Tel :(86)769 826653 Dongguan, Guangdong, China
Page 60
THUNDER LASER NOVA-51
60
4.10 For Laser Engraving
The engraving depth can easily be varied through the laser power or the speed. To
increase the engraving depth, reduce the speed or increase the power setting. This way
you increase the amount of energy per area unit. Engraving too deep, however, reduces
the quality of the details. With coated materials the required power depends of the kind
and thickness of the coating. With power set too high the individual lines become too thick
and a sharp picture cannot be achieved. The resolution of the graphics should usually be
at 500 dpi. The dpi setting (number of laser dots per inch) depends on the material. The
lower this setting is, the lower the resolution of the engraved picture will be. This, however,
reduces flaming and increases the energy of a pulse, which can improve the overall result
(e.g. when engraving some sorts of plastic materials).
1. Plastics
Plastics for engraving are available in many different colors and thicknesses and with
many different coatings and surfaces. The majority of available plastics can be well
engraved and cut with the laser. Plastics with a micro-porous surface seem to give the
best result, because less surface material needs to be removed. As most plastic materials
have a low melting point, a low pip setting should be selected to reduce the danger of
melting.
2. Acrylic
There are two different types of acrylic – cast and extruded. The cast acrylic becomes
white or mat after engraving, the extruded acrylic remains clear. Use extruded acrylic for
engravings that are filled with paint and cast acrylic for normal engravings. Cast acrylic
can be best engraved without protection foil. It is better to engrave the entire surface with
a low energy setting.
3. Engrave the rubber stamp
The various mixtures and densities of rubber plates cause a slightly varying engraving
depth. The settings in the overview table give a good indication. Since engraving a
standard rubber material requires a relatively high laser power, the laser power is
principally set to 40% or more high and only the speed is varied. Due to their lower density,
so-called micro porous rubber materials allow a significantly higher engraving speed. Test
the rubber first, to find out the correct speed setting.
The RDWorksV8 software using the engraving function, you can choose “Ramp Effect” or
common engraving, once you choose “Ramp Effect” and you will need to set a minimum
power lower than Max Power, generally we set it to about 15%, and input a value with the
Ramp Length what you want, but if you want to make it better, you may need to test
different kinds of power and speed by yourself, then you can get the best result.
Engraving rubber produces a considerable amount of dust and terrible gas. Therefore a
well-dimensioned exhaust system and its regular maintenance are very important.
www.thunderlaser.com DONGGUAN THUNDER LASER EQUIPMENT CO.,LTD
[email protected] No.197, Hudong Road, Shatian Town,
Tel :(86)769 826653 Dongguan, Guangdong, China
Page 61
THUNDER LASER NOVA-51
61
Chapter 5 Maintenance
5.1 Cleaning the Laser Machine
1. Caution – use of controls or adjustments or performance of procedures other than
those specified here in may result in hazardous laser radiation exposure.
2. Before starting cleaning and maintenance work always switch off the device and
unplug the mains plug.
3. Always keep the system clean, as flammable parts in the working area or exhaust
area rise the fire hazard.
Tips: You should check at least once a day, whether dust has accumulated in the
engraving system. In case of soiling the machine must be cleaned. The cleaning
interval strongly depends on the material that is being processed and the
operating time of the device. Please bear in mind that only a clean machine
guarantees optimal performance and reduces the service costs.
General Cleaning Notes:
1. Make sure, that the device is switched off and unplugged. Open the protective cover.
2. Move the working table into a position in which it is easiest for you to clean the surface
with a window cleaning agent and paper towels.
3. Thoroughly remove all loose dirt particles and deposits in the interior of the machine.
4. Clean the cover of the laser tube.
5. You can clean the viewing window with a cotton cloth. Do not use paper towels as they
could scratch the acrylic.
www.thunderlaser.com DONGGUAN THUNDER LASER EQUIPMENT CO.,LTD
[email protected] No.197, Hudong Road, Shatian Town,
Tel :(86)769 826653 Dongguan, Guangdong, China
Page 62
THUNDER LASER NOVA-51
62

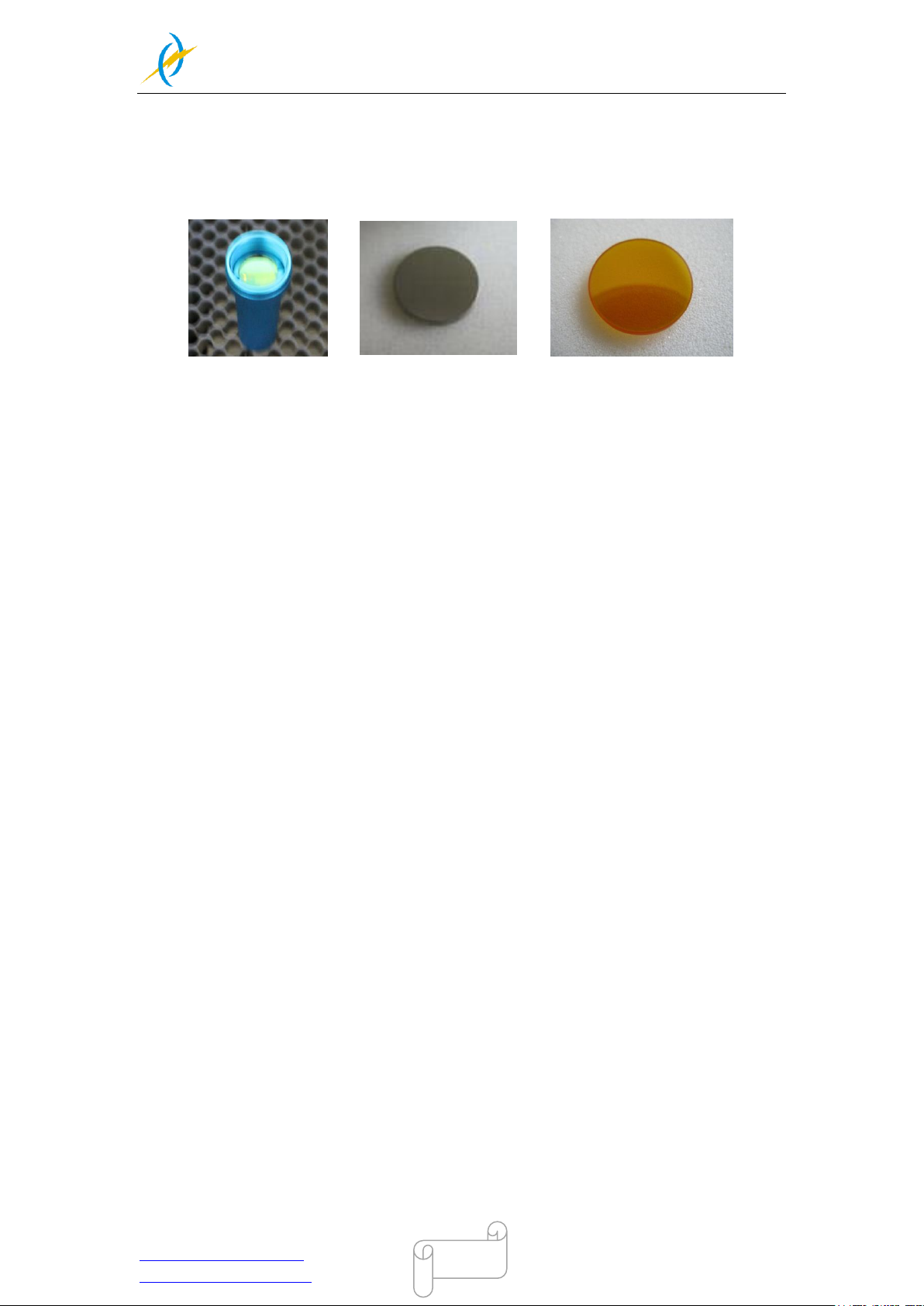

5.2 Cleaning the Optical Parts
The lens has a durable multi-coating and won’t be damaged by correct and careful
cleaning. You should inspect the focus lens and the mirrors and the beam combiner
according the maintenance plan. If you discover a veil of haze or dirt, you must clean them.
It is suggested to clean the mirrors/lens before work every day in order to run the machine
at max efficiency.
Follow the instructions below for the cleaning of optical parts:
5.2.1 Cleaning the Focus Lens
1. Move the engraving table to a distance approx. 10 cm under the lens holder.
2. Move the working head into the center of the working surface and put a cloth under
the lens holder (so that the lens is not damaged if it accidentally falls out of its holder).
3. Now you can unscrew the lens holder.
4. Once positioned over a clean lens cleaning tissue, remove the lens from the lens
holder by carefully turning the lens holder and letting the lens and the O-ring drop onto
the cleaning cloth.
5. Examine the O-ring and, if necessary, clean it with a cotton bud and a lens cleaning
tissue/cloth.
6. Remove the coarse dust as good as possible by blowing air onto the lens surface.
7. Check the surface and if necessary clean the lens with the lens cleaning liquid and
lens tissue.
8. Hold the lens assembly by its edge with a lens cleaning tissue and use a drop of lens
cleaning liquid from the little bottle which you received as an accessory delivered with
the laser. While holding the lens on an angle, flush both surfaces of the lens, to wash
away coarse soiling.
9. Put the lens on a clean lens cleaning tissue. Put some lens cleaning liquid on one side
of the lens. Leave the liquid to take effect for approximately one minute and then
gently wipe it away with lens cleaning tissues soaked with lens cleaning liquid.
10. Finally, dry this side of the lens with dry lens cleaning tissues and repeat the cleaning
process on the other side of the lens. Never use a cleaning tissue twice. Dust
accumulated in the cleaning tissue could scratch the lens surface.
11. Examine the lens. If it is still soiled, repeat the cleaning process until the lens is clean.
12. Carefully insert the lens into the lens holder. Ensure, that the rounded side (= convex)
of the lens is facing upwards. Then put the O-ring on top of the lens.
13. Carefully assemble the lens in reverse order.
www.thunderlaser.com DONGGUAN THUNDER LASER EQUIPMENT CO.,LTD
[email protected] No.197, Hudong Road, Shatian Town,
Tel :(86)769 826653 Dongguan, Guangdong, China
Page 63
THUNDER LASER NOVA-51
63
1
2
Remove the air pipe.
Rotation ot the left, and the head is divided into
two parts.
3
4
Direciton of rotation.
5
6
Installation and please concave downward
(convex side of the lens is facing upwards).
Fixed back the focus lens, and please be careful
not to scratch the lens, then merge both parts
together.
7
Reinstall the air pipe.
How to take out the focus lens, please just as following the picture indicated:
www.thunderlaser.com DONGGUAN THUNDER LASER EQUIPMENT CO.,LTD
[email protected] No.197, Hudong Road, Shatian Town,
Tel :(86)769 826653 Dongguan, Guangdong, China
Page 64
THUNDER LASER NOVA-51
64
5.2.2 Cleaning the Mirrors
There are three mirrors in the operating area of the laser, which may have to be cleaned if
they are soiled. To clean the reflector, follow the instructions below.
The Mirror#1
The mirrors are easily get dirty. And this will reduce the efficiency of the laser beam.
Meanwhile, laser energy absorbed by the mirror may cause heat and destroy the mirrors
too. For the first mirror, you can clean them directly.
The Mirror#2
Make sure the power of the laser machine is turned off while cleaning. The 2nd mirror is
installed on the left side of X rail. For the second mirror, you can clean them directly.
The Mirror#3
Cautions:
1) Mirrors must be cleaned carefully by using lens cleaning paper/lens cleaning cloth to
avoid scratching the surface.
2) Do not touch the surface of the mirrors/lens after cleaning
3) The concave side of the lens must be on the bottom when installed
www.thunderlaser.com DONGGUAN THUNDER LASER EQUIPMENT CO.,LTD
[email protected] No.197, Hudong Road, Shatian Town,
Tel :(86)769 826653 Dongguan, Guangdong, China
Page 65
THUNDER LASER NOVA-51
65

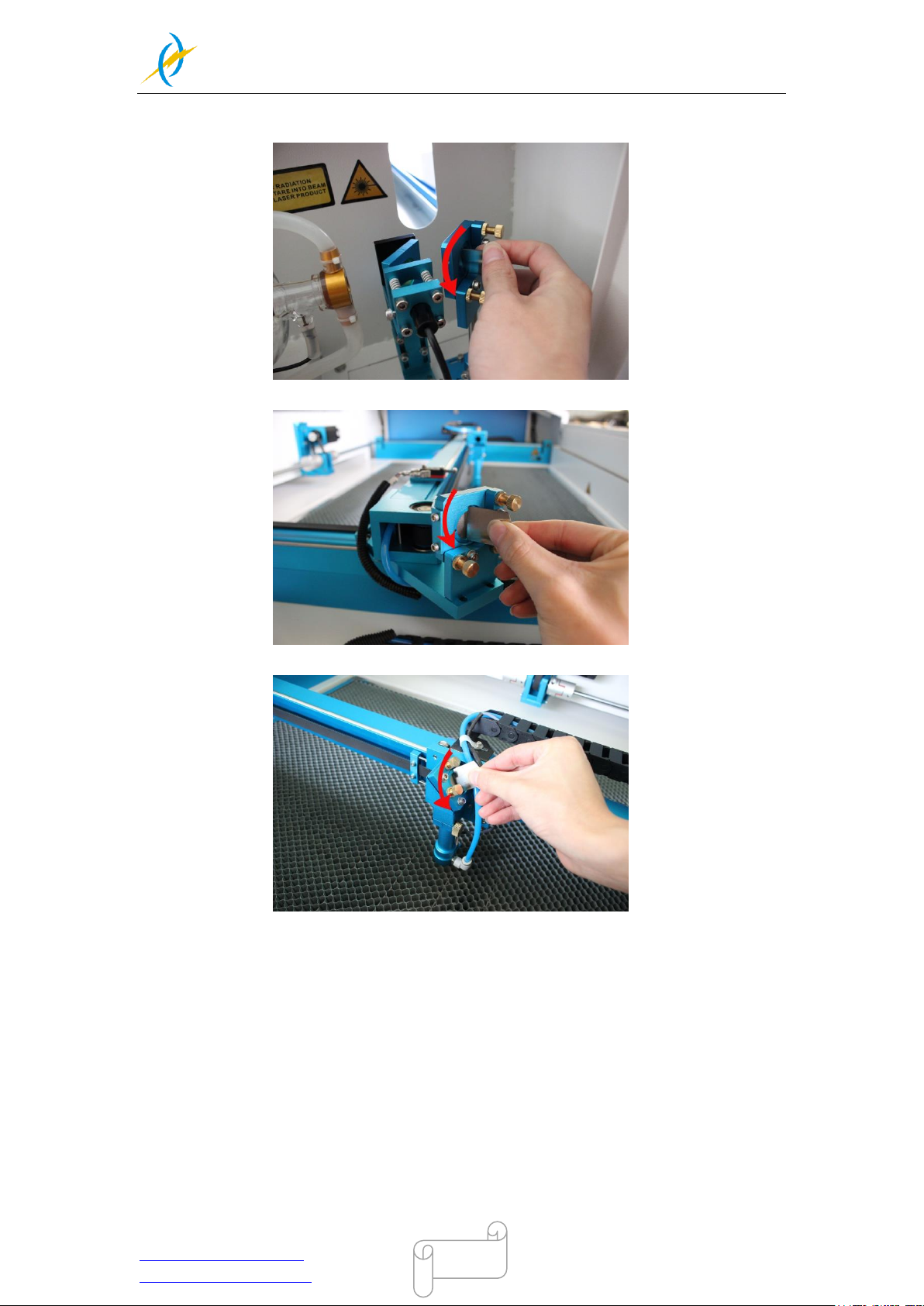

How to take out the mirror#1 #2 and#3, and please just as following the picture
indicated:
1. The mirror#1
2. The mirror#2
3. The mirror#3
www.thunderlaser.com DONGGUAN THUNDER LASER EQUIPMENT CO.,LTD
[email protected] No.197, Hudong Road, Shatian Town,
Tel :(86)769 826653 Dongguan, Guangdong, China
Page 66
THUNDER LASER NOVA-51
66
5.2.3 Cleaning Laser Combiner
① The beam combiner must be cleaned carefully by using lens cleaning paper/lens
cleaning cloth to avoid scratching the surface.
② Do not touch the surface of the beam combiner after cleaning.
③ For the beam combiner, you can clean them directly.
www.thunderlaser.com DONGGUAN THUNDER LASER EQUIPMENT CO.,LTD
[email protected] No.197, Hudong Road, Shatian Town,
Tel :(86)769 826653 Dongguan, Guangdong, China
Page 67
THUNDER LASER NOVA-51
67
5.3 Maintain the X/Y/Z Rails
It is suggested to add lubricant oil (or Rust Preventative Grease) to the rails/screws at
least every two weeks.
www.thunderlaser.com DONGGUAN THUNDER LASER EQUIPMENT CO.,LTD
[email protected] No.197, Hudong Road, Shatian Town,
Tel :(86)769 826653 Dongguan, Guangdong, China
Page 68
THUNDER LASER NOVA-51
68

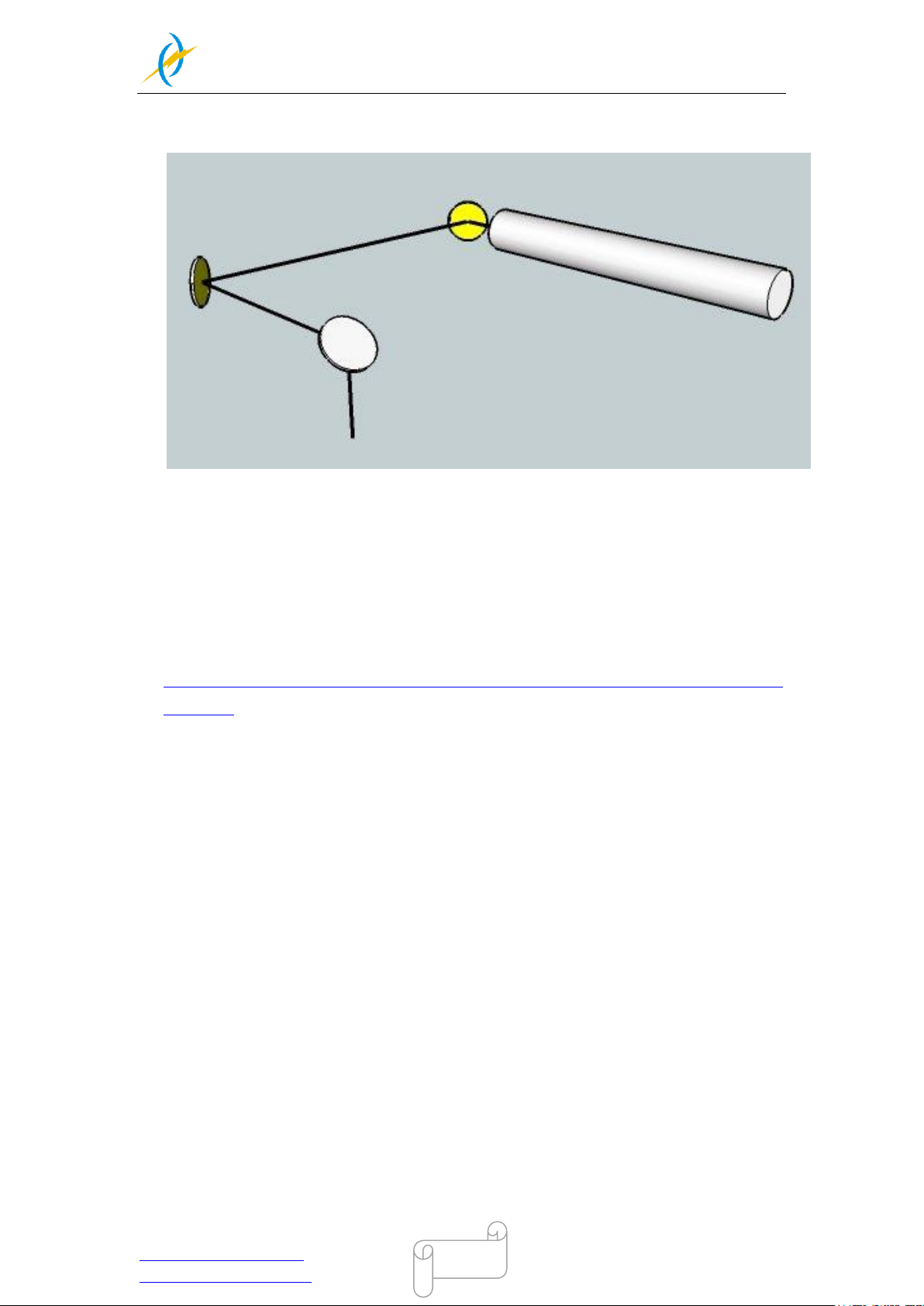

5.4 Check the Beam Path
After being used for a long time, the beam path might be deflective. This will reduce
the efficient of the laser beam or even cause no laser beam. At this moment, you will
need to re-adjust the beam path again.
If you need to know that about adjust the laser beam path of the video on YouTube
released by our company and please link to the URL:
http://www.thunderlaser.com/how-to-use-your-laser-machine/how-to-adjust-the-laser-beam
-path.html
www.thunderlaser.com DONGGUAN THUNDER LASER EQUIPMENT CO.,LTD
[email protected] No.197, Hudong Road, Shatian Town,
Tel :(86)769 826653 Dongguan, Guangdong, China
Page 69
THUNDER LASER NOVA-51
69
5.5 Change Cooling Water for The Water Chiller
It is suggested to change the water at least once every month
Make sure the laser tube is filled with water before starting the machine. It is advised
to add water every 3 days.
The quality and temperature of the cooling water affects the life time of the laser tube.
You need to use pure(distilled) water and control the temperature below 35℃（95℉）.
www.thunderlaser.com DONGGUAN THUNDER LASER EQUIPMENT CO.,LTD
[email protected] No.197, Hudong Road, Shatian Town,
Tel :(86)769 826653 Dongguan, Guangdong, China
Page 70
THUNDER LASER NOVA-51
70
5.6 Maintenance Plan
1. DAILY CHECK LIST
① Check Mirrors and lens for condensation and make sure it is clean after work
② Check exhaust grille to ensure there is no blockage for exhaust fan
③ Check coolant water level
④ Check air filter on compressor
⑤ Ensure cooling fans on sides are free from debris
⑥ The air blower must be checking and cleaning if required.
2. WEEKLY CHECK LIST
① Clean filters on water chiller
② Clean debris from under laser bed
③ Clean X & Y & Z axis rails and lubricate as required
④ Clean Acrylic/Tempered glass covers in lid
⑤ The beam combiner must be checking every weekly, and cleaning if required.
THE END
www.thunderlaser.com DONGGUAN THUNDER LASER EQUIPMENT CO.,LTD
[email protected] No.197, Hudong Road, Shatian Town,
Tel :(86)769 826653 Dongguan, Guangdong, China
Loading...
