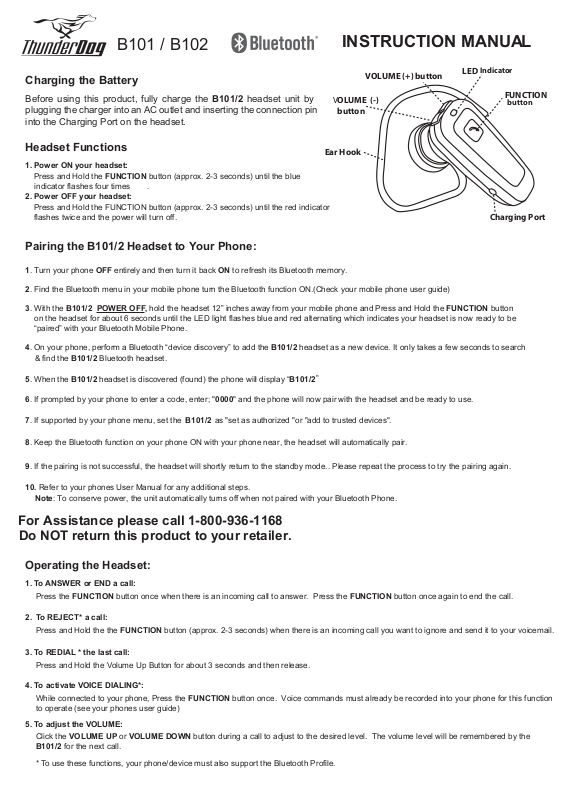

Thunderdog B102, B101 User Manual

B101 / B102

Charging the Battery

Before using this product, fully charge the B101/2 headset unit by
plugging the charger into an AC outlet and inserting the connection pin
into the Charging Port on the headset.

INSTRUCTION MANUAL

Indicator

VOLUME (+) button

VOLUME (-)

button

LED

FUNCTION

button

Headset Functions

1. Power ON your headset:

Press and Hold the FUNCTION button (approx. 2-3 seconds) until the blue
indicator flashes four times

2. Power OFF your headset:

Press and Hold the FUNCTION button (approx. 2-3 seconds) until the red indicator
flashes twice and the power will turn off.

.

Ear Hook

Charging Port

Pairing the B101/2 Headset to Your Phone:

1. Turn your phone OFF entirely and then turn it back ON to refresh its Bluetooth memory.

2. Find the Bluetooth menu in your mobile phone turn the Bluetooth function ON.(Check your mobile phone user guide)

3. With the B101/2 POWER OFF, hold the headset 12” inches away from your mobile phone and Press and Hold the FUNCTION button

on the headset for about 6 seconds until the LED light flashes blue and red alternating which indicates your headset is now ready to be
“paired” with your Bluetooth Mobile Phone.

4. On your phone, perform a Bluetooth “device discovery” to add the B101/2 headset as a new device. It only takes a few seconds to search
& find the B101/2 Bluetooth headset.

5. When the B101/2 headset is discovered (found) the phone will display “B101/2

6. If prompted by your phone to enter a code, enter; "0000" and the phone will now pair with the headset and be ready to use.

7. If supported by your phone menu, set the B101/2 as "set as authorized "or "add to trusted devices".

”

8. Keep the Bluetooth function on your phone ON with your phone near, the headset will automatically pair.

9. If the pairing is not successful, the headset will shortly return to the standby mode.. Please repeat the process to try the pairing again.

10. Refer to your phones User Manual for any additional steps.
Note: To conserve power, the unit automatically turns off when not paired with your Bluetooth Phone.

For Assistance please call 1-800-936-1168

Do NOT return this product to your retailer.

Operating the Headset:

1. To ANSWER or END a call:

Press the FUNCTION button once when there is an incoming call to answer. Press the FUNCTION button once again to end the call.

2. To REJECT* a call:

Press and Hold the the FUNCTION button (approx. 2-3 seconds) when there is an incoming call you want to ignore and send it to your voicemail.

3. To REDIAL * the last call:

Press and Hold the Volume Up Button for about 3 seconds and then release.

4. To activate VOICE DIALING*:

While connected to your phone, Press the FUNCTION button once. Voice commands must already be recorded into your phone for this function
to operate (see your phones user guide)

5. To adjust the VOLUME:

Click the VOLUME UP or VOLUME DOWN button during a call to adjust to the desired level. The volume level will be remembered by the
B101/2 for the next call.

* To use these functions, your phone/device must also support the Bluetooth Profile.

LED indicator chart

Power on
Power off

Standby mode

Power Conservation
mode

Pairing mode

Active call

Low battery

Charging

Charging complete

Note: Power Conservation mode means your headset maintains a connection
with your phone but is conserving power and will wake up when any function is activated.

Blue indicator blinks 4 times
Red indicator blinks 4 times
Blue indicator blinks once
every 2 seconds
Blue indicator rapidly blinks
twice every 10 seconds

Flashing Blue and Red Light
Blue indicator rapidly blinks

2 times every 8 seconds

All Blue indicators will
change to Red

Steady Red Light

Red indicator turns OFF

Specifications

Bluetooth Specifications V2.0+EDR
Bluetooth Profiles Supported

Transmission Power
Operation Range Up to 10 Meters
Frequency Range 2.402~2.4835 GHz
Battery Built-in Rechargeable

Class 2

3.7V Li-polymer Battery

Charging Voltage DC4.75-5.25V
Charging Time About 2 hours
Talk Time

Up to 4.5 hours

Standby
Dimensions (mm) L33 X W16 X H9.5
Weight

Speaker Dimension 13mm
Mic Model 4015

Time* Up to 100 hours

*May vary due to user’s operation mode and device settings

Headset, Handsfree

About 6.4g

LIMITED 90-DAY WARRANTY

We warrant this product to be free from defects in material and workmanship under normal use for a ninety-day period from the original date of
purchase by the original purchaser from an authorized THUNDERDOG dealer. We will repair or replace the unit free of charge should it become
defective under this warranty.

Should you be missing any parts, please contact the retailer or Technical Support Center to secure a replacement for those parts.

Our Customer Support Center is available Monday - Friday (9:00AM to 9:00PM EST) and Saturday (9:00AM to Noon) for technical assistance or
troubleshooting. To contact us, please call 1-800-936-1168.

THUNDERDOG will warrant for a period of ninety-days from the original date of purchase, the unit and all accessory components described in the
Instruction Manual. The warranty covers defective materials and workmanship and is applicable only under normal use. This model is not intended for
outdoor use. This warranty does not cover any product, which has been subject to damage due to improper assembly or disassembly, an act of nature,
misuse, neglect, accident, abuse, commercial use, or modification of, or to, any part of the product. Also not covered are labor or assembly costs,
products purchased from unauthorized THUNDERDOG sellers or costs incurred in shipping the unit or part for warranty repair. Under no circumstances
shall THUNDERDOG, be liable for any loss (direct, indirect, incidental, foreseen, unforeseen, special or consequential) or for any damage arising out
of, or in connection with, the use of this product.

This warranty does not cover product sold ‘As Is’.

This warranty is valid only to the original purchaser of the Product in the United States and Canada and grants specific legal rights.
