Page 1
Part# Description
ARM-02-1 COVER
ARM-02-2 SCREW M6-10
ARM-02-3 SPEED CHANGE HANDLE
ARM-02-4 TRANSMISSION CASE
ARM-02-5 PLANETARY
ARM-02-6 BOWL SUPPORT
ARM-02-7 BASE
ARM-02-7-1 RUBBER FEET
ARM-02-8 SPEED CHANGE MECHANISM
ARM-02-9 PEDESTAL
ARM-02-11 BEARING CAP
ARM-02-12 PLASTIC PLUG
ARM-02-13 TRANSMISSION SHAFT
ARM-02-14 CENTER SHAFT BEARING
ARM-02-15 UPPER SPACER
ARM-02-16 SLOW SPEED GEAR
ARM-02-17 ZERO BEVEL GEAR
ARM-02-18 UPPER CLUTH GEAR
ARM-02-19 SLEEVE CLUTCH
ARM-02-20 LOWER CLUTCH GEAR
ARM-02-21 SHAFT CENTER
ARM-02-22 YOKE SHIFTER
ARM-02-23 BEVEL DRIVE GEAR
ARM-02-24 BEVEL DRIVE GEAR SPACER
ARM-02-25 PLUG ATTACHMENT HUB
ARM-02-27 GEAR 32T
ARM-02-28 GEAR 23T
ARM-02-29 WORM WHEEL
ARM-02-30 WORM GEAR SHAFT
ARM-02-31 WORM
ARM-02-32 MOTOR
ARM-02-33 MOTOR REAR HOUSING
ARM-02-34 INTERNAL GEAR
ARM-02-35 BEATER SHAFT GEAR
ARM-02-36 BEATER SHAFT
ARM-02-37 LEVER BOWL LIFT
ARM-02-38 ARM BOWL LIFT
ARM-02-39 ROD BOWL LIFT
ARM-02-40 SPRING
ARM-02-42 O RING

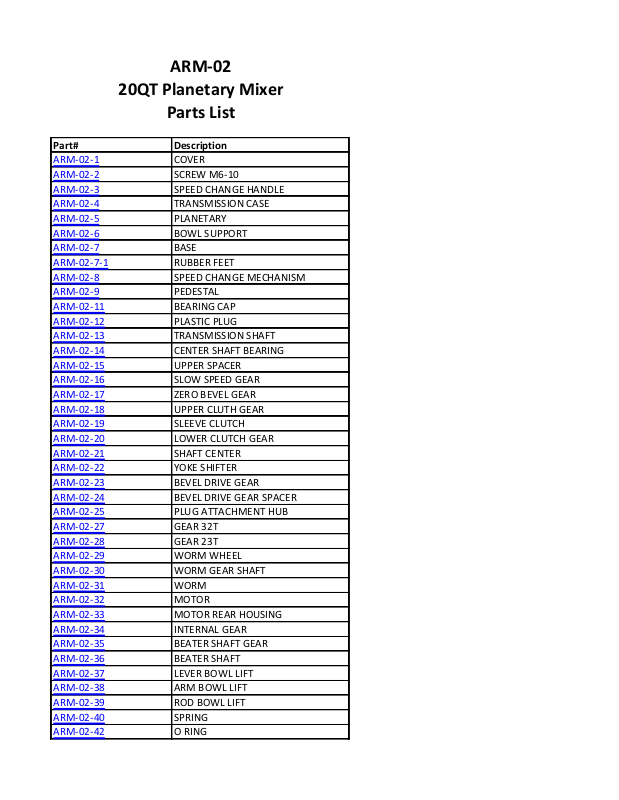

ARM-02
20QT Planetary Mixer
Parts List
Page 2
ARM-02-44 BOWL
ARM-02-45 BEATER
ARM-02-46 DOUGH HOOK
ARM-02-47 WHIP
ARM-02-48 TERMINAL BOARD
ARM-02-49 START WINDING
ARM-02-50 BOLT M6-20
ARM-02-52 APRON
ARM-02-53 SLIDE WAYS
ARM-02-54 BOWL PIN NUTS M8
ARM-02-55 BOWL PIN
ARM-02-55 BOWL PIN
ARM-02-60 SAFETY GUARD
ARM-02-63 CENTER SHAFT NUT 3/4
ARM-02-64 CENTER SHAFT LOCK WASHER
ARM-02-65 SLIDE WAY BOLTS M6-20
ARM-02-66 NUT M10
ARM-02-67 BEATER PIN 8-30
ARM-02-68 ATTACHMENT HUB SCREW 1/2
ARM-02-70 BOWL CLAMP (L)
ARM-02-71 BOWL CLAMP
ARM-02-72 CENTER SHAFT SEAL 25-40-9
ARM-02-73 CENTER SHAFT BEARING UPPER
ARM-02-75 BEARINGS
ARM-02-76 WASHER 3/8
ARM-02-77 BOLT M10-30
ARM-02-79 NUT 1/2-20
ARM-02-81 BOLT M8-25
ARM-02-82 PIN 7.9-16
ARM-02-83 BOLT M6-25
ARM-02-84 SHAFT SUPPORT COVER
ARM-02-87 BOLT M6-20
ARM-02-89 BOLT M6-20
ARM-02-90 SHIFT SHAFT
ARM-02-91 SPRING WASHER 3/8
ARM-02-92 NUT 3/8
ARM-02-93 NUT
ARM-02-94 SPRING
ARM-02-95 SWITCH PIN
ARM-02-96 SLOW SPEED GEAR SPRING
ARM-02-97 SLOW SPEED GEAR PIN.8.0-16
ARM-02-98 SLOW SPEED GEAR (8T)
ARM-02-99 BUSHING
ARM-02-100 KEY 6-6-25
ARM-02-101 KEY 6-6-30
ARM-02-102 KEY 6-6-30
ARM-02-103 BUSHING
Page 3
ARM-02-104 BEARING
ARM-02-105 KEY 5-5-12
ARM-02-106 SPACER
ARM-02-107 LOCKWASHER STW 19
ARM-02-108 BEARING
ARM-02-109 BEARING
ARM-02-110 KEY5-5-12
ARM-02-111 LOCKWASHER STW 19
ARM-02-112 BEARING
ARM-02-113 ATTACHMENT HUB.
ARM-02-114 OIL SEAL 30-50-8
ARM-02-115 BEARING
ARM-02-116 PLASTIC BALL M8-27
ARM-02-117 BOLT M5-12 S/S
ARM-02-118 SPRING
ARM-02-119 STEEL BALL 1/4
ARM-02-120 SPEED CHANGING MECHANISM
ARM-02-121 PIN4-25
ARM-02-122 LOCK WASHER STW-16
ARM-02-123 OIL SEAL 30-50-8
ARM-02-124 KEY3-3-18
ARM-02-125 SPRING WASHER 1/4
ARM-02-126 MOTOR FAN
ARM-02-127 LOCKWASHER STW-16
ARM-02-128 BEARING
ARM-02-129 BEARING
ARM-02-130 OIL SEAL 25-47-10
ARM-02-131 KEY 5-5-15
ARM-02-132 BOLT M8-9 SS
ARM-02-133 STEEL BALL & SPRING SET X5
ARM-02-134 BOLT M4-21 S/S
ARM-02-135 STOPPER
ARM-02-136 SAFETY GUARD COVER R
ARM-02-136-1 SAFETY GUARD COVER L
ARM-02-137 BOLT M6-20 S/S
ARM-02-138 BOLT M5-12 S/S
ARM-02-139 WASHER
ARM-02-140 SPRING WASHER 5/16 S/S
ARM-02-141 STEEL COVER
ARM-02-142 BOLT M5-6 S/S
ARM-02-143 SPRING WASHER 1/4
ARM-02-144 BOLT M5-6 S/S
ARM-02-145 MESH PLATE
ARM-02-146 WASHER M12
ARM-02-147 WASHER
ARM-02-148 PIN 6-28
ARM-02-149 SPRING PIN 3/32-1
Page 4
ARM-02-150 SPRING PIN 4-36
ARM-02-151 INGREDIENT CHUTE
ARM-02-152 BOLT M4-10 S/S
ARM-02-153 BOLT M3-15 S/S
ARM-02-154 BOLT M3-12
ARM-02-155 BOLT M4-10
ARM-02-160 SPRING
ARM-02-161 SWITCH PUSHER
ARM-02-162 BOLT
ARM-02-163 SWITCH PAD
ARM-02-164 MICRO SWITCH MV-3003
ARM-02-165 CAPACITOR RUNNING
ARM-02-166 CAPACITOR STARTING
ARM-02-167 BOLT M4-6 S/S
ARM-02-168 ELECTRIC CASE
ARM-02-169 CASE COVER
ARM-02-170 BOLT M4-6 S/S
ARM-02-171 MICRO SWITCH MV-3005
ARM-02-172 L SWITCH HOLDER
ARM-02-173 ELECTRIC STAND
ARM-02-174 BOLT M4-10
ARM-02-175 CONTACTOR
ARM-02-176 BOLT M6-30 S/S
ARM-02-177 BOLT M6-35 S/S
ARM-02-178 BOLT M6-60 S/S
ARM-02-179 SWITCH PLATE
ARM-02-180 BOLT M5-6 S/S
ARM-02-183 LOCK PLUG
ARM-02-184 POWER CORD
ARM-02-185 OIL SEAL
ARM-02-186-1 SELECTOR, TOGGLE
ARM-02-186-2 SELECTOR, DUAL PUSH BUTTON
ARM-02-186-3-A SELECTOR, SINGLE BUTTON,RED
ARM-02-186-3-B SELECTOR,SINGLE BUTTON,GREEN
ARM-02-186-3-C BRACKET, BUTTON COVER
ARM-02-186-3-D LA COSTA
ARM-02-186-4 SELECTOR, RED ROCKER
ARM-02-187 TIMER
ARM-02-188 SPRING WASHER
ARM-02-189 NUT
ARM-02-190 KNOB
ARM-02-191 BOLT M8-25
ARM-02-230 RESET SWITCH
