Thunder TDR17011 User Manual

For your personal safety read, understand and
follow the information provided in this instruction
manual.

CONGRATULATIONS ON
YOUR PURCHASE OF YOUR
THUNDER CAMERA

WI-FI CONNECTIVITY USB & HDMI 30M WATERPROOF

12MP STILL CAMERA

FULL HD VIDEO

1080P

170° WIDE LENS

Copyright © 2016 GPC Asia Pacific Pty Ltd ABN 97 097 993 283

2

THE BASICS

Status Indicator Light

Status
Indicator Light

Lens

Power/Mode Button

Shutter/Select Button MicroSD Slot

Micro USB

Micro HDMI Port

Microphone

Charging Status Light

Screen

Speaker

Up Button

Wi-Fi On-Off/
Down Button

3

THE BASICS

WATERPROOF HOUSING

Latch

Power/Mode
Button

Wi-Fi On-Off/
Down Button

Select/Shutter Button

Up Button

Battery Door

4

ACCESSORIES

Waterproof

Housing

Handle Bar/

Pole Mount Suction Cup Mount 1

Mount 2 Mount 3 Mount 4 Mount 5

Mount 6 Clip 1 Clip 2

Helmet

Mounts

Battery 3M Adhesives USB Cable Charger

Car Charger Lens Cloth User Manual

5

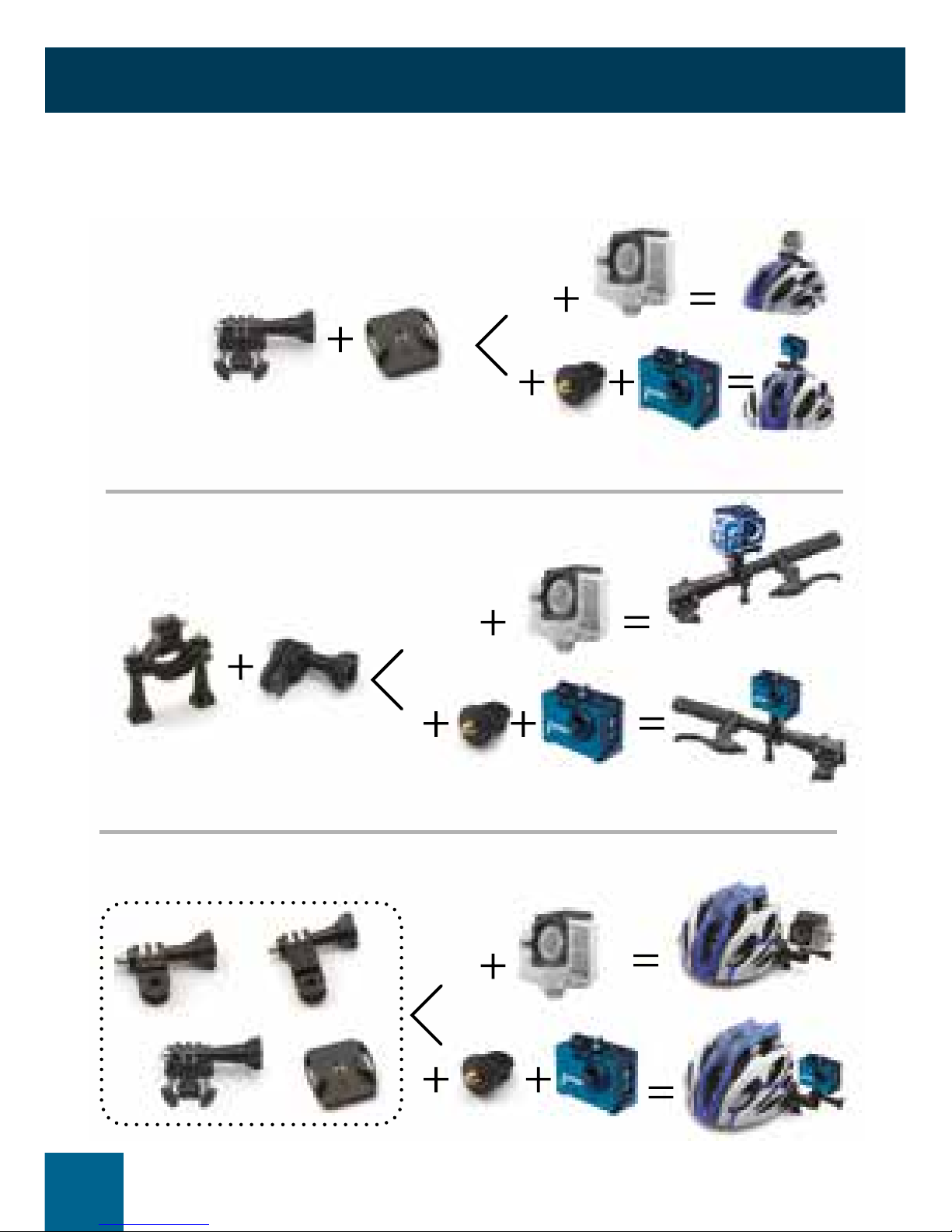

MOUNTING YOUR CAMERA

Attach your camera to helmets, gear and equipment.

Step 1. Attach a case

Step 2. Add a mount
