Page 1
ISO 11154-E
Instructions
xx kg
xx Ibs
5 kg
11 Ibs
km/h
Mph
0
80 km/h
50 Mph
40 km/h
25 Mph
130 km/h
80 Mph
This kit is only for vehicles with fixpoint.
B

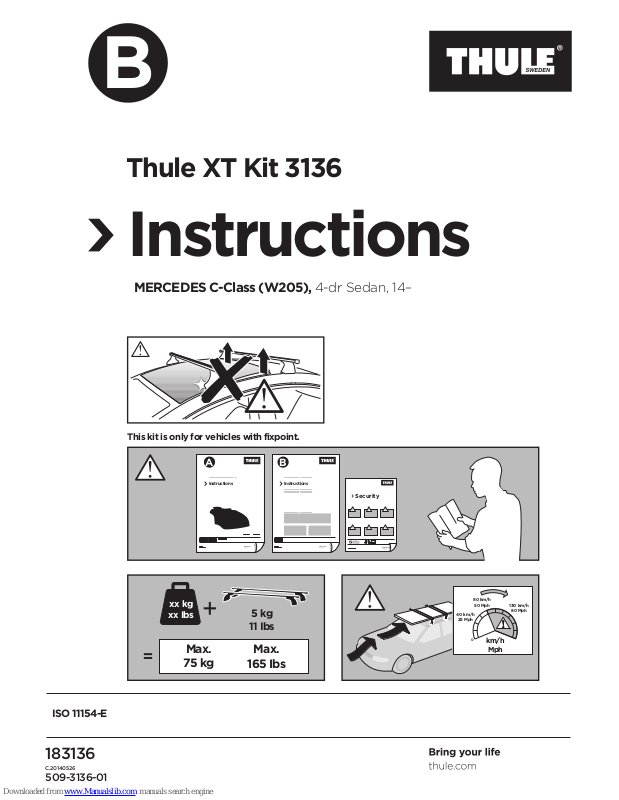

MERCEDES C-Class (W205), 4-dr Sedan, 14–
Thule XT Kit 3136
183136
C.20140526
509-3136-01
Max.
165 Ibs
Max.
75 kg
Security
___________________________
Instructions
A
___________________________
Instructions
___________________________
___________________________
___________________________
B
___________________________
Page 2
2
1
x8
A
16 mm
x1
5 mm
509-3136-01
17 197 17198
17 200 17199
x1
x1
17
x4
197
x1
198
x1
199
x1
200
x1
x4
x1
___________________________
Instructions
___________________________
___________________________
___________________________
B
___________________________
50784
50273
x4
x4
50786
50864
Page 3
3
2
3
x1
x8
A
16 mm
509-3136-01
EN Only a few turns
DE Nur wenige Umdrehungen
FR Quelques tours uniquement
NL Slechts enkele slagen
IT Solo qualche giro
ES Sólo algunas vueltas
PT Noções básicas
SV Endast några varv
DK Kun nogle få omgange
NE Bare noen få omdreininger
FI Vain muutama kierros
ET Ainult mõni pööre
LV Tikai daži apgriezieni
LT Tik keli pasukimai
PL Wystarczy kilka obrotów
RU Только несколько оборотов
UK Лише декілька обертів
BG Само няколко завъртания
CS Pouze několik otáček
SK Len niekol’ko otáčok
SL Le nekaj obratov
HR/BiH Samo nekoliko okreta
RO Doar câteva rotiri
HU Csak néhány fordítás
EL Μόνο λίγες περιστροφές
TR Yalnızca birkaç tur
طقف تارود ضعب AR
םיבוביס רפסמ קר HE
ZH 仅几圈
JA ２～３回転のみ
KO 몇 번만 돌리면 됨
TH เพียงสองสามรอบ
BA
Page 4
4
5
ww
NA
Thule Sweden AB, Box 69, 330 33 Hillerstorp, SWEDEN
Thule Inc., 42 Silvermine Road, Seymour, Connecticut 06483, USA
www.thule.com
info@thule.com
customer.service@thule.com
© Thule Group 2014. All rights reserved.
6 Nm
6 Nm
509-3136-01
A
A
B
B
x1
___________________________
Instructions
A
A
x1
5 mm
x4 x4 x4
6 Nm
x1
