Thule XADAPT8 Installation Instructions Manual

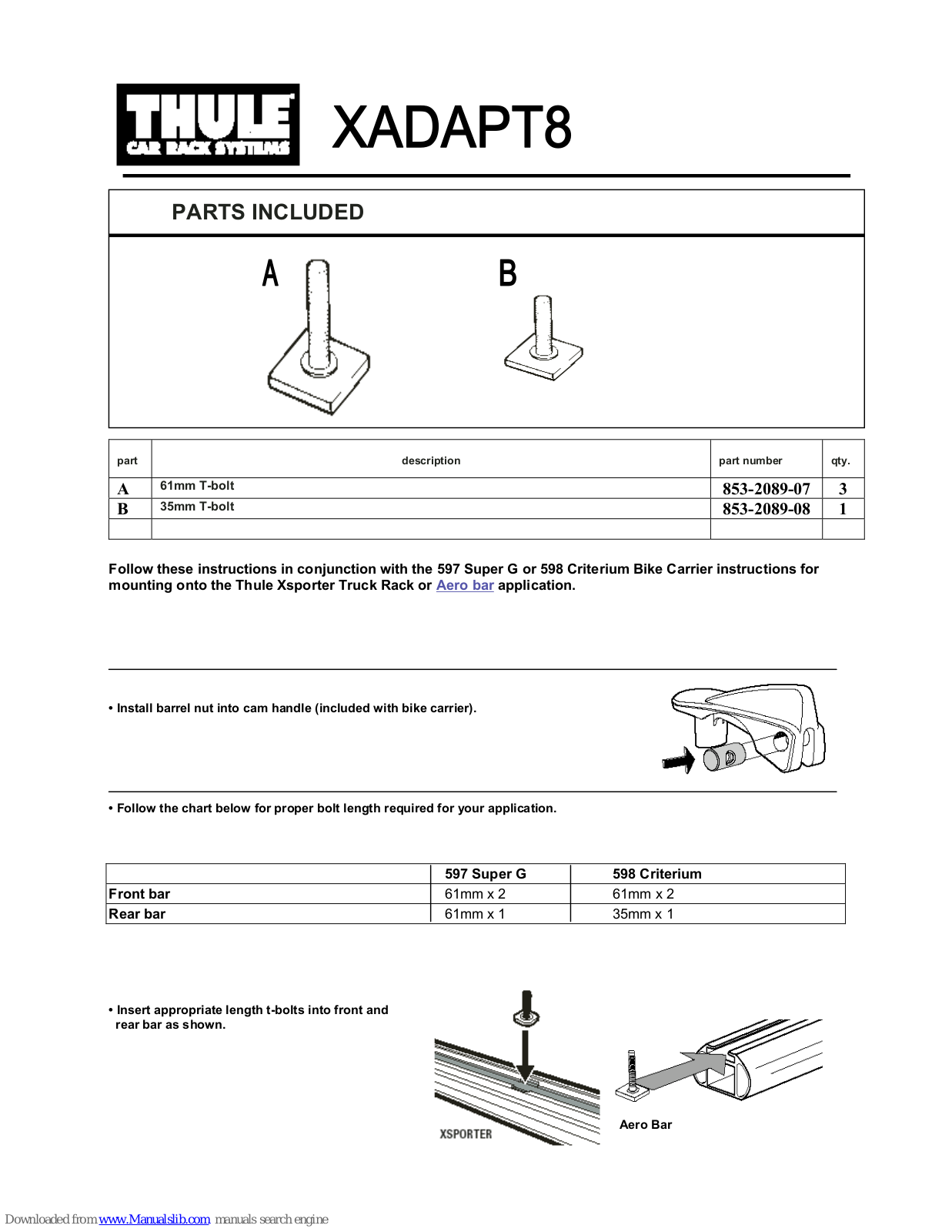

PARTS INCLUDED

part description

61mm T-bolt

35mm T-bolt

Follow these instruct mounting onto the Thule Xsporter Truck Rack or Aero bar application.

• Install barrel nut into cam handle (included with bike carrier).

• Follow the chart below for proper bolt length required for your application.

Front bar 61mm x 2 61mm x 2 Rear bar 61mm x 1 35mm x 1

ions in conjunction with the 597 Super G or 598 Criterium Bike Carrier instructions for

597 Super G 598 Criterium

part number qty.

853-2089-07 3 853-2089-08 1

• Insert appropriate length t-bolts into front and rear bar as shown.

Aero Bar

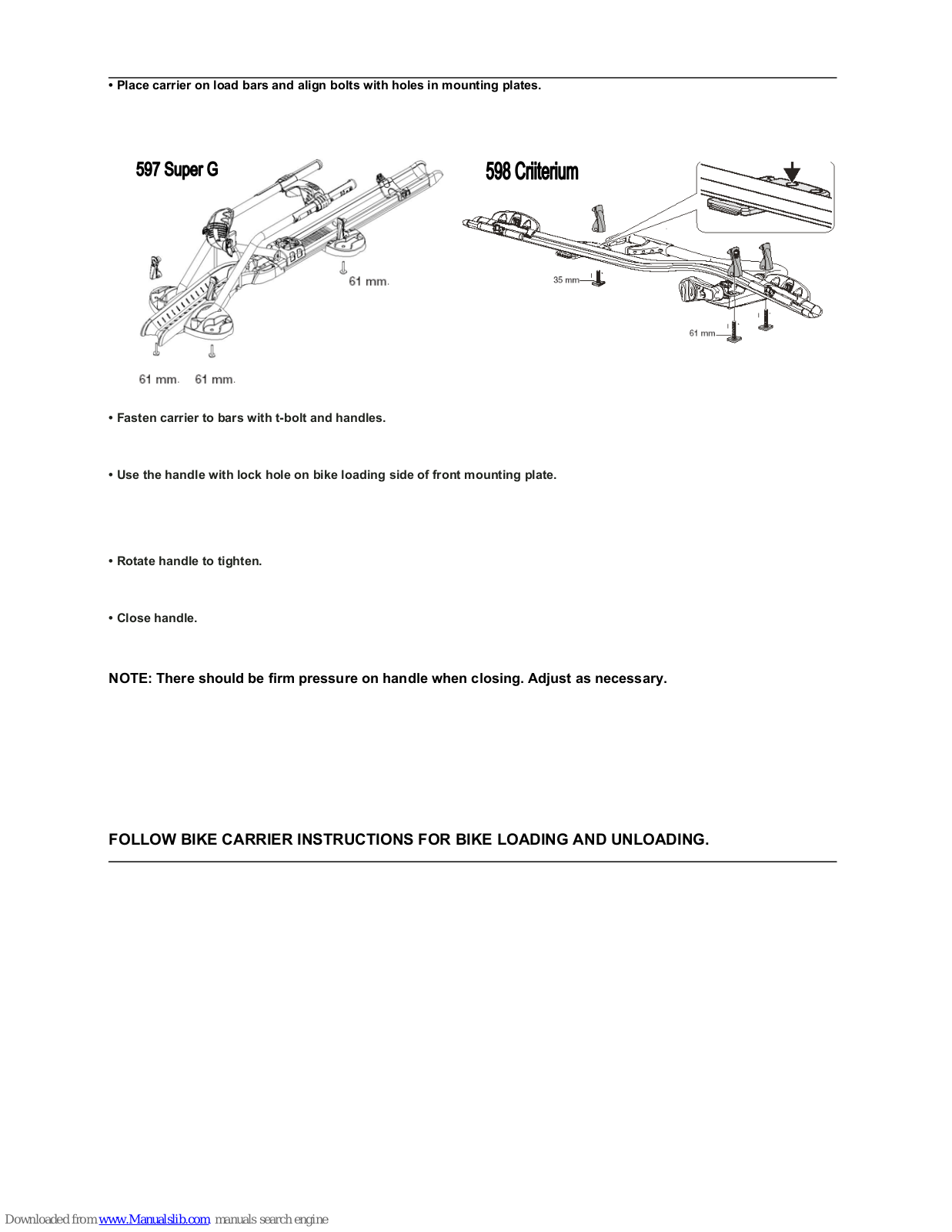

• Place carrier on load bars and align bolts with holes in mounting plates.

• Fasten carrier to bars with t-bolt and handles.

• Use the handle with lock hole on bike loading side of front mounting plate.

• Rotate handle to tighten.

• Close handle.

NOTE: There should be firm pressure on handle when closing. Adjust as necessary.

FOLLOW BIKE CARRIER INSTRUCTIONS FOR BIKE LOADING AND UNLOADING.
