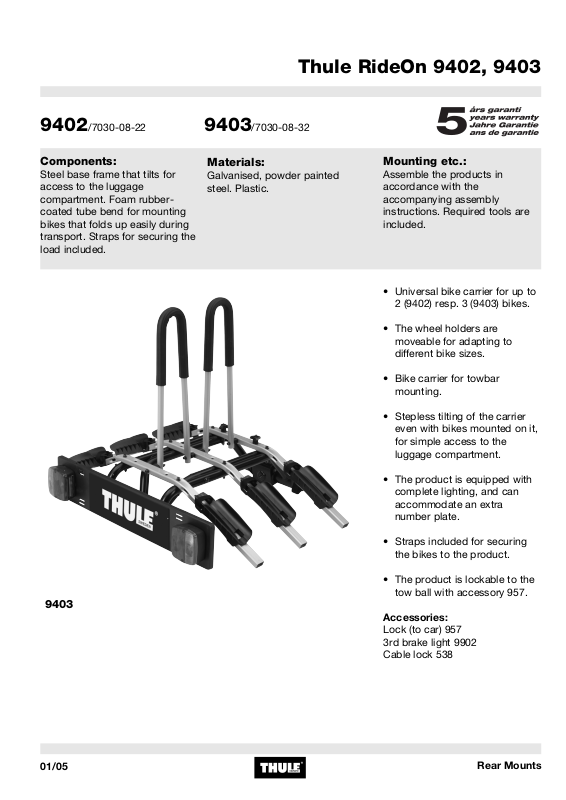

Page 1
Thule RideOn 9402, 9403
9402/7030-08-22 9403/7030-08-32
Components:
Steel base frame that tilts for
access to the luggage
compartment. Foam rubbercoated tube bend for mounting
bikes that folds up easily during
transport. Straps for securing the
load included.
Materials:
Galvanised, powder painted
steel. Plastic.
Mounting etc.:
Assemble the products in
accordance with the
accompanying assembly
instructions. Required tools are
included.
• Universal bike carrier for up to
2 (9402) resp. 3 (9403) bikes.
• The wheel holders are
moveable for adapting to
different bike sizes.
• Bike carrier for towbar
mounting.
• Stepless tilting of the carrier
even with bikes mounted on it,
for simple access to the
luggage compartment.
9403
• The product is equipped with
complete lighting, and can
accommodate an extra
number plate.
• Straps included for securing
the bikes to the product.
• The product is lockable to the
tow ball with accessory 957.
Accessories:
Lock (to car) 957
3rd brake light 9902
Cable lock 538
01/05
Rear Mounts
Page 2
Thule RideOn 9402, 9403
34140
34139
50273
50211
50227
50616
5mm
M6x55
30113
13545
50218
50584
30147
M6/ø12mm
30147
30146
50260
50618
M6/ø12mm
M6
34140
M6x75
30146
M6
30147
50228
50648
15mm/ø18mm
30147
M6/ø12mm
M6/ø12mm
30146
30147
9402
M6
M6/ø12mm
50644
10mm/ø15mm
7030-08-22
30147
M6/ø12mm
50170
50616
M6x55
50212
50044
30149
34168
50650
M8/ø16mm
M8
5mm/ø22mm
504
01/05
Rear Mounts
Page 3
Thule RideOn 9402, 9403
34140
34139
50273
50211
30147 M6/ø12mm
50227
5mm
50616 M6x55
50218
30113
13545
50260
34140
50618
M6x75
30146 M6
30147 M6/ø12mm
30146 M6
30147
M6/ø12mm
50228
50648
15mm/ø18mm
34177
M6x110
50584
30147
M6/ø12mm
M6
30146
30147 M6/ø12mm
50644 10mm/ø15mm
30147
M6/ø12mm
50170
50212
50616
M6x55
9403 7030-08-32
Individual packs
Product EAN Kg L/W/H in cm
9402 7313020021782 9 109/26/26
9403 7313020021799 12 109/26/26
50044
50650
5mm/ø22mm
30149
M8/ø16mm
34168 M8
504
Pallet
Product Qty/kg L/W/H in cm
9402 12/120 120/80/120
9403 12/156 120/80/120
01/05
Rear Mounts
