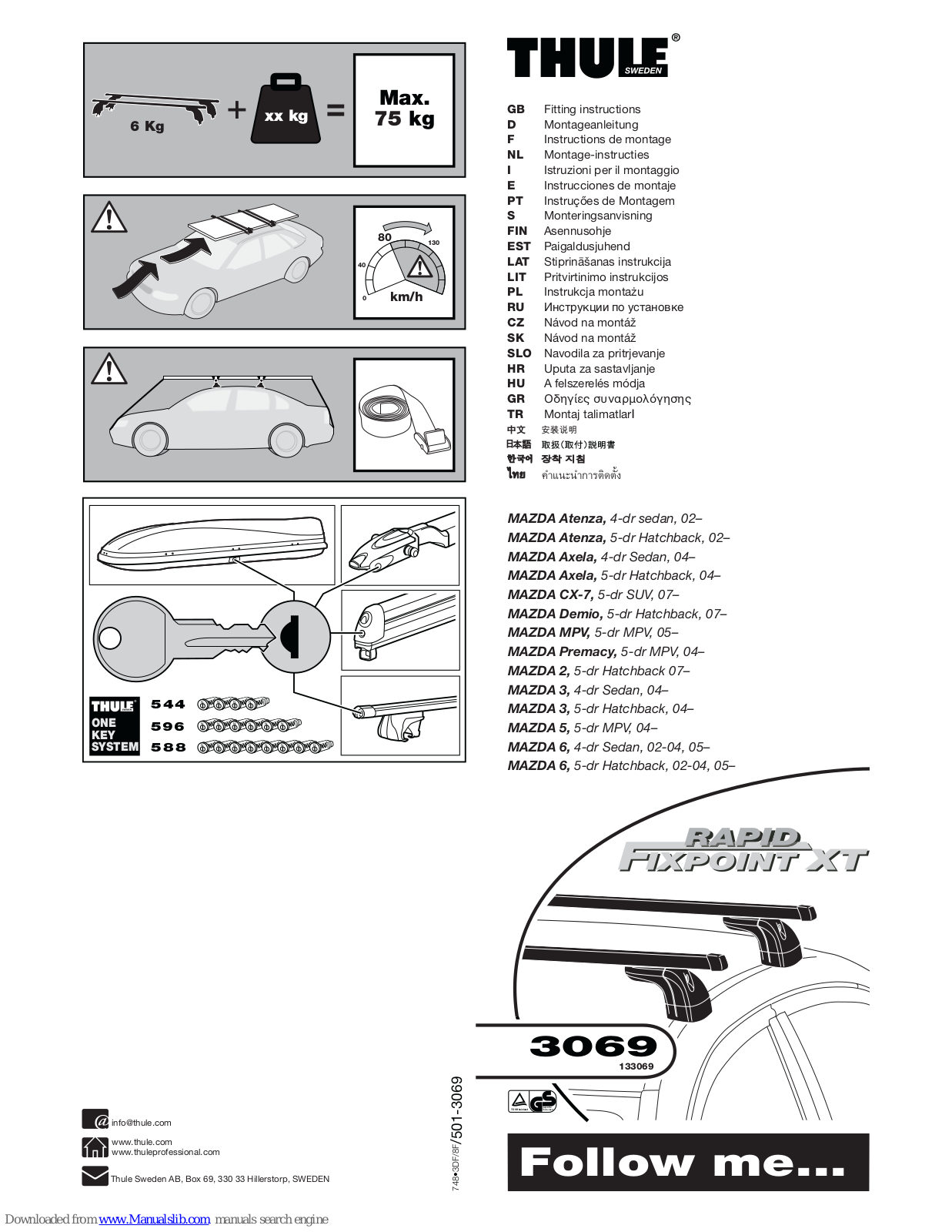

Thule 3069, Rapid Fixpoint XT 3069 Fitting Instructions Manual
6 Kg
+
xx kg
=
Max.
75 kg
40
0
130
km/h
80
MAZDA Atenza, 4-dr sedan, 02–
MAZDA Atenza, 5-dr Hatchback, 02–
MAZDA Axela, 4-dr Sedan, 04–
MAZDA Axela, 5-dr Hatchback, 04–
MAZDA CX-7, 5-dr SUV, 07–
MAZDA Demio, 5-dr Hatchback, 07–
MAZDA MPV, 5-dr MPV, 05–
MAZDA Premacy, 5-dr MPV, 04–
MAZDA 2, 5-dr Hatchback 07–
MAZDA 3, 4-dr Sedan, 04–
MAZDA 3, 5-dr Hatchback, 04–
MAZDA 5, 5-dr MPV, 04–
MAZDA 6, 4-dr Sedan, 02-04, 05–
MAZDA 6, 5-dr Hatchback, 02-04, 05–

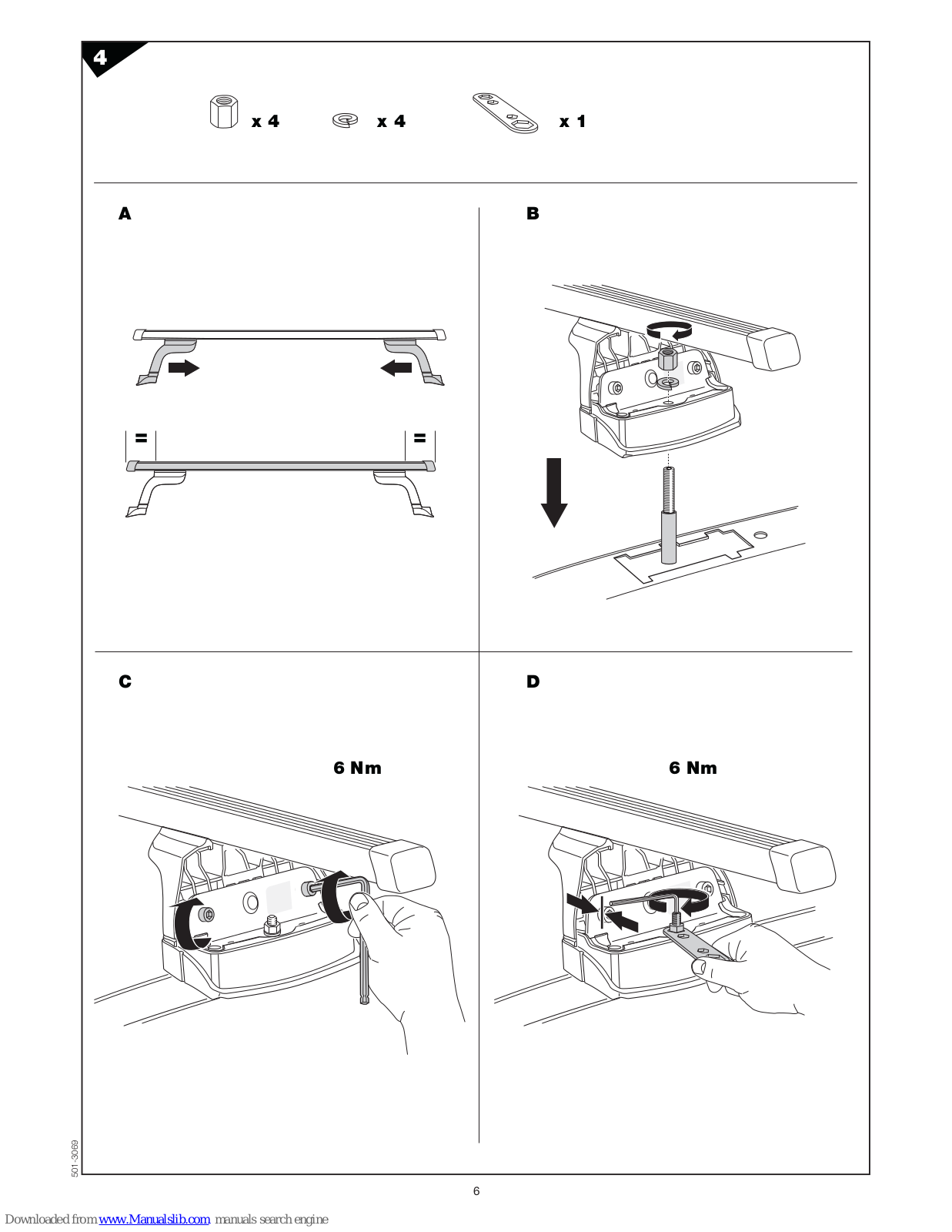

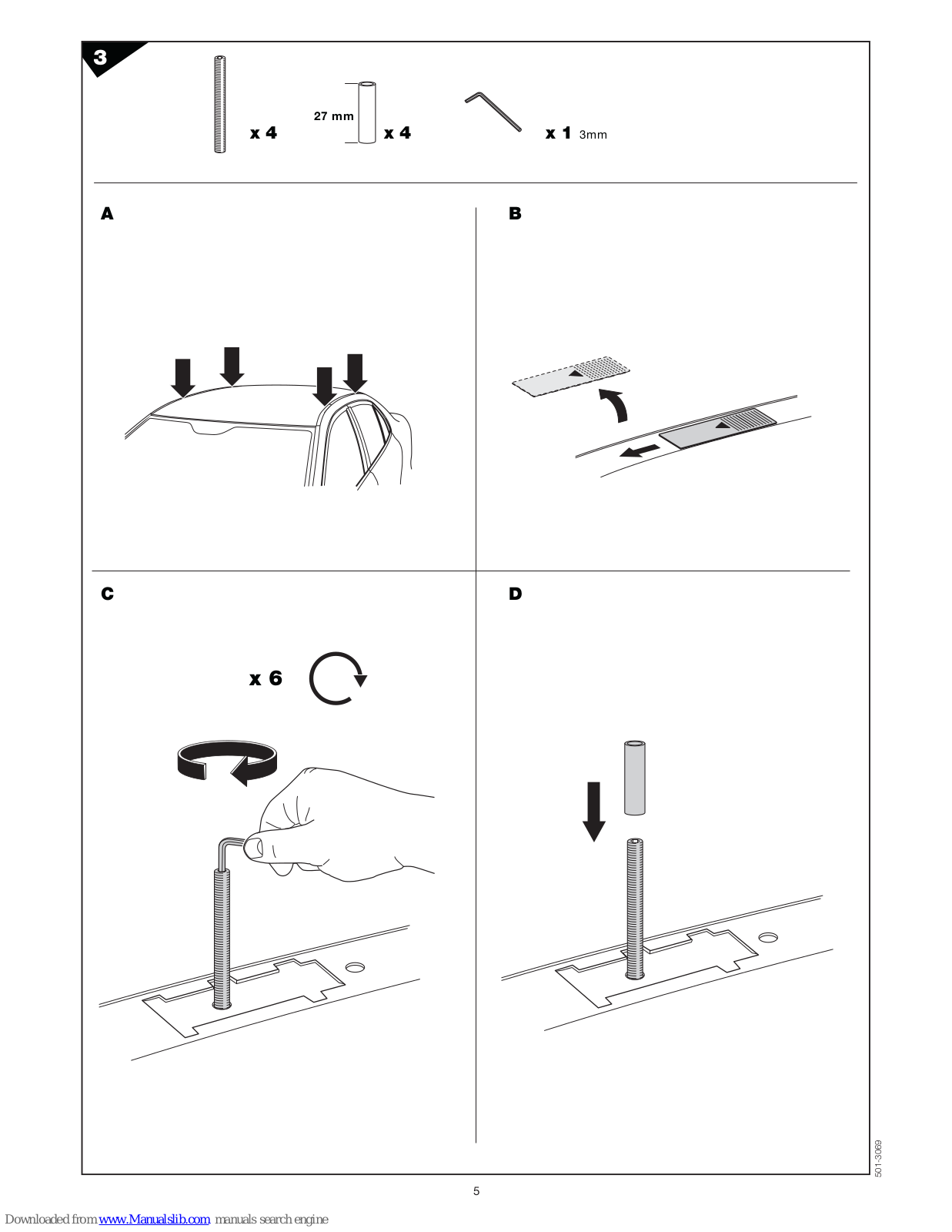

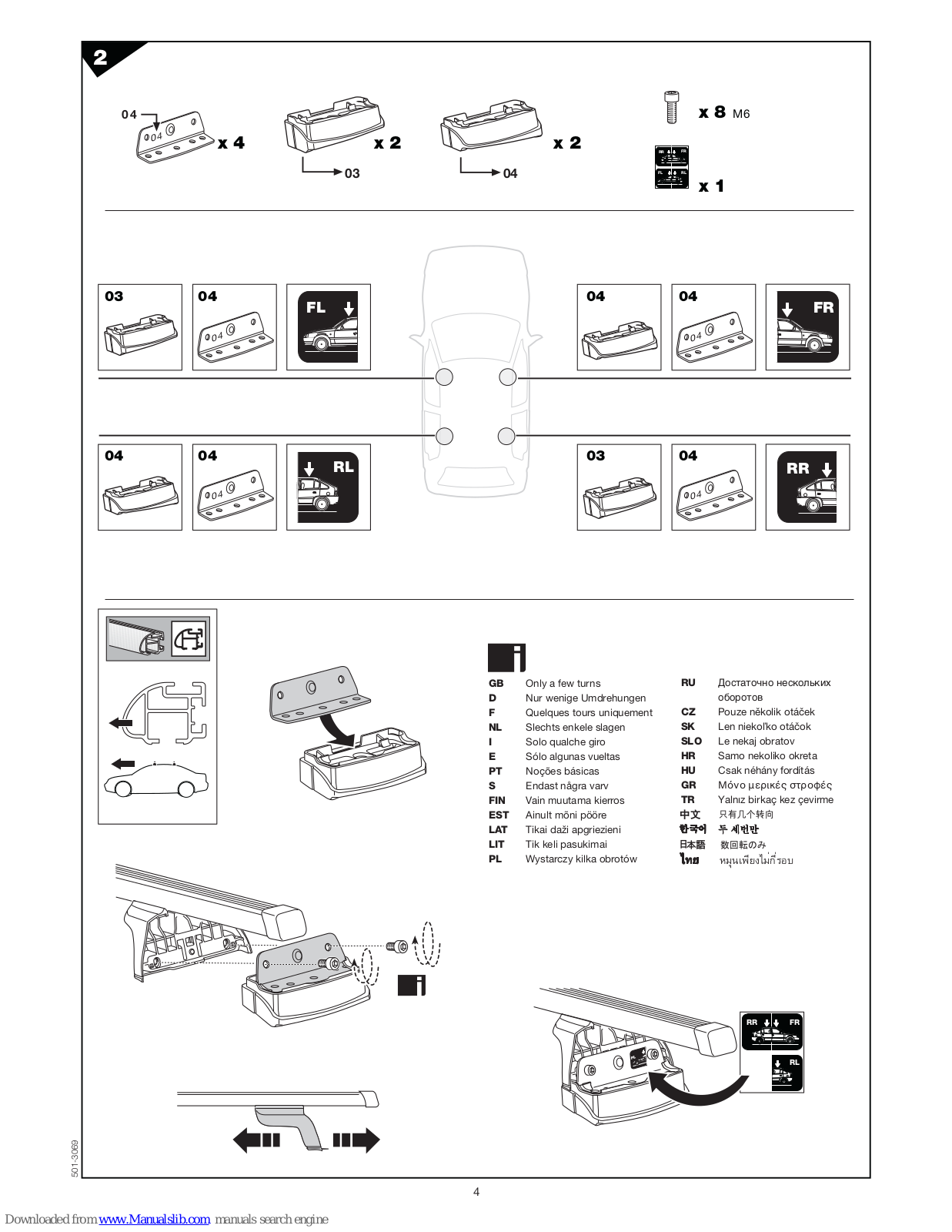

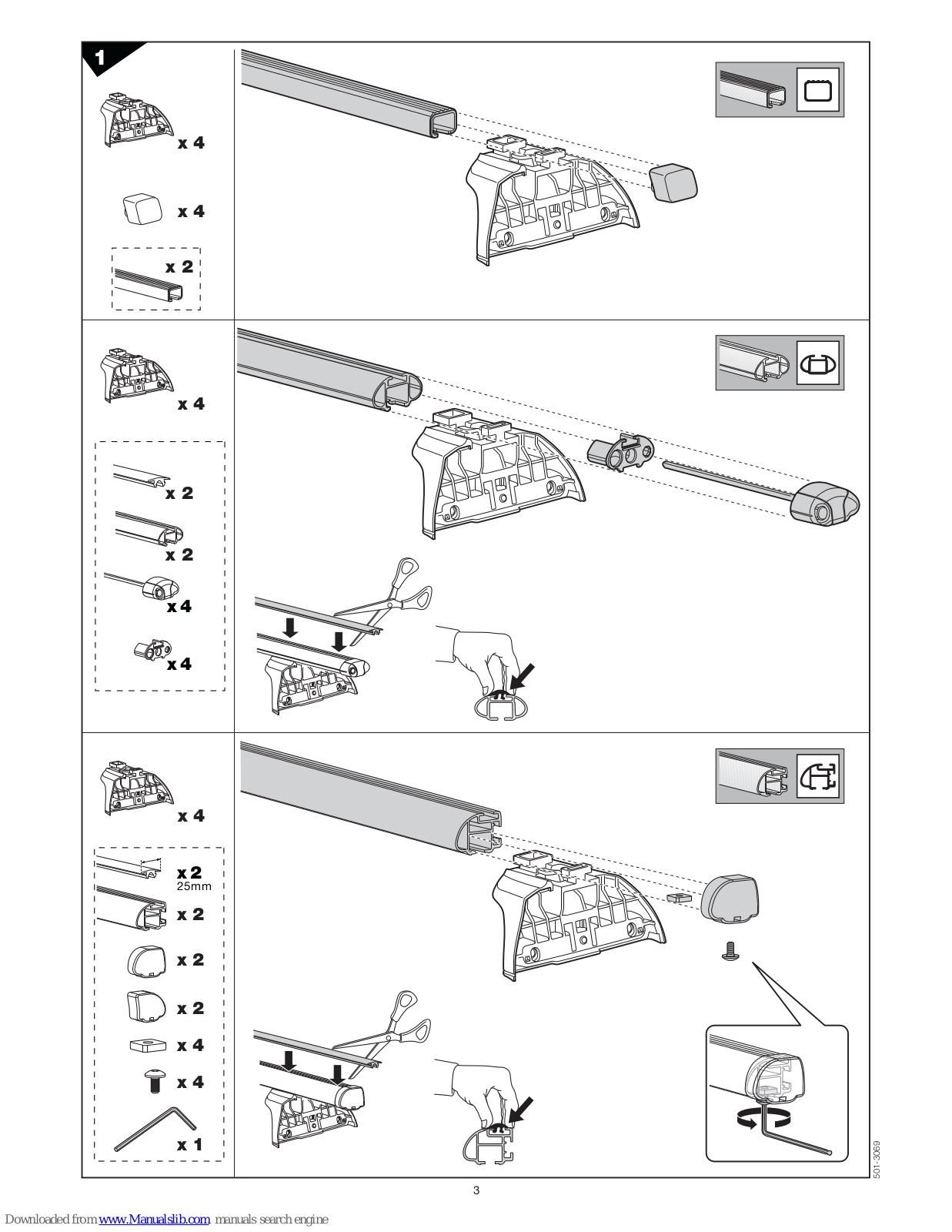

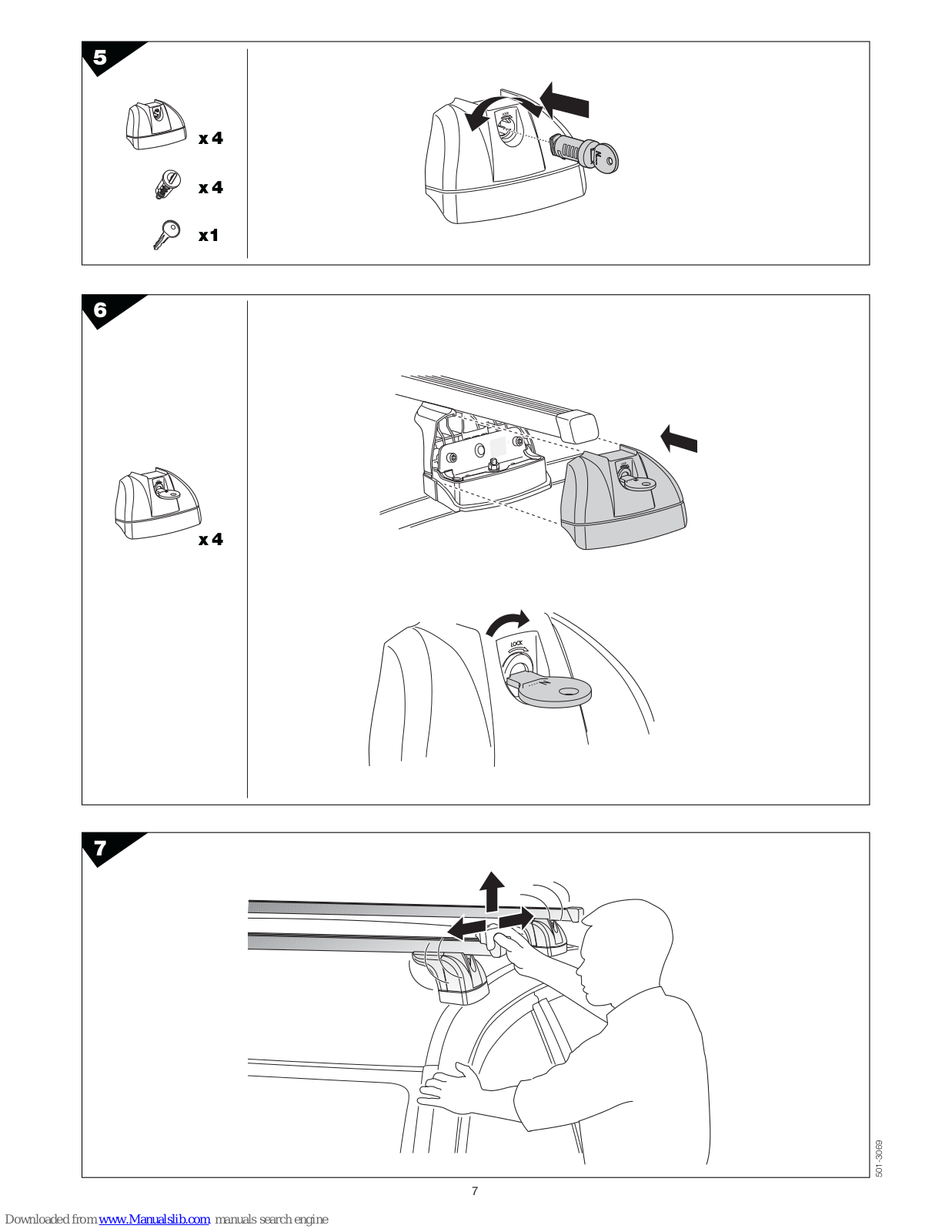

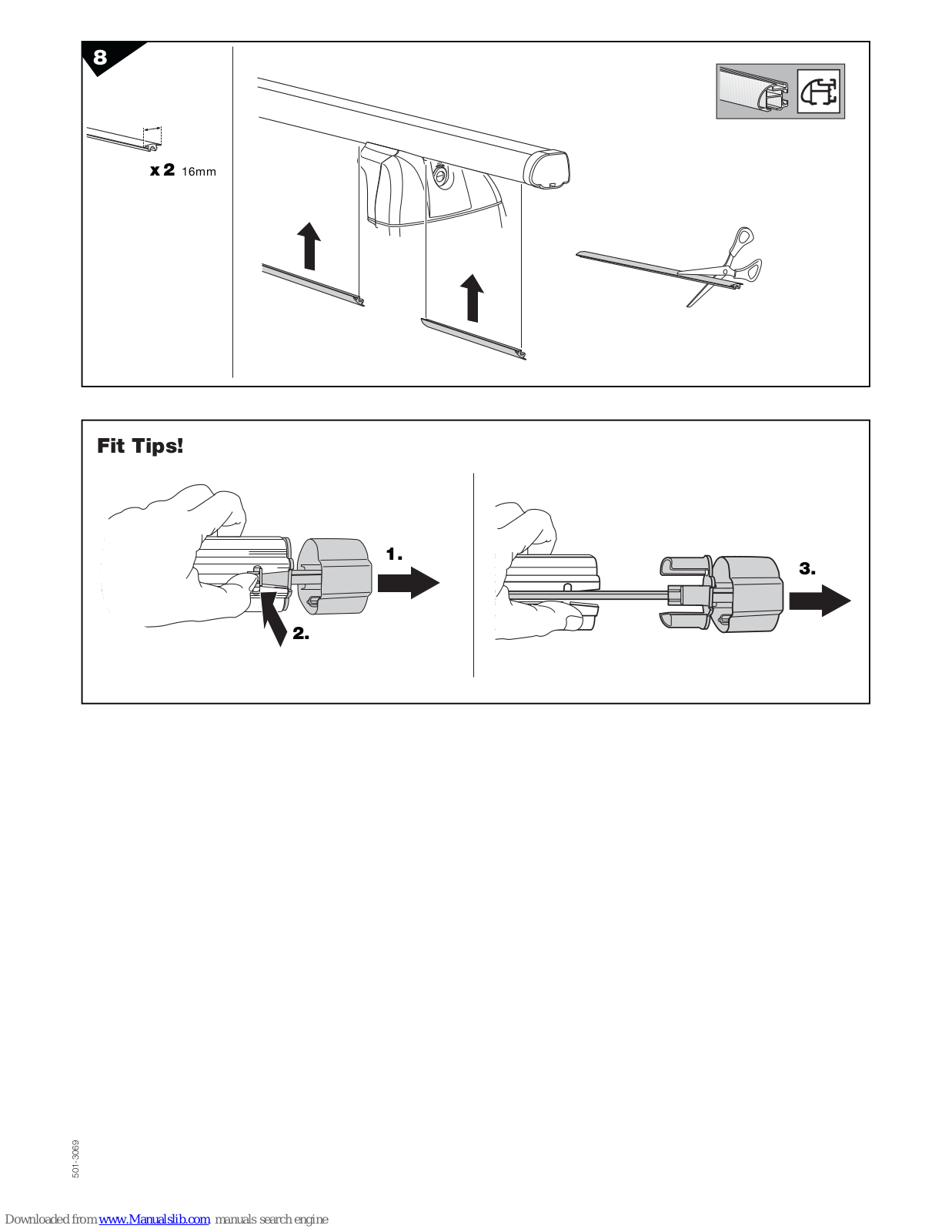

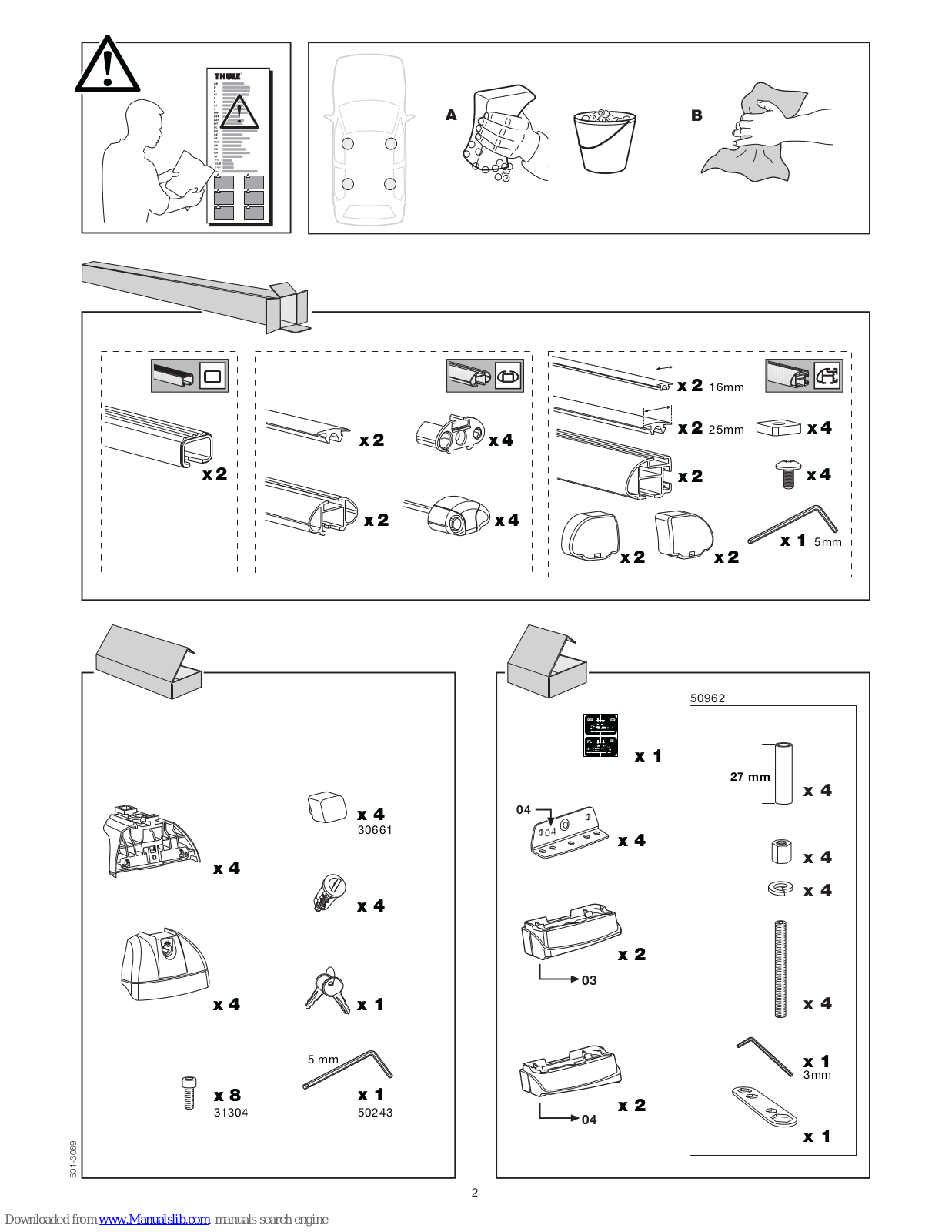

GB Fitting instructions
D Montageanleitung
F Instructions de montage
NL Montage-instructies
I
Istruzioni per il montaggio
E Instrucciones de montaje
PT
Instruçőes de Montagem
S Monteringsanvisning
FIN Asennusohje
EST
Paigaldusjuhend
LAT
Stiprināšanas instrukcija
LIT
Pritvirtinimo instrukcijos
PL Instrukcja montażu
RU
Инструкции по установке
CZ Návod na montáž
SK
Návod na montáž
SLO
Navodila za pritrjevanje
HR
Uputa za sastavljanje
HU
A felszerelés módja
GR
Οδηγες συναρμολγησης
TR
Montaj talimatlar
¤Óá¹Ð¹Ó¡ÒõԴµÑé§
