Page 1
Thule Rapid System Kit xxxx
Instructions
Thule Rapid System Kit XXXX
Instructions
Thule Rapid System 754
Instructions
Thule Rapid System 754
Instructions
.............
i
ISO 11154-E
Instructions
xx kg
xx Ibs
7 kg
15,4 Ibs
km/h
Mph
0
80 km/h
50 Mph
40 km/h
25 Mph
130 km/h
80 Mph
Thule Rapid System Kit XXXX
Instructions
Thule Rapid System 754
Instructions
Thule Rapid System Kit xxxx
Instructions
Security
Thule Rapid System 754
Instructions
PEUGEOT 208, 3-dr Hatchback, 12–
PEUGEOT 208, 5-dr Hatchback, 12–
Max.
132 Ibs
Max.
60 kg

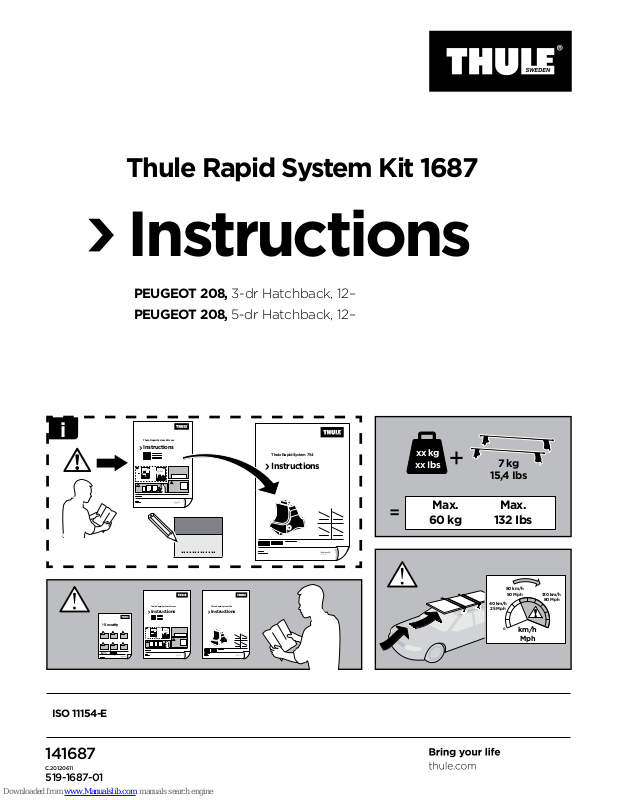

Thule Rapid System Kit 1687
141687
C.20120611
519-1687-01
Page 2
2
1
Thule Rapid System 754
Instructions
519-1687-01
x1
x1
X (scale) X (mm) X (inch)
PEUGEOT 208, 3-dr Hatchback, 12– 34 991 39
PEUGEOT 208, 5-dr Hatchback, 12– 34 991 39
Y (scale) Y (mm) Y (inch)
PEUGEOT 208, 3-dr Hatchback, 12– 32 971 38
1
/
4
PEUGEOT 208, 5-dr Hatchback, 12– 32 971 38 1/
4
816
x2
815
x2
1074
x2
153
x1
151
x1
124
x2
2
XXX
XXX
XXX
Thule Rapid System Kit XXXX
Instructions
Thule Rapid System 754
Instructions
Thule Rapid System Kit xxxx
Instructions
X/Y
X
Y
Page 3
3519-1687-01
2
815
815
151
151
816
816
153
153
1074
816
124
124
1074
815
124
124
XXX
XXX
XXX
XXX
XXX
XXX
XXX
XXX
PEUGEOT 208, 3-dr Hatchback, 12–
PEUGEOT 208, 5-dr Hatchback, 12–
3
xxx
Thule Rapid System 754
Instructions
Page 4
3
ww
NA
Thule Sweden AB, Box 69, 330 33 Hillerstorp, SWEDEN
Thule Inc., 42 Silvermine Road, Seymour, Connecticut 06483, USA
www.thule.com
info@thule.com
Phone: 800-238-2388
519-1687-01
W (mm) Z (mm) W (inch) Z (inch)
PEUGEOT 208, 3-dr Hatchback, 12– 265 670 10
3
/
8
26 3/
8
PEUGEOT 208, 5-dr Hatchback, 12– 265 710 10 3/
8
28
5
W/Z
W Z
Thule Rapid System 754
Instructions
PEUGEOT 208, 3-dr Hatchback, 12–
PEUGEOT 208, 5-dr Hatchback, 12–
