THULE 1425 User manual

1425Kit

ACURA CSX, 4-dr Sedan, *06-11 ACURA CSX, 4-dr Sedan, *12– HONDA Civic, 4-dr Sedan, 05– / *06-11 HONDA Civic, 4-dr Sedan, *12–

*North America

C.20110707. 503-1425-04

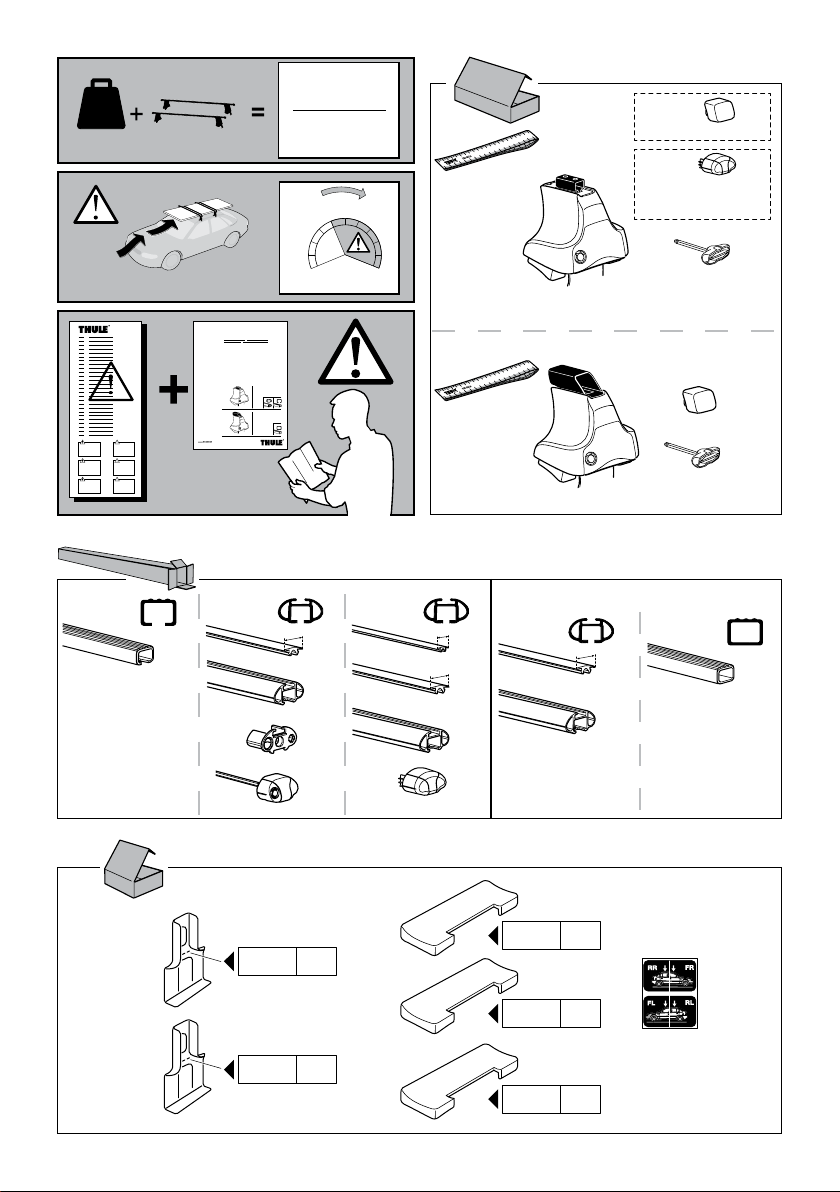

754 Rapid System 480R Rapid Traverse (North America)

480 Traverse (North America)

instructions

ISO 11154-E

xx kg

xx Ibs

7 kg

15,4 Ibs

Kit XXXX

40 km/h 25 Mph

Max.

50 kg

Max.

110 Ibs

80 km/h 50 Mph

0

km/h

Mph

130 km/h

80 Mph

x1

754 Rapid System 480R Rapid Traverse (North America)

x4

754 Rapid System

x4

480R Rapid Traverse

(North America)

x4 x4

x2

instructions

x2

23 mm

x2

x4

679

x2

x1

480 Traverse (North America)

(North America)

x1

17 mm

x2

23 mm

x2

x4

191

x1

x2

23 mm

x2

x4

x2

192

833

x2

225

2 503-1425-04

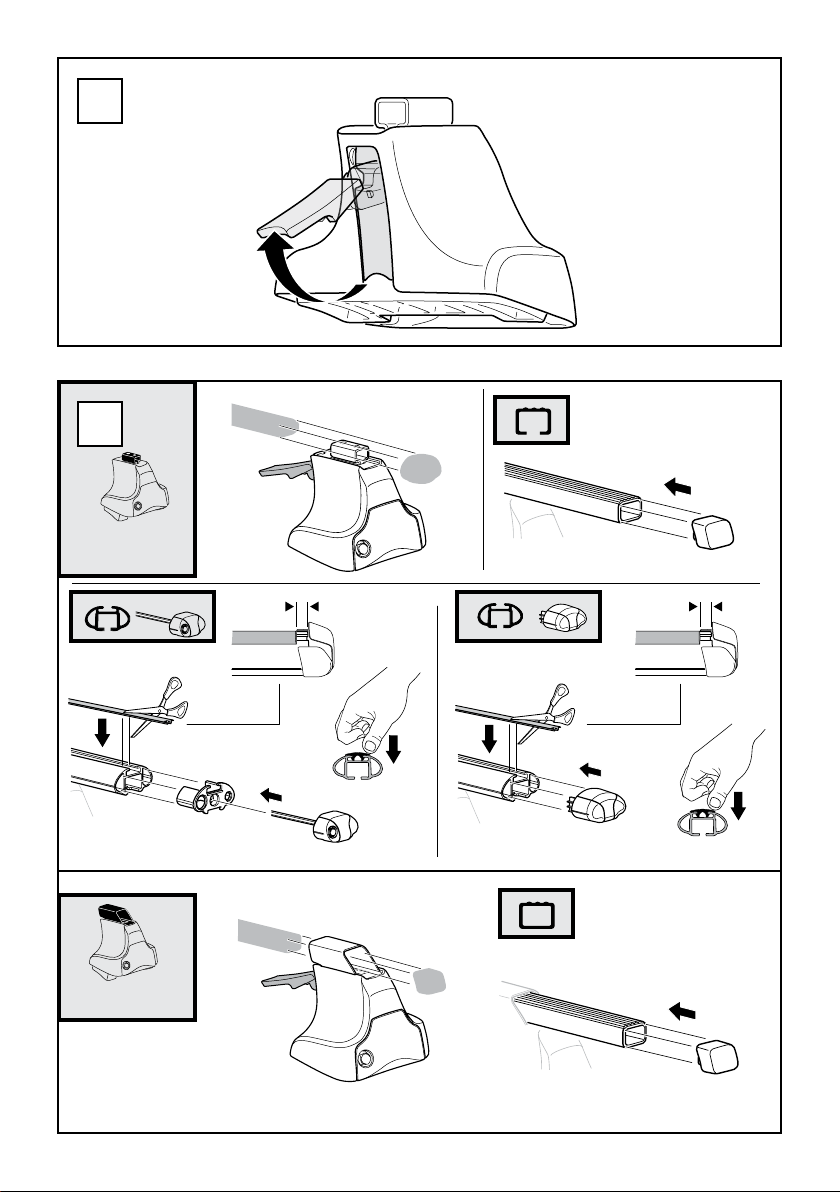

x1

x2

x1

1

2

754 480R

Rapid System

Rapid Traverse (North America)

x4

10 mm10 mm

x4

480

Traverse (North America)

x4

503-1425-04 3

3

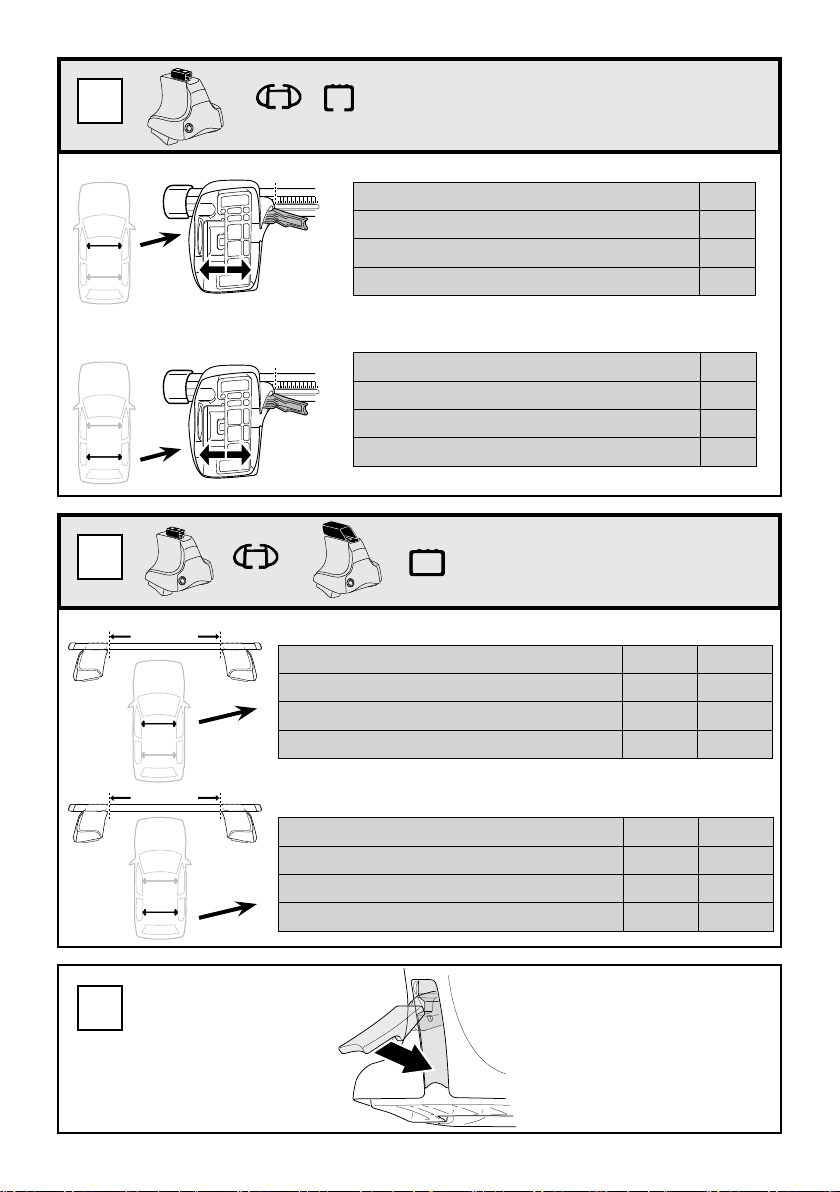

754 Rapid System

X

ACURA CSX, 4-dr Sedan, *06-11 43,5

ACURA CSX, 4-dr Sedan, *12– 43,5

HONDA Civic, 4-dr Sedan, 05– / *06-11 43,5

HONDA Civic, 4-dr Sedan, *12– 43,5

3

X inch/mm

Y inch/mm

Y

480R Rapid Traverse

Y

ACURA CSX, 4-dr Sedan, *06-11 37

ACURA CSX, 4-dr Sedan, *12– 38

HONDA Civic, 4-dr Sedan, 05– / *06-11 37

HONDA Civic, 4-dr Sedan, *12– 38

(North America)

480 Traverse

X inch X mm

ACURA CSX, 4-dr Sedan, *06-11 42 3/4 ” 1086 mm

3

ACURA CSX, 4-dr Sedan, *12– 42

HONDA Civic, 4-dr Sedan, 05– / *06-11 42

HONDA Civic, 4-dr Sedan, *12– 42

ACURA CSX, 4-dr Sedan, *06-11 40 1/4 ” 1021 mm

ACURA CSX, 4-dr Sedan, *12– 40

HONDA Civic, 4-dr Sedan, 05– / *06-11 40

HONDA Civic, 4-dr Sedan, *12– 40

/4 ” 1086 mm

3

/4 ” 1086 mm

3

/4 ” 1086 mm

Y inch Y mm

1

/2 ” 1031 mm

1

/4 ” 1021 mm

1

/2 ” 1031 mm

4

4 503-1425-04

5

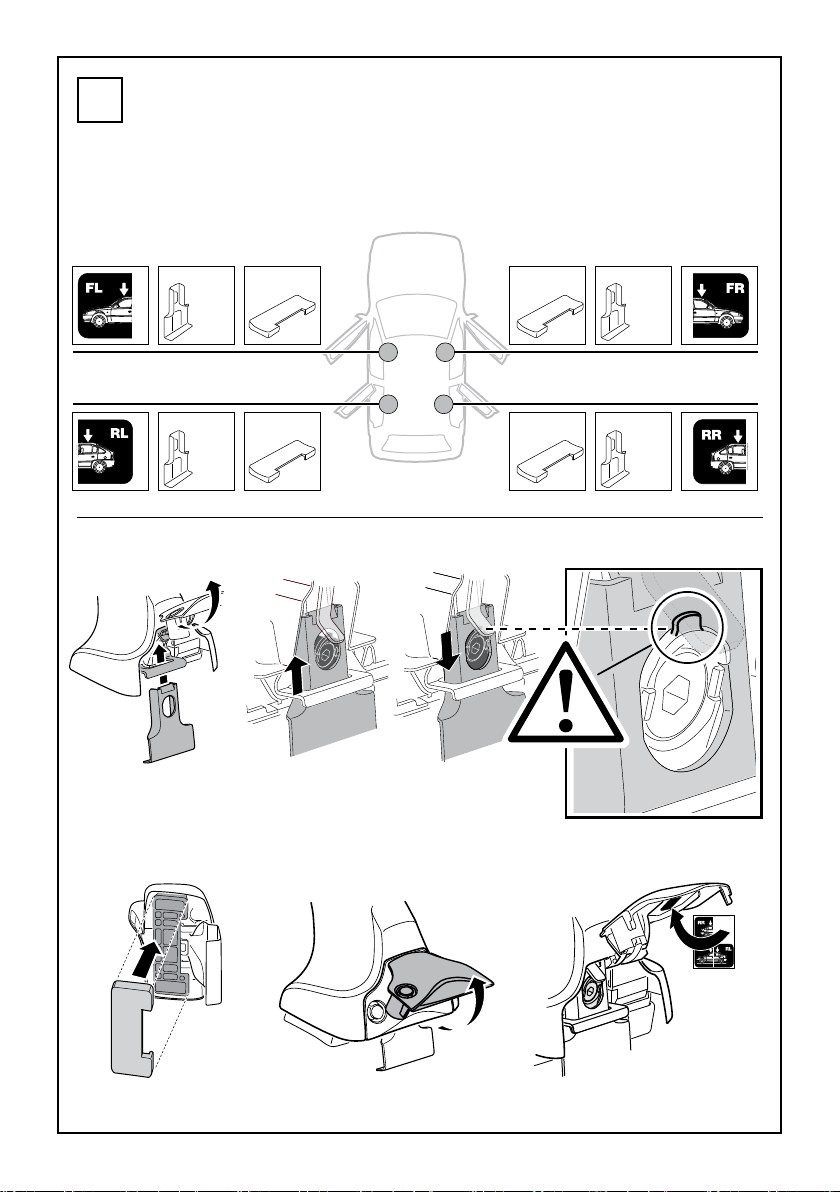

ACURA CSX, 4-dr Sedan, *06-11 ACURA CSX, 4-dr Sedan, *12– HONDA Civic, 4-dr Sedan, 05– / *06-11 HONDA Civic, 4-dr Sedan, *12–

191

225

A B C

192

225

679679

833833

5503-1425-04

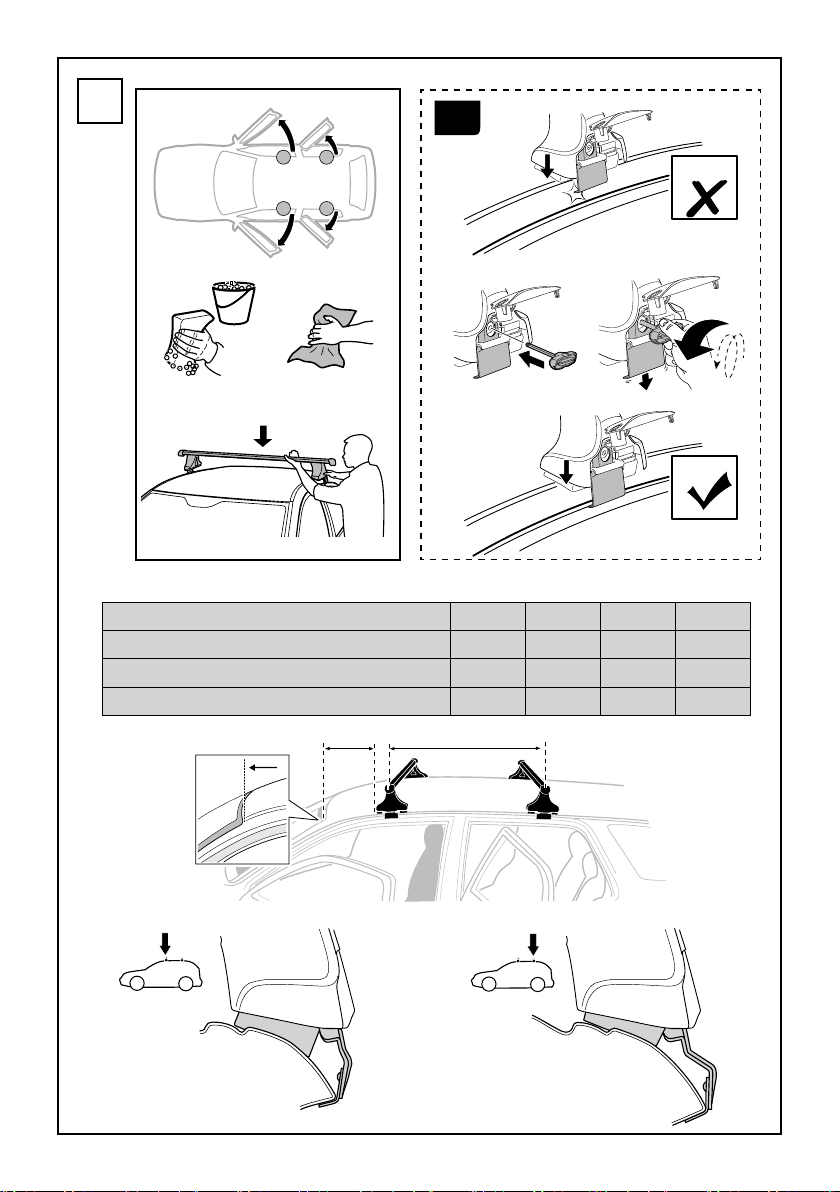

6

i

Not ok

A B

X mm Y mm X inch Y inch

ACURA CSX, 4-dr Sedan, *06-11 270 mm 700 mm 10 5/8 ” 27 1/2 ”

5

ACURA CSX, 4-dr Sedan, *12– 270 mm 700 mm 10

HONDA Civic, 4-dr Sedan, 05– / *06-11 270 mm 700 mm 10

HONDA Civic, 4-dr Sedan, *12– 270 mm 700 mm 10

/8 ” 27 1/2 ”

5

/8 ” 27 1/2 ”

5

/8 ” 27 1/2 ”

ok

X

6 503-1425-04

Y

7

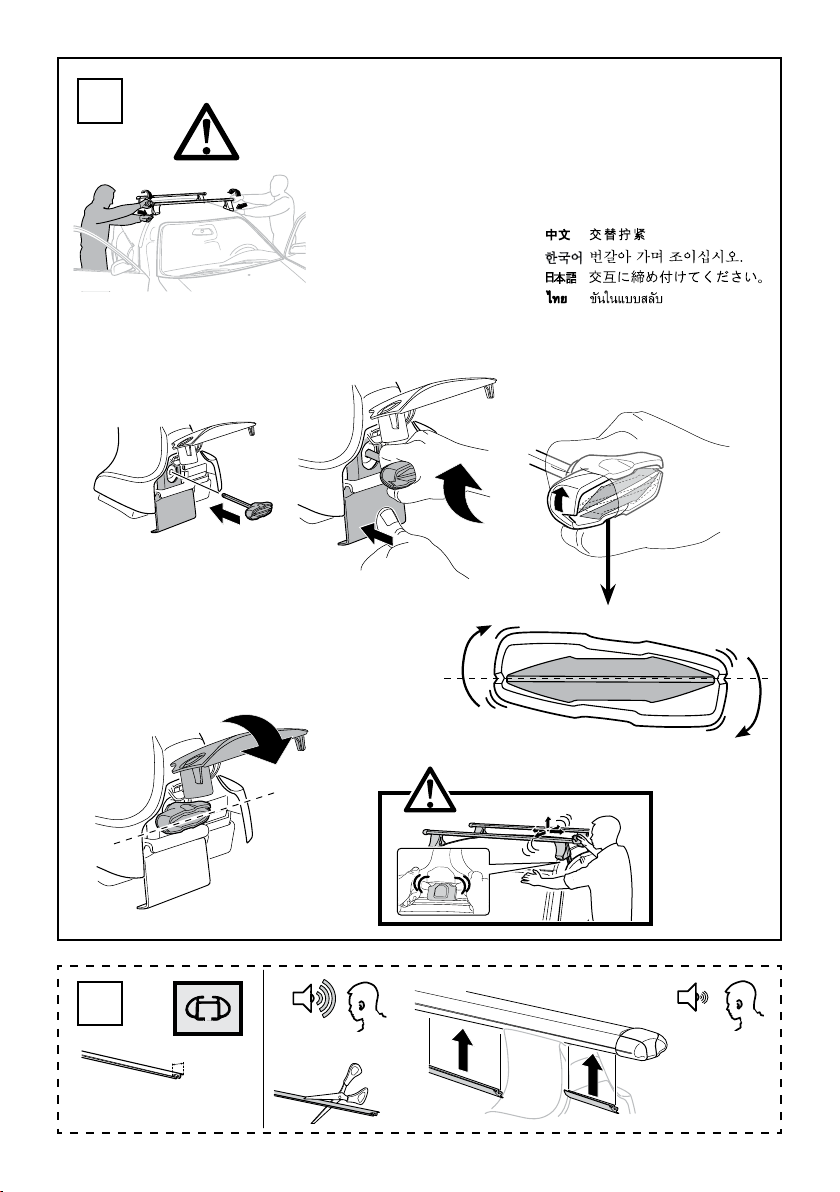

GB/US Tighten alternately D Die Schrauben abwechselnd

anziehen

F Serrer alternativement chaque côté NL Afwisselend aan de linker- en de

rechterkant aandraaien

I Alternare il serraggio delle viti E Apretar alternativamente PT Aperte alternadamente S Dra åt växelvis FIN Kierrä vuorotellen EST Pinguldage vaheldumisi LAT  Pievelcietpamīšus LIT Užsukinėkitepakaitomis PL Śrubydokręcajnaprzemiennie RU Затягивайтепопеременно

CZ Pokrętłabagażnikadokręcaj

dokręcajnaprzemiennie.

SK Doťahujtestriedavo SLO Privijajteizmenično. HR Naizmjeničnozategnite HU Egymástól függetlenül

szorítandó

GR Σφíγγετεεναλáξ TR Dönüşümlüsıkın

8

x1

17 mm

≈ 3 Nm

7503-1425-04

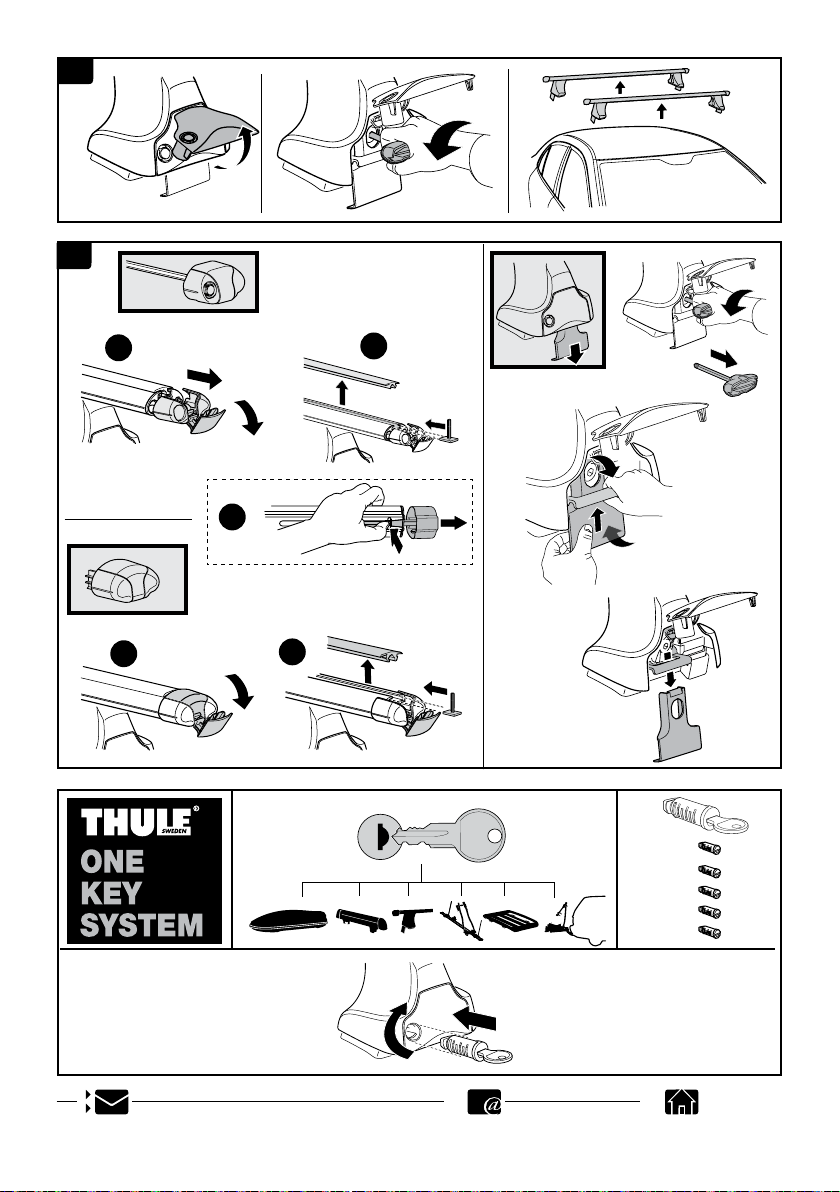

i

A

B

i

1

A

B

2

A

B

3

1

2

A

B

A

B

544 (x4)

596 (x6) 588 (x8)

NA

510 (x10)

EUR

452 (x12)

ASIA

ww NA

Thule Sweden AB, Box 69, 330 33 Hillerstorp, SWEDEN Thule Inc., 42 Silvermine Road, Seymour, Connecticut 06483, USA

[email protected] [email protected]

www.thule.com

503-1425-04
