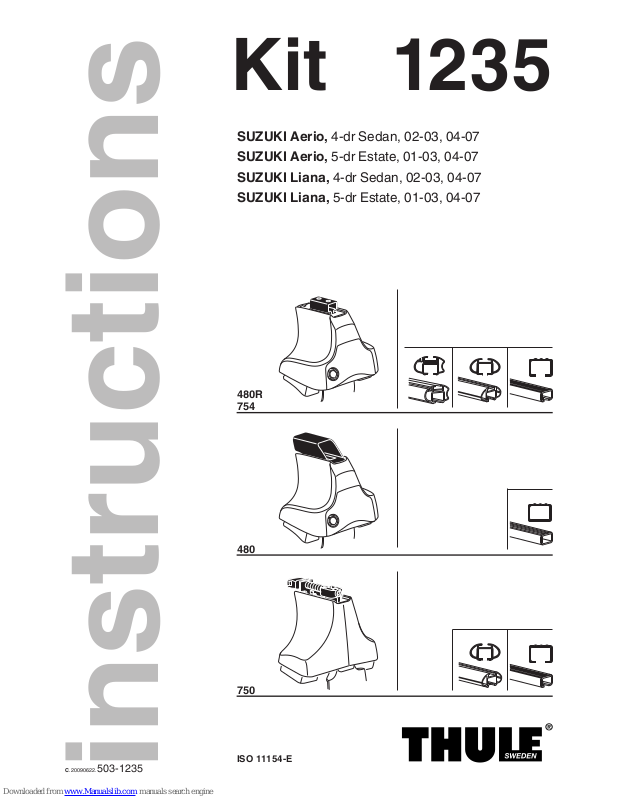

Page 1
C.20090622. 503-1235
instructions
1235Kit
SUZUKI Aerio, 4-dr Sedan, 02-03, 04-07
SUZUKI Aerio, 5-dr Estate, 01-03, 04-07
SUZUKI Liana, 4-dr Sedan, 02-03, 04-07
SUZUKI Liana, 5-dr Estate, 01-03, 04-07
480
480R
754
750
ISO 11154-E
Page 2
2 503-1235
Kit
7 kg
15,4 Ibs
xx kg
xx Ibs
Max.
110 Ibs
Max.
50kg
km/h
Mph
0
80 km/h
50 Mph
40 km/h
25 Mph
130 km/h
80 Mph
instructions
Kit XXXX
410
x 2
368
x 2
07
x 2
53
x 2
x 1
x4
x1
x4
x4
x1
x4
x4
x4
x4
x1
x4
x4
x2x2
x2
x4
x4
x2
x2
x2
x2
x2
x4
x2
750
480
480R / 754
Page 3
503-1235 3
1
2
A
B
C
750
480
480R / 754
480R / 754 480 750
Page 4
4 503-1235
X
1
1
1
1
2
2
2
2
Y
X
SUZUKI Aerio, 4-dr Sedan, 02-03, 04-07 34,5
SUZUKI Aerio, 5-dr Estate, 01-03, 04-07 32,5
SUZUKI Liana, 4-dr Sedan, 02-03, 04-07 34,5
SUZUKI Liana, 5-dr Estate, 01-03, 04-07 32,5
Y
SUZUKI Aerio, 4-dr Sedan, 02-03, 04-07 30
SUZUKI Aerio, 5-dr Estate, 01-03, 04-07 28,5
SUZUKI Liana, 4-dr Sedan, 02-03, 04-07 30
SUZUKI Liana, 5-dr Estate, 01-03, 04-07 28,5
X inch X mm
SUZUKI Aerio, 4-dr Sedan, 02-03, 04-07 39 1/4 ” 996 mm
SUZUKI Aerio, 5-dr Estate, 01-03, 04-07 38 3/8 ” 976 mm
SUZUKI Liana, 4-dr Sedan, 02-03, 04-07 39 1/4 ” 996 mm
SUZUKI Liana, 5-dr Estate, 01-03, 04-07 38 3/8 ” 976 mm
Y inch Y mm
SUZUKI Aerio, 4-dr Sedan, 02-03, 04-07 37 1/2 ” 951 mm
SUZUKI Aerio, 5-dr Estate, 01-03, 04-07 36 7/8 ” 936 mm
SUZUKI Liana, 4-dr Sedan, 02-03, 04-07 37 1/2 ” 951 mm
SUZUKI Liana, 5-dr Estate, 01-03, 04-07 36 7/8 ” 936 mm
X inch/mm
Y inch/mm
3
X / Y
480R
754 750
480
Page 5
5503-1235
410410
368368
07
53
07
53
SUZUKI Aerio, 4-dr Sedan, 02-03, 04-07
SUZUKI Aerio, 5-dr Estate, 01-03, 04-07
SUZUKI Liana, 4-dr Sedan, 02-03, 04-07
SUZUKI Liana, 5-dr Estate, 01-03, 04-07
4
480R / 754
750
480
Page 6
6 503-1235
5
GB/US Tighten alternately
D Die Schrauben abwechselnd
anziehen
F Serrer alternativement chaque
côté
NL Afwisselend aan de linker- en
de rechterkant aandraaien
I Alternare il serraggio delle viti
E Serrare alternativamente
PT Aperte alternadamente
S Dra åt växelvis
FIN Kierrä vuorotellen
EST Pinguldage vaheldumisi
LAT Pievelciet pamīšus
LIT Užsukinėkite pakaitomis
PL Śruby dokręcaj naprzemiennie
RU Затягивайте попеременно
CZ Pokrętła bagażnika dokręcaj
dokręcaj naprzemiennie.
SK Doťahujte striedavo
SLO Privijajte izmenično.
HR Naizmjenično zategnite
HU Egymástól függetlenül
szorítandó
GR Σφíγγετε εναλáξ
TR Dönüşümlü sıkın
B CA
X mm
SUZUKI Aerio, 4-dr Sedan, 02-03, 04-07 250 mm 700 mm 9 7/8 ”
27 1/2 ”
SUZUKI Aerio, 5-dr Estate, 01-03, 04-07 355 mm 700 mm 14 ”
27 1/2 ”
SUZUKI Liana, 4-dr Sedan, 02-03, 04-07 250 mm 700 mm 9 7/8 ”
27 1/2 ”
SUZUKI Liana, 5-dr Estate, 01-03, 04-07 355 mm 700 mm 14 ”
27 1/2 ”
Y mm X inch Y inch
X
Y

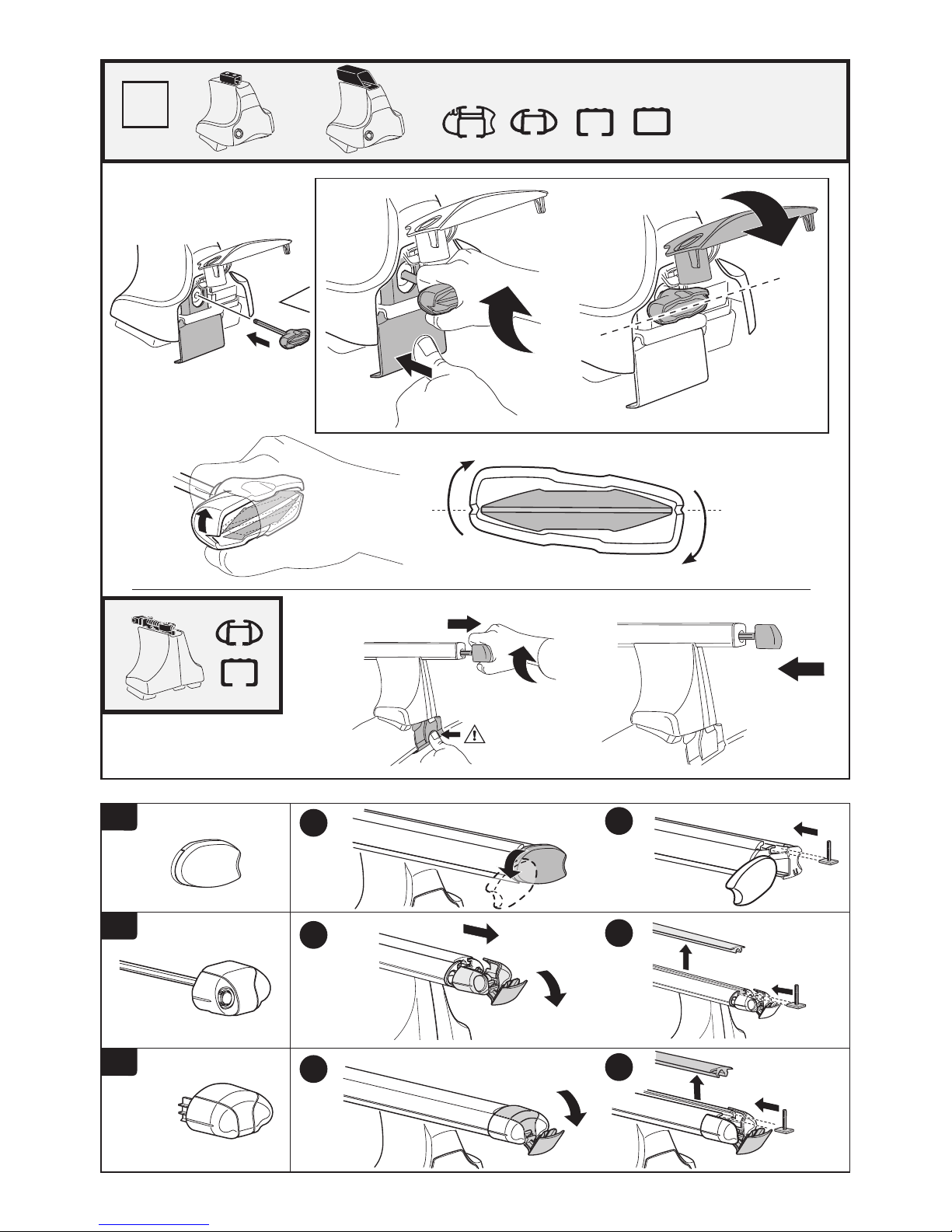

Page 7
7503-1235
A
A
B
B
A
B
1
1
1
2
2
2
i
i
i
6
4 Nm
≈ 3 Nm
*
*
*
3 Nm
480R / 754
750
480

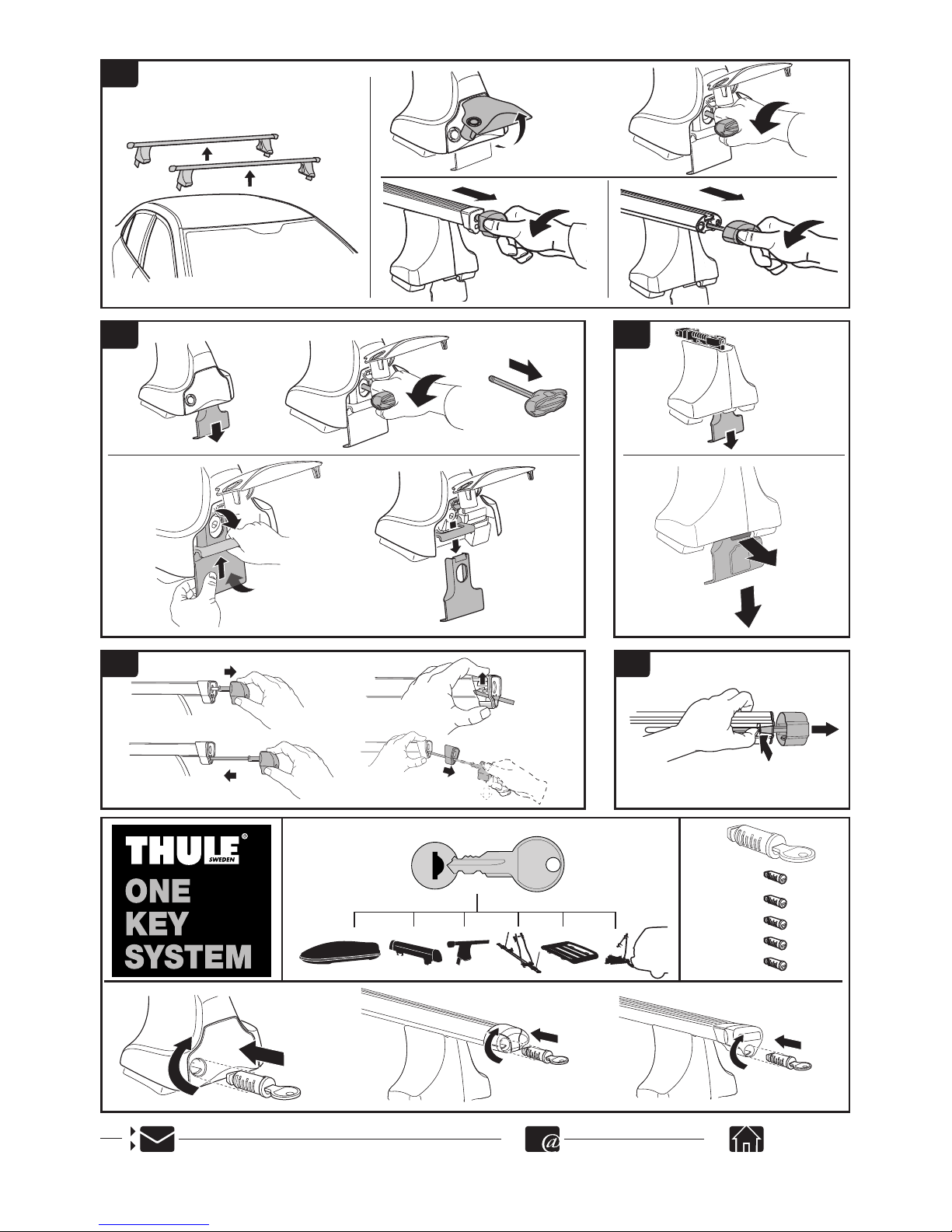

Page 8
503-1235
544 (x4)
596 (x6)
588 (x8)
452 (x12)
510 (x10)
NA
EUR
ASIA
i i
A
A
C
D
B
B
ww
NA
Thule Sweden AB, Box 69, 330 33 Hillerstorp, SWEDEN
Thule Inc., 42 Silvermine Road, Seymour, Connecticut 06483, USA
www.thule.com
info@thule.com
customer.service@thule.com
i
i i
B
A
A
B
A
B
B
B
B
A
A
