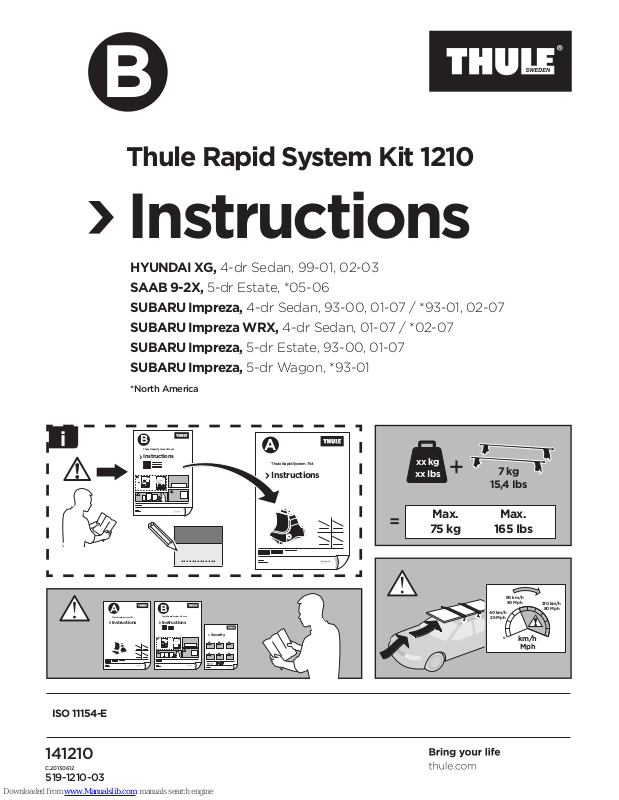

Thule 1210 Instruction Manual

ISO 11154-E

Instructions

xx kg

xx Ibs

7 kg

15,4 Ibs

km/h

Mph

0

80 km/h

50 Mph

40 km/h

25 Mph

130 km/h

80 Mph

Thule Rapid System Kit xxxx

Instructions

Thule Rapid System Kit XXXX

Instructions

Thule Rapid System 754

Instructions

Thule Rapid System 754

Instructions

.............

i

Security

Thule Rapid System 754

Instructions

A

A

Thule Rapid System Kit XXXX

Instructions

Thule Rapid System 754

Instructions

Thule Rapid System Kit xxxx

Instructions

B

B

B

Max.

165 Ibs

Max.

75 kg

Thule Rapid System Kit 1210

141210

C.20130612

519-1210-03

HYUNDAI XG, 4-dr Sedan, 99-01, 02-03
SAAB 9-2X, 5-dr Estate, *05-06
SUBARU Impreza, 4-dr Sedan, 93-00, 01-07 / *93-01, 02-07
SUBARU Impreza WRX, 4-dr Sedan, 01-07 / *02-07
SUBARU Impreza, 5-dr Estate, 93-00, 01-07
SUBARU Impreza, 5-dr Wagon, *93-01

*North America

2

Y (scale) Y (mm) Y (inch)

HYUNDAI XG, 4-dr Sedan, 99-01, 02-03 39,5 1046 41 1/

8

SAAB 9-2X, 5-dr Estate, *05-06 27,5 926 36 1/

4

SUBARU Impreza, 4-dr Sedan, 93-00/ *93-01 24 891 35 1/

8

SUBARU Impreza, 4-dr Sedan, 01-07/ *02-07 35 1001 39 3 /

8

SUBARU Impreza WRX, 4-dr Sedan, 01-07/ *02-07 28,5 936 36 7/

8

SUBARU Impreza, 5-dr Estate, 93-00 24 891 35 1/

8

SUBARU Impreza, 5-dr Estate, 01-07 30,5 956 37 5/

8

SUBARU Impreza, 5-dr Wagon, *93-01 24 891 35 1/

8

X

Y

X (scale) X (mm) X (inch)

HYUNDAI XG, 4-dr Sedan, 99-01, 02-03 40,5 1056 41 5/

8

SAAB 9-2X, 5-dr Estate, *05-06 33 981 38 5/

8

SUBARU Impreza, 4-dr Sedan, 93-00/ *93-01 29 941 37

SUBARU Impreza, 4-dr Sedan, 01-07/ *02-07 35,5 1006 39 5/

8

SUBARU Impreza WRX, 4-dr Sedan, 01-07/ *02-07 35,5 1006 39 5/

8

SUBARU Impreza, 5-dr Estate, 93-00 29 941 37

SUBARU Impreza, 5-dr Estate, 01-07 32,5 976 38 3/

8

SUBARU Impreza, 5-dr Wagon, *93-01 29 941 37

519-1210-03

x1x1

129

x4

04

x4

XXX

2

X/Y

Thule Rapid System 754

Instructions

A

Thule Rapid System Kit XXXX

Instructions

Thule Rapid System 754

Instructions

Thule Rapid System Kit xxxx

Instructions

B

1

3

2

519-1210-03

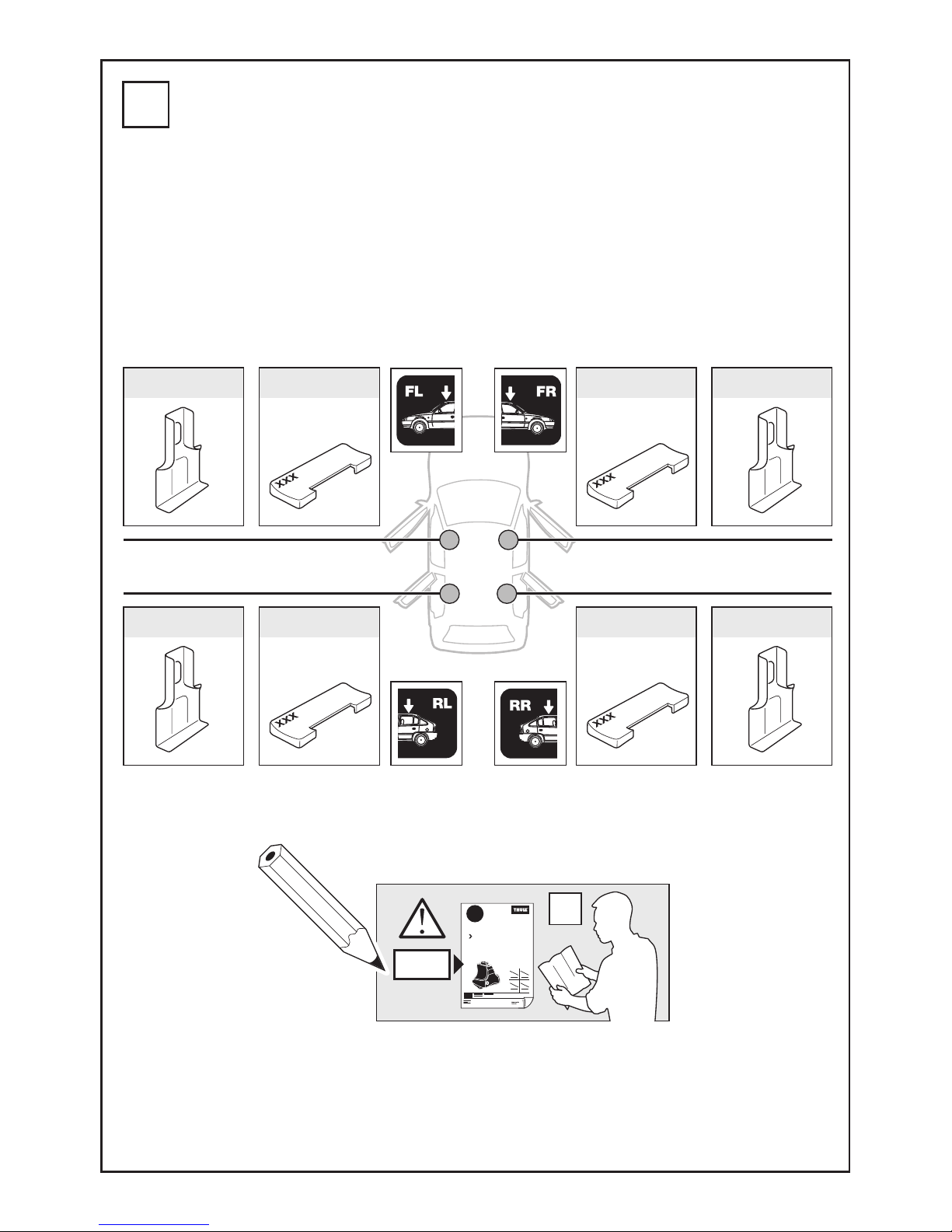

129 04 12904

129 04 12904

XXX

XXX

XXX

XXX

3

xxx

Thule Rapid System 754

Instructions

A

HYUNDAI XG, 4-dr Sedan, 99-01, 02-03
SAAB 9-2X, 5-dr Estate, *05-06
SUBARU Impreza, 4-dr Sedan, 93-00, 01-07 / *93-01, 02-07
SUBARU Impreza WRX, 4-dr Sedan, 01-07 / *02-07
SUBARU Impreza, 5-dr Estate, 93-00, 01-07
SUBARU Impreza, 5-dr Wagon, *93-01

3

ww

NA

Thule Sweden AB, Box 69, 330 33 Hillerstorp, SWEDEN
Thule Inc., 42 Silvermine Road, Seymour, Connecticut 06483, USA

www.thule.com

[e-mail]
Phone: [phone]

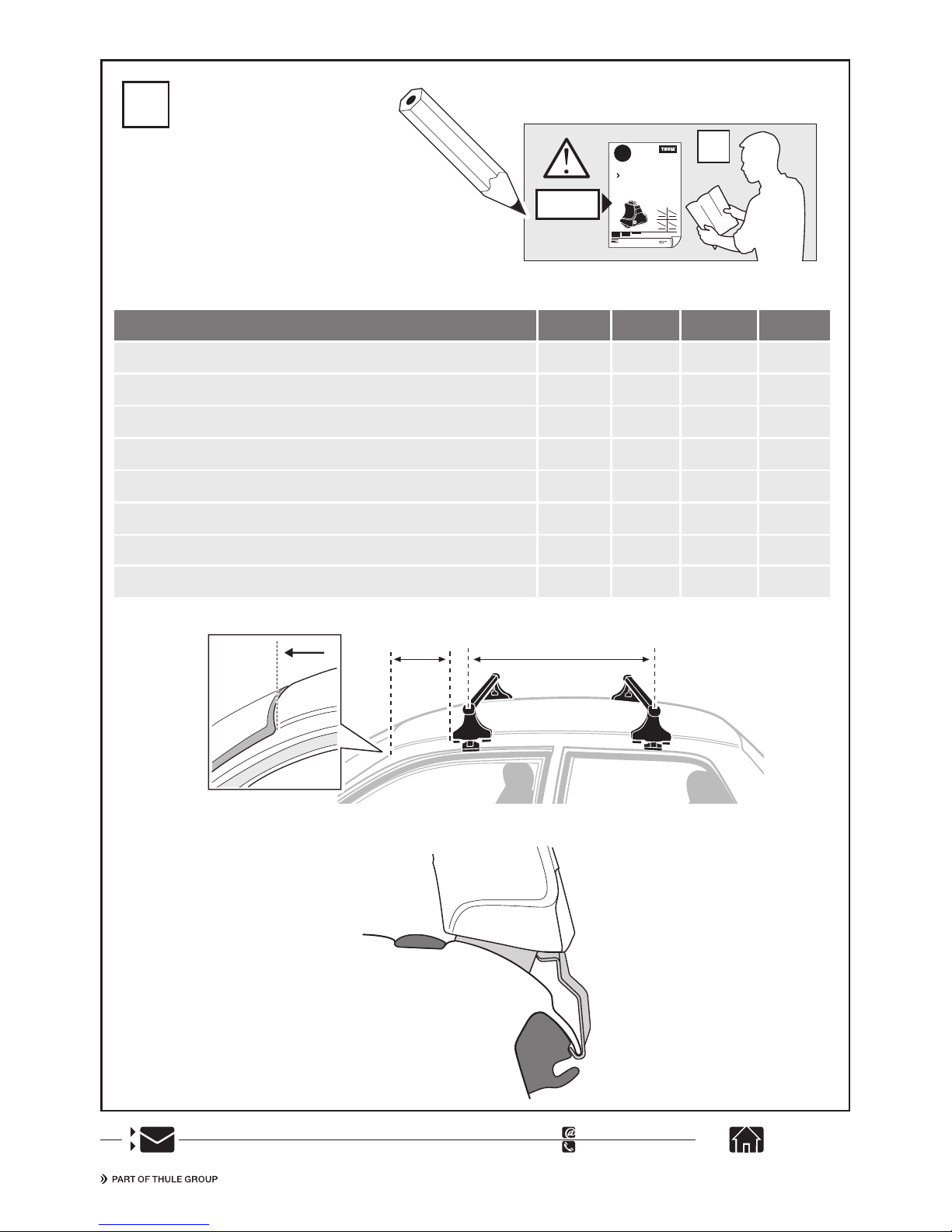

W (mm) Z (mm) W (inch) Z (inch)

HYUNDAI XG, 4-dr Sedan, 99-01, 02-03 230 650 9 25 5/

8

SAAB 9-2X, 5-dr Estate, *05-06 170 650 6 3/

4

25 5/

8

SUBARU Impreza, 4-dr Sedan, 93-00/ *93-01 140 600 5 1/

2

23 5/

8

SUBARU Impreza, 4-dr Sedan, 01-07/ *02-07 170 600 6 3/

4

23 5/

8

SUBARU Impreza WRX, 4-dr Sedan, 01-07/ *02-07 170 600 6 3/

4

23 5/

8

SUBARU Impreza, 5-dr Estate, 93-00 140 600 5 1/

2

23 5/

8

SUBARU Impreza, 5-dr Estate, 01-07 170 550 6 3/

4

21 5/

8

SUBARU Impreza, 5-dr Wagon, *93-01 140 600 5 1/

2

23 5/

8

ZW

5

W/Z

Thule Rapid System 754

Instructions

A

519-1210-03
