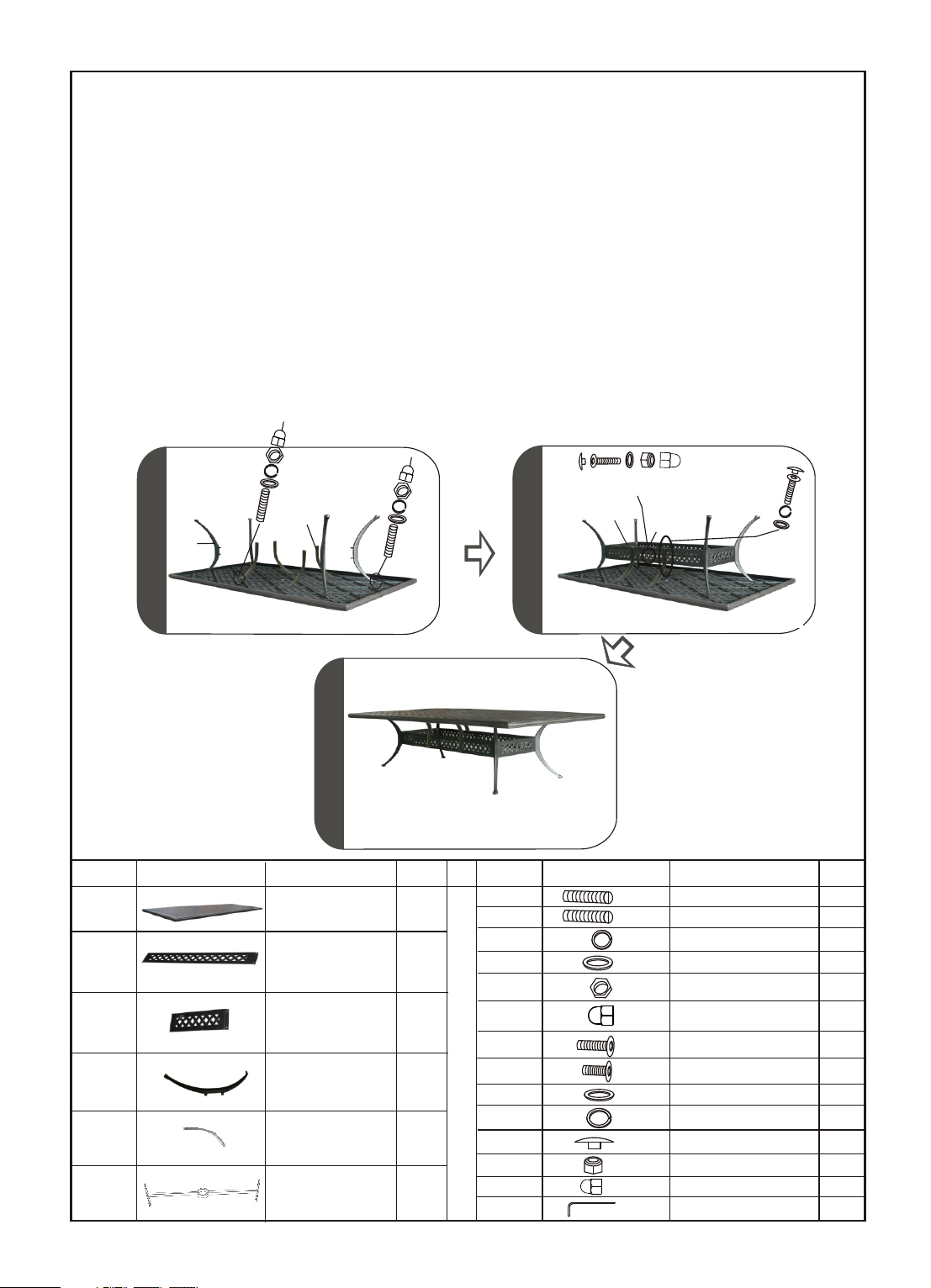

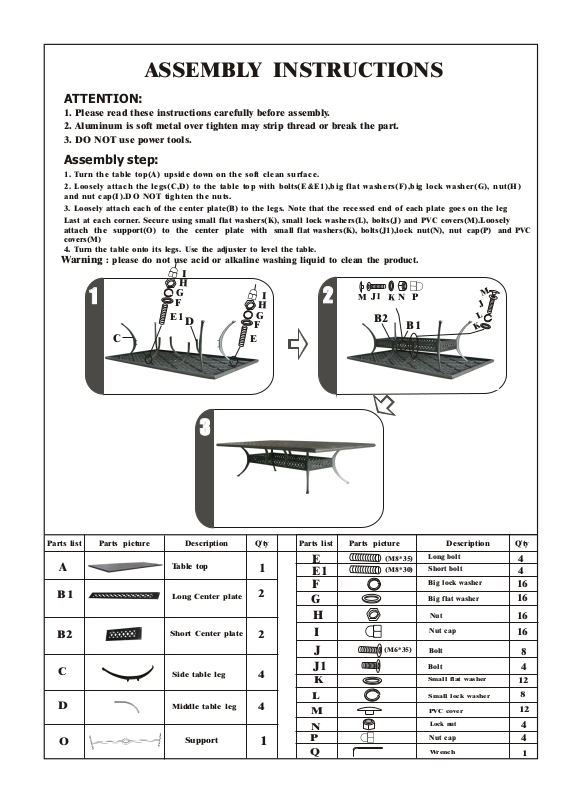

ASSEMBLY INSTRUCTIONS
ATTENTION:
1. Please read these instructions carefully before assembly.
2. Aluminum is soft metal over tighten may strip thread or break the part.
3. DO NOT use power tools.
Assembly step:
1. Turn the table top (A) upside down on the soft clean s urfa ce.
2. Loose ly atta ch the le gs( C,D ) to the ta ble top with bolts(E &E1),b ig flat wash ers (F ),b ig lock wash er( G), nut(H )
and nut cap(I ).D O NOT tig hte n th e nuts.
3. Loosely attach each of the center plate(B) to the legs. Note that the recessed end of each plate goes on the leg
Last at each corner. Secure using small flat washers(K), small lock washers(L), bolts(J) and PVC covers(M).Loosely
attach the support(O) to the center plate with small flat washers(K), bolts(J1),lock nut(N), nut cap(P) and PVC
covers(M)
4. Turn the table onto its legs. Use the adjuster to level the table.
Warning : please do not use acid or alkaline washing liquid to clean the product.
I
H
E1
G
F
D
11
C
I
H
22
G
F
M
J1
B2
K
P
N
B1
E
M
J
L
K
Parts list
A
B1
B2
C
D
O
Parts picture
33
Description
Table top
Long Center plate
Short Center plate
Side table leg
Middle table leg
Support
Q'ty
1
2
2
4
4
1
Parts list Parts picture Description
E
E1
F
G
H
I
J
J1
K
L
M
N
P
Q
(M8*35)
(M8*30)
(M6*35)
Long bolt
Short bolt
Big lock washer
Big flat washer
Nut
Nut cap
Bolt
Bolt
Small flat washer
Small lock washer
PVC cover
Lock nut
Nut cap
Wrench
Q'ty
4
4
16
16
16
16
8
4
12
8
12
4
4
1
