Page 1

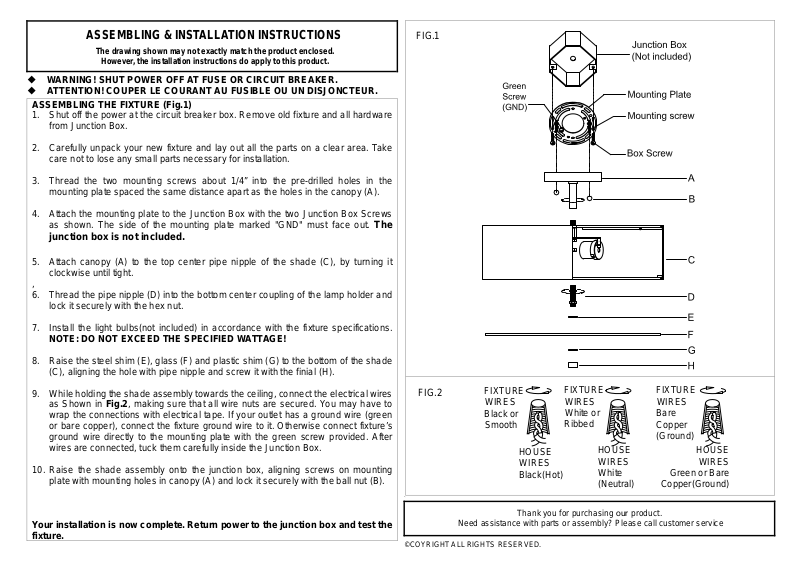

ASSEMBLING & INSTALLATION INSTRUCTIONS
The drawing shown may not exactly match the product enclosed.
However, the installation instructions do apply to this product.
WARNING! SHUT POWER OFF AT FUSE OR CIRCUIT BREAKER.
ATTENTION! COUPER LE COURANT AU FUSIBLE OU UN DISJ ON CTEUR.
ASSEMBLING THE FIXTURE (Fig.1)
1. Shut off the power at the circuit breaker box. Remove old fixture and all hardware
2. Carefully unpack your new fixture and lay out all the parts on a clear area. Take
3. Thread the two mounting screws about 1/4” into the pre-drilled holes in the
4. Attach the mounting plate to the Junction Box with the two Junction Box Screws
5. Attach canopy (A) to the top center pipe nipple of the shade (C), by turning it
,
6. Thread the pipe nipple (D) into the bottom center coupling of the lamp holder and
7. Install the light bulbs(not included) in accordance with the fixture specifications.
8. Raise the steel shim (E), glass (F) and plastic shim (G) to the bottom of the shade
9. While holding the shade assembly towards the ceiling, connect the electrical wires
10. Raise the shade assembly onto the junction box, aligning screws on mounting
Your installation is now complete. Return power to the junction box and test the
fixture.
from Junction Box.
care not to lose any small parts necessary for installation.
mounting plate spaced the same distance ap art as the holes in the canopy (A).
as shown. The side of the mounting plate marked "GND" must face out.
junction box is not included.
The
clockwise until tight.
lock it securely with the hex nut.
NOTE: DO NOT EXCEED THE SPECIFIED WATTAGE!
(C), aligning the hole with pipe nipple and screw it with the finial (H).
as Shown in Fig.2, making sure that all wire nuts are secured. You may have to
wrap the connections with electrical tape. If your outlet has a ground wire (green
or bare copper), connect the fixture ground wire to it. Otherwise connect fixture’s
ground wire directly to the mounting plate with the green screw provided. After
wires are connected, tuck them carefully inside the Junction Box.
plate with mounting holes in canopy (A) and lock it securely with the ball nut (B).
FIG.1
FIG.2
FIXTURE
WIRES
Black or
Smooth
HOUSE
WIRES
Black(Hot)
FIXTURE
WIRES
White or
Ribbed
HOUSE
WIRES
White
(Neutral)
`
Thank you for purchasing our product.
Need assistance with parts or assembly? Please call customer service
©COYRIGHT ALL RIGHTS RESERVED.
FIXTURE
WIRES
Bare
Copper
(Ground)
HOUSE
WIRES
Green or Bare
Copper(Ground)
