Thrane&Thrane FBB_Ip Quick Manual

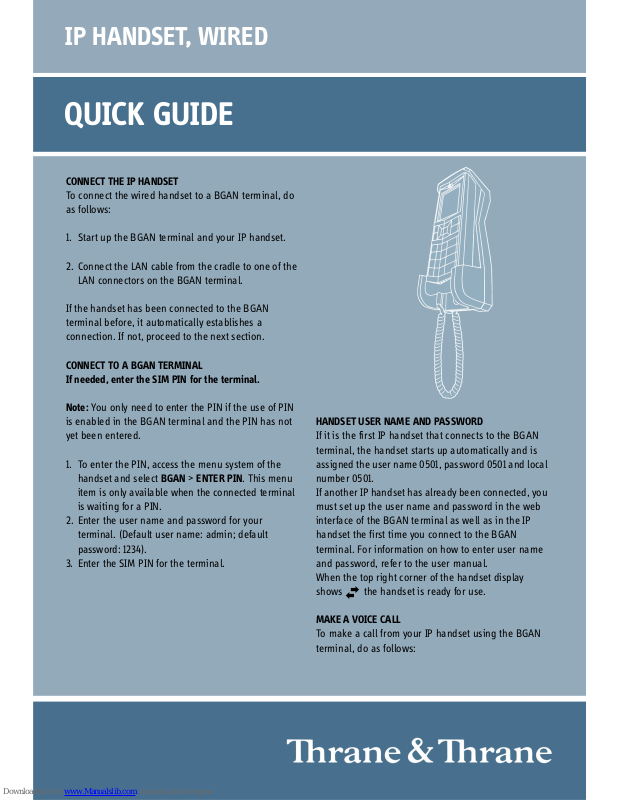

QUICK GUIDE

IP HANDSET, WIRED

CONNECT THE IP HANDSET

To connect the wired handset to a BGAN terminal, do
as follows:

1. Start up the BGAN terminal and your IP handset.

2. Connect the LAN cable from the cradle to one of the
LAN connectors on the BGAN terminal.

If the handset has been connected to the BGAN
terminal before, it automatically establishes a
connection. If not, proceed to the next section.

CONNECT TO A BGAN TERMINAL
If needed, enter the SIM PIN for the terminal.

Note: You only need to enter the PIN if the use of PIN

is enabled in the BGAN terminal and the PIN has not
yet been entered.

1. To enter the PIN, access the menu system of the
handset and select BGAN > ENTER PIN. This menu
item is only available when the connected terminal
is waiting for a PIN.

2. Enter the user name and password for your
terminal. (Default user name: admin; default
password: 1234).

3. Enter the SIM PIN for the terminal.

HANDSET USER NAME AND PASSWORD

If it is the first IP handset that connects to the BGAN
terminal, the handset starts up automatically and is
assigned the user name 0501, password 0501 and local
number 0501.
If another IP handset has already been connected, you
must set up the user name and password in the web
interface of the BGAN terminal as well as in the IP
handset the first time you connect to the BGAN
terminal. For information on how to enter user name
and password, refer to the user manual.
When the top right corner of the handset display
shows the handset is ready for use.

MAKE A VOICE CALL

To make a call from your IP handset using the BGAN
terminal, do as follows:

Y

Z

BGAN

Regi ster ed

Profile 2

Not in use

Profile 3

Not in use

Missed c alls
Rec eived c alls
Dialled numbers

Manage

Main menu

Phone identific ation
Network information
Software version

Sound

Stealth
Call servic es
Cradle
Display
Web server
Date and time
Language
Factory default

Settings

Noise cancellation
Automatic secure

Use BGAN t ime
Time
Date
Format (12 /24h)
Time zone

Active backlight (%)

Standby backlight (%)
Screensaver
Transparency
Automatic day/night

Ringing tone
Tones volum e
Keypad click

Suppress audio
Suppress bac klight
Use stealth

Automatic IP ( DHCP)

GPS position
Status
CNo (signal strength)
PIN s tat us

Answer when lifted

Term inal ty pe
Term inal SW v ersion

User Group

Gr oup nam e

Profile A

Active

Profile B

Inactiv e

Main Options

Call log
Contacts
Status
Network
Settings
SIP
BGAN

Connect (0501 only)
Stat us
Properties
Enter PI N code *
Active alarms **

Hold/Switch *

Transfer *
Handsfree *
Microphone mute *
Lock keypad
Stealth mode
Night colours
Go secure

* for active calls

* if needed / ** if any

98-127468-C

DISPLAY

MENUS

•Dial 00 <country code> <phone number> .
Example: Thrane & Thrane A/S in Denmark: 00 45

39558800 .

MAKE A LOCAL CALL

To make local calls between phones connected to the
same terminal, do as follows:

• For a local call to an IP handset, dial the number of
the IP handset (e.g. 0501) followed by # or .

• For a local call to an ISDN phone, dial 0401 or 0402
followed by # or .

• For a local call to an analog phone, dial 0301 or

0302 followed by # or .

TRANSFER A CALL

To transfer a call to a phone connected to the same
terminal, do as follows:

1. After taking the call, press Options.

2. Select Transfer.

3. Enter the number or select it from the contact list.

4. Press Transfer.

START OR STOP A DATA CONNECTION (0501 ONLY)

To start a background data or streaming connection,
do as follows:

1. From the Main menu select BGAN.

2. Select Connect.

3. Select the User group and the Profile.

4. Press Start to activate or Stop deactivate the

connection.

ACCESS THE WEB INTERFACE

To access the built-in web interface of the handset, do
as follows:

1. Connect a computer to one of the LAN interfaces in
the BGAN terminal.

2. On the computer, start up your browser and enter
the IP address of the handset. You find the IP
address in the handset menus under Status >
Network information.

The web interface of the handset opens and you can
access the internal settings of the handset.
