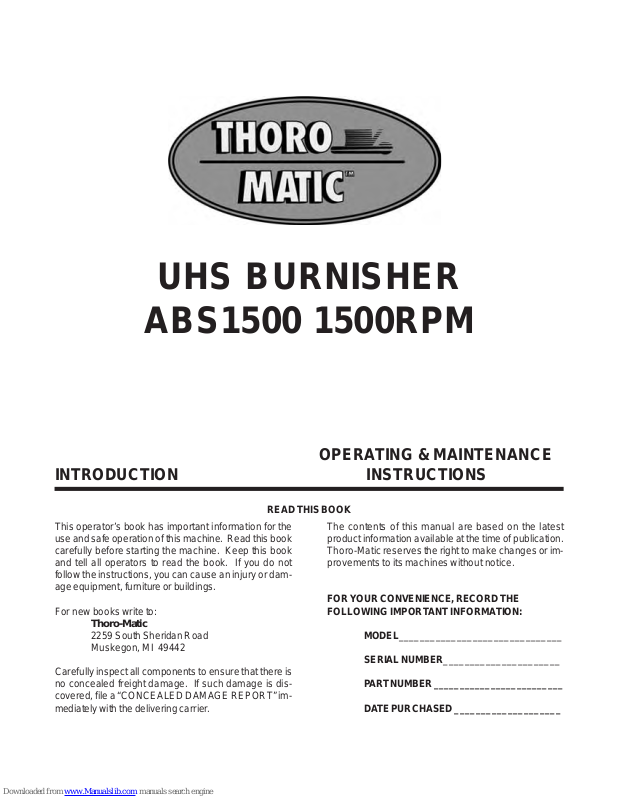

UHS BURNISHER
ABS1500 1500RPM
OPERATING & MAINTENANCE
INTRODUCTION INSTRUCTIONS
READ THIS BOOK
This operator’s book has important information for the
use and safe operation of this machine. Read this book
carefully before starting the machine. Keep this book
and tell all operators to read the book. If you do not
follow the instructions, you can cause an injury or damage equipment, furniture or buildings.
For new books write to:
Thoro-Matic
2259 South Sheridan Road
Muskegon, MI 49442
Carefully inspect all components to ensure that there is
no concealed freight damage. If such damage is discovered, file a “CONCEALED DAMAGE REPORT” immediately with the delivering carrier.
The contents of this manual are based on the latest
product information available at the time of publication.
Thoro-Matic reserves the right to make changes or improvements to its machines without notice.
FOR YOUR CONVENIENCE, RECORD THE
FOLLOWING IMPORT ANT INFORMA TION:
MODEL_______________________________
SERIAL NUMBER______________________
P ART NUMBER _________________________
DA TE PURCHASED ____________________
Page 2
IMPORT ANT SAFETY INSTRUCTIONS
T o assure the safe operation of this machine, you must read and understand all warnings and instructions in this book.
If you do not understand, ask your supervisor.
READ ALL INSTRUCTIONS BEFORE USING THIS MACHINE
WARNING
: To reduce the risk of fire, electric shock, or injury:
1. Y ou must be trained to operate this machine. This machine is to be operated for its intended use only.
2. Do not operate this machine unless it is completely assembled.
3. Always use a three-wire electrical system connected to the electrical ground. For maximum protection against
electrical shock, use a circuit that is protected by a ground fault circuit interrupter. Consult your electrical contractor.
4. T o prevent electric shock, always remove the electrical plug from the electrical outlet before doing any rep airs or
maintenance and when leaving the machine unattended.
5. T o prevent electric shock, keep the machine surface dry . Do not subject to rain. S tore the machine in a dry building
area. Clean the machine with a dry cloth only .
6. Machines can cause an explosion when near flammable materials and vapors. Do not use this machine with or
near fuels, grain dust, solvents, thinners, or other flammable materials. Do not use flammables to clean this
machine.
7. A qualified or authorized person must do maintenance and repairs.
8. T o prevent damage to the power cord, do not move this machine over the power cord. Always lift the power cord over
the machine. Do not pull or carry cord, use cord as a handle, close a door on cord, or pull cord around sharp edges
or corners. Keep cord away from heated surfaces.
9. Do not use with damaged cord or plug. If the machine is not working as it should, has been dropped, damaged, left
outdoors, or dropped into water , return it to a service center.
Grounding Instructions
This machine must be grounded. If it should malfunction or break
down, grounding provides a path of least resistance for electric
current to reduce the risk of electric shock. This machine is equipped
with a cord having an equipment-grounding conductor and grounding plug. The plug must be inserted into an appropriate outlet that
is properly installed and grounded in accordance with all local
codes and ordinances.
WARNING - Improper connection of the equipment-grounding conductor can result in a risk of electric shock. Check with a qualified
electrician or service person if you are in doubt as to whether the
outlet is properly grounded. Do not modify the plug provided with
the machine - if it will not fit the outlet, have a proper outlet installed
by a qualified electrician.
This machine is for use on a nominal 120-volt circuit, and has a
grounded plug that looks like the plug illustrated in figure A. A
temporary adapter that looks like the adapter illustrated in figures B
and C may be used to connect this plug to a 2-pole receptacle as
shown in figure B if a properly grounded outlet is not available.
The temporary adapter should be used only until a properly
grounded outlet (figure A) can be installed by a qualified electrician. The green colored rigid ear, lug, or the like extending from the
adapter must be connected to a permanent ground such as a
properly grounded outlet box cover. Whenever the adapter is
used, it must be held in place by a metal screw.
NOTE: In Canada, the use of a temporary adapter is not permitted
by the Canadian Electrical Code
EXTENSION CORDS
Use only three-wire 12/3 or larger gauge approved extension
cords that have three-prong grounding type plugs and three-pole
receptacles that accept the appliance’s plug. Replace or repair
any damaged cords or plugs.
When servicing, refer to authorized person only. Use only identical replacement parts.
NOTE: Do not use adapters shown in figures B & C in Canada
2
Page 3
OPERA TING PROCEDURES
WARNING! For the safe operation of this machine
follow the instructions given in this booklet and
the training given by your supervisor. Failure to
do so can result in personal injury and/or damage
to machine and property!
DO NOT OPERA TE MACHINE IN AN EXPLOSIVE ENVIRONMENT!
The models shown in this manual are intended for commercial use.
PREPARATION
T o prepare the machine for operation, make sure it is of
correct voltage and properly assembled. If in doubt,
ask your supervisor.
Y our new floor machine operates in a straight-line forward motion, rather than the normal side to side motion
of a conventional single disc machine. Be prepared by
having your floor area cleared and ready for the fast
action of a burnisher.
Prepare the floor area by sweeping, dusting or mopping
as needed. Check the proper application recommendations and procedures found on the label of your finish
container . IF IN DOUBT , CALL YOUR SUPERVISOR .
WARNING! NEVER USE THIS MACHINE WITH FLAMMABLE OR EXPLOSIVE MA TERIAL!
For Burnishing: Select the correct clean floor pad
(your supplier can help you). The lighter color floor pads
(buff or white) are normally used for the burnishing procedure.
NEVER OPERATE THE MACHINE WITHOUT THE
FLOOR P AD INSTALLED!
It is very important to select clean, dry pads of uniform
thickness. Pads with high or low sections, or hard or
soft spots are unacceptable. Pads of open weave are
recommended; because close weaves tend to load up
fast, bog down the machines, cause circuits to overload and generally give poor results.
Unplug the machine from the wall outlet and then tip the
machine back to expose the pad driver. Remove the
pad center lock ring. Carefully center the pad onto the
pad driver and secure with the locking ring. Check for
level, centering and flatness.
OPERATION
Set the machine upright onto the pad. Plug the
machine’s power cable into a properly grounded outlet
(see Safety Instructions). Next, release the handle by
unlocking the knob and allow the handle to lower into a
comfortable position. THEN ALWAYS SECURE THE
HANDLE LOCKING KNOB. This will allow the operator
to easily control the pad pressure.
Depress the handle slightly to elevate the pad from the
floor. This is to avoid burning the floor on initial start up,
before the operator is ready to move forward. Pull out
on the “Watch Dog” Safety Lock button and start the
machine by depressing either the left or right switch
levers.
When you’re ready to move forward, lower the machine
head and pad to the floor and proceed forward in a straight
line, at a steady pace.
MAINTENANCE
AFTER EACH USE: Store the machine in a clean dry
area. Wipe the entire machine and cord down with a
clean cloth. Remove the pad and clean thoroughly . Wrap
the machine’s electrical cord onto the handles and the
cord hook provided. CHECK the cord and plug for nicks,
cuts or damage. Report these to your supervisor for
correction.
WARNING! Always disconnect the machine’s electrical plug from the electrical outlet before performing any service, maintenance, pad changing
or inspection of the machine.
MOTOR: The motor is lubricated for life under normal
use. No oiling or greasing is necessary . However, if the
machine is used in dusty areas the motor should be
cleaned. Blowing the motor out with compressed air or
with the exhaust from a vacuum is suggested. Keeping
the motor clean will allow the clear passage of air for
ventilation and prevent overheating.
BELT TENSION: Proper belt tension is important for
smooth operation and belt life. Check the belt tension
and have no more than a 1/8-inch deflection. If adjustment is needed, loosen the four (4) motor mounting
bolts. Then move the motor and retighten the four (4)
motor mounting bolts.
CARBON BRUSH INSPECTION: Long life 3000-hour
carbon brushes are installed in the motor . The machine
is also equipped with a carbon brush wear indicator light
to signal when a carbon brush change is required.
3
Page 4
ABS1500 1500RPM BURNISHER
515904 - Pad Assembly, Flex Drive
4
Page 5
ABS1500 1500RPM BURNISHER
P ARTS LISTS
ITEM PART NO. DESCRIPT ION QTY. ITEM PART NO. DESCRIPT ION QTY.
1 W323D Screw, 6-32x1 Pan Hd. 2 50 502319 Cover-Bearing, Plastic 1
2 980016 Washer, #6 Ext. Tooth 2 51 502481 Collar, Upper Shaft 1
3 500801 Bracket, Switch Mounting 1 52 507780 Drive Shaft 1
4 911135 Switch 1 53 920002 Nut, 3/8-16 Hex 4
5 508301 Spring 1 54 980009 Washer, 3/8 Lock 4
6 507001 Plunger 1 55 501380 Block, Bearing 2
7 500802 Bracket, Switch 1 56 962026 Screw, 8-32 x 1/2 Type F 3
8 962002 Screw, 10-32 x 1/2 Oval Hd. 2 57 487202 Retainer, Axle 1
9 504810 Interlock Asm.-Switch 1 58 505181 Light,Brush Wear Indicator,115V 1
10 962011 Screw, 10-32 x 3/4 Oval Hd. 2 505182 Light,Brush Wear Indicator,230V
11 486404C Switch Cover Pla te 1 59 502396 Cover, Moto r DC IMP 1
12 509821 Washer, Rubber 2 60 962036 Screw, 1/4-20 x 1 FHP 6
13 920005 Nut, 3/8-24 Hex 1 61 see page 7 Motor, 1.5 HP 115V DC 1
14 508020 Switch Assembly (or 505003) 1 62 509780 Wheel, 1/2 x 4" Grey 2
15 505121 Lever, Switch Left 1 63 507781 Wheel Axle 2
16 505120 Lever, Switch Right 1 64 980005 Washer, Wave 8
17 920001 Nut, 10-32 Elastic Stop 1 65 509820 Washer, Fiber 12
18 509830 Washer, Handle Tube 1 66 507320 Snap Ring 1/2 Shaft 4
19 503320 Flange, Strain Relief 1 67 509781 Wheel, 1/2 x 5" Grey 2
20 505720 Handle Nipple 2 68 508080 Bumper Strap 1
21 481304C Switch Housing,w/o Circuit Brkr. 1 69 962161 Screw, #10x3/4 PHP 2
22 515150 Warning Label 1 70 501286 Bumper, Base 1
23 501210 Bumper, Handle 1 71 962162 Screw, #10x1/2 FHP 3
24 962003 Screw, 10-32 x 3/4 Pan Hd. 1 72 502110 Bumper Clip 3
25 962006 Screw, 1/4-20 x 1/2 Pan Hd. 7 73 483214 Base 1
26 503711 Handle Grip, Grey 2 74 962018 Screw, 3/8-16 x 1-3/4 HH 4
501501 Cap, Protective End (Blue) 2 75 915001 Key 1
27 980015 Washer, #10 Shakeproof 2 76 980003 Washer, 3/8 Flat 9
28 508520 Strain Relief-Complete 1 77 980009 Washer, 3/8 Lock 4
502020 Strain Relief-Brass Clamp 1 78 962048 Screw, 3/8-16 x 1-1/4 HH 4
29 962015 Screw, 10-32 x 3/8 Pan Hd. 2 79 962016 Set Screw, 10-32 x 3/8 1
30 507481 Rod, Brace 1 80 506980 Pulley, Motor 1
31 980007 Washer, 5/16 Flat 2 81 903005 Belt 1
32 509082 Handle Tube 1 82 506994 Pulley, Pad Driver 1
33 507310 Snap Ring 1 83 510202 Adaptor, Flex Drive 1
34 502422 Cord Asm.Yellow 1 84 515901 Pad - Flex Drive 1
35 502021 Clamp-Handle 1 85 515001 Kit-T-Nut & Screws (8 ea/pkg) 1
36 500880 Arm, Handle Support 2 86 503382 Flange, Flex Pad Driv er 1
37 962009 Bolt, Carriage 5/16-18 x 2-1/2 1 87 980006 Washer, 5/16 Lock 1
39 505010 Turn Knob 1 88 962014 Bolt, 5/16-18 x 3/4 Allen 1
41 908004 Handle Cord 1 89 504471 Pad Holder Asm. 1
42 509920C Yoke, Handle 1 90 962076 Screw #8 x 5/8 PHP Wood 3
43 962005 Screw, 1/4-20 x 3/8 Allen 1 91 486602 Plate, Stiffener 1
44 504702 Insulator, Switch 1
45 504420 Cord Hook 1
46 980018 Washer, #10 Countersunk 1 485106 Handle Warning 1
47 507480 Shaft, Handle Y oke 1 506318 Interlock 1
48 962073 Screw, 1/4-20x5/8 Set 2 506340 Brush Indicator 1
49 962161 Screw, #10x3/4 PHP 3 515150 Warning 1
Labels Not Shown:
5
Page 6
505286 MOTOR P ARTS LIST
ITEM PART NO. DESCRIPTION QTY.
505286 Motor 115V, 1.5HP 1
A 502919 End Bell - Motor LOWER 1
B 500417 Armature Asm.w/Bearings,115V 1
902012 Bearing, Mo tor Lower 1
C 503117 Field & Shell Assembly 1
D 902003 Bearing, Motor Top 1
E 500903 Carbon Brush, Motor 115V 4
F 507322 Brush Ring Asm. Complete 1
G 502920 End Bell - Motor TOP 1
I 960018 Bolt, Motor Thru 4
J 911048 Rectifier, 115V 50/60C 1
K 908024 Cord Assembly, Motor 1

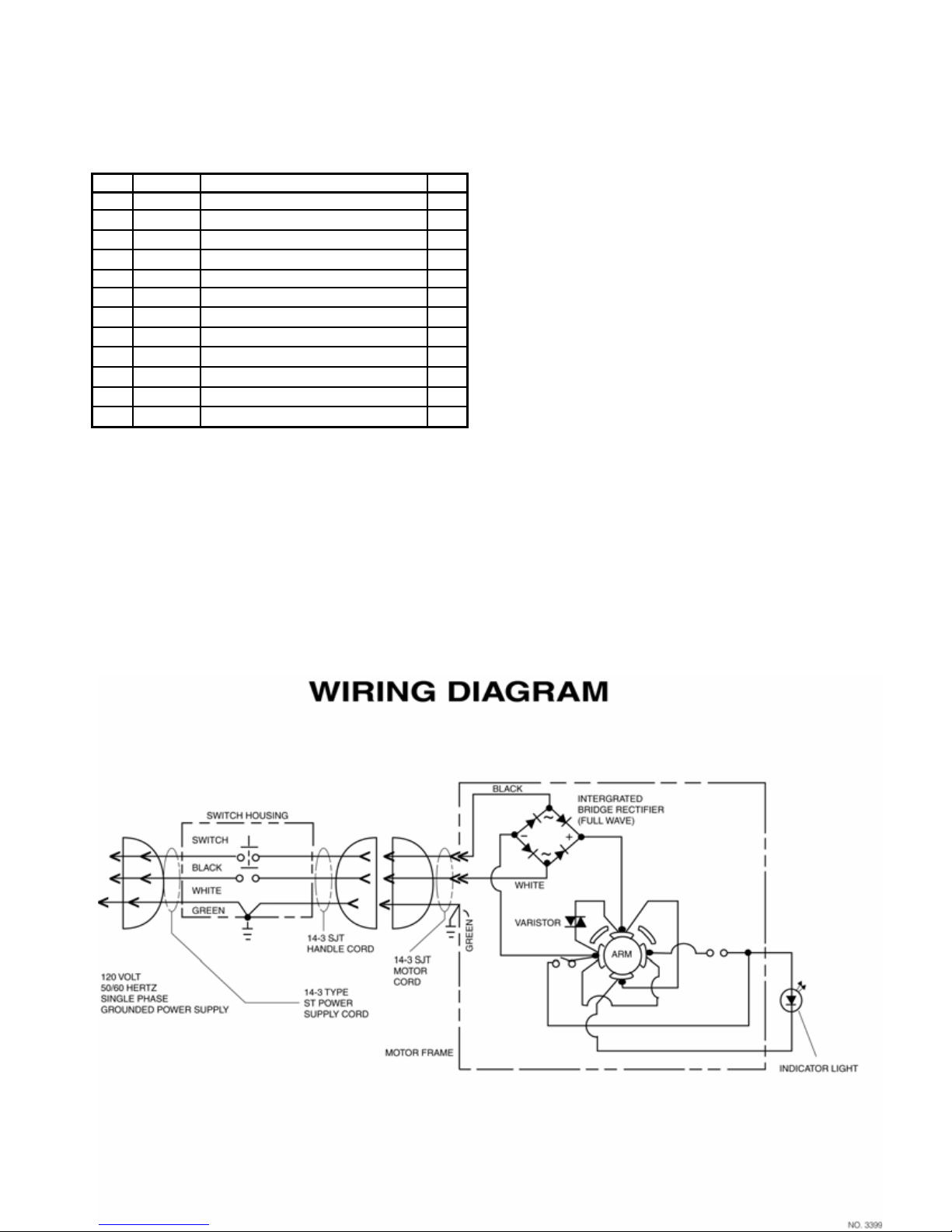

WIRING DIAGRAM
6
Page 7
NOTES
7
Page 8
WARRANTY POLICY
LIMITED WARRANTY
The Thoro-Matic ABS1500 Burnisher has been manufactured, tested and inspected in accordance with specific engineering requirements and is WARRANTED to be free from defects in workmanship and materials as follows:
Eighteen (18) months parts, One (1) year labor - DC Motors (except motor switches, rectifiers, carbon brushes and
varsitors)
One (1) year parts and labor – All other components unless excluded below .
This warranty extends to the original user/purchaser and only when used, operated and maintained in accordance with
Thoro-Matic Operating and Maintenance instructions.
This warranty does not apply to the following wear parts and accessories of the machine including:
Part Number
502422
509780
509781
50371 1
501286
903005
500903
Part Name
Cord Assembly
Wheel, 4”
Wheel, 5”
Handle Grip, Grey
Bumper Base
Belt
Carbon Brush, 1 15V Motor
Nor does it apply to damage or failure caused by improper use, abuse or neglect. Warranty credit or replacement of
return parts including motors, etc., is subject to incoming inspection of those items.
T o secure repair under this warranty , the following procedure should be t aken:
· The inoperative machine or warranted parts must be delivered to the authorized service center with shipping and
delivery charges prepaid. If unable to locate a service center , you may contact Thoro-Matic at the address listed
herein for the location of the nearest repair center or agent or for other instructions pertaining to your warranty
difficulty.
· Upon compliance with the above warranty procedure, all warranted repairs would be completed at no additional
charge or cost to the user.
· Only Thoro-Matic or its authorized dealers and agents may make no charge warranty repairs on this product. All
others do so at their own risk.
This warranty limits Thoro-Matic
include incidental or consequential damages arising from the use of a Thoro-Matic machine whether defective or not.
This warranty is in lieu of all other expressed or implied warranties and is extended to the original purchaser/user.
liability to the repair of the product and/or warranted parts replacement and does not
2259 South Sheridan Road Muskegon, MI 49442
800-968-1332 • Fax 800-863-9536
Loading...
